1 |

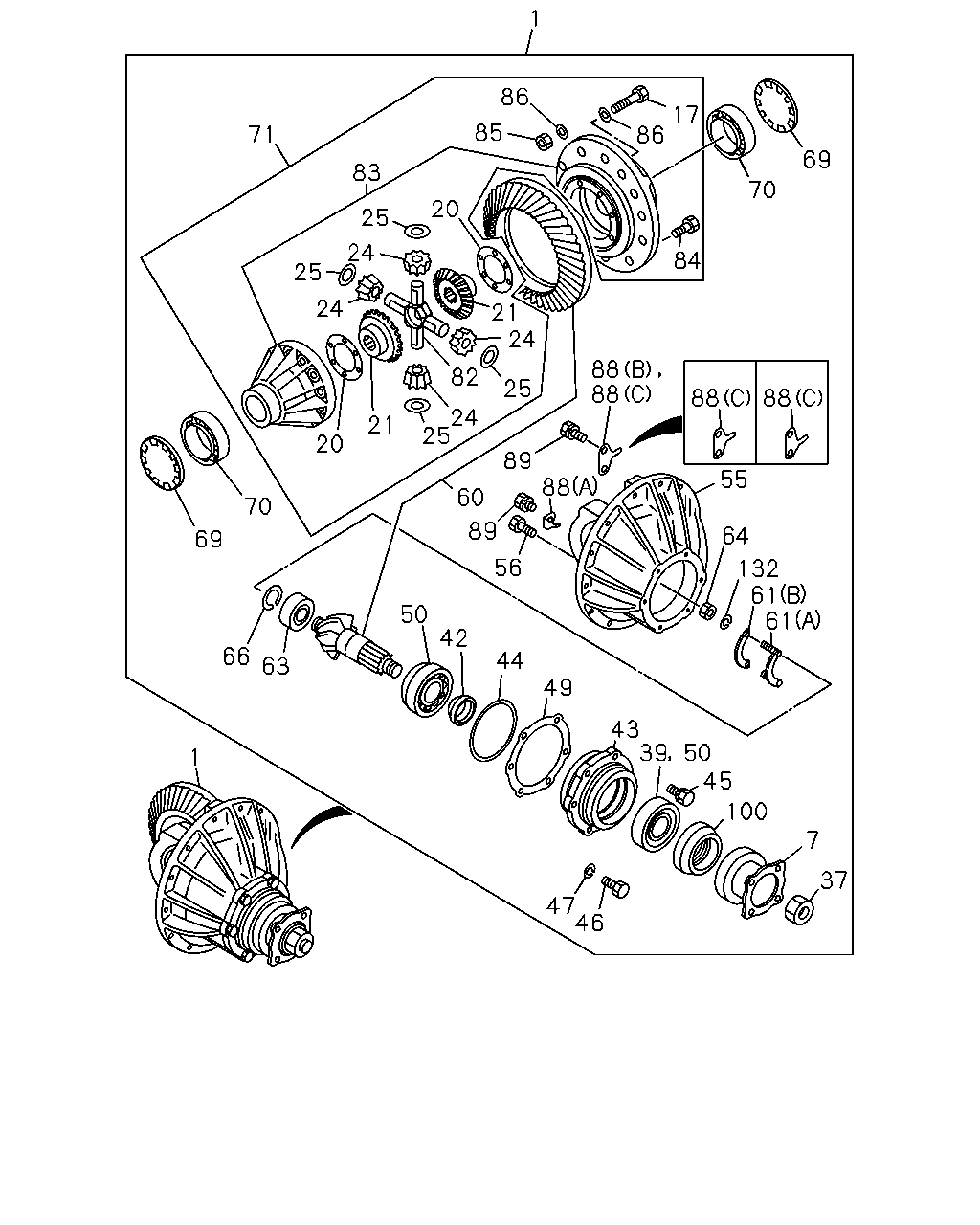

05.505 DRIVE ASM; FINAL,RR
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
41/7
|
8-94338-901-1 |
01 |
1 |
9512- |
● |
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BE1 ENG(RLH)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-426-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-426-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-426-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-427-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-427-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-427-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-415-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-415-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
EXC. DISC BRAKE FRT<J52>
39/7
|
8-97035-415-0 |
01 |
1 |
9511-9606 |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
39/7
|
8-97035-415-0 |
01 |
1 |
9607-9612 |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-415-0 |
01 |
1 |
9701-9711 |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-415-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-416-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-416-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-416-0 |
01 |
1 |
9511-9704 |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-416-0 |
01 |
1 |
9705-9711 |
● |
● |
● |
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-416-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-417-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-417-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-417-0 |
01 |
1 |
9511-9704 |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-417-0 |
01 |
1 |
9705-9711 |
● |
● |
● |
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-417-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97094-682-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97094-682-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97094-682-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97094-684-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97094-684-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97094-684-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
DISC BRAKE FRT<J52>
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
41/9
|
8-97035-411-0 |
01 |
1 |
9609- |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JG2 ENG(RJC)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97071-731-0 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JG2 ENG(RJC)
FINAL GEAR RATIO 39/7(GV1)
DISC BRAKE FRT<J52>
REAR AXLE HEAVY DUTY 292MM(G73)
BRK WHL LK CONT LSPV<6PH>
39/7
|
8-97071-731-0 |
01 |
1 |
9507- |
● |
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JG2 ENG(RJC)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-94338-902-2 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JG2 ENG(RJC)
FINAL GEAR RATIO 43/7(R42)
REAR AXLE HEAVY DUTY 292MM(G73)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
43/7
|
8-94338-902-2 |
01 |
1 |
9507- |
● |
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-421-0 |
01 |
1 |
9312-9509 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97092-935-0 |
01 |
1 |
9312-9510 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97092-935-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97092-935-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97092-936-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97134-575-0 |
01 |
1 |
9712-9801 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 8.0-8.5TON(RPZ)
39/7
|
8-97134-575-0 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97134-575-0 |
01 |
1 |
9802-9803 |
|
● |
● |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97134-575-0 |
01 |
1 |
9804- |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HE1 ENG(RLY)
FLOOR REMOTE SHIFT<M11>
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97134-575-0 |
01 |
1 |
9804- |
|
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97174-098-0 |
01 |
1 |
9712-9712 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
G.V.W. 8.0-8.5TON(RPZ)
41/8
|
8-97174-098-0 |
01 |
1 |
9712-9712 |
|
|
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97203-879-0 |
01 |
1 |
9801-9801 |
|
● |
● |
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97203-879-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97094-679-0 |
01 |
1 |
9712-9801 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/10(S7C)
G.V.W. 7.5-8.0TON(RPY)
43/10
|
8-97094-679-0 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97094-679-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97094-681-0 |
01 |
1 |
9712-9801 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
43/9
|
8-97094-681-0 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97094-681-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97094-685-0 |
01 |
1 |
9312-9510 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97092-938-0 |
01 |
1 |
9502-9510 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97092-938-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97092-938-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97092-938-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD2 ENG(RLW)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97092-936-0 |
01 |
1 |
9506-9511 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-421-0 |
01 |
1 |
9512-9608 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-421-0 |
01 |
1 |
9609-9711 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-421-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
41/9
|
8-97035-421-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-421-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97094-685-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97094-685-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
41/6
|
8-97094-685-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97094-685-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD2 ENG(RLW)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97074-252-0 |
01 |
1 |
9312-9504 |
|
|
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD2 ENG(RLW)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97074-252-0 |
01 |
1 |
9505-9510 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
41/10
|
8-97074-252-0 |
01 |
1 |
9511-9704 |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
41/10
|
8-97074-252-0 |
01 |
1 |
9705-9711 |
● |
● |
● |
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97074-252-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
41/10
|
8-97074-252-0 |
01 |
1 |
9712- |
|
|
|
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HE1 ENG(RLY)
A/T 4 SPEED-AISIN(RNJ)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97121-902-0 |
01 |
1 |
9804- |
|
|
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4BE1 ENG(RLH),4BD2 ENG(RLW)
|
8-94477-723-3 |
01 |
1 |
9312-9505 |
● |
● |
● |
● |
● |
● |
| |
7 |
05.545 FLANGE; FINAL
4BD1 ENG(LJ6),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-3 |
01 |
1 |
9312-9505 |
● |
● |
● |
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-3 |
01 |
1 |
9506-9606 |
● |
● |
● |
|
|
● |
| |
7 |
05.545 FLANGE; FINAL
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-3 |
01 |
1 |
9607-9711 |
● |
● |
● |
|
|
● |
| |
7 |
05.545 FLANGE; FINAL
4BE1 ENG(RLH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42)
|
8-94477-723-3 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94477-723-3 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-94477-723-3 |
01 |
1 |
9712- |
|
|
|
|
|
● |
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97073-802-1 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
|
8-97073-802-1 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
|
8-97073-802-1 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-97073-802-1 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97073-802-1 |
01 |
1 |
9712-9801 |
|
● |
● |
|
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-97073-802-1 |
01 |
1 |
9712-9801 |
|
|
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97073-802-1 |
01 |
1 |
9802-9803 |
|
● |
● |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
|
8-97073-802-1 |
01 |
1 |
9804- |
|
● |
● |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4HE1 ENG(RLY)
A/T 4 SPEED-AISIN(RNJ)
FINAL GEAR RATIO 39/7(GV1)
|
8-97073-802-1 |
01 |
1 |
9804- |
|
|
|
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94426-787-3 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94426-787-3 |
01 |
1 |
9507- |
● |
● |
|
|
|
|
| |
7 |
05.545 FLANGE; FINAL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/
9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-97047-095-1 |
01 |
1 |
9712-9712 |
|
● |
● |
|
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-97047-095-1 |
01 |
1 |
9712-9712 |
|
|
|
|
● |
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/
9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-97047-095-1 |
01 |
1 |
9801-9801 |
|
● |
● |
|
● |
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/
9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-97047-095-1 |
01 |
1 |
9802-9803 |
|
● |
● |
● |
● |
|
| |
7 |
05.545 FLANGE; FINAL
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 43/
9(S2J),FINAL GEAR RATIO 43/10(S7C)
FLOOR REMOTE SHIFT<M11>
|
8-97047-095-1 |
01 |
1 |
9804- |
|
● |
● |
● |
● |
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X75
|
5-09000-213-0 |
12 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-295-0 |
12 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-295-0 |
12 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-295-0 |
12 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
|
8-97047-295-0 |
12 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-295-0 |
12 |
1 |
9712- |
|
● |
● |
|
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
|
8-97047-295-0 |
12 |
1 |
9712- |
|
|
|
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
T=1.40
|
9-41562-601-0 |
02 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.80
|
1-41562-073-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.80
|
1-41562-073-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.80
|
1-41562-073-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-073-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.80
|
1-41562-073-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-073-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.90
|
1-41562-074-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.90
|
1-41562-074-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.90
|
1-41562-074-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-074-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=2.90
|
1-41562-074-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-074-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.00
|
1-41562-075-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.00
|
1-41562-075-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.00
|
1-41562-075-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-075-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.00
|
1-41562-075-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-075-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.10
|
1-41562-076-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.10
|
1-41562-076-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.10
|
1-41562-076-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-076-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.10
|
1-41562-076-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-076-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.20
|
1-41562-077-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.20
|
1-41562-077-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.20
|
1-41562-077-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-077-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.20
|
1-41562-077-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-077-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.30
|
1-41562-078-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.30
|
1-41562-078-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.30
|
1-41562-078-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-078-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.30
|
1-41562-078-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-078-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.40
|
1-41562-079-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.40
|
1-41562-079-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.40
|
1-41562-079-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-079-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
T=3.40
|
1-41562-079-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-079-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
Z=20
|
8-94461-233-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
Z=20
|
8-94461-233-0 |
02 |
1 |
9511-9612 |
● |
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4HF1 ENG(RLS)
Z=20
|
8-94461-233-0 |
02 |
1 |
9701-9704 |
● |
|
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W
. 7.5-8.0TON(RPY)
Z=20
|
8-94461-233-0 |
02 |
1 |
9701-9704 |
|
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4HF1 ENG(RLS)
Z=20
|
8-94461-233-0 |
02 |
1 |
9705-9711 |
● |
|
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W
. 7.5-8.0TON(RPY)
Z=20
|
8-94461-233-0 |
02 |
1 |
9705-9711 |
|
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4BD2 ENG(RLW)
Z=20
|
8-94461-233-0 |
02 |
1 |
9705-9711 |
|
|
|
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
4HF1 ENG(RLS)
Z=20
|
8-94461-233-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
Z=20
|
8-94461-233-0 |
02 |
1 |
9712- |
|
● |
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W
. 7.5-8.0TON(RPY)
Z=20
|
8-94461-233-0 |
02 |
1 |
9712- |
|
● |
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
Z=20
|
8-94461-233-0 |
02 |
1 |
9712- |
|
|
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=20
|
8-94461-233-0 |
02 |
1 |
9712- |
|
|
|
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
4JG2 ENG(RJC),4BE1 ENG(RLH)
Z=23
|
8-97035-388-0 |
02 |
1 |
9312-9511 |
● |
● |
● |
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42)
Z=23
|
8-97035-388-0 |
02 |
1 |
9512-9608 |
● |
● |
● |
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
4JG2 ENG(RJC),4BE1 ENG(RLH)
Z=23
|
8-97035-388-0 |
02 |
1 |
9609-9711 |
● |
● |
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
Z=23
|
8-97035-388-0 |
02 |
1 |
9609-9711 |
|
● |
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4BE1 ENG(RLH)
Z=23
|
8-97035-388-0 |
02 |
1 |
9609-9711 |
|
|
● |
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
4JG2 ENG(RJC)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
Z=23
|
8-97035-388-0 |
02 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42)
Z=23
|
8-97035-388-0 |
02 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
4BD2 ENG(RLW)
G.V.W. 3.5-4.0TON(RPQ)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
Z=23
|
8-97035-388-0 |
02 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=16
|
1-41561-093-0 |
02 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=16
|
1-41561-093-0 |
02 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=16
|
1-41561-093-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=16
|
1-41561-093-0 |
02 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=16
|
1-41561-093-0 |
02 |
1 |
9712- |
|
● |
● |
|
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=16
|
1-41561-093-0 |
02 |
1 |
9712- |
|
|
|
● |
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
Z=10
|
8-97041-972-0 |
04 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=10
|
1-41551-024-0 |
04 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=10
|
1-41551-024-0 |
04 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=10
|
1-41551-024-0 |
04 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
1-41551-024-0 |
04 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
Z=10
|
1-41551-024-0 |
04 |
1 |
9712- |
|
● |
● |
|
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
1-41551-024-0 |
04 |
1 |
9712- |
|
|
|
● |
● |
|
| |
25 |
05.528 WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
1-41552-020-0 |
04 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
1-41552-020-0 |
04 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
1-41552-020-0 |
04 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
|
1-41552-020-0 |
04 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
1-41552-020-0 |
04 |
1 |
9712- |
|
● |
● |
|
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
|
1-41552-020-0 |
04 |
1 |
9712- |
|
|
|
● |
● |
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 292MM(G73)
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
37 |
05.595 NUT; DRIVING PINION
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
5-09812-063-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
5-09812-063-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
5-09812-063-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
5-09812-063-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO
|
5-09812-062-1 |
01 |
1 |
9512-9611 |
|
● |
● |
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO
|
5-09812-062-1 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
KOYO
|
5-09812-062-1 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO
|
5-09812-062-1 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
39 |
05.484 BEARING; FINAL PINION
KOYO
|
5-09812-062-1 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 292MM(G73)
L=19.6
|
9-41219-603-1 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-097-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-097-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-097-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
|
8-97047-097-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-097-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
|
8-97047-097-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94400-890-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-098-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-098-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-098-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-97047-098-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-098-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-97047-098-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
05.458
|
9-09720-505-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97048-053-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97048-053-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97048-053-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
44 |
05.476 GASKET; PINION CAGE
|
8-97048-053-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97048-053-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
44 |
05.476 GASKET; PINION CAGE
|
8-97048-053-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M14X38
|
0-23801-438-0 |
01 |
1 |
9312-9501 |
● |
● |
● |
|
|
● |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
M14X38
|
0-23801-438-0 |
01 |
1 |
9502-9504 |
● |
● |
● |
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
9712- |
|
● |
● |
|
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER
|
0-50071-240-0 |
06 |
1 |
9712- |
|
|
|
● |
● |
|
| |
46 |
05.453 BOLT
REAR AXLE HEAVY DUTY 292MM(G73)
M14X38
|
0-23801-438-0 |
01 |
1 |
9312-9504 |
● |
● |
● |
|
|
● |
| |
46 |
05.453 BOLT
REAR AXLE HEAVY DUTY 292MM(G73)
M14X35 W/LK WASHER
|
0-50051-435-0 |
01 |
1 |
9505- |
● |
● |
● |
|
|
● |
| |
47 |
05.453 WASHER; LK
REAR AXLE HEAVY DUTY 292MM(G73)
05.387
ID=14.2
|
9-09150-614-0 |
01 |
1 |
9312-9504 |
● |
● |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
05.484
KOYO
|
5-09812-062-1 |
02 |
1 |
9512- |
● |
● |
● |
|
|
● |
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94365-264-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97094-637-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97094-637-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97094-637-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97094-637-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97094-637-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97094-637-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 292MM(G73)
05.387
M14X80
|
8-94365-377-2 |
04 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
56 |
05.506 BOLT; BRG CAP
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
REAR AXLE HEAVY DUTY 320MM(6CP)
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
9712- |
|
● |
● |
|
|
|
| |
56 |
05.506 BOLT; BRG CAP
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
9712- |
|
|
|
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-453-0 |
01 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97035-453-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-454-0 |
01 |
1 |
9312-9711 |
● |
● |
● |
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97035-454-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-455-0 |
01 |
1 |
9312-9711 |
● |
● |
● |
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97035-455-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97083-126-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97083-126-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97083-126-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97092-946-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97092-946-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97092-946-0 |
01 |
1 |
9712- |
|
● |
● |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97047-092-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97047-092-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97047-092-1 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
41/6
|
8-97047-092-1 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/6(6YB)
41/6
|
8-97047-092-1 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4BD2 ENG(RLW)
A/T 4 SPEED-JATCO(RMK)
EXC. FRAME STRAIGHT TYPE<7KJ>
41/6
|
8-97047-092-1 |
01 |
1 |
9802- |
|
● |
● |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)
,M/T MXA5S(RNA),M/T MXA6S(RNB),M/T
MXA5C(RNL)
FRAME STRAIGHT TYPE<7KJ>
41/6
|
8-97047-092-1 |
01 |
1 |
9802- |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HE1 ENG(RLY)
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)
,M/T MXA5S(RNA),M/T MXA6S(RNB),M/T
MXA5C(RNL)
41/6
|
8-97047-092-1 |
01 |
1 |
9802- |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4
SPEED-AISIN(RNJ)
41/6
|
8-97047-092-1 |
01 |
1 |
9802- |
|
|
|
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-449-0 |
01 |
1 |
9312-9509 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97035-448-0 |
01 |
1 |
9312-9510 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97035-448-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97035-448-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97035-450-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97121-593-1 |
01 |
1 |
9712-9801 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1)
G.V.W. 8.0-8.5TON(RPZ)
39/7
|
8-97121-593-1 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97121-593-1 |
01 |
1 |
9802- |
|
● |
● |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97174-099-0 |
01 |
1 |
9712-9712 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1)
G.V.W. 8.0-8.5TON(RPZ)
41/8
|
8-97174-099-0 |
01 |
1 |
9712-9712 |
|
|
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97174-099-0 |
01 |
1 |
9801-9801 |
|
● |
● |
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1)
41/8
|
8-97174-099-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97047-115-0 |
01 |
1 |
9712-9801 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/10(S7C)
G.V.W. 7.5-8.0TON(RPY)
43/10
|
8-97047-115-0 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97047-115-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97061-850-0 |
01 |
1 |
9712-9801 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
43/9
|
8-97061-850-0 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97061-850-0 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97048-178-0 |
01 |
1 |
9502-9510 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97048-178-0 |
01 |
1 |
9511-9711 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1
ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97048-178-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/6(R43)
39/6
|
8-97048-178-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4BD2 ENG(RLW)
FINAL GEAR RATIO 43/9(S2J)
43/9
|
8-97035-450-0 |
01 |
1 |
9506-9509 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-449-0 |
01 |
1 |
9512-9711 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
41/9
|
8-97035-449-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4BD2 ENG(RLW)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97074-253-0 |
01 |
1 |
9312-9504 |
|
|
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4BD2 ENG(RLW)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97074-253-0 |
01 |
1 |
9505-9510 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
41/10
|
8-97074-253-0 |
01 |
1 |
9511-9704 |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
DISC BRAKE FRT<J52>
BRK WHL LK CONT LSPV<6PH>
41/10
|
8-97074-253-0 |
01 |
1 |
9705-9711 |
● |
● |
● |
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97074-253-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
41/10
|
8-97074-253-0 |
01 |
1 |
9712- |
|
|
|
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 292MM(G73)
(B)
|
9-41227-601-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97047-150-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97047-150-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97047-150-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
8-97047-150-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97047-150-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
8-97047-150-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
5-09810-008-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 292MM(G73)
KOYO
|
8-97107-548-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
8-97047-296-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
8-97047-296-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
8-97047-296-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
8-97047-296-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
NSK
|
8-97047-296-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
8-97047-296-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO
|
8-97047-928-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO
|
8-97047-928-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO
|
8-97047-928-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
KOYO
|
8-97047-928-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO
|
8-97047-928-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
63 |
05.447 BEARING; PINION PILOT
KOYO
|
8-97047-928-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
64 |
05.476 NUT; RET
16.176
|
9-09110-406-0 |
02 |
1 |
9312-9502 |
● |
● |
● |
|
|
● |
| |
64 |
05.476 NUT; RET
04.594
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
9503-9608 |
● |
● |
● |
|
|
● |
| |
64 |
05.476 NUT; RET
04.594
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
9609-9711 |
● |
● |
● |
● |
|
● |
| |
64 |
05.476 NUT; RET
04.594
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 292MM(G73)
|
9-09752-002-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-297-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-297-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-297-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
8-97047-297-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-297-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
8-97047-297-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
M110 H=10
|
5-41121-001-0 |
02 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M115 H=20
|
1-41121-030-0 |
02 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M115 H=20
|
1-41121-030-0 |
02 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M115 H=20
|
1-41121-030-0 |
02 |
1 |
9612-9708 |
|
● |
● |
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-030-0 |
02 |
1 |
9612-9708 |
|
|
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M115 H=20
|
1-41121-039-0 |
02 |
1 |
9709-9711 |
|
● |
● |
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-039-0 |
02 |
1 |
9709-9711 |
|
|
|
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
M115 H=20
|
1-41121-039-0 |
02 |
1 |
9712- |
|
● |
● |
|
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-039-0 |
02 |
1 |
9712- |
|
|
|
● |
● |
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 292MM(G73)
NSK
|
9-00093-602-0 |
02 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
KOYO ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
REAR AXLE HEAVY DUTY 320MM(6CP)
KOYO ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
9712- |
|
● |
● |
|
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
KOYO ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
9712- |
|
|
|
● |
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4BD1 ENG(LJ6),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94461-234-1 |
01 |
1 |
9312-9501 |
● |
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
|
8-94461-234-1 |
01 |
1 |
9502-9510 |
● |
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
|
8-94461-234-1 |
01 |
1 |
9511-9606 |
● |
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-94461-234-1 |
01 |
1 |
9607-9704 |
● |
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-94461-234-1 |
01 |
1 |
9705-9711 |
● |
● |
● |
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS)
|
8-94461-234-1 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2
ENG(RLW),4HE1 ENG(RLY)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
|
8-94461-234-1 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4JG2 ENG(RJC),4BE1 ENG(RLH)
|
8-97035-389-0 |
01 |
1 |
9312-9511 |
● |
● |
● |
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4JG2 ENG(RJC),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42)
|
8-97035-389-0 |
01 |
1 |
9512-9711 |
● |
● |
● |
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HG1 ENG(RJH),4BE1 ENG(RLH)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97035-389-0 |
01 |
1 |
9712- |
● |
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-100-1 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-100-1 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-100-1 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97047-100-1 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 41/
7(R41),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 41/6(6YB)
|
8-97047-100-1 |
01 |
1 |
9712-9712 |
|
● |
● |
|
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97047-100-1 |
01 |
1 |
9712-9712 |
|
|
|
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 41/
7(R41),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 41/6(6YB)
|
8-97047-100-1 |
01 |
1 |
9801- |
|
● |
● |
● |
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
DISC BRAKE FRT<J52>
G.V.W. 3.5-4.0TON(RPQ)
BRK WHL LK CONT LSPV<6PH>
|
8-97035-390-0 |
01 |
1 |
9609- |
|
● |
|
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4BD2 ENG(RLW)
|
8-94462-032-1 |
01 |
1 |
9312-9410 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4BD2 ENG(RLW)
FINAL GEAR RATIO 41/10(GT5)
|
8-94462-032-1 |
01 |
1 |
9411-9504 |
|
|
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 43/10(S7C)
|
8-94462-032-1 |
01 |
1 |
9505-9505 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-94462-032-1 |
01 |
1 |
9506-9509 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 43/10(S7C)
|
8-94462-032-1 |
01 |
1 |
9510-9510 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-94462-032-1 |
01 |
1 |
9511-9511 |
● |
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-94462-032-1 |
01 |
1 |
9511-9511 |
● |
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-94462-032-1 |
01 |
1 |
9511-9511 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/10(S7C)
|
8-94462-032-1 |
01 |
1 |
9512-9612 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 43/10(S7C)
|
8-94462-032-1 |
01 |
1 |
9701-9704 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-94462-032-1 |
01 |
1 |
9701-9704 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 43/10(S7C)
|
8-94462-032-1 |
01 |
1 |
9705-9711 |
|
● |
● |
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/9(HC6)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX)
|
8-94462-032-1 |
01 |
1 |
9705-9711 |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-94462-032-1 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-94462-032-1 |
01 |
1 |
9712- |
|
|
|
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
|
8-97047-099-1 |
01 |
1 |
9712-9801 |
|
● |
● |
|
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
|
8-97047-099-1 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 292MM(G73)
05.520
|
5-41521-008-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.520
|
1-41521-035-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.520
|
1-41521-035-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.520
|
1-41521-035-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
1-41521-035-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
05.520
|
1-41521-035-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
1-41521-035-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS)
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-94159-027-0 |
01 |
1 |
9312-9501 |
● |
● |
● |
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
|
8-94159-027-0 |
01 |
1 |
9502-9510 |
● |
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
|
8-94159-027-0 |
01 |
1 |
9511-9606 |
● |
● |
● |
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-94159-027-0 |
01 |
1 |
9607-9612 |
● |
● |
● |
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
|
8-94159-027-0 |
01 |
1 |
9701-9711 |
● |
● |
● |
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
|
8-94159-027-0 |
01 |
1 |
9712- |
● |
|
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/7(R41),FINAL GEAR RATIO 43/
7(R42),FINAL GEAR RATIO 39/6(R43)
|
8-94159-027-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-117-1 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
|
8-97047-117-1 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 41/7(R41),FINAL
GEARRATIO 43/7(R42),FINAL GEAR RATIO 41/
6(6YB)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
|
8-97047-117-1 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97047-117-1 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 41/
7(R41),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 41/6(6YB)
|
8-97047-117-1 |
01 |
1 |
9712-9712 |
|
● |
● |
|
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97047-117-1 |
01 |
1 |
9712-9712 |
|
|
|
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEARRATIO 41/8(RU1),FINAL GEAR RATIO 41/
7(R41),FINAL GEAR RATIO 43/7(R42),
FINAL GEAR RATIO 41/6(6YB)
|
8-97047-117-1 |
01 |
1 |
9801- |
|
● |
● |
● |
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
4BD2 ENG(RLW)
|
8-94161-010-1 |
01 |
1 |
9312-9410 |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
4BD2 ENG(RLW)
FINAL GEAR RATIO 41/10(GT5)
|
8-94161-010-1 |
01 |
1 |
9411-9504 |
|
|
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 43/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9505-9505 |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2
ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9506-9509 |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 43/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9510-9510 |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-94161-010-1 |
01 |
1 |
9511-9511 |
● |
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-94161-010-1 |
01 |
1 |
9511-9511 |
● |
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 320MM(6CP)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
|
8-94161-010-1 |
01 |
1 |
9511-9511 |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9512-9704 |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
4HF1 ENG(RLS),4BD2 ENG(RLW)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9705-9711 |
|
● |
● |
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/10(GT5),FINAL
GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43
/9(S2J),FINAL GEAR RATIO 43/10(S7C)
|
8-94161-010-1 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-94161-010-1 |
01 |
1 |
9712- |
|
|
|
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 8.0-8.5TON(RPZ)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-97047-101-1 |
01 |
1 |
9712-9712 |
|
● |
● |
|
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/10(S7C)
|
8-97047-101-1 |
01 |
1 |
9712-9712 |
|
● |
● |
|
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
|
8-97047-101-1 |
01 |
1 |
9801-9801 |
|
● |
● |
|
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J),FINAL
GEARRATIO 43/10(S7C)
|
8-97047-101-1 |
01 |
1 |
9802- |
|
● |
● |
● |
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 8.0-8.5TON(RPZ)
BRK WHL LK CONT LSPV<6PH>
|
8-97047-110-1 |
01 |
1 |
9712-9712 |
|
● |
● |
|
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
REAR AXLE HEAVY DUTY 320MM(6CP)
FINAL GEAR RATIO 43/9(S2J)
G.V.W. 7.5-8.0TON(RPY)
|
8-97047-110-1 |
01 |
1 |
9712-9712 |
|
● |
● |
|
● |
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 292MM(G73)
M12X25
|
9-09606-505-2 |
12 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
M16X30
|
8-97047-147-0 |
12 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
M16X30
|
8-97047-147-0 |
12 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
M16X30
|
8-97047-147-0 |
12 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M16X30
|
8-97047-147-0 |
12 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
REAR AXLE HEAVY DUTY 320MM(6CP)
M16X30
|
8-97047-147-0 |
12 |
1 |
9712- |
|
● |
● |
|
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M16X30
|
8-97047-147-0 |
12 |
1 |
9712- |
|
|
|
● |
● |
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
05.586
M10
|
8-94159-009-0 |
12 |
1 |
9312-9407 |
● |
● |
● |
|
|
● |
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
05.586
M10
|
8-94159-009-1 |
16 |
1 |
9408- |
● |
● |
● |
|
|
● |
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M12
|
8-97065-214-0 |
12 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M12
|
8-97065-214-0 |
12 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M12
|
8-97065-214-0 |
12 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
M12
|
8-97065-214-0 |
12 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
M12
|
8-97065-214-0 |
12 |
1 |
9712- |
|
● |
● |
|
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
M12
|
8-97065-214-0 |
12 |
1 |
9712- |
|
|
|
● |
● |
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
ID=10 OD=18 T=2
|
9-09651-116-0 |
24 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP)
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
9712- |
|
● |
● |
|
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
24 |
1 |
9712- |
|
|
|
● |
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-281-0 |
AR |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 292MM(G73)
(A)
|
8-97027-282-0 |
AR |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97087-821-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97087-821-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97087-821-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(B)
|
8-97087-821-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(B)
|
8-97087-821-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(B)
|
8-97087-821-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
REAR AXLE HEAVY DUTY 320MM(6CP)
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
9712- |
|
● |
● |
|
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
9712- |
|
|
|
● |
● |
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
02 |
1 |
9312-9410 |
● |
● |
● |
|
|
● |
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9411-9711 |
● |
● |
● |
|
|
● |
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
9712- |
|
● |
● |
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
9712- |
|
|
|
● |
● |
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
00.027
M8X16
|
0-20800-816-0 |
04 |
1 |
9312-9410 |
|
● |
|
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
9411-9510 |
|
● |
|
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 320MM(6CP)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
89 |
05.506 BOLT; LK PLATE
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
REAR AXLE HEAVY DUTY 292MM(G73)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9712- |
● |
● |
● |
|
|
● |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 292MM(G73)
OD=103
|
8-94408-083-0 |
01 |
1 |
9312- |
● |
● |
● |
|
|
● |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NOK
|
8-97047-609-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NOK
|
8-97047-609-0 |
01 |
1 |
9511-9611 |
|
● |
● |
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NOK
|
8-97047-609-0 |
01 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
8-97047-609-0 |
01 |
1 |
9612-9711 |
|
|
|
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
REAR AXLE HEAVY DUTY 320MM(6CP)
NOK
|
8-97047-609-0 |
01 |
1 |
9712- |
|
● |
● |
|
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
8-97047-609-0 |
01 |
1 |
9712- |
|
|
|
● |
● |
|
| |
132 |
05.476 WASHER; LK,RET
00.206
ID=6.1
|
9-09150-506-0 |
02 |
1 |
9312-9502 |
● |
● |
● |
|
|
● |
