1 |

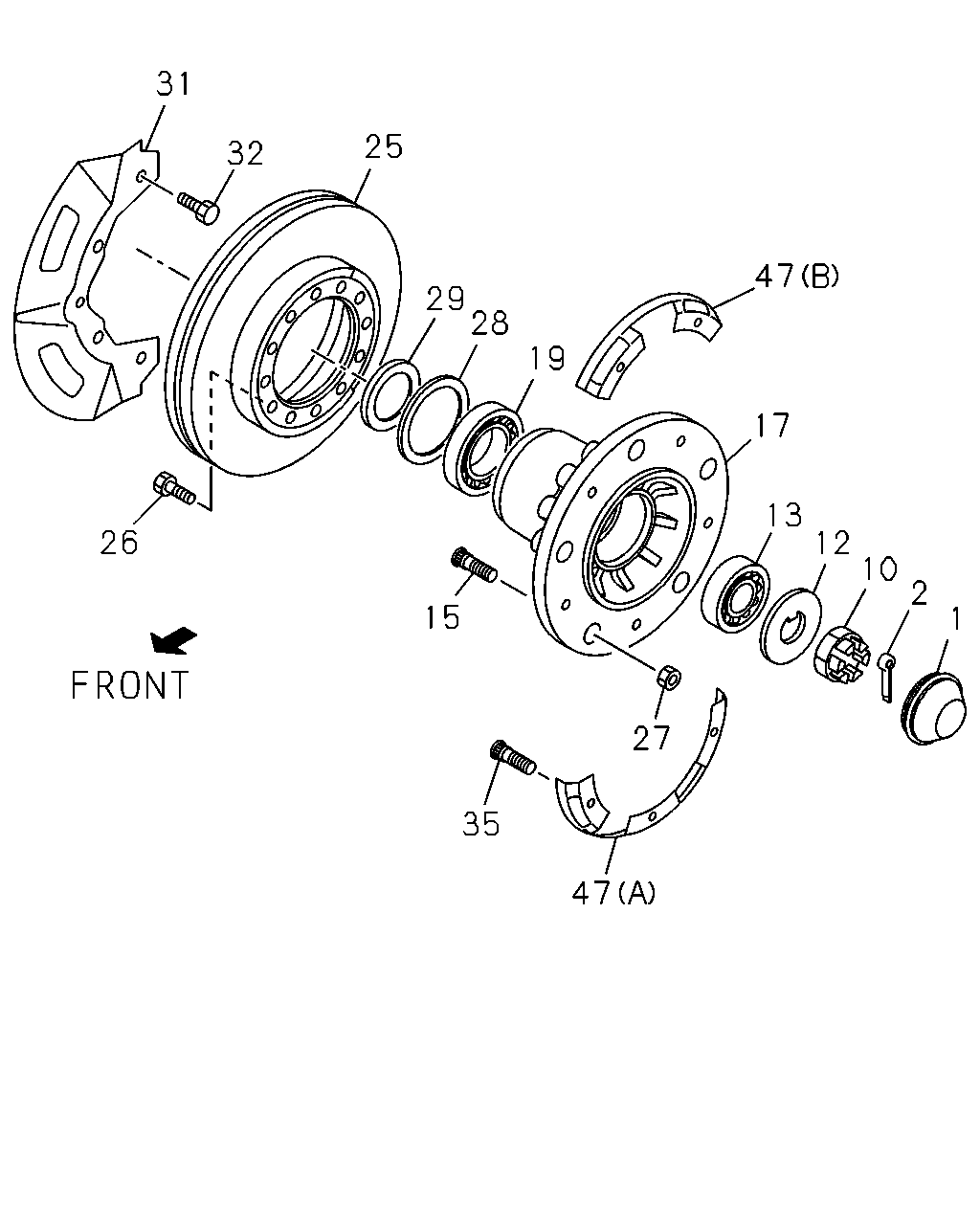

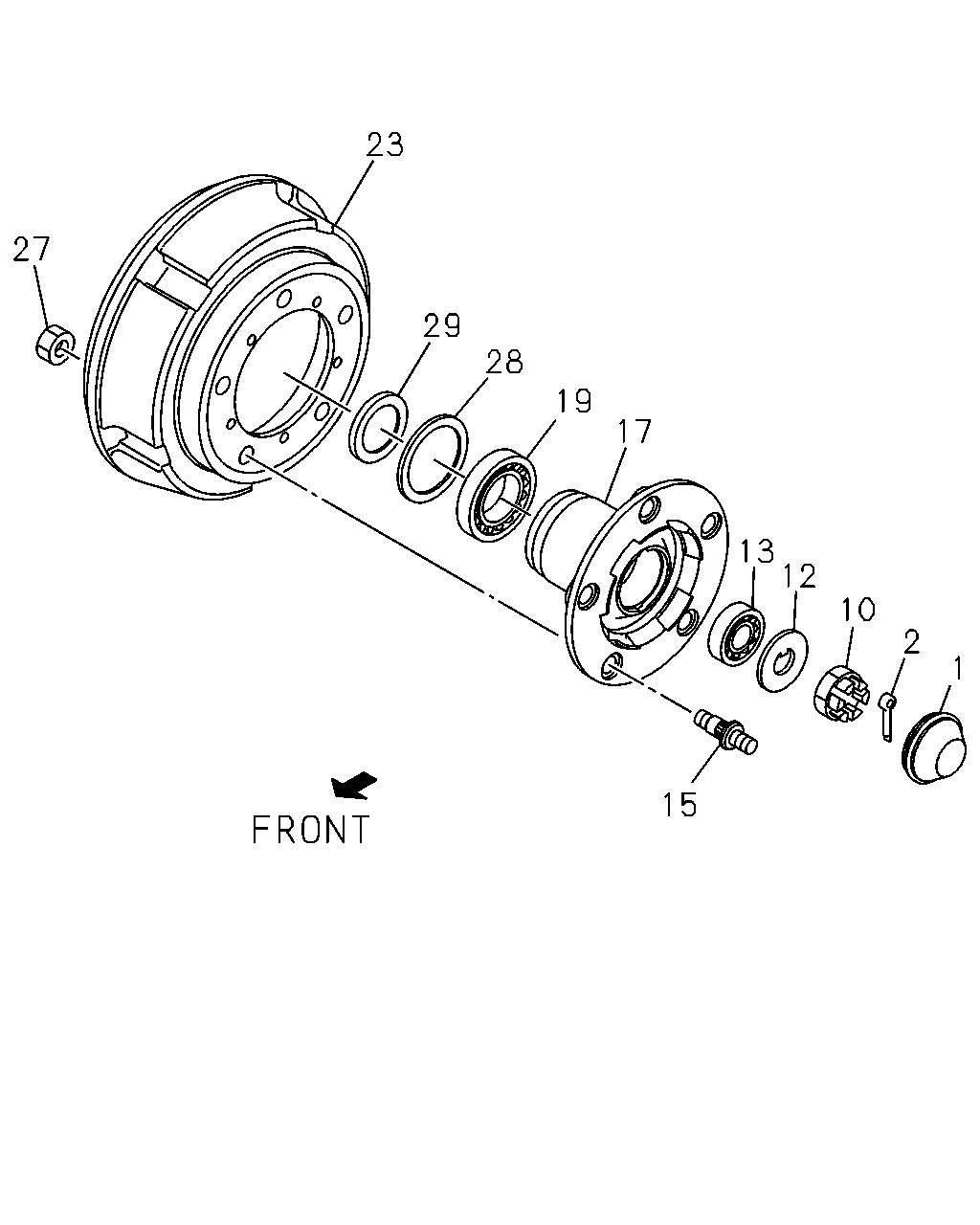

06.330 CAP; HUB,FRT AXLE
|
8-97012-619-0 |
02 |
1 |
9312-9611 |
● |
● |
● |
● |
|
|
| |
1 |
06.330 CAP; HUB,FRT AXLE
|
8-97012-619-0 |
02 |
1 |
9612-9711 |
● |
● |
● |
● |
● |
|
| |
1 |
06.330 CAP; HUB,FRT AXLE
|
8-97012-619-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
| |
2 |
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
|
9-08105-040-0 |
02 |
1 |
9312-9611 |
● |
● |
● |
● |
|
|
| |
2 |
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
|
9-08105-040-0 |
02 |
1 |
9612-9711 |
● |
● |
● |
● |
● |
|
| |
2 |
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
|
9-08105-040-0 |
02 |
1 |
9712-9809 |
● |
● |
● |
● |
● |
● |
| |
2 |
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
|
9-08115-040-0 |
02 |
1 |
9810- |
● |
● |
● |
● |
● |
● |
| |
10 |
05.812 NUT; FRT HUB BRG
06.022
|
8-94247-357-1 |
02 |
1 |
9312-9611 |
● |
● |
● |
● |
|
|
| |
10 |
05.812 NUT; FRT HUB BRG
06.022
|
8-94247-357-1 |
02 |
1 |
9612-9711 |
● |
● |
● |
● |
● |
|
| |
10 |
05.812 NUT; FRT HUB BRG
06.022
|
8-94247-357-1 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
| |
12 |
06.321 WASHER; LK,FRT HUB BRG
|
8-94247-356-1 |
02 |
1 |
9312-9611 |
● |
● |
● |
● |
|
|
| |
12 |
06.321 WASHER; LK,FRT HUB BRG
|
8-94247-356-1 |
02 |
1 |
9612-9711 |
● |
● |
● |
● |
● |
|
| |
12 |
06.321 WASHER; LK,FRT HUB BRG
|
8-94247-356-1 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
| |
13 |
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
|
9-00093-172-0 |
02 |
1 |
9312-9611 |
● |
● |
● |
● |
|
|
| |
13 |
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
|
9-00093-172-0 |
02 |
1 |
9612-9711 |
● |
● |
● |
● |
● |
|
| |
13 |
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
|
9-00093-172-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9805-9809 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9805-9809 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPN),(BPP),(BPQ),(BPR),(BPT),(00C),
(01C),(02C),(03C),(04C),(05C),(06C),
(07C),(08C),(09C),(10C),(11C),(53C),
(54C),(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9810- |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9810- |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9805-9809 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9805-9809 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPN),(BPP),(BPQ),(BPR),(BPT),(00C),
(01C),(02C),(03C),(04C),(05C),(06C),
(07C),(08C),(09C),(10C),(11C),(53C),
(54C),(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9810- |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9810- |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(BPL),(BPM),(06H),(07H),(08H),
(50C),(51C),(9HY),(94H),(95H),(96H),
(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(BPL),(BPM),(06H),(07H),(08H),
(50C),(51C),(9HY),(94H),(95H),(96H),
(97H),(98H),(99H)
DISC BRAKE FRT<J52>
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(BPL),(BPM),(06H),(07H),(08H),
(50C),(51C),(9HY),(94H),(95H),(96H),
(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(BPL),(BPM),(06H),(07H),(08H),
(50C),(51C),(9HY),(94H),(95H),(96H),
(97H),(98H),(99H)
DISC BRAKE FRT<J52>
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(88V),(9BP),
(95V),(97V)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9312-9504 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(88V),
(9BP),(95V),(97V)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9505-9510 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(9BP),
(95V),(97V)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9511-9603 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9511-9603 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(88V),
(9BP),(9ZM),(9ZP),(9ZQ),(95V),(97V)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9604-9609 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9604-9609 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(9BP),
(9XB),(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9610-9711 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9610-9711 |
|
● |
● |
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9712-9801 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9712-9801 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9712-9801 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9802-9804 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9802-9804 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
06 |
1 |
9802-9804 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(88V),(9BP),
(95V),(97V)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9312-9504 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(88V),
(9BP),(95V),(97V)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9505-9510 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(9BP),
(95V),(97V)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9511-9603 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9511-9603 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(88V),
(9BP),(9ZM),(9ZP),(9ZQ),(95V),(97V)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9604-9609 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9604-9609 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(9BP),
(9XB),(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9610-9711 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9610-9711 |
|
● |
● |
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9712-9801 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9712-9801 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9712-9801 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9802-9804 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9802-9804 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
06 |
1 |
9802-9804 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-1 |
05 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29,M20X55 RH THREAD
|
8-97017-043-1 |
05 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-1 |
05 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(BPS),(09H),(10H),(11H),(12H),(13H),
(14H),(15H),(16H),(17H),(18H),(19H),
(52C)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-1 |
05 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29,M20X55 RH THREAD
|
8-97017-043-1 |
05 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(BPS),(09H),(10H),(11H),(12H),(13H),
(14H),(15H),(16H),(17H),(18H),(19H),
(52C)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M18X29,M20X55 RH THREAD
|
8-97017-043-1 |
05 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(06H),(07H),(08H),(50C),(51C),(9XD),
(94H),(95H),(96H),(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(06H),(07H),(08H),(50C),(51C),(9XD),
(94H),(95H),(96H),(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9511-9711 |
● |
● |
● |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(06H),(07H),(08H),(50C),(51C),(9XD),
(94H),(95H),(96H),(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(06H),(07H),(08H),(50C),(51C),(9XD),
(94H),(95H),(96H),(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9511-9711 |
● |
● |
● |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-1 |
05 |
1 |
9312-9704 |
● |
● |
● |
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X55 RH THREAD
|
8-97017-044-1 |
05 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X55 RH THREAD
|
8-97017-043-1 |
05 |
1 |
9312-9704 |
● |
● |
● |
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>
M18X29,M20X55 RH THREAD
|
8-97017-043-1 |
05 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
DISC BRAKE FRT<J52>
M20X53 LH THREAD
|
8-97168-457-0 |
06 |
1 |
9712-9804 |
● |
● |
● |
● |
|
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
DISC BRAKE FRT<J52>
M20X53 RH THREAD
|
8-97168-456-0 |
06 |
1 |
9712-9804 |
● |
● |
● |
● |
|
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
DISC BRAKE FRT<J52>
M20X53 LH THREAD
|
8-97168-457-0 |
06 |
1 |
9805-9809 |
● |
● |
● |
● |
|
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPN),(BPP),(BPQ),(BPR),(BPT),(00C),
(01C),(02C),(03C),(04C),(05C),(06C),
(07C),(08C),(09C),(10C),(11C),(53C),
(54C),(55C),(83V),(9BP),(9XB),(95V),(97V)
DISC BRAKE FRT<J52>
M20X53 LH THREAD
|
8-97168-457-0 |
06 |
1 |
9810- |
● |
● |
● |
● |
|
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
DISC BRAKE FRT<J52>
M20X53 RH THREAD
|
8-97168-456-0 |
06 |
1 |
9805-9809 |
● |
● |
● |
● |
|
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPN),(BPP),(BPQ),(BPR),(BPT),(00C),
(01C),(02C),(03C),(04C),(05C),(06C),
(07C),(08C),(09C),(10C),(11C),(53C),
(54C),(55C),(83V),(9BP),(9XB),(95V),(97V)
DISC BRAKE FRT<J52>
M20X53 RH THREAD
|
8-97168-456-0 |
06 |
1 |
9810- |
● |
● |
● |
● |
|
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
M20X29,M22X38.5 LH THREAD
|
8-94455-077-1 |
06 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
M20X29,M22X38.5 LH THREAD
|
8-94455-077-1 |
06 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
M20X29,M22X38.5 LH THREAD
|
8-94455-077-1 |
06 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
M20X53 LH THREAD
|
8-97168-457-0 |
06 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
M20X29,M22X38.5 RH THREAD
|
8-94455-076-2 |
06 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
M20X29,M22X38.5 RH THREAD
|
8-94455-076-2 |
06 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
M20X29,M22X38.5 RH THREAD
|
8-94455-076-2 |
06 |
1 |
9510-9511 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
M20X29,M22X38.5 RH THREAD
|
8-94455-076-2 |
06 |
1 |
9511-9704 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
M20X53 RH THREAD
|
8-97168-456-0 |
06 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9511-9609 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(03C),(04C),(06C),
(07C),(09C),(10C),(53C),(54C),(55C),
(9BP),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9610-9611 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(03C),(04C),(06C),
(07C),(09C),(10C),(53C),(54C),(55C),
(9BP),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9BP)
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9612-9711 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9511-9609 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(03C),(04C),(06C),
(07C),(09C),(10C),(53C),(54C),(55C),
(9BP),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9610-9611 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(00C),(01C),(03C),(04C),(06C),
(07C),(09C),(10C),(53C),(54C),(55C),
(9BP),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(9BP)
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9612-9711 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9712-9801 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9802-9804 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9802-9804 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9712-9801 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9802-9804 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9802-9804 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9805-9809 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9805-9809 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPP),(BPQ),(BPR),(BPT),(00C),(01C),
(02C),(03C),(04C),(05C),(55C),(83V),
(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9810- |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-0 |
06 |
1 |
9810- |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9805-9809 |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9805-9809 |
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPP),(BPQ),(BPR),(BPT),(00C),(01C),
(02C),(03C),(04C),(05C),(55C),(83V),
(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9810- |
|
● |
● |
|
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
M20X28,M22X50 RH THREAD
|
8-97131-283-0 |
06 |
1 |
9810- |
|
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97081-322-0 |
02 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97081-322-0 |
02 |
1 |
9805-9809 |
|
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPN),(BPP),(BPQ),(BPR),(BPT),(00C),
(01C),(02C),(03C),(04C),(05C),(06C),
(07C),(08C),(09C),(10C),(11C),(53C),
(54C),(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97081-322-0 |
02 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97081-322-0 |
02 |
1 |
9810- |
|
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-94365-459-0 |
02 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97017-193-0 |
02 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-94365-459-0 |
02 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(ARN),(BPL),(BPM),(06H),(07H),(08H),
(50C),(51C),(9HY),(94H),(95H),(96H),
(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-94365-459-0 |
02 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97017-193-0 |
02 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(ARN),(BPL),(BPM),(06H),(07H),(08H),
(50C),(51C),(9HY),(94H),(95H),(96H),
(97H),(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97017-193-0 |
02 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(88V),(9BP),
(95V),(97V)
EXC. DISC BRAKE FRT<J52>
|
8-97081-322-0 |
02 |
1 |
9312-9504 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(88V),
(9BP),(95V),(97V)
EXC. DISC BRAKE FRT<J52>
|
8-97081-322-0 |
02 |
1 |
9505-9510 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(9BP),
(95V),(97V)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97081-322-0 |
02 |
1 |
9511-9612 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97081-322-0 |
02 |
1 |
9511-9612 |
|
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(88V),
(9BP),(95V),(97V)
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97081-322-0 |
02 |
1 |
9701-9711 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(00C),(01C),(03C),(04C),(06C),
(07C),(09C),(10C),(53C),(54C),(55C),
(9BP),(95V),(97V)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97081-322-0 |
02 |
1 |
9701-9711 |
|
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
|
8-97081-322-0 |
02 |
1 |
9712-9801 |
● |
● |
● |
|
|
● |
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W
. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97081-322-0 |
02 |
1 |
9802-9804 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97081-322-0 |
02 |
1 |
9802-9804 |
|
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97017-206-0 |
02 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(BPS),(09H),(10H),(11H),(12H),(13H),
(14H),(15H),(16H),(17H),(18H),(19H),
(52C)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97017-206-0 |
02 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(06H),(07H),(08H),(50C),(51C),(9XD),
(94H),(95H),(96H),(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>
|
8-94365-459-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
| |
17 |
06.307 HUB; FRT AXLE
(06H),(07H),(08H),(50C),(51C),(9XD),
(94H),(95H),(96H),(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>
|
8-94365-459-0 |
02 |
1 |
9511-9711 |
● |
● |
● |
● |
|
|
| |
17 |
06.307 HUB; FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>
|
8-97017-206-0 |
02 |
1 |
9312-9704 |
● |
● |
● |
● |
● |
● |
| |
17 |
06.307 HUB; FRT AXLE
(09H),(10H),(11H),(12H),(13H),(14H),
(15H),(16H),(17H),(18H),(19H),(52C)
EXC. DISC BRAKE FRT<J52>
|
8-97017-206-0 |
02 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(95V),(97V)
DISC BRAKE FRT<J52>
|
8-97168-460-0 |
02 |
1 |
9712-9809 |
● |
● |
● |
● |
|
● |
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPN),(BPP),(BPQ),(BPR),(BPT),(00C),
(01C),(02C),(03C),(04C),(05C),(06C),
(07C),(08C),(09C),(10C),(11C),(53C),
(54C),(55C),(83V),(9BP),(9XB),(95V),(97V)
DISC BRAKE FRT<J52>
|
8-97168-460-0 |
02 |
1 |
9810- |
● |
● |
● |
● |
|
● |
| |
17 |
06.307 HUB; FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
|
8-94475-285-3 |
02 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
|
8-94475-285-3 |
02 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
|
8-94475-285-4 |
02 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
|
8-97168-460-0 |
02 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
17 |
06.307 HUB; FRT AXLE
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
|
8-97017-193-0 |
02 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
|
8-97017-193-0 |
02 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
|
8-97017-193-0 |
02 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
|
8-97017-193-0 |
02 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
17 |
06.307 HUB; FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97107-414-0 |
02 |
1 |
9604-9611 |
|
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97107-414-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(9ZM),(9ZP),(9ZQ)
|
8-97107-414-0 |
02 |
1 |
9612-9711 |
|
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY),G.V.W.
8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97131-236-0 |
02 |
1 |
9511-9609 |
|
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(00C),(01C),(03C),(04C),(06C),
(07C),(09C),(10C),(53C),(54C),(55C),
(9BP),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97131-236-0 |
02 |
1 |
9610-9611 |
|
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(00C),(01C),(03C),(04C),(06C),
(07C),(09C),(10C),(53C),(54C),(55C),
(9BP),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97131-236-0 |
02 |
1 |
9612-9711 |
|
● |
● |
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
(9BP)
|
8-97131-236-0 |
02 |
1 |
9612-9711 |
|
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
|
8-97131-236-0 |
02 |
1 |
9712-9801 |
|
● |
● |
|
● |
● |
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(55C),(83V),(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
|
8-97131-236-0 |
02 |
1 |
9802-9809 |
|
● |
● |
|
● |
● |
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97131-236-0 |
02 |
1 |
9802-9809 |
|
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPP),(BPQ),(BPR),(BPT),(00C),(01C),
(02C),(03C),(04C),(05C),(55C),(83V),
(9BP),(9XB),(95V),(97V)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
|
8-97131-236-0 |
02 |
1 |
9810- |
|
● |
● |
|
● |
● |
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97131-236-0 |
02 |
1 |
9810- |
|
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
(9ZM),(9ZP),(9ZQ)
G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
|
8-97107-414-0 |
02 |
1 |
9712- |
|
● |
● |
|
● |
● |
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
NSK
|
9-00093-149-0 |
02 |
1 |
9312-9611 |
● |
● |
● |
● |
|
|
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
NSK
|
9-00093-149-0 |
02 |
1 |
9612-9711 |
● |
● |
● |
● |
● |
|
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
NSK
|
9-00093-149-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
(AQK),(ARN),(ARP),(00C),(01C),(02C),
(03C),(04C),(05C),(06C),(06H),(07C),
(07H),(08C),(08H),(09C),(10C),(11C),
(50C),(51C),(53C),(54C),(55C),(83V),
(9BP),(9HY),(9XB),(9XD),(94H),(95H),(95V)
,(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97015-887-0 |
02 |
1 |
9712-9809 |
● |
● |
● |
● |
|
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN),
(BPP),(BPQ),(BPR),(BPT),(00C),(01C),
(02C),(03C),(04C),(05C),(06C),(06H),
(07C),(07H),(08C),(08H),(09C),(10C),
(11C),(50C),(51C),(53C),(54C),(55C),(83V)
,(9BP),(9HY),(9XB),(9XD),(94H),(95H),
(95V),(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97015-887-0 |
02 |
1 |
9810- |
● |
● |
● |
● |
|
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
DISC BRAKE FRT<J52>
|
8-97015-857-0 |
02 |
1 |
9312-9407 |
|
● |
● |
|
|
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
DISC BRAKE FRT<J52>
|
8-97015-887-0 |
02 |
1 |
9408-9506 |
|
● |
● |
|
|
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
DISC BRAKE FRT<J52>
|
8-97015-887-0 |
02 |
1 |
9507-9711 |
● |
● |
● |
|
|
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK)
DISC BRAKE FRT<J52>
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
REFER TO PERIODICAL PCN86
|
8-98105-058-0 |
02 |
1 |
9712- |
|
● |
● |
|
|
● |
| |
26 |
05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52>
|
8-94474-923-0 |
24 |
1 |
9712- |
● |
● |
● |
● |
|
● |
| |
26 |
05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52>
|
8-94474-923-0 |
24 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
26 |
05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52>
|
8-94474-923-0 |
24 |
1 |
9507-9711 |
● |
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(ARN),(06H),(07H),(08H),(09H),(10H),
(11H),(12H),(13H),(14H),(15H),(16H),
(17H),(18H),(19H),(50C),(51C),(52C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(ARN),(BPL),(BPM),(BPS),(06H),(07H),
(08H),(09H),(10H),(11H),(12H),(13H),
(14H),(15H),(16H),(17H),(18H),(19H),
(50C),(51C),(52C),(9HY),(9XD),(94H),
(95H),(96H),(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(88V),(9BP),
(95V),(97V)
EXC. DISC BRAKE FRT<J52>
RH THREAD M22
|
9-09110-522-0 |
12 |
1 |
9312-9504 |
● |
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(88V),
(9BP),(95V),(97V)
EXC. DISC BRAKE FRT<J52>
RH THREAD M22
|
9-09110-522-0 |
12 |
1 |
9505-9603 |
● |
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(88V),
(9BP),(9ZM),(9ZP),(9ZQ),(95V),(97V)
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>
RH THREAD M22
M22
|
9-09110-522-0 |
12 |
1 |
9604-9611 |
● |
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(AQK),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(88V),
(9BP),(9ZM),(9ZP),(9ZQ),(95V),(97V)
EXC. DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9612-9711 |
● |
● |
● |
|
● |
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(9ZM),(9ZP),(9ZQ),(95V),(97V)
EXC. DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9712-9804 |
● |
● |
● |
|
● |
● |
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(06H),(07H),(08H),(09H),(10H),(11H),
(12H),(13H),(14H),(15H),(16H),(17H),
(18H),(19H),(50C),(51C),(52C),(9XD),
(94H),(95H),(96H),(97H),(98H),(99H)
EXC. DISC BRAKE FRT<J52>
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9312-9711 |
● |
● |
● |
● |
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(00C),(01C),(02C),(03C),(04C),(05C),
(06C),(07C),(08C),(09C),(10C),(11C),
(53C),(54C),(55C),(83V),(9BP),(9XB),
(9ZM),(9ZP),(9ZQ),(95V),(97V)
EXC. DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9805-9809 |
● |
● |
● |
|
● |
● |
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK),
(BPL),(BPM),(BPN),(BPP),(BPQ),(BPR),
(BPT),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(9BP),(9XB)
,(9ZM),(9ZP),(9ZQ),(95V),(97V)
EXC. DISC BRAKE FRT<J52>
M22
|
9-09110-522-0 |
12 |
1 |
9810- |
● |
● |
● |
|
● |
● |
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
M22 LH THREAD
|
8-94427-504-0 |
06 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
M22 LH THREAD
|
8-94427-504-0 |
06 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
M22 LH THREAD
|
8-94427-504-0 |
06 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
RH THREAD M22
|
9-09110-522-0 |
06 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
RH THREAD M22
|
9-09110-522-0 |
06 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
27 |
05.813 NUT; WHEEL PIN,FRT AXLE
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
RH THREAD M22
|
9-09110-522-0 |
06 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
28 |
06.326 SEAL; OIL,FRT HUB
|
8-94248-117-1 |
02 |
1 |
9312-9611 |
● |
● |
● |
● |
|
|
| |
28 |
06.326 SEAL; OIL,FRT HUB
|
8-94248-117-1 |
02 |
1 |
9612-9711 |
● |
● |
● |
● |
● |
|
| |
28 |
06.326 SEAL; OIL,FRT HUB
|
8-94248-117-1 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
| |
29 |
06.326 DISTANCE PIECE; HUB BRKT
JBK
|
8-94246-302-0 |
02 |
1 |
9312-9611 |
● |
● |
● |
● |
|
|
| |
29 |
06.326 DISTANCE PIECE; HUB BRKT
JBK
|
8-94246-302-0 |
02 |
1 |
9612-9711 |
● |
● |
● |
● |
● |
|
| |
29 |
06.326 DISTANCE PIECE; HUB BRKT
JBK
|
8-94246-302-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
(AQK),(ARN),(ARP),(00C),(01C),(02C),
(03C),(04C),(05C),(06C),(06H),(07C),
(07H),(08C),(08H),(09C),(10C),(11C),
(50C),(51C),(53C),(54C),(55C),(83V),
(9BP),(9HY),(9XB),(9XD),(94H),(95H),(95V)
,(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97023-698-2 |
01 |
1 |
9712-9804 |
● |
● |
● |
● |
|
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
(AQK),(ARN),(ARP),(00C),(01C),(02C),
(03C),(04C),(05C),(06C),(06H),(07C),
(07H),(08C),(08H),(09C),(10C),(11C),
(50C),(51C),(53C),(54C),(55C),(83V),
(9BP),(9HY),(9XB),(9XD),(94H),(95H),(95V)
,(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97023-697-2 |
01 |
1 |
9712-9804 |
● |
● |
● |
● |
|
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
(AQK),(ARN),(ARP),(00C),(01C),(02C),
(03C),(04C),(05C),(06C),(06H),(07C),
(07H),(08C),(08H),(09C),(10C),(11C),
(50C),(51C),(53C),(54C),(55C),(83V),
(9BP),(9HY),(9XB),(9XD),(94H),(95H),(95V)
,(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97023-698-2 |
01 |
1 |
9805-9809 |
● |
● |
● |
● |
|
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN),
(BPP),(BPQ),(BPR),(BPT),(00C),(01C),
(02C),(03C),(04C),(05C),(06C),(06H),
(07C),(07H),(08C),(08H),(09C),(10C),
(11C),(50C),(51C),(53C),(54C),(55C),(83V)
,(9BP),(9HY),(9XB),(9XD),(94H),(95H),
(95V),(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97023-698-2 |
01 |
1 |
9810- |
● |
● |
● |
● |
|
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
(AQK),(ARN),(ARP),(00C),(01C),(02C),
(03C),(04C),(05C),(06C),(06H),(07C),
(07H),(08C),(08H),(09C),(10C),(11C),
(50C),(51C),(53C),(54C),(55C),(83V),
(9BP),(9HY),(9XB),(9XD),(94H),(95H),(95V)
,(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97023-697-2 |
01 |
1 |
9805-9809 |
● |
● |
● |
● |
|
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN),
(BPP),(BPQ),(BPR),(BPT),(00C),(01C),
(02C),(03C),(04C),(05C),(06C),(06H),
(07C),(07H),(08C),(08H),(09C),(10C),
(11C),(50C),(51C),(53C),(54C),(55C),(83V)
,(9BP),(9HY),(9XB),(9XD),(94H),(95H),
(95V),(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
|
8-97023-697-2 |
01 |
1 |
9810- |
● |
● |
● |
● |
|
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52>
|
8-97023-698-2 |
01 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
31 |
04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52>
|
8-97023-698-2 |
01 |
1 |
9507-9711 |
● |
● |
● |
|
|
|
| |
31 |
04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52>
|
8-97023-697-2 |
01 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
31 |
04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52>
|
8-97023-697-2 |
01 |
1 |
9507-9711 |
● |
● |
● |
|
|
|
| |
31 |
04.665 COVER; DUST,FRT BRAKE
(AUH),(AUJ),(AUS),(AVK)
DISC BRAKE FRT<J52>
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
|
8-97168-648-0 |
02 |
1 |
9712-9804 |
|
● |
● |
|
|
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
(AUH),(AUJ),(AUS),(AVK)
DISC BRAKE FRT<J52>
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
|
8-97168-648-0 |
02 |
1 |
9805- |
|
● |
● |
|
|
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
(AQK),(ARN),(ARP),(00C),(01C),(02C),
(03C),(04C),(05C),(06C),(06H),(07C),
(07H),(08C),(08H),(09C),(10C),(11C),
(50C),(51C),(53C),(54C),(55C),(83V),
(9BP),(9HY),(9XB),(9XD),(94H),(95H),(95V)
,(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
06 |
1 |
9712-9809 |
● |
● |
● |
● |
|
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN),
(BPP),(BPQ),(BPR),(BPT),(00C),(01C),
(02C),(03C),(04C),(05C),(06C),(06H),
(07C),(07H),(08C),(08H),(09C),(10C),
(11C),(50C),(51C),(53C),(54C),(55C),(83V)
,(9BP),(9HY),(9XB),(9XD),(94H),(95H),
(95V),(96H),(97H),(97V),(98H),(99H)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
06 |
1 |
9810- |
● |
● |
● |
● |
|
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
06 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
06 |
1 |
9507-9711 |
● |
● |
● |
|
|
|
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
(AUH),(AUJ),(AUS),(AVK)
DISC BRAKE FRT<J52>
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
M8X10 W/LK WASHER
|
8-97025-916-0 |
08 |
1 |
9712-9804 |
|
● |
● |
|
|
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
(AUH),(AUJ),(AUS),(AVK)
DISC BRAKE FRT<J52>
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
M8X10 W/LK WASHER
|
8-97025-916-0 |
08 |
1 |
9805- |
|
● |
● |
|
|
● |
| |
35 |
05.002 BOLT; DRUM COVER
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
10 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
| |
35 |
05.002 BOLT; DRUM COVER
(ARN),(BPL),(BPM),(06H),(07H),(08H),
(50C),(51C),(9HY),(94H),(95H),(96H),
(97H),(98H),(99H)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
10 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
35 |
05.002 BOLT; DRUM COVER
(AQK),(ARP),(00C),(01C),(02C),(03C),
(04C),(05C),(06C),(07C),(08C),(09C),
(10C),(11C),(53C),(54C),(55C),(83V),
(9BP),(9XB),(95V),(97V)
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
12 |
1 |
9712-9801 |
● |
● |
● |
● |
|
● |
| |
35 |
05.002 BOLT; DRUM COVER
(AQK),(ARP),(00C),(01C),(02C),(03C),
(04C),(05C),(06C),(07C),(08C),(09C),
(10C),(11C),(53C),(54C),(55C),(83V),
(9BP),(9XB),(95V),(97V)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
12 |
1 |
9802-9809 |
● |
● |
● |
● |
|
● |
| |
35 |
05.002 BOLT; DRUM COVER
(AQK),(ARP),(BPN),(BPP),(BPQ),(BPR),
(BPT),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(9BP),
(9XB),(95V),(97V)
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
12 |
1 |
9810- |
● |
● |
● |
● |
|
● |
| |
35 |
05.002 BOLT; DRUM COVER
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
12 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
35 |
05.002 BOLT; DRUM COVER
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
12 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
35 |
05.002 BOLT; DRUM COVER
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
10 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
35 |
05.002 BOLT; DRUM COVER
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
10 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
35 |
05.002 BOLT; DRUM COVER
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
10 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
35 |
05.002 BOLT; DRUM COVER
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
10 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
35 |
05.002 BOLT; DRUM COVER
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
12 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
35 |
05.002 BOLT; DRUM COVER
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
11.377
M10X20 W/LK WASHER
|
0-50041-020-0 |
12 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
(A)
|
8-94479-193-0 |
02 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
(B)
|
8-94479-194-0 |
02 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
(A)
|
8-94479-193-0 |
02 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(BPL),(BPM),(06H),(07H),(08H),
(50C),(51C),(9HY),(94H),(95H),(96H),
(97H),(98H),(99H)
DISC BRAKE FRT<J52>
(A)
|
8-94479-193-0 |
02 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(06H),(07H),(08H),(50C),(51C),
(9HY),(9XD),(94H),(95H),(96H),(97H),
(98H),(99H)
DISC BRAKE FRT<J52>
(B)
|
8-94479-194-0 |
02 |
1 |
9805-9809 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(BPL),(BPM),(06H),(07H),(08H),
(50C),(51C),(9HY),(94H),(95H),(96H),
(97H),(98H),(99H)
DISC BRAKE FRT<J52>
(B)
|
8-94479-194-0 |
02 |
1 |
9810- |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(AQK),(ARP),(00C),(01C),(02C),(03C),
(04C),(05C),(06C),(07C),(08C),(09C),
(10C),(11C),(53C),(54C),(55C),(83V),
(9BP),(9XB),(95V),(97V)
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94455-084-1 |
04 |
1 |
9712-9801 |
● |
● |
● |
● |
|
● |
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(AQK),(ARP),(00C),(01C),(02C),(03C),
(04C),(05C),(06C),(07C),(08C),(09C),
(10C),(11C),(53C),(54C),(55C),(83V),
(9BP),(9XB),(95V),(97V)
DISC BRAKE FRT<J52>
(A)
|
8-94455-084-1 |
04 |
1 |
9802-9809 |
● |
● |
● |
● |
|
● |
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(AQK),(ARP),(BPN),(BPP),(BPQ),(BPR),
(BPT),(00C),(01C),(02C),(03C),(04C),
(05C),(06C),(07C),(08C),(09C),(10C),
(11C),(53C),(54C),(55C),(83V),(9BP),
(9XB),(95V),(97V)
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94455-084-1 |
04 |
1 |
9810- |
● |
● |
● |
● |
|
● |
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
(A)
|
8-94455-084-1 |
04 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(02C),(05C),(08C),(11C),(83V),(88V),
(9XB)
DISC BRAKE FRT<J52>
(A)
|
8-94455-084-1 |
04 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
(A)
|
8-94455-084-1 |
04 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARP),(02C),(05C),(08C),(11C),(83V),
(88V),(9XB)
DISC BRAKE FRT<J52>
(A)
|
8-94455-084-1 |
04 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
(A)
|
8-94479-193-0 |
02 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
(A)
|
8-94479-193-0 |
02 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
(A)
|
8-94479-193-0 |
02 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
(A)
|
8-94479-193-0 |
02 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
(B)
|
8-94479-194-0 |
02 |
1 |
9312-9506 |
|
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
(B)
|
8-94479-194-0 |
02 |
1 |
9507-9509 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
(B)
|
8-94479-194-0 |
02 |
1 |
9510-9704 |
● |
● |
● |
|
|
|
| |
47 |
06.308 HOLDER; TIRE VALVE,FRT HUB
(ARN),(06H),(07H),(08H),(9HY)
DISC BRAKE FRT<J52>
(B)
|
8-94479-194-0 |
02 |
1 |
9705-9711 |
● |
● |
● |
● |
|
|
