Sayfa 4-10 - Isuzu EPC

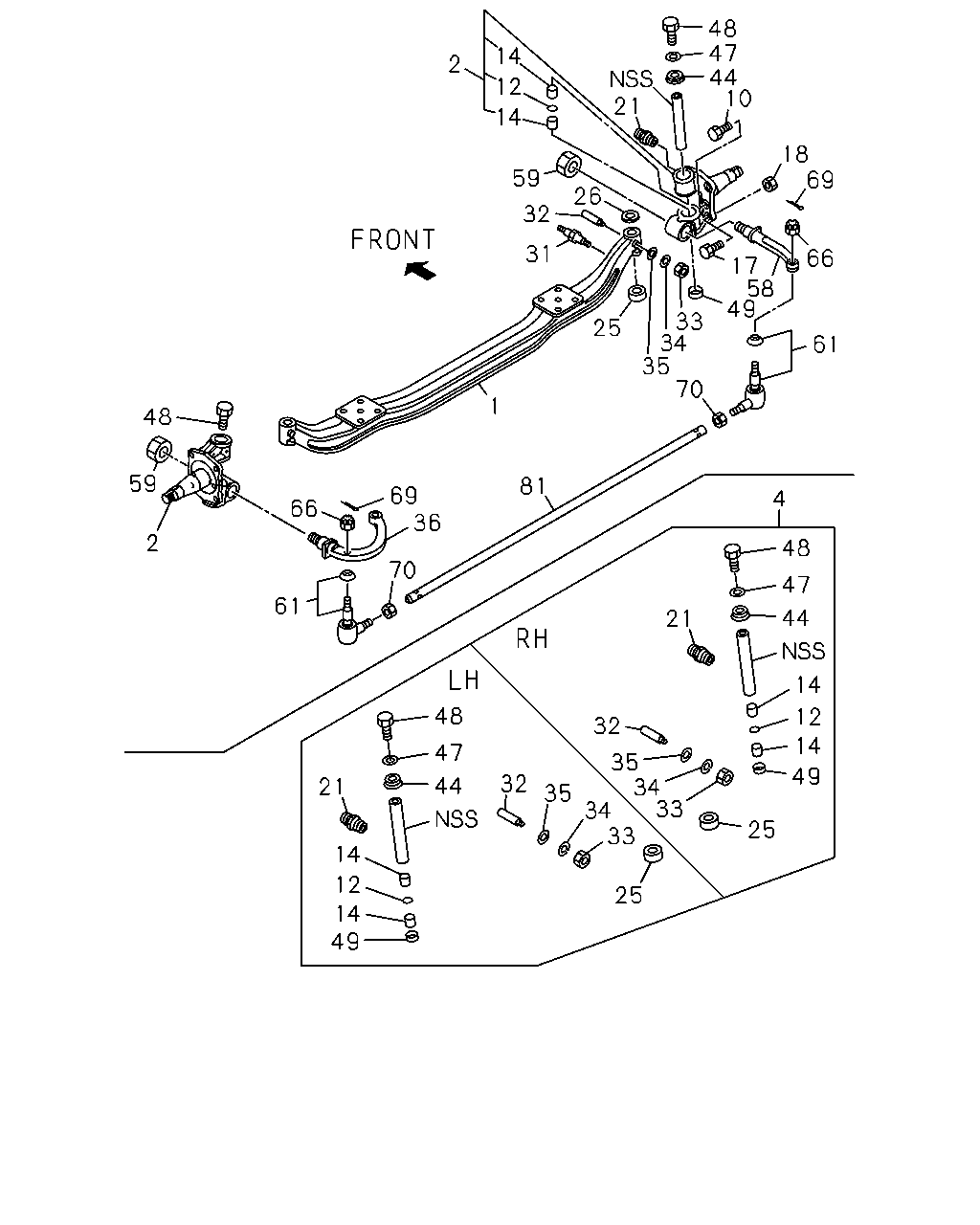

4-10 — FRONT AXLE (#47455) — 333 parça

48 47 44 10 14 2 21 12 14 18 69 59 26 32 31 66 17 58 49 33 34 35 70 25 61 1 48 59 81 69 36 4 66 2 48 70 47 61 21 44 14 48 12 32 14 47 35 34 33 49 32 21 44 35 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.008 AXLE; FRT	8-94246-311-5	01	1	9312-9510	●	●	●	●
1	06.008 AXLE; FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-94246-311-5	01	1	9511-9711	●	●	●	●
1	06.008 AXLE; FRT G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-94246-311-5	01	1	9511-9711		●	●
1	06.008 AXLE; FRT G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97137-588-0	01	1	9712-9801	●	●	●	●	●
1	06.008 AXLE; FRT G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97137-588-0	01	1	9802-	●	●	●	●	●	●
1	06.008 AXLE; FRT G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97123-361-0	01	1	9511-9611		●	●
1	06.008 AXLE; FRT G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97123-361-0	01	1	9612-9711		●	●			●
1	06.008 AXLE; FRT G.V.W. 8.0-8.5TON(RPZ)	8-97145-406-0	01	1	9712-		●	●		●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-785-0	01	1	9712-9804	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>	8-97141-785-0	01	1	9712-9804		●	●
2	06.020 KNUCKLE; FRT AXLE	8-97141-785-0	01	1	9712-9804				●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-785-0	01	1	9712-9804						●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ)	8-97141-785-0	01	1	9712-9804						●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-784-0	01	1	9712-9804	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>	8-97141-784-0	01	1	9712-9804		●	●
2	06.020 KNUCKLE; FRT AXLE	8-97141-784-0	01	1	9712-9804				●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-784-0	01	1	9712-9804						●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ)	8-97141-784-0	01	1	9712-9804						●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-785-0	01	1	9805-9805	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>	8-97141-785-0	01	1	9805-9805		●	●
2	06.020 KNUCKLE; FRT AXLE	8-97141-785-0	01	1	9805-9805				●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-785-0	01	1	9805-9805						●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ)	8-97141-785-0	01	1	9805-9805						●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-785-0	01	1	9805-	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>	8-97141-785-0	01	1	9805-		●	●			●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-785-0	01	1	9805-		●	●			●
2	06.020 KNUCKLE; FRT AXLE	8-97141-785-0	01	1	9805-				●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-784-0	01	1	9805-9805	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>	8-97141-784-0	01	1	9805-9805		●	●
2	06.020 KNUCKLE; FRT AXLE	8-97141-784-0	01	1	9805-9805				●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-784-0	01	1	9805-9805						●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ)	8-97141-784-0	01	1	9805-9805						●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-784-0	01	1	9805-	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>	8-97141-784-0	01	1	9805-		●	●			●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-784-0	01	1	9805-		●	●			●
2	06.020 KNUCKLE; FRT AXLE	8-97141-784-0	01	1	9805-				●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-781-0	01	1	9805-	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-781-0	01	1	9805-						●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-783-0	01	1	9805-	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-783-0	01	1	9805-						●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>	8-94169-412-0	01	1	9312-9510	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>	8-94169-412-0	01	1	9511-9609	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-94169-412-0	01	1	9511-9609		●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>	8-94169-412-0	01	1	9610-9612	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-94169-412-0	01	1	9610-9612		●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>	8-94169-412-0	01	1	9701-9711	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-94169-412-0	01	1	9701-9711		●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>	8-94169-411-0	01	1	9312-9510	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>	8-94169-411-0	01	1	9511-9609	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-94169-411-0	01	1	9511-9609		●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>	8-94169-411-0	01	1	9610-9612	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-94169-411-0	01	1	9610-9612		●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>	8-94169-411-0	01	1	9701-9711	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-94169-411-0	01	1	9701-9711		●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-94455-081-0	01	1	9312-9506		●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-94455-081-0	01	1	9507-9711	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	8-97141-783-0	01	1	9712-9801	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY)	8-97141-783-0	01	1	9712-9801						●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-783-0	01	1	9802-9804	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-783-0	01	1	9802-9804						●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-94455-080-0	01	1	9312-9506		●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-94455-080-0	01	1	9507-9711	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	8-97141-781-0	01	1	9712-9801	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY)	8-97141-781-0	01	1	9712-9801						●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-781-0	01	1	9802-9804	●	●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97141-781-0	01	1	9802-9804						●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97036-739-0	01	1	9511-9603		●	●
2	06.020 KNUCKLE; FRT AXLE (AQK),(00C),(01C),(03C),(04C),(06C), (07C),(09C),(10C),(53C),(54C),(55C), (9BP),(9ZM),(9ZP),(9ZQ),(95V),(97V) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97036-739-0	01	1	9604-9609		●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97036-739-0	01	1	9610-9611		●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97036-739-0	01	1	9612-9711		●	●			●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97036-738-0	01	1	9511-9603		●	●
2	06.020 KNUCKLE; FRT AXLE (AQK),(00C),(01C),(03C),(04C),(06C), (07C),(09C),(10C),(53C),(54C),(55C), (9BP),(9ZM),(9ZP),(9ZQ),(95V),(97V) G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97036-738-0	01	1	9604-9609		●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97036-738-0	01	1	9610-9611		●	●
2	06.020 KNUCKLE; FRT AXLE G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>	8-97036-738-0	01	1	9612-9711		●	●			●
4	06.203 KING PIN KIT	5-87830-978-0	01	1	9312-9611	●	●	●	●
4	06.203 KING PIN KIT	5-87830-978-1	01	1	9612-9711	●	●	●	●		●
4	06.203 KING PIN KIT	5-87831-608-0	01	1	9712-	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9312-9611	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9612-9711	●	●	●	●		●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9712-	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	9312-9611	●	●	●	●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	9612-9711	●	●	●	●		●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	9712-	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	9312-9611	●	●	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	9612-9711	●	●	●	●		●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	9712-9804	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	9312-9611	●	●	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	9612-9711	●	●	●	●		●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	9712-9804	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	9805-	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	9805-	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	9312-9606	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE EXC. FRAME STRAIGHT TYPE<7KJ> M12X24 EYE-BOLT	5-09000-208-1	03	1	9607-9611	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE (AQK),(00C),(01C),(03C),(04C),(06C), (07C),(09C),(10C),(53C),(54C),(55C), (9BP),(95V),(97V) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> M12X24 EYE-BOLT	5-09000-208-1	03	1	9607-9611		●	●
17	06.009 BOLT; STOPPER KNUCKLE EXC. FRAME STRAIGHT TYPE<7KJ> M12X24 EYE-BOLT	5-09000-208-1	03	1	9612-9711	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE (AQK),(00C),(01C),(03C),(04C),(06C), (07C),(09C),(10C),(53C),(54C),(55C), (9BP),(95V),(97V) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> M12X24 EYE-BOLT	5-09000-208-1	03	1	9612-9711		●	●
17	06.009 BOLT; STOPPER KNUCKLE (9BP) M12X24 EYE-BOLT	5-09000-208-1	03	1	9612-9711						●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	9712-9809	●			●
17	06.009 BOLT; STOPPER KNUCKLE (AQK),(ARN),(ARP),(AUH),(AUJ),(AUS), (AVK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(06H),(07C),(07H),(08C), (08H),(09C),(09H),(10C),(10H),(11C), (11H),(12H),(13H),(14H),(15H),(16H),(17H) ,(18H),(19H),(50C),(51C),(52C),(53C), (54C),(55C),(83V),(9BP),(9HY),(9XB), (9XD),(94H),(95H),(95V),(96H),(97H), (97V),(98H),(99H) M12X24 EYE-BOLT	5-09000-208-1	03	1	9712-9809		●	●		●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	9810-	●			●
17	06.009 BOLT; STOPPER KNUCKLE (AQK),(ARN),(ARN),(ARP),(AUH),(AUJ), (AUS),(AVK),(BPL),(BPM),(BPN),(BPP), (BPQ),(BPR),(BPT),(00C),(01C),(02C), (03C),(04C),(05C),(06C),(06H),(07C), (07H),(08C),(08H),(09C),(09H),(10C),(10H) ,(11C),(11H),(12H),(13H),(14H),(15H), (16H),(17H),(18H),(19H),(50C),(51C), (52C),(53C),(54C),(55C),(83V),(9BP), (9HY),(9XB),(9XD),(94H),(95H),(95V), (96H),(97H),(97V),(98H),(99H) M12X24 EYE-BOLT	5-09000-208-1	03	1	9810-		●	●		●	●
17	06.009 BOLT; STOPPER KNUCKLE (9ZM),(9ZP),(9ZQ) G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> M12X27.5	8-94433-409-1	03	1	9607-9611		●	●
17	06.009 BOLT; STOPPER KNUCKLE (9ZM),(9ZP),(9ZQ) G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> M12X27.5	8-94433-409-1	03	1	9612-9711		●	●
17	06.009 BOLT; STOPPER KNUCKLE (9ZM),(9ZP),(9ZQ) M12X27.5	8-94433-409-1	03	1	9612-9711						●
17	06.009 BOLT; STOPPER KNUCKLE (9ZM),(9ZP),(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M12X27.5	8-94433-409-1	03	1	9712-		●	●		●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE	9-09840-025-0	03	1	9312-9407	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9408-9611	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9612-9711	●	●	●	●		●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9712-	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9312-9611	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9612-9711	●	●	●	●		●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9712-	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-1	02	1	9312-9611	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-1	02	1	9612-9711	●	●	●	●		●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-1	01	1	9712-9804	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN	8-97141-943-0	01	1	9712-	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-1	01	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	9312-9611	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	9612-9711	●	●	●	●		●
26	06.022 SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	9312-9611	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	9612-9711	●	●	●	●		●
26	06.022 SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	9312-9611	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	9612-9711	●	●	●	●		●
26	06.022 SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	9312-9611	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	9612-9711	●	●	●	●		●
26	06.022 SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	9312-9611	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	9612-9711	●	●	●	●		●
26	06.022 SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	9312-9611	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	9612-9711	●	●	●	●		●
26	06.022 SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	9312-9611	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	9612-9711	●	●	●	●		●
26	06.022 SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 T=1.95	8-94168-490-0	AR	1	9712-9801	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 T=1.95	8-94168-490-0	01	1	9802-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 T=1.95	8-94168-490-0	01	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	9805-	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-94101-463-0	02	1	9312-9611	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-94101-463-0	02	1	9612-9711	●	●	●	●		●
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	9712-	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-94247-726-0	02	1	9312-9611	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-94247-726-0	02	1	9612-9706	●	●	●	●		●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	9707-9711	●	●	●	●		●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	9712-	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9312-9611	●	●	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9612-9711	●	●	●	●		●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9712-	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9312-9611	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9612-9711	●	●	●	●		●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9712-	●	●	●	●	●	●
35	06.216 WASHER; PL,KEY BOLT TO KING PIN 04.792 ID=10.5 OD=26	9-09160-710-0	02	1	9312-9611	●	●	●	●
35	06.216 WASHER; PL,KEY BOLT TO KING PIN 04.792 ID=10.5 OD=26	9-09160-710-0	02	1	9612-9706	●	●	●	●		●
36	06.103 ARM; KNUCKLE (AQK),(ARP),(AUH),(AUJ),(AUS),(AVK), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(09H),(10C), (10H),(11C),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C),(53C) ,(54C),(55C),(83V),(9BP),(9XB),(9ZM), (9ZP),(9ZQ),(95V),(97V)	8-97147-635-0	01	1	9805-9809	●	●	●
36	06.103 ARM; KNUCKLE	8-97147-635-0	01	1	9805-9809				●	●	●
36	06.103 ARM; KNUCKLE (AQK),(ARP),(AUH),(AUJ),(AUS),(AVK), (BPN),(BPP),(BPQ),(BPR),(BPS),(BPT), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(09H),(10C), (10H),(11C),(11H),(12H),(13H),(14H),(15H) ,(16H),(17H),(18H),(19H),(52C),(53C), (54C),(55C),(83V),(9BP),(9XB),(9ZM), (9ZP),(9ZQ),(95V),(97V)	8-97147-635-0	01	1	9810-	●	●	●
36	06.103 ARM; KNUCKLE	8-97147-635-0	01	1	9810-				●	●	●
36	06.103 ARM; KNUCKLE (ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(9XD),(94H),(95H),(96H),(97H), (98H),(99H)	8-97168-290-0	01	1	9712-9809	●	●	●
36	06.103 ARM; KNUCKLE (ARN),(BPL),(BPM),(06H),(07H),(08H), (50C),(51C),(9HY),(9XD),(94H),(95H), (96H),(97H),(98H),(99H)	8-97168-290-0	01	1	9810-	●	●	●
36	06.103 ARM; KNUCKLE (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(09H),(10C), (10H),(11C),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (53C),(54C),(55C),(83V),(88V),(9BP),(95V) ,(97V) EXC. DISC BRAKE FRT<J52>	8-97070-143-0	01	1	9312-9506	●	●	●	●
36	06.103 ARM; KNUCKLE (AQK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(09H), (10C),(10H),(11C),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (52C),(53C),(54C),(55C),(83V),(88V),(9BP) ,(95V),(97V) EXC. DISC BRAKE FRT<J52>	8-97070-143-0	01	1	9507-9603	●	●	●	●
36	06.103 ARM; KNUCKLE (AQK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(09H), (10C),(10H),(11C),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (52C),(53C),(54C),(55C),(83V),(88V),(9BP) ,(9ZM),(9ZP),(9ZQ),(95V),(97V) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>	8-97070-143-0	01	1	9604-9609	●	●	●	●
36	06.103 ARM; KNUCKLE (AQK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(09H), (10C),(10H),(11C),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (52C),(53C),(54C),(55C),(83V),(88V),(9BP) ,(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. DISC BRAKE FRT<J52>	8-97070-143-0	01	1	9610-9611	●	●	●	●
36	06.103 ARM; KNUCKLE (AQK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(09H), (10C),(10H),(11C),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (52C),(53C),(54C),(55C),(83V),(88V),(9BP) ,(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. DISC BRAKE FRT<J52>	8-97070-143-0	01	1	9612-9711	●	●	●	●		●
36	06.103 ARM; KNUCKLE (AQK),(ARP),(AUH),(AUJ),(AUS),(AVK), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(09H),(10C), (10H),(11C),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C),(53C) ,(54C),(55C),(83V),(9BP),(9XB),(9ZM), (9ZP),(9ZQ),(95V),(97V)	8-97147-635-0	01	1	9712-9804	●	●	●
36	06.103 ARM; KNUCKLE	8-97147-635-0	01	1	9712-9804				●	●	●
36	06.103 ARM; KNUCKLE (06H),(07H),(08H),(50C),(51C),(9XD), (94H),(95H),(96H),(97H),(98H),(99H) EXC. DISC BRAKE FRT<J52>	8-97070-142-0	01	1	9312-9506	●	●	●	●
36	06.103 ARM; KNUCKLE DISC BRAKE FRT<J52>	8-97070-142-0	01	1	9312-9506		●	●
36	06.103 ARM; KNUCKLE (06H),(07H),(08H),(50C),(51C),(9XD), (94H),(95H),(96H),(97H),(98H),(99H)	8-97070-142-0	01	1	9507-9711	●	●	●	●
36	06.103 ARM; KNUCKLE DISC BRAKE FRT<J52>	8-97070-142-0	01	1	9507-9711	●	●	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-0	02	1	9312-9611	●	●	●	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-0	02	1	9612-9711	●	●	●	●		●
44	06.225 COVER; KING PIN OD=36	8-94248-675-0	02	1	9712-	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9312-9611	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9612-9711	●	●	●	●		●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9712-	●	●	●	●	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9312-9611	●	●	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9612-9711	●	●	●	●		●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9712-	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9312-9611	●	●	●	●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9612-9711	●	●	●	●		●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9712-	●	●	●	●	●	●
58	06.103 ARM; TIE ROD	8-97037-753-0	01	1	9312-9611	●	●	●	●
58	06.103 ARM; TIE ROD	8-97037-753-0	01	1	9612-9711	●	●	●	●		●
58	06.103 ARM; TIE ROD	8-97147-636-0	01	1	9712-	●	●	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9312-9611	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9612-9711	●	●	●	●		●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9712-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-349-0	01	1	9312-9611	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-349-1	01	1	9612-9711	●	●	●	●		●
61	06.233 ROD END; TIE ROD	8-97142-101-0	01	1	9712-9804	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-348-0	01	1	9312-9611	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97107-348-1	01	1	9612-9711	●	●	●	●		●
61	06.233 ROD END; TIE ROD	8-97142-100-0	01	1	9712-9804	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	9805-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	9805-	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9312-9611	●	●	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9612-9711	●	●	●	●		●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9712-	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9312-9611	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9612-9703	●	●	●	●		●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 L=20	9-08114-020-0	02	1	9704-9711	●	●	●	●		●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 L=20	9-08114-020-0	02	1	9712-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9312-9611	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9612-9711	●	●	●	●		●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9712-9804	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	9312-9611	●	●	●	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	9612-9711	●	●	●	●		●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	9712-9804	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9805-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	9805-	●	●	●	●	●	●
81	06.230 ROD; TIE	8-97061-869-0	01	1	9312-9611	●	●	●	●
81	06.230 ROD; TIE	8-97061-869-0	01	1	9612-9711	●	●	●	●		●
81	06.230 ROD; TIE	8-97061-869-0	01	1	9712-	●	●	●	●	●	●

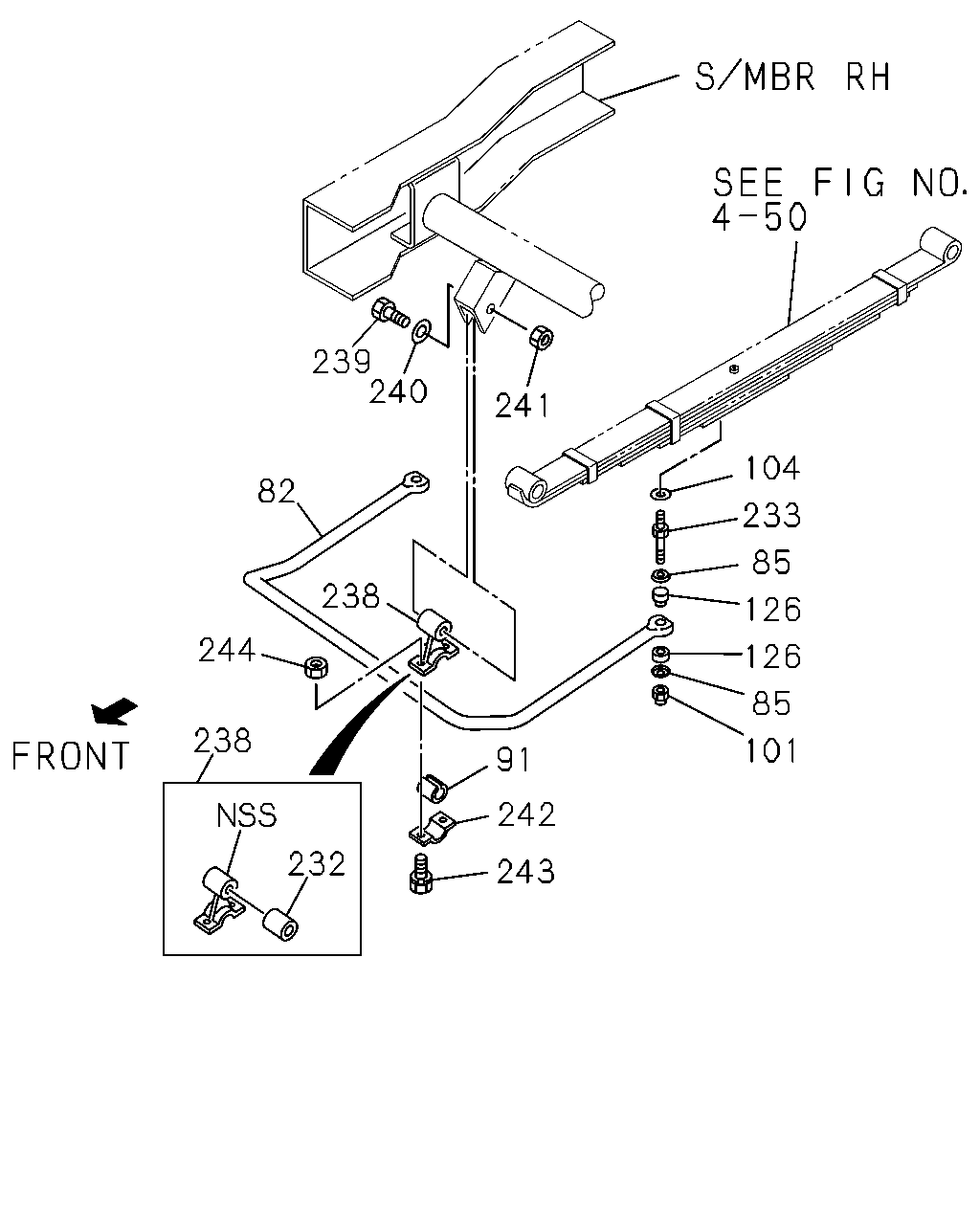

239 240 241 104 82 233 85 238 126 244 126 85 238 101 91 242 232 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-94342-205-0	01	1	9312-9504		●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-94342-205-0	01	1	9505-9506		●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-94342-205-0	01	1	9507-9603	●	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94342-205-0	01	1	9604-9704	●	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94342-205-0	01	1	9705-9711	●	●	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-94342-205-0	01	1	9712-9801	●			●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94342-205-0	01	1	9712-9801		●	●		●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-94342-205-0	01	1	9802-	●			●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94342-205-0	01	1	9802-		●	●		●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-97138-348-0	01	1	9604-9711		●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-97138-348-0	01	1	9712-9801		●	●		●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-97138-348-0	01	1	9802-		●	●		●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-94342-084-0	04	1	9312-9504		●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-94342-084-0	04	1	9505-9506		●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-94342-084-0	04	1	9507-9704	●	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-94342-084-0	04	1	9705-9711	●	●	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-94342-084-0	04	1	9712-9801	●	●	●	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	8-94342-084-0	04	1	9802-	●	●	●	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	9312-9504		●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	9505-9506		●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	9507-9704	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	9705-9711	●	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	9712-9801	●	●	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	9802-	●	●	●	●	●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	9312-9504		●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	9505-9506		●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	9507-9704	●	●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	9705-9711	●	●	●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	9712-9801	●	●	●	●	●
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	9802-	●	●	●	●	●	●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	9312-9504		●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	9505-9506		●	●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	9507-9704	●	●	●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	9705-9711	●	●	●	●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	9712-9801	●	●	●	●	●
104	07.242 WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	9802-	●	●	●	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=18	8-97089-556-0	02	1	9312-9504		●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=18	8-97089-556-0	02	1	9505-9506		●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=18	8-97089-556-0	02	1	9507-9603	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=18	8-97089-556-0	02	1	9604-9704	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=18	8-97089-556-0	02	1	9705-9711	●	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=18	8-97089-556-0	02	1	9712-9801	●			●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=18	8-97089-556-0	02	1	9712-9801		●	●		●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=18	8-97089-556-0	02	1	9802-	●			●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=18	8-97089-556-0	02	1	9802-		●	●		●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=29	8-97089-557-0	02	1	9312-9504		●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=29	8-97089-557-0	02	1	9505-9506		●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=29	8-97089-557-0	02	1	9507-9603	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=29	8-97089-557-0	02	1	9604-9704	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=29	8-97089-557-0	02	1	9705-9711	●	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=29	8-97089-557-0	02	1	9712-9801	●			●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=29	8-97089-557-0	02	1	9712-9801		●	●		●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> L=29	8-97089-557-0	02	1	9802-	●			●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> L=29	8-97089-557-0	02	1	9802-		●	●		●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-94342-083-0	04	1	9604-9711		●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-94342-083-0	04	1	9712-9801		●	●		●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ>	8-94342-083-0	04	1	9802-		●	●		●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94331-581-0	02	1	9312-9504		●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94331-581-0	02	1	9505-9506		●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94331-581-0	02	1	9507-9704	●	●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94331-581-0	02	1	9705-9711	●	●	●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94331-581-0	02	1	9712-9801	●	●	●	●	●
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94331-581-0	02	1	9802-	●	●	●	●	●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59> 04.686	8-94342-082-0	02	1	9312-9504		●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59> 04.686	8-94342-082-0	02	1	9505-9506		●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59> 04.686	8-94342-082-0	02	1	9507-9704	●	●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59> 04.686	8-94342-082-0	02	1	9705-9711	●	●	●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59> 04.686	8-94342-082-0	02	1	9712-9801	●	●	●	●	●
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59> 04.686	8-94342-082-0	02	1	9802-	●	●	●	●	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-94441-472-2	02	1	9312-9504		●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-94441-472-2	02	1	9505-9506		●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-94441-472-3	02	1	9507-9704	●	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-94441-472-3	02	1	9705-9711	●	●	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-94441-472-3	02	1	9712-9801	●	●	●	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-94441-472-3	02	1	9802-	●	●	●	●	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70	0-10806-470-0	02	1	9312-9412		●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70	0-28081-470-0	02	1	9501-9504		●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70	0-28081-470-0	02	1	9505-9506		●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28881-470-0	02	1	9507-9704	●	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28881-470-0	02	1	9705-9711	●	●	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28881-470-0	02	1	9712-9801	●	●	●	●	●
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28881-470-0	02	1	9802-	●	●	●	●	●	●
240	07.242 WASHER; LK,LINK ROD FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2	9-09150-514-0	02	1	9312-9412		●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 06.232 M14	9-99110-414-0	02	1	9312-9411		●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE	0-91150-114-0	02	1	9412-9504		●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE	0-91150-114-0	02	1	9505-9506		●	●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE	0-91150-114-0	02	1	9507-9704	●	●	●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE	0-91150-114-0	02	1	9705-9711	●	●	●	●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE	0-91150-114-0	02	1	9712-9801	●	●	●	●	●
241	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE	0-91150-114-0	02	1	9802-	●	●	●	●	●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-1	02	1	9312-9504		●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-1	02	1	9505-9506		●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	9507-9704	●	●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	9705-9711	●	●	●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	9712-9801	●	●	●	●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	9802-	●	●	●	●	●	●
243	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9312-9504		●
243	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9505-9506		●	●
243	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9507-9603	●	●	●
243	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	9604-9704	●	●	●
243	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	9705-9711	●	●	●	●
243	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	9712-9801	●	●	●	●	●
243	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	9802-	●	●	●	●	●	●
244	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE	0-91150-210-0	04	1	9312-9504		●
244	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE	0-91150-210-0	04	1	9505-9506		●	●
244	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE	0-91150-210-0	04	1	9507-9704	●	●	●
244	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE	0-91150-210-0	04	1	9705-9711	●	●	●	●
244	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE	0-91150-210-0	04	1	9712-9801	●	●	●	●	●
244	07.242 NUT; LINK ROD FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE	0-91150-210-0	04	1	9802-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
