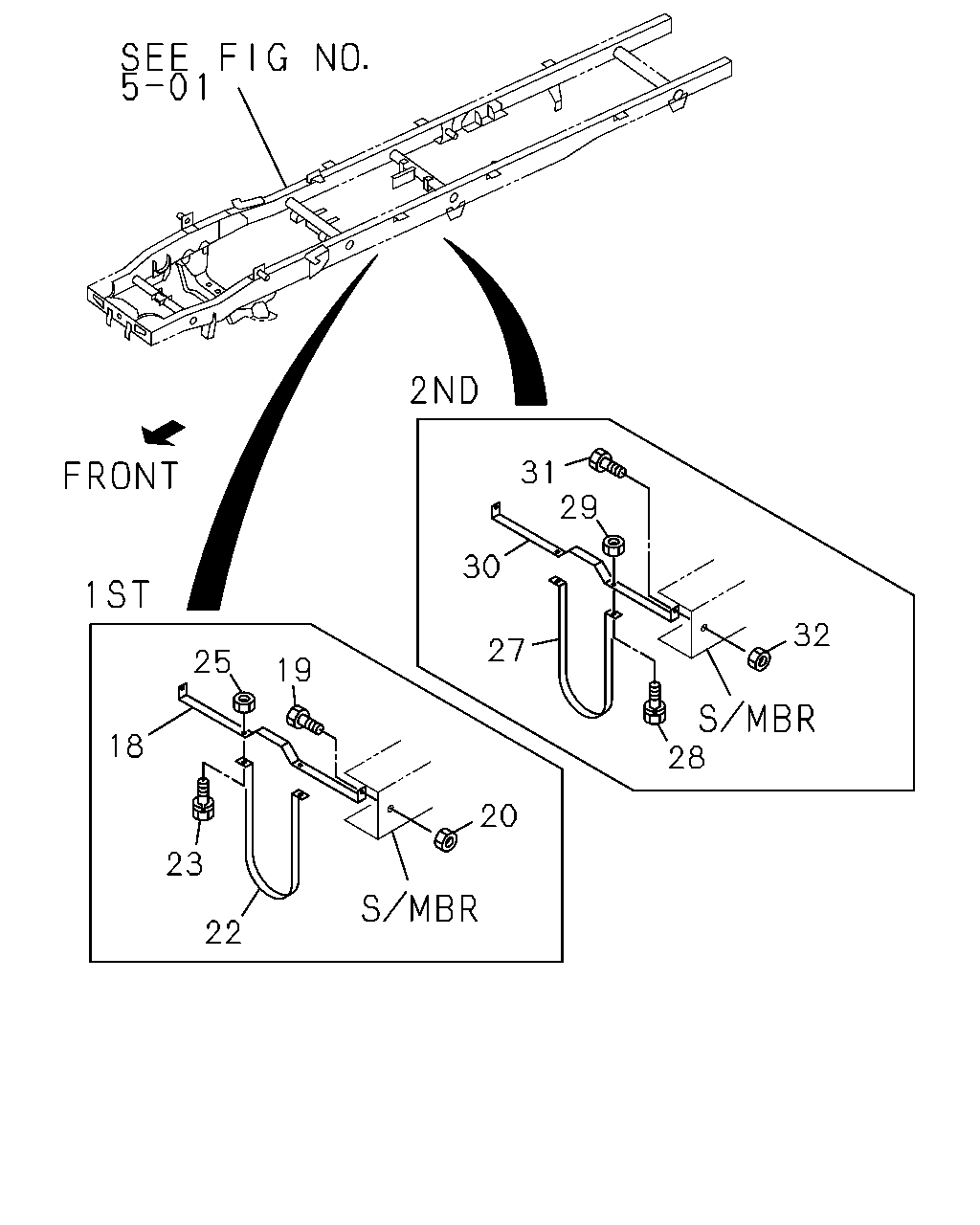

4-02 — PROPELLER SHAFT GUARD (#47454) — 34 parça

31 29 30 32 27 25 19 18 28 20 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	05.546 BRACKET; PROP SHAFT GUARD BRAZIL EQUIPMENT(RWF)	8-97081-627-0	01	1	9403-9510	●
18	05.546 BRACKET; PROP SHAFT GUARD FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK>	8-97109-379-1	02	1	9511-9711	●	●
18	05.546 BRACKET; PROP SHAFT GUARD FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK>	8-97109-379-1	02	1	9712-	●	●	●
18	05.546 BRACKET; PROP SHAFT GUARD BRAZIL EQUIPMENT(RWF)	8-94406-963-2	01	1	9403-9510		●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD BRAZIL EQUIPMENT(RWF) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9403-9510	●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD BRAZIL EQUIPMENT(RWF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9403-9510		●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9511-9711	●	●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9712-	●	●	●
20	05.546 NUT; BRKT,PROP SHAFT GUARD BRAZIL EQUIPMENT(RWF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9403-9510	●	●
20	05.546 NUT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711	●	●
20	05.546 NUT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-	●	●	●
22	05.546 GUARD; PROP SHAFT BRAZIL EQUIPMENT(RWF) L=170	8-94116-994-1	01	1	9403-9510	●	●
22	05.546 GUARD; PROP SHAFT GUARD PROP SHAFT<7NK> L=160	5-53493-064-1	01	1	9511-9711	●	●
22	05.546 GUARD; PROP SHAFT GUARD PROP SHAFT<7NK> L=160	5-53493-064-1	01	1	9712-	●	●	●
23	05.546 BOLT; GUARD BRAZIL EQUIPMENT(RWF) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9403-9411	●	●
23	05.546 BOLT; GUARD BRAZIL EQUIPMENT(RWF) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-9510	●	●
23	05.546 BOLT; GUARD GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-9711	●	●
23	05.546 BOLT; GUARD GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●	●
25	05.546 NUT; GUARD BRAZIL EQUIPMENT(RWF) 07.633 M8 FLANGE	0-91150-108-0	02	1	9403-9510	●	●
25	05.546 NUT; GUARD GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711	●	●
25	05.546 NUT; GUARD GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●
27	05.546 GUARD; PROP SHAFT,2ND BRAZIL EQUIPMENT(RWF) L=227	8-94116-995-1	01	1	9403-9510	●	●
27	05.546 GUARD; PROP SHAFT,2ND GUARD PROP SHAFT<7NK> L=240	8-97081-592-0	01	1	9511-9711	●	●
27	05.546 GUARD; PROP SHAFT,2ND GUARD PROP SHAFT<7NK> L=240	8-97081-592-0	01	1	9712-	●	●	●
28	05.546 BOLT; GUARD,PROP SHAFT,2ND BRAZIL EQUIPMENT(RWF) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9403-9411	●	●
28	05.546 BOLT; GUARD,PROP SHAFT,2ND BRAZIL EQUIPMENT(RWF) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-9510	●	●
28	05.546 BOLT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-9711	●	●
28	05.546 BOLT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●	●
29	05.546 NUT; GUARD,PROP SHAFT,2ND BRAZIL EQUIPMENT(RWF) 07.633 M8 FLANGE	0-91150-108-0	02	1	9403-9510	●	●
29	05.546 NUT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9711	●	●
29	05.546 NUT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●
30	05.546 BRACKET; PROP SHAFT,2ND BRAZIL EQUIPMENT(RWF)	8-97081-627-0	01	1	9403-9510	●	●
31	05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD BRAZIL EQUIPMENT(RWF) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9403-9510	●	●
32	05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD BRAZIL EQUIPMENT(RWF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9403-9510	●	●
