◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#47450) — 143 parça

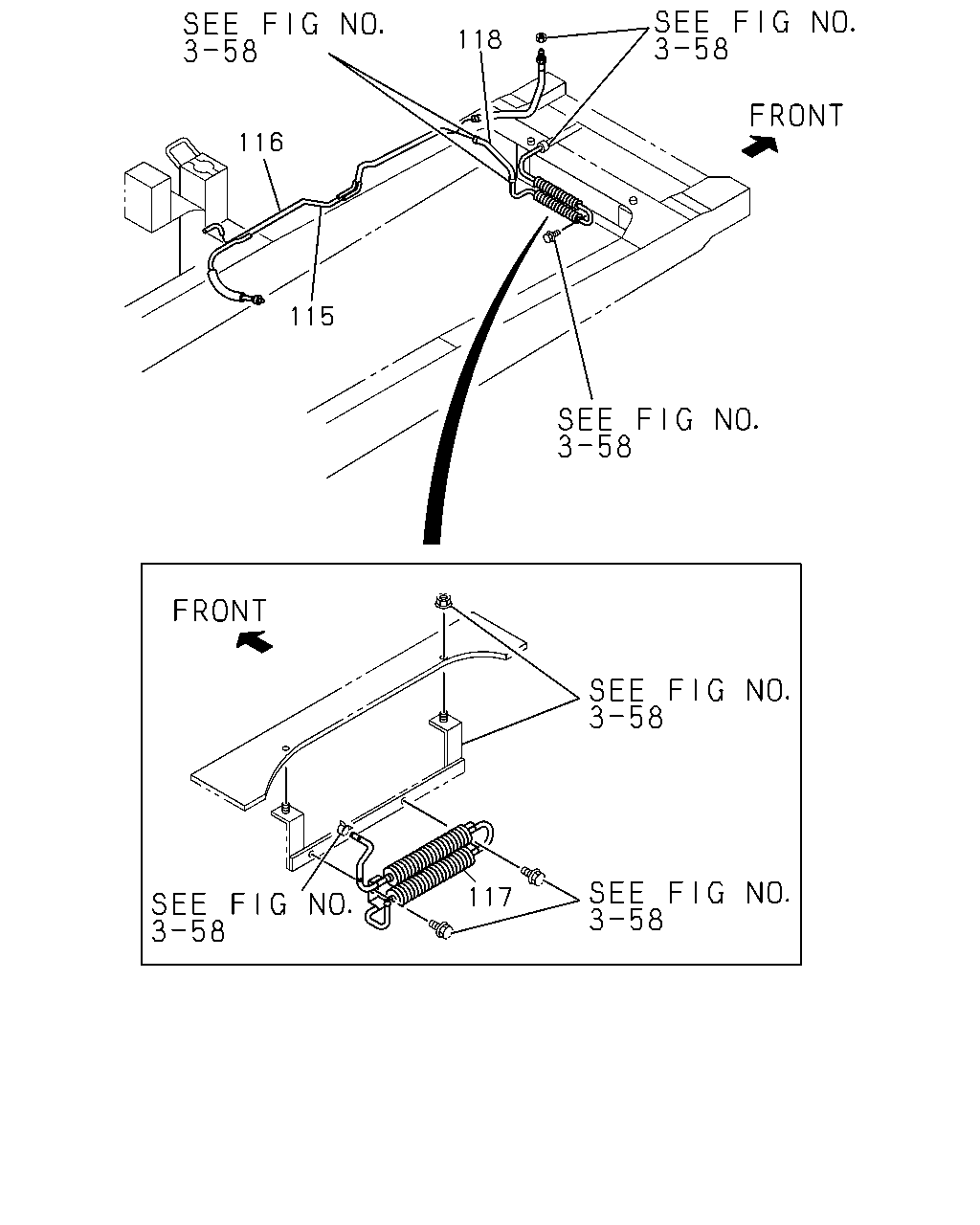

çizim 19192
118 116 115 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97177-070-2 01 1 9712-9801 ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
EXC. CHARGE AIR COOLER<6PL> 		8-97177-070-2 01 1 9712-9801 ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97177-070-2 01 1 9802- ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-969-0 01 1 9712-9801 ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> CHARGE AIR COOLER<6PL> 		8-97201-969-0 01 1 9802- ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97180-987-0 01 1 9712-9801 ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
EXC. CHARGE AIR COOLER<6PL> 		8-97180-987-0 01 1 9712-9801 ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97180-987-0 01 1 9802- ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-970-0 01 1 9712-9801 ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> CHARGE AIR COOLER<6PL> 		8-97201-970-0 01 1 9802- ● ● ● ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-1 01 1 9712-9801 ● ● ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-1 01 1 9802- ● ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-1 01 1 9712-9801 ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-1 01 1 9802- ● ● ● ●

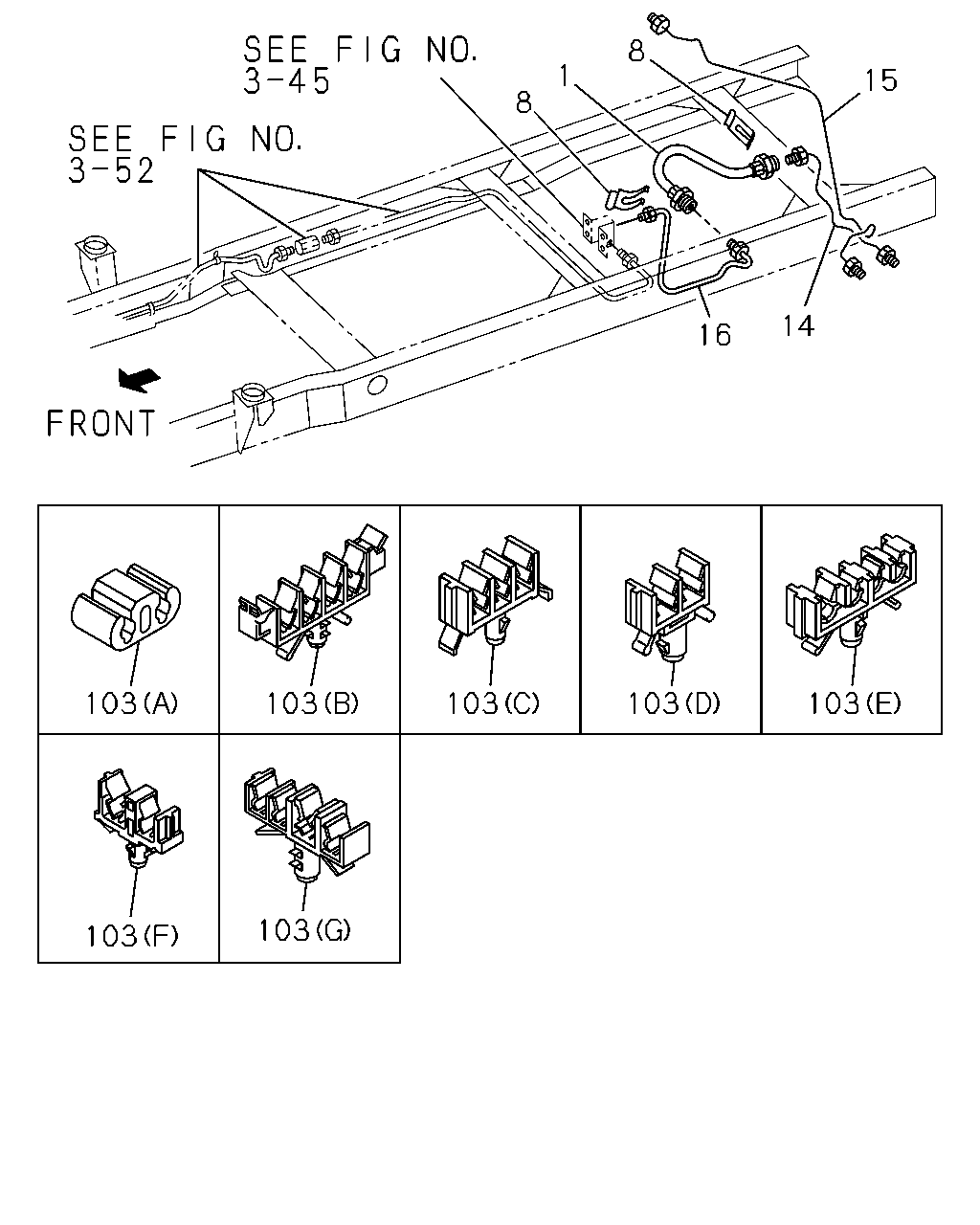

çizim 70055
8 1 15 8 14 16 103 103 103 103 103 103 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 9312-9510 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> L=370 		8-97035-574-0 01 1 9511-9711 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> L=370 		8-97035-574-0 01 1 9712-9801 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> L=370 		8-97035-574-0 01 1 9802- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> L=405 		8-97089-061-0 01 1 9511-9611 ● ●
1 04.680 HOSE; FLEX,RR BRK
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> L=405 		8-97089-061-0 01 1 9612-9711 ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=405 		8-97089-061-0 01 1 9712-9801 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> L=405 		8-97089-061-0 01 1 9802- ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 02 1 9312-9611 ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 02 1 9612-9711 ● ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 02 1 9712- ● ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97088-703-0 01 1 9312-9510 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97088-703-0 01 1 9312-9510 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97088-703-0 01 1 9511-9612 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9511-9612 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9701-9704 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9701-9704 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HF1 ENG(RLS),4BD2 ENG(RLW) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9705-9711 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9705-9711 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9712- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9712- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-97064-729-0 01 1 9312-9704 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-97064-729-0 01 1 9705-9711 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4BD2 ENG(RLW) G.V.W. 3.5-4.0TON(RPQ) 		8-97064-729-0 01 1 9705-9711 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-97064-729-0 01 1 9712- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4BD2 ENG(RLW) G.V.W. 3.5-4.0TON(RPQ) 		8-97064-729-0 01 1 9712- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97064-733-0 01 1 9312-9510 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9511-9711 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9712-9801 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9802- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 		8-97116-544-2 01 1 9511- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-713-0 01 1 9511-9611 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-713-0 01 1 9612-9711 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-713-0 01 1 9712- ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 		8-97079-905-1 01 1 9312-9506 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-905-1 01 1 9312-9506 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-905-1 01 1 9507-9510 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 		8-97079-905-1 01 1 9507-9510 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-905-1 01 1 9511-9704 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9511-9704 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97079-905-1 01 1 9705-9711 ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9705-9711 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9712- ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9712- ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97079-904-0 01 1 9312-9606 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS),4BD2 ENG(RLW) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97079-904-0 01 1 9607-9612 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS),4BD2 ENG(RLW) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97079-904-0 01 1 9701-9704 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS),4BD2 ENG(RLW) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97079-904-0 01 1 9705-9711 ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97079-904-0 01 1 9712- ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-97064-735-1 01 1 9312-9704 ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-97064-735-1 01 1 9705-9711 ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4BD2 ENG(RLW) G.V.W. 3.5-4.0TON(RPQ) 		8-97064-735-1 01 1 9705-9711 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4BE1 ENG(RLH) 		8-97064-735-1 01 1 9712- ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4BD2 ENG(RLW) G.V.W. 3.5-4.0TON(RPQ) 		8-97064-735-1 01 1 9712- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97064-738-0 01 1 9312-9510 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-738-0 01 1 9511-9711 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-738-0 01 1 9712-9801 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-738-0 01 1 9802- ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-0 01 1 9511-9711 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-0 01 1 9712-9809 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97129-745-0 01 1 9712-9809 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-0 01 1 9712-9809 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97219-175-0 01 1 9810- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97219-175-0 01 1 9810- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 		8-97219-175-0 01 1 9810- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		8-97116-543-1 01 1 9712-9809 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		8-97219-174-0 01 1 9810- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-0 01 1 9511-9611 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-0 01 1 9612-9711 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-0 01 1 9712-9809 ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97219-176-0 01 1 9810- ● ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> 		8-97073-490-2 01 1 9312-9506 ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> 		8-97073-490-2 01 1 9507-9510 ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-3 01 1 9511-9704 ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-3 01 1 9705-9711 ● ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> 		8-97073-490-3 01 1 9712- ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-3 01 1 9712- ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE 8-97073-490-3 01 1 9712- ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685 		5-47411-777-0 01 1 9511-9711 ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685 SERVICED BY L=1055 		5-47411-771-0 01 1 9712- ● ● ●
103 04.686 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 9511-9511 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 9511-9511 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 9512-9611 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 9612- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 05 1 9511-9511 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 07 1 9512-9611 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 07 1 9612- ●
103 04.686 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 9511-9606 ● ●
103 04.686 CLIP; PIPE,BRK
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 9511-9606 ● ●
103 04.686 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 9607-9609 ● ●
103 04.686 CLIP; PIPE,BRK
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 9607-9609 ● ●
103 04.686 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 9610-9711 ● ●
103 04.686 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 9712- ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9611 ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9612-9711 ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9712- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94316-410-0 02 1 9511-9611 ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94316-410-0 02 1 9612-9711 ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94316-410-0 02 1 9712-9801 ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94316-410-0 01 1 9802- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9511-9611 ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9612-9711 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9612-9711 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9712-9801 ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9712-9801 ●
103 04.686 CLIP; PIPE,BRK
EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9712-9801 ●
103 04.686 CLIP; PIPE,BRK
EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9712-9801 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9802- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9802- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (D) ID=4.8X2 		8-94316-410-0 01 1 9511-9511 ● ●
103 04.686 CLIP; PIPE,BRK
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 02 1 9511- ● ●
103 04.686 CLIP; PIPE,BRK
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9511-9611 ● ●
103 04.686 CLIP; PIPE,BRK
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9612-9711 ● ● ●
103 04.686 CLIP; PIPE,BRK
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9712-9801 ● ●
103 04.686 CLIP; PIPE,BRK
(C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9712-9801 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9712-9801 ●
103 04.686 CLIP; PIPE,BRK
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) (C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9802- ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9802- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 01 1 9612- ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (E) ID=10 & 8 & 4.8X2 		8-97129-594-0 05 1 9612- ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (F) ID=4.8X2 		8-94455-816-0 01 1 9712- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (G) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 9712- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (G) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 9712- ● ●
103 04.686 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 07 1 9511-9511 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 09 1 9612-9711 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 09 1 9712- ● ●
103 04.686 CLIP; PIPE,BRK
04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 10 1 9612-9711 ●
103 04.686 CLIP; PIPE,BRK
HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 10 1 9712-9801 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 10 1 9802- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
