Sayfa 1-55A - Isuzu EPC

1-55A — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#4745) — 347 parça

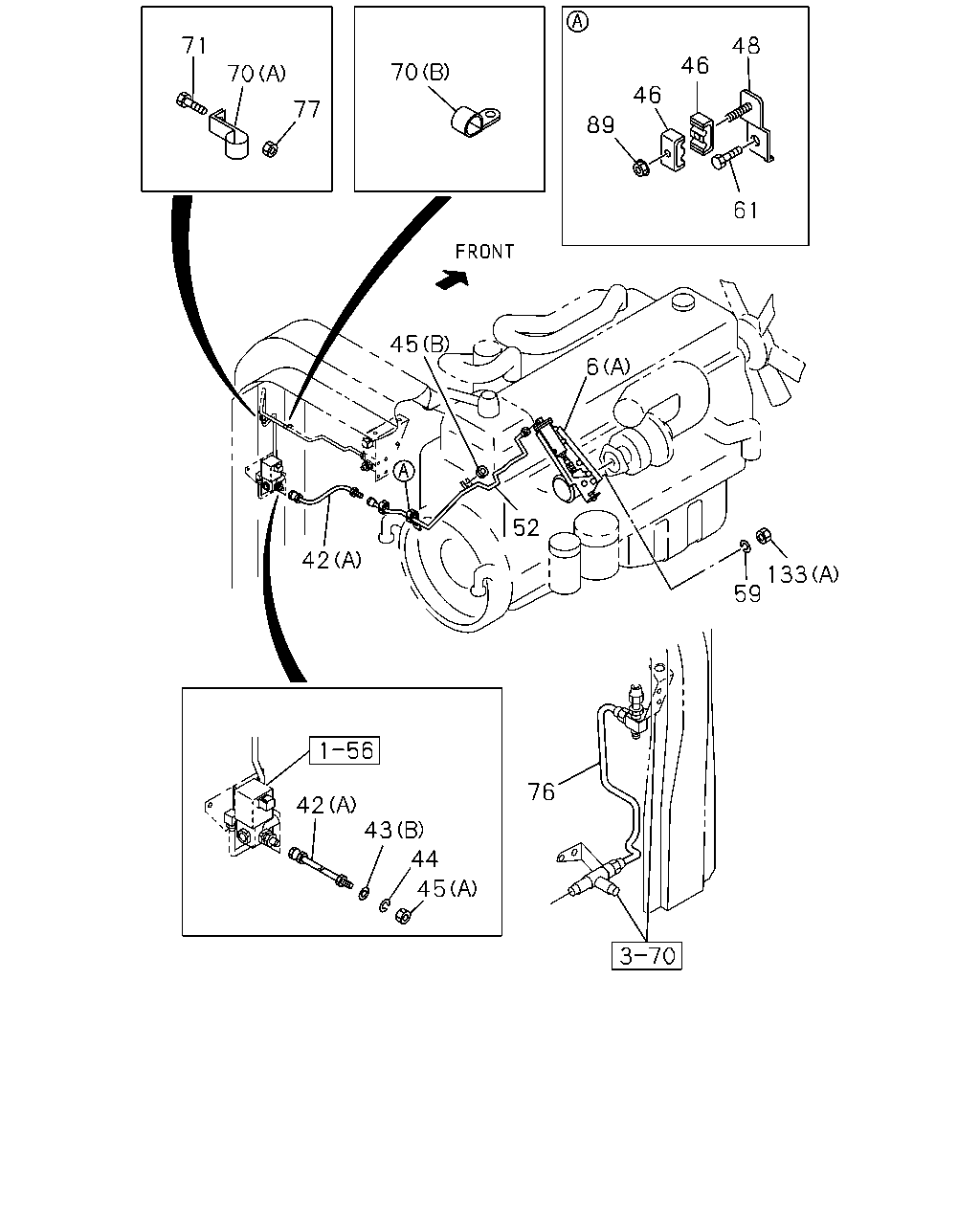

71 48 46 70 70 46 77 89 61 45 6 52 42 133 59 76 42 43 44 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

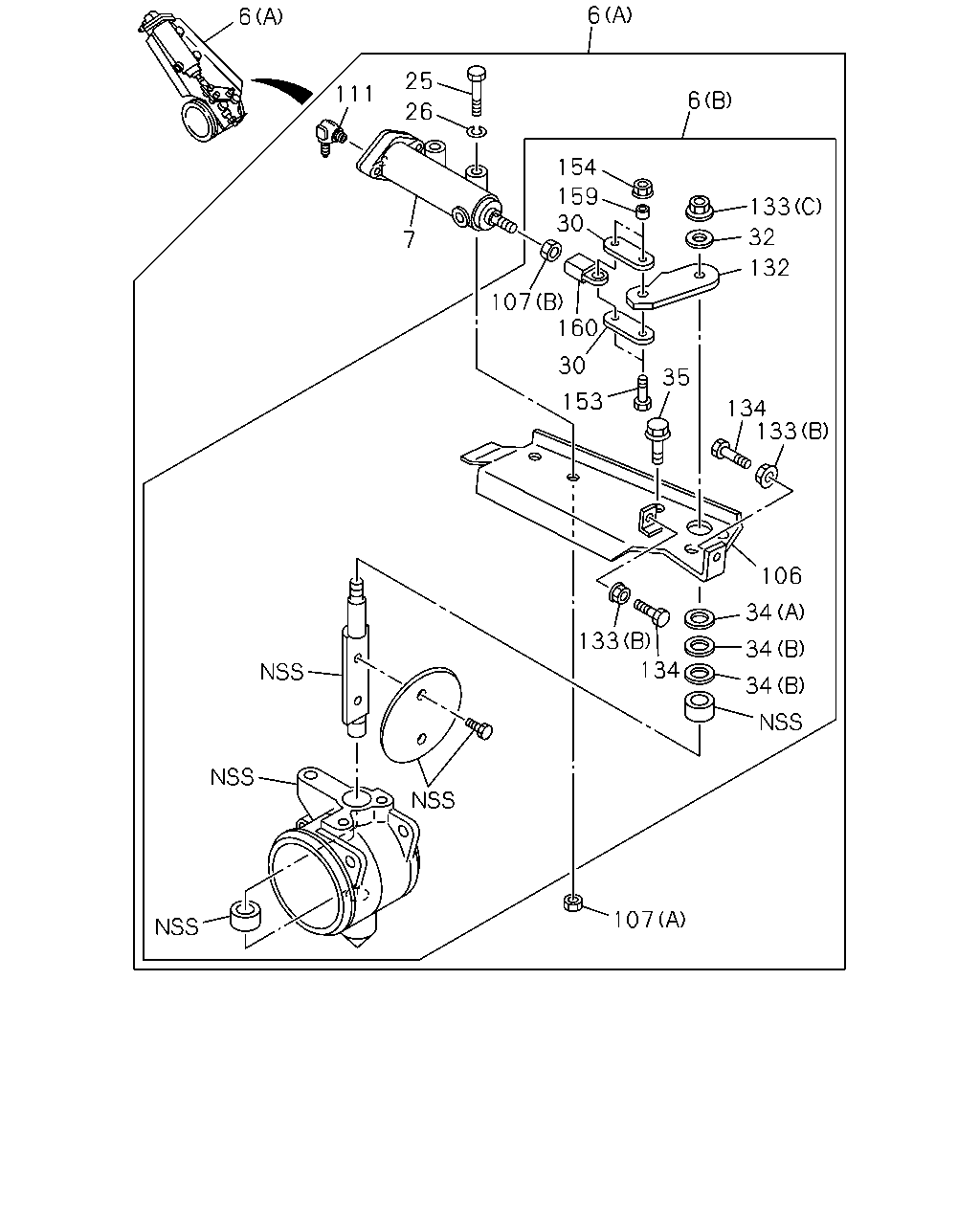

6	VALVE; EXH BRAKE (A)	1-14144-603-0	01	1	9603-9612	●
6	VALVE; EXH BRAKE (B)	1-14144-612-0	01	1	9603-9612	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A)	1-14144-631-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (B)	1-22181-150-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A)	1-14144-603-1	01	1	9701-9704	●
6	VALVE; EXH BRAKE SHORT CHASSIS&LHD(EXZ6MC) (A)	1-14144-603-1	01	1	9701-9704	●
6	VALVE; EXH BRAKE (A)	1-14144-603-1	01	1	9705-9804	●
6	VALVE; EXH BRAKE (A)	1-14144-603-2	01	1	9805-9904	●	●
6	VALVE; EXH BRAKE (A)	1-14144-603-3	01	1	9905-	●	●	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (B)	1-14144-616-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE SHORT CHASSIS&LHD(EXZ6MC) (B)	1-14144-616-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9705-9804	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9805-9904	●	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9905-	●	●	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-22181-146-0	01	1	9707-9709				●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-22181-154-0	01	1	9710-9904				●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-22181-154-0	01	1	9905-					●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-22190-636-1	01	1	9707-9709				●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-22190-646-0	01	1	9710-9904				●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-22190-646-0	01	1	9905-					●
42	HOSE; FLEX,EXH BRK (A) L=260	0-07120-260-0	01	1	9603-9702	●
42	HOSE; FLEX,EXH BRK (A) L=260	1-09363-609-0	01	1	9703-9706	●
42	HOSE; FLEX,EXH BRK (A) L=320	1-09363-656-0	01	1	9707-9804	●			●
42	HOSE; FLEX,EXH BRK (A) L=320	1-09363-656-0	01	1	9805-9904	●	●		●
42	HOSE; FLEX,EXH BRK (A) L=320	1-09363-656-0	01	1	9905-	●	●	●		●
43	GASKET; FLEX HOSE (B) ID=11 OD=18	9-09572-510-0	01	1	9603-9702	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9603-9706	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9905-	●	●	●		●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9707-9804	●			●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9805-9904	●	●		●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9603-9706	●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9707-9804	●
45	NUT; FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC) (B) M8 FLANGE	0-91150-108-0	01	1	9707-9804				●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9805-9904	●	●
45	NUT; FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC) (B) M8 FLANGE	0-91150-108-0	01	1	9805-9904				●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●		●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9603-9706	●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9905-	●	●	●		●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9707-9804	●			●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9805-9904	●	●		●
46	CLIP; AIR PIPE	1-09701-132-0	02	1	9603-9706	●
46	CLIP; AIR PIPE	1-09701-132-0	02	1	9707-9804	●
46	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC)	1-09701-132-0	02	1	9707-9804				●
46	CLIP; AIR PIPE	1-09701-132-0	02	1	9805-9904	●	●
46	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC)	1-09701-132-0	02	1	9805-9904				●
46	CLIP; AIR PIPE	1-09701-132-1	02	1	9905-	●	●	●		●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9603-9706	●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9707-9804	●			●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9805-9904	●	●		●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9905-	●	●	●		●
52	PIPE ASM; AIR FLEX HOSE	1-19192-904-0	01	1	9603-9706	●
52	PIPE ASM; AIR FLEX HOSE	1-19192-904-0	01	1	9707-9804	●
52	PIPE ASM; AIR FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC)	1-19192-904-0	01	1	9707-9804				●
52	PIPE ASM; AIR FLEX HOSE	1-19192-904-0	01	1	9805-9904	●	●
52	PIPE ASM; AIR FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC)	1-19192-904-0	01	1	9805-9904				●
52	PIPE ASM; AIR FLEX HOSE	1-19192-904-0	01	1	9905-	●	●	●		●
59	WASHER; LK ID=13 OD=26 DISH	1-09556-002-0	03	1	9603-9605	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28181-420-0	01	1	9603-9606	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9607-9706	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9707-9804	●			●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9805-9904	●	●		●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9905-	●	●	●		●
70	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9707-9904				●
70	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) (B) ID=7 L=20	9-09524-635-0	01	1	9707-9904				●
71	BOLT; CLIP SHORT CHASSIS&RHD(EXZ5MC) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904				●
76	PIPE ASM; AIR UNION TO UNION L=436	1-49117-294-0	01	1	9603-9904	●
76	PIPE ASM; AIR UNION TO UNION L=436	1-49117-294-0	01	1	9905-9908	●	●	●		●
76	PIPE ASM; AIR UNION TO UNION	1-49122-244-0	01	1	9909-	●	●	●		●
77	NUT; CLIP SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9707-9904				●
89	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9603-9706	●
89	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9707-9804	●
89	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) M6 FLANGE	0-91150-106-0	01	1	9707-9804				●
89	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9805-9904	●	●
89	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) M6 FLANGE	0-91150-106-0	01	1	9805-9904				●
89	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9905-	●	●	●		●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9603-9603	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9603-9603	●
133	NUT; LK (A) M12	1-09400-010-0	03	1	9603-9605	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9701-9706	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9707-9804	●
133	NUT; LK SHORT CHASSIS&RHD(EXZ5MC) (B) M8 FLANGE	0-91150-108-0	02	1	9707-9804				●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9805-9904	●	●
133	NUT; LK SHORT CHASSIS&RHD(EXZ5MC) (B) M8 FLANGE	0-91150-108-0	02	1	9805-9904				●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●		●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9701-9706	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9707-9804	●
133	NUT; LK SHORT CHASSIS&RHD(EXZ5MC) (C) M10 FLANGE	0-91150-110-0	01	1	9707-9804				●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9805-9904	●	●
133	NUT; LK SHORT CHASSIS&RHD(EXZ5MC) (C) M10 FLANGE	0-91150-110-0	01	1	9805-9904				●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9905-	●	●	●		●

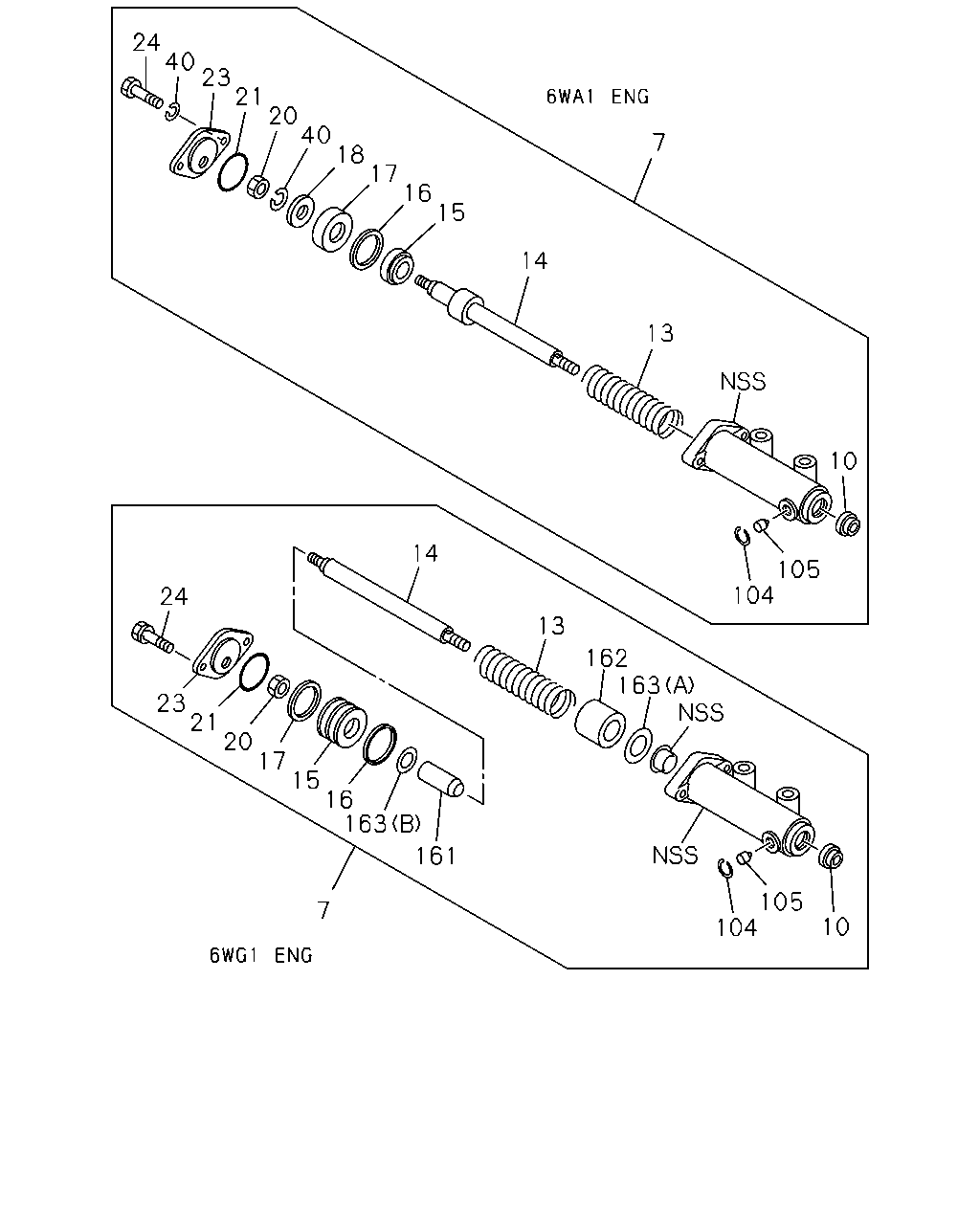

24 40 23 21 20 40 18 17 16 15 7 14 13 10 14 105 104 24 13 162 163 23 21 20 17 15 16 163 161 105 104 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	CYLINDER ASM; CONT	1-22190-592-0	01	1	9603-9603	●
7	CYLINDER ASM; CONT	1-22190-592-0	01	1	9604-9804	●
7	CYLINDER ASM; CONT	1-22190-592-0	01	1	9805-9904	●	●
7	CYLINDER ASM; CONT	1-22190-592-1	01	1	9905-	●	●	●
7	CYLINDER ASM; CONT SHORT CHASSIS&RHD(EXZ5MC)	1-22190-642-0	01	1	9707-9904				●
7	CYLINDER ASM; CONT SHORT CHASSIS&RHD(EXZ5MC)	1-22190-642-0	01	1	9905-					●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9603-9603	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9604-9804	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9805-9904	●	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9905-	●	●	●
10	SEAL; DUST,CONT SHORT CHASSIS&RHD(EXZ5MC)	1-22199-071-0	01	1	9707-9904				●
10	SEAL; DUST,CONT SHORT CHASSIS&RHD(EXZ5MC)	1-22199-071-0	01	1	9905-					●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9603-9603	●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9604-9804	●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9805-9904	●	●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9905-	●	●	●
13	SPRING; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-173-0	01	1	9707-9904				●
13	SPRING; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-173-0	01	1	9905-					●
14	SHAFT; CONT CYL	1-22199-142-0	01	1	9603-9612	●
14	SHAFT; CONT CYL	1-22199-142-0	01	1	9701-9804	●
14	SHAFT; CONT CYL	1-22199-142-0	01	1	9805-9904	●	●
14	SHAFT; CONT CYL	1-22199-142-0	01	1	9905-	●	●	●
14	SHAFT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-158-0	01	1	9707-9904				●
14	SHAFT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-158-0	01	1	9905-					●
15	PLATE; CONT CYL	1-22199-096-0	01	1	9603-9603	●
15	PLATE; CONT CYL	1-22199-096-0	01	1	9604-9804	●
15	PLATE; CONT CYL	1-22199-096-0	01	1	9805-9904	●	●
15	PLATE; CONT CYL	1-22199-096-0	01	1	9905-	●	●	●
15	PLATE; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-168-0	01	1	9707-9904				●
15	PLATE; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-168-0	01	1	9905-					●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9603-9603	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9604-9804	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9805-9904	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9905-	●	●	●
16	RING; WEAR,CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-169-0	01	1	9707-9904				●
16	RING; WEAR,CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-169-0	01	1	9905-					●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9603-9804	●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9805-9904	●	●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9905-	●	●	●
17	GASKET; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-170-0	01	1	9707-9904				●
17	GASKET; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-170-0	01	1	9905-					●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9603-9603	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9604-9804	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9805-9904	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9905-	●	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9603-9603	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9604-9804	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9805-9904	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9905-	●	●	●
20	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	01	1	9707-9904				●
20	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	01	1	9905-					●
21	GASKET; COVER	9-88510-372-0	01	1	9603-9804	●
21	GASKET; COVER	9-88510-372-0	01	1	9805-9904	●	●
21	GASKET; COVER	9-88510-372-0	01	1	9905-	●	●	●
21	GASKET; COVER SHORT CHASSIS&RHD(EXZ5MC)	1-22199-171-0	01	1	9707-9904				●
21	GASKET; COVER SHORT CHASSIS&RHD(EXZ5MC)	1-22199-171-0	01	1	9905-					●
23	COVER; CONT CYL	1-22199-066-0	01	1	9603-9603	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9604-9804	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9805-9904	●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9905-	●	●	●
23	COVER; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-172-0	01	1	9707-9904				●
23	COVER; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-172-0	01	1	9905-					●
24	BOLT; COVER M8X20	9-01000-820-0	02	1	9603-9612	●
24	BOLT; COVER	1-22199-155-0	02	1	9701-9706	●
24	BOLT; COVER	1-22199-155-0	02	1	9707-9804	●
24	BOLT; COVER SHORT CHASSIS&RHD(EXZ5MC)	1-22199-155-0	02	1	9707-9804				●
24	BOLT; COVER	1-22199-155-0	02	1	9805-9904	●	●
24	BOLT; COVER SHORT CHASSIS&RHD(EXZ5MC)	1-22199-155-0	02	1	9805-9904				●
24	BOLT; COVER	1-22199-155-0	02	1	9905-	●	●	●		●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	03	1	9603-9603	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9604-9804	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9805-9904	●	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9905-	●	●	●
104	RING; RET	9-88510-331-0	01	1	9603-9706	●
104	RING; RET	9-88510-331-0	01	1	9707-9804	●
104	RING; RET SHORT CHASSIS&RHD(EXZ5MC)	9-88510-331-0	01	1	9707-9804				●
104	RING; RET	9-88510-331-0	01	1	9805-9904	●	●
104	RING; RET SHORT CHASSIS&RHD(EXZ5MC)	9-88510-331-0	01	1	9805-9904				●
104	RING; RET	9-88510-331-0	01	1	9905-	●	●	●		●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9603-9603	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9604-9706	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9707-9804	●
105	FILTER; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	9-88510-330-0	01	1	9707-9804				●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9805-9904	●	●
105	FILTER; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	9-88510-330-0	01	1	9805-9904				●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9905-	●	●	●		●
161	PROTECTOR; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-146-0	01	1	9707-9904				●
161	PROTECTOR; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-146-0	01	1	9905-					●
162	GUIDE; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-147-0	01	1	9707-9904				●
162	GUIDE; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-147-0	01	1	9905-					●
163	WASHER; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (A)	1-22199-148-0	01	1	9707-9904				●
163	WASHER; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (A)	1-22199-148-0	01	1	9905-					●
163	WASHER; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	1-22199-177-0	01	1	9707-9709				●
163	WASHER; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	1-22199-179-0	01	1	9710-9904				●
163	WASHER; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	1-22199-179-0	01	1	9905-					●

6 6 25 111 6 26 154 159 30 133 32 7 132 107 160 30 35 153 134 133 106 34 133 34 134 34 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	VALVE; EXH BRAKE (A)	1-14144-603-0	01	1	9603-9612	●
6	VALVE; EXH BRAKE (B)	1-14144-612-0	01	1	9603-9612	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A)	1-14144-631-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (B)	1-22181-150-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A)	1-14144-603-1	01	1	9701-9704	●
6	VALVE; EXH BRAKE SHORT CHASSIS&LHD(EXZ6MC) (A)	1-14144-603-1	01	1	9701-9704	●
6	VALVE; EXH BRAKE (A)	1-14144-603-1	01	1	9705-9804	●
6	VALVE; EXH BRAKE (A)	1-14144-603-2	01	1	9805-9904	●	●
6	VALVE; EXH BRAKE (A)	1-14144-603-3	01	1	9905-	●	●	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (B)	1-14144-616-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE SHORT CHASSIS&LHD(EXZ6MC) (B)	1-14144-616-0	01	1	9701-9704	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9705-9804	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9805-9904	●	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9905-	●	●	●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-22181-146-0	01	1	9707-9709				●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-22181-154-0	01	1	9710-9904				●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-22181-154-0	01	1	9905-					●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-22190-636-1	01	1	9707-9709				●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-22190-646-0	01	1	9710-9904				●
6	VALVE; EXH BRAKE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-22190-646-0	01	1	9905-					●
7	CYLINDER ASM; CONT	1-22190-592-0	01	1	9603-9603	●
7	CYLINDER ASM; CONT	1-22190-592-0	01	1	9604-9804	●
7	CYLINDER ASM; CONT	1-22190-592-0	01	1	9805-9904	●	●
7	CYLINDER ASM; CONT	1-22190-592-1	01	1	9905-	●	●	●
7	CYLINDER ASM; CONT SHORT CHASSIS&RHD(EXZ5MC)	1-22190-642-0	01	1	9707-9904				●
7	CYLINDER ASM; CONT SHORT CHASSIS&RHD(EXZ5MC)	1-22190-642-0	01	1	9905-					●
25	BOLT; CONT CYL M10X60	9-01056-060-0	02	1	9603-9603	●
25	BOLT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) M10X60 FLANGE	0-28081-060-0	02	1	9604-9704	●
25	BOLT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) M10X60 FLANGE	1-22199-160-0	02	1	9604-9704	●
25	BOLT; CONT CYL SHORT CHASSIS&LHD(EXZ6MC) M10X60 FLANGE	1-22199-160-0	02	1	9604-9704	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9705-9804	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9805-9904	●	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9905-	●	●	●
25	BOLT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-166-0	02	1	9707-9709				●
25	BOLT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-19519-244-0	02	1	9710-9904				●
25	BOLT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-19519-244-0	02	1	9905-					●
26	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9603-9603	●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9603-9603	●
30	ROD; LINK,CONT CYL SHORT CHASSIS&RHD(EXZ5MC) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-22199-162-0	02	1	9604-9704	●
30	ROD; LINK,CONT CYL SHORT CHASSIS&RHD(EXZ5MC) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-22199-165-0	02	1	9604-9704	●
30	ROD; LINK,CONT CYL SHORT CHASSIS&LHD(EXZ6MC)	1-22199-165-0	02	1	9604-9704	●
30	ROD; LINK,CONT CYL	1-22199-165-0	02	1	9705-9804	●
30	ROD; LINK,CONT CYL	1-22199-165-0	02	1	9805-9904	●	●
30	ROD; LINK,CONT CYL	1-22199-165-0	02	1	9905-	●	●	●
30	ROD; LINK,CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-162-0	02	1	9707-9904				●
30	ROD; LINK,CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-162-0	02	1	9905-					●
32	WASHER; LK ID=10.5 OD=26	9-09164-710-0	01	1	9603-9706	●
32	WASHER; LK ID=10.5 OD=26	9-09164-710-0	01	1	9707-9804	●
32	WASHER; LK SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26	9-09164-710-0	01	1	9707-9804				●
32	WASHER; LK ID=10.5 OD=26	9-09164-710-0	01	1	9805-9904	●	●
32	WASHER; LK SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26	9-09164-710-0	01	1	9805-9904				●
32	WASHER; LK ID=10.5 OD=26	9-09164-710-0	01	1	9905-	●	●	●		●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9603-9603	●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9603-9603	●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9604-9706	●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9707-9804	●
34	RING; SEAL SHORT CHASSIS&RHD(EXZ5MC) (A) ID=21	1-22189-158-0	01	1	9707-9804				●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9805-9904	●	●
34	RING; SEAL SHORT CHASSIS&RHD(EXZ5MC) (A) ID=21	1-22189-158-0	01	1	9805-9904				●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9905-	●	●	●		●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9604-9706	●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9707-9804	●
34	RING; SEAL SHORT CHASSIS&RHD(EXZ5MC) (B) ID=18.8	1-22189-159-0	02	1	9707-9804				●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9805-9904	●	●
34	RING; SEAL SHORT CHASSIS&RHD(EXZ5MC) (B) ID=18.8	1-22189-159-0	02	1	9805-9904				●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9905-	●	●	●		●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9603-9603	●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9604-9706	●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9707-9804	●
35	BOLT; PLATE FIX SHORT CHASSIS&RHD(EXZ5MC) M10X20	0-28021-020-0	03	1	9707-9804				●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9805-9904	●	●
35	BOLT; PLATE FIX SHORT CHASSIS&RHD(EXZ5MC) M10X20	0-28021-020-0	03	1	9805-9904				●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9905-	●	●	●		●
106	BRACKET; CONT CYL	1-22186-138-0	01	1	9603-9804	●
106	BRACKET; CONT CYL	1-22186-138-0	01	1	9805-9904	●	●
106	BRACKET; CONT CYL	1-22186-138-0	01	1	9905-	●	●	●
106	BRACKET; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22186-144-0	01	1	9707-9904				●
106	BRACKET; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22186-144-0	01	1	9905-					●
107	NUT; CONT CYL (A)	9-83315-080-0	02	1	9603-9603	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9603-9603	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9604-9706	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9707-9709	●
107	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	9-83315-085-0	01	1	9707-9709				●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9710-9804	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9805-9904	●	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9905-	●	●	●
107	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) M10 FLANGE	0-91150-110-0	02	1	9604-9704	●
107	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A)	9-83315-080-0	02	1	9604-9704	●
107	NUT; CONT CYL SHORT CHASSIS&LHD(EXZ6MC) (A)	9-83315-080-0	02	1	9604-9704	●
107	NUT; CONT CYL (A)	9-83315-080-0	02	1	9705-9804	●
107	NUT; CONT CYL (A)	9-83315-080-0	02	1	9805-9904	●	●
107	NUT; CONT CYL (A)	9-83315-080-0	02	1	9905-	●	●	●
107	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (A) M8 FLANGE	0-91150-108-0	02	1	9707-9709				●
107	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-110-0	02	1	9710-9904				●
107	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-110-0	02	1	9905-					●
107	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (B) M8	9-09110-508-0	01	1	9710-9904				●
107	NUT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) (B) M8	9-09110-508-0	01	1	9905-					●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9603-9603	●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9604-9706	●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9707-9804	●
111	ELBOW; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9707-9804				●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9805-9904	●	●
111	ELBOW; CONT CYL SHORT CHASSIS&RHD(EXZ5MC) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9805-9904				●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9905-	●	●	●		●
132	LEVER; BRK VLV	1-22196-332-0	01	1	9603-9603	●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9604-9706	●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9707-9804	●
132	LEVER; BRK VLV SHORT CHASSIS&RHD(EXZ5MC)	1-22196-346-0	01	1	9707-9804				●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9805-9904	●	●
132	LEVER; BRK VLV SHORT CHASSIS&RHD(EXZ5MC)	1-22196-346-0	01	1	9805-9904				●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9905-	●	●	●		●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9603-9603	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9603-9603	●
133	NUT; LK (A) M12	1-09400-010-0	03	1	9603-9605	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9701-9706	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9707-9804	●
133	NUT; LK SHORT CHASSIS&RHD(EXZ5MC) (B) M8 FLANGE	0-91150-108-0	02	1	9707-9804				●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9805-9904	●	●
133	NUT; LK SHORT CHASSIS&RHD(EXZ5MC) (B) M8 FLANGE	0-91150-108-0	02	1	9805-9904				●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●		●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9701-9706	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9707-9804	●
133	NUT; LK SHORT CHASSIS&RHD(EXZ5MC) (C) M10 FLANGE	0-91150-110-0	01	1	9707-9804				●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9805-9904	●	●
133	NUT; LK SHORT CHASSIS&RHD(EXZ5MC) (C) M10 FLANGE	0-91150-110-0	01	1	9805-9904				●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9905-	●	●	●		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9603-9603	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9604-9706	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9707-9804	●
134	BOLT; STOPPER SHORT CHASSIS&RHD(EXZ5MC) M8X30	1-09000-112-1	02	1	9707-9804				●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9805-9904	●	●
134	BOLT; STOPPER SHORT CHASSIS&RHD(EXZ5MC) M8X30	1-09000-112-1	02	1	9805-9904				●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9905-	●	●	●		●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9603-9603	●
153	BOLT; CLEVIS,CONT CYL SHORT CHASSIS&RHD(EXZ5MC) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) M8X25 FLANGE	0-28080-825-0	02	1	9604-9704	●
153	BOLT; CLEVIS,CONT CYL SHORT CHASSIS&RHD(EXZ5MC) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-33739-200-0	02	1	9604-9704	●
153	BOLT; CLEVIS,CONT CYL SHORT CHASSIS&LHD(EXZ6MC)	1-33739-200-0	02	1	9604-9704	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9705-9804	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9805-9904	●	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9905-	●	●	●
153	BOLT; CLEVIS,CONT CYL SHORT CHASSIS&RHD(EXZ5MC) M8X25 FLANGE	0-28080-825-0	02	1	9705-9904				●
153	BOLT; CLEVIS,CONT CYL SHORT CHASSIS&RHD(EXZ5MC) M8X25 FLANGE	0-28080-825-0	02	1	9905-					●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9603-9603	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9604-9706	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9707-9804	●
154	NUT; CLEVIS,CONT CYL SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9707-9804				●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9805-9904	●	●
154	NUT; CLEVIS,CONT CYL SHORT CHASSIS&RHD(EXZ5MC) M8 FLANGE	0-91150-108-0	02	1	9805-9904				●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●		●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9603-9706	●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9707-9804	●
159	COLLAR; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-151-0	02	1	9707-9804				●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9805-9904	●	●
159	COLLAR; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-151-0	02	1	9805-9904				●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9905-	●	●	●		●
160	JOINT; CONT CYL	1-22199-150-0	01	1	9603-9603	●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9604-9706	●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9707-9804	●
160	JOINT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-164-0	01	1	9707-9804				●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9805-9904	●	●
160	JOINT; CONT CYL SHORT CHASSIS&RHD(EXZ5MC)	1-22199-164-0	01	1	9805-9904				●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9905-	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
