Sayfa 3-45 - Isuzu EPC

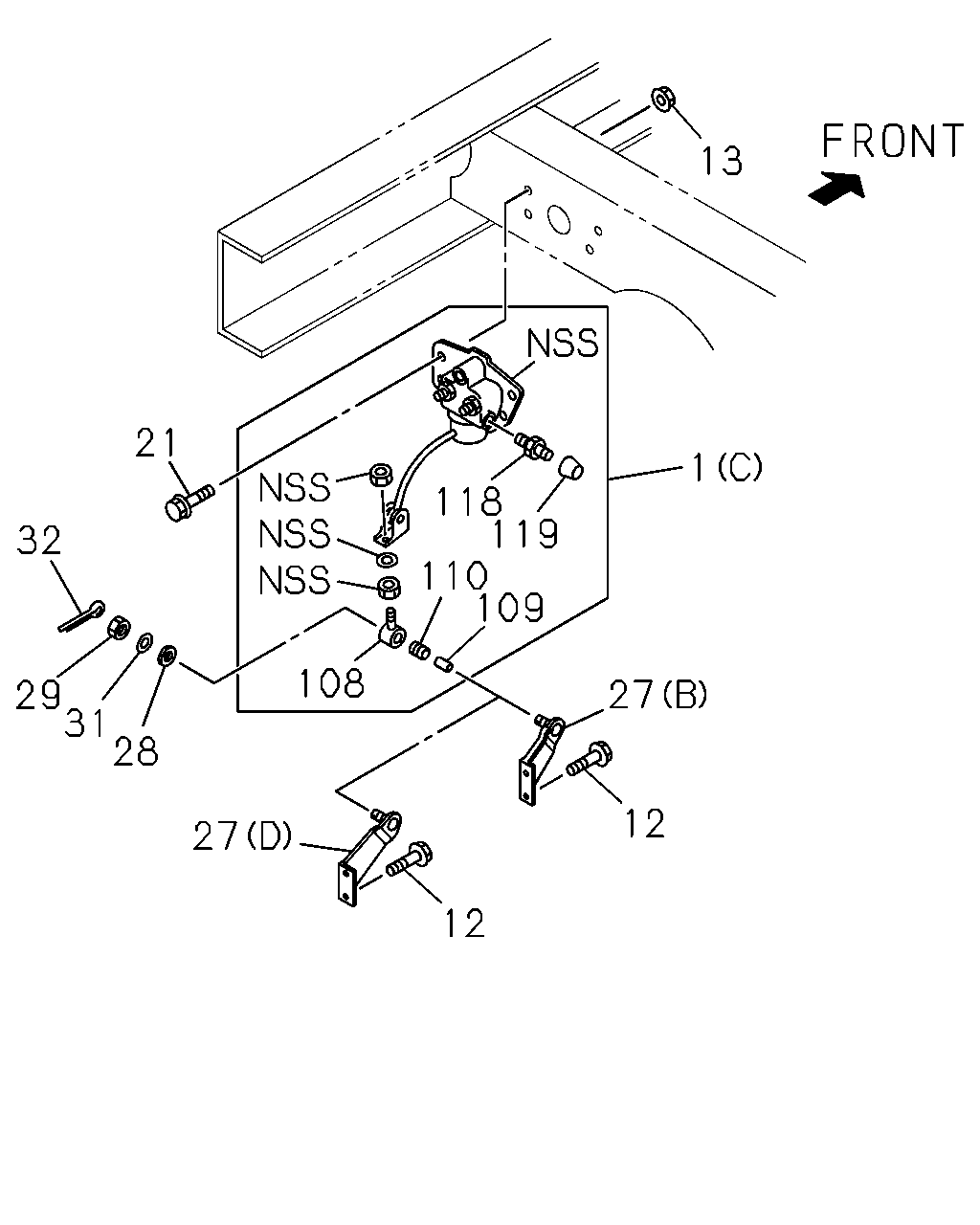

3-45 — LOAD SENSING PROPORTIONING VALVE (#47446) — 162 parça

13 21 1 118 119 110 109 32 108 27 29 31 28 12 27 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> (B)	8-94368-455-2	01	1	9312-9506	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> (B)	8-94368-455-2	01	1	9507-	●	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A)	8-97105-140-0	01	1	9511-9711	●		●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (B)	8-94427-224-2	01	1	9312-9506	●		●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (B)	8-94427-224-2	01	1	9507-9510	●	●	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-94427-224-2	01	1	9511-9704	●	●	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-94427-224-2	01	1	9705-9711	●	●	●	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (C)	8-94427-224-2	01	1	9712-		●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRK WHL LK CONT LSPV<6PH> (C)	8-94427-224-2	01	1	9712-	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) BRK WHL LK CONT LSPV<6PH> (C)	8-94427-224-2	01	1	9712-			●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI (C)	8-94427-224-2	01	1	9712-				●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRK WHL LK CONT LSPV<6PH> (C)	8-94427-224-2	01	1	9712-					●
12	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9312-9506	●		●
12	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9507-9704	●	●	●
12	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9705-9711	●	●	●	●
12	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-	●	●	●		●
12	04.730 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-				●
13	04.730 NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-9506	●		●
13	04.730 NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9507-9704	●	●	●
13	04.730 NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9705-9711	●	●	●	●
13	04.730 NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-	●	●	●		●
13	04.730 NUT; LSPV TO BRKT 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-				●
21	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9312-9506	●		●
21	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9507-9704	●	●	●
21	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9705-9711	●	●	●	●
21	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9712-	●	●	●		●
21	04.730 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9712-				●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> (B)	8-97010-977-0	01	1	9312-9506	●		●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> (B)	8-97010-977-0	01	1	9507-9510	●	●	●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97010-977-0	01	1	9511-9704	●	●	●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97010-977-0	01	1	9705-9711	●	●	●	●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> (B)	8-97010-977-0	01	1	9712-		●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97010-977-0	01	1	9712-	●		●		●
27	04.730 BRACKET; SHACKLE TO AXLE (B)	8-97010-977-0	01	1	9712-				●
27	04.730 BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A)	8-97113-488-0	01	1	9511-9711	●		●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D)	8-97180-883-0	01	1	9712-	●		●		●
27	04.730 BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97090-849-0	01	1	9511-9711	●		●
28	04.710 RETAINER; SHACKLE BRK WHL LK CONT LSPV<6PH>	8-94241-364-0	01	1	9312-9506	●		●
28	04.710 RETAINER; SHACKLE BRK WHL LK CONT LSPV<6PH>	8-94241-364-0	01	1	9507-9704	●	●	●
28	04.710 RETAINER; SHACKLE BRK WHL LK CONT LSPV<6PH>	8-94241-364-0	01	1	9705-9711	●	●	●	●
28	04.710 RETAINER; SHACKLE BRK WHL LK CONT LSPV<6PH>	8-94241-364-0	01	1	9712-	●	●	●		●
28	04.710 RETAINER; SHACKLE	8-94241-364-0	01	1	9712-				●
29	04.710 NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> 07.529 M8	9-09117-408-0	01	1	9312-9506	●		●
29	04.710 NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> 07.529 M8	9-09117-408-0	01	1	9507-9704	●	●	●
29	04.710 NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> 07.529 M8	9-09117-408-0	01	1	9705-9711	●	●	●	●
29	04.710 NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> 07.529 M8	9-09117-408-0	01	1	9712-	●	●	●		●
29	04.710 NUT; SHACKLE 07.529 M8	9-09117-408-0	01	1	9712-				●
31	04.710 WASHER; LK,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.002 ID=8.2	9-09150-508-0	01	1	9312-9506	●		●
31	04.710 WASHER; LK,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.002 ID=8.2	9-09150-508-0	01	1	9507-9704	●	●	●
31	04.710 WASHER; LK,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.002 ID=8.2	9-09150-508-0	01	1	9705-9711	●	●	●	●
31	04.710 WASHER; LK,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.002 ID=8.2	9-09150-508-0	01	1	9712-	●	●	●		●
31	04.710 WASHER; LK,SHACKLE 00.002 ID=8.2	9-09150-508-0	01	1	9712-				●
32	04.710 PIN; SPLIT,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9312-9506	●		●
32	04.710 PIN; SPLIT,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9507-9704	●	●	●
32	04.710 PIN; SPLIT,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9705-9711	●	●	●	●
32	04.710 PIN; SPLIT,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9712-	●	●	●		●
32	04.710 PIN; SPLIT,SHACKLE 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9712-				●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97045-985-0	01	1	9312-9506	●		●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9506-9506	●		●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9507-9603	●	●	●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9604-9704	●	●	●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9705-9711	●	●	●	●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9712-	●	●	●	●	●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97045-987-0	01	1	9312-9506	●		●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	03	1	9506-9506	●		●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	03	1	9507-9704	●	●	●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	03	1	9705-9711	●	●	●	●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	03	1	9712-	●	●	●	●	●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97045-986-0	02	1	9312-9506	●		●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9506-9506	●		●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9507-9704	●	●	●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9705-9711	●	●	●	●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9712-	●	●	●	●	●
118	04.710 SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	9312-9506	●		●
118	04.710 SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	9507-9704	●	●	●
118	04.710 SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	9705-9711	●	●	●	●
118	04.710 SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	9712-	●	●	●	●	●
119	04.710 CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-662-0	01	1	9312-9506	●		●
119	04.710 CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-662-0	01	1	9507-9704	●	●	●
119	04.710 CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-662-0	01	1	9705-9711	●	●	●	●
119	04.710 CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-662-0	01	1	9712-	●	●	●	●	●

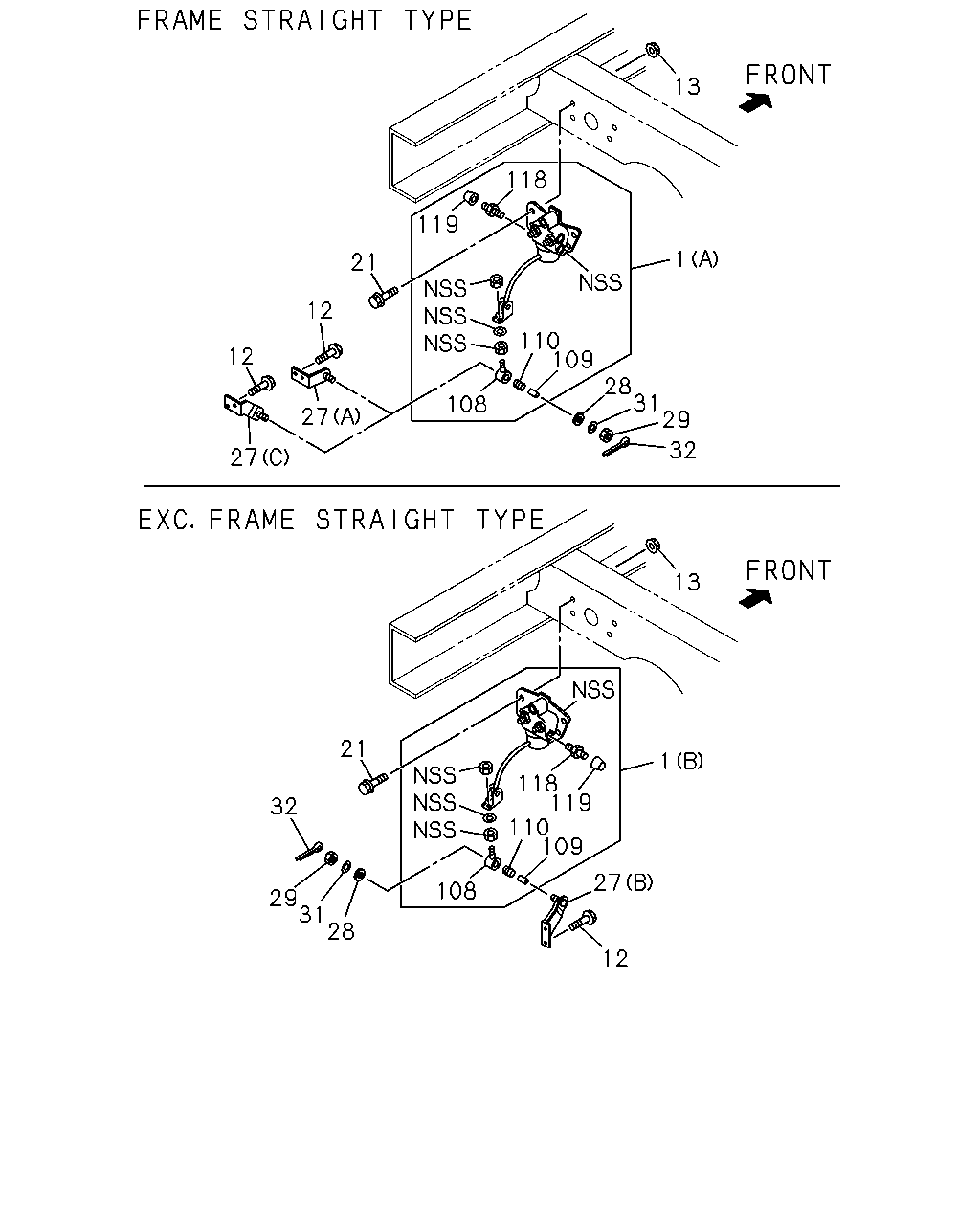

13 118 119 1 21 12 110 109 12 28 31 29 108 27 27 32 13 21 1 118 119 110 109 32 27 108 29 31 28 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> (B)	8-94368-455-2	01	1	9312-9506	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 3.5-4.0TON(RPQ) BRK WHL LK CONT LSPV<6PH> (B)	8-94368-455-2	01	1	9507-	●	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A)	8-97105-140-0	01	1	9511-9711	●		●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (B)	8-94427-224-2	01	1	9312-9506	●		●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (B)	8-94427-224-2	01	1	9507-9510	●	●	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-94427-224-2	01	1	9511-9704	●	●	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-94427-224-2	01	1	9705-9711	●	●	●	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (C)	8-94427-224-2	01	1	9712-		●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRK WHL LK CONT LSPV<6PH> (C)	8-94427-224-2	01	1	9712-	●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) BRK WHL LK CONT LSPV<6PH> (C)	8-94427-224-2	01	1	9712-			●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI (C)	8-94427-224-2	01	1	9712-				●
1	04.730 VALVE ASM; LOAD SENSING PROPORTI G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BRK WHL LK CONT LSPV<6PH> (C)	8-94427-224-2	01	1	9712-					●
12	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9312-9506	●		●
12	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9507-9704	●	●	●
12	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9705-9711	●	●	●	●
12	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-	●	●	●		●
12	04.730 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9712-				●
13	04.730 NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-9506	●		●
13	04.730 NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9507-9704	●	●	●
13	04.730 NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9705-9711	●	●	●	●
13	04.730 NUT; LSPV TO BRKT BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-	●	●	●		●
13	04.730 NUT; LSPV TO BRKT 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-				●
21	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9312-9506	●		●
21	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9507-9704	●	●	●
21	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9705-9711	●	●	●	●
21	04.730 BOLT; BRKT BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9712-	●	●	●		●
21	04.730 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9712-				●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> (B)	8-97010-977-0	01	1	9312-9506	●		●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> (B)	8-97010-977-0	01	1	9507-9510	●	●	●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97010-977-0	01	1	9511-9704	●	●	●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97010-977-0	01	1	9705-9711	●	●	●	●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> (B)	8-97010-977-0	01	1	9712-		●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97010-977-0	01	1	9712-	●		●		●
27	04.730 BRACKET; SHACKLE TO AXLE (B)	8-97010-977-0	01	1	9712-				●
27	04.730 BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A)	8-97113-488-0	01	1	9511-9711	●		●
27	04.730 BRACKET; SHACKLE TO AXLE BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (D)	8-97180-883-0	01	1	9712-	●		●		●
27	04.730 BRACKET; SHACKLE TO AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C)	8-97090-849-0	01	1	9511-9711	●		●
28	04.710 RETAINER; SHACKLE BRK WHL LK CONT LSPV<6PH>	8-94241-364-0	01	1	9312-9506	●		●
28	04.710 RETAINER; SHACKLE BRK WHL LK CONT LSPV<6PH>	8-94241-364-0	01	1	9507-9704	●	●	●
28	04.710 RETAINER; SHACKLE BRK WHL LK CONT LSPV<6PH>	8-94241-364-0	01	1	9705-9711	●	●	●	●
28	04.710 RETAINER; SHACKLE BRK WHL LK CONT LSPV<6PH>	8-94241-364-0	01	1	9712-	●	●	●		●
28	04.710 RETAINER; SHACKLE	8-94241-364-0	01	1	9712-				●
29	04.710 NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> 07.529 M8	9-09117-408-0	01	1	9312-9506	●		●
29	04.710 NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> 07.529 M8	9-09117-408-0	01	1	9507-9704	●	●	●
29	04.710 NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> 07.529 M8	9-09117-408-0	01	1	9705-9711	●	●	●	●
29	04.710 NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> 07.529 M8	9-09117-408-0	01	1	9712-	●	●	●		●
29	04.710 NUT; SHACKLE 07.529 M8	9-09117-408-0	01	1	9712-				●
31	04.710 WASHER; LK,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.002 ID=8.2	9-09150-508-0	01	1	9312-9506	●		●
31	04.710 WASHER; LK,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.002 ID=8.2	9-09150-508-0	01	1	9507-9704	●	●	●
31	04.710 WASHER; LK,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.002 ID=8.2	9-09150-508-0	01	1	9705-9711	●	●	●	●
31	04.710 WASHER; LK,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.002 ID=8.2	9-09150-508-0	01	1	9712-	●	●	●		●
31	04.710 WASHER; LK,SHACKLE 00.002 ID=8.2	9-09150-508-0	01	1	9712-				●
32	04.710 PIN; SPLIT,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9312-9506	●		●
32	04.710 PIN; SPLIT,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9507-9704	●	●	●
32	04.710 PIN; SPLIT,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9705-9711	●	●	●	●
32	04.710 PIN; SPLIT,SHACKLE BRK WHL LK CONT LSPV<6PH> 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9712-	●	●	●		●
32	04.710 PIN; SPLIT,SHACKLE 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9712-				●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97045-985-0	01	1	9312-9506	●		●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9506-9506	●		●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9507-9603	●	●	●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9604-9704	●	●	●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9705-9711	●	●	●	●
108	04.710 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	9712-	●	●	●	●	●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97045-987-0	01	1	9312-9506	●		●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	03	1	9506-9506	●		●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	03	1	9507-9704	●	●	●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	03	1	9705-9711	●	●	●	●
109	04.710 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	03	1	9712-	●	●	●	●	●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97045-986-0	02	1	9312-9506	●		●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9506-9506	●		●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9507-9704	●	●	●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9705-9711	●	●	●	●
110	04.710 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	9712-	●	●	●	●	●
118	04.710 SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	9312-9506	●		●
118	04.710 SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	9507-9704	●	●	●
118	04.710 SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	9705-9711	●	●	●	●
118	04.710 SCREW; BLEEDER,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	9712-	●	●	●	●	●
119	04.710 CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-662-0	01	1	9312-9506	●		●
119	04.710 CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-662-0	01	1	9507-9704	●	●	●
119	04.710 CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-662-0	01	1	9705-9711	●	●	●	●
119	04.710 CAP; BLEEDER SCREW,LSPV BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-662-0	01	1	9712-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
