◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#47443) — 445 parça

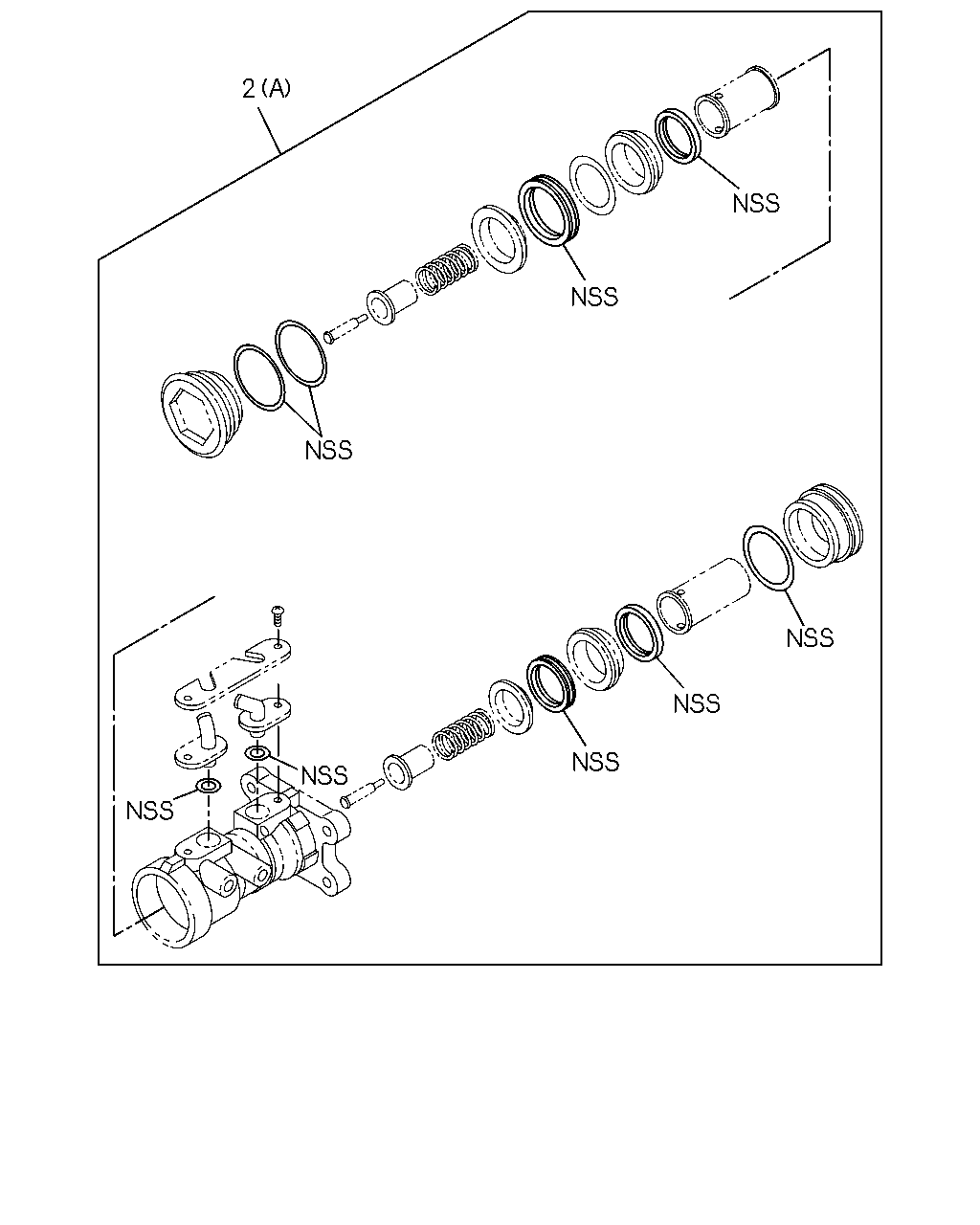

çizim 17232
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97100-083-0 01 1 9312-9506 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-083-0 01 1 9312-9506 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-083-0 01 1 9507-9510 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97100-083-0 01 1 9507-9510 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-471-0 01 1 9511-9511 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97130-471-0 01 1 9511-9511 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-471-0 01 1 9511-9611 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-471-0 01 1 9511-9611 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9612-9612 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9612-9612 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9701-9704 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9701-9704 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9701-9704 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9705-9711 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9705-9711 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9705-9711 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-471-0 01 1 9712- ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-471-0 01 1 9712- ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97100-080-0 01 1 9312-9506 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97100-080-0 01 1 9312-9506 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97100-080-0 01 1 9507-9507 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 9507-9611 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-470-0 01 1 9507-9611 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9612-9612 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9612-9612 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9701-9711 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9701-9711 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9712- ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9712- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97149-377-0 01 1 9612-9711 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
HYDRO MASTER<7LT> 		8-97149-377-0 01 1 9712- ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-705-0 01 1 9712-9801 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-705-0 01 1 9802- ● ● ● ●
çizim 19393
1 35 59 23 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97108-711-1 01 1 9312-9506 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97108-711-1 01 1 9312-9506 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97108-711-1 01 1 9507-9510 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97108-711-1 01 1 9507-9510 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97129-692-0 01 1 9511-9511 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97129-692-0 01 1 9511-9511 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97129-692-0 01 1 9511-9611 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97129-692-0 01 1 9511-9611 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9612-9612 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9612-9612 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9701-9704 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9701-9704 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9701-9704 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9705-9710 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9705-9710 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9705-9710 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97186-688-0 01 1 9711-9711 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97186-688-0 01 1 9711-9711 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97186-688-0 01 1 9711-9711 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97186-688-0 01 1 9712- ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97186-688-0 01 1 9712- ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97108-712-1 01 1 9312-9506 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97108-712-1 01 1 9312-9506 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) (A) 		8-97108-712-1 01 1 9507-9507 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97129-691-0 01 1 9507-9611 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97129-691-0 01 1 9507-9611 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97129-691-0 01 1 9612-9612 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97129-691-0 01 1 9612-9612 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (A) 		8-97129-691-0 01 1 9701-9710 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97129-691-0 01 1 9701-9710 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (A) 		8-97186-686-0 01 1 9711-9711 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97186-686-0 01 1 9711-9711 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97186-686-0 01 1 9712- ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97186-686-0 01 1 9712- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97129-628-1 01 1 9612-9711 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
HYDRO MASTER<7LT> (B) 		8-97129-628-1 01 1 9712- ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97186-691-0 01 1 9712-9801 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97186-691-0 01 1 9802-9807 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97207-703-0 01 1 9808- ● ● ● ●
23 04.651 CONNECTOR; BRK M/CYL TO RESERVE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 00.777 		8-97083-129-0 01 1 9612-9711 ● ● ●
23 04.651 CONNECTOR; BRK M/CYL TO RESERVE
HYDRO MASTER<7LT> 00.777 		8-97083-129-0 01 1 9712- ● ● ●
24 04.651 CLIP; CONN TO BRK M/CYL
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 00.777 		8-94147-279-0 01 1 9612-9711 ● ● ●
24 04.651 CLIP; CONN TO BRK M/CYL
HYDRO MASTER<7LT> 00.777 		8-94147-279-0 01 1 9712- ● ● ●
35 04.658 ROD; PUSH,M/CYL
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97168-798-0 01 1 9612-9711 ● ● ●
35 04.658 ROD; PUSH,M/CYL
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97168-798-0 01 1 9612-9711 ● ● ●
35 04.658 ROD; PUSH,M/CYL
HYDRO MASTER<7LT> 		8-97168-798-0 01 1 9712- ● ● ●
59 04.662 JOINT; BRK M/CYL
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97149-374-0 01 1 9612-9711 ● ● ●
59 04.662 JOINT; BRK M/CYL
HYDRO MASTER<7LT> 		8-97149-374-0 01 1 9712- ● ● ●
çizim 70770
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97100-083-0 01 1 9312-9506 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-083-0 01 1 9312-9506 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-083-0 01 1 9507-9510 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97100-083-0 01 1 9507-9510 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-471-0 01 1 9511-9511 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97130-471-0 01 1 9511-9511 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-471-0 01 1 9511-9611 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-471-0 01 1 9511-9611 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9612-9612 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9612-9612 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9701-9704 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9701-9704 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9701-9704 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9705-9711 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9705-9711 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-471-0 01 1 9705-9711 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-471-0 01 1 9712- ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-471-0 01 1 9712- ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97100-080-0 01 1 9312-9506 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97100-080-0 01 1 9312-9506 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97100-080-0 01 1 9507-9507 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 9507-9611 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-470-0 01 1 9507-9611 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9612-9612 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9612-9612 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9701-9711 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9701-9711 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9712- ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-470-0 01 1 9712- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97149-377-0 01 1 9612-9711 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
HYDRO MASTER<7LT> 		8-97149-377-0 01 1 9712- ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-705-0 01 1 9712-9801 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-705-0 01 1 9802- ● ● ● ●

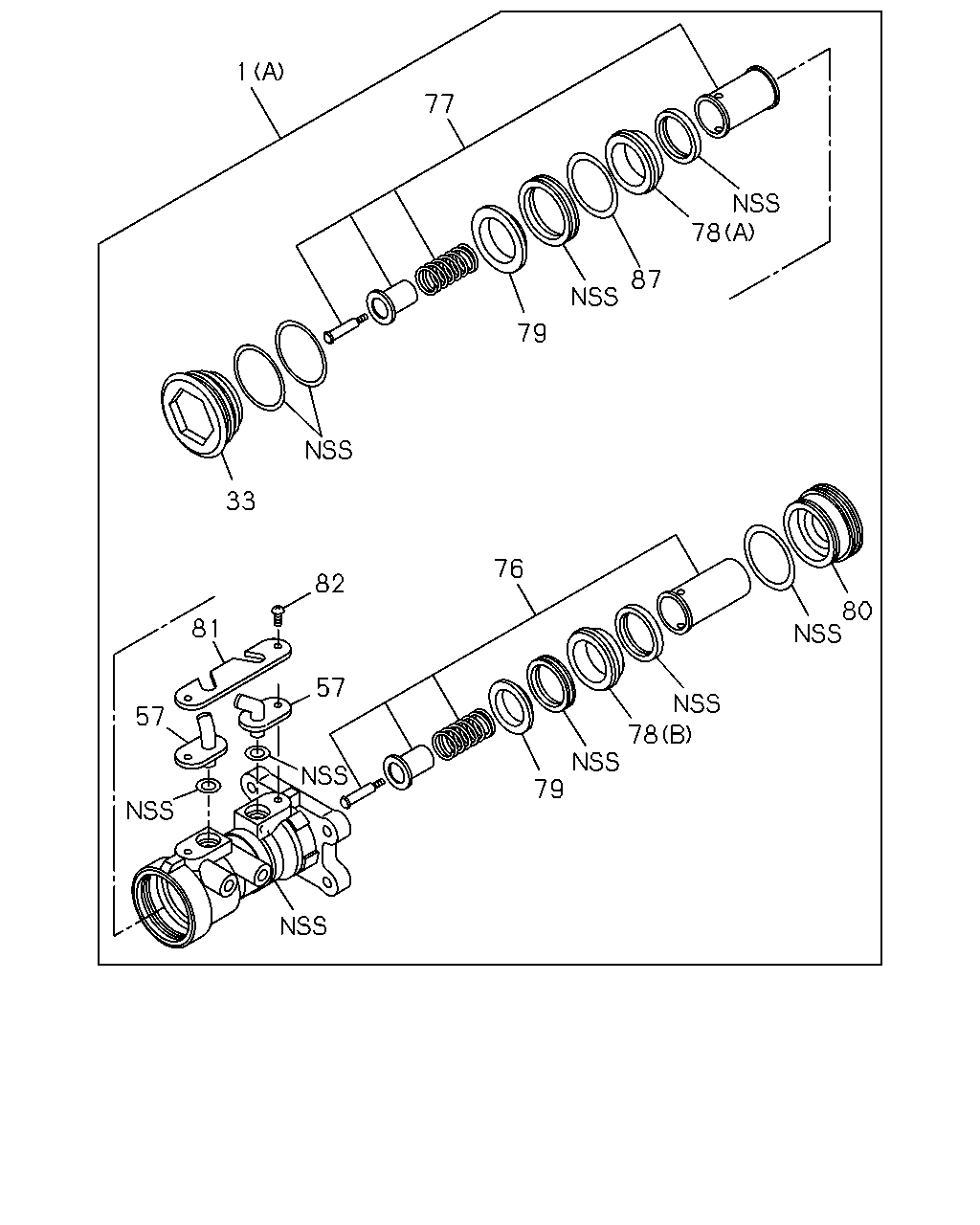

çizim 70877
1 77 78 87 79 33 76 82 80 81 57 78 79 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97108-711-1 01 1 9312-9506 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97108-711-1 01 1 9312-9506 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97108-711-1 01 1 9507-9510 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97108-711-1 01 1 9507-9510 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97129-692-0 01 1 9511-9511 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97129-692-0 01 1 9511-9511 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97129-692-0 01 1 9511-9611 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97129-692-0 01 1 9511-9611 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9612-9612 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9612-9612 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9701-9704 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9701-9704 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9701-9704 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9705-9710 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9705-9710 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97129-692-0 01 1 9705-9710 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97186-688-0 01 1 9711-9711 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97186-688-0 01 1 9711-9711 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97186-688-0 01 1 9711-9711 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97186-688-0 01 1 9712- ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97186-688-0 01 1 9712- ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97108-712-1 01 1 9312-9506 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97108-712-1 01 1 9312-9506 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) (A) 		8-97108-712-1 01 1 9507-9507 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97129-691-0 01 1 9507-9611 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97129-691-0 01 1 9507-9611 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97129-691-0 01 1 9612-9612 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97129-691-0 01 1 9612-9612 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (A) 		8-97129-691-0 01 1 9701-9710 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97129-691-0 01 1 9701-9710 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (A) 		8-97186-686-0 01 1 9711-9711 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97186-686-0 01 1 9711-9711 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97186-686-0 01 1 9712- ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97186-686-0 01 1 9712- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97129-628-1 01 1 9612-9711 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
HYDRO MASTER<7LT> (B) 		8-97129-628-1 01 1 9712- ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97186-691-0 01 1 9712-9801 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97186-691-0 01 1 9802-9807 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97207-703-0 01 1 9808- ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97100-099-1 01 1 9312-9506 ● ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-099-1 01 1 9312-9506 ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-099-1 01 1 9507-9510 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97100-099-1 01 1 9507-9510 ● ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-451-0 01 1 9511-9511 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97130-451-0 01 1 9511-9511 ● ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-451-0 01 1 9511-9611 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-451-0 01 1 9511-9611 ● ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-451-0 01 1 9612-9612 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-451-0 01 1 9612-9612 ● ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-451-0 01 1 9701-9704 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-451-0 01 1 9701-9704 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-451-0 01 1 9701-9704 ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-451-0 01 1 9705-9710 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-451-0 01 1 9705-9710 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-451-0 01 1 9705-9710 ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97186-697-0 01 1 9711-9711 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97186-697-0 01 1 9711-9711 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97186-697-0 01 1 9711-9711 ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97186-697-0 01 1 9712- ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97186-697-0 01 1 9712- ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97100-096-1 01 1 9312-9506 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97100-096-1 01 1 9312-9506 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97100-096-1 01 1 9507-9507 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-450-0 01 1 9507-9611 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-450-0 01 1 9507-9611 ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-450-0 01 1 9612-9612 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-450-0 01 1 9612-9612 ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97130-450-0 01 1 9701-9710 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-450-0 01 1 9701-9710 ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97186-696-0 01 1 9711-9711 ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97186-696-0 01 1 9711-9711 ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97186-696-0 01 1 9712- ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97186-696-0 01 1 9712- ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97186-699-0 01 1 9712-9801 ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97186-699-0 01 1 9802- ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97108-098-0 02 1 9312-9507 ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97108-098-0 02 1 9507-9510 ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97108-098-0 02 1 9507-9510 ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-442-0 02 1 9507-9510 ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-442-0 02 1 9507-9510 ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97130-442-0 02 1 9511-9511 ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 8.0-8.5TON(RPZ) 		8-97130-442-0 02 1 9511-9511 ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 9511-9511 ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-442-0 02 1 9511-9611 ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 9511-9611 ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-442-0 02 1 9612-9711 ● ●
57 04.651 NIPPLE; BRK M/CYL
EXC. HYDRO MASTER<7LT> 		8-97130-442-0 02 1 9612-9711 ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-442-0 02 1 9712-9801 ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-442-0 02 1 9712-9801 ● ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-442-0 02 1 9802- ● ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-442-0 02 1 9802- ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-442-0 02 1 9802- ● ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 9802- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX) 		8-97100-087-0 01 1 9312-9506 ● ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-087-0 01 1 9312-9506 ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-087-0 01 1 9507-9510 ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX) 		8-97100-087-0 01 1 9507-9510 ● ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-465-0 01 1 9511-9511 ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX) 		8-97130-465-0 01 1 9511-9511 ● ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-465-0 01 1 9511-9611 ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-465-0 01 1 9511-9611 ● ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-465-0 01 1 9612-9612 ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-465-0 01 1 9612-9612 ● ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-465-0 01 1 9701-9704 ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-465-0 01 1 9701-9704 ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-465-0 01 1 9701-9704 ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-465-0 01 1 9705-9711 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-465-0 01 1 9705-9711 ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-465-0 01 1 9705-9711 ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-465-0 01 1 9712- ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-465-0 01 1 9712- ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97100-085-0 01 1 9312-9506 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97100-085-0 01 1 9312-9506 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97100-085-0 01 1 9507-9507 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-464-0 01 1 9507-9611 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-464-0 01 1 9507-9611 ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-464-0 01 1 9612-9612 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-464-0 01 1 9612-9612 ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97130-464-0 01 1 9701-9711 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-464-0 01 1 9701-9711 ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-464-0 01 1 9712- ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-464-0 01 1 9712- ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-701-0 01 1 9712-9801 ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-701-0 01 1 9802- ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX) 		8-97100-088-0 01 1 9312-9506 ● ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-088-0 01 1 9312-9506 ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-088-0 01 1 9507-9510 ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX) 		8-97100-088-0 01 1 9507-9510 ● ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-467-0 01 1 9511-9511 ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX) 		8-97130-467-0 01 1 9511-9511 ● ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-467-0 01 1 9511-9611 ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-467-0 01 1 9511-9611 ● ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-467-0 01 1 9612-9612 ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-467-0 01 1 9612-9612 ● ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-467-0 01 1 9701-9704 ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-467-0 01 1 9701-9704 ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-467-0 01 1 9701-9704 ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-467-0 01 1 9705-9711 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-467-0 01 1 9705-9711 ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-467-0 01 1 9705-9711 ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-467-0 01 1 9712- ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-467-0 01 1 9712- ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97100-086-0 01 1 9312-9506 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97100-086-0 01 1 9312-9506 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97100-086-0 01 1 9507-9507 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-466-0 01 1 9507-9611 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-466-0 01 1 9507-9611 ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-466-0 01 1 9612-9612 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-466-0 01 1 9612-9612 ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97130-466-0 01 1 9701-9711 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-466-0 01 1 9701-9711 ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-466-0 01 1 9712- ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-466-0 01 1 9712- ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-699-0 01 1 9712-9801 ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-699-0 01 1 9802- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (B) 		8-97130-457-0 01 1 9511-9511 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) (B) 		8-97130-457-0 01 1 9511-9511 ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (B) 		8-97130-457-0 01 1 9511-9611 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (B) 		8-97130-457-0 01 1 9511-9611 ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (B) 		8-97130-457-0 01 1 9612-9612 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (B) 		8-97130-457-0 01 1 9612-9612 ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (B) 		8-97130-457-0 01 1 9701-9704 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (B) 		8-97130-457-0 01 1 9701-9704 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (B) 		8-97130-457-0 01 1 9701-9704 ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (B) 		8-97130-457-0 01 1 9705-9711 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (B) 		8-97130-457-0 01 1 9705-9711 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (B) 		8-97130-457-0 01 1 9705-9711 ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97130-457-0 01 1 9712- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97130-457-0 01 1 9712- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) (A),(B) 		8-97100-128-0 02 1 9312-9506 ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A),(B) 		8-97100-128-0 02 1 9312-9506 ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A),(B) 		8-97100-128-0 02 1 9507-9510 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) (A),(B) 		8-97100-128-0 02 1 9507-9510 ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97130-455-0 01 1 9511-9511 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97130-455-0 01 1 9511-9511 ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) (A) 		8-97130-455-0 01 1 9511-9611 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97130-455-0 01 1 9511-9611 ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97130-455-0 01 1 9612-9612 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97130-455-0 01 1 9612-9612 ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97130-455-0 01 1 9701-9704 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97130-455-0 01 1 9701-9704 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97130-455-0 01 1 9701-9704 ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> (A) 		8-97130-455-0 01 1 9705-9711 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> (A) 		8-97130-455-0 01 1 9705-9711 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97130-455-0 01 1 9705-9711 ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-455-0 01 1 9712- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-455-0 01 1 9712- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A),(B) 		8-97100-126-0 02 1 9312-9506 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) (A),(B) 		8-97100-126-0 02 1 9312-9506 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) (A),(B) 		8-97100-126-0 02 1 9507-9507 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 9507-9611 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) (A) 		8-97130-454-0 01 1 9507-9611 ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97130-454-0 01 1 9612-9612 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97130-454-0 01 1 9612-9612 ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (A) 		8-97130-454-0 01 1 9701-9711 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97130-454-0 01 1 9701-9711 ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (A) 		8-97130-454-0 01 1 9712- ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (A) 		8-97130-454-0 01 1 9712- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (B) 		8-97130-456-0 01 1 9507-9611 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) (B) 		8-97130-456-0 01 1 9507-9611 ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (B) 		8-97130-456-0 01 1 9612-9612 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (B) 		8-97130-456-0 01 1 9612-9612 ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> (B) 		8-97130-456-0 01 1 9701-9711 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (B) 		8-97130-456-0 01 1 9701-9711 ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> (B) 		8-97130-456-0 01 1 9712- ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> (B) 		8-97130-456-0 01 1 9712- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-695-0 01 1 9712-9801 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-695-0 01 1 9802- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97170-700-0 01 1 9712-9801 ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97170-700-0 01 1 9802-9807 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97207-685-0 01 1 9808- ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX) 		8-97100-093-0 02 1 9312-9506 ● ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-093-0 02 1 9312-9506 ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-093-0 02 1 9507-9510 ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX) 		8-97100-093-0 02 1 9507-9510 ● ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-463-0 02 1 9511-9511 ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX) 		8-97130-463-0 02 1 9511-9511 ● ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-463-0 02 1 9511-9611 ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-463-0 02 1 9511-9611 ● ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-463-0 02 1 9612-9612 ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-463-0 02 1 9612-9612 ● ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-463-0 02 1 9701-9704 ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-463-0 02 1 9701-9704 ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-463-0 02 1 9701-9704 ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-463-0 02 1 9705-9711 ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-463-0 02 1 9705-9711 ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-463-0 02 1 9705-9711 ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-463-0 02 1 9712- ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-463-0 02 1 9712- ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97100-091-0 02 1 9312-9506 ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97100-091-0 02 1 9312-9506 ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97100-091-0 02 1 9507-9507 ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 9507-9611 ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-462-0 02 1 9507-9611 ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-462-0 02 1 9612-9612 ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-462-0 02 1 9612-9612 ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97130-462-0 02 1 9701-9711 ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-462-0 02 1 9701-9711 ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-462-0 02 1 9712- ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-462-0 02 1 9712- ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-698-0 02 1 9712-9801 ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-698-0 02 1 9802- ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97100-097-1 01 1 9312-9506 ● ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-097-1 01 1 9312-9506 ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-097-1 01 1 9507-9510 ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97100-097-1 01 1 9507-9510 ● ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-449-0 01 1 9511-9511 ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97130-449-0 01 1 9511-9511 ● ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-449-0 01 1 9511-9611 ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-449-0 01 1 9511-9611 ● ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-449-0 01 1 9612-9612 ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-449-0 01 1 9612-9612 ● ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-449-0 01 1 9701-9704 ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-449-0 01 1 9701-9704 ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-449-0 01 1 9701-9704 ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-449-0 01 1 9705-9711 ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-449-0 01 1 9705-9711 ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-449-0 01 1 9705-9711 ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-449-0 01 1 9712- ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-449-0 01 1 9712- ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97100-094-1 01 1 9312-9506 ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97100-094-1 01 1 9312-9506 ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97100-094-1 01 1 9507-9507 ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 9507-9611 ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-448-0 01 1 9507-9611 ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-448-0 01 1 9612-9612 ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-448-0 01 1 9612-9612 ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97130-448-0 01 1 9701-9711 ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-448-0 01 1 9701-9711 ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-448-0 01 1 9712- ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-448-0 01 1 9712- ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-692-0 01 1 9712-9801 ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-692-0 01 1 9802- ● ● ● ●
81 04.651 HOLDER; NIPPLE 8-97108-097-0 01 1 9312-9507 ● ● ● ●
81 04.651 HOLDER; NIPPLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97108-097-0 01 1 9507-9510 ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 7.0-7.5TON(RPX) 		8-97108-097-0 01 1 9507-9510 ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-445-0 01 1 9507-9510 ● ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-445-0 01 1 9507-9510 ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97130-445-0 01 1 9511-9511 ● ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 8.0-8.5TON(RPZ) 		8-97130-445-0 01 1 9511-9511 ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 9511-9511 ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-445-0 01 1 9511-9611 ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 9511-9611 ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-445-0 01 1 9612-9711 ● ●
81 04.651 HOLDER; NIPPLE
EXC. HYDRO MASTER<7LT> 		8-97130-445-0 01 1 9612-9711 ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-445-0 01 1 9712-9801 ● ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-445-0 01 1 9712-9801 ● ● ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-445-0 01 1 9802- ● ● ● ● ●
81 04.651 HOLDER; NIPPLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-445-0 01 1 9802- ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-445-0 01 1 9802- ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 9802- ●
82 04.651 SCREW; HOLDER 8-97100-111-0 02 1 9312-9507 ● ● ● ●
82 04.651 SCREW; HOLDER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97100-111-0 02 1 9507-9510 ● ● ●
82 04.651 SCREW; HOLDER
G.V.W. 7.0-7.5TON(RPX) 		8-97100-111-0 02 1 9507-9510 ● ● ●
82 04.651 SCREW; HOLDER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-446-0 02 1 9507-9510 ● ● ● ●
82 04.651 SCREW; HOLDER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-446-0 02 1 9507-9510 ● ●
82 04.651 SCREW; HOLDER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV), G.V.W. 7.0-7.5TON(RPX) 		8-97130-446-0 02 1 9511-9511 ● ● ● ●
82 04.651 SCREW; HOLDER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 8.0-8.5TON(RPZ) 		8-97130-446-0 02 1 9511-9511 ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 9511-9511 ● ●
82 04.651 SCREW; HOLDER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-446-0 02 1 9511-9611 ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 9511-9611 ● ●
82 04.651 SCREW; HOLDER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-446-0 02 1 9612-9711 ● ●
82 04.651 SCREW; HOLDER
EXC. HYDRO MASTER<7LT> 		8-97130-446-0 02 1 9612-9711 ● ●
82 04.651 SCREW; HOLDER
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-446-0 02 1 9712-9801 ● ● ● ●
82 04.651 SCREW; HOLDER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-446-0 02 1 9712-9801 ● ● ● ● ●
82 04.651 SCREW; HOLDER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-446-0 02 1 9802- ● ● ● ● ●
82 04.651 SCREW; HOLDER
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-446-0 02 1 9802- ● ● ●
82 04.651 SCREW; HOLDER
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-446-0 02 1 9802- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 9802- ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-459-0 01 1 9604-9611 ● ● ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-459-0 01 1 9604-9611 ● ● ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-459-0 01 1 9612-9612 ● ● ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-459-0 01 1 9612-9612 ● ● ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-459-0 01 1 9701-9704 ● ● ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-459-0 01 1 9701-9704 ● ● ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-459-0 01 1 9701-9704 ● ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> 		8-97130-459-0 01 1 9705-9711 ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT> 		8-97130-459-0 01 1 9705-9711 ● ● ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-459-0 01 1 9705-9711 ● ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-459-0 01 1 9712- ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-459-0 01 1 9712- ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-458-0 01 1 9712- ● ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-458-0 01 1 9712- ● ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 9604-9611 ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-458-0 01 1 9604-9611 ● ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97130-458-0 01 1 9612-9612 ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-458-0 01 1 9612-9612 ● ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT> 		8-97130-458-0 01 1 9701-9710 ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO MASTER<7LT> 		8-97130-458-0 01 1 9701-9710 ● ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-696-0 01 1 9712-9801 ● ● ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO BRAKE BOOSTER<7QQ> 		8-97170-696-0 01 1 9802- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
