Sayfa 1-50B - Isuzu EPC

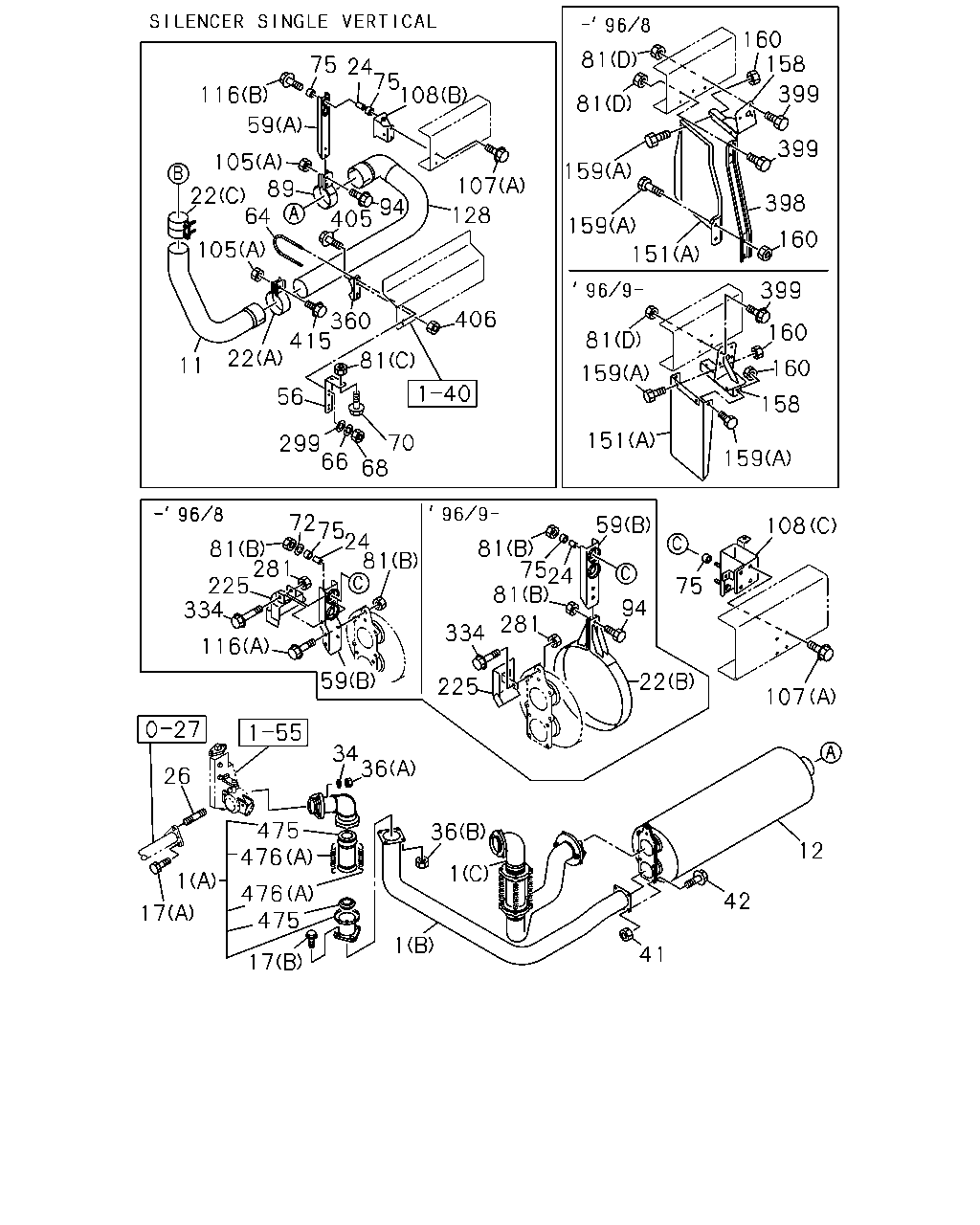

1-50B — EXHAUST PIPE AND SILENCER (#4744) — 611 parça

160 158 81 81 75 24 75 108 399 116 59 399 105 89 22 64 159 107 398 94 405 128 159 160 105 151 399 360 415 406 160 81 22 81 11 160 159 56 158 151 70 68 299 66 159 72 75 81 24 81 281 225 334 59 108 81 75 24 81 75 94 281 334 116 59 22 225 107 34 36 26 475 476 36 12 1 1 476 475 42 17 1 41 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (B)	1-22122-764-0	01	1	9603-9604	●
1	PIPE; EXH (A)	1-22122-484-0	01	1	9603-9904	●
1	PIPE; EXH (A)	1-22122-484-0	01	1	9905-	●	●	●
1	PIPE; EXH (B)	1-22122-765-0	01	1	9603-9604	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-765-0	01	1	9605-9904	●
1	PIPE; EXH (B)	1-22122-765-0	01	1	9905-	●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-783-0	01	1	9605-9608	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-872-0	01	1	9609-9904	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	1-22122-784-0	01	1	9605-9608	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	1-22122-873-0	01	1	9609-9904	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-764-0	01	1	9605-9904	●
1	PIPE; EXH (B)	1-22122-764-0	01	1	9905-	●	●	●
11	PIPE; EXH,RR	1-22122-623-0	01	1	9603-9604	●
11	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-623-0	01	1	9605-9706	●
11	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-623-0	01	1	9707-9804	●
11	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-623-0	01	1	9805-9904	●
11	PIPE; EXH,RR	1-22122-623-0	01	1	9905-	●	●	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22126-193-0	01	1	9605-9608	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22126-212-0	01	1	9609-9904	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-766-4	01	1	9603-9904	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-766-4	01	1	9905-0003	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-921-2	01	1	0004-	●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-690-1	01	1	9603-9904	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-690-1	01	1	9905-0003	●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-933-1	01	1	0004-	●	●	●
17	BOLT; EXH PIPE (B) M12X25 FLANGE	1-09000-604-0	04	1	9603-	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-603-0	02	1	9603-9606	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9607-9904	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9905-	●	●	●
22	CLAMP; EXH PIPE (B)	1-22133-222-0	01	1	9603-9608	●
22	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22133-222-0	01	1	9609-9706	●
22	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22133-222-0	01	1	9707-9904	●
22	CLAMP; EXH PIPE (B)	1-22133-222-0	01	1	9905-	●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-22133-253-0	01	1	9605-9904	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-214-1	01	1	9609-9803	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-214-1	01	1	9804-9805	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-215-0	01	1	9609-9904	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9706	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9707-9804	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9805-9904	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9905-	●	●	●
26	STUD; EXH MANIF	1-09302-161-0	04	1	9603-9606	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9607-9904	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9905-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9603-9606	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9607-9904	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9905-	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9603-9606	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9905-	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9707-9804	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9805-9904	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9603-9807	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	06	1	9808-9904	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9905-9911	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	06	1	9912-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9603-9606	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9607-9709	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9710-9904	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9603-9904	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9905-	●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22131-759-1	02	1	9605-9608	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22131-784-0	02	1	9609-9904	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-617-0	01	1	9603-9608	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22151-617-0	01	1	9609-9904	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-617-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-713-0	01	1	9603-9604	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-713-0	01	1	9605-9904	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-713-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-693-0	01	1	9605-9608	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22131-374-1	01	1	9609-9904	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22151-504-0	01	1	9609-9904	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-079-0	01	1	9603-9603	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22113-079-0	01	1	9604-9706	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22113-079-0	01	1	9707-9904	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-079-0	01	1	9905-	●	●	●
64	U-BOLT; EXH PIPE,RR (B)	1-22113-092-0	01	1	9603-9604	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22113-092-0	01	1	9605-9706	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22113-092-0	01	1	9707-9904	●
64	U-BOLT; EXH PIPE,RR (B)	1-22113-092-0	01	1	9905-	●	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-080-0	01	1	9605-9803	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-080-0	01	1	9804-9904	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	04	1	9603-9603	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9604-9802	●
66	WASHER; LK,U BOLT EXC. SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9604-9802	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9803-9904	●
66	WASHER; LK,U BOLT EXC. SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9803-9904	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9905-	●	●	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9905-	●	●	●
68	NUT; U BOLT M8	9-09110-408-0	04	1	9603-9603	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9604-9606	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9607-9802	●
68	NUT; U BOLT EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9607-9802	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
68	NUT; U BOLT EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	9604-9608	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9609-9904	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9707-9804	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9805-9904	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	04	1	9605-9608	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9609-9803	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9804-9904	●
72	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9603-9603	●
72	WASHER; LK,BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	02	1	9604-9606	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9603-9706	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9707-9805	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9805-9904	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8	9-09110-408-0	02	1	9604-9606	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9607-9608	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10	9-09110-510-0	02	1	9604-9606	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9604-9606	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9607-9608	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9607-9608	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9609-9706	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9707-9802	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9803-9804	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9805-9904	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
81	NUT; BRKT (A) M8	9-09110-408-0	02	1	9603-9603	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9603-9603	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8	9-09110-508-0	04	1	9605-9606	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	04	1	9607-9802	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	04	1	9803-9803	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	04	1	9804-9904	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	04	1	9804-9904	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M8	9-09110-508-0	05	1	9605-9606	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M8 FLANGE	0-91150-108-0	05	1	9607-9608	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M8 FLANGE	0-91150-108-0	02	1	9609-9706	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9707-9802	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9603-9706	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9707-9802	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9803-9904	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9905-9910	●	●	●
89	CLAMP; EXH SILENCER,RR	1-22133-276-0	01	1	9911-	●	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9802	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9803-9904	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9603-9603	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28680-840-0	02	1	9609-9904	●
105	NUT; CLAMP (A) M8	9-09110-408-0	02	1	9603-9606	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9607-9608	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9609-9706	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9707-9802	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9803-9805	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9803-9805	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9806-9904	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
105	NUT; CLAMP (B) M10	9-09110-510-0	01	1	9603-9606	●
105	NUT; CLAMP (B) M10 FLANGE	0-91150-210-0	01	1	9607-9608	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	9609-9706	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	9707-9802	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	9803-9904	●
105	NUT; CLAMP (B) M10 FLANGE	0-91150-210-0	01	1	9905-	●	●	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28080-830-0	02	1	9603-9603	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28080-830-0	02	1	9604-9606	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9706	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28680-830-0	02	1	9707-9904	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28081-035-0	02	1	9604-9606	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28681-040-0	02	1	9607-9706	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28681-040-0	02	1	9707-9802	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9803-9904	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9803-9904	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9905-	●	●	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9905-	●	●	●
107	BOLT; BRKT (A) M10X35 FLANGE	0-28081-035-0	02	1	9603-9603	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-732-0	01	1	9603-9603	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-732-0	01	1	9604-9706	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-732-0	01	1	9707-9904	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-732-0	01	1	9905-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-752-0	01	1	9603-9604	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-776-0	01	1	9605-9904	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-776-0	01	1	9905-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (C)	1-22131-678-0	01	1	9603-9904	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (C)	1-22131-678-0	01	1	9905-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER SINGLE VERTICAL<N28> (B)	1-22131-679-3	01	1	9605-9608	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER SINGLE VERTICAL<N28> (B)	1-22131-752-0	01	1	9609-9904	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	9603-9603	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9706	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9707-9804	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9805-9904	●
116	BOLT; BRKT (A) M10X80 FLANGE	0-28081-080-0	02	1	9603-9608	●
116	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X80 FLANGE	0-28081-080-0	02	1	9609-9904	●
116	BOLT; BRKT (A) M10X80 FLANGE	0-28081-080-0	02	1	9905-	●	●	●
128	PIPE; EXH,RR	1-22122-766-0	01	1	9603-9604	●
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-766-0	01	1	9605-9904	●
128	PIPE; EXH,RR	1-22122-766-0	01	1	9905-	●	●	●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22126-184-0	01	1	9605-9904	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-290-0	01	1	9603-9608	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-306-0	01	1	9609-9904	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-306-0	01	1	9905-	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22159-240-1	01	1	9605-9904	●
158	BRACKET; HEAT PROTECTOR	1-22159-270-0	01	1	9603-9608	●
158	BRACKET; HEAT PROTECTOR	1-22159-307-0	01	1	9609-9904	●
158	BRACKET; HEAT PROTECTOR	1-22159-307-0	01	1	9905-	●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28080-820-0	10	1	9604-9606	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28080-820-0	10	1	9607-9802	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28080-820-0	10	1	9803-9904	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	10	1	9607-9706	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	10	1	9707-9904	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	10	1	9905-	●	●	●
159	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9608	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	04	1	9609-9904	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-	●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	9603-9603	●
159	BOLT; HEAT PROTECTOR (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608	●
160	NUT; HEAT PROTECTOR M8	9-09110-408-0	04	1	9603-9606	●
160	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	04	1	9607-9904	●
160	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	04	1	9905-	●	●	●
225	PROTECTOR; HEAT SILENCER SINGLE VERTICAL<N28>	1-22119-331-2	01	1	9605-9608	●
225	PROTECTOR; HEAT SILENCER SINGLE VERTICAL<N28>	1-22119-381-0	01	1	9609-9904	●
281	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	01	1	9605-9606	●
281	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9607-9802	●
281	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9803-9904	●
299	WASHER; PL,U-BOLT,FRT EXH PIPE ID=8.4 OD=22	9-09160-708-0	02	1	9603-9706	●
299	WASHER; PL,U-BOLT,FRT EXH PIPE ID=8.4 OD=22	9-09160-708-0	02	1	9707-9904	●
299	WASHER; PL,U-BOLT,FRT EXH PIPE ID=8.4 OD=22	9-09160-708-0	02	1	9905-	●	●	●
334	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X70 FLANGE	0-28080-870-0	01	1	9605-9608	●
334	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	01	1	9609-9904	●
360	PIECE; DIST,EXH PIPE	1-22113-093-0	01	1	9603-9604	●
360	PIECE; DIST,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22113-093-0	01	1	9605-9706	●
360	PIECE; DIST,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22113-093-0	01	1	9707-9904	●
360	PIECE; DIST,EXH PIPE	1-22113-093-0	01	1	9905-	●	●	●
360	PIECE; DIST,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22113-089-0	01	1	9605-9803	●
360	PIECE; DIST,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22113-089-0	01	1	9804-9904	●
398	BRACKET; HEAT PROTECTOR	1-22131-758-1	01	1	9603-9608	●
399	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	05	1	9603-9608	●
399	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	9609-9904	●
399	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	9905-	●	●	●
405	BOLT; DIST PIECE M8X25 FLANGE	0-28680-825-0	02	1	9603-9604	●
405	BOLT; DIST PIECE EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	02	1	9605-9706	●
405	BOLT; DIST PIECE EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●
405	BOLT; DIST PIECE EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	02	1	9803-9904	●
405	BOLT; DIST PIECE M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●
405	BOLT; DIST PIECE M8X30 FLANGE	0-28680-830-0	02	1	9812-9904	●
405	BOLT; DIST PIECE M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
405	BOLT; DIST PIECE SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9609-9803	●
405	BOLT; DIST PIECE SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9804-9904	●
406	NUT; DIST PIECE M8 FLANGE	0-91150-108-0	02	1	9812-9904	●
406	NUT; DIST PIECE M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
406	NUT; DIST PIECE SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	04	1	9609-9803	●
406	NUT; DIST PIECE SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	04	1	9804-9904	●
415	BOLT; CLAMP M10X35 FLANGE	0-28081-035-0	01	1	9603-9606	●
415	BOLT; CLAMP M10X40 FLANGE	0-28081-040-0	01	1	9607-9608	●
415	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28081-040-0	01	1	9609-9706	●
415	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28081-040-0	01	1	9707-9802	●
415	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28081-040-0	01	1	9803-9904	●
415	BOLT; CLAMP M10X40 FLANGE	0-28081-040-0	01	1	9905-	●	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28680-840-0	02	1	9609-9803	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28680-840-0	02	1	9804-9805	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9603-9904	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	05	1	9905-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> OD=112	1-22119-294-0	03	1	9705-9904	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	9705-9904	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9705-9904	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	08	1	9905-	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	9705-9904	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	9905-	●	●	●

81 354 159 354 64 108 64 4 66 159 354 22 354 300 11 415 107 68 128 105 147 360 299 66 68 405 81 300 160 81 159 399 399 75 24 17 159 116 59 151 398 105 81 72 26 160 476 475 89 75 94 1 476 476 476 475 12 34 20 108 107 36 42 17 70 75 24 1 41 1 75 36 108 107 116 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (B)	1-22122-764-0	01	1	9603-9604	●
1	PIPE; EXH (A)	1-22122-484-0	01	1	9603-9904	●
1	PIPE; EXH (A)	1-22122-484-0	01	1	9905-	●	●	●
1	PIPE; EXH (B)	1-22122-765-0	01	1	9603-9604	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-765-0	01	1	9605-9904	●
1	PIPE; EXH (B)	1-22122-765-0	01	1	9905-	●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-783-0	01	1	9605-9608	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-872-0	01	1	9609-9904	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	1-22122-784-0	01	1	9605-9608	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	1-22122-873-0	01	1	9609-9904	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-764-0	01	1	9605-9904	●
1	PIPE; EXH (B)	1-22122-764-0	01	1	9905-	●	●	●
4	WASHER; PL,U BOLT ID=8.4 OD=22	9-09160-708-0	02	1	9603-9603	●
4	WASHER; PL,U BOLT EXC. SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	9604-9706	●
4	WASHER; PL,U BOLT EXC. SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	9707-9904	●
4	WASHER; PL,U BOLT ID=8.4 OD=22	9-09160-708-0	02	1	9905-	●	●	●
11	PIPE; EXH,RR	1-22122-623-0	01	1	9603-9604	●
11	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-623-0	01	1	9605-9706	●
11	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-623-0	01	1	9707-9804	●
11	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-623-0	01	1	9805-9904	●
11	PIPE; EXH,RR	1-22122-623-0	01	1	9905-	●	●	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22126-193-0	01	1	9605-9608	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22126-212-0	01	1	9609-9904	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-766-4	01	1	9603-9904	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-766-4	01	1	9905-0003	●	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9>	1-22140-921-2	01	1	0004-	●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-690-1	01	1	9603-9904	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-690-1	01	1	9905-0003	●	●	●
12	SILENCER ASM; EXH EXC. ANTI NOISE EQUIPMENT<SV9>	1-22140-933-1	01	1	0004-	●	●	●
17	BOLT; EXH PIPE (B) M12X25 FLANGE	1-09000-604-0	04	1	9603-	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-603-0	02	1	9603-9606	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9607-9904	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9905-	●	●	●
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	02	1	9705-9904	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	9905-	●	●	●
22	CLAMP; EXH PIPE (B)	1-22133-222-0	01	1	9603-9608	●
22	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22133-222-0	01	1	9609-9706	●
22	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22133-222-0	01	1	9707-9904	●
22	CLAMP; EXH PIPE (B)	1-22133-222-0	01	1	9905-	●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-22133-253-0	01	1	9605-9904	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-214-1	01	1	9609-9803	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-214-1	01	1	9804-9805	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-215-0	01	1	9609-9904	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9706	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9707-9804	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9805-9904	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9905-	●	●	●
26	STUD; EXH MANIF	1-09302-161-0	04	1	9603-9606	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9607-9904	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9905-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9603-9606	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9607-9904	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9905-	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9603-9606	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9905-	●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9707-9804	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9805-9904	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9603-9807	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	06	1	9808-9904	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9905-9911	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	06	1	9912-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9603-9606	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9607-9709	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9710-9904	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	08	1	9905-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9603-9904	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-617-0	01	1	9603-9608	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22151-617-0	01	1	9609-9904	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-617-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-713-0	01	1	9603-9604	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-713-0	01	1	9605-9904	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-713-0	01	1	9905-	●	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-693-0	01	1	9605-9608	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22131-374-1	01	1	9609-9904	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22151-504-0	01	1	9609-9904	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-079-0	01	1	9603-9603	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22113-079-0	01	1	9604-9706	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22113-079-0	01	1	9707-9904	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-079-0	01	1	9905-	●	●	●
64	U-BOLT; EXH PIPE,RR (B)	1-22113-092-0	01	1	9603-9604	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22113-092-0	01	1	9605-9706	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22113-092-0	01	1	9707-9904	●
64	U-BOLT; EXH PIPE,RR (B)	1-22113-092-0	01	1	9905-	●	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-080-0	01	1	9605-9803	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-080-0	01	1	9804-9904	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	04	1	9603-9603	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9604-9802	●
66	WASHER; LK,U BOLT EXC. SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9604-9802	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9803-9904	●
66	WASHER; LK,U BOLT EXC. SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9803-9904	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9905-	●	●	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9905-	●	●	●
68	NUT; U BOLT M8	9-09110-408-0	04	1	9603-9603	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9604-9606	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9607-9802	●
68	NUT; U BOLT EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9607-9802	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
68	NUT; U BOLT EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	9604-9608	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9609-9904	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9707-9804	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9805-9904	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	04	1	9605-9608	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9609-9803	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9804-9904	●
72	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9603-9603	●
72	WASHER; LK,BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	02	1	9604-9606	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9603-9706	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	04	1	9905-	●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9707-9805	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9805-9904	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8	9-09110-408-0	02	1	9604-9606	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9607-9608	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10	9-09110-510-0	02	1	9604-9606	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9604-9606	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9607-9608	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9607-9608	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9609-9706	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9707-9802	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9803-9804	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	02	1	9805-9904	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
81	NUT; BRKT (A) M8	9-09110-408-0	02	1	9603-9603	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9603-9603	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8	9-09110-508-0	04	1	9605-9606	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	04	1	9607-9802	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	04	1	9803-9803	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	04	1	9804-9904	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	04	1	9804-9904	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M8	9-09110-508-0	05	1	9605-9606	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M8 FLANGE	0-91150-108-0	05	1	9607-9608	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M8 FLANGE	0-91150-108-0	02	1	9609-9706	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9707-9802	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9603-9706	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9707-9802	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9803-9904	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9905-9910	●	●	●
89	CLAMP; EXH SILENCER,RR	1-22133-276-0	01	1	9911-	●	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9604-9606	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9802	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9803-9904	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9905-	●	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9603-9603	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28680-840-0	02	1	9609-9904	●
105	NUT; CLAMP (A) M8	9-09110-408-0	02	1	9603-9606	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9607-9608	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9609-9706	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9707-9802	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9803-9805	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9803-9805	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9806-9904	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
105	NUT; CLAMP (B) M10	9-09110-510-0	01	1	9603-9606	●
105	NUT; CLAMP (B) M10 FLANGE	0-91150-210-0	01	1	9607-9608	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	9609-9706	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	9707-9802	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	9803-9904	●
105	NUT; CLAMP (B) M10 FLANGE	0-91150-210-0	01	1	9905-	●	●	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28080-830-0	02	1	9603-9603	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28080-830-0	02	1	9604-9606	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9706	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28680-830-0	02	1	9707-9904	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28081-035-0	02	1	9604-9606	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28681-040-0	02	1	9607-9706	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28681-040-0	02	1	9707-9802	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9803-9904	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9803-9904	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9905-	●	●	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9905-	●	●	●
107	BOLT; BRKT (A) M10X35 FLANGE	0-28081-035-0	02	1	9603-9603	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-732-0	01	1	9603-9603	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-732-0	01	1	9604-9706	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-732-0	01	1	9707-9904	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-732-0	01	1	9905-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-752-0	01	1	9603-9604	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-776-0	01	1	9605-9904	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-776-0	01	1	9905-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (C)	1-22131-678-0	01	1	9603-9904	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (C)	1-22131-678-0	01	1	9905-	●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER SINGLE VERTICAL<N28> (B)	1-22131-679-3	01	1	9605-9608	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER SINGLE VERTICAL<N28> (B)	1-22131-752-0	01	1	9609-9904	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	04	1	9603-9603	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9604-9706	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-	●	●	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9707-9804	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9805-9904	●
116	BOLT; BRKT (A) M10X80 FLANGE	0-28081-080-0	02	1	9603-9608	●
116	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X80 FLANGE	0-28081-080-0	02	1	9609-9904	●
116	BOLT; BRKT (A) M10X80 FLANGE	0-28081-080-0	02	1	9905-	●	●	●
128	PIPE; EXH,RR	1-22122-766-0	01	1	9603-9604	●
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-766-0	01	1	9605-9904	●
128	PIPE; EXH,RR	1-22122-766-0	01	1	9905-	●	●	●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22126-184-0	01	1	9605-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9603-9706	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9707-9804	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9603-9706	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9707-9804	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9805-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9805-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9905-	●	●	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9905-	●	●	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-290-0	01	1	9603-9608	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-306-0	01	1	9609-9904	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-306-0	01	1	9905-	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22159-240-1	01	1	9605-9904	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28080-820-0	10	1	9604-9606	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28080-820-0	10	1	9607-9802	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28080-820-0	10	1	9803-9904	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	10	1	9607-9706	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	10	1	9707-9904	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	10	1	9905-	●	●	●
159	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9608	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	04	1	9609-9904	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-	●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	9603-9603	●
159	BOLT; HEAT PROTECTOR (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608	●
160	NUT; HEAT PROTECTOR M8	9-09110-408-0	04	1	9603-9606	●
160	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	04	1	9607-9904	●
160	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	04	1	9905-	●	●	●
299	WASHER; PL,U-BOLT,FRT EXH PIPE ID=8.4 OD=22	9-09160-708-0	02	1	9603-9706	●
299	WASHER; PL,U-BOLT,FRT EXH PIPE ID=8.4 OD=22	9-09160-708-0	02	1	9707-9904	●
299	WASHER; PL,U-BOLT,FRT EXH PIPE ID=8.4 OD=22	9-09160-708-0	02	1	9905-	●	●	●
300	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-305-0	01	1	9604-9706	●
300	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-305-0	01	1	9707-9904	●
300	PROTECTOR; HEAT,EXH PIPE (A)	1-22119-305-0	01	1	9905-	●	●	●
300	PROTECTOR; HEAT,EXH PIPE (B)	1-22119-306-0	01	1	9603-9603	●
300	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-306-0	01	1	9604-9706	●
300	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-306-0	01	1	9707-9904	●
300	PROTECTOR; HEAT,EXH PIPE (B)	1-22119-306-0	01	1	9905-	●	●	●
300	PROTECTOR; HEAT,EXH PIPE (A)	1-22119-305-0	01	1	9603-9603	●
354	CLAMP; HEAT PROTECTOR (B)	1-22119-307-0	02	1	9603-9603	●
354	CLAMP; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-307-0	02	1	9604-9706	●
354	CLAMP; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-307-0	02	1	9707-9904	●
354	CLAMP; HEAT PROTECTOR (B)	1-22119-307-0	02	1	9905-	●	●	●
354	CLAMP; HEAT PROTECTOR (A)	1-22119-308-0	03	1	9603-9603	●
354	CLAMP; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-308-0	03	1	9604-9706	●
354	CLAMP; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-308-0	03	1	9707-9904	●
354	CLAMP; HEAT PROTECTOR (A)	1-22119-308-0	03	1	9905-	●	●	●
360	PIECE; DIST,EXH PIPE	1-22113-093-0	01	1	9603-9604	●
360	PIECE; DIST,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22113-093-0	01	1	9605-9706	●
360	PIECE; DIST,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22113-093-0	01	1	9707-9904	●
360	PIECE; DIST,EXH PIPE	1-22113-093-0	01	1	9905-	●	●	●
360	PIECE; DIST,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22113-089-0	01	1	9605-9803	●
360	PIECE; DIST,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22113-089-0	01	1	9804-9904	●
398	BRACKET; HEAT PROTECTOR	1-22131-758-1	01	1	9603-9608	●
399	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	05	1	9603-9608	●
399	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	9609-9904	●
399	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	9905-	●	●	●
405	BOLT; DIST PIECE M8X25 FLANGE	0-28680-825-0	02	1	9603-9604	●
405	BOLT; DIST PIECE EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	02	1	9605-9706	●
405	BOLT; DIST PIECE EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	02	1	9707-9802	●
405	BOLT; DIST PIECE EXC. SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	02	1	9803-9904	●
405	BOLT; DIST PIECE M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●
405	BOLT; DIST PIECE M8X30 FLANGE	0-28680-830-0	02	1	9812-9904	●
405	BOLT; DIST PIECE M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●
405	BOLT; DIST PIECE SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9609-9803	●
405	BOLT; DIST PIECE SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	04	1	9804-9904	●
415	BOLT; CLAMP M10X35 FLANGE	0-28081-035-0	01	1	9603-9606	●
415	BOLT; CLAMP M10X40 FLANGE	0-28081-040-0	01	1	9607-9608	●
415	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28081-040-0	01	1	9609-9706	●
415	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28081-040-0	01	1	9707-9802	●
415	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28081-040-0	01	1	9803-9904	●
415	BOLT; CLAMP M10X40 FLANGE	0-28081-040-0	01	1	9905-	●	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28680-840-0	02	1	9609-9803	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28680-840-0	02	1	9804-9805	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	02	1	9603-9904	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	05	1	9905-	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> OD=112	1-22119-294-0	03	1	9705-9904	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	9705-9904	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	9705-9904	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	08	1	9905-	●	●	●
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	9705-9904	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	9905-	●	●	●

359 197 438 439 438 151 201 436 421 434 433 438 439 438 437 434 417 159 435 435 134 201 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	02	1	9605-9608	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9603-9706	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9707-9804	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9603-9706	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9707-9804	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9805-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9805-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9905-	●	●	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9905-	●	●	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-290-0	01	1	9603-9608	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-306-0	01	1	9609-9904	●
151	PROTECTOR; HEAT,EXH PIPE (A)	1-22159-306-0	01	1	9905-	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22159-240-1	01	1	9605-9904	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28080-820-0	10	1	9604-9606	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28080-820-0	10	1	9607-9802	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28080-820-0	10	1	9803-9904	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	10	1	9607-9706	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	10	1	9707-9904	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	10	1	9905-	●	●	●
159	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9608	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	04	1	9609-9904	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	04	1	9905-	●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	9603-9603	●
159	BOLT; HEAT PROTECTOR (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28>	1-22131-772-1	01	1	9605-9904	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	9605-9701	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	01	1	9702-9802	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	01	1	9803-9904	●
359	PIPE; EXH,VERTICAL SILENCER SINGLE VERTICAL<N28>	1-22122-840-0	01	1	9605-9904	●
417	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28681-030-0	04	1	9605-9803	●
417	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28681-030-0	04	1	9804-9904	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28081-025-0	04	1	9605-9802	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28081-025-0	04	1	9803-9904	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-720-1	01	1	9605-9803	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-720-1	01	1	9804-9904	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	02	1	9605-9803	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	02	1	9804-9904	●
435	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9605-9606	●
435	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9607-9803	●
435	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9804-9904	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22131-773-0	01	1	9605-9802	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22131-773-0	01	1	9803-9904	●
437	NUT; STAY SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9605-9606	●
437	NUT; STAY SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	01	1	9607-9803	●
437	NUT; STAY SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	01	1	9804-9904	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9605-9701	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	9702-9802	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	9803-9904	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	9605-9701	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	01	1	9702-9802	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	01	1	9803-9904	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
