3-02 — FRONT DISC BRAKE CALIPER (#47437) — 226 parça

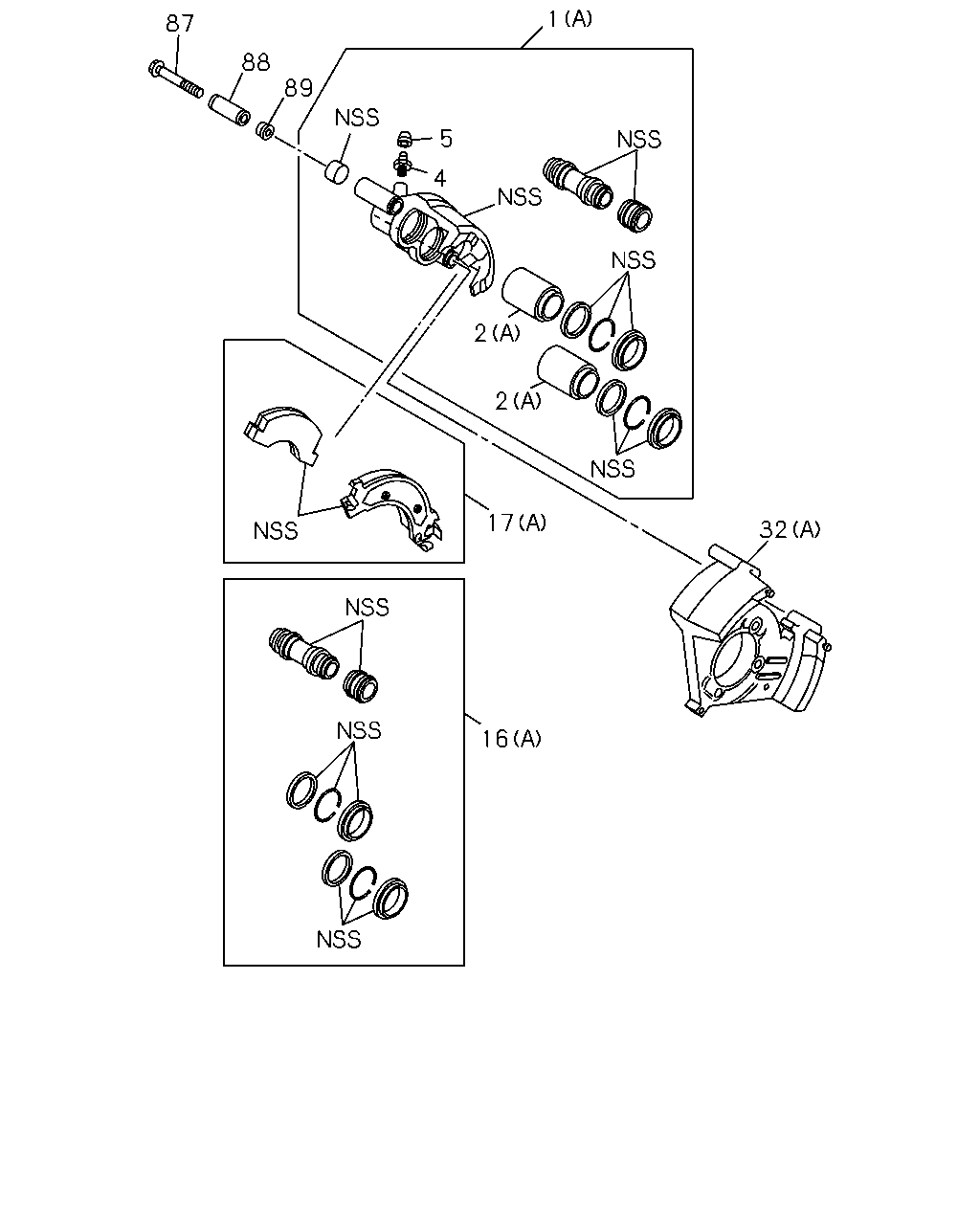

çizim 67421
1 87 88 89 5 4 2 2 17 32 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9312-9506 ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9507-9704 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9705-9711 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-347-1 01 1 9712-9809 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9712-9809 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9810- ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9312-9506 ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9507-9704 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9705-9711 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-346-1 01 1 9712-9809 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9712-9809 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9810- ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-588-0 01 1 9712-9804 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-588-0 01 1 9805- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-587-0 01 1 9712-9804 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-587-0 01 1 9805- ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9312-9506 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9507-9704 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9705-9711 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-350-0 04 1 9712-9809 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9712-9809 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9810- ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-593-0 04 1 9712-9804 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-593-0 04 1 9805- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 9312-9506 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 9507-9704 ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 9705-9711 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 9712- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9312-9506 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9507-9704 ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9705-9711 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		9-47619-038-0 02 1 9712-9809 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9712-9809 ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9810- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		1-47619-009-0 02 1 9712-9804 ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		1-47619-009-0 02 1 9805- ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9312-9506 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9507-9704 ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9705-9711 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94479-584-1 01 1 9712-9809 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9712-9809 ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9810- ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-636-0 01 1 9712-9804 ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-636-0 01 1 9805- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(88V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9312-9406 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9312-9406 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(88V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9407-9506 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9407-9506 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9507-9509 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(88V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9507-9509 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9507-9509 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9510-9510 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(88V),(9HY), (9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9510-9510 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARP),(02C),(05C),(06H),(07H),(08C), (08H),(11C),(83V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9510-9510 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9511-9704 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(88V),(9HY), (9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9511-9704 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARP),(02C),(05C),(06H),(07H),(08C), (08H),(11C),(83V),(88V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9511-9704 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9705-9711 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(88V),(9HY), (9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9705-9711 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARP),(02C),(05C),(06H),(07H),(08C), (08H),(11C),(83V),(88V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9705-9711 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(06H),(07H),(08H),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9705-9711 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(06H),(07C),(07H), (08C),(08H),(09C),(10C),(11C),(50C), (51C),(53C),(54C),(55C),(83V),(9BP), (9HY),(9XB),(94H),(95H),(95V),(96H),(97H) ,(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9712-9801 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(9XD),(94H),(95H),(96H),(97H), (98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(06H),(07H),(08H),(50C),(51C),(9XD), (94H),(95H),(96H),(97H),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(03C),(04C),(05C),(9BP),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(06H),(07C),(07H), (08C),(08H),(09C),(10C),(11C),(50C), (51C),(53C),(54C),(55C),(83V),(9BP), (9HY),(9XB),(9XD),(94H),(95H),(95V),(96H) ,(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9802-9809 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(9XD),(94H),(95H),(96H),(97H), (98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(06H),(07H),(08H),(50C),(51C),(9XD), (94H),(95H),(96H),(97H),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(03C),(04C),(05C),(9BP),(95V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(BPL),(BPM),(BPN),(BPP), (BPQ),(BPR),(BPT),(00C),(01C),(02C), (03C),(04C),(05C),(06C),(06H),(07C), (07H),(08C),(08H),(09C),(10C),(11C), (50C),(51C),(53C),(54C),(55C),(83V),(9BP) ,(9HY),(9XB),(94H),(95H),(95V),(96H), (97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AQK),(ARP),(BPN),(BPP),(BPQ),(BPR), (BPT),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9810- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(BPL),(BPM),(06H),(07H),(08H), (50C),(51C),(9HY),(94H),(95H),(96H), (97H),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(BPL),(BPM),(06H),(07H),(08H),(50C), (51C),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(03C),(04C),(05C),(9BP),(95V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-634-0 01 1 9712- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9312-9506 ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9507-9704 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9705-9711 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-352-1 01 1 9712-9809 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9712-9809 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9810- ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9312-9506 ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9507-9704 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9705-9711 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-351-1 01 1 9712-9809 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9712-9809 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9810- ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97168-599-0 02 1 9712- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97179-592-0 01 1 9712- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97179-591-0 01 1 9712- ● ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9312-9506 ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9507-9704 ● ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9705-9711 ● ● ● ●
87 04.665 PIN; LOCK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 		8-94479-685-1 02 1 9712-9809 ● ● ● ●
87 04.665 PIN; LOCK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9712-9809 ● ● ●
87 04.665 PIN; LOCK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9810- ● ● ● ● ●
87 04.665 PIN; LOCK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-611-0 02 1 9712-9804 ● ● ●
87 04.665 PIN; LOCK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-611-0 02 1 9805- ● ● ●
88 04.681 SLEEVE; LOCK PIN
DISC BRAKE FRT<J52> 		8-94468-353-0 02 1 9312-9506 ● ●
88 04.681 SLEEVE; LOCK PIN
DISC BRAKE FRT<J52> 		8-94468-353-0 02 1 9507-9704 ● ● ●
88 04.681 SLEEVE; LOCK PIN
DISC BRAKE FRT<J52> 		8-94468-353-0 02 1 9705-9711 ● ● ● ●
88 04.681 SLEEVE; LOCK PIN
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94468-353-0 02 1 9712-9809 ● ● ● ●
88 04.681 SLEEVE; LOCK PIN
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> 		8-94468-353-0 02 1 9712-9809 ● ● ●
88 04.681 SLEEVE; LOCK PIN
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> 		8-94468-353-0 02 1 9810- ● ● ● ● ●
89 04.665 BOOT; SLEEVE
DISC BRAKE FRT<J52> 		8-97088-726-0 02 1 9312-9506 ● ●
89 04.665 BOOT; SLEEVE
DISC BRAKE FRT<J52> 		8-97088-726-0 02 1 9507-9704 ● ● ●
89 04.665 BOOT; SLEEVE
DISC BRAKE FRT<J52> 		8-97088-726-0 02 1 9705-9711 ● ● ● ●
89 04.665 BOOT; SLEEVE
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-726-0 02 1 9712-9809 ● ● ● ●
89 04.665 BOOT; SLEEVE
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> 		8-97088-726-0 02 1 9712-9809 ● ● ●
89 04.665 BOOT; SLEEVE
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> 		8-97088-726-0 02 1 9810- ● ● ● ● ●

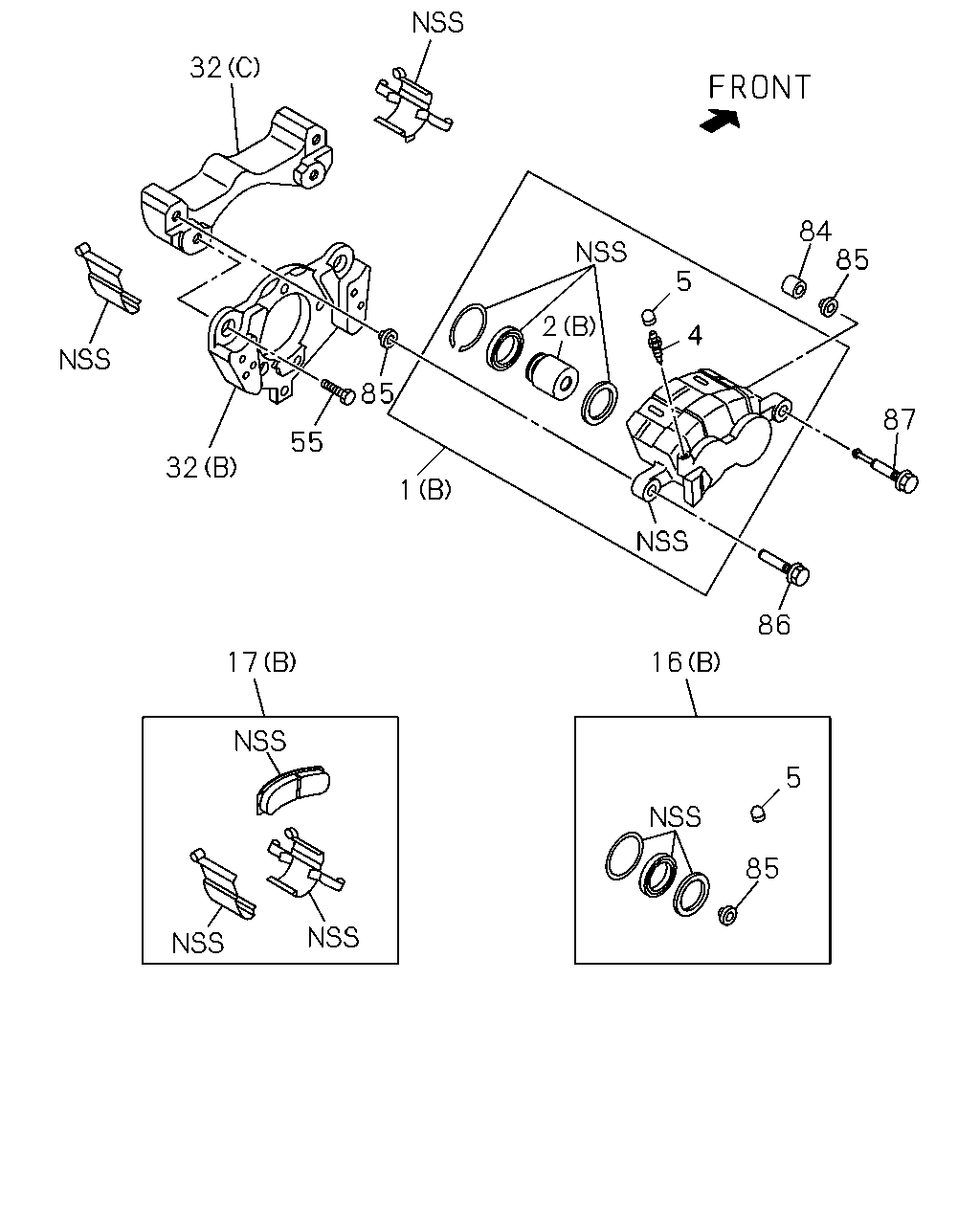

çizim 68246
32 84 85 5 2 4 85 87 55 32 1 86 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9312-9506 ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9507-9704 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9705-9711 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-347-1 01 1 9712-9809 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9712-9809 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-347-1 01 1 9810- ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9312-9506 ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9507-9704 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9705-9711 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-346-1 01 1 9712-9809 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9712-9809 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-346-1 01 1 9810- ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-588-0 01 1 9712-9804 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-588-0 01 1 9805- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-587-0 01 1 9712-9804 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-587-0 01 1 9805- ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9312-9506 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9507-9704 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9705-9711 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-350-0 04 1 9712-9809 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9712-9809 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-350-0 04 1 9810- ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-593-0 04 1 9712-9804 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-593-0 04 1 9805- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 9312-9506 ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 9507-9704 ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 9705-9711 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 9712- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9312-9506 ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9507-9704 ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9705-9711 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		9-47619-038-0 02 1 9712-9809 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9712-9809 ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> 		9-47619-038-0 02 1 9810- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		1-47619-009-0 02 1 9712-9804 ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		1-47619-009-0 02 1 9805- ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9312-9506 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9507-9704 ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9705-9711 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94479-584-1 01 1 9712-9809 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9712-9809 ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94479-584-1 01 1 9810- ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-636-0 01 1 9712-9804 ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-636-0 01 1 9805- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(88V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9312-9406 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9312-9406 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(88V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9407-9506 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9407-9506 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9507-9509 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(88V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9507-9509 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(02C),(05C),(06H),(07H),(08C),(08H), (11C),(83V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9507-9509 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9510-9510 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(88V),(9HY), (9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9510-9510 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARP),(02C),(05C),(06H),(07H),(08C), (08H),(11C),(83V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9510-9510 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9511-9704 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(88V),(9HY), (9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9511-9704 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARP),(02C),(05C),(06H),(07H),(08C), (08H),(11C),(83V),(88V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9511-9704 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(9HY),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9705-9711 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(02C),(05C),(06H),(07H), (08C),(08H),(11C),(83V),(88V),(9HY), (9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9705-9711 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARP),(02C),(05C),(06H),(07H),(08C), (08H),(11C),(83V),(88V),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9705-9711 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(06H),(07H),(08H),(9XB) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9705-9711 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(06H),(07C),(07H), (08C),(08H),(09C),(10C),(11C),(50C), (51C),(53C),(54C),(55C),(83V),(9BP), (9HY),(9XB),(94H),(95H),(95V),(96H),(97H) ,(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9712-9801 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(9XD),(94H),(95H),(96H),(97H), (98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(06H),(07H),(08H),(50C),(51C),(9XD), (94H),(95H),(96H),(97H),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(03C),(04C),(05C),(9BP),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9712-9801 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(06H),(07C),(07H), (08C),(08H),(09C),(10C),(11C),(50C), (51C),(53C),(54C),(55C),(83V),(9BP), (9HY),(9XB),(9XD),(94H),(95H),(95V),(96H) ,(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9802-9809 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(9XD),(94H),(95H),(96H),(97H), (98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(06H),(07H),(08H),(50C),(51C),(9XD), (94H),(95H),(96H),(97H),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(03C),(04C),(05C),(9BP),(95V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9802-9809 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(ARP),(BPL),(BPM),(BPN),(BPP), (BPQ),(BPR),(BPT),(00C),(01C),(02C), (03C),(04C),(05C),(06C),(06H),(07C), (07H),(08C),(08H),(09C),(10C),(11C), (50C),(51C),(53C),(54C),(55C),(83V),(9BP) ,(9HY),(9XB),(94H),(95H),(95V),(96H), (97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AQK),(ARP),(BPN),(BPP),(BPQ),(BPR), (BPT),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9810- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(BPL),(BPM),(06H),(07H),(08H), (50C),(51C),(9HY),(94H),(95H),(96H), (97H),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(BPL),(BPM),(06H),(07H),(08H),(50C), (51C),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(03C),(04C),(05C),(9BP),(95V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97094-710-0 01 1 9810- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-634-0 01 1 9712- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9312-9506 ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9507-9704 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9705-9711 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-352-1 01 1 9712-9809 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9712-9809 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-352-1 01 1 9810- ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9312-9506 ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9507-9704 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9705-9711 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94468-351-1 01 1 9712-9809 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9712-9809 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> (A) 		8-94468-351-1 01 1 9810- ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97168-599-0 02 1 9712- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97179-592-0 01 1 9712- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97179-591-0 01 1 9712- ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-639-0 04 1 9712-9804 ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-639-0 04 1 9805- ● ● ●
84 04.665 BUSHING; LOCK PIN
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-615-0 02 1 9712-9804 ● ● ●
84 04.665 BUSHING; LOCK PIN
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-615-0 02 1 9805- ● ● ●
85 04.665 BOOT; PIN
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-612-0 04 1 9712-9804 ● ● ●
85 04.665 BOOT; PIN
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-612-0 04 1 9805- ● ● ●
86 04.665 PIN; GUIDE
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-609-0 02 1 9712-9804 ● ● ●
86 04.665 PIN; GUIDE
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-609-0 02 1 9805- ● ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9312-9506 ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9507-9704 ● ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9705-9711 ● ● ● ●
87 04.665 PIN; LOCK
(AQK),(ARP),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9XB),(95V),(97V) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.681 		8-94479-685-1 02 1 9712-9809 ● ● ● ●
87 04.665 PIN; LOCK
(ARN),(06H),(07H),(08H),(50C),(51C), (9HY),(94H),(95H),(96H),(97H),(98H), (99H) DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9712-9809 ● ● ●
87 04.665 PIN; LOCK
(AQK),(ARN),(ARP),(BPL),(BPM),(BPN), (BPP),(BPQ),(BPR),(BPT),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(06H), (07C),(07H),(08C),(08H),(09C),(10C), (11C),(50C),(51C),(53C),(54C),(55C),(83V) ,(9BP),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(97V),(98H),(99H) DISC BRAKE FRT<J52> 04.681 		8-94479-685-1 02 1 9810- ● ● ● ● ●
87 04.665 PIN; LOCK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-611-0 02 1 9712-9804 ● ● ●
87 04.665 PIN; LOCK
(AUH),(AUJ),(AUS),(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-611-0 02 1 9805- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
