◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85C - POWER TAKE OFF CONTROL ▶
2-85C — POWER TAKE OFF CONTROL (#47435) — 34 parça

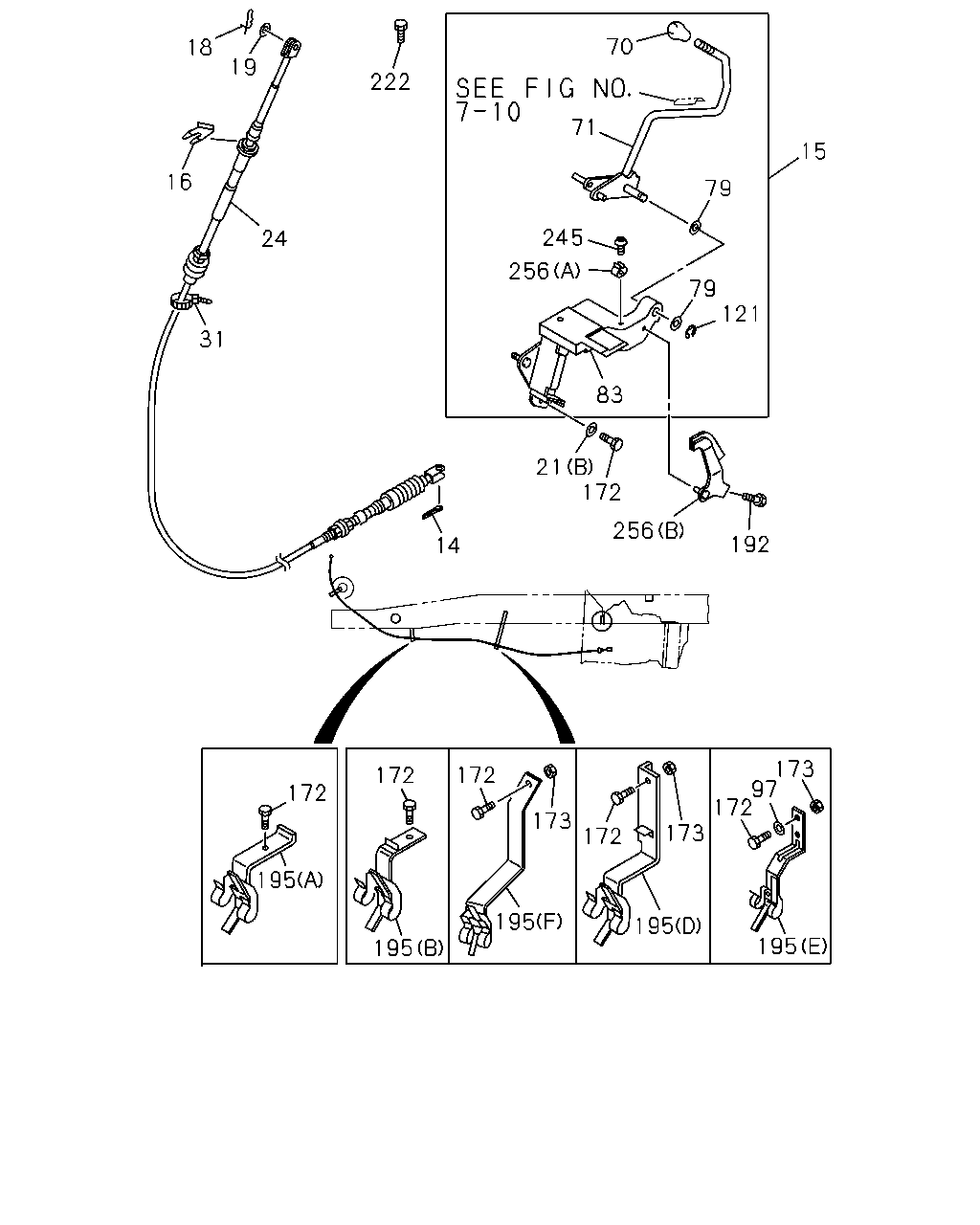

çizim 18193
70 18 19 222 71 15 16 79 245 24 256 79 121 31 83 21 172 256 192 14 173 97 172 172 172 172 173 173 172 195 195 195 195 195
BalonParca AdiParca NoAdetTipApplied Date A B
14 04.439 PIN; SPLIT,YOKE
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 OD=2.8 L=18 		9-08113-018-0 01 1 9712- ● ●
15 04.439 LEVER ASM; PTO CONT
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 		8-97143-217-0 01 1 9712- ● ●
16 04.439 CLIP; CABLE,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 04.027 		8-94152-900-0 01 1 9712- ● ●
18 04.439 PIN; SNAP,PTO CABLE
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 00.833 L=27.7 		8-94111-137-0 01 1 9712- ● ●
19 04.439 WASHER; PL,PTO CABLE
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4 		9-09160-508-0 01 1 9712- ● ●
21 04.439 WASHER; PL,CONT LEVER
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22 		9-09160-708-0 01 1 9712- ● ●
24 04.439 CABLE; PTO CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=2931 		8-97142-490-0 01 1 9712- ● ●
24 04.439 CABLE; PTO CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3208 		8-97142-498-1 01 1 9712- ● ●
24 04.439 CABLE; PTO CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3282 		8-97184-373-0 01 1 9712- ● ●
31 04.439 CLIP; BAND,CABLE
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300 		1-09707-001-0 01 1 9712- ● ●
31 04.439 CLIP; BAND,CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW) ,4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.559 L=250 		5-09707-030-1 01 1 9712- ● ●
70 04.439 KNOB; DUMP CONT
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 		8-94147-332-1 01 1 9712- ● ●
71 04.439 LEVER; PTO CONT
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 		8-97143-218-0 01 1 9712- ● ●
79 04.439 BUSHING; CONT LEVER
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16 		8-94252-671-0 02 1 9712- ● ●
83 04.439 BRACKET; CONT LEVER
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 		8-97118-977-0 01 1 9712- ● ●
97 04.439 WASHER; LK
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9712-9801 ● ●
97 04.439 WASHER; LK
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9802- ● ●
121 04.439 RING; SNAP
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 08.934 ID=10 		9-09185-410-0 01 1 9712- ● ●
172 04.439 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ,4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ●
172 04.439 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712- ● ●
172 04.439 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9808- ● ●
173 04.439 NUT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ,4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ●
173 04.439 NUT; BRKT
PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9808- ● ●
192 04.439 BOLT; PTO BRKT
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) M6X16 FLANGE 		0-28680-616-0 01 1 9712- ● ●
195 04.439 BRACKET; CONT CABLE
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97079-559-2 01 1 9712- ● ●
195 04.439 BRACKET; CONT CABLE
4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) ,4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97079-560-3 01 1 9712- ● ●
195 04.439 BRACKET; CONT CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97085-695-3 01 1 9712- ● ●
195 04.439 BRACKET; CONT CABLE
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-210-0 01 1 9712-9801 ● ●
195 04.439 BRACKET; CONT CABLE
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E) 		8-97106-210-0 01 1 9802- ● ●
195 04.439 BRACKET; CONT CABLE
PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (F) 		8-97210-766-0 01 1 9808- ● ●
222 04.439 BOLT; LEVER
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE 		0-28080-814-0 03 1 9712- ● ●
245 04.439 SCREW; COVER,CONT LEVER BRKT
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER 		9-03920-410-0 01 1 9712- ● ●
256 04.439 PLATE; LOCK
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (A) 		8-97142-947-0 01 1 9712- ● ●
256 04.439 PLATE; LOCK
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (B) 		8-97118-983-0 01 1 9712- ● ●
