◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-81D - POWER TAKE OFF; TRANSMISSION SIDE ▶
2-81D — POWER TAKE OFF; TRANSMISSION SIDE (#47432) — 43 parça

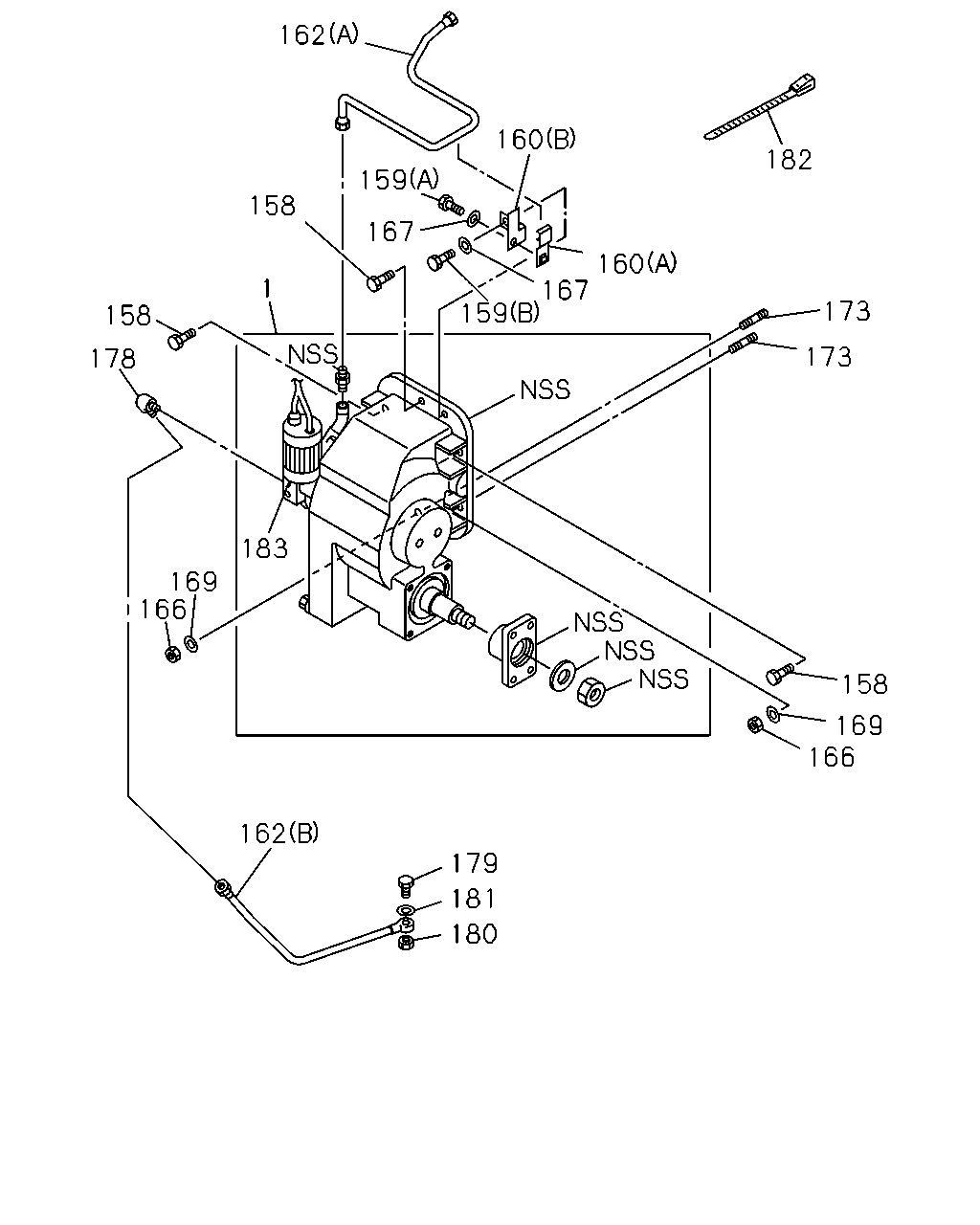

çizim 69707
162 160 182 159 158 167 160 167 159 1 173 158 173 178 183 169 166 158 169 166 162 179 181 180
BalonParca AdiParca NoAdetTipApplied Date
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97136-209-0 01 1 9505-9510
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97134-987-0 01 1 9511-9610
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97134-987-0 01 1 9701-9711
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97219-961-0 01 1 9712-
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97219-904-0 01 1 9712-
158 04.439 BOLT; PTO,A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97044-681-0 03 1 9505-9610
158 04.439 BOLT; PTO,A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97044-681-0 03 1 9701-
159 04.439 BOLT; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (A) 		8-97044-689-0 01 1 9505-9510
159 04.439 BOLT; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 04.169 (B) 		8-97101-141-0 02 1 9505-9610
159 04.439 BOLT; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 04.169 (B) 		8-97101-141-0 02 1 9701-
160 04.439 CLIP; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (A) 		8-97044-686-0 01 1 9505-9610
160 04.439 CLIP; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (B) 		8-97101-124-0 01 1 9505-9610
160 04.439 CLIP; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (A) 		8-97044-686-0 01 1 9701-
160 04.439 CLIP; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (B) 		8-97101-124-0 01 1 9701-
162 04.439 PIPE ASM; PTO,A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (A) 		8-97101-130-0 01 1 9505-9610
162 04.439 PIPE ASM; PTO,A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (B) 		8-97107-592-0 01 1 9505-9610
162 04.439 PIPE ASM; PTO,A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (A) 		8-97101-130-0 01 1 9701-
162 04.439 PIPE ASM; PTO,A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (B) 		8-97107-592-0 01 1 9701-
166 04.439 NUT; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97101-137-0 03 1 9505-9610
166 04.439 NUT; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97101-137-0 03 1 9701-
167 04.439 WASHER; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97044-663-0 02 1 9505-9610
167 04.439 WASHER; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97044-663-0 02 1 9701-
169 04.439 WASHER; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97044-665-0 03 1 9505-9610
169 04.439 WASHER; PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97044-665-0 03 1 9701-
173 04.439 STUD; PTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97101-127-0 03 1 9505-9610
173 04.439 STUD; PTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97101-127-0 03 1 9701-
178 04.439 CONNECTOR; OIL PIPE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-596-0 01 1 9505-9610
178 04.439 CONNECTOR; OIL PIPE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-596-0 01 1 9701-
178 04.439 CONNECTOR; OIL PIPE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97219-905-0 01 1 9712-
178 04.439 CONNECTOR; OIL PIPE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97219-906-0 01 1 9712-
178 04.439 CONNECTOR; OIL PIPE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97219-907-0 01 1 9712-
179 04.439 BOLT; PIPE,PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-988-0 01 1 9505-9610
179 04.439 BOLT; PIPE,PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-988-0 01 1 9701-
180 04.439 NUT; PIPE,PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-991-0 01 1 9505-9610
180 04.439 NUT; PIPE,PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-991-0 01 1 9701-
181 04.439 GASKET; PIPE,PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-992-0 02 1 9505-9610
181 04.439 GASKET; PIPE,PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-992-0 02 1 9701-
182 04.439 CLIP; BAND,PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-993-0 01 1 9505-9610
182 04.439 CLIP; BAND,PTO A/T SIDE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97107-993-0 01 1 9701-
183 04.439 SOLENOID ASM; PTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97129-723-0 01 1 9505-9610
183 04.439 SOLENOID ASM; PTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97129-723-0 01 1 9701-9711
183 04.439 SOLENOID ASM; PTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97219-909-0 01 1 9712-
218 04.439 GASKET; SOLENOID VLV
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97219-908-0 01 1 9712-
