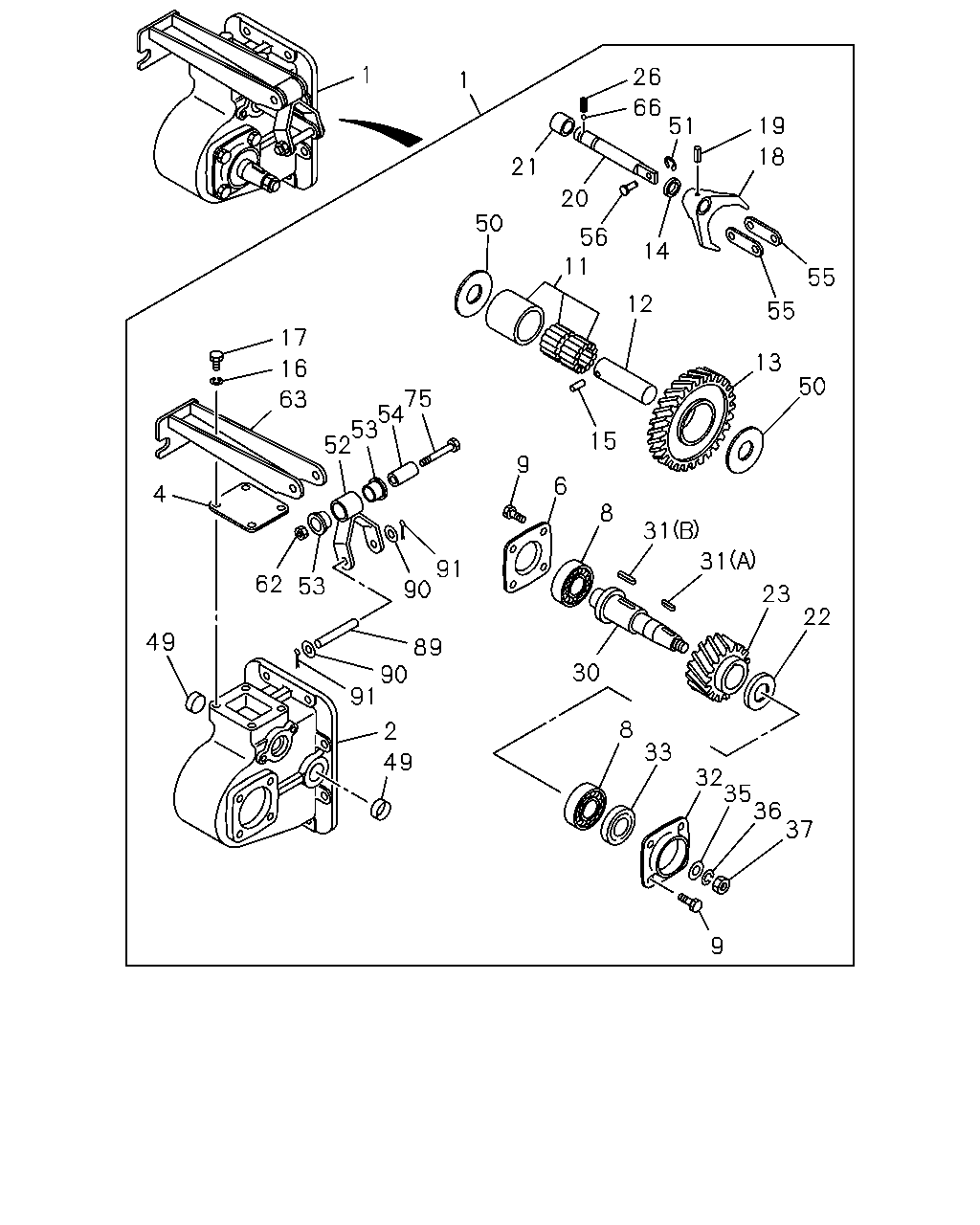

2-81C — POWER TAKE OFF; TRANSMISSION SIDE (#47431) — 44 parça

1 26 1 66 51 19 18 21 20 50 56 11 14 55 12 55 17 13 16 50 75 54 53 52 63 15 9 6 4 8 31 31 91 90 62 53 23 22 49 89 90 91 30 8 2 33 49 32 35 36 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38000-298-0	01	1	9712-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38111-088-0	01	1	9712-	●	●
4	04.439 COVER; UPR,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	9-38121-002-0	01	1	9712-	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	9-38151-024-0	01	1	9712-	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-09800-121-0	02	1	9712-	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 08.900 M8X20 W/LK WASHER	0-50040-820-0	08	1	9712-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-09811-144-0	01	1	9712-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38221-024-0	01	1	9712-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) Z=36	1-38241-042-0	01	1	9712-	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	9712-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	9712-	●	●
16	04.439 WASHER; LK,UPR COVER,TRANS SIDE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 00.002 ID=10.2	9-09150-510-0	05	1	9712-	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) M10X20	0-23801-020-0	04	1	9712-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38361-028-0	01	1	9712-	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	9-09878-614-0	01	1	9712-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38371-038-0	01	1	9712-	●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	9-33545-001-0	01	1	9712-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38226-046-0	01	1	9712-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) Z=19	1-38241-041-0	01	1	9712-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 3.5KG	1-09580-426-0	01	1	9712-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 3.0KG	1-09580-427-0	01	1	9712-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38221-023-0	01	1	9712-	●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) (A) L=25	1-09735-024-0	01	1	9712-	●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 08.960 (B) L=30	9-08011-030-0	01	1	9712-	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	9-38161-608-0	01	1	9712-	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	9-09924-533-1	01	1	9712-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 02.575 ID=15	9-09160-514-0	01	1	9712-	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2	9-09150-514-0	01	1	9712-	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH) ,4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 06.172 M14	9-99111-414-0	01	1	9712-	●	●
49	04.439 PLUG; IDLE SHAFT,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-09600-036-0	02	1	9712-	●	●
50	04.439 WASHER; THRUST,IDLE GEAR,TRANS S 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38245-003-0	02	1	9712-	●	●
51	04.439 RING; SNAP,PIN,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.040 ID=6	9-09185-406-0	01	1	9712-	●	●
52	04.439 LEVER; CONT,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38313-050-0	01	1	9712-	●	●
53	04.439 BUSHING; CONT LVR,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-09330-023-0	02	1	9712-	●	●
54	04.439 COLLAR; DIST,CONT LVR,TRANS SIDE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38321-003-1	01	1	9712-	●	●
55	04.439 PLATE; LEVER JOINT,TRANS SIDE PT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38313-036-0	02	1	9712-	●	●
56	04.439 PIN; PLATE TO LVR & ROD,TRANS SI 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 08.942 OD=8 L=21	9-08213-821-0	01	1	9712-	●	●
62	04.439 NUT; CONT LVR,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 00.002 M10	9-09110-510-0	01	1	9712-	●	●
63	04.439 BRACKET; CONT LVR,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-38325-023-0	01	1	9712-	●	●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.311	9-00097-009-0	01	1	9712-	●	●
75	04.439 BOLT; COVER TO LEVER,TRANS SIDE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 03.704 M10X60	0-10806-060-0	01	1	9712-	●	●
89	04.439 PIN; CONT LEVER,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	1-09744-020-0	01	1	9712-	●	●
90	04.439 WASHER; PL,PIN,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	9712-	●	●
91	04.439 PIN; SPLIT,TRANS SIDE PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 08.938 OD=2.8 L=18	9-08113-018-0	02	1	9712-	●	●
