1 |

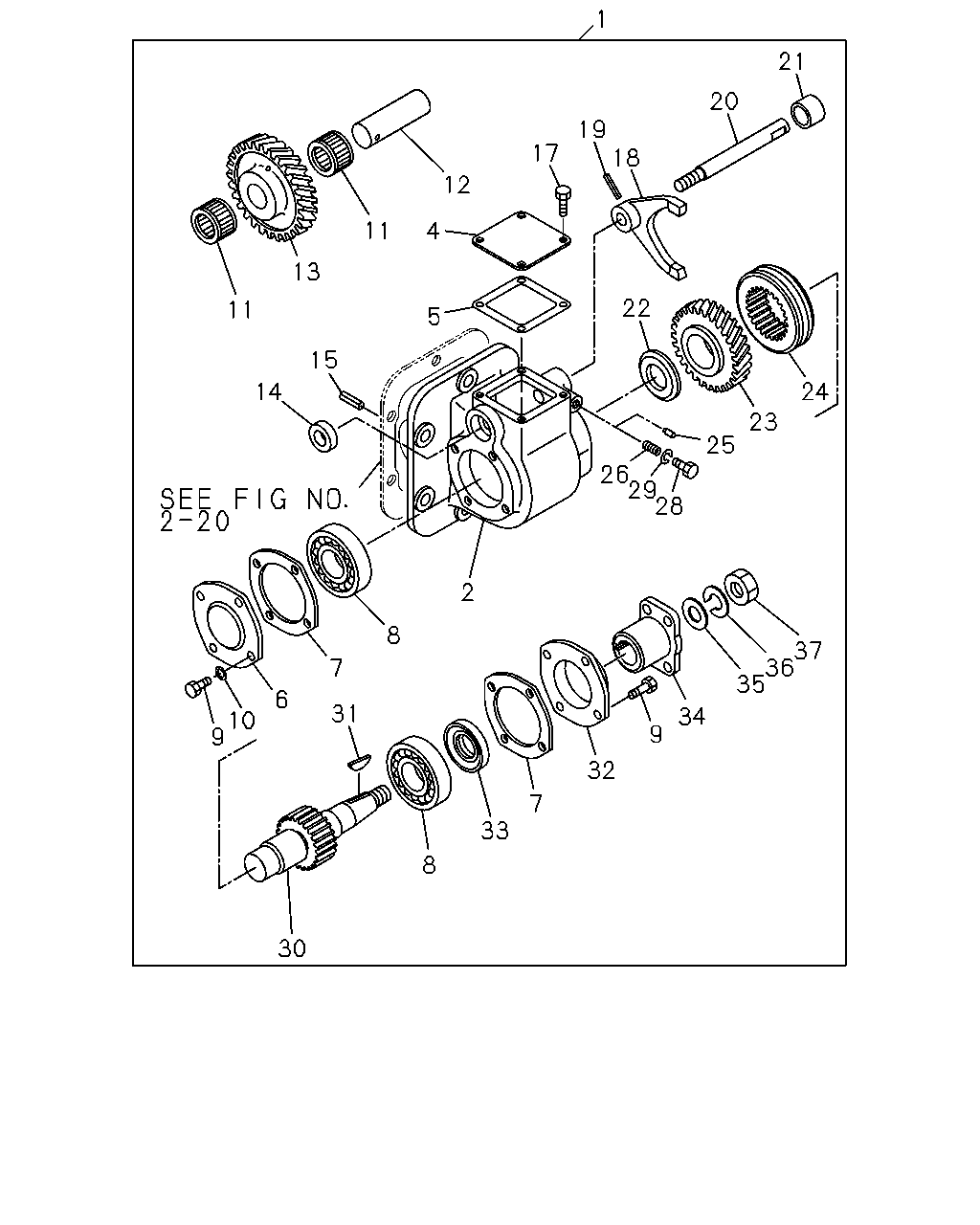

04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66)
|
8-94343-023-3 |
01 |
1 |
9312-9406 |
● |
● |
|
|
| |
1 |
04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66)
|
8-94343-023-3 |
01 |
1 |
9407-9510 |
● |
● |
|
|
| |
1 |
04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66)
IDENTIFICATION=H
|
8-94343-025-2 |
01 |
1 |
9312-9506 |
|
|
● |
|
| |
1 |
04.439 POWER TAKE OFF ASM; TRANS SIDE
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
IDENTIFICATION=H
|
8-94343-025-2 |
01 |
1 |
9507- |
|
|
● |
|
| |
1 |
04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66)
|
8-94343-021-3 |
01 |
1 |
9312-9711 |
|
|
|
● |
| |
1 |
04.439 POWER TAKE OFF ASM; TRANS SIDE
4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
|
8-94343-021-3 |
01 |
1 |
9712- |
|
|
|
● |
| |
2 |
04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97076-703-1 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
2 |
04.439 CASE; GEAR,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-97076-703-1 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
2 |
04.439 CASE; GEAR,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-97076-703-1 |
01 |
1 |
9511-9705 |
|
|
● |
● |
| |
2 |
04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97076-703-1 |
01 |
1 |
9706-9711 |
|
|
● |
● |
| |
2 |
04.439 CASE; GEAR,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
|
8-97076-703-1 |
01 |
1 |
9712- |
|
|
● |
● |
| |
4 |
04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38131-603-1 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
4 |
04.439 COVER; UPR,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38131-603-1 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
4 |
04.439 COVER; UPR,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38131-603-1 |
01 |
1 |
9511-9610 |
|
|
● |
● |
| |
4 |
04.439 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38131-603-1 |
01 |
1 |
9611-9711 |
|
|
● |
● |
| |
4 |
04.439 COVER; UPR,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
|
9-38131-603-1 |
01 |
1 |
9712- |
|
|
● |
● |
| |
5 |
04.439 GASKET; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38132-602-1 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
5 |
04.439 GASKET; UPR COVER,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38132-602-1 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
5 |
04.439 GASKET; UPR COVER,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38132-602-1 |
01 |
1 |
9511-9610 |
|
|
● |
● |
| |
5 |
04.439 GASKET; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38132-602-1 |
01 |
1 |
9611-9711 |
|
|
● |
● |
| |
5 |
04.439 GASKET; UPR COVER,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
|
9-38132-602-1 |
01 |
1 |
9712- |
|
|
● |
● |
| |
6 |
04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66)
|
9-38151-604-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
6 |
04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38151-604-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
6 |
04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38151-604-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
6 |
04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-38151-604-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
7 |
04.439 GASKET; OUTPUT SHAFT COVER,SIDE
PTO TRANSMISSION SIDE(V66)
|
9-38152-604-1 |
02 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
7 |
04.439 GASKET; OUTPUT SHAFT COVER,SIDE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38152-604-1 |
02 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
7 |
04.439 GASKET; OUTPUT SHAFT COVER,SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38152-604-1 |
02 |
1 |
9511-9610 |
|
|
● |
● |
| |
7 |
04.439 GASKET; OUTPUT SHAFT COVER,SIDE
PTO TRANSMISSION SIDE(V66)
|
9-38152-604-1 |
02 |
1 |
9611-9711 |
|
|
● |
● |
| |
7 |
04.439 GASKET; OUTPUT SHAFT COVER,SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
|
9-38152-604-1 |
02 |
1 |
9712- |
|
|
● |
● |
| |
8 |
04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
ID=25 OD=62
|
8-94343-031-0 |
02 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
8 |
04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
ID=25 OD=62
|
8-94343-031-0 |
02 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
8 |
04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
ID=25 OD=62
|
8-94343-031-0 |
02 |
1 |
9511-9711 |
|
|
● |
● |
| |
8 |
04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
ID=25 OD=62
|
8-94343-031-1 |
02 |
1 |
9712- |
|
|
● |
● |
| |
9 |
04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66)
03.704
M8X16 W/LK WASHER
|
0-50040-816-0 |
08 |
1 |
9312-9406 |
● |
● |
|
● |
| |
9 |
04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66)
03.704
M8X16 W/LK WASHER
|
0-50040-816-0 |
08 |
1 |
9407-9510 |
● |
● |
|
● |
| |
9 |
04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2
ENG(RLW)
PTO TRANSMISSION SIDE(V66)
03.704
M8X16 W/LK WASHER
|
0-50040-816-0 |
08 |
1 |
9511-9711 |
|
|
|
● |
| |
9 |
04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)
PTO TRANSMISSION SIDE(V66)
03.704
M8X16 W/LK WASHER
|
0-50040-816-0 |
08 |
1 |
9712- |
|
|
|
● |
| |
9 |
04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
PTO TRANSMISSION SIDE(V66)
00.027
M8X16
|
0-20800-816-0 |
08 |
1 |
9312-9506 |
|
|
● |
|
| |
9 |
04.439 BOLT; OUTPUT SHAFT COVER,TRANS S
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
00.027
M8X16
|
0-20800-816-0 |
08 |
1 |
9507- |
|
|
● |
|
| |
10 |
04.439 WASHER; OUTPUT SHAFT COVER,SIDE
PTO TRANSMISSION SIDE(V66)
00.002
ID=8.2
|
9-09150-508-0 |
04 |
1 |
9312-9506 |
|
|
● |
|
| |
10 |
04.439 WASHER; OUTPUT SHAFT COVER,SIDE
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
00.002
ID=8.2
|
9-09150-508-0 |
04 |
1 |
9507- |
|
|
● |
|
| |
11 |
04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66)
NSK
|
9-00096-646-0 |
02 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
11 |
04.439 BEARING; IDLE GEAR,TRANS SIDE PT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
NSK
|
9-00096-646-0 |
02 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
11 |
04.439 BEARING; IDLE GEAR,TRANS SIDE PT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
NSK
|
9-00096-646-0 |
02 |
1 |
9511-9610 |
|
|
● |
● |
| |
11 |
04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66)
NSK
|
9-00096-646-0 |
02 |
1 |
9611-9711 |
|
|
● |
● |
| |
11 |
04.439 BEARING; IDLE GEAR,TRANS SIDE PT
4JG2 ENG(RJC),4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
NSK
|
9-00096-646-0 |
02 |
1 |
9712- |
|
|
● |
● |
| |
12 |
04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38211-606-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
12 |
04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38211-606-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
12 |
04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38211-606-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
12 |
04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-38211-606-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
13 |
04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=32
|
8-94176-981-1 |
01 |
1 |
9312-9406 |
● |
● |
|
|
| |
13 |
04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=32
|
8-94176-981-1 |
01 |
1 |
9407-9510 |
● |
● |
|
|
| |
13 |
04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=34
|
9-38241-614-1 |
01 |
1 |
9312-9506 |
|
|
● |
|
| |
13 |
04.439 GEAR; IDLE,TRANS SIDE PTO
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
Z=34
|
9-38241-614-1 |
01 |
1 |
9507- |
|
|
● |
|
| |
13 |
04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=29
|
5-38241-018-2 |
01 |
1 |
9312-9711 |
|
|
|
● |
| |
13 |
04.439 GEAR; IDLE,TRANS SIDE PTO
4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
Z=29
|
5-38241-018-2 |
01 |
1 |
9712- |
|
|
|
● |
| |
14 |
04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
PTO TRANSMISSION SIDE(V66)
|
9-09724-015-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
14 |
04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-09724-015-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
14 |
04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-09724-015-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
14 |
04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-09724-015-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
15 |
04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
L=16
|
9-09878-613-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
15 |
04.439 PIN; SPR,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
L=16
|
9-09878-613-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
15 |
04.439 PIN; SPR,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
L=16
|
9-09878-613-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
15 |
04.439 PIN; SPR,TRANS SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
L=16
|
9-09878-613-0 |
01 |
1 |
9712-9712 |
|
|
● |
● |
| |
15 |
04.439 PIN; SPR,TRANS SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
L=16
|
9-09878-613-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
17 |
04.439 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
03.704
M8X16 W/LK WASHER
|
0-50040-816-0 |
04 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
17 |
04.439 BOLT; UPR COVER,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
03.704
M8X16 W/LK WASHER
|
0-50040-816-0 |
04 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
17 |
04.439 BOLT; UPR COVER,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
03.704
M8X16 W/LK WASHER
|
0-50040-816-0 |
04 |
1 |
9511-9711 |
|
|
● |
● |
| |
17 |
04.439 BOLT; UPR COVER,TRANS SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
03.704
M8X16 W/LK WASHER
|
0-50040-816-0 |
04 |
1 |
9712- |
|
|
● |
● |
| |
18 |
04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-97027-045-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
18 |
04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-97027-045-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
18 |
04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-97027-045-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
18 |
04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
8-97027-045-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
19 |
04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66)
05.511
L=25 OD=4
|
9-09678-515-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
19 |
04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
05.511
L=25 OD=4
|
9-09678-515-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
19 |
04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
05.511
L=25 OD=4
|
9-09678-515-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
19 |
04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
05.511
L=25 OD=4
|
9-09678-515-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
20 |
04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-94156-954-1 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
20 |
04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-94156-954-1 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
20 |
04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-94156-954-1 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
20 |
04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
8-94156-954-1 |
01 |
1 |
9712- |
|
|
● |
● |
| |
21 |
04.439 COVER; SHIFTER ROD,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66)
|
9-33545-602-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
21 |
04.439 COVER; SHIFTER ROD,TRANS SIDE PT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-33545-602-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
21 |
04.439 COVER; SHIFTER ROD,TRANS SIDE PT
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-33545-602-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
21 |
04.439 COVER; SHIFTER ROD,TRANS SIDE PT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-33545-602-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
22 |
04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66)
|
9-38245-603-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
22 |
04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38245-603-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
22 |
04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38245-603-1 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
22 |
04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-38245-603-1 |
01 |
1 |
9712- |
|
|
● |
● |
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=19
|
5-38240-005-2 |
01 |
1 |
9312-9406 |
● |
● |
|
|
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=19
|
5-38240-005-2 |
01 |
1 |
9407-9510 |
● |
● |
|
|
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=22
|
9-38241-612-1 |
01 |
1 |
9312-9506 |
|
|
● |
|
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
4JG2 ENG(RJC)
PTO TRANSMISSION SIDE(V66)
Z=22
|
9-38241-612-1 |
01 |
1 |
9507- |
|
|
● |
|
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=22
|
5-38241-016-1 |
01 |
1 |
9312-9711 |
|
|
|
● |
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
Z=22
|
5-38241-016-1 |
01 |
1 |
9712- |
|
|
|
● |
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
Z=22
|
5-38241-017-1 |
01 |
1 |
9511-9711 |
|
|
|
● |
| |
23 |
04.439 GEAR; OUTPUT,TRANS SIDE PTO
4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
Z=22
|
5-38241-017-1 |
01 |
1 |
9712- |
|
|
|
● |
| |
24 |
04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38244-602-2 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
24 |
04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38244-602-2 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
24 |
04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38244-602-2 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
24 |
04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-38244-602-2 |
01 |
1 |
9712- |
|
|
● |
● |
| |
25 |
04.439 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
8-94169-071-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
25 |
04.439 PIN; LK,SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-94169-071-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
25 |
04.439 PIN; LK,SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
8-94169-071-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
25 |
04.439 PIN; LK,SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
8-94169-071-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
26 |
04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66)
|
9-09940-380-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
26 |
04.439 SPRING; SHIFTER ROD,TRANS SIDE P
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-09940-380-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
26 |
04.439 SPRING; SHIFTER ROD,TRANS SIDE P
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-09940-380-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
26 |
04.439 SPRING; SHIFTER ROD,TRANS SIDE P
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-09940-380-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
28 |
04.439 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66)
04.686
M8X12
|
0-20800-812-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
28 |
04.439 BOLT; SPRING,SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.686
M8X12
|
0-20800-812-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
28 |
04.439 BOLT; SPRING,SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
04.686
M8X12
|
0-20800-812-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
28 |
04.439 BOLT; SPRING,SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
04.686
M8X12
|
0-20800-812-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
29 |
04.439 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66)
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
29 |
04.439 WASHER; LK,SPRING,SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
29 |
04.439 WASHER; LK,SPRING,SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
29 |
04.439 WASHER; LK,SPRING,SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
30 |
04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38211-607-1 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
30 |
04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38211-607-1 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
30 |
04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38211-607-1 |
01 |
1 |
9511-9610 |
|
|
● |
● |
| |
30 |
04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-38211-607-1 |
01 |
1 |
9611-9711 |
|
|
● |
● |
| |
30 |
04.439 SHAFT; OUTPUT,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
|
9-38211-607-1 |
01 |
1 |
9712- |
|
|
● |
● |
| |
31 |
04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-08055-628-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
31 |
04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-08055-628-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
31 |
04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-08055-628-0 |
01 |
1 |
9511-9610 |
|
|
● |
● |
| |
31 |
04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
|
9-08055-628-0 |
01 |
1 |
9611-9711 |
|
|
● |
● |
| |
31 |
04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
|
9-08055-628-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
32 |
04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66)
|
9-38161-608-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
32 |
04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38161-608-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
32 |
04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-38161-608-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
32 |
04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-38161-608-0 |
01 |
1 |
9712-9712 |
|
|
● |
● |
| |
32 |
04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-38161-608-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
33 |
04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66)
|
9-09924-533-1 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
33 |
04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-09924-533-1 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
33 |
04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-09924-533-1 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
33 |
04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-09924-533-1 |
01 |
1 |
9712-9712 |
|
|
● |
● |
| |
33 |
04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
|
9-09924-533-1 |
01 |
1 |
9712- |
|
|
● |
● |
| |
34 |
04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
|
9-33239-659-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
34 |
04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-33239-659-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
34 |
04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
|
9-33239-659-0 |
01 |
1 |
9511-9610 |
|
|
● |
● |
| |
34 |
04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
|
9-33239-659-0 |
01 |
1 |
9611-9711 |
|
|
● |
● |
| |
34 |
04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH)
PTO TRANSMISSION SIDE(V66)
|
9-33239-659-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
35 |
04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
02.575
ID=15
|
9-09160-514-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
35 |
04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
02.575
ID=15
|
9-09160-514-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
35 |
04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
02.575
ID=15
|
9-09160-514-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
35 |
04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
02.575
ID=15
|
9-09160-514-0 |
01 |
1 |
9712-9712 |
|
|
● |
● |
| |
35 |
04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
02.575
ID=15
|
9-09160-514-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
36 |
04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66)
00.796
ID=14.2
|
9-09150-514-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
36 |
04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
00.796
ID=14.2
|
9-09150-514-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
36 |
04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
00.796
ID=14.2
|
9-09150-514-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
36 |
04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
00.796
ID=14.2
|
9-09150-514-0 |
01 |
1 |
9712-9712 |
|
|
● |
● |
| |
36 |
04.439 WASHER; LK,FLANGE FIX,TRANS SIDE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
00.796
ID=14.2
|
9-09150-514-0 |
01 |
1 |
9712- |
|
|
● |
● |
| |
37 |
04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66)
06.172
M14
|
9-99111-414-0 |
01 |
1 |
9312-9506 |
● |
● |
● |
● |
| |
37 |
04.439 NUT; FLANGE FIX,TRANS SIDE PTO
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
06.172
M14
|
9-99111-414-0 |
01 |
1 |
9507-9510 |
● |
● |
● |
● |
| |
37 |
04.439 NUT; FLANGE FIX,TRANS SIDE PTO
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1
ENG(RLS),4BD2 ENG(RLW)
PTO TRANSMISSION SIDE(V66)
06.172
M14
|
9-99111-414-0 |
01 |
1 |
9511-9711 |
|
|
● |
● |
| |
37 |
04.439 NUT; FLANGE FIX,TRANS SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
06.172
M14
|
9-99111-414-0 |
01 |
1 |
9712-9712 |
|
|
● |
● |
| |
37 |
04.439 NUT; FLANGE FIX,TRANS SIDE PTO
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1
ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1
ENG(RLY)
PTO TRANSMISSION SIDE(V66)
06.172
M14
|
9-99111-414-0 |
01 |
1 |
9712- |
|
|
● |
● |
