2-56D — AUTO TRANS CONTROL LINK (#47428) — 95 parça

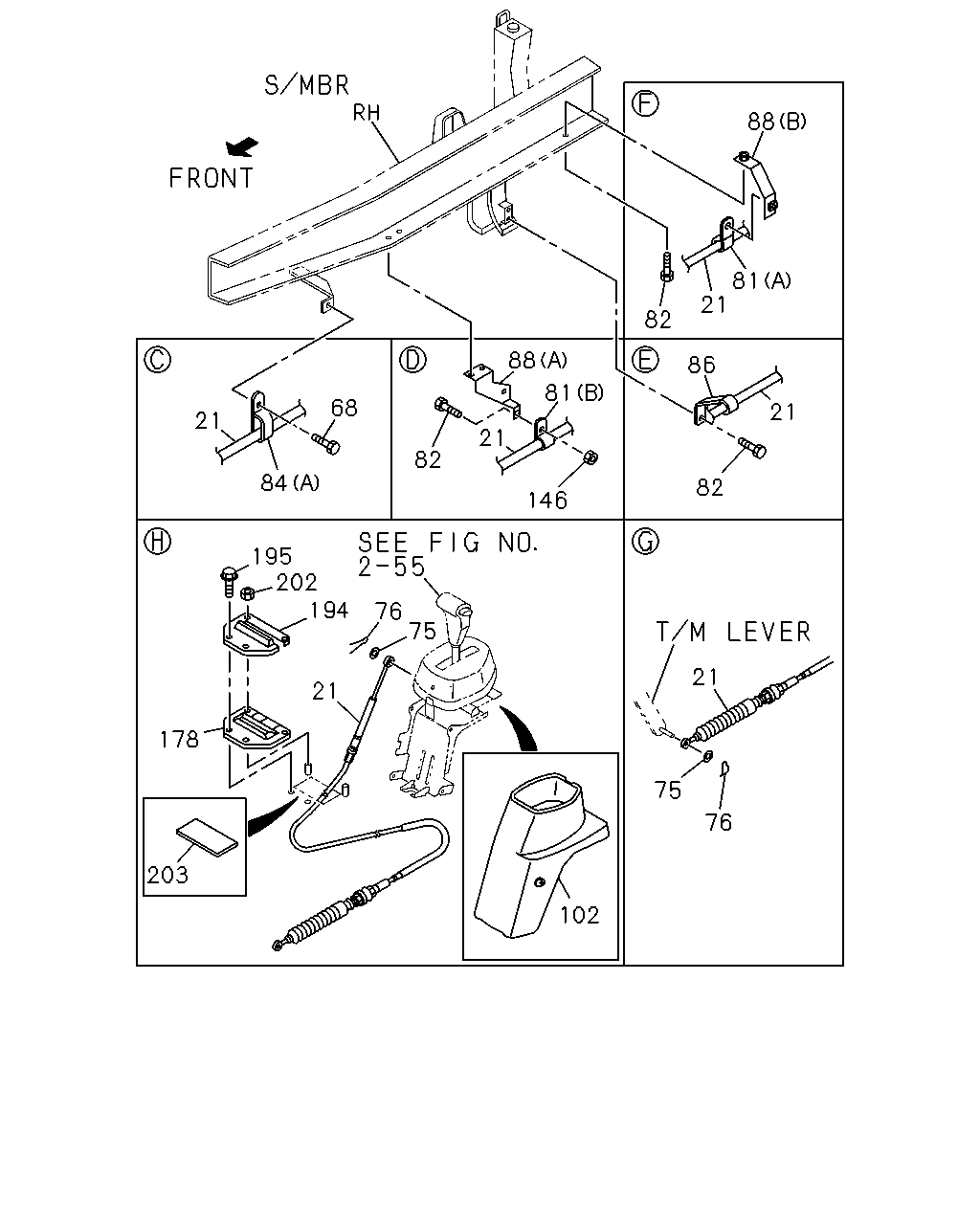

88 81 21 82 88 86 81 68 21 21 21 82 84 82 146 195 202 194 76 75 21 21 178 75 76 203 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	04.047 CABLE; A/T L=3186	8-97095-120-3	01	1	9505-	●
21	04.047 CABLE; A/T 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=3263	8-97148-605-3	01	1	9802-		●
68	04.047 BOLT; A/T CONT CABLE 08.155 M8X25 FLANGE	0-28480-825-0	01	1	9505-	●
75	04.275 WASHER; PL,CONT CABLE TO A/T 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	9505-9801	●
75	04.275 WASHER; PL,CONT CABLE TO A/T 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	9802-	●	●
76	04.275 PIN; SNAP,A/T CONT 04.027 L=21.2	8-94111-136-0	02	1	9505-9801	●
76	04.275 PIN; SNAP,A/T CONT 04.027 L=21.2	8-94111-136-0	02	1	9802-	●	●
81	04.047 CLIP; A/T CONT CABLE 01.516 (A) ID=13 L=20	9-09525-235-0	01	1	9505-	●
81	04.047 CLIP; A/T CONT CABLE 02.559 (B) ID=13 L=32	9-09525-265-0	01	1	9505-	●
82	04.047 BOLT; A/T CONT CABLE 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9505-	●
84	04.047 CLIP; A/T CONT CABLE 01.531 (B) ID=16 L=20	9-09525-536-0	01	1	9505-	●
84	04.047 CLIP; A/T CONT CABLE 04.866 (A) ID=16X2 L=20	9-09535-536-0	01	1	9505-	●
84	04.047 CLIP; A/T CONT CABLE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9802-		●
86	04.047 CLIP; CONT CABLE,FRAME	8-94178-109-0	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE (C)	8-94473-440-1	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE 04.128 (A)	8-97044-837-0	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE (B)	8-97113-213-0	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE 04.040 (D)	8-97148-638-0	01	1	9802-		●
102	04.047 COVER; GEAR CONT	8-97850-714-0	01	1	9604-9711	●
102	04.047 COVER; GEAR CONT 04.015 DARK GRAY	8-97098-522-0	01	1	9712-9805	●
102	04.047 COVER; GEAR CONT 04.015 DARK GRAY	8-97098-522-0	01	1	9806-	●	●
146	04.047 NUT; BRKT 02.559 M8	9-09110-408-0	03	1	9505-	●
178	04.047 GROMMET; CONT CABLE	8-97095-128-0	01	1	9505-9801	●
178	04.047 GROMMET; CONT CABLE	8-97095-128-0	01	1	9802-	●	●
194	04.047 RETAINER; GROMMET	8-97065-213-2	01	1	9312-9611	●
194	04.047 RETAINER; GROMMET	8-97065-213-2	01	1	9612-9701	●
194	04.047 RETAINER; GROMMET	1-33657-674-0	01	1	9702-9711	●
194	04.047 RETAINER; GROMMET	1-33657-674-0	01	1	9712-	●	●
195	04.047 BOLT; GROMMET FIX 01.540 M6X20	0-28280-620-0	02	1	9312-9606	●
195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28480-620-0	02	1	9607-9611	●
195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28480-620-0	02	1	9612-9711	●
195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28480-620-0	02	1	9712-	●	●
195	04.047 BOLT; GROMMET FIX 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9505-	●
202	04.047 NUT; GROMMET 01.062 M6 FLANGE	0-91150-206-0	02	1	9312-9611	●
202	04.047 NUT; GROMMET 01.062 M6 FLANGE	0-91150-206-0	02	1	9612-9711	●
202	04.047 NUT; GROMMET 01.062 M6 FLANGE	0-91150-206-0	02	1	9712-	●	●
203	04.047 SEAL; CABLE MANUAL TILT CAB<RWZ>	8-97096-753-0	01	1	9312-9611	●
203	04.047 SEAL; CABLE MANUAL TILT CAB<RWZ>	8-97096-753-0	01	1	9612-9711	●
203	04.047 SEAL; CABLE MANUAL TILT CAB<RWZ>	8-97096-753-0	01	1	9712-9801	●
203	04.047 SEAL; CABLE MANUAL TILT CAB<RWZ>	8-97096-753-0	01	1	9802-	●	●

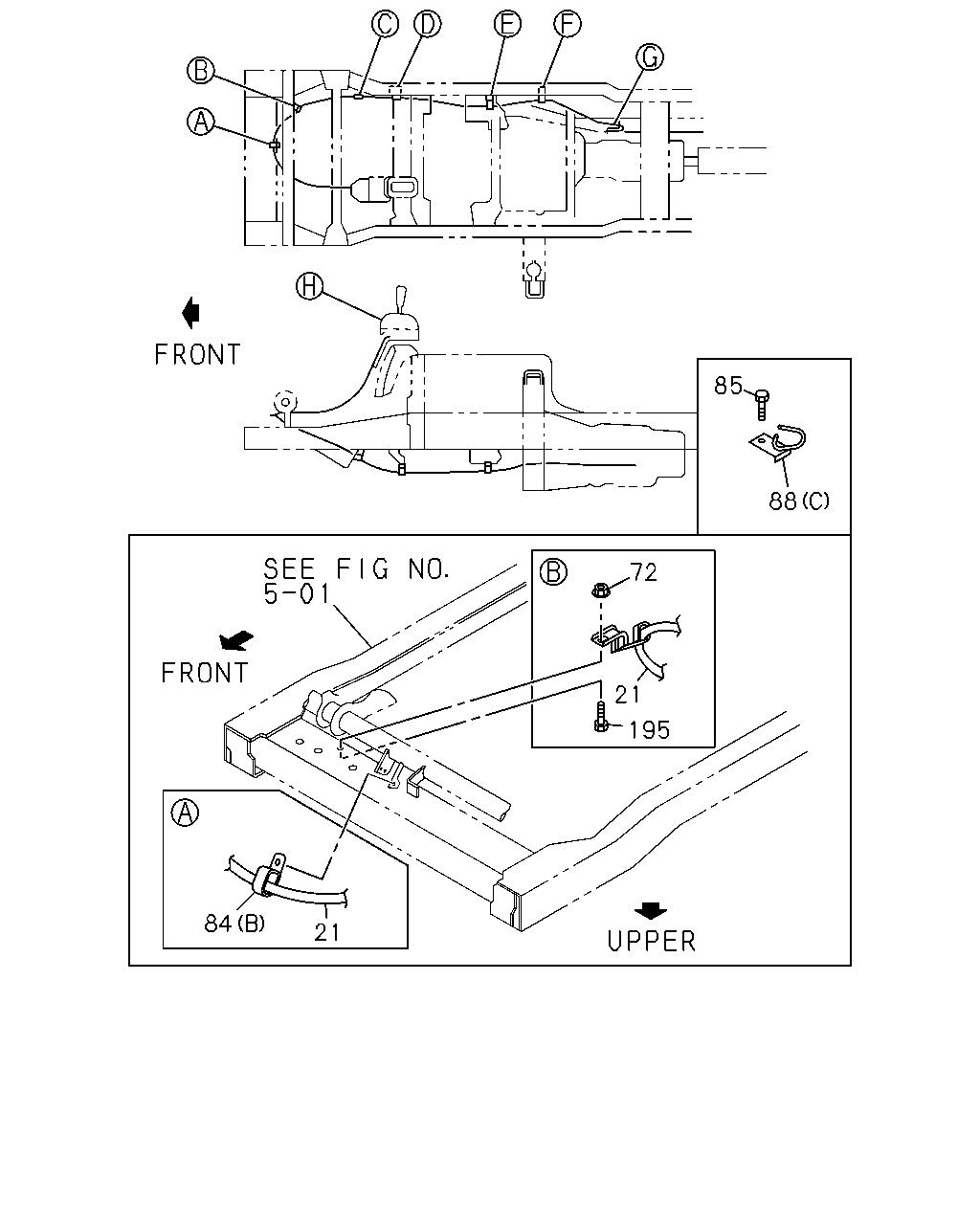

85 88 72 21 195 84 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	04.047 CABLE; A/T L=3186	8-97095-120-3	01	1	9505-	●
21	04.047 CABLE; A/T 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=3263	8-97148-605-3	01	1	9802-		●
72	04.047 NUT; A/T CONT CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9505-	●
84	04.047 CLIP; A/T CONT CABLE 01.531 (B) ID=16 L=20	9-09525-536-0	01	1	9505-	●
84	04.047 CLIP; A/T CONT CABLE 04.866 (A) ID=16X2 L=20	9-09535-536-0	01	1	9505-	●
84	04.047 CLIP; A/T CONT CABLE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9802-		●
85	04.047 BOLT; A/T CONT CABLE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9505-9801	●
85	04.047 BOLT; A/T CONT CABLE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9802-	●	●
85	04.047 BOLT; A/T CONT CABLE 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE (C)	8-94473-440-1	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE 04.128 (A)	8-97044-837-0	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE (B)	8-97113-213-0	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE 04.040 (D)	8-97148-638-0	01	1	9802-		●
195	04.047 BOLT; GROMMET FIX 01.540 M6X20	0-28280-620-0	02	1	9312-9606	●
195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28480-620-0	02	1	9607-9611	●
195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28480-620-0	02	1	9612-9711	●
195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28480-620-0	02	1	9712-	●	●
195	04.047 BOLT; GROMMET FIX 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9505-	●

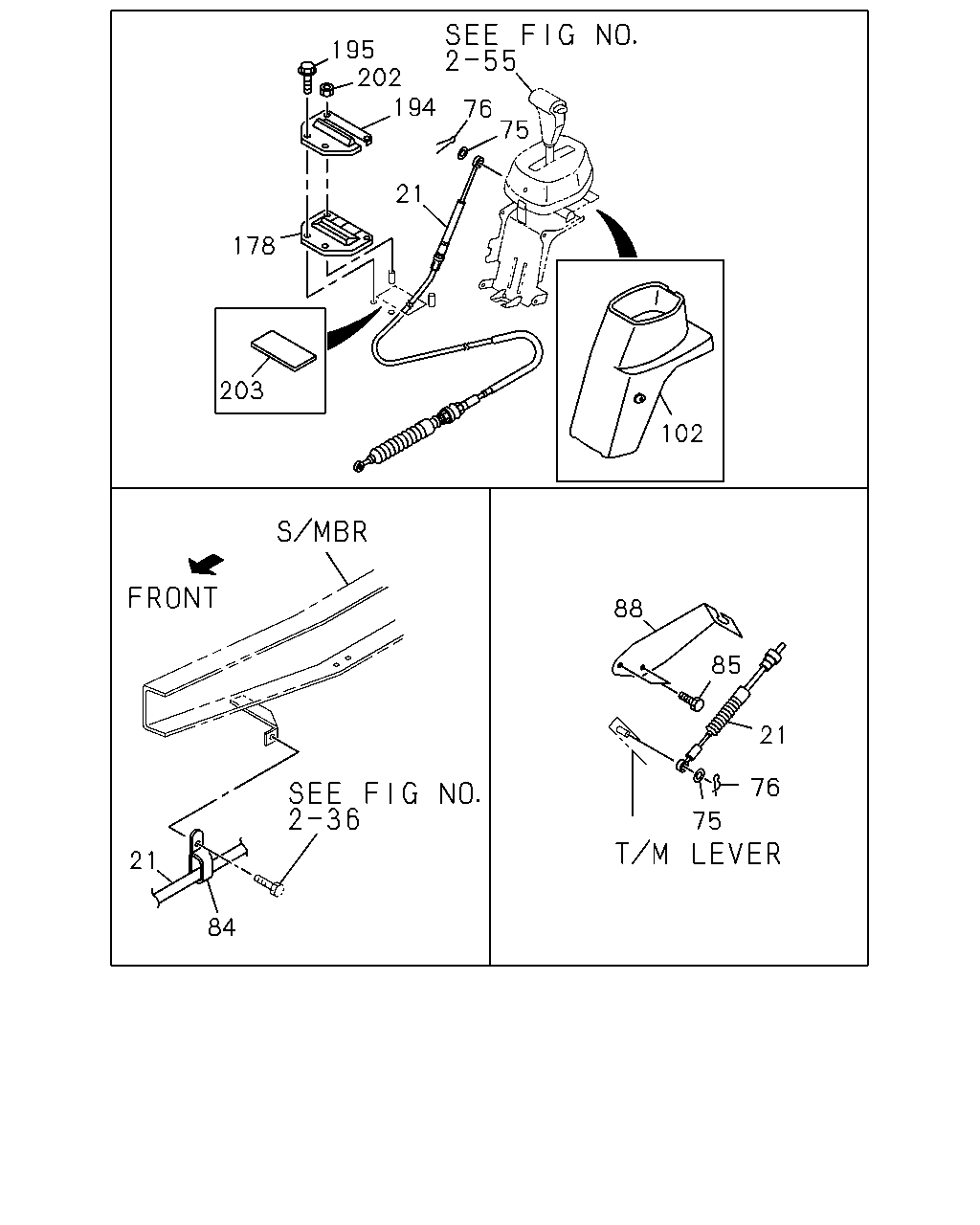

195 202 194 76 75 21 178 203 102 88 85 21 76 75 21 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	04.047 CABLE; A/T L=3186	8-97095-120-3	01	1	9505-	●
21	04.047 CABLE; A/T 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=3263	8-97148-605-3	01	1	9802-		●
75	04.275 WASHER; PL,CONT CABLE TO A/T 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	9505-9801	●
75	04.275 WASHER; PL,CONT CABLE TO A/T 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	9802-	●	●
76	04.275 PIN; SNAP,A/T CONT 04.027 L=21.2	8-94111-136-0	02	1	9505-9801	●
76	04.275 PIN; SNAP,A/T CONT 04.027 L=21.2	8-94111-136-0	02	1	9802-	●	●
84	04.047 CLIP; A/T CONT CABLE 01.531 (B) ID=16 L=20	9-09525-536-0	01	1	9505-	●
84	04.047 CLIP; A/T CONT CABLE 04.866 (A) ID=16X2 L=20	9-09535-536-0	01	1	9505-	●
84	04.047 CLIP; A/T CONT CABLE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9802-		●
85	04.047 BOLT; A/T CONT CABLE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9505-9801	●
85	04.047 BOLT; A/T CONT CABLE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9802-	●	●
85	04.047 BOLT; A/T CONT CABLE 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE (C)	8-94473-440-1	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE 04.128 (A)	8-97044-837-0	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE (B)	8-97113-213-0	01	1	9505-	●
88	04.047 BRACKET; A/T CONT CABLE 04.040 (D)	8-97148-638-0	01	1	9802-		●
102	04.047 COVER; GEAR CONT	8-97850-714-0	01	1	9604-9711	●
102	04.047 COVER; GEAR CONT 04.015 DARK GRAY	8-97098-522-0	01	1	9712-9805	●
102	04.047 COVER; GEAR CONT 04.015 DARK GRAY	8-97098-522-0	01	1	9806-	●	●
178	04.047 GROMMET; CONT CABLE	8-97095-128-0	01	1	9505-9801	●
178	04.047 GROMMET; CONT CABLE	8-97095-128-0	01	1	9802-	●	●
194	04.047 RETAINER; GROMMET	8-97065-213-2	01	1	9312-9611	●
194	04.047 RETAINER; GROMMET	8-97065-213-2	01	1	9612-9701	●
194	04.047 RETAINER; GROMMET	1-33657-674-0	01	1	9702-9711	●
194	04.047 RETAINER; GROMMET	1-33657-674-0	01	1	9712-	●	●
195	04.047 BOLT; GROMMET FIX 01.540 M6X20	0-28280-620-0	02	1	9312-9606	●
195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28480-620-0	02	1	9607-9611	●
195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28480-620-0	02	1	9612-9711	●
195	04.047 BOLT; GROMMET FIX 00.785 M6X20 FLANGE	0-28480-620-0	02	1	9712-	●	●
195	04.047 BOLT; GROMMET FIX 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9505-	●
202	04.047 NUT; GROMMET 01.062 M6 FLANGE	0-91150-206-0	02	1	9312-9611	●
202	04.047 NUT; GROMMET 01.062 M6 FLANGE	0-91150-206-0	02	1	9612-9711	●
202	04.047 NUT; GROMMET 01.062 M6 FLANGE	0-91150-206-0	02	1	9712-	●	●
203	04.047 SEAL; CABLE MANUAL TILT CAB<RWZ>	8-97096-753-0	01	1	9312-9611	●
203	04.047 SEAL; CABLE MANUAL TILT CAB<RWZ>	8-97096-753-0	01	1	9612-9711	●
203	04.047 SEAL; CABLE MANUAL TILT CAB<RWZ>	8-97096-753-0	01	1	9712-9801	●
203	04.047 SEAL; CABLE MANUAL TILT CAB<RWZ>	8-97096-753-0	01	1	9802-	●	●
