2-53D — TRANSMISSION OIL COOLER SYSTEM (#47423) — 78 parça

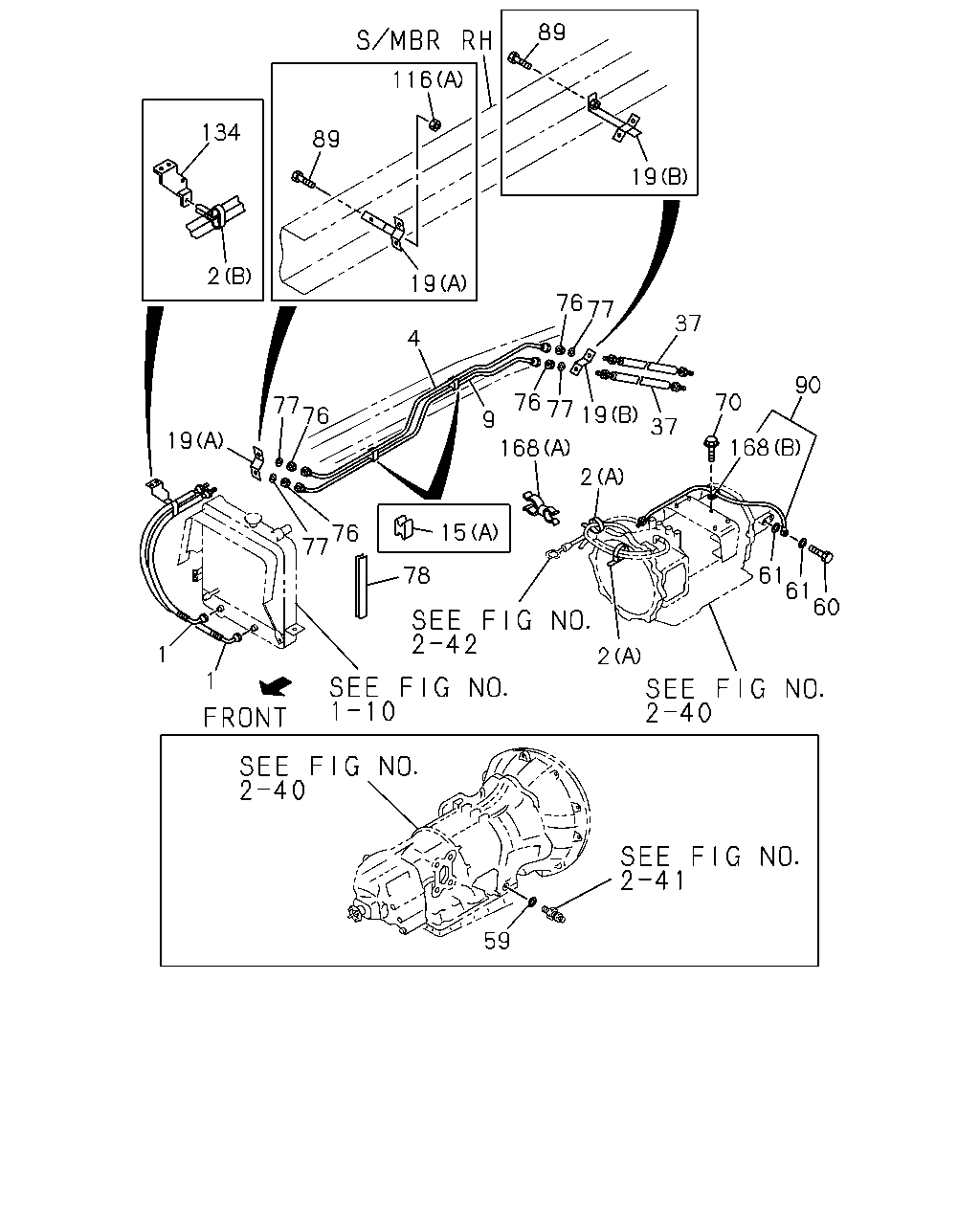

89 116 134 89 19 2 19 76 77 37 4 90 76 77 19 70 77 76 9 37 19 168 168 2 15 76 77 61 61 60 78 1 2 1 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF 4BD2 ENG(RLW) L=997	8-97033-395-1	01	1	9505-	●
1	04.128 HOSE; ATF 4BD2 ENG(RLW) L=667	8-97033-396-0	01	1	9505-	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> L=420	8-97012-838-1	01	1	9802-9804		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> L=630	8-97180-927-0	01	1	9802-9804		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> L=456	8-97181-669-0	01	1	9805-		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> L=647	8-97181-670-0	01	1	9805-		●
2	04.128 WIRE; CLAMP,ATF HOSE 4BD2 ENG(RLW) 02.559 (A) L=250	5-09707-030-0	02	1	9505-9507	●
2	04.128 WIRE; CLAMP,ATF HOSE 4BD2 ENG(RLW) 02.559 (A) L=250	5-09707-030-1	01	1	9508-	●
2	04.128 WIRE; CLAMP,ATF HOSE 4BD2 ENG(RLW) (B) ID=18X36 OVAL	8-97032-589-0	01	1	9505-	●
4	04.128 PIPE; ATF,OUTLET,A/T 4BD2 ENG(RLW)	8-97131-158-0	01	1	9505-	●
9	04.128 PIPE; ATF,INL,A/T 4BD2 ENG(RLW)	8-97131-159-0	01	1	9505-	●
15	04.128 BRACKET; ATF PIPE 4BD2 ENG(RLW) 06.672 (A) ID=10X2 H=22	8-94252-455-2	02	1	9505-9801	●
15	04.128 BRACKET; ATF PIPE 4BD2 ENG(RLW) 06.672 (A) ID=10X2 H=22	8-94252-455-2	02	1	9802-9807	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	02	1	9802-9807		●
15	04.128 BRACKET; ATF PIPE 4BD2 ENG(RLW) 06.672 (A) ID=10X2 H=22	8-94252-455-2	02	1	9808-	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	9802-		●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (C)	8-97174-637-0	01	1	9802-		●
19	04.128 BRACKET; FLEX HOSE 4BD2 ENG(RLW) (A)	8-94318-817-0	01	1	9505-	●
19	04.128 BRACKET; FLEX HOSE 4BD2 ENG(RLW) (B)	8-97131-131-1	01	1	9505-9506	●
19	04.128 BRACKET; FLEX HOSE 4BD2 ENG(RLW) (B)	8-97136-206-0	01	1	9507-	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ 4BD2 ENG(RLW) 04.197 L=480	8-94455-052-2	01	1	9505-9505	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ 4BD2 ENG(RLW) 04.197 L=480	8-94455-052-2	02	1	9506-9801	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ 04.197 L=480	8-94455-052-2	02	1	9802-	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ> 04.197 L=480	8-94455-052-2	02	1	9802-		●
59	04.128 GASKET; ATF CONNECTOR 4BD2 ENG(RLW) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9505-	●
60	04.128 BOLT; EYE,ATF PIPE 4BD2 ENG(RLW)	1-09675-033-0	01	1	9505-	●
61	04.128 GASKET; EYE BOLT,ATF PIPE 4BD2 ENG(RLW) 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9505-	●
70	04.128 BOLT; CLIP,A/T SIDE 4BD2 ENG(RLW) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9505-	●
70	04.128 BOLT; CLIP,A/T SIDE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9802-		●
76	04.128 NUT; FLEX HOSE 4BD2 ENG(RLW) 04.681 M16	9-99111-416-0	04	1	9505-	●
77	04.128 WASHER; LK 4BD2 ENG(RLW) 06.672 ID=16.5 TOOTH LK INT	9-09151-216-0	04	1	9505-	●
78	04.128 PROTECTOR; ATF HOSE 4BD2 ENG(RLW) 02.183 L=40	8-94212-660-0	01	1	9505-	●
89	04.128 BOLT; BRKT,FLEX HOSE 4BD2 ENG(RLW) 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9505-	●
90	04.128 PIPE ASM; ATF 4BD2 ENG(RLW)	8-94455-596-2	01	1	9505-	●
90	04.128 PIPE ASM; ATF (A)	8-97148-540-2	01	1	9802-		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97202-607-0	01	1	9802-9804		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97202-606-1	01	1	9805-		●
116	04.128 NUT; BRKT,FLEX HOSE 4BD2 ENG(RLW) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9506-9801	●
116	04.128 NUT; BRKT,FLEX HOSE 4BD2 ENG(RLW) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9802-	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9802-		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9802-		●
134	04.128 BRACKET; ATF HOSE 4BD2 ENG(RLW)	8-97044-837-0	01	1	9505-	●
168	04.128 CLIP; A/T SIDE 4BD2 ENG(RLW) 04.342 (A) ID=8.3 & 10	8-94176-792-0	01	1	9505-9509	●
168	04.128 CLIP; A/T SIDE 4BD2 ENG(RLW) 04.785 (B) ID=11 L=28	9-09525-055-0	01	1	9505-	●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 ID=10X2 H=37.5	8-97018-546-0	01	1	9802-		●

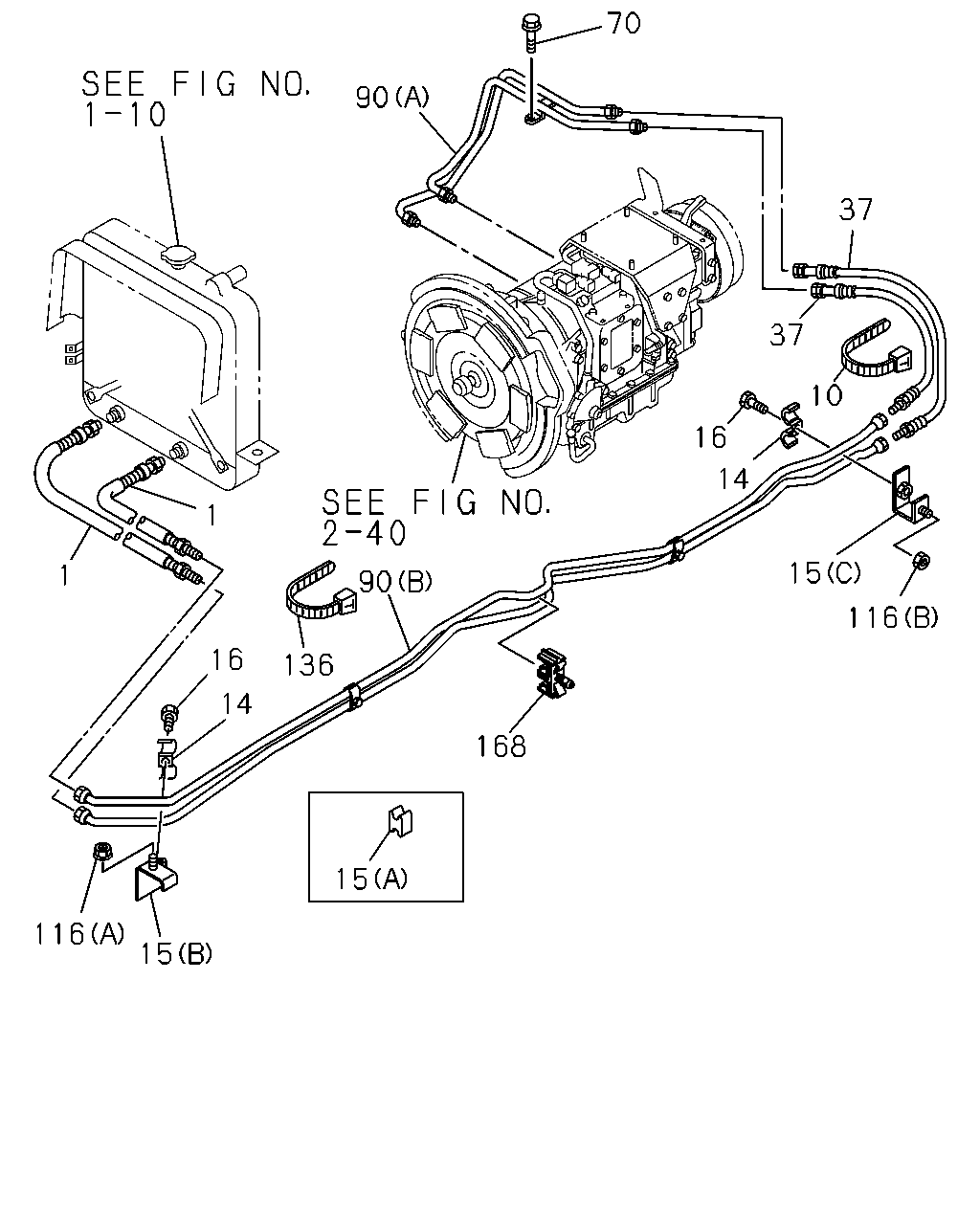

70 90 37 37 10 16 14 1 15 1 90 116 16 136 14 168 15 116 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF 4BD2 ENG(RLW) L=997	8-97033-395-1	01	1	9505-	●
1	04.128 HOSE; ATF 4BD2 ENG(RLW) L=667	8-97033-396-0	01	1	9505-	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> L=420	8-97012-838-1	01	1	9802-9804		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> L=630	8-97180-927-0	01	1	9802-9804		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> L=456	8-97181-669-0	01	1	9805-		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> L=647	8-97181-670-0	01	1	9805-		●
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9802-		●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	02	1	9802-		●
15	04.128 BRACKET; ATF PIPE 4BD2 ENG(RLW) 06.672 (A) ID=10X2 H=22	8-94252-455-2	02	1	9505-9801	●
15	04.128 BRACKET; ATF PIPE 4BD2 ENG(RLW) 06.672 (A) ID=10X2 H=22	8-94252-455-2	02	1	9802-9807	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	02	1	9802-9807		●
15	04.128 BRACKET; ATF PIPE 4BD2 ENG(RLW) 06.672 (A) ID=10X2 H=22	8-94252-455-2	02	1	9808-	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	9802-		●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (C)	8-97174-637-0	01	1	9802-		●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9802-		●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ 4BD2 ENG(RLW) 04.197 L=480	8-94455-052-2	01	1	9505-9505	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ 4BD2 ENG(RLW) 04.197 L=480	8-94455-052-2	02	1	9506-9801	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ 04.197 L=480	8-94455-052-2	02	1	9802-	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ> 04.197 L=480	8-94455-052-2	02	1	9802-		●
70	04.128 BOLT; CLIP,A/T SIDE 4BD2 ENG(RLW) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9505-	●
70	04.128 BOLT; CLIP,A/T SIDE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9802-		●
90	04.128 PIPE ASM; ATF 4BD2 ENG(RLW)	8-94455-596-2	01	1	9505-	●
90	04.128 PIPE ASM; ATF (A)	8-97148-540-2	01	1	9802-		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97202-607-0	01	1	9802-9804		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97202-606-1	01	1	9805-		●
116	04.128 NUT; BRKT,FLEX HOSE 4BD2 ENG(RLW) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9506-9801	●
116	04.128 NUT; BRKT,FLEX HOSE 4BD2 ENG(RLW) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9802-	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9802-		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9802-		●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 L=140	5-09707-031-1	01	1	9802-		●
168	04.128 CLIP; A/T SIDE 4BD2 ENG(RLW) 04.342 (A) ID=8.3 & 10	8-94176-792-0	01	1	9505-9509	●
168	04.128 CLIP; A/T SIDE 4BD2 ENG(RLW) 04.785 (B) ID=11 L=28	9-09525-055-0	01	1	9505-	●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 ID=10X2 H=37.5	8-97018-546-0	01	1	9802-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
