Sayfa 2-49D - Isuzu EPC

2-49D — AUTO TRANS INHIBITOR SWITCH (#47422) — 65 parça

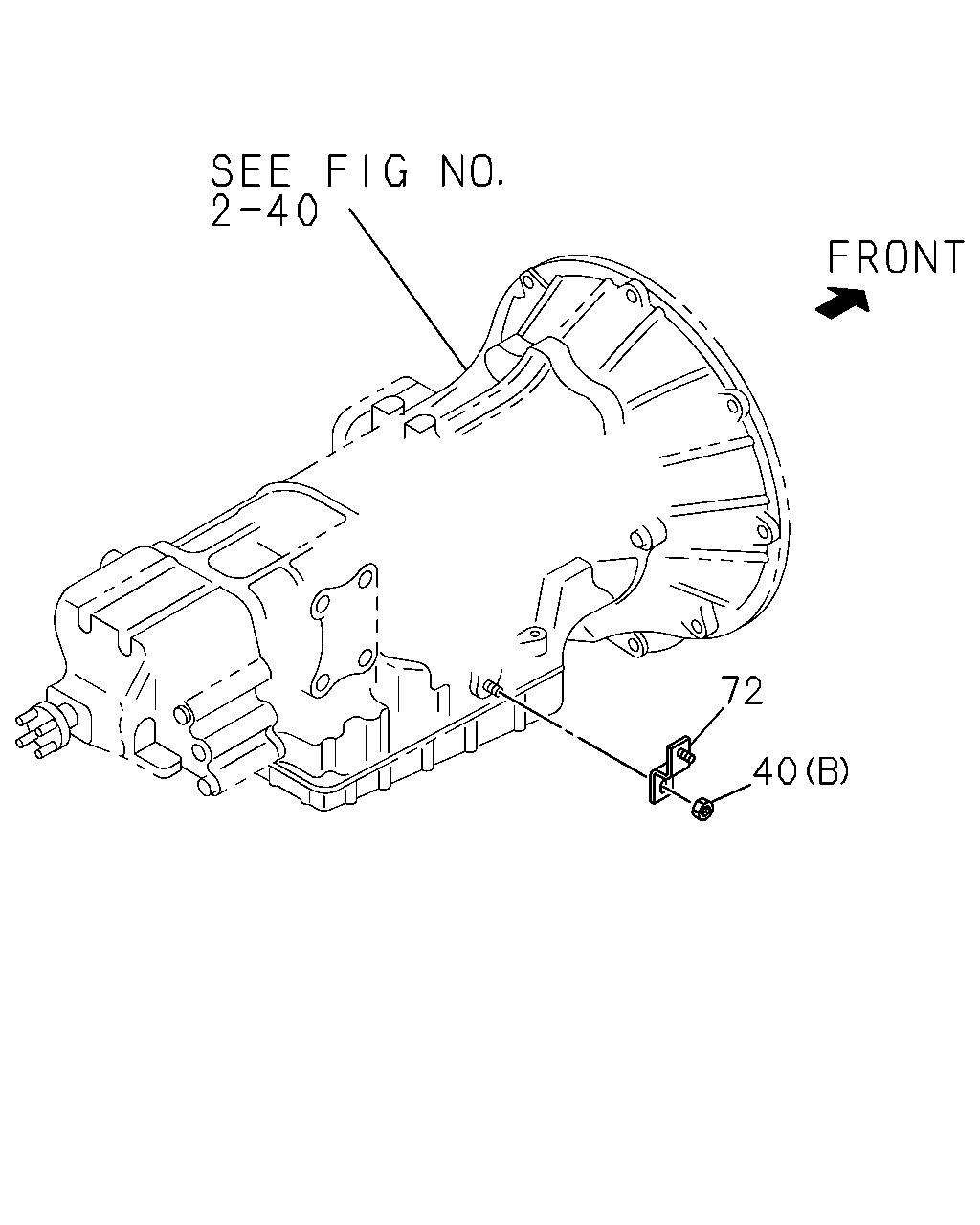

72 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	04.037 NUT; LEVER TO SHAFT 4BD2 ENG(RLW) 03.613 (B) M14 FLANGE	0-91150-114-0	01	1	9505-	●
40	04.037 NUT; LEVER TO SHAFT 4BD2 ENG(RLW) (A) M14	8-94483-278-0	02	1	9505-	●
40	04.037 NUT; LEVER TO SHAFT	1-09464-025-0	02	1	9802-		●
72	04.035 LEVER; SELECT CONT 4BD2 ENG(RLW)	8-97047-878-0	01	1	9505-9505	●
72	04.035 LEVER; SELECT CONT	8-94455-592-2	01	1	9506-	●
72	04.035 LEVER; SELECT CONT	8-97202-069-0	01	1	9802-		●

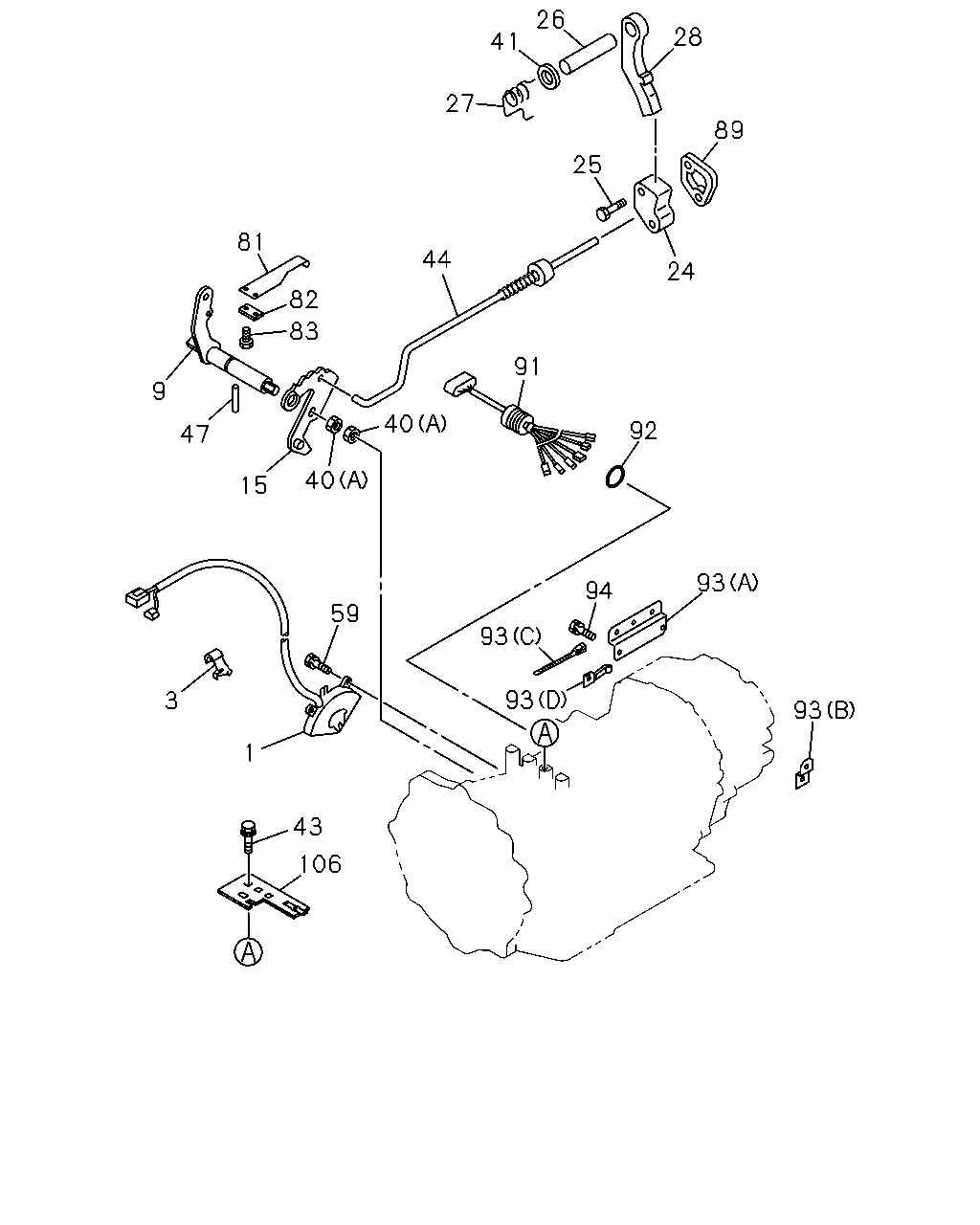

26 28 41 27 89 25 81 44 24 82 83 91 9 40 92 47 40 15 93 94 59 93 93 3 93 1 43 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.054 SWITCH; INHIBITOR,A/T 4BD2 ENG(RLW)	8-97126-091-0	01	1	9505-	●
3	04.054 CLIP; INHIBITOR SW,A/T 4BD2 ENG(RLW)	8-94483-613-0	01	1	9505-	●
9	04.275 SHAFT; MANUAL,A/T 4BD2 ENG(RLW)	8-94483-276-0	01	1	9505-	●
15	04.275 PLATE; MANUAL SHAFT,A/T 4BD2 ENG(RLW)	8-94483-275-0	01	1	9505-	●
24	04.290 SUPPORT; ACTUATOR,A/T 4BD2 ENG(RLW)	8-94483-335-0	01	1	9505-	●
25	04.290 BOLT; ACTUATOR SUPPORT,A/T 4BD2 ENG(RLW) 04.319 M10X115	8-94376-208-0	01	1	9505-	●
26	04.294 SHAFT; PARKING PAWL,A/T 4BD2 ENG(RLW)	8-94483-338-0	01	1	9505-	●
27	04.295 SPRING; PAWL RETURN,A/T 4BD2 ENG(RLW)	8-94483-340-0	01	1	9505-	●
28	04.294 PAWL; PARKING,A/T 4BD2 ENG(RLW)	8-94483-339-0	01	1	9505-	●
40	04.037 NUT; LEVER TO SHAFT 4BD2 ENG(RLW) 03.613 (B) M14 FLANGE	0-91150-114-0	01	1	9505-	●
40	04.037 NUT; LEVER TO SHAFT 4BD2 ENG(RLW) (A) M14	8-94483-278-0	02	1	9505-	●
40	04.037 NUT; LEVER TO SHAFT	1-09464-025-0	02	1	9802-		●
41	04.290 RETAINER; SPR,SHAFT 4BD2 ENG(RLW)	8-94483-341-0	01	1	9505-	●
43	04.290 BOLT; BRKT 4BD2 ENG(RLW) M6X12 W/WASHER ET SCREW	8-94430-946-0	02	1	9505-	●
44	04.290 ROD ASM; PARKING PAWL 4BD2 ENG(RLW)	8-94483-271-0	01	1	9505-	●
47	04.275 PIN; ROLL SHAFT 4BD2 ENG(RLW)	8-94483-277-0	01	1	9505-	●
59	04.265 SCREW; SW,A/T 4BD2 ENG(RLW) 04.053	8-94483-612-0	03	1	9505-	●
81	04.293 SPRING; DETENT,MANUAL CONT PLATE 4BD2 ENG(RLW)	8-97135-610-0	01	1	9611-	●
81	04.293 SPRING; DETENT,MANUAL CONT PLATE 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97135-610-0	01	1	9505-9505	●
81	04.293 SPRING; DETENT,MANUAL CONT PLATE 4BD2 ENG(RLW)	8-97135-610-0	01	1	9506-9610	●
81	04.293 SPRING; DETENT,MANUAL CONT PLATE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-272-0	01	1	9505-9505	●
82	02.559 SPACER; DETENT SPRING 4BD2 ENG(RLW)	8-97109-230-0	01	1	9611-	●
82	02.559 SPACER; DETENT SPRING 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97109-230-0	01	1	9505-9505	●
82	02.559 SPACER; DETENT SPRING 4BD2 ENG(RLW)	8-97109-230-0	01	1	9506-9610	●
82	02.559 SPACER; DETENT SPRING 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-273-0	01	1	9505-9505	●
83	04.169 SCREW; DETENT SPRING,MANUAL CONT 4BD2 ENG(RLW)	8-97101-141-0	01	1	9611-	●
83	04.169 SCREW; DETENT SPRING,MANUAL CONT 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97101-141-0	01	1	9505-9505	●
83	04.169 SCREW; DETENT SPRING,MANUAL CONT 4BD2 ENG(RLW)	8-97101-141-0	01	1	9506-9610	●
83	04.169 SCREW; DETENT SPRING,MANUAL CONT 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-274-0	01	1	9505-9505	●
89	04.290 GUIDE; PARKING ROD A/T 4BD2 ENG(RLW)	8-94483-336-0	01	1	9505-	●
91	02.530 HARNESS ASM; CABLE,A/T CONT 4BD2 ENG(RLW)	8-97087-832-0	01	1	9505-	●
92	04.282 SEAL; GASKET 4BD2 ENG(RLW)	8-94483-280-0	01	1	9505-	●
93	02.559 CLIP; A/T CONT HARNESS 4BD2 ENG(RLW) 01.166 (C)	8-94385-704-0	01	1	9505-	●
93	02.559 CLIP; A/T CONT HARNESS 4BD2 ENG(RLW) (B)	8-97078-324-0	01	1	9505-	●
93	02.559 CLIP; A/T CONT HARNESS 4BD2 ENG(RLW) (A)	8-97087-831-0	01	1	9505-	●
93	02.559 CLIP; A/T CONT HARNESS 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) (D)	8-97107-391-0	01	1	9505-9505	●
93	02.559 CLIP; A/T CONT HARNESS 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (D)	8-97112-971-0	01	1	9505-9505	●
93	02.559 CLIP; A/T CONT HARNESS 4BD2 ENG(RLW) (D)	8-97112-971-0	01	1	9506-	●
94	02.559 BOLT; CLIP,A/T CONT HARNESS 4BD2 ENG(RLW)	8-94483-333-0	04	1	9505-	●
106	04.047 BRACKET; HARNESS 4BD2 ENG(RLW)	8-97061-054-2	01	1	9505-	●

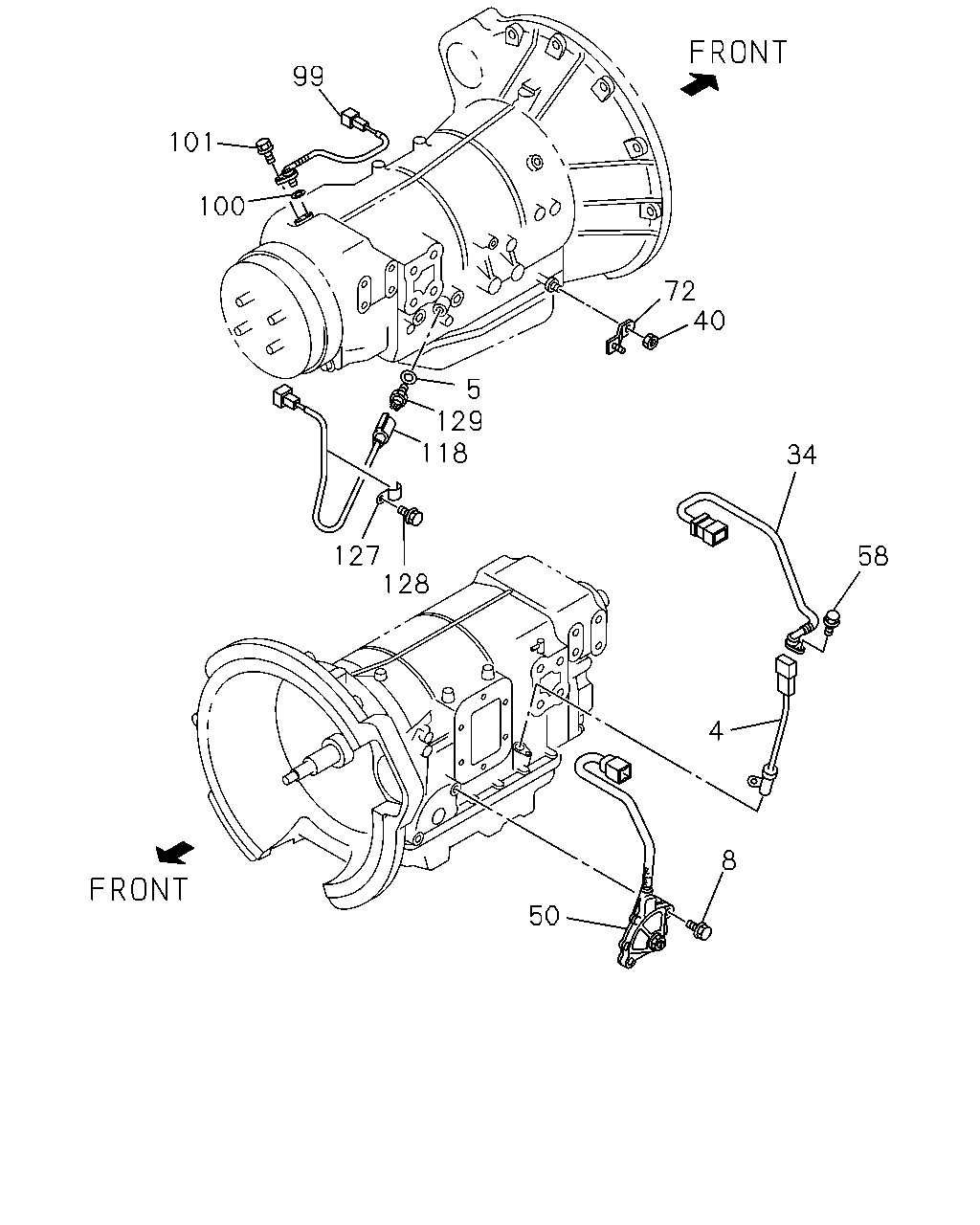

99 101 100 72 40 5 129 118 34 127 128 58 4 8 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.054 SENSOR; THERMO,A/T OIL	8-97257-142-0	01	1	9802-		●
5	04.054 GASKET; OIL THERMO SENSOR,A/T	8-97202-317-0	01	1	9802-		●
8	04.054 BOLT; NEUTRAL START SW,A/T	1-09020-158-0	02	1	9802-		●
34	04.265 SOLENOID ASM; A/T	8-97202-075-0	01	1	9802-		●
40	04.037 NUT; LEVER TO SHAFT 4BD2 ENG(RLW) 03.613 (B) M14 FLANGE	0-91150-114-0	01	1	9505-	●
40	04.037 NUT; LEVER TO SHAFT 4BD2 ENG(RLW) (A) M14	8-94483-278-0	02	1	9505-	●
40	04.037 NUT; LEVER TO SHAFT	1-09464-025-0	02	1	9802-		●
50	04.054 SWITCH; NEUTRAL,A/T	8-97202-076-0	01	1	9802-		●
58	04.260 BOLT; SOLENOID TO A/T 04.196	8-97202-101-0	01	1	9802-		●
72	04.035 LEVER; SELECT CONT 4BD2 ENG(RLW)	8-97047-878-0	01	1	9505-9505	●
72	04.035 LEVER; SELECT CONT	8-94455-592-2	01	1	9506-	●
72	04.035 LEVER; SELECT CONT	8-97202-069-0	01	1	9802-		●
99	04.329 SENSOR; SPD	8-97202-077-0	01	1	9802-		●
100	04.239 GASKET; SPD SENSOR	8-97202-085-0	01	1	9802-		●
101	04.329 BOLT; SPD SENSOR 04.196	8-97202-101-0	01	1	9802-		●
118	02.530 CONNECTOR; HARNESS	8-97202-041-0	01	1	9802-		●
127	02.559 CLAMP; HARNESS CONNECTOR	8-97202-094-0	01	1	9802-		●
128	02.559 BOLT; CLAMP	8-97202-100-0	01	1	9802-		●
129	04.248 SWITCH; OIL THERMO,TRANS	8-97202-035-0	01	1	9802-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
