2-47D — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#47421) — 97 parça

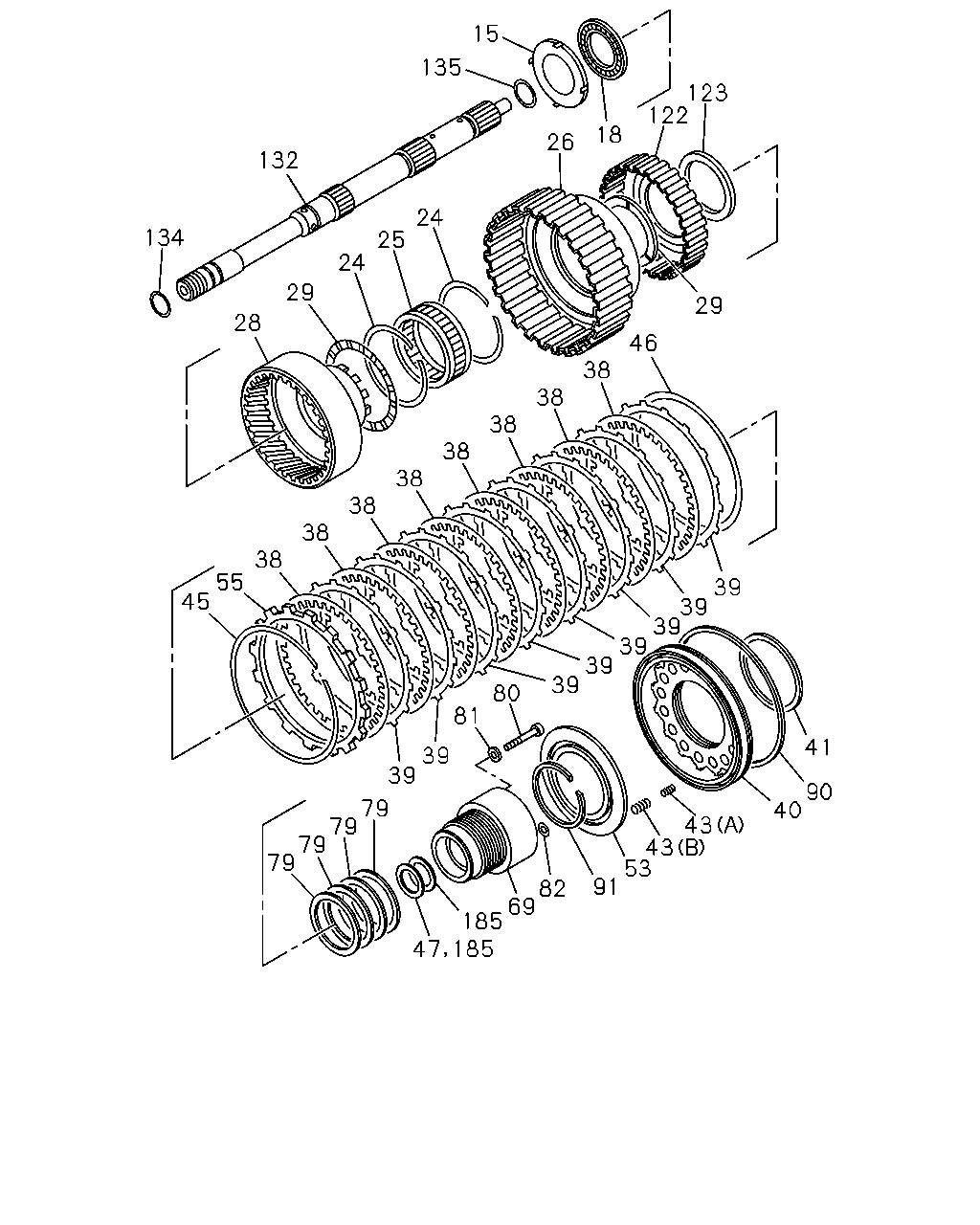

15 135 123 122 18 26 132 24 134 25 24 29 29 28 46 38 38 38 38 38 38 38 38 55 45 39 39 39 39 39 39 80 81 41 39 39 90 40 79 79 79 79 43 43 53 91 82 69 185 185 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.180 RACE; THRUST BRG,RR PLANETARY GE 4BD2 ENG(RLW)	8-94483-362-0	01	1	9505-
18	04.187 BEARING; THRUST,RR PLANETARY GEA 4BD2 ENG(RLW)	8-97027-233-1	01	1	9505-
24	04.164 RING; RET,FRT PLANETARY,A/T 4BD2 ENG(RLW)	8-94483-370-0	02	1	9505-
25	04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 4BD2 ENG(RLW)	8-94483-369-0	01	1	9505-9709
25	04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 4BD2 ENG(RLW)	8-97185-763-0	01	1	9710-
26	04.168 RACE; ONEWAY CLU,A/T 4BD2 ENG(RLW)	8-94483-368-1	01	1	9505-
28	04.187 GEAR ASM; RR PLANETARY,A/T 4BD2 ENG(RLW)	8-97092-803-0	01	1	9505-
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 4BD2 ENG(RLW)	8-94483-372-0	02	1	9505-
38	04.163 PLATE; DRIVE,LOW & REV,A/T 4BD2 ENG(RLW)	8-94483-263-0	08	1	9505-
39	04.163 PLATE; DRIVEN,LOW & REV,A/T 4BD2 ENG(RLW)	8-94483-262-0	08	1	9505-
40	04.166 PISTON; BRK,LOW & REV,A/T 4BD2 ENG(RLW)	8-97130-098-0	01	1	9611-
40	04.166 PISTON; BRK,LOW & REV,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97130-098-0	01	1	9505-9505
40	04.166 PISTON; BRK,LOW & REV,A/T 4BD2 ENG(RLW)	8-97130-098-0	01	1	9506-9610
40	04.166 PISTON; BRK,LOW & REV,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-255-0	01	1	9505-9505
41	04.166 SEAL; PISTON,LOW & REV,A/T 4BD2 ENG(RLW)	8-94483-256-0	01	1	9505-
43	04.164 SPRING; PISTON RETURN,A/T 4BD2 ENG(RLW) (A)	8-97130-096-0	16	1	9611-
43	04.164 SPRING; PISTON RETURN,A/T 4BD2 ENG(RLW) (B)	8-97130-097-0	16	1	9611-
43	04.164 SPRING; PISTON RETURN,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (A)	8-97130-096-0	16	1	9505-9505
43	04.164 SPRING; PISTON RETURN,A/T 4BD2 ENG(RLW) (A)	8-97130-096-0	16	1	9506-9610
43	04.164 SPRING; PISTON RETURN,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (B)	8-97130-097-0	16	1	9505-9505
43	04.164 SPRING; PISTON RETURN,A/T 4BD2 ENG(RLW) (B)	8-97130-097-0	16	1	9506-9610
43	04.164 SPRING; PISTON RETURN,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) (A)	8-94483-259-0	16	1	9505-9505
43	04.164 SPRING; PISTON RETURN,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) (B)	8-94483-281-0	16	1	9505-9505
45	04.164 RING; SNAP,LOW & REV BRK 4BD2 ENG(RLW)	8-94483-260-0	01	1	9505-
46	04.164 PLATE; DISHED,LOW & REV,A/T 4BD2 ENG(RLW)	8-94483-261-0	01	1	9505-
47	04.176 BEARING; NEEDLE,LOW & REV 4BD2 ENG(RLW)	8-94483-283-0	01	1	9511-
53	04.180 RETAINER; LOW & REV,CLU SPR 4BD2 ENG(RLW)	8-97119-875-0	01	1	9611-
53	04.180 RETAINER; LOW & REV,CLU SPR 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97119-875-0	01	1	9505-9505
53	04.180 RETAINER; LOW & REV,CLU SPR 4BD2 ENG(RLW)	8-97119-875-0	01	1	9506-9610
53	04.180 RETAINER; LOW & REV,CLU SPR 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-258-0	01	1	9505-9505
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=4.4	8-94483-264-0	01	1	9505-9610
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=4.6	8-94483-265-0	01	1	9505-9610
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=4.8	8-94483-266-0	01	1	9505-9610
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=5.0	8-94483-267-0	01	1	9505-9610
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=5.2	8-94483-268-0	01	1	9505-9610
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=5.4	8-94483-269-0	01	1	9505-9610
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=5.6	8-94483-270-0	01	1	9505-9610
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=4.4	8-94483-264-0	01	1	9611-
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=4.6	8-94483-265-0	01	1	9611-
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=4.8	8-94483-266-0	01	1	9611-
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=5.0	8-94483-267-0	01	1	9611-
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=5.2	8-94483-268-0	01	1	9611-
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=5.4	8-94483-269-0	01	1	9611-
55	04.163 PLATE; LOW & REV,CLU BACKING 4BD2 ENG(RLW) T=5.6	8-94483-270-0	01	1	9611-
69	04.164 RACE; LOW ONEWAY CLU 4BD2 ENG(RLW)	8-97123-259-0	01	1	9611-
69	04.164 RACE; LOW ONEWAY CLU 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97123-259-0	01	1	9505-9505
69	04.164 RACE; LOW ONEWAY CLU 4BD2 ENG(RLW)	8-97123-259-0	01	1	9506-9610
69	04.164 RACE; LOW ONEWAY CLU 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97092-806-0	01	1	9505-9505
79	04.164 RING; SEAL,ONEWAY CLU RACE,LOW & 4BD2 ENG(RLW)	8-94483-250-0	04	1	9505-
80	04.164 BOLT; ONEWAY CLU RACE,LOW & REV 4BD2 ENG(RLW)	8-94483-252-0	08	1	9505-9510
80	04.164 BOLT; ONEWAY CLU RACE,LOW & REV 4BD2 ENG(RLW)	8-97136-210-0	08	1	9511-
81	04.164 WASHER; PL,ONEWAY CLU RACE,LOW & 4BD2 ENG(RLW)	8-94483-254-0	08	1	9505-9510
82	04.166 SEAL; GASKET,LOW ONEWAY CLU RACE 4BD2 ENG(RLW)	8-94483-287-0	04	1	9505-9510
82	04.166 SEAL; GASKET,LOW ONEWAY CLU RACE 4BD2 ENG(RLW)	8-94483-287-0	03	1	9511-
90	04.166 SEAL; PISTON,LOW & REV 4BD2 ENG(RLW)	8-94483-257-0	01	1	9505-
91	04.166 RING; SNAP,SPRING RET 4BD2 ENG(RLW)	8-94483-282-0	01	1	9505-9510
122	04.180 HUB; OVERRUN CLU,A/T 4BD2 ENG(RLW)	8-97092-810-0	01	1	9505-
123	04.176 BEARING; THRUST,OVERRUN CLU HUB 4BD2 ENG(RLW)	8-97092-801-0	01	1	9505-
132	04.123 SHAFT; INPUT,A/T 4BD2 ENG(RLW)	8-97135-473-0	01	1	9611-
132	04.123 SHAFT; INPUT,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97135-473-0	01	1	9505-9505
132	04.123 SHAFT; INPUT,A/T 4BD2 ENG(RLW)	8-97135-473-0	01	1	9506-9610
132	04.123 SHAFT; INPUT,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-239-0	01	1	9505-9505
134	04.166 SEAL; INPUT SHAFT,FRT 4BD2 ENG(RLW)	8-94483-240-0	01	1	9505-9610
134	04.166 SEAL; INPUT SHAFT,FRT 4BD2 ENG(RLW)	8-97174-501-0	01	1	9611-
135	04.166 RING; SEAL,INPUT SHAFT,A/T 4BD2 ENG(RLW)	8-94483-243-0	01	1	9505-
185	04.158 WASHER; THRUST,ONEWAY CLU RACE 4BD2 ENG(RLW)	8-97107-388-0	02	1	9505-9510

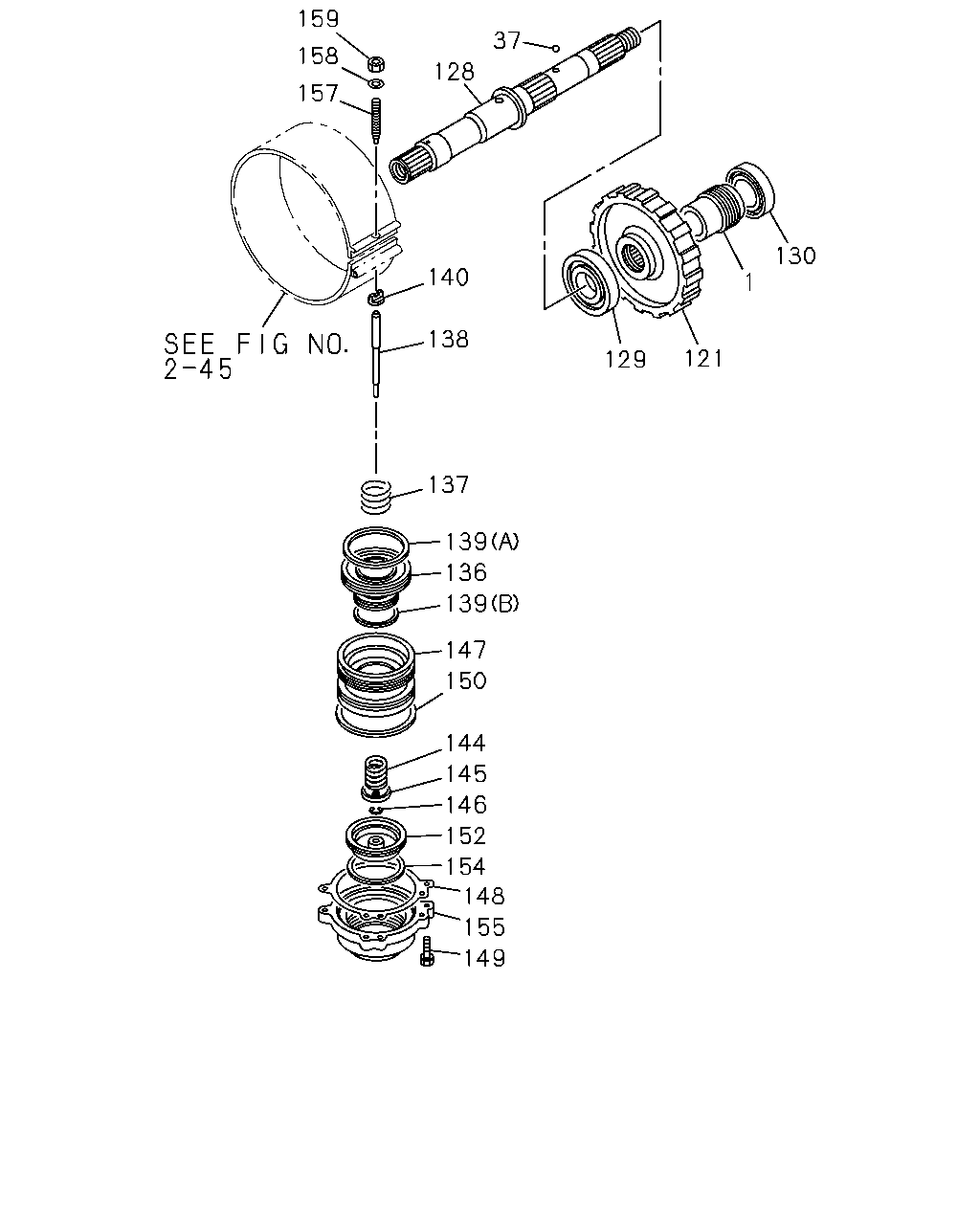

159 37 158 128 157 130 140 1 138 121 129 137 139 136 139 147 150 144 145 146 152 154 148 155 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4BD2 ENG(RLW)	8-94483-356-0	01	1	9505-
37	04.256 BALL; SPD DRIVE 4BD2 ENG(RLW) 04.265	8-94140-853-0	01	1	9505-
121	04.162 GEAR; PARKING LK,A/T 4BD2 ENG(RLW) 04.164	8-94483-352-0	01	1	9505-
128	04.175 SHAFT; OUTPUT,A/T 4BD2 ENG(RLW)	8-97092-807-0	01	1	9505-
129	04.176 BEARING; OUTPUT SHAFT,FRT,A/T 4BD2 ENG(RLW)	8-94483-353-0	01	1	9505-
130	04.176 BEARING; OUTPUT SHAFT,RR,A/T 4BD2 ENG(RLW)	8-94483-354-0	01	1	9505-
136	04.166 PISTON; BRK BAND SERVO 4BD2 ENG(RLW)	8-97135-607-0	01	1	9505-
137	04.164 SPRING; SERVO PISTON,OUTER,BRK B 4BD2 ENG(RLW)	8-97135-608-0	01	1	9505-
138	04.251 STEM; PISTON,BRK BAND SERVO 4BD2 ENG(RLW)	8-94483-461-1	01	1	9505-9709
138	04.251 STEM; PISTON,BRK BAND SERVO 4BD2 ENG(RLW)	8-97173-640-0	01	1	9710-
139	04.166 SEAL; PISTON,BRK BAND SERVO 4BD2 ENG(RLW) (A)	8-94483-459-0	01	1	9505-9610
139	04.166 SEAL; PISTON,BRK BAND SERVO 4BD2 ENG(RLW) (B)	8-94483-460-0	01	1	9505-9610
139	04.166 SEAL; PISTON,BRK BAND SERVO 4BD2 ENG(RLW) (A)	8-97174-505-0	01	1	9611-
139	04.166 SEAL; PISTON,BRK BAND SERVO 4BD2 ENG(RLW) (B)	8-97174-506-0	01	1	9611-
140	04.251 STRUT; BRK BAND SERVO 4BD2 ENG(RLW)	8-94483-462-0	01	1	9505-
144	04.164 SPRING; SERVO PISTON 4BD2 ENG(RLW)	8-94483-466-0	01	1	9505-
145	04.164 RETAINER; SPRING,SERVO PISTON 4BD2 ENG(RLW)	8-94483-467-0	01	1	9505-
146	04.166 RING; SNAP,SPRING RET,SERVO PIST 4BD2 ENG(RLW) 04.229	8-94483-468-0	01	1	9505-
147	04.164 RETAINER; SERVO PISTON,BRK BAND 4BD2 ENG(RLW)	8-94483-469-0	01	1	9505-
148	04.164 GASKET; RET,SERVO PISTON 4BD2 ENG(RLW)	8-97106-999-0	01	1	9505-
149	04.164 BOLT; RET,SERVO PISTON,BRK BAND 4BD2 ENG(RLW)	8-97107-000-0	04	1	9505-
150	04.164 SEAL; SERVO PISTON,BRK BAND 4BD2 ENG(RLW)	8-94483-475-0	01	1	9505-
152	04.166 PISTON; BAND SERVO,OVERDRIVE 4BD2 ENG(RLW)	8-97039-481-0	01	1	9505-9510
152	04.166 PISTON; BAND SERVO,OVERDRIVE 4BD2 ENG(RLW)	8-97167-657-0	01	1	9511-
154	04.166 SEAL; PISTON,BAND SERVO,OVERDRIV 4BD2 ENG(RLW)	8-97039-482-0	01	1	9505-9610
154	04.166 SEAL; PISTON,BAND SERVO,OVERDRIV 4BD2 ENG(RLW)	8-97174-507-0	01	1	9611-
155	04.164 RETAINER; SERVO PISTON,OVERDRIVE 4BD2 ENG(RLW)	8-97039-483-0	01	1	9505-
157	04.164 PIN; ANCHOR,BRK BAND,A/T 4BD2 ENG(RLW)	8-94483-476-0	01	1	9505-
158	04.164 WASHER; PL,ANCHOR PIN,BRK BAND 4BD2 ENG(RLW) 04.228	8-94483-477-0	01	1	9505-9509
159	04.164 NUT; ANCHOR PIN LOCK,BRK BAND 4BD2 ENG(RLW) 04.228	8-94483-478-0	01	1	9505-9509
159	04.164 NUT; ANCHOR PIN LOCK,BRK BAND 4BD2 ENG(RLW)	8-97143-181-0	01	1	9510-
