2-45D — AUTO TRANS CLUTCH AND PLANETARY GEAR (#47420) — 136 parça

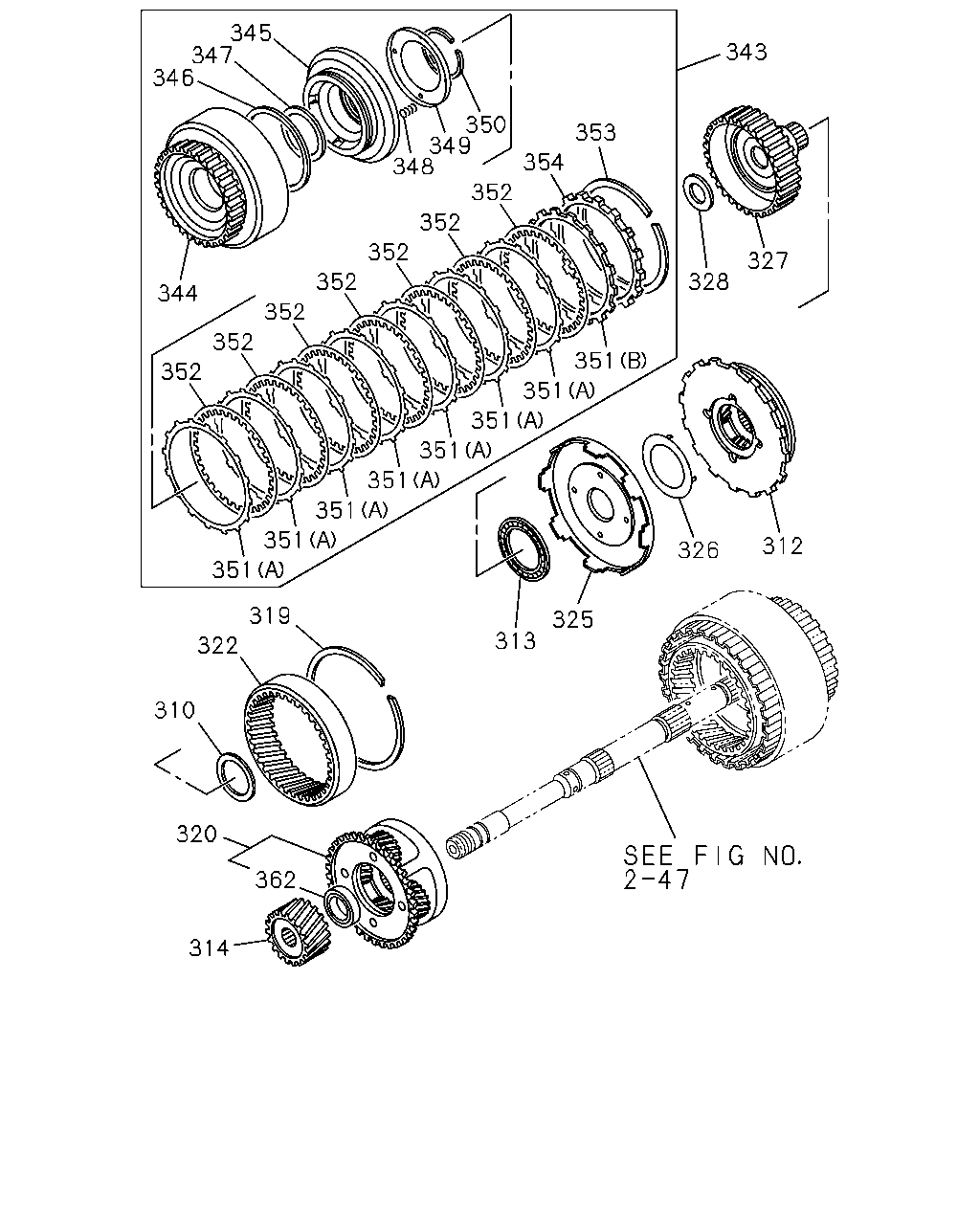

çizim 18610
345 347 346 343 350 349 348 353 354 352 352 352 327 328 352 344 352 352 351 352 351 351 351 351 351 351 312 326 351 319 325 313 322 310 320 362 314
BalonParca AdiParca NoAdetTipApplied Date
310 04.159 BEARING; NEEDLE,CARRIER
4BD2 ENG(RLW) 		8-94483-374-0 01 1 9505-9509
310 04.159 BEARING; NEEDLE,CARRIER
4BD2 ENG(RLW) 		8-97143-238-0 01 1 9510-
312 04.175 CARRIER ASM; FRT
4BD2 ENG(RLW) 		8-97111-149-0 01 1 9611-
312 04.175 CARRIER ASM; FRT
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97111-149-0 01 1 9505-9505
312 04.175 CARRIER ASM; FRT
4BD2 ENG(RLW) 		8-97111-149-0 01 1 9506-9610
312 04.175 CARRIER ASM; FRT
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97026-893-0 01 1 9505-9505
313 04.176 BEARING; FRT CLU CARRIER,A/T
4BD2 ENG(RLW) 		8-94483-373-0 01 1 9505-
314 04.175 GEAR; SUN,CLU CARRIER,A/T
4BD2 ENG(RLW) 		8-94388-932-0 01 1 9505-
319 04.176 RING; SNAP,RR CARRIER,A/T
4BD2 ENG(RLW) 		8-94483-366-0 01 1 9505-
320 04.175 CARRIER ASM; RR,CLU,A/T
4BD2 ENG(RLW) 		8-97107-392-0 01 1 9505-
322 04.158 GEAR; INPUT,INTERNAL
4BD2 ENG(RLW) 		8-94483-365-0 01 1 9505-
325 04.159 GEAR ASM; SUN,FRT
4BD2 ENG(RLW) 		8-97092-805-0 01 1 9505-
326 04.159 RACE; BEARING,FRT CARRIER
4BD2 ENG(RLW) 		8-97109-284-0 01 1 9505-
327 04.176 HUB ASM; HIGH CLU,A/T
4BD2 ENG(RLW) 		8-97026-891-0 01 1 9505-
328 04.159 BEARING; THRUST,HIGH CLU HUB,A/T
4BD2 ENG(RLW) 04.176 		8-94140-772-0 01 1 9505-
343 04.164 CLUTCH ASM; HIGH,A/T
4BD2 ENG(RLW) 		8-97039-480-0 01 1 9505-
344 04.169 DRUM; HIGH CLU
4BD2 ENG(RLW) 		8-94483-411-0 01 1 9505-
345 04.166 PISTON; HIGH CLU
4BD2 ENG(RLW) 		8-94483-412-0 01 1 9505-
346 04.166 SEAL; HIGH CLU PISTON,OUTER
4BD2 ENG(RLW) 		8-94483-413-0 01 1 9505-
347 04.166 SEAL; HIGH CLU PISTON,INNER
4BD2 ENG(RLW) 		8-94483-414-0 01 1 9505-
348 04.164 SPRING; RETURN,HIGH CLU PISTON
4BD2 ENG(RLW) 		8-94483-415-1 16 1 9505-
349 04.164 RETAINER; RETURN SPRING,CLU PIST
4BD2 ENG(RLW) 		8-94483-416-0 01 1 9505-
350 04.164 RING; SNAP,SPRING RET,HIGH CLU
4BD2 ENG(RLW) 		8-94483-417-0 01 1 9505-
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4BD2 ENG(RLW) 04.163 (A) 		8-94483-444-0 07 1 9505-
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4BD2 ENG(RLW) (B) 		8-97107-393-0 01 1 9505-
352 04.176 PLATE; DRIVE,HIGH CLU,A/T
4BD2 ENG(RLW) 		8-94483-419-0 07 1 9505-
353 04.176 RING; SNAP,HIGH CLU PLATE
4BD2 ENG(RLW) 04.164 		8-94483-400-0 01 1 9505-
354 04.176 PLATE; RET,HIGH CLU
4BD2 ENG(RLW) 		8-97107-395-0 01 1 9505-9610
354 04.176 PLATE; RET,HIGH CLU
4BD2 ENG(RLW) 		8-97107-395-0 01 1 9701-
362 04.159 BEARING; THRUST,RR CARRIER
4BD2 ENG(RLW) 		8-97044-694-0 01 1 9505-

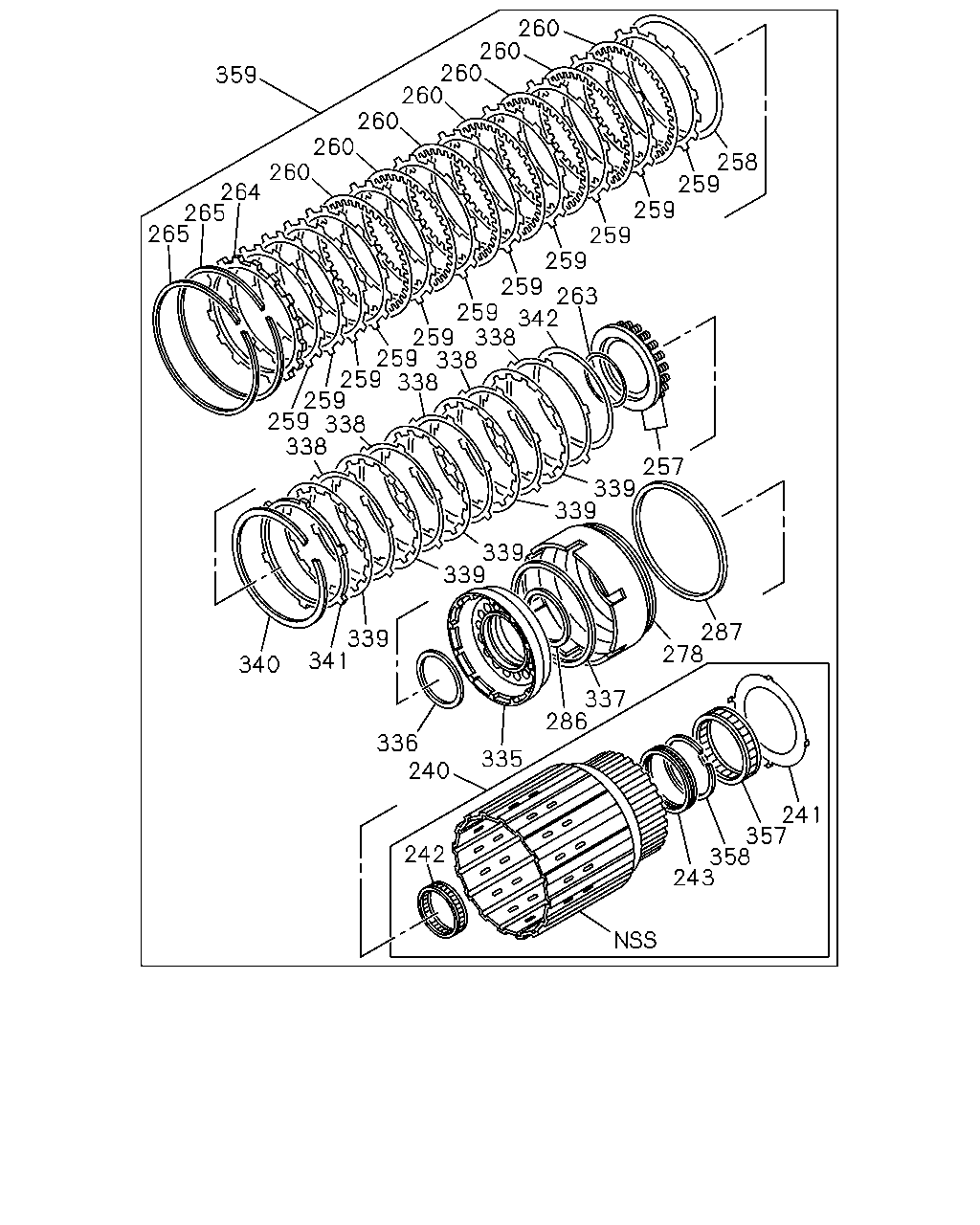

çizim 19126
260 260 260 260 260 260 260 264 265 265 359 258 259 259 259 259 259 263 259 342 259 338 259 259 338 338 257 339 339 339 339 287 278 339 341 340 337 286 336 240 335 241 357 358 243 242 259 259 338 338
BalonParca AdiParca NoAdetTipApplied Date
240 04.169 DRUM ASM; FWD CLU,A/T
4BD2 ENG(RLW) 		8-97109-226-0 01 1 9611-
240 04.169 DRUM ASM; FWD CLU,A/T
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97109-226-0 01 1 9505-9505
240 04.169 DRUM ASM; FWD CLU,A/T
4BD2 ENG(RLW) 		8-97109-226-0 01 1 9506-9610
240 04.169 DRUM ASM; FWD CLU,A/T
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97092-800-0 01 1 9505-9505
241 04.163 PLATE; SIDE,LOW ONEWAY CLU,A/T
4BD2 ENG(RLW) 		8-94483-375-0 01 1 9505-
242 04.169 BEARING; NEEDLE,CLU DRUM,PISTON
4BD2 ENG(RLW) 		8-94483-377-0 01 1 9505-
243 04.169 BEARING; NEEDLE,CLU DRUM,CLU SID
4BD2 ENG(RLW) 		8-97109-224-0 01 1 9611-
243 04.169 BEARING; NEEDLE,CLU DRUM,CLU SID
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97109-224-0 01 1 9505-9505
243 04.169 BEARING; NEEDLE,CLU DRUM,CLU SID
4BD2 ENG(RLW) 		8-97109-224-0 01 1 9506-9610
243 04.169 BEARING; NEEDLE,CLU DRUM,CLU SID
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-94483-378-0 01 1 9505-9505
257 04.164 SPRING; PISTON RETURN,FRT CLU,A/
4BD2 ENG(RLW) 		8-94483-408-0 01 1 9505-9508
257 04.164 SPRING; PISTON RETURN,FRT CLU,A/
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97138-133-0 01 1 9509-9510
257 04.164 SPRING; PISTON RETURN,FRT CLU,A/
4BD2 ENG(RLW) 		8-97138-133-0 01 1 9511-
258 04.163 PLATE; DISHED,FRT CLU,A/T
4BD2 ENG(RLW) 		8-94483-396-0 01 1 9505-
259 04.163 PLATE; DRIVE,FRT CLU,A/T
4BD2 ENG(RLW) 		8-97029-866-0 14 1 9505-9510
259 04.163 PLATE; DRIVE,FRT CLU,A/T
4BD2 ENG(RLW) 		8-94483-388-0 08 1 9511-
260 04.163 PLATE; DRIVEN,FRT CLU,A/T
4BD2 ENG(RLW) 		8-94483-388-0 08 1 9505-9510
260 04.163 PLATE; DRIVEN,FRT CLU,A/T
4BD2 ENG(RLW) 		8-97029-866-0 14 1 9511-
263 04.164 RING; SNAP,FRT CLU,A/T
4BD2 ENG(RLW) 		8-94483-383-0 01 1 9505-
264 04.163 PLATE; RET,FRT CLU,A/T
4BD2 ENG(RLW) T=4.4 		8-94483-389-0 01 1 9505-
264 04.163 PLATE; RET,FRT CLU,A/T
4BD2 ENG(RLW) T=4.6 		8-94483-390-0 01 1 9505-
264 04.163 PLATE; RET,FRT CLU,A/T
4BD2 ENG(RLW) T=4.8 		8-94483-391-0 01 1 9505-
264 04.163 PLATE; RET,FRT CLU,A/T
4BD2 ENG(RLW) T=5.0 		8-94483-392-0 01 1 9505-
264 04.163 PLATE; RET,FRT CLU,A/T
4BD2 ENG(RLW) T=5.2 		8-94483-393-0 01 1 9505-
264 04.163 PLATE; RET,FRT CLU,A/T
4BD2 ENG(RLW) T=5.4 		8-94483-394-0 01 1 9505-
264 04.163 PLATE; RET,FRT CLU,A/T
4BD2 ENG(RLW) T=4.2 		8-97027-235-0 01 1 9505-
265 04.164 RING; SNAP,FRT CLU,A/T
4BD2 ENG(RLW) 		8-94483-395-0 02 1 9505-
278 04.166 PISTON; FWD CLU
4BD2 ENG(RLW) 		8-94483-380-0 01 1 9505-
286 04.166 SEAL; FWD CLU PISTON,INNER
4BD2 ENG(RLW) 		8-94483-381-0 01 1 9505-
287 04.166 SEAL; FWD CLU PISTON,OUTER
4BD2 ENG(RLW) 		8-94483-382-0 01 1 9505-
335 04.166 PISTON; OVERRUN CLU,FWD
4BD2 ENG(RLW) 		8-94483-384-0 01 1 9505-
336 04.166 SEAL; OVERRUN CLU
4BD2 ENG(RLW) 		8-94483-385-0 01 1 9505-9610
336 04.166 SEAL; OVERRUN CLU
4BD2 ENG(RLW) 		8-97174-503-0 01 1 9611-
337 04.166 SEAL; OVERRUN CLU
4BD2 ENG(RLW) 		8-94483-386-0 01 1 9505-9610
337 04.166 SEAL; OVERRUN CLU
4BD2 ENG(RLW) 		8-97174-504-0 01 1 9611-
338 04.163 PLATE; DRIVEN,OVERRUN CLU,A/T
4BD2 ENG(RLW) 		8-94483-398-0 05 1 9505-9610
338 04.163 PLATE; DRIVEN,OVERRUN CLU,A/T
4BD2 ENG(RLW) 		8-97174-510-0 05 1 9611-
339 04.163 PLATE; DRIVE,OVERRUN CLU,A/T
4BD2 ENG(RLW) 		8-97131-024-0 05 1 9611-
339 04.163 PLATE; DRIVE,OVERRUN CLU,A/T
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97131-024-0 05 1 9505-9505
339 04.163 PLATE; DRIVE,OVERRUN CLU,A/T
4BD2 ENG(RLW) 		8-97131-024-0 05 1 9506-9610
339 04.163 PLATE; DRIVE,OVERRUN CLU,A/T
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-94483-399-0 05 1 9505-9505
340 04.180 RING; SNAP,OVERRUN CLU PLATE
4BD2 ENG(RLW) 04.164 		8-94483-400-0 01 1 9505-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4BD2 ENG(RLW) T=5.2 		8-94483-407-0 01 1 9505-9510
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4BD2 ENG(RLW) T=4.0 		8-94483-401-0 01 1 9505-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4BD2 ENG(RLW) T=4.2 		8-94483-402-0 01 1 9505-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4BD2 ENG(RLW) T=4.4 		8-94483-403-0 01 1 9505-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4BD2 ENG(RLW) T=4.6 		8-94483-404-0 01 1 9505-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4BD2 ENG(RLW) T=4.8 		8-94483-405-0 01 1 9505-
341 04.180 PLATE; RET,OVERRUN CLU PLATE
4BD2 ENG(RLW) T=5.0 		8-94483-406-0 01 1 9505-
342 04.180 PLATE; DISHED,OVERRUN CLU
4BD2 ENG(RLW) 		8-94483-397-0 01 1 9505-
357 04.180 CLUTCH ASM; LOW ONEWAY
4BD2 ENG(RLW) 		8-97092-797-0 01 1 9505-
358 04.180 RING; SNAP,CLU DRUM,A/T
4BD2 ENG(RLW) 		8-94483-379-0 01 1 9505-
359 04.164 CLUTCH ASM; FRT,A/T
4BD2 ENG(RLW) 		8-97174-495-0 01 1 9611-
359 04.164 CLUTCH ASM; FRT,A/T
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97109-225-0 01 1 9505-9505
359 04.164 CLUTCH ASM; FRT,A/T
4BD2 ENG(RLW) 		8-97109-225-0 01 1 9506-9610
359 04.164 CLUTCH ASM; FRT,A/T
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97044-692-0 01 1 9505-9505

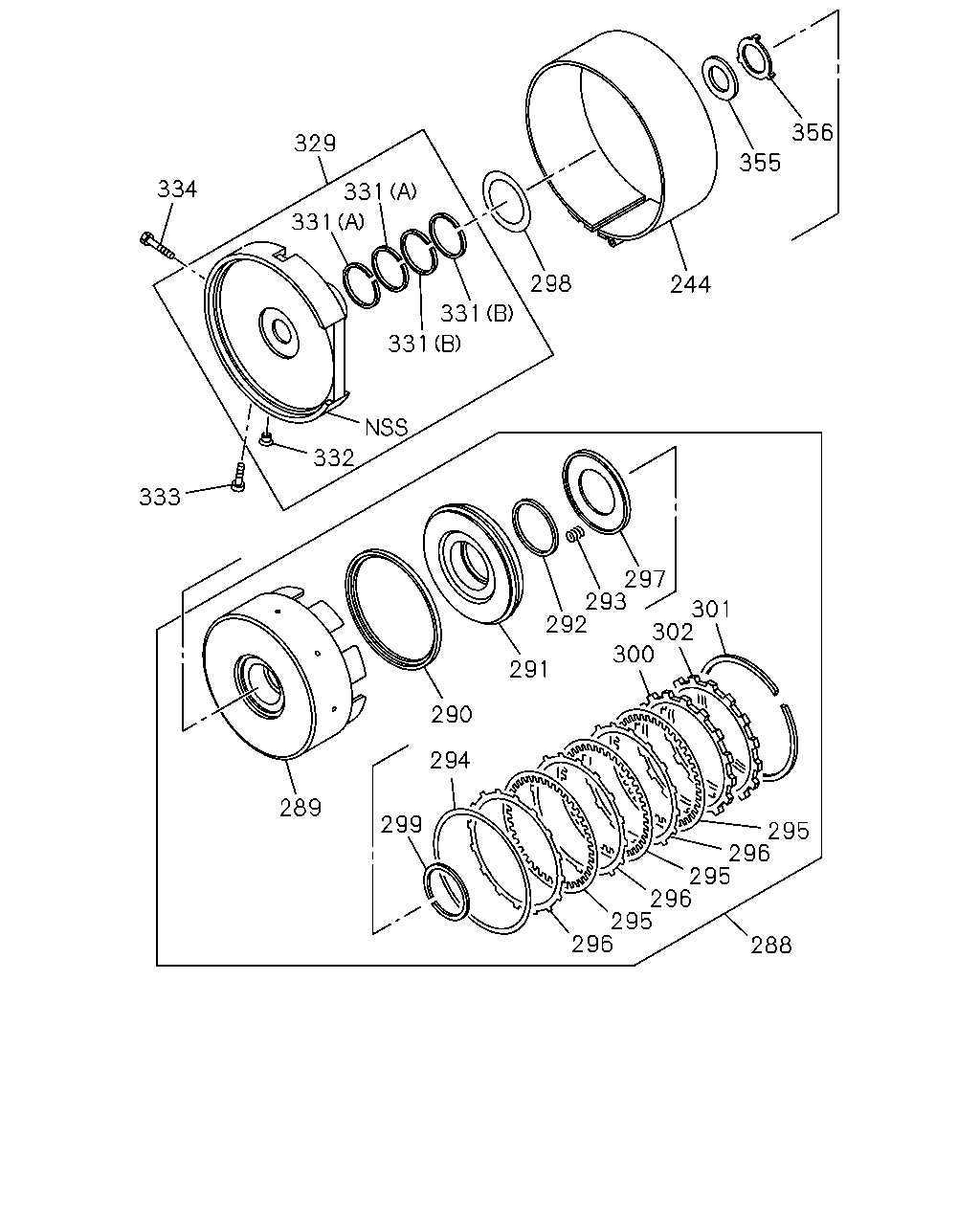

çizim 69472
356 329 355 334 331 331 298 244 331 331 332 333 297 293 292 301 302 300 291 290 294 289 299 295 296 295 296 295 296 288
BalonParca AdiParca NoAdetTipApplied Date
244 04.251 BAND; BRK,CLU,A/T
4BD2 ENG(RLW) 		8-94483-435-1 01 1 9505-9709
244 04.251 BAND; BRK,CLU,A/T
4BD2 ENG(RLW) 		8-97178-708-0 01 1 9710-
288 04.164 CLUTCH ASM; RR,A/T
4BD2 ENG(RLW) 		8-97092-792-0 01 1 9505-9610
288 04.164 CLUTCH ASM; RR,A/T
4BD2 ENG(RLW) 		8-97174-494-0 01 1 9611-
289 04.164 DRUM; RR CLU,A/T
4BD2 ENG(RLW) 		8-97092-795-0 01 1 9505-9610
289 04.164 DRUM; RR CLU,A/T
4BD2 ENG(RLW) 		8-97174-509-0 01 1 9611-
290 04.166 GASKET; RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-439-0 01 1 9505-
291 04.054 PISTON; RR CLU,A/T
4BD2 ENG(RLW) 		8-97092-796-0 01 1 9505-
292 04.166 SEAL; RING,LATHE CUT,RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-440-0 01 1 9505-
293 04.164 SPRING; PISTON RETURN,RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-441-0 16 1 9505-
294 04.163 PLATE; DISHED,RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-446-0 01 1 9505-
295 04.163 PLATE; DRIVE,RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-445-0 03 1 9505-
296 04.163 PLATE; DRIVEN,RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-444-0 03 1 9505-
297 04.162 RETAINER; SPR,RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-442-0 01 1 9505-
298 04.164 WASHER; THRUST,REV CLU,A/T
4BD2 ENG(RLW) T=0.7 		8-94483-311-0 01 1 9505-
298 04.164 WASHER; THRUST,REV CLU,A/T
4BD2 ENG(RLW) T=0.9 		8-94483-312-0 01 1 9505-
298 04.164 WASHER; THRUST,REV CLU,A/T
4BD2 ENG(RLW) T=1.1 		8-94483-313-0 01 1 9505-
298 04.164 WASHER; THRUST,REV CLU,A/T
4BD2 ENG(RLW) T=1.3 		8-94483-314-0 01 1 9505-
298 04.164 WASHER; THRUST,REV CLU,A/T
4BD2 ENG(RLW) T=1.5 		8-94483-315-0 01 1 9505-
298 04.164 WASHER; THRUST,REV CLU,A/T
4BD2 ENG(RLW) T=1.6 		8-94483-316-0 01 1 9505-
298 04.164 WASHER; THRUST,REV CLU,A/T
4BD2 ENG(RLW) T=1.9 		8-94483-317-0 01 1 9505-
299 04.164 RING; SNAP,RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-443-0 01 1 9505-
300 04.163 PLATE; RET,RR CLU,A/T
4BD2 ENG(RLW) T=5.4 		8-94483-426-0 01 1 9505-
301 04.164 RING; SNAP,RR CLU,A/T
4BD2 ENG(RLW) 		8-94483-400-0 01 1 9505-
302 04.163 PLATE; RET,RR CLU
4BD2 ENG(RLW) T=4.4 		8-94483-421-0 01 1 9505-
302 04.163 PLATE; RET,RR CLU
4BD2 ENG(RLW) T=4.6 		8-94483-422-0 01 1 9505-
302 04.163 PLATE; RET,RR CLU
4BD2 ENG(RLW) T=4.8 		8-94483-423-0 01 1 9505-
302 04.163 PLATE; RET,RR CLU
4BD2 ENG(RLW) T=5.0 		8-94483-424-0 01 1 9505-
302 04.163 PLATE; RET,RR CLU
4BD2 ENG(RLW) T=5.2 		8-94483-425-0 01 1 9505-
302 04.163 PLATE; RET,RR CLU
4BD2 ENG(RLW) T=4.2 		8-97107-396-0 01 1 9505-
329 04.169 SUPPORT ASM; DRUM,A/T
4BD2 ENG(RLW) 04.166 		8-94483-321-0 01 1 9505-
331 04.166 RING; SEAL,HIGH CLU DRUM
4BD2 ENG(RLW) (A) 		8-97026-889-0 02 1 9505-
331 04.166 RING; SEAL,HIGH CLU DRUM
4BD2 ENG(RLW) (B) 		8-97026-890-0 02 1 9505-
332 04.166 SEAL; DRUM SUPPORT,A/T
4BD2 ENG(RLW) 		8-94483-324-0 04 1 9505-
333 04.169 BOLT; DRUM SUPPORT
4BD2 ENG(RLW) 		8-94483-253-0 01 1 9505-
334 04.169 BOLT; DRUM SUPPORT
4BD2 ENG(RLW) 		8-97129-722-0 02 1 9505-
355 04.169 BEARING; THRUST,HIGH CLU DRUM
4BD2 ENG(RLW) 		8-94483-427-0 01 1 9505-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) T=1.4 		8-94483-431-0 01 1 9505-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) T=1.6 		8-94483-432-0 01 1 9505-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) T=1.8 		8-94483-433-0 01 1 9505-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) T=2.0 		8-94483-434-0 01 1 9505-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) T=0.8 		8-97112-977-0 01 1 9505-9505
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) T=0.8 		8-97112-977-0 01 1 9506-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) T=1.0 		8-97112-978-0 01 1 9505-9505
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) T=1.0 		8-97112-978-0 01 1 9506-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) T=1.2 		8-97112-979-0 01 1 9505-9505
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) T=1.2 		8-97112-979-0 01 1 9506-
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) T=0.8 		8-94483-428-0 01 1 9505-9505
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) T=1.0 		8-94483-429-0 01 1 9505-9505
356 04.180 RACE; THRUST BRG,HIGH CLU DRUM
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) T=1.2 		8-94483-430-0 01 1 9505-9505
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
