2-44D — AUTO TRANS CONTROL VALVE; LOWER BODY (#47419) — 96 parça

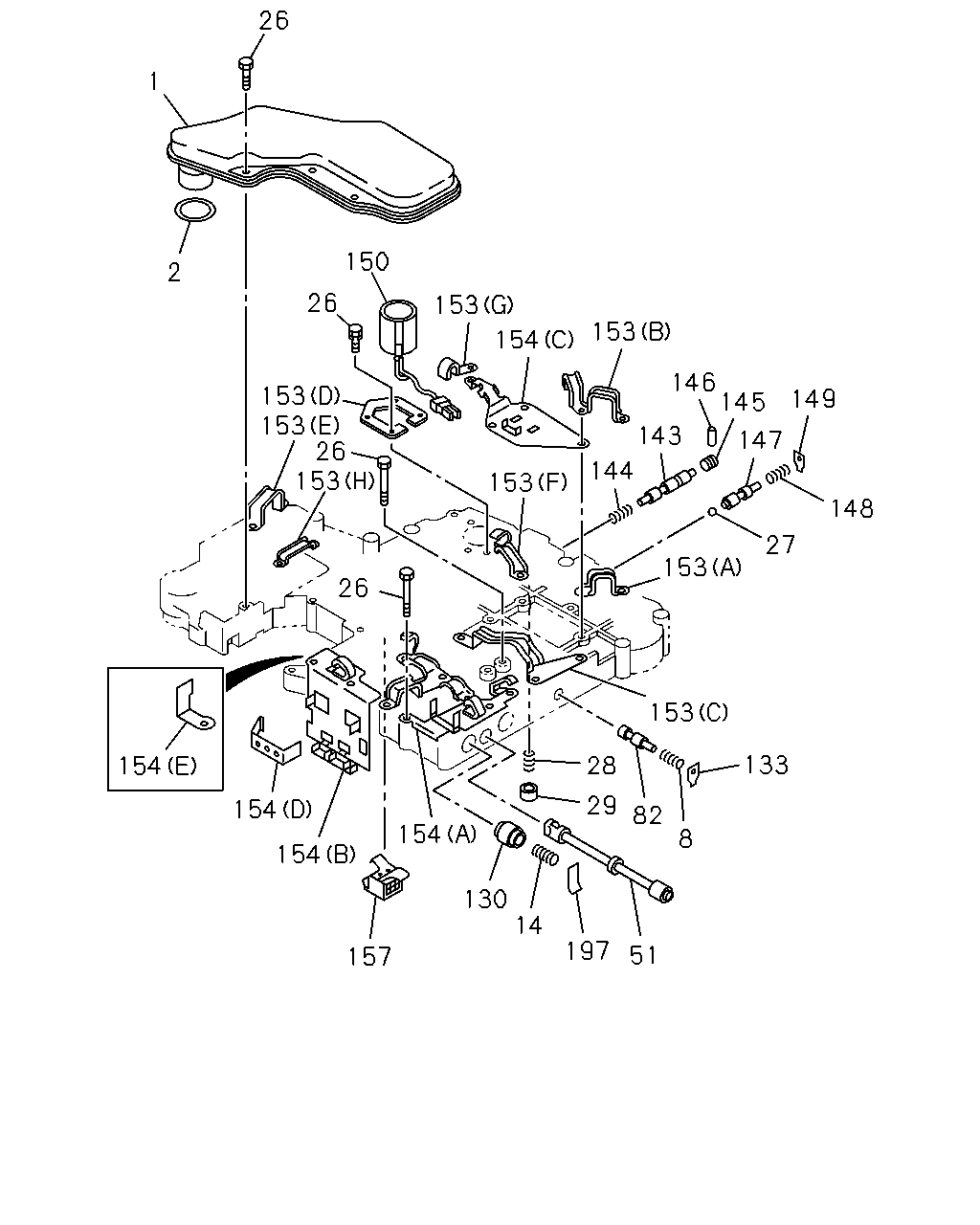

26 1 150 2 26 153 153 154 146 145 153 153 26 153 149 143 147 144 153 148 27 153 26 153 133 28 154 29 154 82 154 8 154 130 14 197 51 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T 4BD2 ENG(RLW)	8-94483-567-0	01	1	9505-	●
1	04.197 STRAINER ASM; OIL,A/T	8-97202-067-0	01	1	9802-		●
2	04.197 GASKET; OIL STRAINER,A/T 4BD2 ENG(RLW)	8-94483-568-0	01	1	9505-	●
8	04.265 SPRING; 1ST VALVE 4BD2 ENG(RLW)	8-94483-557-0	01	1	9505-	●
14	04.246 SPRING; ACCUMLATOR CONT VALVE 4BD2 ENG(RLW)	8-97092-821-0	01	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X25	8-94343-064-0	02	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X55	8-94483-587-0	01	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X45	8-94483-588-0	01	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X33	8-94483-589-0	16	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X50	8-94483-590-0	10	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X16	8-94483-591-0	02	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X70	8-94483-592-0	02	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X27	8-94483-598-0	02	1	9505-9612	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) M6X27	8-94483-598-0	02	1	9506-9612	●
27	04.265 BALL; STEEL,VLV,A/T 4BD2 ENG(RLW)	8-94320-297-0	01	1	9505-	●
28	04.265 SPRING; ORIFICE VLV,A/T 4BD2 ENG(RLW)	8-94140-856-0	01	1	9505-	●
29	04.265 VALVE; ORIFICE,CHECK,A/T 4BD2 ENG(RLW)	8-94483-605-0	01	1	9505-	●
51	04.265 VALVE; MANUAL,A/T 4BD2 ENG(RLW)	8-94483-555-0	01	1	9505-	●
82	04.262 VALVE; 1ST 4BD2 ENG(RLW)	8-94483-556-1	01	1	9505-	●
130	04.241 PISTON; ACCUMLATOR CONT 4BD2 ENG(RLW)	8-94342-922-0	01	1	9505-	●
133	04.216 PLATE; RET,1ST REDUCING VALVE 4BD2 ENG(RLW)	8-94483-558-0	01	1	9505-	●
143	04.265 VALVE; SERVO CHARGER 4BD2 ENG(RLW)	8-94483-559-0	01	1	9505-	●
144	04.265 SPRING; SERVO CHARGER VALVE 4BD2 ENG(RLW)	8-94483-560-0	01	1	9505-	●
145	04.265 PLUG; SERVO CHARGER VALVE 4BD2 ENG(RLW)	8-94483-561-0	01	1	9505-	●
146	04.265 PIN; PLUG,SERVO CHARGER VALVE 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-	●
147	04.265 VALVE; 3-2 TIMING CONT 4BD2 ENG(RLW)	8-97112-976-0	01	1	9611-	●
147	04.265 VALVE; 3-2 TIMING CONT 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97112-976-0	01	1	9505-9505	●
147	04.265 VALVE; 3-2 TIMING CONT 4BD2 ENG(RLW)	8-97112-976-0	01	1	9506-9610	●
147	04.265 VALVE; 3-2 TIMING CONT 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94316-251-0	01	1	9505-9505	●
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4BD2 ENG(RLW)	8-94316-252-0	01	1	9505-9510	●
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94316-252-0	01	1	9511-	●
148	04.265 SPRING; 3-2 TIMING CONT VALVE 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-94483-560-0	01	1	9511-	●
149	04.265 PLATE; 3-2 TIMING CONT VALVE 4BD2 ENG(RLW) 04.216	8-94483-558-0	01	1	9505-	●
150	04.265 VALVE; SOLENOID,LOCKUP 4BD2 ENG(RLW)	8-94343-060-0	01	1	9505-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4BD2 ENG(RLW) (A)	8-94483-576-0	01	1	9505-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4BD2 ENG(RLW) (E)	8-94483-580-0	01	1	9505-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4BD2 ENG(RLW) (F)	8-94483-581-0	01	1	9505-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4BD2 ENG(RLW) (G)	8-94483-582-0	01	1	9505-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4BD2 ENG(RLW) (D)	8-97024-245-0	01	1	9505-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) (H)	8-97112-970-0	01	1	9505-9505	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4BD2 ENG(RLW) (H)	8-97112-970-0	01	1	9506-	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) (B)	8-94483-577-0	01	1	9505-9505	●
153	04.265 BRACKET; OIL TUBE,LWR VALVE BODY 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) (C)	8-97044-702-0	01	1	9505-9505	●
154	04.265 CLIP; HARNESS 4BD2 ENG(RLW) (B)	8-94343-062-1	01	1	9505-	●
154	04.265 CLIP; HARNESS 4BD2 ENG(RLW) (D)	8-94343-063-0	01	1	9505-	●
154	04.265 CLIP; HARNESS 4BD2 ENG(RLW) (A)	8-94483-584-1	01	1	9505-	●
154	04.265 CLIP; HARNESS 4BD2 ENG(RLW) (C)	8-94483-586-0	01	1	9505-	●
154	04.265 CLIP; HARNESS 4BD2 ENG(RLW) (E)	8-97092-798-0	01	1	9505-	●
157	04.265 FILTER; OIL,LWR VALVE BODY 4BD2 ENG(RLW)	8-94483-604-0	01	1	9505-	●
197	04.241 PLATE; ACCUMLATOR CONT VLV 4BD2 ENG(RLW) 04.265	8-94385-910-0	01	1	9505-	●

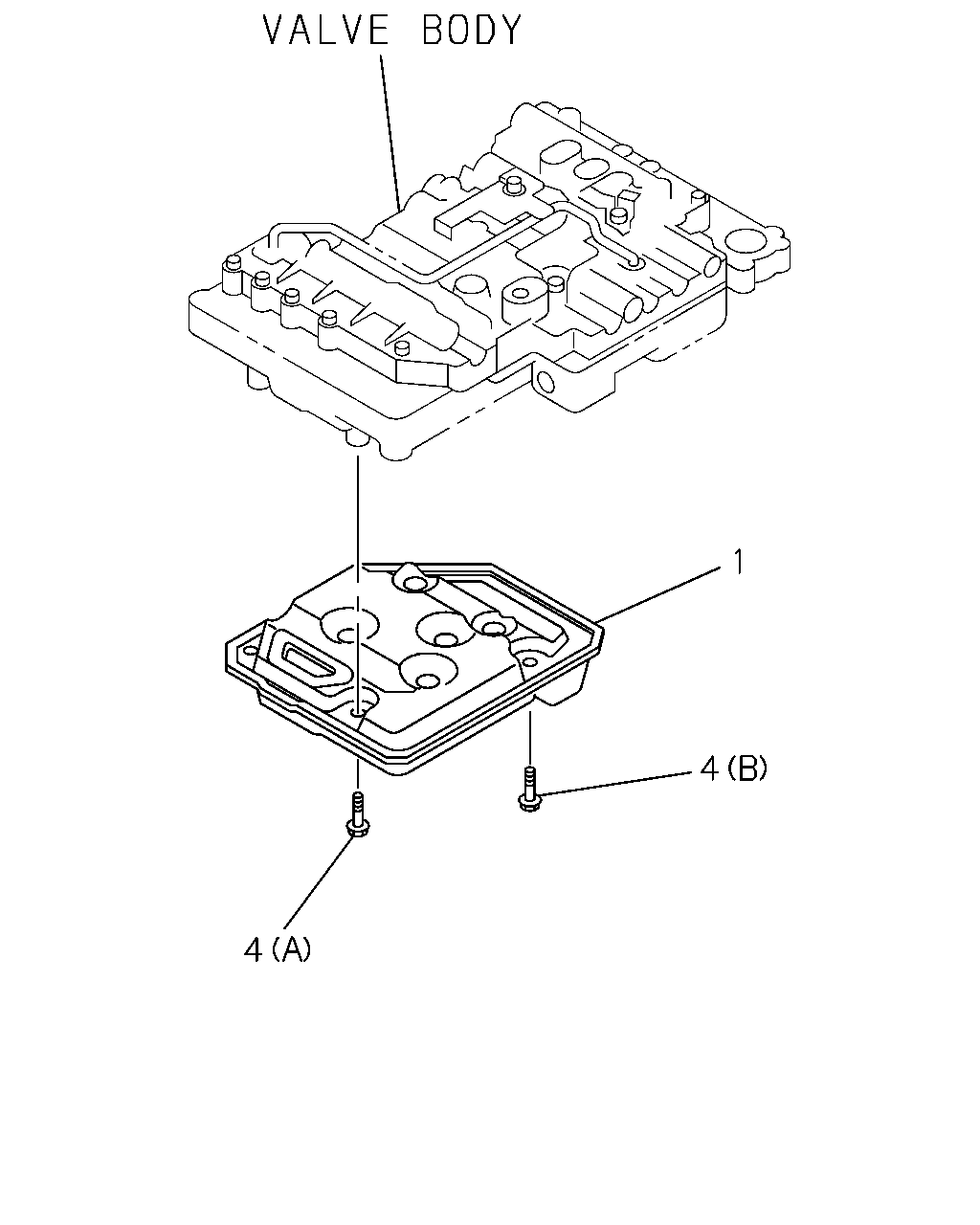

1 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T 4BD2 ENG(RLW)	8-94483-567-0	01	1	9505-	●
1	04.197 STRAINER ASM; OIL,A/T	8-97202-067-0	01	1	9802-		●
4	04.197 BOLT; OIL STRAINER,A/T (A)	8-97202-079-0	02	1	9802-		●
4	04.197 BOLT; OIL STRAINER,A/T (B)	8-97202-081-0	02	1	9802-		●

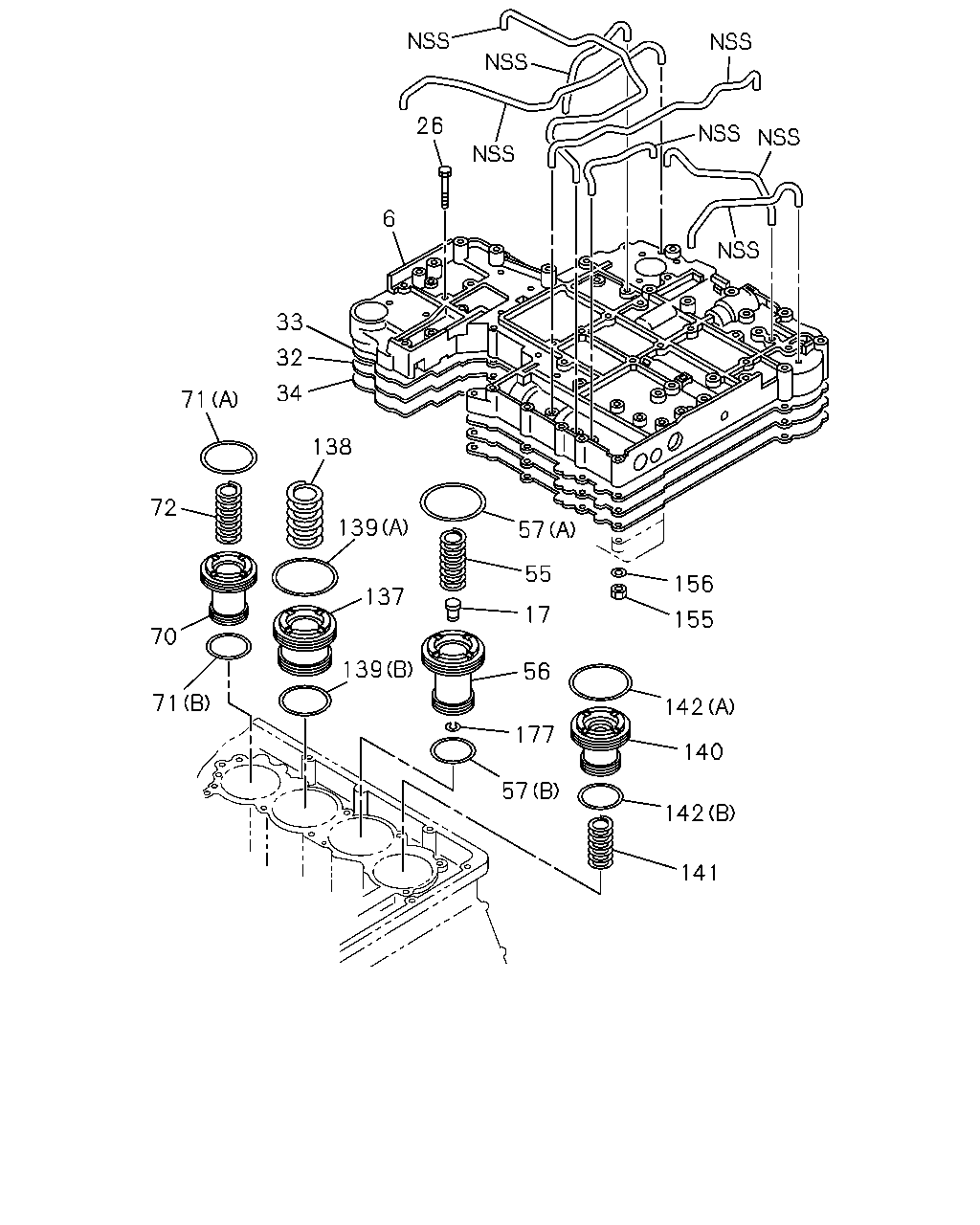

26 6 33 32 34 71 138 72 139 57 55 156 137 17 155 70 139 56 71 142 177 140 57 142 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
6	04.265 BODY ASM; VLV LWR,A/T 4BD2 ENG(RLW)	8-97027-239-0	01	1	9505-	●
17	04.265 RETAINER; ACCUMLATOR CONT VALVE 4BD2 ENG(RLW)	8-97119-871-0	01	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X25	8-94343-064-0	02	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X55	8-94483-587-0	01	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X45	8-94483-588-0	01	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X33	8-94483-589-0	16	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X50	8-94483-590-0	10	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X16	8-94483-591-0	02	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X70	8-94483-592-0	02	1	9505-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) M6X27	8-94483-598-0	02	1	9505-9612	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) M6X27	8-94483-598-0	02	1	9506-9612	●
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T 4BD2 ENG(RLW)	8-97078-326-0	01	1	9505-	●
33	04.265 GASKET; LWR,VLV BODY,A/T 4BD2 ENG(RLW)	8-94483-499-0	01	1	9505-	●
34	04.265 GASKET; UPR,VLV BODY,A/T 4BD2 ENG(RLW)	8-97092-817-0	01	1	9505-	●
55	04.246 SPRING; ACCUMLATOR PISTON 4BD2 ENG(RLW)	8-94483-483-0	01	1	9505-	●
56	04.241 PISTON; ACCUMLATOR 4BD2 ENG(RLW)	8-97119-870-0	01	1	9505-	●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4BD2 ENG(RLW) 04.242 (B) ID=26.9	8-94483-488-0	01	1	9505-	●
57	04.241 GASKET; 2ND SPD PISTON,A/T 4BD2 ENG(RLW) (A) ID=44.2	8-94483-489-0	01	1	9505-	●
70	04.241 PISTON; ACCUMLATOR 4BD2 ENG(RLW)	8-97027-236-0	01	1	9505-	●
71	04.241 GASKET; ACCUMLATOR PISTON 4BD2 ENG(RLW) (A) ID=39.4	8-94483-485-0	01	1	9505-	●
71	04.241 GASKET; ACCUMLATOR PISTON 4BD2 ENG(RLW) (B) ID=24.0	8-94483-486-0	01	1	9505-	●
72	04.233 SPRING; ACCUMLATOR PISTON 4BD2 ENG(RLW)	8-94483-482-0	01	1	9505-	●
137	04.241 PISTON; ACCUMLATOR,A/T 4BD2 ENG(RLW)	8-94483-481-0	01	1	9505-9508	●
137	04.241 PISTON; ACCUMLATOR,A/T 4BD2 ENG(RLW)	8-97138-484-0	01	1	9509-	●
138	04.246 SPRING; ACCUMLATOR PISTON 4BD2 ENG(RLW)	8-94483-484-0	01	1	9505-	●
139	04.241 GASKET; ACCUMLATOR PISTON 4BD2 ENG(RLW) (B) ID=39.4	8-94483-485-0	01	1	9505-9508	●
139	04.241 GASKET; ACCUMLATOR PISTON 4BD2 ENG(RLW) (B)	8-97138-485-0	01	1	9509-	●
139	04.241 GASKET; ACCUMLATOR PISTON 4BD2 ENG(RLW) (A) ID=44.2	8-94483-489-0	01	1	9505-9508	●
139	04.241 GASKET; ACCUMLATOR PISTON 4BD2 ENG(RLW) (A)	8-97138-486-0	01	1	9509-	●
140	04.241 PISTON; ACCUMLATOR,(N-D),A/T 4BD2 ENG(RLW)	8-97027-237-0	01	1	9505-	●
141	04.246 SPRING; ACCUMLATOR PISTON (N-D) 4BD2 ENG(RLW)	8-94483-492-0	01	1	9505-	●
142	04.241 GASKET; ACCUMLATOR PISTON 4BD2 ENG(RLW) (A) ID=39.4	8-94483-485-0	01	1	9505-	●
142	04.241 GASKET; ACCUMLATOR PISTON 4BD2 ENG(RLW) (B) ID=24.0	8-94483-486-0	01	1	9505-	●
155	04.265 NUT; VALVE BODY 4BD2 ENG(RLW)	8-97112-969-0	04	1	9611-	●
155	04.265 NUT; VALVE BODY 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97112-969-0	04	1	9505-9505	●
155	04.265 NUT; VALVE BODY 4BD2 ENG(RLW)	8-97112-969-0	04	1	9506-9610	●
155	04.265 NUT; VALVE BODY 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 04.228	8-94483-600-0	04	1	9505-9505	●
156	04.265 WASHER; PL,VALVE BODY 4BD2 ENG(RLW) 04.228	8-94483-601-0	02	1	9611-	●
156	04.265 WASHER; PL,VALVE BODY 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 04.228	8-94483-601-0	02	1	9505-9505	●
156	04.265 WASHER; PL,VALVE BODY 4BD2 ENG(RLW) 04.228	8-94483-601-0	02	1	9506-9610	●
156	04.265 WASHER; PL,VALVE BODY 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 04.228	8-94483-601-0	06	1	9505-9505	●
177	04.265 RING; SNAP 4BD2 ENG(RLW)	8-97119-872-0	01	1	9505-	●
