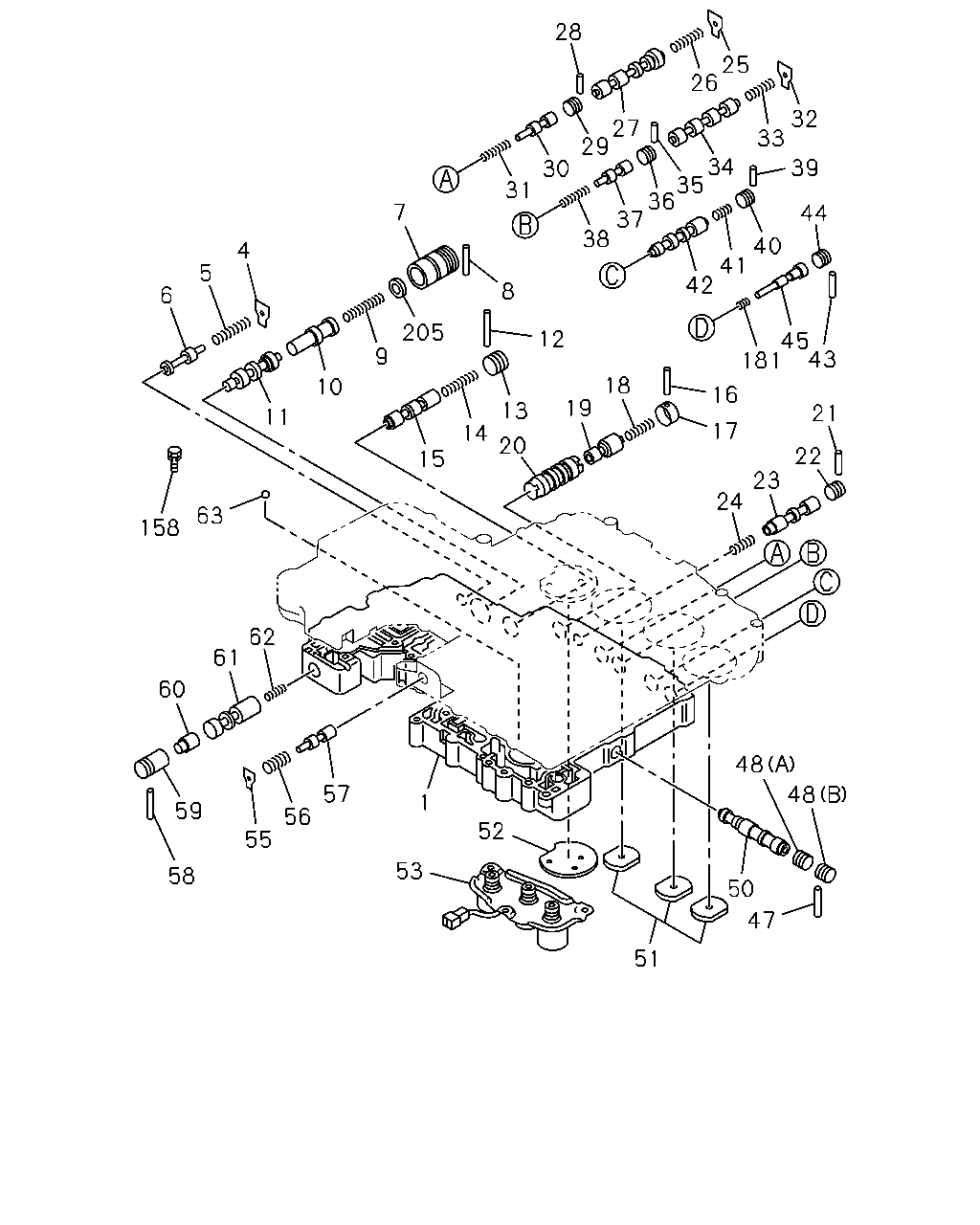

2-43D — AUTO TRANS CONTROL VALVE; UPPER BODY (#47418) — 68 parça

28 25 26 32 33 27 29 34 35 36 37 38 39 30 31 7 44 40 41 42 4 5 8 6 205 12 45 181 43 9 18 10 16 19 13 21 11 17 14 20 22 15 23 24 63 158 62 61 60 48 57 48 1 59 56 52 55 53 58 50 47 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.265 BODY ASM; UPR,VALVE,A/T 4BD2 ENG(RLW)	8-94483-496-0	01	1	9505-
4	04.265 PLATE; RET,RELIEF VALVE,A/T 4BD2 ENG(RLW)	8-94483-502-0	01	1	9505-
5	04.265 SPRING; RELIEF VALVE,UPR BODY,A/ 4BD2 ENG(RLW)	8-97024-246-0	01	1	9505-
6	04.265 VALVE; RELIEF,UPR BODY,A/T 4BD2 ENG(RLW)	8-97024-247-0	01	1	9505-
7	04.265 SLEEVE; PRESSURE REG VLV,A/T 4BD2 ENG(RLW)	8-97078-319-0	01	1	9505-
8	04.265 PIN; PRESSURE REG VLV PLUG 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
9	04.265 SPRING; PRESSURE REG VLV,A/T 4BD2 ENG(RLW)	8-97024-250-0	01	1	9505-
10	04.265 PLUG; PRESSURE REG VALVE,A/T 4BD2 ENG(RLW)	8-97078-318-0	01	1	9505-
11	04.265 VALVE; PRESSURE REG,UPR BODY,A/T 4BD2 ENG(RLW)	8-94483-503-0	01	1	9505-
12	04.265 PIN; PLUG,PRESSURE MODIFIER VLV 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
13	04.265 PLUG; PRESSURE MODIFIER VLV 4BD2 ENG(RLW)	8-94483-510-0	01	1	9505-
14	04.265 SPRING; PRESSURE MODIFIER VLV 4BD2 ENG(RLW)	8-94483-509-0	01	1	9505-
15	04.265 VALVE; PRESSURE MODIFIER,UPR BOD 4BD2 ENG(RLW)	8-94342-919-0	01	1	9505-
16	04.265 PIN; PLUG,ACCUMLATOR CONT VLV 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
17	04.265 PLUG; ACCUMLATOR CONT VLV 4BD2 ENG(RLW)	8-94483-515-0	01	1	9505-
18	04.265 SPRING; ACCUMLATOR CONT VLV 4BD2 ENG(RLW)	8-97027-246-0	01	1	9505-
19	04.265 VALVE; ACCUMLATOR CONT,UPR VLV 4BD2 ENG(RLW)	8-97078-320-0	01	1	9505-
20	04.265 SLEEVE; ACCUMLATOR CONT VLV 4BD2 ENG(RLW)	8-97078-321-0	01	1	9505-
21	04.265 PIN; PLUG,SHUTTLE SHIFT VLV 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
22	04.265 PLUG; SHUTTLE SHIFT VLV 4BD2 ENG(RLW)	8-94483-519-0	01	1	9505-
23	04.265 VALVE; SHUTTLE SHIFT,UPR BODY 4BD2 ENG(RLW)	8-94483-517-0	01	1	9505-
24	04.265 SPRING; SHUTTLE SHIFT VLV 4BD2 ENG(RLW)	8-94483-518-0	01	1	9505-
25	04.265 PLATE; RET,SHIFT CONT VLV 4BD2 ENG(RLW)	8-97044-700-0	01	1	9505-
26	04.265 SPRING; SHIFT CONT VLV 4BD2 ENG(RLW)	8-94483-522-0	01	1	9505-
27	04.265 VALVE; SHIFT CONT,UPR BODY 4BD2 ENG(RLW)	8-94483-521-0	01	1	9505-
28	04.265 PIN; PLUG,SPOOL VALVE 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
29	04.265 PLUG; SPOOL VALVE 4BD2 ENG(RLW)	8-97112-973-0	01	1	9505-
30	04.265 VALVE; SPOOL,UPR BODY 4BD2 ENG(RLW)	8-94483-524-0	01	1	9505-
31	04.265 SPRING; SPOOL VLV,UPR BODY 4BD2 ENG(RLW)	8-94483-532-0	01	1	9505-
32	04.265 PLATE; RET,SHIFT CONT VLV 4BD2 ENG(RLW)	8-94483-530-0	01	1	9505-
33	04.265 SPRING; SHIFT CONT VLV 4BD2 ENG(RLW)	8-94483-522-0	01	1	9505-
34	04.265 VALVE; SHIFT CONT 4BD2 ENG(RLW)	8-94483-528-0	01	1	9505-
35	04.265 PIN; PLUG,SPOOL CONT VLV 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
36	04.265 PLUG; SPOOL CONT VLV,UPR BODY 4BD2 ENG(RLW)	8-97112-973-0	01	1	9505-
37	04.265 VALVE; SPOOL CONT,UPR BODY 4BD2 ENG(RLW)	8-94483-524-0	01	1	9505-
38	04.265 SPRING; SPOOL CONT VLV 4BD2 ENG(RLW)	8-94483-532-0	01	1	9505-
39	04.265 PIN; PLUG,OVERRUN CLU CONT VALVE 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
40	04.265 PLUG; OVERRUN CLU CONT VALVE 4BD2 ENG(RLW)	8-97112-974-0	01	1	9505-
41	04.265 SPRING; OVERRUN CLU CONT VALVE 4BD2 ENG(RLW)	8-94483-536-0	01	1	9505-
42	04.265 VALVE; OVERRUN CLU CONT 4BD2 ENG(RLW)	8-94483-535-0	01	1	9505-
43	04.265 PIN; PLUG,OVERRUN CLU REDUCING V 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
44	04.265 PLUG; OVERRUN CLU REDUCING VALVE 4BD2 ENG(RLW)	8-97112-974-0	01	1	9505-
45	04.265 VALVE; OVERRUN CLU REDUCING 4BD2 ENG(RLW)	8-97027-247-0	01	1	9505-
47	04.265 PIN; PLUG,SHUTTLE SHIFT CONT VAL 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
48	04.265 PLUG; SHUTTLE SHIFT CONT VALVE 4BD2 ENG(RLW) (A)	8-94483-519-0	01	1	9505-
48	04.265 PLUG; SHUTTLE SHIFT CONT VALVE 4BD2 ENG(RLW) (B)	8-97078-322-0	01	1	9505-
50	04.265 VALVE; SHUTTLE,SHIFT CONT 4BD2 ENG(RLW)	8-97027-248-0	01	1	9505-
51	04.265 PLATE; SUPPORT,ACCUMLATOR PISTON 4BD2 ENG(RLW) 04.241	8-94483-607-0	03	1	9505-9509
51	04.265 PLATE; SUPPORT,ACCUMLATOR PISTON 4BD2 ENG(RLW)	8-97140-016-0	03	1	9510-
52	04.265 PLATE; SIDE,SOLENOID VALVE 4BD2 ENG(RLW)	8-97027-253-0	01	1	9505-
53	04.265 VALVE; SOLENOID,UPR VLV BODY 4BD2 ENG(RLW)	8-94343-061-0	01	1	9505-
55	04.265 PLATE; RET,PILOT VALVE SPRING 4BD2 ENG(RLW)	8-94483-502-0	01	1	9505-
56	04.265 SPRING; PILOT VALVE,SPOOL CONT 4BD2 ENG(RLW)	8-94483-544-0	01	1	9505-
57	04.265 VALVE; PILOT,SPOOL CONT 4BD2 ENG(RLW)	8-94483-543-0	01	1	9505-
58	04.265 PIN; PLUG,LOCKUP CONT VALVE 4BD2 ENG(RLW)	8-94483-507-0	01	1	9505-
59	04.265 SLEEVE; LOCKUP CONT VALVE 4BD2 ENG(RLW)	8-94483-548-0	01	1	9505-
60	04.265 PLUG; LOCKUP CONT VALVE 4BD2 ENG(RLW)	8-94483-547-0	01	1	9505-
61	04.265 VALVE; LOCKUP CONT,UPR BODY 4BD2 ENG(RLW)	8-94342-920-0	01	1	9505-
62	04.265 SPRING; LOCKUP CONT VALVE 4BD2 ENG(RLW)	8-94342-921-0	01	1	9505-
63	04.265 BALL; STEEL,VLV UPR,A/T 4BD2 ENG(RLW)	8-97135-609-0	09	1	9611-
63	04.265 BALL; STEEL,VLV UPR,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97135-609-0	09	1	9505-9505
63	04.265 BALL; STEEL,VLV UPR,A/T 4BD2 ENG(RLW)	8-97135-609-0	09	1	9506-9610
63	04.265 BALL; STEEL,VLV UPR,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94320-297-0	09	1	9505-9505
158	04.115 BOLT; SOLENOID 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 04.265 M6X27	8-94483-598-0	02	1	9506-9510
158	04.115 BOLT; SOLENOID 4BD2 ENG(RLW) 04.265 M6X27	8-94483-598-0	02	1	9511-
181	04.265 SPRING; OVERRUN CLU REDUCING VAL 4BD2 ENG(RLW)	8-97044-701-0	01	1	9505-
205	04.265 SEAT; SPR 4BD2 ENG(RLW) 04.256	8-97024-249-0	01	1	9505-

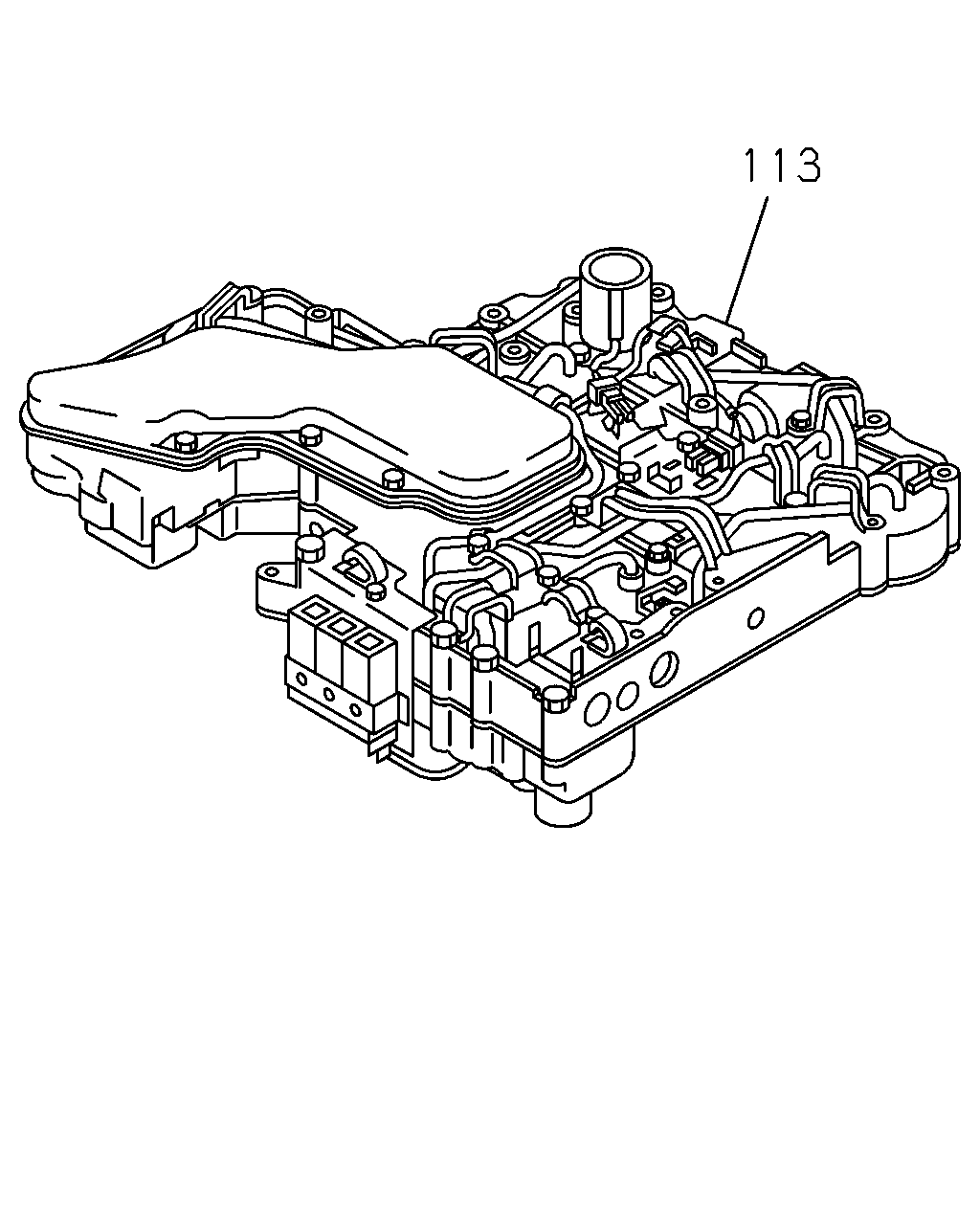

113

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	113	04.265 VALVE ASM; CONT,A/T 4BD2 ENG(RLW)	8-97092-825-0	01	1	9505-
