2-42D — AUTO TRANS OIL PAN AND OIL CONTROL (#47417) — 63 parça

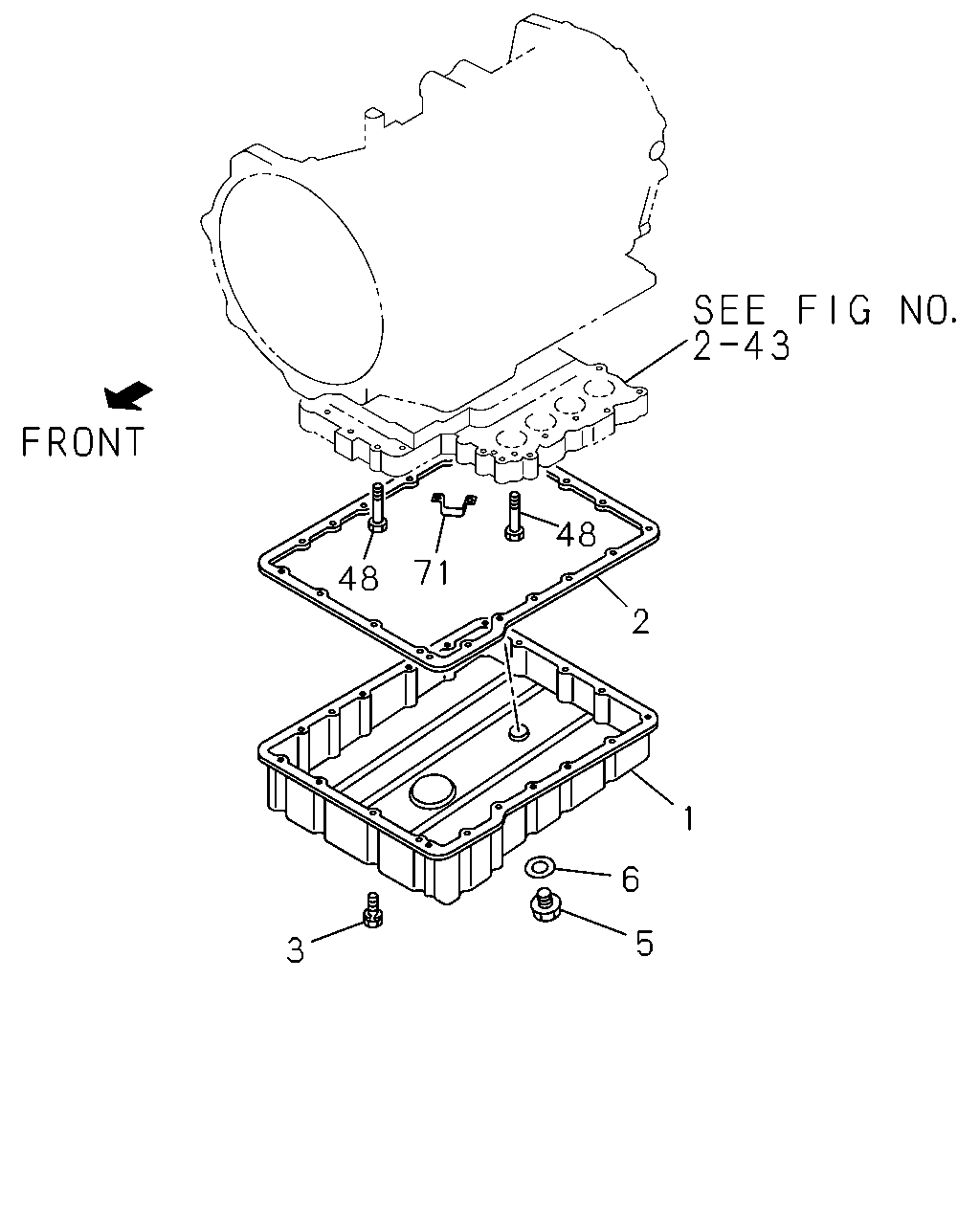

çizim 18600
48 71 48 2 1 6 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) 		8-94483-347-0 01 1 9611-9709 ●
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) 		8-97189-182-0 01 1 9710- ●
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-94483-347-0 01 1 9505-9505 ●
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) 		8-94483-347-0 01 1 9506-9610 ●
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97027-232-0 01 1 9505-9505 ●
1 04.195 PAN ASM; OIL,A/T 8-97202-066-0 01 1 9802- ●
2 04.196 GASKET; OIL PAN,A/T
4BD2 ENG(RLW) 		8-97109-221-0 01 1 9611- ●
2 04.196 GASKET; OIL PAN,A/T
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97109-221-0 01 1 9505-9505 ●
2 04.196 GASKET; OIL PAN,A/T
4BD2 ENG(RLW) 		8-97109-221-0 01 1 9506-9610 ●
2 04.196 GASKET; OIL PAN,A/T
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-94483-346-0 01 1 9505-9505 ●
3 04.196 BOLT; OIL PAN TO CASE
4BD2 ENG(RLW) 		8-97134-264-0 18 1 9611- ●
3 04.196 BOLT; OIL PAN TO CASE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97134-264-0 18 1 9505-9505 ●
3 04.196 BOLT; OIL PAN TO CASE
4BD2 ENG(RLW) 		8-97134-264-0 18 1 9506-9610 ●
3 04.196 BOLT; OIL PAN TO CASE
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-94483-348-0 18 1 9505-9505 ●
3 04.196 BOLT; OIL PAN TO CASE 8-97202-101-0 20 1 9802- ●
5 04.195 PLUG; OIL PAN
4BD2 ENG(RLW) 		8-97131-023-0 01 1 9611- ●
5 04.195 PLUG; OIL PAN
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97131-023-0 01 1 9505-9505 ●
5 04.195 PLUG; OIL PAN
4BD2 ENG(RLW) 		8-97131-023-0 01 1 9506-9610 ●
5 04.195 PLUG; OIL PAN
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97044-670-0 01 1 9505-9505 ●
5 04.195 PLUG; OIL PAN 1-34139-022-0 01 1 9802- ●
6 04.195 GASKET; OIL PAN TO PLUG
4BD2 ENG(RLW) 		8-97044-671-0 01 1 9505- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97202-032-0 01 1 9802- ●
48 04.265 BOLT; VLV BODY,A/T
4BD2 ENG(RLW) M6X33 		8-94483-589-0 12 1 9505- ●
48 04.265 BOLT; VLV BODY,A/T
4BD2 ENG(RLW) M6X45 		8-94483-609-0 08 1 9505- ●
71 04.265 CLIP; HARNESS,A/T CASE
4BD2 ENG(RLW) 		8-94483-610-0 01 1 9505- ●
çizim 18607
10 13 11 12
BalonParca AdiParca NoAdetTipApplied Date A B
10 04.197 GAUGE; OIL LEVEL
4BD2 ENG(RLW) 		8-97074-654-4 01 1 9505- ●
10 04.197 GAUGE; OIL LEVEL 8-97148-698-3 01 1 9802- ●
11 04.197 TUBE; OIL FILLER
4BD2 ENG(RLW) 		8-97074-038-1 01 1 9505- ●
11 04.197 TUBE; OIL FILLER 8-97148-538-2 01 1 9802- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
4BD2 ENG(RLW) 06.673 		9-09561-216-0 01 1 9505- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 9802- ●
13 04.197 BOLT; OIL FILLER
4BD2 ENG(RLW) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9505- ●

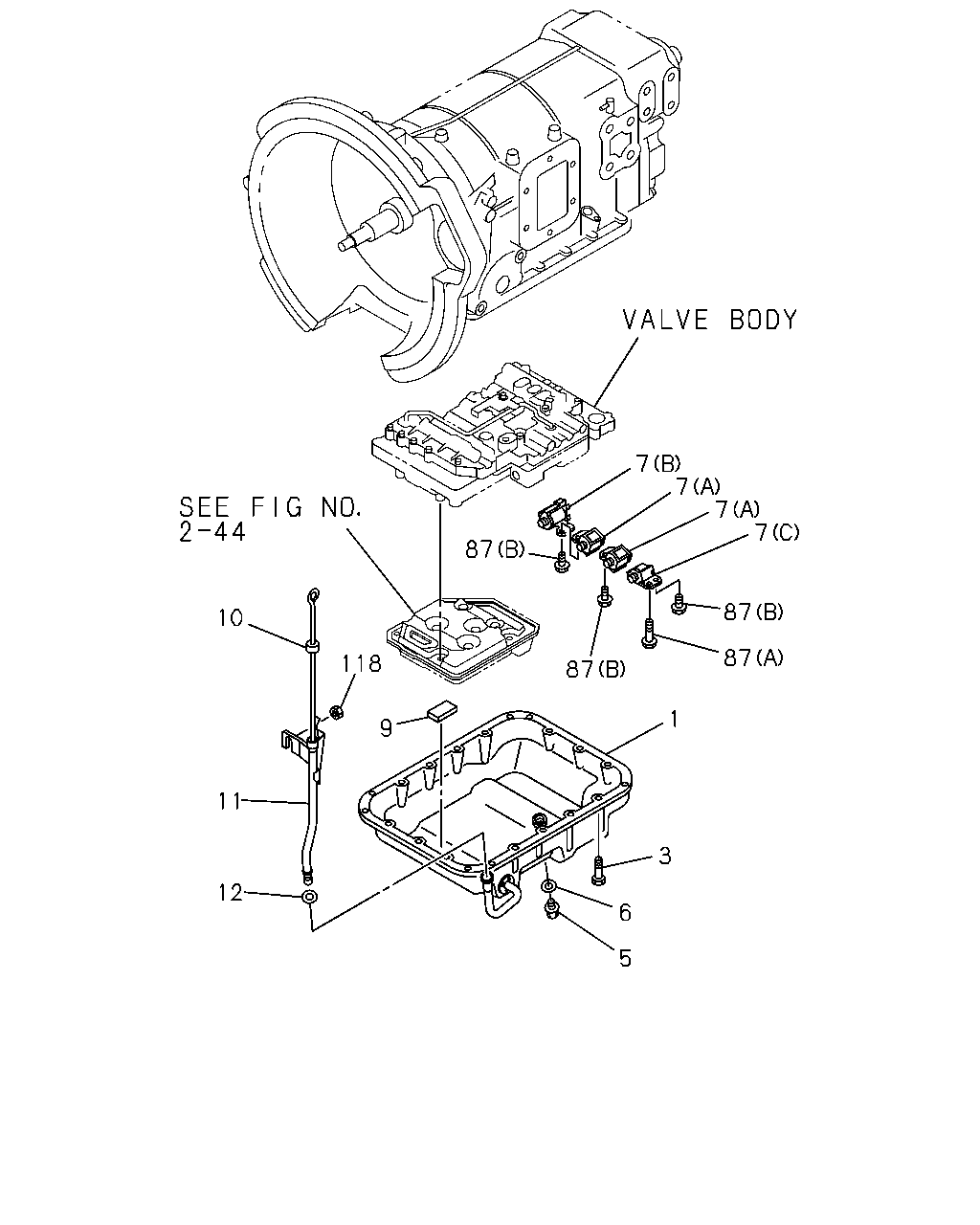

çizim 70767
7 7 7 7 87 87 10 87 118 87 1 9 11 3 12 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) 		8-94483-347-0 01 1 9611-9709 ●
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) 		8-97189-182-0 01 1 9710- ●
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-94483-347-0 01 1 9505-9505 ●
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) 		8-94483-347-0 01 1 9506-9610 ●
1 04.195 PAN ASM; OIL,A/T
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97027-232-0 01 1 9505-9505 ●
1 04.195 PAN ASM; OIL,A/T 8-97202-066-0 01 1 9802- ●
3 04.196 BOLT; OIL PAN TO CASE
4BD2 ENG(RLW) 		8-97134-264-0 18 1 9611- ●
3 04.196 BOLT; OIL PAN TO CASE
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97134-264-0 18 1 9505-9505 ●
3 04.196 BOLT; OIL PAN TO CASE
4BD2 ENG(RLW) 		8-97134-264-0 18 1 9506-9610 ●
3 04.196 BOLT; OIL PAN TO CASE
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-94483-348-0 18 1 9505-9505 ●
3 04.196 BOLT; OIL PAN TO CASE 8-97202-101-0 20 1 9802- ●
5 04.195 PLUG; OIL PAN
4BD2 ENG(RLW) 		8-97131-023-0 01 1 9611- ●
5 04.195 PLUG; OIL PAN
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97131-023-0 01 1 9505-9505 ●
5 04.195 PLUG; OIL PAN
4BD2 ENG(RLW) 		8-97131-023-0 01 1 9506-9610 ●
5 04.195 PLUG; OIL PAN
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97044-670-0 01 1 9505-9505 ●
5 04.195 PLUG; OIL PAN 1-34139-022-0 01 1 9802- ●
6 04.195 GASKET; OIL PAN TO PLUG
4BD2 ENG(RLW) 		8-97044-671-0 01 1 9505- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97202-032-0 01 1 9802- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(A) 		8-97202-072-0 02 1 9802- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(B) 		8-97202-073-0 01 1 9802- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(C) 		8-97202-074-0 01 1 9802- ●
9 04.195 MAGNET; OIL PAN 8-97202-068-0 04 1 9802- ●
10 04.197 GAUGE; OIL LEVEL
4BD2 ENG(RLW) 		8-97074-654-4 01 1 9505- ●
10 04.197 GAUGE; OIL LEVEL 8-97148-698-3 01 1 9802- ●
11 04.197 TUBE; OIL FILLER
4BD2 ENG(RLW) 		8-97074-038-1 01 1 9505- ●
11 04.197 TUBE; OIL FILLER 8-97148-538-2 01 1 9802- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
4BD2 ENG(RLW) 06.673 		9-09561-216-0 01 1 9505- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 9802- ●
87 04.265 BOLT; SOLENOID
(A) 		8-97202-080-0 01 1 9802- ●
87 04.265 BOLT; SOLENOID
(B) 		8-97202-099-0 03 1 9802- ●
118 04.197 NUT; OIL FILLER TUBE
04.785 M10 FLANGE 		0-91150-110-0 01 1 9802- ●
