2-41D — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#47416) — 150 parça

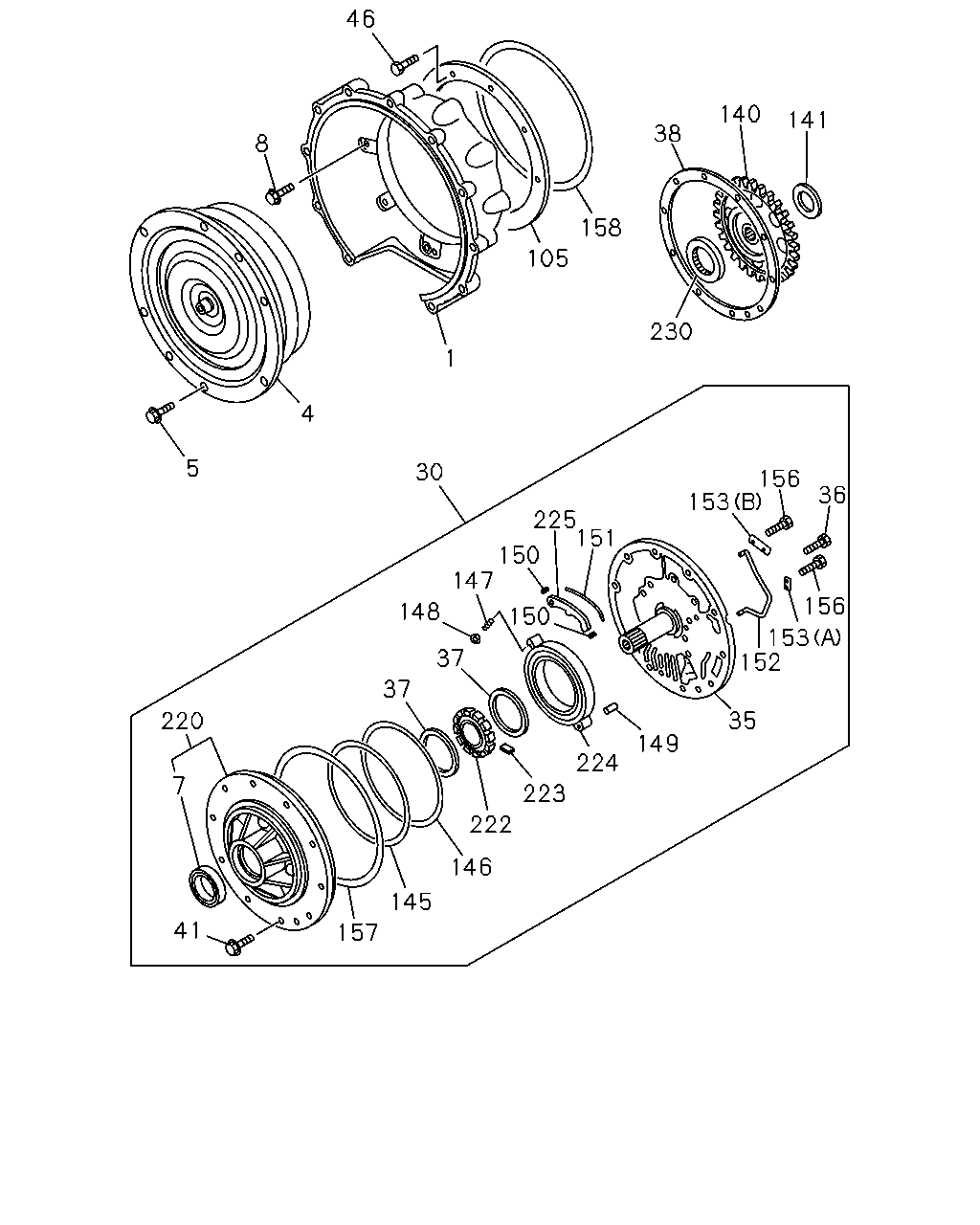

46 140 141 38 8 158 105 230 1 4 5 30 156 153 36 225 151 150 147 156 150 148 153 152 37 37 35 220 149 224 7 223 222 146 145 41 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T 4BD2 ENG(RLW)	8-94483-326-0	01	1	9505-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97133-022-0	01	1	9505-9505	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4BD2 ENG(RLW)	8-97133-022-0	01	1	9506-9709	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4BD2 ENG(RLW)	8-97183-139-0	01	1	9710-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97129-721-0	01	1	9505-9505	●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97202-043-0	01	1	9802-		●
5	04.008 BOLT; RR PLATE TO TORQUE CONV 4BD2 ENG(RLW) 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9505-9801	●
5	04.008 BOLT; RR PLATE TO TORQUE CONV 4BD2 ENG(RLW) 03.405 M10X25 FLANGE	0-28681-025-0	06	1	9802-	●
5	04.008 BOLT; RR PLATE TO TORQUE CONV 03.405 M10X30 FLANGE	0-28681-030-0	06	1	9802-		●
7	04.226 SEAL; OIL,LIP,A/T 4BD2 ENG(RLW)	8-97135-606-0	01	1	9611-	●
7	04.226 SEAL; OIL,LIP,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97135-606-0	01	1	9505-9505	●
7	04.226 SEAL; OIL,LIP,A/T 4BD2 ENG(RLW)	8-97135-606-0	01	1	9506-9610	●
7	04.226 SEAL; OIL,LIP,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-289-0	01	1	9505-9505	●
8	04.217 BOLT; HSG TO CASE 4BD2 ENG(RLW) M13X40 M12X40	8-94483-327-0	08	1	9505-	●
8	04.217 BOLT; HSG TO CASE 4BD2 ENG(RLW) 04.290 M10X49 M10X49	8-94483-337-0	02	1	9505-	●
30	04.224 PUMP ASM; OIL,A/T 4BD2 ENG(RLW)	8-94483-288-1	01	1	9505-9709	●
30	04.224 PUMP ASM; OIL,A/T 4BD2 ENG(RLW)	8-97177-197-0	01	1	9710-	●
35	04.224 COVER; OIL PUMP,A/T 4BD2 ENG(RLW)	8-97044-674-0	01	1	9505-	●
36	04.226 BOLT; OIL PUMP COVER,A/T 4BD2 ENG(RLW)	8-94483-297-0	06	1	9505-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4BD2 ENG(RLW)	8-94483-310-0	02	1	9505-	●
38	04.226 GASKET; OIL PUMP,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97109-223-0	01	1	9505-9505	●
38	04.226 GASKET; OIL PUMP,A/T 4BD2 ENG(RLW)	8-97109-223-0	01	1	9506-	●
38	04.226 GASKET; OIL PUMP,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-318-0	01	1	9505-9505	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97112-975-0	10	1	9505-9505	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4BD2 ENG(RLW)	8-97112-975-0	10	1	9506-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-301-0	10	1	9505-9505	●
46	04.226 BOLT; RET 4BD2 ENG(RLW)	8-94483-320-0	10	1	9505-	●
105	04.226 SPACER; OIL PUMP 4BD2 ENG(RLW)	8-94483-325-0	01	1	9505-	●
140	04.175 GEAR; PTO DRIVE,A/T 4BD2 ENG(RLW)	8-97092-785-0	01	1	9505-	●
141	04.176 BEARING; THRUST,PTO DRIVE GEAR 4BD2 ENG(RLW)	8-94483-242-0	01	1	9505-	●
145	04.226 RING; FRICTION,OIL PUMP CAM RING 4BD2 ENG(RLW)	8-94483-290-0	01	1	9505-	●
146	04.226 GASKET; CAM RING,OIL PUMP 4BD2 ENG(RLW)	8-94483-291-1	01	1	9505-	●
147	04.226 SPRING; CAM RING,OIL PUMP 4BD2 ENG(RLW)	8-94483-292-0	01	1	9505-	●
148	04.226 RETAINER; SPRING,CAM RING,OIL PU 4BD2 ENG(RLW)	8-94483-293-0	01	1	9505-	●
149	04.226 PIN; PIVOT,OIL PUMP 4BD2 ENG(RLW)	8-94483-294-0	02	1	9505-	●
150	04.166 SEAL; CONT PISTON,SIDE,OIL PUMP 4BD2 ENG(RLW)	8-94483-295-0	02	1	9505-	●
151	04.166 SEAL; CONT PISTON,OIL PUMP 4BD2 ENG(RLW)	8-94483-296-0	01	1	9505-	●
152	04.226 TUBE; OIL,OIL PUMP,A/T 4BD2 ENG(RLW)	8-94483-299-0	01	1	9505-	●
153	04.226 BRACKET; OIL TUBE,A/T 4BD2 ENG(RLW) (B)	8-94483-300-0	01	1	9505-	●
153	04.226 BRACKET; OIL TUBE,A/T 4BD2 ENG(RLW) (A)	8-94483-308-0	01	1	9505-	●
156	04.226 BOLT; OIL TUBE BRKT,OIL PUMP 4BD2 ENG(RLW) M8X12	8-94483-307-0	02	1	9505-	●
156	04.226 BOLT; OIL TUBE BRKT,OIL PUMP 4BD2 ENG(RLW) M8X55	8-94483-309-0	02	1	9505-	●
157	04.166 SEAL; GASKET,OIL PUMP,A/T 4BD2 ENG(RLW)	8-94483-298-0	01	1	9505-	●
158	04.166 SEAL; OIL PUMP TO A/T CASE 4BD2 ENG(RLW)	8-94483-319-0	01	1	9505-	●
220	04.200 HOUSING ASM; OIL PUMP,A/T 4BD2 ENG(RLW)	8-97044-673-1	01	1	9505-	●
222	04.224 ROTOR; OIL PUMP 4BD2 ENG(RLW) T=16.967	8-97066-822-0	01	1	9505-	●
222	04.224 ROTOR; OIL PUMP 4BD2 ENG(RLW) T=16.974	8-97066-823-0	01	1	9505-	●
222	04.224 ROTOR; OIL PUMP 4BD2 ENG(RLW) T=16.981	8-97066-824-0	01	1	9505-	●
222	04.224 ROTOR; OIL PUMP 4BD2 ENG(RLW) T=16.988	8-97066-825-0	01	1	9505-	●
223	04.224 VANE; OIL PUMP 4BD2 ENG(RLW) T=16.967	8-97066-814-0	13	1	9505-	●
223	04.224 VANE; OIL PUMP 4BD2 ENG(RLW) T=16.974	8-97066-815-0	13	1	9505-	●
223	04.224 VANE; OIL PUMP 4BD2 ENG(RLW) T=16.981	8-97066-816-0	13	1	9505-	●
223	04.224 VANE; OIL PUMP 4BD2 ENG(RLW) T=16.988	8-97066-817-0	13	1	9505-	●
224	04.224 RING; CAM 4BD2 ENG(RLW) T=16.987	8-97066-826-1	01	1	9505-	●
224	04.224 RING; CAM 4BD2 ENG(RLW) T=16.994	8-97066-827-1	01	1	9505-	●
224	04.224 RING; CAM 4BD2 ENG(RLW) T=17.001	8-97066-828-1	01	1	9505-	●
224	04.224 RING; CAM 4BD2 ENG(RLW) T=17.008	8-97066-829-1	01	1	9505-	●
225	04.224 PISTON; CONT 4BD2 ENG(RLW) T=13.467	8-97066-818-0	01	1	9505-	●
225	04.224 PISTON; CONT 4BD2 ENG(RLW) T=13.474	8-97066-819-0	01	1	9505-	●
225	04.224 PISTON; CONT 4BD2 ENG(RLW) T=13.481	8-97066-820-0	01	1	9505-	●
225	04.224 PISTON; CONT 4BD2 ENG(RLW) T=13.488	8-97066-821-0	01	1	9505-	●
230	04.176 BEARING; BALL,PTO DRIVE GEAR 4BD2 ENG(RLW)	8-97044-690-0	01	1	9505-	●

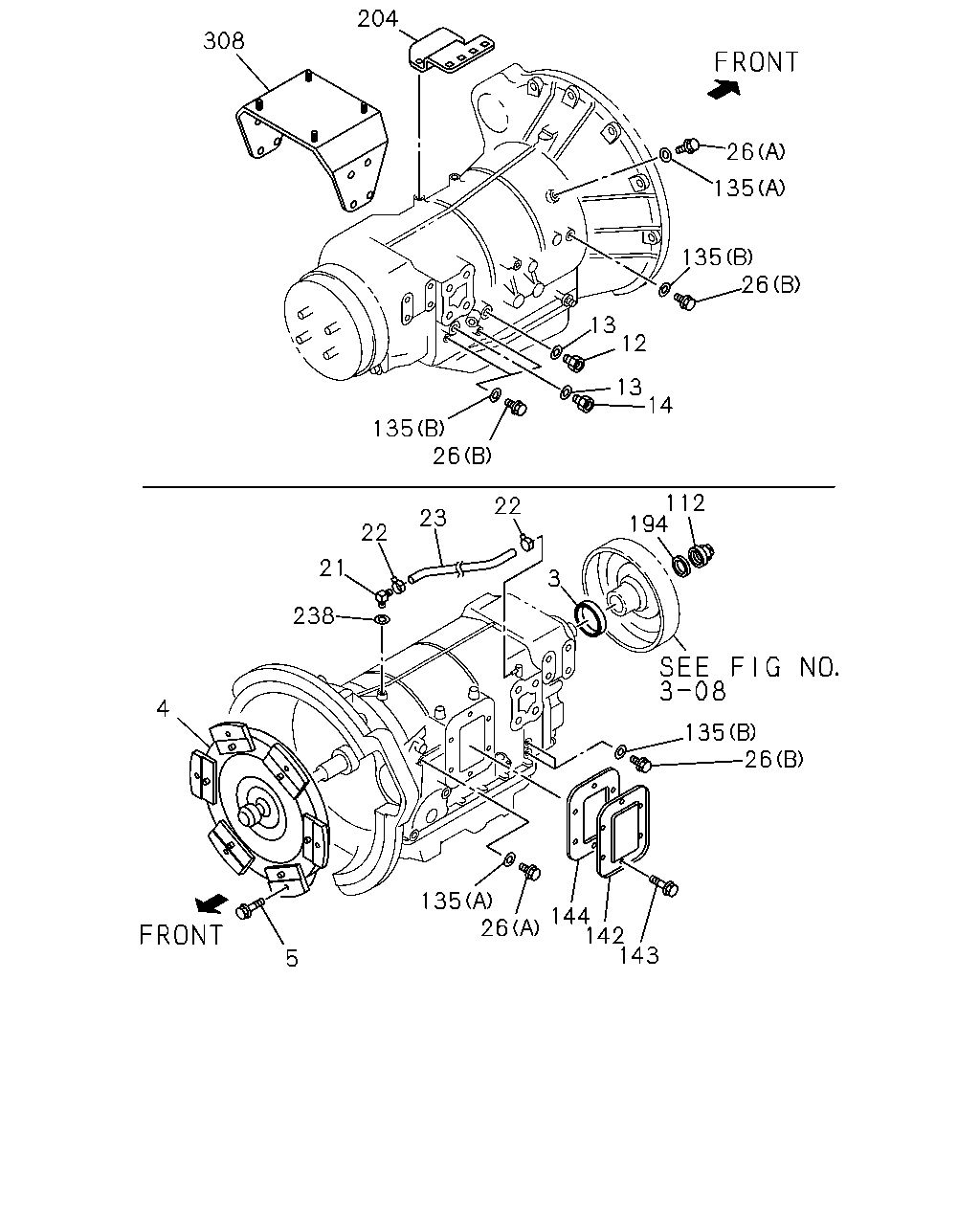

204 308 26 135 135 26 13 12 13 14 135 26 112 194 22 23 22 21 3 238 4 135 26 135 26 144 142 143 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.241 SEAL; OIL,RR COVER,A/T 4BD2 ENG(RLW)	8-94483-329-0	01	1	9505-	●
3	04.241 SEAL; OIL,RR COVER,A/T	8-97202-071-0	01	1	9802-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97133-022-0	01	1	9505-9505	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4BD2 ENG(RLW)	8-97133-022-0	01	1	9506-9709	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4BD2 ENG(RLW)	8-97183-139-0	01	1	9710-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97129-721-0	01	1	9505-9505	●
4	04.115 CONVERTER ASM; TORQUE,A/T	8-97202-043-0	01	1	9802-		●
5	04.008 BOLT; RR PLATE TO TORQUE CONV 4BD2 ENG(RLW) 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9505-9801	●
5	04.008 BOLT; RR PLATE TO TORQUE CONV 4BD2 ENG(RLW) 03.405 M10X25 FLANGE	0-28681-025-0	06	1	9802-	●
5	04.008 BOLT; RR PLATE TO TORQUE CONV 03.405 M10X30 FLANGE	0-28681-030-0	06	1	9802-		●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP	8-97202-090-0	01	1	9802-		●
13	04.205 GASKET; OIL COOLER PIPE	8-97202-084-0	02	1	9802-		●
14	04.205 UNION; OIL COOLER RETURN PIPE 4BD2 ENG(RLW)	8-94320-411-0	01	1	9505-	●
14	04.205 UNION; OIL COOLER RETURN PIPE	8-97202-090-0	01	1	9802-		●
21	04.104 PLUG; BREATHER,A/T	8-97202-098-0	01	1	9802-		●
22	04.101 CLIP; BREATHER HOSE,A/T 4BD2 ENG(RLW) 04.104 ID=12 & 16.5	8-94400-865-0	02	1	9505-9505	●
22	04.101 CLIP; BREATHER HOSE,A/T 4BD2 ENG(RLW) 03.162 ID=12 L=35	5-09700-206-0	01	1	9511-9709	●
22	04.101 CLIP; BREATHER HOSE,A/T	1-09701-190-0	02	1	9802-		●
23	04.101 HOSE; BREATHER,A/T 4BD2 ENG(RLW) 08.962 L=880 SERVICED BY L=3000	0-04750-300-0	01	1	9505-9505	●
23	04.101 HOSE; BREATHER,A/T	8-97202-070-0	01	1	9802-		●
26	04.195 PLUG; TRANS CASE (A)	1-34119-017-0	02	1	9802-		●
26	04.195 PLUG; TRANS CASE (B)	1-34559-007-0	05	1	9802-		●
112	04.176 NUT; COUPLING DRIVER,A/T 4BD2 ENG(RLW)	8-97129-649-0	01	1	9505-	●
112	04.176 NUT; COUPLING DRIVER,A/T	8-97202-082-0	01	1	9802-		●
135	04.195 GASKET; PLUG,A/T CASE (B)	1-09623-581-0	05	1	9802-		●
135	04.195 GASKET; PLUG,A/T CASE (A)	1-09623-604-0	02	1	9802-		●
142	04.318 COVER; PTO HOLE,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-284-0	01	1	9505-9505	●
142	04.318 COVER; PTO HOLE,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97119-879-0	01	1	9506-	●
142	04.318 COVER; PTO HOLE,A/T CASE	8-97202-050-0	01	1	9802-		●
143	04.319 BOLT; HOLE COVER,PTO,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-251-0	06	1	9505-	●
143	04.319 BOLT; HOLE COVER,PTO,A/T	8-97202-102-0	06	1	9802-		●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-285-0	01	1	9505-9505	●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97109-222-0	01	1	9506-	●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE	8-97202-051-0	01	1	9802-		●
194	04.205 GASKET; COUPLING DRIVE 4BD2 ENG(RLW)	8-97100-696-0	01	1	9505-	●
194	04.205 GASKET; COUPLING DRIVE	8-97202-087-0	01	1	9802-		●
204	04.226 BRACKET; HARNESS CONNECTOR	8-97180-853-1	01	1	9802-		●
238	04.195 GASKET; PLUG	8-97202-083-0	01	1	9802-		●
308	04.083 BRACKET; RR ENG MTG 00.029	8-97120-177-1	01	1	9802-		●

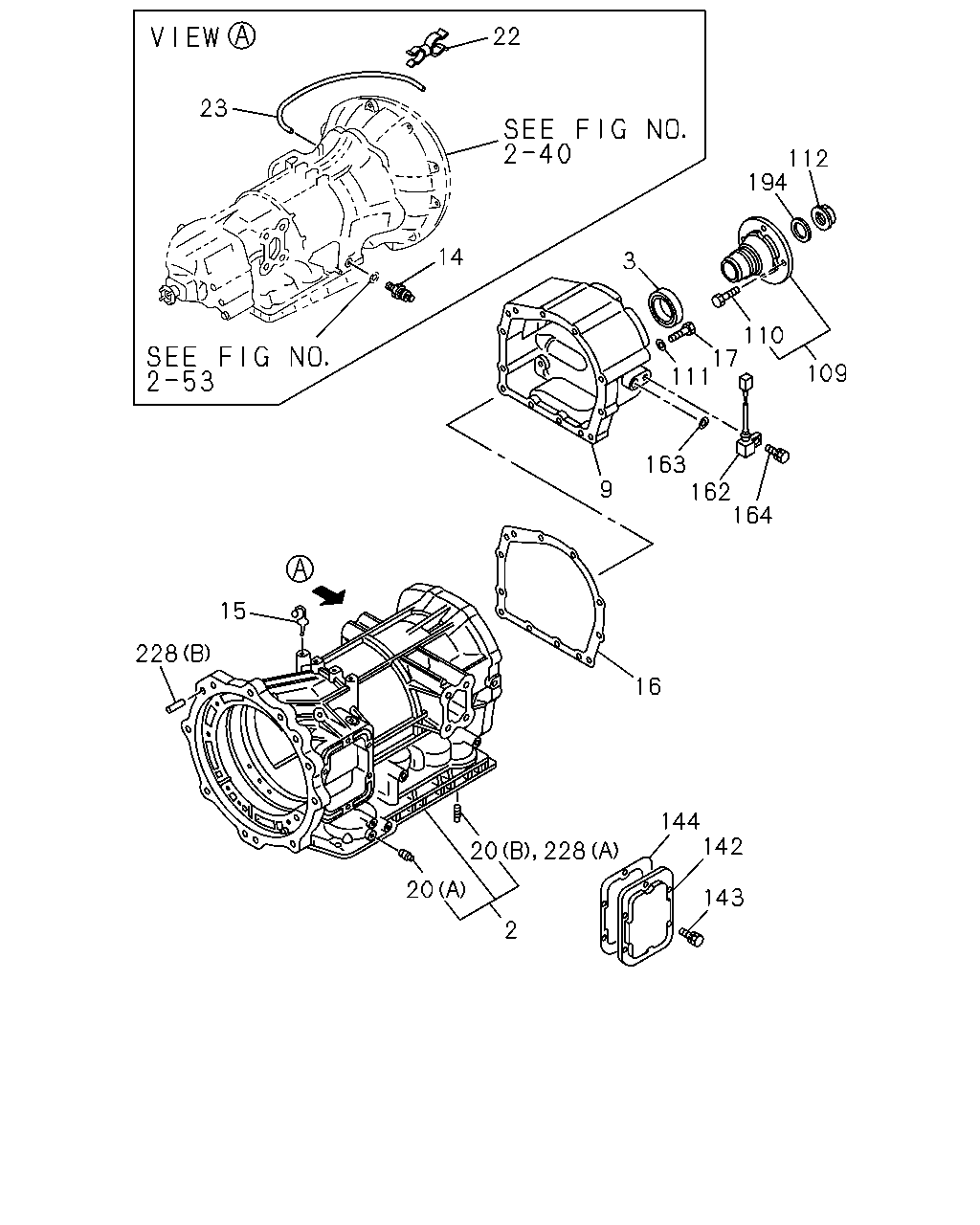

22 23 112 194 14 3 110 17 111 109 163 162 164 9 15 228 16 144 142 20 228 20 143 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.103 CASE ASM; A/T 4BD2 ENG(RLW)	8-97161-743-0	01	1	9511-9709	●
2	04.103 CASE ASM; A/T 4BD2 ENG(RLW)	8-97178-706-0	01	1	9710-	●
2	04.103 CASE ASM; A/T 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97119-874-0	01	1	9505-9505	●
2	04.103 CASE ASM; A/T 4BD2 ENG(RLW)	8-97119-874-0	01	1	9506-9510	●
2	04.103 CASE ASM; A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97111-150-0	01	1	9505-9505	●
3	04.241 SEAL; OIL,RR COVER,A/T 4BD2 ENG(RLW)	8-94483-329-0	01	1	9505-	●
3	04.241 SEAL; OIL,RR COVER,A/T	8-97202-071-0	01	1	9802-		●
9	04.317 COVER ASM; RR,A/T 4BD2 ENG(RLW)	8-97044-668-0	01	1	9505-9709	●
9	04.317 COVER ASM; RR,A/T 4BD2 ENG(RLW)	8-97178-707-0	01	1	9710-	●
14	04.205 UNION; OIL COOLER RETURN PIPE 4BD2 ENG(RLW)	8-94320-411-0	01	1	9505-	●
14	04.205 UNION; OIL COOLER RETURN PIPE	8-97202-090-0	01	1	9802-		●
15	04.104 BREATHER; A/T CASE 4BD2 ENG(RLW)	8-97068-817-0	01	1	9505-9510	●
15	04.104 BREATHER; A/T CASE 4BD2 ENG(RLW)	8-97044-669-0	01	1	9511-	●
16	04.318 GASKET; EXT HSG 4BD2 ENG(RLW)	8-97109-220-0	01	1	9611-	●
16	04.318 GASKET; EXT HSG 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66)	8-97109-220-0	01	1	9505-9505	●
16	04.318 GASKET; EXT HSG 4BD2 ENG(RLW)	8-97109-220-0	01	1	9506-9610	●
16	04.318 GASKET; EXT HSG 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-334-0	01	1	9505-9505	●
17	04.319 BOLT; REAR COVER TO CASE 4BD2 ENG(RLW) M10X100	8-94483-342-0	03	1	9505-	●
17	04.319 BOLT; REAR COVER TO CASE 4BD2 ENG(RLW) M10X115	8-94483-343-0	03	1	9505-	●
17	04.319 BOLT; REAR COVER TO CASE 4BD2 ENG(RLW) M10X50	8-94483-344-0	04	1	9505-	●
20	04.105 PLUG; TAPER,A/T CASE 4BD2 ENG(RLW) (B)	8-97092-790-0	02	1	9505-	●
20	04.105 PLUG; TAPER,A/T CASE 4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 04.104 (A)	8-94140-708-0	07	1	9505-9505	●
20	04.105 PLUG; TAPER,A/T CASE 4BD2 ENG(RLW) 04.104 (A)	8-94140-708-0	07	1	9506-	●
20	04.105 PLUG; TAPER,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 04.104 (A)	8-94140-708-0	06	1	9505-9505	●
22	04.101 CLIP; BREATHER HOSE,A/T 4BD2 ENG(RLW) 04.104 ID=12 & 16.5	8-94400-865-0	02	1	9505-9505	●
22	04.101 CLIP; BREATHER HOSE,A/T 4BD2 ENG(RLW) 03.162 ID=12 L=35	5-09700-206-0	01	1	9511-9709	●
22	04.101 CLIP; BREATHER HOSE,A/T	1-09701-190-0	02	1	9802-		●
23	04.101 HOSE; BREATHER,A/T 4BD2 ENG(RLW) 08.962 L=880 SERVICED BY L=3000	0-04750-300-0	01	1	9505-9505	●
23	04.101 HOSE; BREATHER,A/T	8-97202-070-0	01	1	9802-		●
109	04.175 DRIVER; COUPLING,A/T 4BD2 ENG(RLW)	8-97092-812-0	01	1	9505-	●
110	04.176 BOLT; COUPLING DRIVER,A/T 4BD2 ENG(RLW) 05.605 M12X41	8-94476-729-0	04	1	9505-	●
111	04.319 WASHER; PL,RR COVER 4BD2 ENG(RLW) 04.317	8-94483-345-0	11	1	9505-	●
112	04.176 NUT; COUPLING DRIVER,A/T 4BD2 ENG(RLW)	8-97129-649-0	01	1	9505-	●
112	04.176 NUT; COUPLING DRIVER,A/T	8-97202-082-0	01	1	9802-		●
142	04.318 COVER; PTO HOLE,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-284-0	01	1	9505-9505	●
142	04.318 COVER; PTO HOLE,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97119-879-0	01	1	9506-	●
142	04.318 COVER; PTO HOLE,A/T CASE	8-97202-050-0	01	1	9802-		●
143	04.319 BOLT; HOLE COVER,PTO,A/T 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-251-0	06	1	9505-	●
143	04.319 BOLT; HOLE COVER,PTO,A/T	8-97202-102-0	06	1	9802-		●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-94483-285-0	01	1	9505-9505	●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE 4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66)	8-97109-222-0	01	1	9506-	●
144	04.316 GASKET; PTO HOLE COVER,A/T CASE	8-97202-051-0	01	1	9802-		●
162	04.054 SENSOR; REVOLUTION,A/T CONT 4BD2 ENG(RLW)	8-97039-486-0	01	1	9505-	●
163	04.054 GASKET; REV SENSOR,A/T 4BD2 ENG(RLW) 04.205	8-94483-615-0	01	1	9505-	●
164	04.054 BOLT; REV SENSOR,A/T 4BD2 ENG(RLW) 04.205	8-94483-616-0	01	1	9505-	●
194	04.205 GASKET; COUPLING DRIVE 4BD2 ENG(RLW)	8-97100-696-0	01	1	9505-	●
194	04.205 GASKET; COUPLING DRIVE	8-97202-087-0	01	1	9802-		●
228	04.105 DOWEL; CASE,A/T 4BD2 ENG(RLW) (B)	8-97044-667-0	04	1	9505-	●
228	04.105 DOWEL; CASE,A/T 4BD2 ENG(RLW) (A)	8-97148-998-0	01	1	9511-	●
