◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-40D - AUTO TRANS ASM AND REPAIR KIT ▶
2-40D — AUTO TRANS ASM AND REPAIR KIT (#47415) — 31 parça

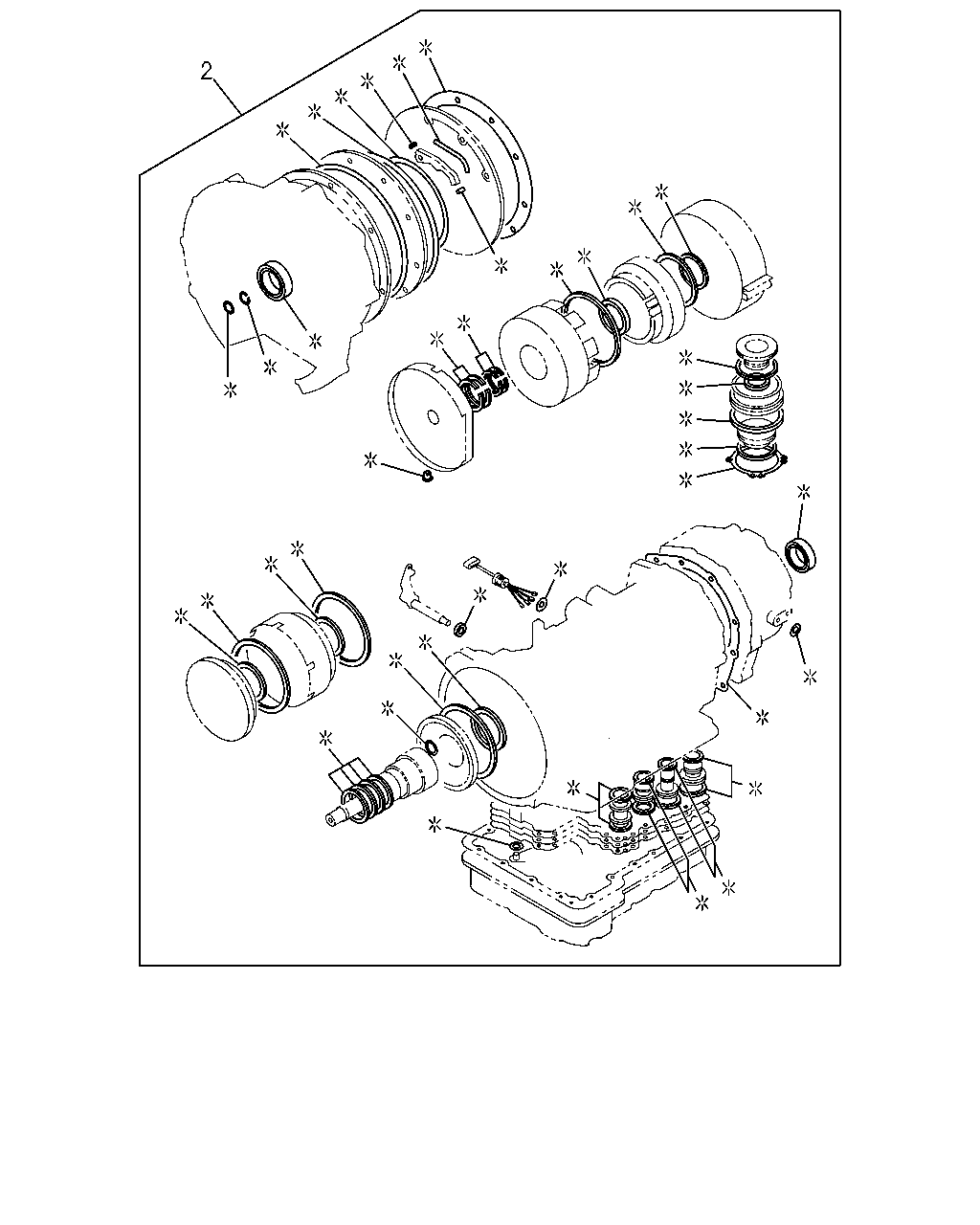

çizim 18609
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.005 REPAIR KIT; A/T
4BD2 ENG(RLW) 		8-97010-855-0 01 1 9505-9510 ●
2 04.005 REPAIR KIT; A/T
4BD2 ENG(RLW) 		8-97171-225-0 01 1 9511- ●

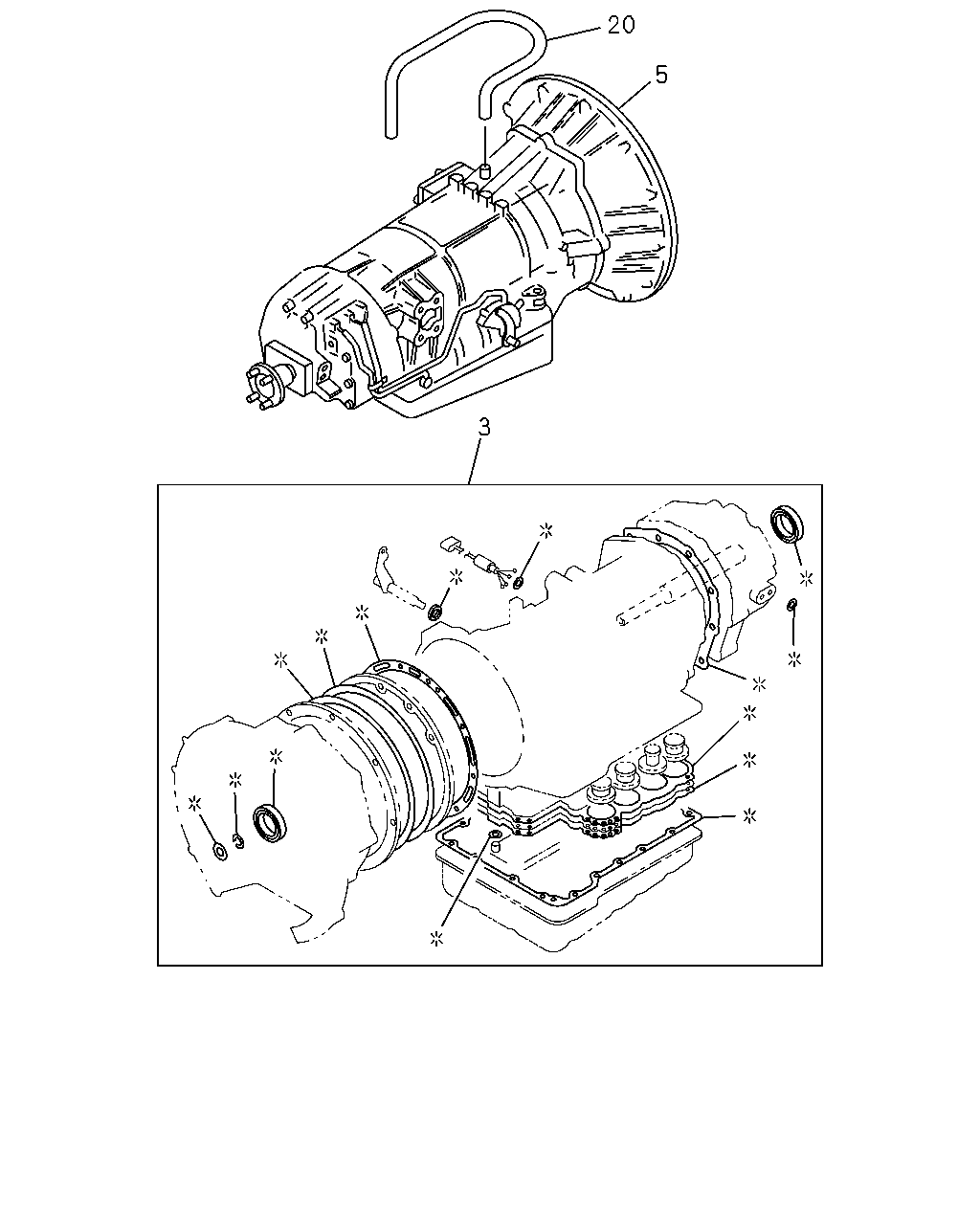

çizim 18862
20 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.005 REPAIR KIT; SEAL & GASKET,A/T
4BD2 ENG(RLW) 		8-94316-250-0 01 1 9505- ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97131-350-0 01 1 9505-9510 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97142-729-0 01 1 9511-9610 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97164-515-0 01 1 9611-9709 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97170-488-0 01 1 9710- ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97122-786-0 01 1 9505-9505 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97131-949-0 01 1 9506-9510 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97142-726-0 01 1 9511-9610 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97164-510-0 01 1 9611-9709 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97170-486-0 01 1 9710- ●
5 04.003 TRANSMISSION ASM; AUTO 8-97183-866-0 01 1 9802-9803 ●
5 04.003 TRANSMISSION ASM; AUTO 8-97207-641-0 01 1 9804-9809 ●
5 04.003 TRANSMISSION ASM; AUTO 8-97212-771-0 01 1 9810- ●
20 04.104 HOSE; AIR BREATHER
4BD2 ENG(RLW) 		8-97123-052-0 01 1 9506-9510 ●
20 04.104 HOSE; AIR BREATHER
4BD2 ENG(RLW) L=750 		8-97143-174-0 01 1 9511-9610 ●
20 04.104 HOSE; AIR BREATHER
4BD2 ENG(RLW) L=750 		8-97143-174-0 01 1 9701-9709 ●
20 04.104 HOSE; AIR BREATHER
4BD2 ENG(RLW) 		8-97178-810-0 01 1 9710- ●

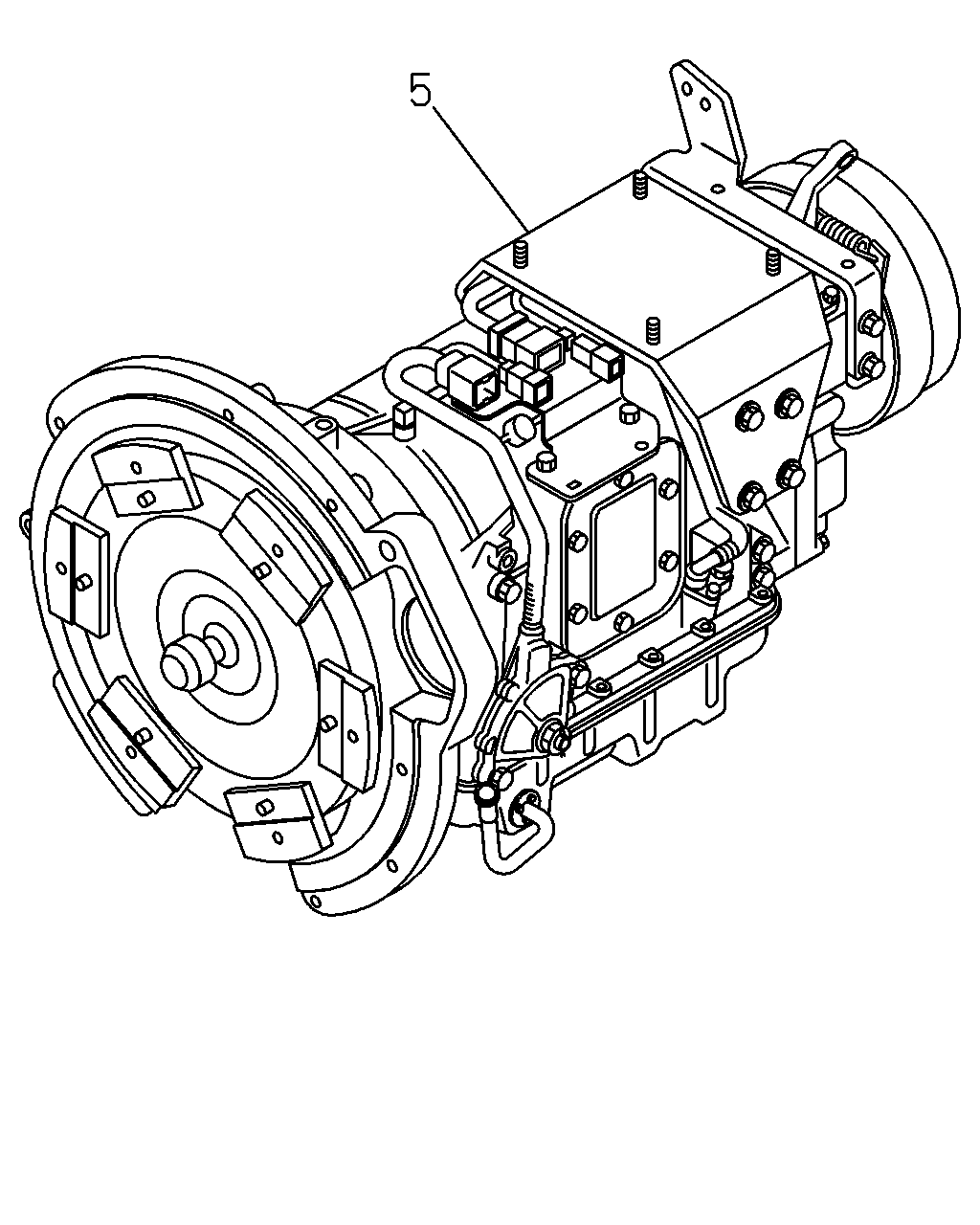

çizim 19331
5
BalonParca AdiParca NoAdetTipApplied Date A B
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97131-350-0 01 1 9505-9510 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97142-729-0 01 1 9511-9610 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97164-515-0 01 1 9611-9709 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) PTO TRANSMISSION SIDE(V66) 		8-97170-488-0 01 1 9710- ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97122-786-0 01 1 9505-9505 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97131-949-0 01 1 9506-9510 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97142-726-0 01 1 9511-9610 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97164-510-0 01 1 9611-9709 ●
5 04.003 TRANSMISSION ASM; AUTO
4BD2 ENG(RLW) EXC. PTO TRANSMISSION SIDE(V66) 		8-97170-486-0 01 1 9710- ●
5 04.003 TRANSMISSION ASM; AUTO 8-97183-866-0 01 1 9802-9803 ●
5 04.003 TRANSMISSION ASM; AUTO 8-97207-641-0 01 1 9804-9809 ●
5 04.003 TRANSMISSION ASM; AUTO 8-97212-771-0 01 1 9810- ●
