2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#47412) — 349 parça

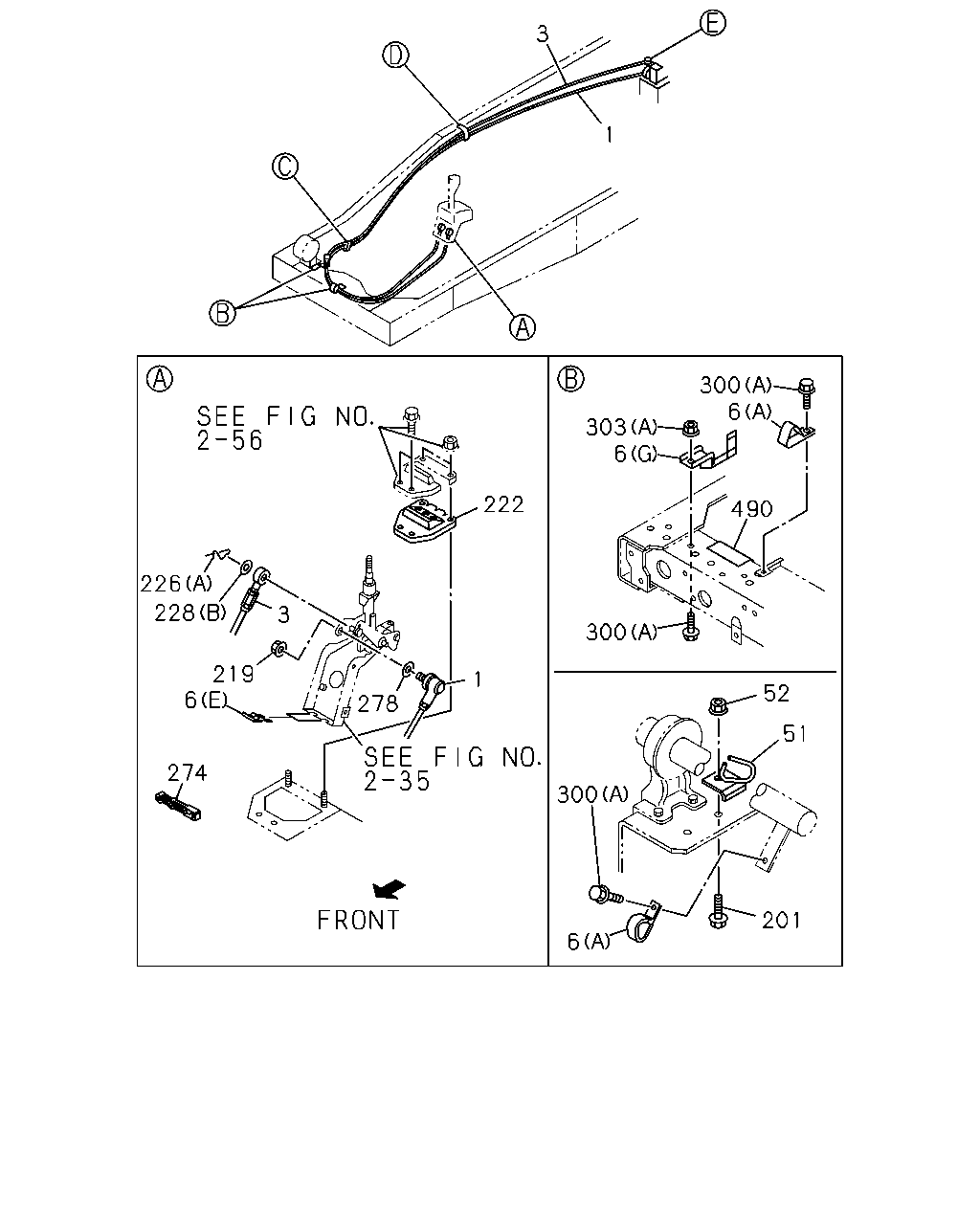

çizim 70766
3 1 300 6 303 6 222 490 226 228 3 300 219 6 1 52 278 51 274 300 201 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.854 CABLE; SHIFT,TRANS CONT 8-97073-285-2 01 1 9411-9505 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) 		8-97073-285-2 01 1 9506-9510 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-285-3 01 1 9511-9711 ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-285-3 01 1 9712- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) 		8-97094-249-1 01 1 9312-9510 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-249-2 01 1 9511-9711 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-249-2 01 1 9712-9804 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2990 		8-97203-059-0 01 1 9805- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97202-563-0 01 1 9802- ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD1 ENG(LJ6) 		8-97082-956-1 01 1 9312-9510 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=2975 		8-97096-512-1 01 1 9511-9711 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2975 		8-97096-512-1 01 1 9712- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 		8-97109-429-2 01 1 9511-9711 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97109-429-2 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3141 		8-97073-291-2 01 1 9411-9505 ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) L=3141 		8-97073-291-2 01 1 9506-9510 ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> L=3141 		8-97073-291-2 01 1 9511-9711 ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3141 		8-97073-291-2 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=3055 		8-97094-251-1 01 1 9312-9510 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3055 		8-97094-251-1 01 1 9511-9711 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3055 		8-97094-251-1 01 1 9712-9804 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3055 		8-97203-062-0 01 1 9805- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-0 01 1 9802- ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD1 ENG(LJ6) 		8-97082-963-1 01 1 9312-9510 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=3044 		8-97096-507-1 01 1 9511-9711 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3044 		8-97096-507-1 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> L=3128 		8-97109-430-1 01 1 9511-9711 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3128 		8-97109-430-1 01 1 9712- ● ●
6 04.047 CLIP; CABLE
03.162 (C) ID=16.5 		8-94240-646-1 01 1 9312-9510 ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9511-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
(D) ID=19.2 		8-94365-914-2 02 1 9312-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(D) ID=19.2 		8-94365-914-2 02 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
(E) 		8-97011-448-0 02 1 9312-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(E) 		8-97011-448-0 02 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9312-9406 ● ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9312-9406 ● ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9407-9510 ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9407-9510 ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9511-9611 ● ● ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9511-9611 ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9511-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9312-9406 ● ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9407-9510 ● ●
6 04.047 CLIP; CABLE
NPR DBL CAB(NP**W*) 04.785 (G) 		8-94133-416-2 01 1 9312-9510 ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9511-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (F) 		8-97028-508-2 01 1 9312-9506 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (F) 		8-97028-508-2 01 1 9507-9510 ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9511-9711 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97028-508-2 01 1 9712-9804 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9712-9802 ● ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9712-9802 ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9712-9802 ● ● ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9712-9802 ● ● ●
6 04.047 CLIP; CABLE
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9803- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-94365-914-2 02 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-94365-914-2 02 1 9802-9808 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9809- ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9803- ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9511-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9511-9711 ● ●
6 04.047 CLIP; CABLE
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9712-9804 ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805- ● ●
6 04.047 CLIP; CABLE
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805- ● ●
51 04.010 BRACKET; GEAR CONT
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97103-513-1 01 1 9511-9711 ● ● ● ●
51 04.010 BRACKET; GEAR CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97103-513-1 01 1 9712-9801 ● ● ● ●
51 04.010 BRACKET; GEAR CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97103-513-1 01 1 9802- ● ● ● ●
52 04.047 NUT; BRKT
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9511-9711 ● ● ● ●
52 04.047 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9712-9801 ● ● ● ●
52 04.047 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9802- ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506 ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506 ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9507-9510 ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ● ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 09.008 M10X20 FLANGE 		0-28081-020-0 01 1 9511-9606 ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9607-9711 ● ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9712-9801 ● ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9802- ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9312-9611 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9612-9711 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9712-9801 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-9802 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9803- ● ● ● ●
222 04.010 GROMMET; CABLE 8-97091-890-0 01 1 9312-9611 ● ● ● ●
222 04.010 GROMMET; CABLE 8-97091-890-0 01 1 9612-9711 ● ● ● ●
222 04.010 GROMMET; CABLE
FLOOR REMOTE SHIFT<M11> 		8-97091-890-0 01 1 9712- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9312-9611 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9612-9711 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9712- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9312-9611 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9612-9711 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9712- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9312-9611 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9612-9707 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-9711 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9712- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9312-9611 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9612-9711 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9712- ● ● ● ●
274 04.008 CLIP; CONT CABLE 8-97093-491-1 01 1 9312-9508 ● ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9509-9510 ● ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9511-9801 ● ● ● ●
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9802- ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9312-9611 ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9612-9711 ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9712- ● ● ● ●
281 04.042 CLIP; BAND
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 L=250 		5-09707-030-1 01 1 9712-9801 ●
281 04.042 CLIP; BAND
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 L=250 		5-09707-030-1 01 1 9802- ●
300 00.854 BOLT; CLIP
03.670 (B) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9510 ● ● ● ●
300 00.854 BOLT; CLIP
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 03.670 (B) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9711 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) M6X20 FLANGE 		0-28680-620-0 01 1 9712- ● ● ● ●
300 00.854 BOLT; CLIP
07.010 (A) M8X20 FLANGE 		0-28080-820-0 02 1 9312-9411 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9412-9510 ● ● ● ●
300 00.854 BOLT; CLIP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ●
300 00.854 BOLT; CLIP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9510 ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ● ● ●
300 00.854 BOLT; CLIP
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9706-9709 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9706-9709 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9706-9709 ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-9711 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9712-9802 ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9803- ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9710-9711 ● ● ● ●
300 00.854 BOLT; CLIP
4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9710-9711 ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9712-9802 ● ● ● ●
300 00.854 BOLT; CLIP
4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9712-9802 ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ● ● ●
300 00.854 BOLT; CLIP
4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ● ●
303 00.855 NUT; CLIP
NPR DBL CAB(NP**W*) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
303 00.855 NUT; CLIP
NPR DBL CAB(NP**W*) 01.062 (B) M6 FLANGE 		0-91150-206-0 01 1 9312-9510 ● ● ● ●
303 00.855 NUT; CLIP
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91150-206-0 01 1 9511-9711 ● ● ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91150-206-0 01 1 9712- ● ● ● ●
490 04.010 PROTECTOR; EDGE
NPR DBL CAB(NP**W*) 03.008 L=80 		5-22439-006-0 01 1 9312-9401 ● ● ● ●
490 04.010 PROTECTOR; EDGE
NPR DBL CAB(NP**W*) 04.785 L=200 		8-97096-423-0 01 1 9402-9406 ● ● ● ●
490 04.010 PROTECTOR; EDGE
NPR DBL CAB(NP**W*) 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9407-9510 ● ● ● ●
490 04.010 PROTECTOR; EDGE
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9511-9711 ● ● ● ●
490 04.010 PROTECTOR; EDGE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9712- ● ● ● ●

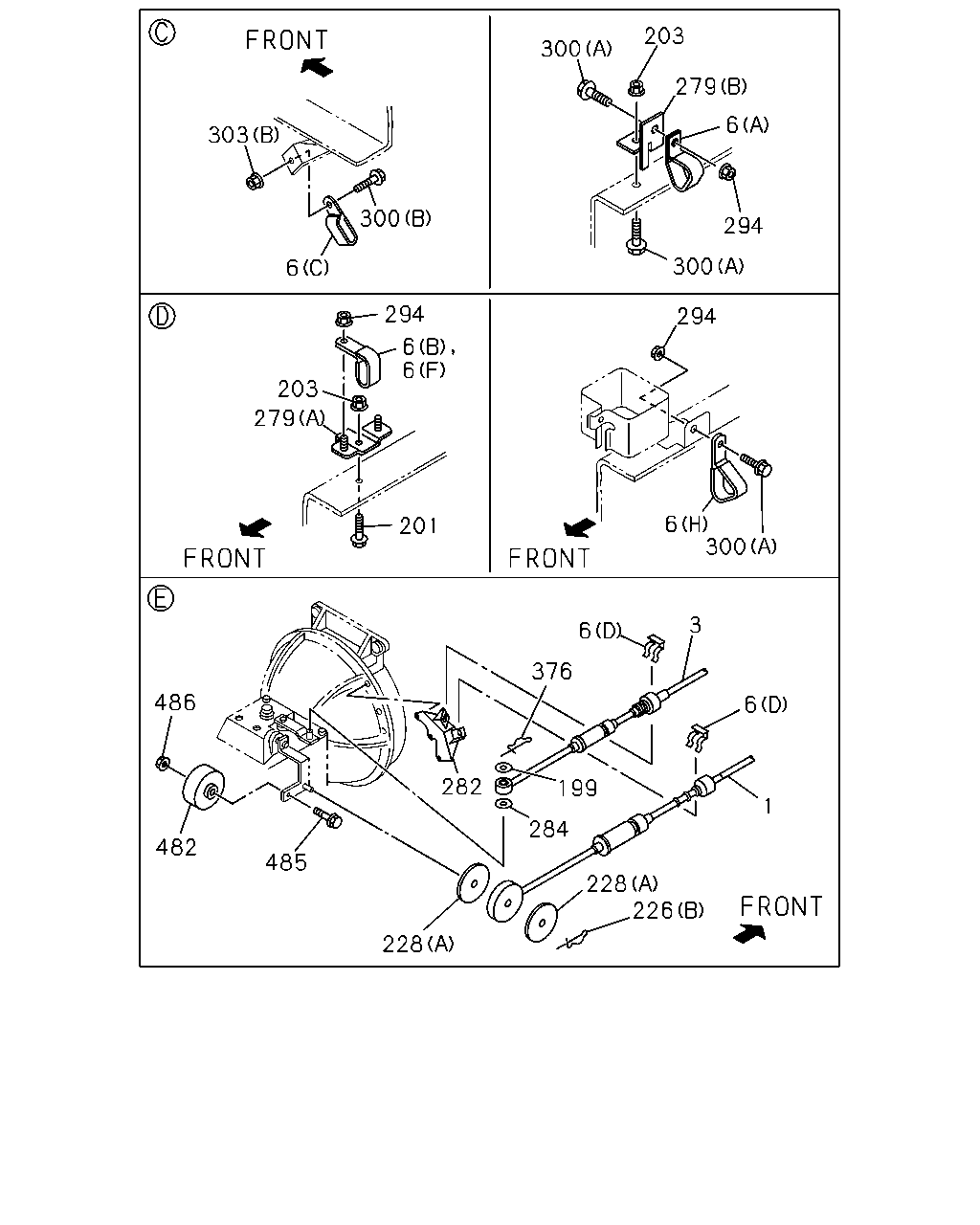

çizim 70891
203 300 279 6 303 300 294 300 6 294 294 6 6 203 279 6 300 201 3 6 376 486 6 282 199 1 284 482 485 228 226 228
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.854 CABLE; SHIFT,TRANS CONT 8-97073-285-2 01 1 9411-9505 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) 		8-97073-285-2 01 1 9506-9510 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-285-3 01 1 9511-9711 ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-285-3 01 1 9712- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) 		8-97094-249-1 01 1 9312-9510 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-249-2 01 1 9511-9711 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-249-2 01 1 9712-9804 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2990 		8-97203-059-0 01 1 9805- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97202-563-0 01 1 9802- ● ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD1 ENG(LJ6) 		8-97082-956-1 01 1 9312-9510 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=2975 		8-97096-512-1 01 1 9511-9711 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=2975 		8-97096-512-1 01 1 9712- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 		8-97109-429-2 01 1 9511-9711 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97109-429-2 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3141 		8-97073-291-2 01 1 9411-9505 ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) L=3141 		8-97073-291-2 01 1 9506-9510 ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> L=3141 		8-97073-291-2 01 1 9511-9711 ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3141 		8-97073-291-2 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) L=3055 		8-97094-251-1 01 1 9312-9510 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3055 		8-97094-251-1 01 1 9511-9711 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3055 		8-97094-251-1 01 1 9712-9804 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3055 		8-97203-062-0 01 1 9805- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-0 01 1 9802- ● ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD1 ENG(LJ6) 		8-97082-963-1 01 1 9312-9510 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=3044 		8-97096-507-1 01 1 9511-9711 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3044 		8-97096-507-1 01 1 9712- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> L=3128 		8-97109-430-1 01 1 9511-9711 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3128 		8-97109-430-1 01 1 9712- ● ●
6 04.047 CLIP; CABLE
03.162 (C) ID=16.5 		8-94240-646-1 01 1 9312-9510 ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9511-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
(D) ID=19.2 		8-94365-914-2 02 1 9312-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(D) ID=19.2 		8-94365-914-2 02 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
(E) 		8-97011-448-0 02 1 9312-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(E) 		8-97011-448-0 02 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9312-9406 ● ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9312-9406 ● ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9407-9510 ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9407-9510 ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9511-9611 ● ● ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9511-9611 ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9511-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9612-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9312-9406 ● ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9407-9510 ● ●
6 04.047 CLIP; CABLE
NPR DBL CAB(NP**W*) 04.785 (G) 		8-94133-416-2 01 1 9312-9510 ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9511-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (F) 		8-97028-508-2 01 1 9312-9506 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (F) 		8-97028-508-2 01 1 9507-9510 ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9511-9711 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97028-508-2 01 1 9712-9804 ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9712-9802 ● ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9712-9802 ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9712-9802 ● ● ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9712-9802 ● ● ●
6 04.047 CLIP; CABLE
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9803- ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-94365-914-2 02 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-94365-914-2 02 1 9802-9808 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9809- ● ● ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9803- ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9511-9711 ● ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9712- ● ● ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9511-9711 ● ●
6 04.047 CLIP; CABLE
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9712-9804 ● ● ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805- ● ●
6 04.047 CLIP; CABLE
4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805- ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9312-9611 ● ● ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9612-9711 ● ● ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 9712- ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506 ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506 ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9507-9510 ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ● ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 09.008 M10X20 FLANGE 		0-28081-020-0 01 1 9511-9606 ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9607-9711 ● ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9712-9801 ● ● ● ●
201 04.032 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9802- ● ● ● ●
203 04.032 NUT; BRKT FIX
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9506 ● ●
203 04.032 NUT; BRKT FIX
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9506 ● ●
203 04.032 NUT; BRKT FIX
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9507-9510 ● ● ● ●
203 04.032 NUT; BRKT FIX
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9611 ● ●
203 04.032 NUT; BRKT FIX
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9611 ● ●
203 04.032 NUT; BRKT FIX
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9612-9711 ● ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9612-9711 ● ● ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9312-9611 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9612-9711 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9712- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9312-9611 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9612-9711 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9712- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9312-9611 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9612-9707 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-9711 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9712- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9312-9611 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9612-9711 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9712- ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9312-9506 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9312-9506 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 9507-9510 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4BD2 ENG(RLW) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 9511-9704 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 9511-9704 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 9705-9705 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9705-9705 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 9705-9711 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9705-9711 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 9712-9801 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9712-9801 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-496-1 01 1 9802- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9802- ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97103-821-0 01 1 9511-9704 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97103-821-0 01 1 9705-9711 ● ●
281 04.042 CLIP; BAND
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 L=250 		5-09707-030-1 01 1 9712-9801 ●
281 04.042 CLIP; BAND
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 L=250 		5-09707-030-1 01 1 9802- ●
282 04.010 BRACKET; TRANS SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-759-0 01 1 9312-9510 ● ● ● ●
282 04.010 BRACKET; TRANS SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-759-0 01 1 9511- ● ● ● ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) 		8-97035-760-0 01 1 9312-9611 ● ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) 		8-97035-760-0 01 1 9612-9707 ● ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) 		8-97182-260-0 01 1 9708-9711 ● ●
282 04.010 BRACKET; TRANS SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97182-260-0 01 1 9712- ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9312-9611 ● ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9612-9711 ● ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14 		5-09550-002-0 01 1 9712- ● ● ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-9801 ● ● ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9802- ● ● ● ●
300 00.854 BOLT; CLIP
03.670 (B) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9510 ● ● ● ●
300 00.854 BOLT; CLIP
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 03.670 (B) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9711 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) M6X20 FLANGE 		0-28680-620-0 01 1 9712- ● ● ● ●
300 00.854 BOLT; CLIP
07.010 (A) M8X20 FLANGE 		0-28080-820-0 02 1 9312-9411 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9412-9510 ● ● ● ●
300 00.854 BOLT; CLIP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ●
300 00.854 BOLT; CLIP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9510 ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ● ● ●
300 00.854 BOLT; CLIP
4HF1 ENG(RLS),4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9706-9709 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9706-9709 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9706-9709 ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-9711 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9712-9802 ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9803- ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9710-9711 ● ● ● ●
300 00.854 BOLT; CLIP
4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9710-9711 ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9712-9802 ● ● ● ●
300 00.854 BOLT; CLIP
4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9712-9802 ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ● ● ●
300 00.854 BOLT; CLIP
4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ● ●
303 00.855 NUT; CLIP
NPR DBL CAB(NP**W*) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ● ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
303 00.855 NUT; CLIP
NPR DBL CAB(NP**W*) 01.062 (B) M6 FLANGE 		0-91150-206-0 01 1 9312-9510 ● ● ● ●
303 00.855 NUT; CLIP
4HF1 ENG(RLS),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91150-206-0 01 1 9511-9711 ● ● ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91150-206-0 01 1 9712- ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9312-9611 ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9612-9711 ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
FLOOR REMOTE SHIFT<M11> L=23 		8-94170-378-0 01 1 9712- ● ● ● ●
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-1 01 1 9312-9406 ● ●
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-1 01 1 9407-9510 ● ● ●
482 04.047 WEIGHT; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9511-9511 ● ● ● ●
482 04.047 WEIGHT; SHIFT CABLE
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9512-9711 ● ● ● ●
482 04.047 WEIGHT; SHIFT CABLE
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9712- ● ● ● ●
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 9312-9406 ● ●
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 9407-9510 ● ● ●
485 04.047 BOLT; WEIGHT
FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9511-9511 ● ● ● ●
485 04.047 BOLT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9512-9711 ● ● ● ●
485 04.047 BOLT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9712- ● ● ● ●
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 9312-9406 ● ●
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 9407-9510 ● ● ●
486 04.047 NUT; WEIGHT
FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9511-9511 ● ● ● ●
486 04.047 NUT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9512-9711 ● ● ● ●
486 04.047 NUT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9712- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
