2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#47411) — 277 parça

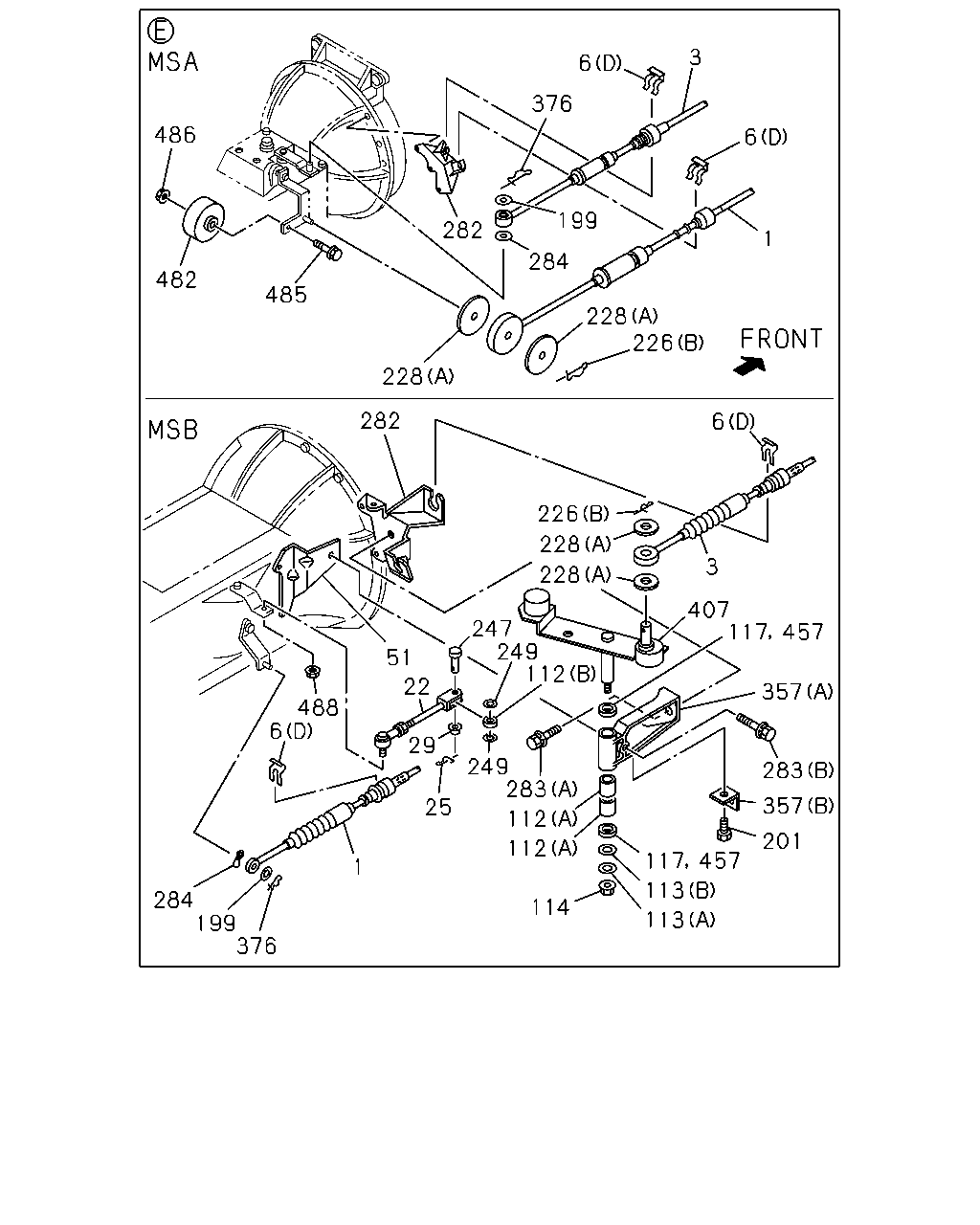

çizim 18608
3 6 376 486 6 199 282 1 284 482 485 228 226 228 282 6 226 228 3 228 407 117 247 249 112 457 51 22 357 488 6 29 249 283 283 357 25 112 201 112 117 457 1 113 284 199 376 114 113
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT 8-97082-955-1 01 1 9312-9406 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD1 ENG(LJ6),4BE1 ENG(RLH) 		8-97082-955-1 01 1 9407-9510 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BE1 ENG(RLH) 		8-97082-955-2 01 1 9511- ●
1 00.854 CABLE; SHIFT,TRANS CONT 8-97073-285-2 01 1 9312-9410 ●
1 00.854 CABLE; SHIFT,TRANS CONT 8-97073-285-2 01 1 9411-9505 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) 		8-97073-285-2 01 1 9506-9510 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2845 		8-97094-248-1 01 1 9312-9506 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JG2 ENG(RJC) L=2845 		8-97094-248-2 01 1 9507- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3065 		8-97082-962-1 01 1 9312-9406 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD1 ENG(LJ6),4BE1 ENG(RLH) L=3065 		8-97082-962-1 01 1 9407-9510 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BE1 ENG(RLH) L=3065 		8-97082-962-1 01 1 9511- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3141 		8-97073-291-2 01 1 9312-9410 ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3141 		8-97073-291-2 01 1 9411-9505 ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) L=3141 		8-97073-291-2 01 1 9506-9510 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3034 		8-97094-250-1 01 1 9312-9506 ●
3 00.852 CABLE; SELECT,TRANS CONT
4JG2 ENG(RJC) L=3034 		8-97094-250-1 01 1 9507- ●
6 04.047 CLIP; CABLE
03.162 (C) ID=16.5 		8-94240-646-1 01 1 9312-9510 ● ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4BE1 ENG(RLH) 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9511-9711 ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9712- ● ●
6 04.047 CLIP; CABLE
(D) ID=19.2 		8-94365-914-2 02 1 9312-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(D) ID=19.2 		8-94365-914-2 02 1 9612-9711 ● ●
6 04.047 CLIP; CABLE
(E) 		8-97011-448-0 02 1 9312-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(E) 		8-97011-448-0 02 1 9612-9711 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9712- ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9312-9406 ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9312-9406 ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9407-9510 ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9407-9510 ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9511-9611 ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9511-9611 ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9612-9711 ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9612-9711 ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9312-9406 ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9407-9510 ● ● ●
6 04.047 CLIP; CABLE
NPR DBL CAB(NP**W*) 04.785 (G) 		8-94133-416-2 01 1 9312-9510 ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9312-9506 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9507-9510 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9511-9711 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9712- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9312-9506 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9507-9510 ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9511-9711 ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9712-9804 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9805- ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9712-9802 ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9712-9802 ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9803- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-94365-914-2 02 1 9712- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-94365-914-2 02 1 9802-9808 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9809- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9803- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4BE1 ENG(RLH) 04.785 (G) 		8-94133-416-2 01 1 9511-9711 ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> 04.785 (G) 		8-94133-416-2 01 1 9712- ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9511-9711 ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9712-9804 ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805- ●
22 04.035 ROD; CONT,SHIFT 8-97085-158-0 01 1 9312-9704 ●
22 04.035 ROD; CONT,SHIFT 8-97174-058-0 01 1 9705- ●
25 04.032 PIN; SNAP,CONT ROD,RELAY LEVER
04.004 L=27.7 		8-94210-407-0 01 1 9312-9704 ●
29 04.032 WASHER; LK,RELAY LEVER
04.037 ID=8.5 T=0.3 		5-09509-001-0 01 1 9312-9704 ●
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 9312-9506 ●
51 04.010 BRACKET; GEAR CONT
4JG2 ENG(RJC) 		8-97029-286-0 01 1 9507- ●
112 04.046 BUSHING; RELAY LEVER
04.008 (A) ID=14 OD=16 		8-94252-671-0 02 1 9312-9704 ●
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 9705- ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 9312-9704 ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 9705- ●
113 04.046 WASHER; RELAY LEVER
(A) 		8-97061-437-0 02 1 9312-9704 ●
113 04.046 WASHER; RELAY LEVER
16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 9705- ●
113 04.046 WASHER; RELAY LEVER
(B) 		8-97089-693-0 01 1 9312-9704 ●
113 04.046 WASHER; RELAY LEVER
08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 9705- ●
114 04.037 NUT; RELAY LEVER
04.785 M10 FLANGE 		0-91150-110-0 01 1 9312- ●
117 04.010 SEAL; DUST,RELAY LEVER 8-97061-438-0 02 1 9312-9704 ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9312-9611 ● ● ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9612-9711 ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 9712- ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ● ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506 ● ● ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. POWER STEERING<N40>,FRAME STRAIGHTTYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ●
201 04.032 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9312- ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9312-9611 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9612-9711 ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9712- ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9312-9611 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9612-9711 ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9712- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9312-9611 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9612-9707 ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-9711 ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9712- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9312-9611 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9612-9711 ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9712- ● ●
247 04.010 PIN; CONT ROD TO LEVER
04.037 		9-09876-059-1 01 1 9312- ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 9312- ●
282 04.010 BRACKET; TRANS SIDE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-759-0 01 1 9312-9510 ● ● ● ●
282 04.010 BRACKET; TRANS SIDE
4BE1 ENG(RLH),4BD2 ENG(RLW) 		8-97035-759-0 01 1 9511- ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-0 01 1 9312-9506 ●
282 04.010 BRACKET; TRANS SIDE
4JG2 ENG(RJC) 		8-97034-142-1 01 1 9507- ●
283 04.037 BOLT; RELAY LEVER
01.252 (A) M10X25 W/LK&PL WASHER 		0-50141-025-0 01 1 9312-9703 ●
283 04.037 BOLT; RELAY LEVER
03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 9704- ●
283 04.037 BOLT; RELAY LEVER
01.840 (B) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9312-9703 ●
283 04.037 BOLT; RELAY LEVER
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 9704- ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9312-9611 ● ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9612-9711 ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14 		5-09550-002-0 01 1 9712- ● ●
357 04.010 BRACKET; RELAY LEVER
(A) 		8-97089-691-0 01 1 9312-9704 ●
357 04.010 BRACKET; RELAY LEVER
(A) 		8-97174-056-0 01 1 9705-9706 ●
357 04.010 BRACKET; RELAY LEVER
(A) 		8-97182-166-0 01 1 9707- ●
357 04.010 BRACKET; RELAY LEVER
(B) 		8-97089-692-0 01 1 9312- ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9312-9611 ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9612-9711 ● ●
376 04.047 PIN; SNAP,SELECT CABLE
FLOOR REMOTE SHIFT<M11> L=23 		8-94170-378-0 01 1 9712- ● ●
407 04.030 LEVER; RELAY,SHIFT 8-97089-690-1 01 1 9312-9704 ●
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-1 01 1 9705- ●
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 9705- ●
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-1 01 1 9312-9406 ● ● ●
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-1 01 1 9407-9510 ● ● ●
482 04.047 WEIGHT; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9511-9511 ●
482 04.047 WEIGHT; SHIFT CABLE
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9512-9711 ●
482 04.047 WEIGHT; SHIFT CABLE
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9712- ●
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 9312-9406 ● ● ●
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 9407-9510 ● ● ●
485 04.047 BOLT; WEIGHT
FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9511-9511 ●
485 04.047 BOLT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9512-9711 ●
485 04.047 BOLT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9712- ●
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 9312-9406 ● ● ●
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 9407-9510 ● ● ●
486 04.047 NUT; WEIGHT
FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9511-9511 ●
486 04.047 NUT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9512-9711 ●
486 04.047 NUT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9712- ●
488 04.047 NUT; CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9604-9801 ●
488 04.047 NUT; CABLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-9802 ●
488 04.047 NUT; CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9803- ●

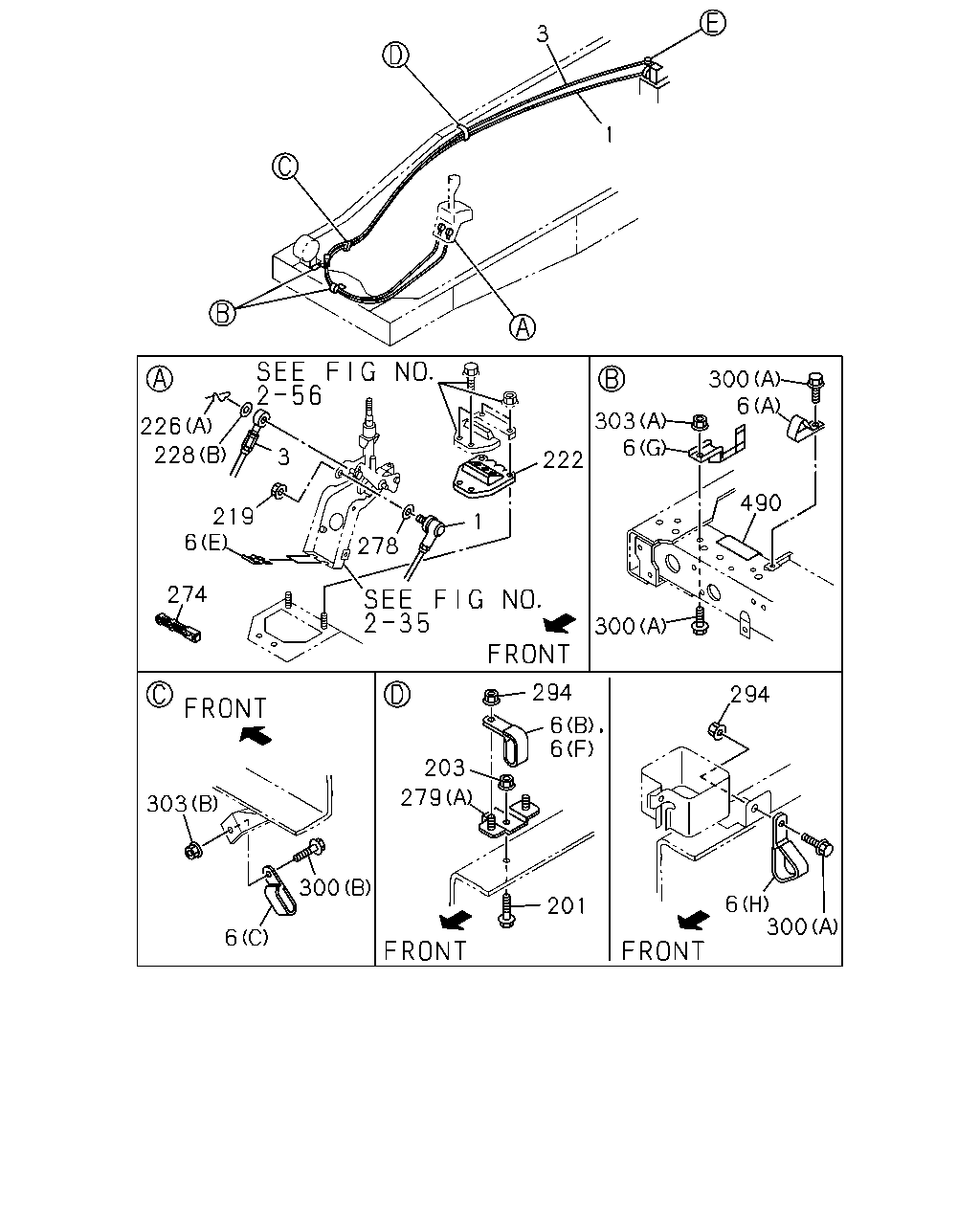

çizim 70922
3 1 300 6 303 6 226 228 3 222 490 219 6 1 278 274 300 294 294 6 6 203 303 279 300 6 300 201 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT 8-97082-955-1 01 1 9312-9406 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD1 ENG(LJ6),4BE1 ENG(RLH) 		8-97082-955-1 01 1 9407-9510 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BE1 ENG(RLH) 		8-97082-955-2 01 1 9511- ●
1 00.854 CABLE; SHIFT,TRANS CONT 8-97073-285-2 01 1 9312-9410 ●
1 00.854 CABLE; SHIFT,TRANS CONT 8-97073-285-2 01 1 9411-9505 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4BD2 ENG(RLW) 		8-97073-285-2 01 1 9506-9510 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2845 		8-97094-248-1 01 1 9312-9506 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JG2 ENG(RJC) L=2845 		8-97094-248-2 01 1 9507- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3065 		8-97082-962-1 01 1 9312-9406 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD1 ENG(LJ6),4BE1 ENG(RLH) L=3065 		8-97082-962-1 01 1 9407-9510 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4BE1 ENG(RLH) L=3065 		8-97082-962-1 01 1 9511- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3141 		8-97073-291-2 01 1 9312-9410 ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3141 		8-97073-291-2 01 1 9411-9505 ●
3 00.852 CABLE; SELECT,TRANS CONT
4BD2 ENG(RLW) L=3141 		8-97073-291-2 01 1 9506-9510 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3034 		8-97094-250-1 01 1 9312-9506 ●
3 00.852 CABLE; SELECT,TRANS CONT
4JG2 ENG(RJC) L=3034 		8-97094-250-1 01 1 9507- ●
6 04.047 CLIP; CABLE
03.162 (C) ID=16.5 		8-94240-646-1 01 1 9312-9510 ● ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4BE1 ENG(RLH) 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9511-9711 ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9712- ● ●
6 04.047 CLIP; CABLE
(D) ID=19.2 		8-94365-914-2 02 1 9312-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(D) ID=19.2 		8-94365-914-2 02 1 9612-9711 ● ●
6 04.047 CLIP; CABLE
(E) 		8-97011-448-0 02 1 9312-9611 ● ● ● ●
6 04.047 CLIP; CABLE
(E) 		8-97011-448-0 02 1 9612-9711 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9712- ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9312-9406 ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9312-9406 ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9407-9510 ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9407-9510 ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9511-9611 ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9511-9611 ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9612-9711 ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9612-9711 ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9312-9406 ● ● ● ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9407-9510 ● ● ●
6 04.047 CLIP; CABLE
NPR DBL CAB(NP**W*) 04.785 (G) 		8-94133-416-2 01 1 9312-9510 ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9312-9506 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9507-9510 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9511-9711 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9712- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9312-9506 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9507-9510 ●
6 04.047 CLIP; CABLE
4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9511-9711 ● ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9712-9804 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9805- ●
6 04.047 CLIP; CABLE
(A) 		8-97036-333-1 01 1 9712-9802 ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9712-9802 ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> (A) 		8-97036-333-1 01 1 9803- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-94365-914-2 02 1 9712- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-94365-914-2 02 1 9802-9808 ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9809- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9803- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4BE1 ENG(RLH) 04.785 (G) 		8-94133-416-2 01 1 9511-9711 ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> 04.785 (G) 		8-94133-416-2 01 1 9712- ● ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9511-9711 ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9712-9804 ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> EXC. POWER STEERING<N40> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9805- ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ● ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506 ● ● ● ●
201 04.032 BOLT; BRKT
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9612-9711 ● ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. POWER STEERING<N40>,FRAME STRAIGHTTYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ●
201 04.032 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9312- ●
203 04.032 NUT; BRKT FIX
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9506 ● ● ● ●
203 04.032 NUT; BRKT FIX
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9611 ● ● ● ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9612-9711 ● ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. POWER STEERING<N40>,FRAME STRAIGHTTYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9312-9611 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9612-9711 ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9712-9801 ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-9802 ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9803- ● ●
222 04.010 GROMMET; CABLE 8-97091-890-0 01 1 9312-9611 ● ● ● ●
222 04.010 GROMMET; CABLE 8-97091-890-0 01 1 9612-9711 ● ●
222 04.010 GROMMET; CABLE
FLOOR REMOTE SHIFT<M11> 		8-97091-890-0 01 1 9712- ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9312-9611 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9612-9711 ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9712- ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9312-9611 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9612-9711 ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9712- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9312-9611 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9612-9707 ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-9711 ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9712- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9312-9611 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9612-9711 ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9712- ● ●
274 04.008 CLIP; CONT CABLE 8-97093-491-1 01 1 9312-9508 ● ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9509-9510 ● ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9511-9801 ● ●
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9802- ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9312-9611 ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9612-9711 ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9712- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9312-9506 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9511-9704 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9705-9705 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9705-9711 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9712-9801 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9802- ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-9801 ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9802- ● ●
300 00.854 BOLT; CLIP
03.670 (B) M6X20 FLANGE 		0-28080-620-0 01 1 9312-9510 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH) 03.670 (B) M6X20 FLANGE 		0-28080-620-0 01 1 9511-9711 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) M6X20 FLANGE 		0-28680-620-0 01 1 9712- ● ●
300 00.854 BOLT; CLIP
07.010 (A) M8X20 FLANGE 		0-28080-820-0 02 1 9312-9411 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9412-9510 ● ● ● ●
300 00.854 BOLT; CLIP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ● ● ●
300 00.854 BOLT; CLIP
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9510 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9511-9611 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-9705 ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9706-9709 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9706-9709 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9706-9709 ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-9711 ● ●
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9712-9802 ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9803- ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9710-9711 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH) POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9710-9711 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9712-9802 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH) POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9712-9802 ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH) POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9803- ● ●
303 00.855 NUT; CLIP
NPR DBL CAB(NP**W*) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
303 00.855 NUT; CLIP
NPR DBL CAB(NP**W*) 01.062 (B) M6 FLANGE 		0-91150-206-0 01 1 9312-9510 ● ● ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4BE1 ENG(RLH) 01.062 (B) M6 FLANGE 		0-91150-206-0 01 1 9511-9711 ● ●
303 00.855 NUT; CLIP
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91150-206-0 01 1 9712- ● ●
490 04.010 PROTECTOR; EDGE
NPR DBL CAB(NP**W*) 03.008 L=80 		5-22439-006-0 01 1 9312-9401 ● ● ● ●
490 04.010 PROTECTOR; EDGE
NPR DBL CAB(NP**W*) 04.785 L=200 		8-97096-423-0 01 1 9402-9406 ● ● ● ●
490 04.010 PROTECTOR; EDGE
NPR DBL CAB(NP**W*) 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9407-9510 ● ● ● ●
490 04.010 PROTECTOR; EDGE
4JG2 ENG(RJC),4BE1 ENG(RLH) 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9511-9711 ● ●
490 04.010 PROTECTOR; EDGE
4JG2 ENG(RJC),4BE1 ENG(RLH) FLOOR REMOTE SHIFT<M11> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
