◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35B - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#47408) — 112 parça

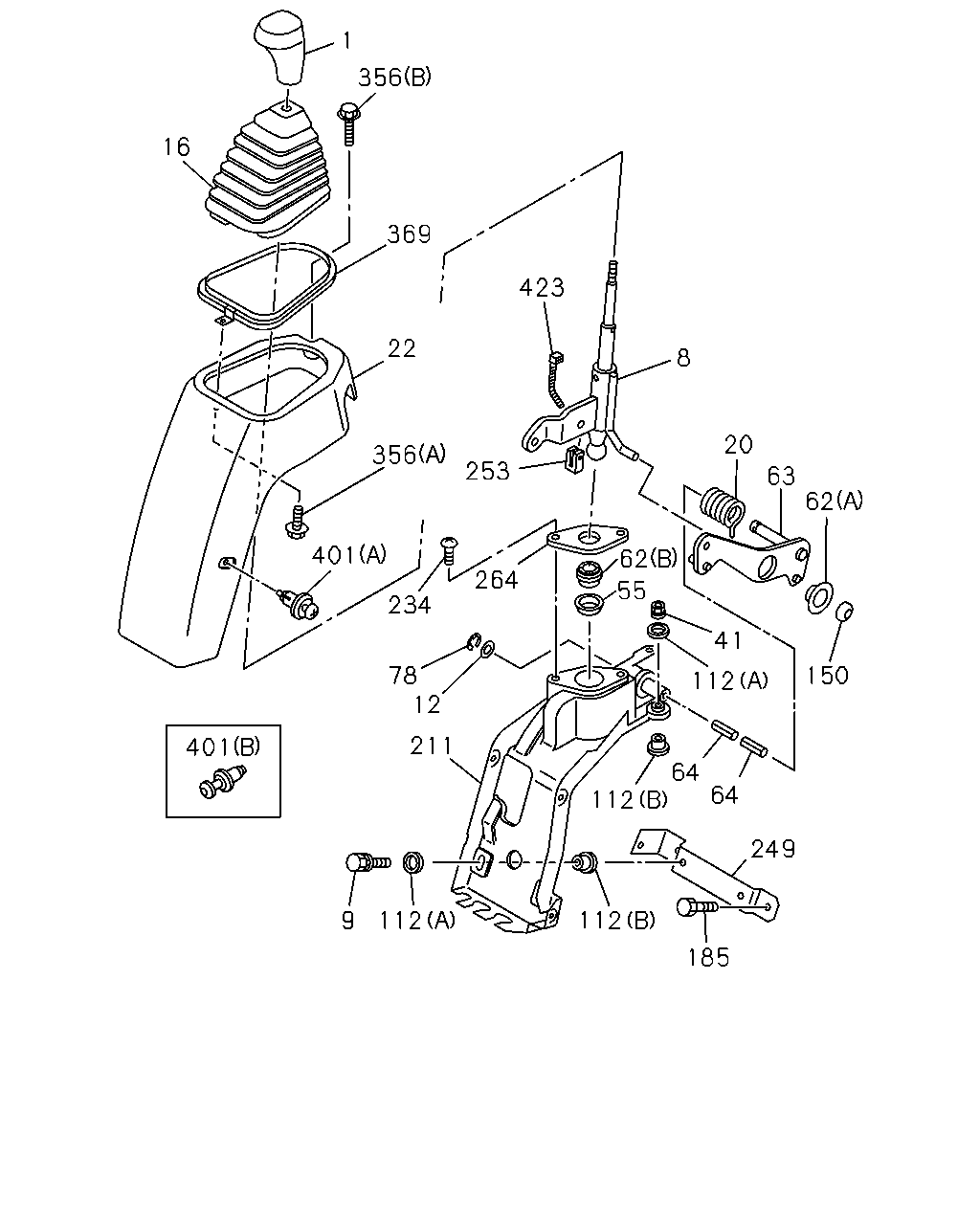

çizim 70864
1 356 16 369 423 22 8 20 356 253 63 62 401 62 264 55 234 41 78 12 150 112 211 401 64 112 64 249 9 112 112 185
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.006 KNOB; CHANGE LEVER
DARK BEIGE 		8-97009-442-0 01 1 9312-9406 ●
1 04.006 KNOB; CHANGE LEVER
DARK BEIGE 		8-97009-442-0 01 1 9407-9510 ● ●
1 04.006 KNOB; CHANGE LEVER
DARK BEIGE 		8-97009-442-0 01 1 9511-9711 ● ● ●
1 04.006 KNOB; CHANGE LEVER
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97098-657-0 01 1 9712-9801 ● ● ●
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97098-657-0 01 1 9802- ● ● ●
1 04.006 KNOB; CHANGE LEVER
DARK BEIGE 		8-97009-443-0 01 1 9312-9711 ●
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97155-986-0 01 1 9712- ●
8 04.006 LEVER; CHANGE 8-97093-841-1 01 1 9312-9406 ●
8 04.006 LEVER; CHANGE 8-97093-841-1 01 1 9407-9510 ● ●
8 04.006 LEVER; CHANGE 8-97093-841-1 01 1 9511-9711 ● ● ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97093-841-1 01 1 9712-9802 ● ● ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-506-0 01 1 9803- ● ● ●
8 04.006 LEVER; CHANGE 8-97093-842-1 01 1 9312-9711 ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97189-767-0 01 1 9712-9802 ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-508-0 01 1 9803- ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9312-9611 ● ● ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9612-9711 ● ● ● ●
9 04.012 BOLT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 9712- ● ● ● ●
12 04.012 WASHER; PL,CHANGE LEVER
03.430 ID=12.5 		9-09160-512-0 01 1 9312-9504 ● ● ● ●
16 04.015 BOOT; CHANGE LEVER 8-97066-287-1 01 1 9312-9611 ● ● ● ●
16 04.015 BOOT; CHANGE LEVER 8-97066-287-1 01 1 9612-9711 ● ● ● ●
16 04.015 BOOT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97066-287-1 01 1 9712- ● ● ● ●
20 04.012 SPRING; CHANGE LEVER 8-97091-424-0 01 1 9312-9510 ● ● ● ●
20 04.012 SPRING; CHANGE LEVER 8-97091-424-0 01 1 9511-9711 ● ● ● ●
20 04.012 SPRING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97091-424-0 01 1 9712-9802 ● ● ● ●
20 04.012 SPRING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-514-0 01 1 9803- ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER 8-97097-465-3 01 1 9312-9611 ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER 8-97097-465-3 01 1 9612-9711 ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97098-666-3 01 1 9712- ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97098-658-2 01 1 9802- ● ● ● ●
41 04.012 NUT; CHANGE LEVER
07.832 M8 FLANGE 		8-94459-656-0 02 1 9312-9602 ● ● ● ●
41 04.012 NUT; CHANGE LEVER
09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9603-9611 ● ● ● ●
41 04.012 NUT; CHANGE LEVER
09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9612-9711 ● ● ● ●
41 04.012 NUT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9712- ● ● ● ●
55 04.012 SEAT; RUBBER,SELECT SPRING 8-97083-150-0 01 1 9312-9510 ● ● ● ●
55 04.012 SEAT; RUBBER,SELECT SPRING 8-97083-150-0 01 1 9511-9711 ● ● ● ●
55 04.012 SEAT; RUBBER,SELECT SPRING
FLOOR REMOTE SHIFT<M11> 		8-97083-150-0 01 1 9712-9802 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
(A) 		8-97049-148-0 01 1 9312-9510 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
(A) 		8-97049-148-0 01 1 9511-9711 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> (A) 		8-97049-148-0 01 1 9712-9802 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> (B) 		8-97011-895-1 01 1 9803- ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
(B) 		8-97091-423-0 01 1 9312-9510 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-423-0 01 1 9511-9611 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
(B) 		8-97091-423-0 01 1 9612-9711 ● ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-423-0 01 1 9712-9802 ● ● ● ●
63 04.006 LEVER; RELAY,SELECT 8-97083-147-0 01 1 9312-9406 ●
63 04.006 LEVER; RELAY,SELECT 8-97083-147-1 01 1 9407-9510 ● ●
63 04.006 LEVER; RELAY,SELECT 8-97083-147-1 01 1 9511-9604 ● ● ●
63 04.006 LEVER; RELAY,SELECT 8-97143-199-0 01 1 9605-9711 ● ● ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97143-199-0 01 1 9712- ● ● ●
63 04.006 LEVER; RELAY,SELECT 8-97083-148-1 01 1 9312-9604 ●
63 04.006 LEVER; RELAY,SELECT 8-97143-200-0 01 1 9605-9607 ●
63 04.006 LEVER; RELAY,SELECT 8-97163-768-0 01 1 9608-9711 ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97163-768-0 01 1 9712- ●
64 04.008 BUSHING; SELECT LEVER 8-97083-149-0 02 1 9312-9510 ● ● ● ●
64 04.008 BUSHING; SELECT LEVER 8-97083-149-0 02 1 9511-9711 ● ● ● ●
64 04.008 BUSHING; SELECT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97083-149-0 02 1 9712-9802 ● ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
08.934 ID=10 		9-09185-410-0 01 1 9312-9510 ● ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
08.934 ID=10 		9-09185-410-0 01 1 9511-9711 ● ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 08.934 ID=10 		9-09185-410-0 01 1 9712-9802 ● ● ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 9312-9510 ● ● ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 9511-9711 ● ● ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (A) 		8-97091-426-0 04 1 9712- ● ● ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 9312-9510 ● ● ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-427-0 04 1 9511-9611 ● ● ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 9612-9711 ● ● ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-427-0 04 1 9712- ● ● ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 9312-9510 ● ● ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 9511-9711 ● ● ● ●
150 04.008 BALL; DETENT,CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97049-147-0 01 1 9712- ● ● ● ●
185 04.012 BOLT; BRKT,COVER
07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9312-9611 ● ● ● ●
185 04.012 BOLT; BRKT,COVER
07.010 M8X20 FLANGE 		0-28080-820-0 02 1 9612-9708 ● ● ● ●
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9709-9711 ● ● ● ●
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97083-139-1 01 1 9312-9510 ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97083-139-1 01 1 9511-9604 ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97143-198-0 01 1 9605-9711 ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97143-198-0 01 1 9712-9802 ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-505-0 01 1 9803- ● ● ● ●
234 04.010 BOLT; BRKT 8-97011-898-0 02 1 9312-9510 ● ● ● ●
234 04.010 BOLT; BRKT 8-97011-898-0 02 1 9511-9711 ● ● ● ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> 		8-97011-898-0 02 1 9712-9802 ● ● ● ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> 		8-97204-512-0 02 1 9803- ● ● ● ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 9312-9611 ● ● ● ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 9612-9711 ● ● ● ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 9712- ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97026-014-0 01 1 9312-9510 ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97026-014-0 01 1 9511-9711 ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97026-014-0 01 1 9712-9802 ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-510-0 01 1 9803- ● ● ● ●
264 04.015 PLATE; COVER 8-97083-151-0 01 1 9312-9510 ● ● ● ●
264 04.015 PLATE; COVER 8-97083-151-0 01 1 9511-9711 ● ● ● ●
264 04.015 PLATE; COVER
FLOOR REMOTE SHIFT<M11> 		8-97083-151-0 01 1 9712-9802 ● ● ● ●
264 04.015 PLATE; COVER
FLOOR REMOTE SHIFT<M11> 		8-97204-511-0 01 1 9803- ● ● ● ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9312-9611 ● ● ● ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9612-9711 ● ● ● ●
356 04.012 SCREW; COVER
FLOOR REMOTE SHIFT<M11> 02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9712- ● ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9312-9611 ● ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9612-9711 ● ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 9712- ● ● ● ●
369 04.012 RETAINER; REINF 8-97066-288-0 01 1 9312-9611 ● ● ● ●
369 04.012 RETAINER; REINF 8-97066-288-0 01 1 9612-9711 ● ● ● ●
369 04.012 RETAINER; REINF
FLOOR REMOTE SHIFT<M11> 		8-97066-288-0 01 1 9712- ● ● ● ●
401 04.012 CLIP; COVER
(A) DARK BEIGE 		8-97009-447-0 02 1 9312-9611 ● ● ● ●
401 04.012 CLIP; COVER
(A) DARK BEIGE 		8-97009-447-0 02 1 9612-9711 ● ● ● ●
401 04.012 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 9712- ● ● ● ●
401 04.012 CLIP; COVER
(B) DARK BEIGE 		8-97097-001-0 01 1 9312-9611 ● ● ● ●
401 04.012 CLIP; COVER
(B) DARK BEIGE 		8-97097-001-0 01 1 9612-9711 ● ● ● ●
401 04.012 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 9712- ● ● ● ●
423 04.008 CLIP; BAND 8-97062-120-0 01 1 9312-9510 ● ● ● ●
423 04.008 CLIP; BAND 8-97062-120-0 01 1 9511-9711 ● ● ● ●
423 04.008 CLIP; BAND
FLOOR REMOTE SHIFT<M11> 		8-97062-120-0 01 1 9712-9802 ● ● ● ●
