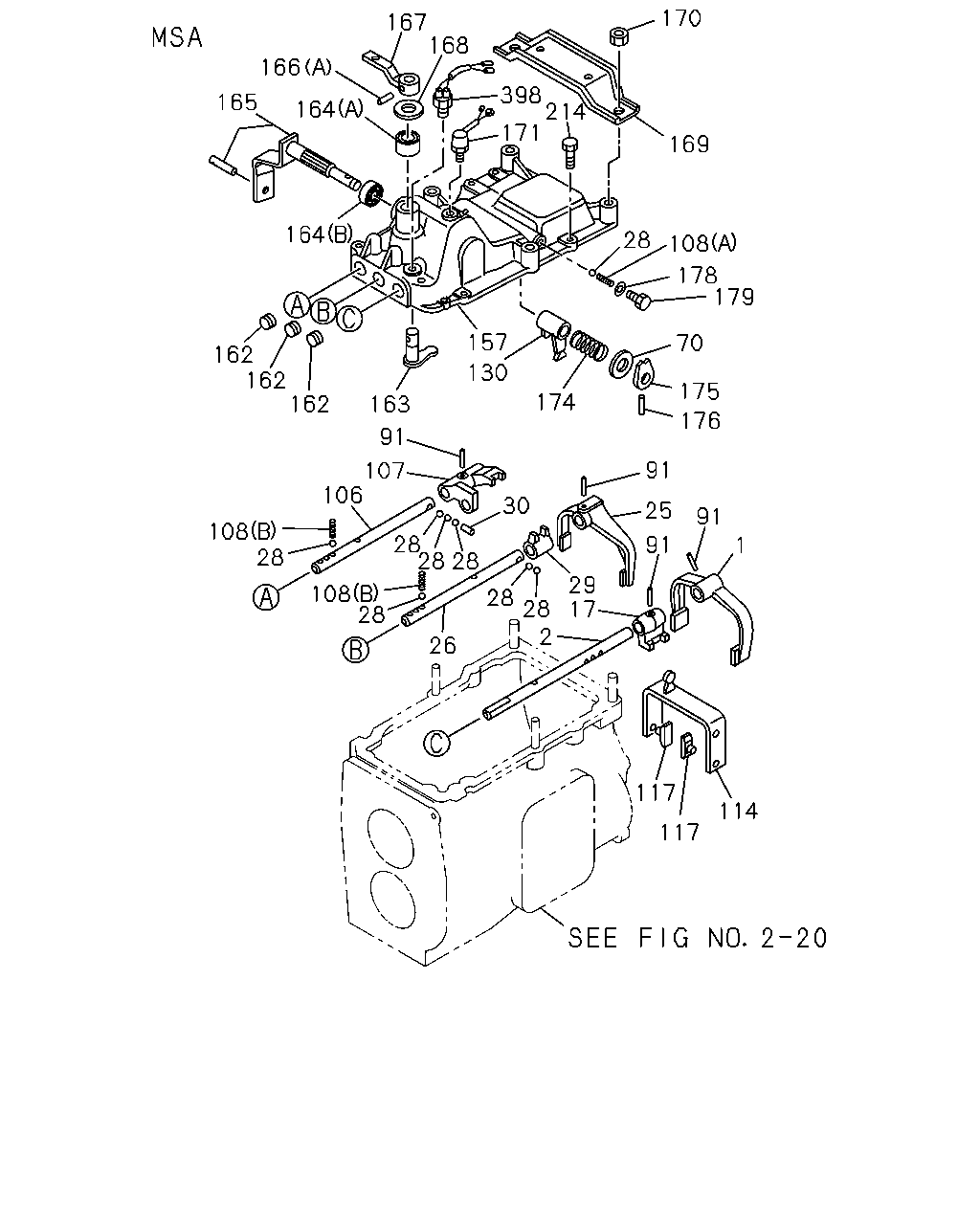

2-30A — GEAR SHIFTER AND QUADRANT BOX (#47404) — 346 parça

170 167 168 166 398 214 171 165 164 169 164 28 108 178 179 157 70 162 162 162 130 175 174 163 176 91 91 107 106 30 25 91 108 28 28 91 1 29 17 108 28 28 28 2 26 117 114 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	8-97011-363-1	01	1	9312-9510	●	●	●
1	04.302 ARM; SHIFT,1ST & REV 4BE1 ENG(RLH)	8-97011-363-1	01	1	9511-		●
2	04.309 ROD; SHIFT,1ST & REV	8-97078-204-0	01	1	9312-9510	●	●	●
2	04.309 ROD; SHIFT,1ST & REV 4BE1 ENG(RLH)	8-97078-204-0	01	1	9511-		●
17	04.303 BLOCK; SHIFT,1ST & REV	8-94135-719-4	01	1	9312-9510	●	●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4BE1 ENG(RLH)	8-94135-719-4	01	1	9511-		●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97011-364-1	01	1	9312-9510	●	●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4BE1 ENG(RLH)	8-97011-364-1	01	1	9511-		●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97078-205-0	01	1	9312-9507	●	●	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-494-0	01	1	9508-9510	●	●	●
26	04.309 ROD; SHIFT,2ND & 3RD 4BE1 ENG(RLH)	8-97129-494-0	01	1	9511-		●
28	04.311 BALL; INTER LK	9-00097-010-0	08	1	9312-9510	●	●	●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	9-00097-010-0	07	1	9712-9809				●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	9-00097-010-0	07	1	9810-				●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9312-9410				●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9411-9506				●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW)	9-00097-010-0	07	1	9507-9510				●
28	04.311 BALL; INTER LK 4BE1 ENG(RLH)	9-00097-010-0	08	1	9511-		●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97017-573-1	01	1	9312-9510	●	●
29	04.303 BLOCK; SHIFT,2ND & 3RD 4BE1 ENG(RLH)	8-97017-573-1	01	1	9511-		●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	9312-9506	●	●	●	●
30	04.307 PIN; INTER LK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.311	5-33534-001-0	01	1	9507-9510	●	●	●	●
30	04.307 PIN; INTER LK 4JG2 ENG(RJC),4BE1 ENG(RLH) 04.311	5-33534-001-0	01	1	9511-		●		●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	9312-9410	●	●	●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	9411-9505	●	●	●
70	04.302 WASHER; PL,SHIFT LEVER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94461-345-0	01	1	9506-9510	●	●	●
70	04.302 WASHER; PL,SHIFT LEVER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94461-345-0	01	1	9511-9711		●
70	04.302 WASHER; PL,SHIFT LEVER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94461-345-0	01	1	9712-9801		●
70	04.302 WASHER; PL,SHIFT LEVER 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)	8-94461-345-0	01	1	9802-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	9312-9410	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	9411-9505	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5	8-94135-771-0	03	1	9506-9510	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5	8-94135-771-0	03	1	9511-9711		●
91	04.302 PIN; SPR,SHIFT ARM 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5	8-94135-771-0	03	1	9712-9801		●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.303 L=25 OD=5	8-94135-771-0	03	1	9802-		●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9312-9410	●	●	●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9411-9505	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32	8-97011-596-2	02	1	9506-9510	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32	8-97011-596-2	02	1	9511-9711		●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9712-9801		●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9802-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	9312-9506				●
91	04.302 PIN; SPR,SHIFT ARM 4JG2 ENG(RJC) 04.303 L=25 OD=5	8-94135-771-0	06	1	9507-				●
106	04.309 ROD; SHIFT,OD TO TOP	8-97078-206-0	01	1	9312-9510	●	●	●
106	04.309 ROD; SHIFT,OD TO TOP 4BE1 ENG(RLH)	8-97078-206-0	01	1	9511-		●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-94135-718-2	01	1	9312-9510	●	●
107	04.303 BLOCK; SHIFT,OD TO TOP 4BE1 ENG(RLH)	8-94135-718-2	01	1	9511-		●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9312-9410	●	●	●	●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9411-9506	●	●	●	●
108	04.311 SPRING; LOCK BALL 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9507-9510	●	●	●	●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9511-9711		●		●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9712-9801				●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9712-9801		●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9802-		●		●
108	04.311 SPRING; LOCK BALL (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9312-9510	●	●	●
108	04.311 SPRING; LOCK BALL 4BE1 ENG(RLH) (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9511-		●
114	04.302 ARM; SHIFT,OD TO TOP	8-94316-994-1	01	1	9312-9510	●	●
114	04.302 ARM; SHIFT,OD TO TOP 4BE1 ENG(RLH)	8-94316-994-1	01	1	9511-		●
114	04.302 ARM; SHIFT,OD TO TOP 04.303	8-94178-520-1	01	1	9312-9510			●
117	04.302 PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	9312-9410	●	●
117	04.302 PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	9411-9510	●	●
117	04.302 PIECE; SHIFT,OD TO TOP 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94316-996-0	02	1	9511-9711		●
117	04.302 PIECE; SHIFT,OD TO TOP 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94316-996-0	02	1	9712-9801		●
117	04.302 PIECE; SHIFT,OD TO TOP 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS)	8-94316-996-0	02	1	9802-		●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9312-9410	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9411-9505	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94340-131-2	01	1	9506-9510	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94340-131-2	01	1	9511-9711		●
130	04.302 LEVER; SHIFT,INTERNAL 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94340-131-2	01	1	9712-9801		●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)	8-94340-131-2	01	1	9802-		●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	9312-9506				●
130	04.302 LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC)	8-94105-141-2	01	1	9507-				●
157	04.105 BOX; QUAD,TRANS	8-97048-844-0	01	1	9312-9510	●	●	●
157	04.105 BOX; QUAD,TRANS 4BE1 ENG(RLH)	8-97048-844-0	01	1	9511-		●
157	04.105 BOX; QUAD,TRANS	8-94340-145-0	01	1	9312-9506				●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9507-9710				●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	9711-9711				●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9712-				●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	9711-9711				●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	03	1	9312-9510	●	●	●
162	04.105 COVER; SHIFT ROD,QUAD BOX 4BE1 ENG(RLH)	8-94101-319-0	03	1	9511-		●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9312-9506	●	●	●	●
163	04.302 LEVER; SELECT,INTERNAL 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94159-268-1	01	1	9507-9510	●	●	●	●
163	04.302 LEVER; SELECT,INTERNAL 4JG2 ENG(RJC),4BE1 ENG(RLH)	8-94159-268-1	01	1	9511-		●		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27	8-94128-784-0	01	1	9312-9410	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27	8-94128-784-0	01	1	9411-9505	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27	8-94128-784-0	01	1	9506-9510	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27	8-94128-784-0	01	1	9511-9711		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27	8-94128-784-0	01	1	9712-9801		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.309 (A) OD=27	8-94128-784-0	01	1	9802-		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9312-9410	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9411-9505	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32	8-94462-019-0	01	1	9506-9510	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32	8-94462-019-0	01	1	9511-9711		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32	8-94462-019-0	01	1	9712-9801		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) (B) OD=32	8-94462-019-0	01	1	9802-		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 OD=27	8-94128-784-0	02	1	9312-9506				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) 04.309 OD=27	8-94128-784-0	02	1	9507-				●
165	04.302 LEVER; SHIFT	8-97035-556-0	01	1	9312-9510	●	●	●
165	04.302 LEVER; SHIFT 4BE1 ENG(RLH)	8-97035-556-0	01	1	9511-		●
165	04.302 LEVER; SHIFT	8-97036-221-0	01	1	9312-9506				●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9507-9710				●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	9711-9711				●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9712-				●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	9711-9711				●
166	04.302 PIN; SPR,SELECT LEVER 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9312-9410	●	●	●	●
166	04.302 PIN; SPR,SELECT LEVER 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9411-9506	●	●	●	●
166	04.302 PIN; SPR,SELECT LEVER 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9507-9510	●	●	●	●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9511-9611		●		●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9612-9711		●		●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9712-9801				●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9712-9801		●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9802-		●		●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-559-1	01	1	9312-9510	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4BE1 ENG(RLH)	8-97035-559-1	01	1	9511-		●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	9312-9506				●
167	04.302 LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC)	8-97035-560-1	01	1	9507-				●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9312-9510	●	●	●	●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94249-250-1	01	1	9511-9711		●		●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94249-250-1	01	1	9712-9801		●		●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94249-250-1	01	1	9802-		●		●
169	00.029 BRACKET; ENG MTG TO TRANS	8-94112-892-2	02	1	9312-9410	●	●	●
169	00.029 BRACKET; ENG MTG TO TRANS	8-94112-892-2	02	1	9411-9505	●	●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94112-892-2	02	1	9506-9510	●	●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94112-892-0	02	1	9511-9711		●
169	00.029 BRACKET; ENG MTG TO TRANS 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94112-892-1	02	1	9712-9801		●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)	8-94112-892-1	02	1	9802-		●
170	04.105 NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	9312-9410	●	●	●
170	04.105 NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	9411-9505	●	●	●
170	04.105 NUT; CONT BOX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M12 FLANGE	8-94249-242-0	04	1	9506-9510	●	●	●
170	04.105 NUT; CONT BOX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M12 FLANGE	8-94249-242-0	04	1	9511-9711		●
170	04.105 NUT; CONT BOX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) M12 FLANGE	8-94249-242-0	04	1	9712-9801		●
170	04.105 NUT; CONT BOX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) M12 FLANGE	8-94249-242-0	04	1	9802-		●
171	04.054 SWITCH; NEUTRAL	8-97065-416-0	01	1	9312-9405	●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-97113-440-1	01	1	9406-9508	●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-97137-656-0	01	1	9509-9510	●	●	●	●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97137-656-0	01	1	9511-9608		●		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-946-0	01	1	9609-9710		●		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97165-946-0	01	1	9711-9711				●
171	04.054 SWITCH; NEUTRAL 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-946-0	01	1	9711-9711		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-946-0	01	1	9712-9801		●		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-946-0	01	1	9802-		●		●
174	04.307 SPRING; REV	8-97076-907-0	01	1	9312-9510	●	●	●
174	04.307 SPRING; REV 4BE1 ENG(RLH)	8-97076-907-0	01	1	9511-		●
174	04.307 SPRING; REV	8-97031-927-0	01	1	9312-9506				●
174	04.307 SPRING; REV 4JG2 ENG(RJC)	8-97031-927-0	01	1	9507-				●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9312-9410	●	●	●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9411-9505	●	●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97034-819-0	01	1	9506-9510	●	●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97034-819-0	01	1	9511-9711		●
175	04.302 RING; STOPPER,SHIFT LEVER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97034-819-0	01	1	9712-9801		●
175	04.302 RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)	8-97034-819-0	01	1	9802-		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-94249-048-2	01	1	9312-9506				●
175	04.302 RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC)	8-94249-048-2	01	1	9507-				●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9510	●	●	●	●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 L=30 OD=4	9-09678-549-0	02	1	9511-9710		●		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9711-9711				●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 L=30 OD=4	9-09678-549-0	02	1	9712-9801		●		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 L=30 OD=4	9-09678-549-0	02	1	9802-		●		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	9711-9711				●
176	04.302 PIN; SPR,STOPPER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 L=30 OD=4	9-09678-549-0	02	1	9711-9711		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	9312-9410	●	●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	9411-9505	●	●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.929	9-09571-612-0	01	1	9506-9510	●	●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.929	9-09571-612-0	01	1	9511-9711		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 08.929	9-09571-612-0	01	1	9712-9801		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 08.929	9-09571-612-0	01	1	9802-		●
179	04.311 PLUG; LOCK BALL	8-97031-668-0	01	1	9312-9410	●	●	●
179	04.311 PLUG; LOCK BALL	8-97031-668-0	01	1	9411-9505	●	●	●
179	04.311 PLUG; LOCK BALL 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97031-668-0	01	1	9506-9510	●	●	●
179	04.311 PLUG; LOCK BALL 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97031-668-0	01	1	9511-9711		●
179	04.311 PLUG; LOCK BALL 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97031-668-0	01	1	9712-9801		●
179	04.311 PLUG; LOCK BALL 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)	8-97031-668-0	01	1	9802-		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94128-786-0	05	1	9312-9510	●	●	●
214	04.510 BOLT; CONT BOX,SUB TRANS 4BE1 ENG(RLH) 04.105 M8X25	8-94128-786-0	05	1	9511-		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94132-164-0	02	1	9312-9510	●	●	●
214	04.510 BOLT; CONT BOX,SUB TRANS 4BE1 ENG(RLH) 04.105 M8X45	8-94132-164-0	02	1	9511-		●
398	02.698 SWITCH; REV LAMP	8-97071-665-0	01	1	9312-9405	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97113-435-1	01	1	9406-9508	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97137-650-0	01	1	9509-9510	●	●	●	●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97137-650-0	01	1	9511-9608		●		●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-947-0	01	1	9609-9711		●		●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-947-0	01	1	9712-9801		●		●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-947-0	01	1	9802-		●		●

158 167 166 158 398 183 184 142 168 157 164 142 165 171 148 176 175 174 180 130 163 28 28 100 108 28 30 103 28 28 98 91 108 91 108 91 28 104 101 33 91 99 102 31 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
28	04.311 BALL; INTER LK	9-00097-010-0	08	1	9312-9510	●	●	●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	9-00097-010-0	07	1	9712-9809				●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	9-00097-010-0	07	1	9810-				●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9312-9410				●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9411-9506				●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW)	9-00097-010-0	07	1	9507-9510				●
28	04.311 BALL; INTER LK 4BE1 ENG(RLH)	9-00097-010-0	08	1	9511-		●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	9312-9506	●	●	●	●
30	04.307 PIN; INTER LK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.311	5-33534-001-0	01	1	9507-9510	●	●	●	●
30	04.307 PIN; INTER LK 4JG2 ENG(RJC),4BE1 ENG(RLH) 04.311	5-33534-001-0	01	1	9511-		●		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97011-365-1	01	1	9312-9506				●
31	04.302 ARM; SHIFT,LOW & 2ND 4JG2 ENG(RJC)	8-97011-365-1	01	1	9507-				●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97011-370-1	01	1	9312-9506				●
33	04.309 ROD; SHIFT,LOW & 2ND 4JG2 ENG(RJC)	8-97011-370-1	01	1	9507-				●
51	04.303 BLOCK; SHIFT,1ST & 2ND	8-97022-837-2	01	1	9312-9506				●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4JG2 ENG(RJC)	8-97022-837-2	01	1	9507-				●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	9312-9410	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	9411-9505	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5	8-94135-771-0	03	1	9506-9510	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5	8-94135-771-0	03	1	9511-9711		●
91	04.302 PIN; SPR,SHIFT ARM 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 L=25 OD=5	8-94135-771-0	03	1	9712-9801		●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.303 L=25 OD=5	8-94135-771-0	03	1	9802-		●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9312-9410	●	●	●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9411-9505	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32	8-97011-596-2	02	1	9506-9510	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) L=32	8-97011-596-2	02	1	9511-9711		●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9712-9801		●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9802-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	9312-9506				●
91	04.302 PIN; SPR,SHIFT ARM 4JG2 ENG(RJC) 04.303 L=25 OD=5	8-94135-771-0	06	1	9507-				●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97011-371-1	01	1	9312-9506				●
98	04.309 ROD; SHIFT,TOP & 3RD 4JG2 ENG(RJC)	8-97011-371-1	01	1	9507-				●
99	04.302 ARM; SHIFT,4TH & 3RD	8-97011-366-1	01	1	9312-9506				●
99	04.302 ARM; SHIFT,4TH & 3RD 4JG2 ENG(RJC)	8-97011-366-1	01	1	9507-				●
100	04.309 ROD; SHIFT,REV & 5TH	8-94316-923-0	01	1	9312-9506				●
100	04.309 ROD; SHIFT,REV & 5TH 4JG2 ENG(RJC)	8-94316-923-0	01	1	9507-				●
101	04.302 ARM; SHIFT,REV & 5TH	8-97077-342-0	01	1	9312-9401				●
101	04.302 ARM; SHIFT,REV & 5TH	8-97107-545-0	01	1	9402-9506				●
101	04.302 ARM; SHIFT,REV & 5TH 4JG2 ENG(RJC)	8-97107-545-0	01	1	9507-				●
102	04.303 BLOCK; SHIFT,3RD & 4TH	8-97017-573-1	01	1	9312-9506				●
102	04.303 BLOCK; SHIFT,3RD & 4TH 4JG2 ENG(RJC)	8-97017-573-1	01	1	9507-				●
103	04.303 BLOCK; SHIFT,REV TO OD	8-94135-719-4	01	1	9312-9506				●
103	04.303 BLOCK; SHIFT,REV TO OD 4JG2 ENG(RJC)	8-94135-719-4	01	1	9507-				●
104	04.311 PLUG; PLATE 04.105 OD=16	9-09201-316-0	01	1	9312-9506				●
104	04.311 PLUG; PLATE 4JG2 ENG(RJC) 04.105 OD=16	9-09201-316-0	01	1	9507-				●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9312-9410	●	●	●	●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9411-9506	●	●	●	●
108	04.311 SPRING; LOCK BALL 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9507-9510	●	●	●	●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9511-9711		●		●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9712-9801				●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9712-9801		●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9802-		●		●
108	04.311 SPRING; LOCK BALL (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9312-9510	●	●	●
108	04.311 SPRING; LOCK BALL 4BE1 ENG(RLH) (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9511-		●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9312-9410	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9411-9505	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94340-131-2	01	1	9506-9510	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94340-131-2	01	1	9511-9711		●
130	04.302 LEVER; SHIFT,INTERNAL 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94340-131-2	01	1	9712-9801		●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)	8-94340-131-2	01	1	9802-		●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	9312-9506				●
130	04.302 LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC)	8-94105-141-2	01	1	9507-				●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	9312-9506				●
142	04.012 BOLT; QUAD BOX 4JG2 ENG(RJC) 04.105 (A) M8X25	8-94128-786-0	08	1	9507-				●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	9312-9506				●
142	04.012 BOLT; QUAD BOX 4JG2 ENG(RJC) 04.105 (B) M8X30	8-97029-705-0	02	1	9507-				●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94257-162-0	01	1	9312-9506				●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) 04.012	8-94257-162-0	01	1	9507-				●
157	04.105 BOX; QUAD,TRANS	8-97048-844-0	01	1	9312-9510	●	●	●
157	04.105 BOX; QUAD,TRANS 4BE1 ENG(RLH)	8-97048-844-0	01	1	9511-		●
157	04.105 BOX; QUAD,TRANS	8-94340-145-0	01	1	9312-9506				●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9507-9710				●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	9711-9711				●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC)	8-94340-145-0	01	1	9712-				●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	9711-9711				●
158	04.105 CLIP; HARNESS 01.152 (A) ID=8.5	5-09700-275-0	01	1	9312-9506				●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC) 01.152 (A) ID=8.5	5-09700-275-0	01	1	9507-				●
158	04.105 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-0	01	1	9312-9506				●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC) 03.162 (B) L=140	5-09707-031-0	01	1	9507-9710				●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 03.162 (B) L=140	5-09707-031-0	01	1	9711-9711				●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC) 03.162 (B) L=140	5-09707-031-1	01	1	9712-				●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9312-9506	●	●	●	●
163	04.302 LEVER; SELECT,INTERNAL 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94159-268-1	01	1	9507-9510	●	●	●	●
163	04.302 LEVER; SELECT,INTERNAL 4JG2 ENG(RJC),4BE1 ENG(RLH)	8-94159-268-1	01	1	9511-		●		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27	8-94128-784-0	01	1	9312-9410	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27	8-94128-784-0	01	1	9411-9505	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27	8-94128-784-0	01	1	9506-9510	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27	8-94128-784-0	01	1	9511-9711		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.309 (A) OD=27	8-94128-784-0	01	1	9712-9801		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 04.309 (A) OD=27	8-94128-784-0	01	1	9802-		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9312-9410	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9411-9505	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32	8-94462-019-0	01	1	9506-9510	●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32	8-94462-019-0	01	1	9511-9711		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) OD=32	8-94462-019-0	01	1	9712-9801		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) (B) OD=32	8-94462-019-0	01	1	9802-		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 OD=27	8-94128-784-0	02	1	9312-9506				●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) 04.309 OD=27	8-94128-784-0	02	1	9507-				●
165	04.302 LEVER; SHIFT	8-97035-556-0	01	1	9312-9510	●	●	●
165	04.302 LEVER; SHIFT 4BE1 ENG(RLH)	8-97035-556-0	01	1	9511-		●
165	04.302 LEVER; SHIFT	8-97036-221-0	01	1	9312-9506				●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9507-9710				●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	9711-9711				●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC)	8-97036-221-0	01	1	9712-				●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	9711-9711				●
166	04.302 PIN; SPR,SELECT LEVER 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9312-9410	●	●	●	●
166	04.302 PIN; SPR,SELECT LEVER 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9411-9506	●	●	●	●
166	04.302 PIN; SPR,SELECT LEVER 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9507-9510	●	●	●	●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9511-9611		●		●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9612-9711		●		●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9712-9801				●
166	04.302 PIN; SPR,SELECT LEVER 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9712-9801		●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9802-		●		●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-559-1	01	1	9312-9510	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4BE1 ENG(RLH)	8-97035-559-1	01	1	9511-		●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	9312-9506				●
167	04.302 LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC)	8-97035-560-1	01	1	9507-				●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9312-9510	●	●	●	●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94249-250-1	01	1	9511-9711		●		●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94249-250-1	01	1	9712-9801		●		●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94249-250-1	01	1	9802-		●		●
171	04.054 SWITCH; NEUTRAL	8-97065-416-0	01	1	9312-9405	●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-97113-440-1	01	1	9406-9508	●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-97137-656-0	01	1	9509-9510	●	●	●	●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97137-656-0	01	1	9511-9608		●		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-946-0	01	1	9609-9710		●		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97165-946-0	01	1	9711-9711				●
171	04.054 SWITCH; NEUTRAL 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-946-0	01	1	9711-9711		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-946-0	01	1	9712-9801		●		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-946-0	01	1	9802-		●		●
174	04.307 SPRING; REV	8-97076-907-0	01	1	9312-9510	●	●	●
174	04.307 SPRING; REV 4BE1 ENG(RLH)	8-97076-907-0	01	1	9511-		●
174	04.307 SPRING; REV	8-97031-927-0	01	1	9312-9506				●
174	04.307 SPRING; REV 4JG2 ENG(RJC)	8-97031-927-0	01	1	9507-				●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9312-9410	●	●	●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9411-9505	●	●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97034-819-0	01	1	9506-9510	●	●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97034-819-0	01	1	9511-9711		●
175	04.302 RING; STOPPER,SHIFT LEVER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97034-819-0	01	1	9712-9801		●
175	04.302 RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY)	8-97034-819-0	01	1	9802-		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-94249-048-2	01	1	9312-9506				●
175	04.302 RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC)	8-94249-048-2	01	1	9507-				●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9510	●	●	●	●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 L=30 OD=4	9-09678-549-0	02	1	9511-9710		●		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9711-9711				●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 L=30 OD=4	9-09678-549-0	02	1	9712-9801		●		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 L=30 OD=4	9-09678-549-0	02	1	9802-		●		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	9711-9711				●
176	04.302 PIN; SPR,STOPPER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) 04.555 L=30 OD=4	9-09678-549-0	02	1	9711-9711		●
180	04.302 WASHER; REV STOP SPRING 04.307	8-94249-244-0	01	1	9312-9506				●
180	04.302 WASHER; REV STOP SPRING 4JG2 ENG(RJC) 04.307	8-94249-244-0	01	1	9507-				●
183	04.105 PLUG; SCREW,OIL FILTER M18	8-94337-946-1	01	1	9312-9506				●
183	04.105 PLUG; SCREW,OIL FILTER 4JG2 ENG(RJC) M18	8-94337-946-1	01	1	9507-				●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	9312-9506				●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC) 04.422 ID=15.3	8-94336-511-0	01	1	9507-				●
398	02.698 SWITCH; REV LAMP	8-97071-665-0	01	1	9312-9405	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97113-435-1	01	1	9406-9508	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97137-650-0	01	1	9509-9510	●	●	●	●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97137-650-0	01	1	9511-9608		●		●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-947-0	01	1	9609-9711		●		●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-947-0	01	1	9712-9801		●		●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-97165-947-0	01	1	9802-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
