2-26C — MANUAL TRANSMISSION GEAR (#47403) — 103 parça

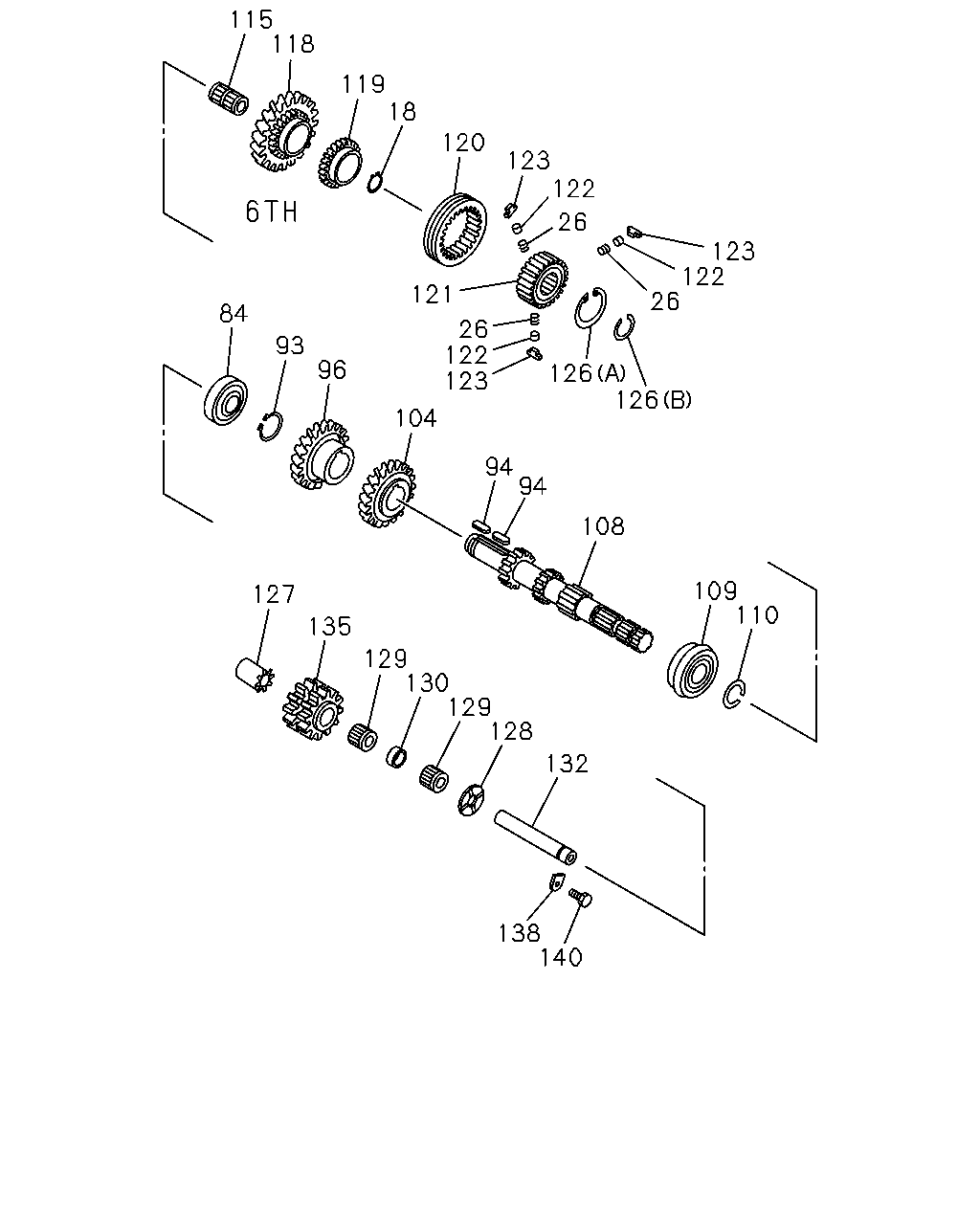

115 118 119 18 120 123 122 26 123 122 26 121 84 26 122 123 93 96 126 126 104 94 94 108 109 110 127 135 129 130 129 128 132 138 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	04.384 RING; SNAP,CLU HUB 4HE1 ENG(RLY) T=1.75	1-09588-196-0	01	1	9712-	●	●
26	04.384 SPRING; BLOCK,INSERT 4HE1 ENG(RLY)	1-09580-373-0	03	1	9712-	●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) NSK	1-09810-209-0	01	1	9712-	●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) KOYO	1-09810-210-0	01	1	9712-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY)	1-09588-091-0	01	1	9712-	●	●
94	04.422 KEY; FEATHER,COUNTER SHAFT 4HE1 ENG(RLY) L=41	1-09735-021-0	01	1	9712-	●	●
94	04.422 KEY; FEATHER,COUNTER SHAFT 4HE1 ENG(RLY) L=47	1-09735-022-1	01	1	9712-	●	●
96	04.421 GEAR; COUNTER DRIVE 4HE1 ENG(RLY) Z=38	1-33331-222-0	01	1	9712-	●	●
104	04.415 GEAR; 4TH,COUNTER 4HE1 ENG(RLY) Z=34	1-33332-110-0	01	1	9712-	●
104	04.415 GEAR; 4TH,COUNTER 4HE1 ENG(RLY) Z=35	1-33332-111-0	01	1	9712-		●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=28-22-14	1-33311-287-0	01	1	9712-	●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=30-23-14	1-33311-301-0	01	1	9712-		●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) NSK	1-09810-211-0	01	1	9712-	●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) KOYO	1-09810-212-0	01	1	9712-	●	●
110	04.422 RING; SNAP,COUNTER BRG 4HE1 ENG(RLY) ID=41.9	1-09588-075-1	01	1	9712-	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) NSK	1-09811-267-0	01	1	9712-	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) NTN	1-09811-268-0	01	1	9712-	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) KOYO	1-09811-269-0	01	1	9712-	●	●
118	04.421 GEAR; 6TH,COUNTER 4HE1 ENG(RLY) Z=41	1-33338-273-0	01	1	9712-	●	●
119	04.383 RING; BLOCK,6TH SYN 4HE1 ENG(RLY) Z=39	1-33265-408-0	01	1	9712-	●	●
120	04.383 SLEEVE 4HE1 ENG(RLY)	1-33262-095-0	01	1	9712-	●	●
121	04.384 HUB; CLU,6TH 4HE1 ENG(RLY)	1-33261-143-1	01	1	9712-	●	●
122	04.384 PLUNGER; DETENT,SYN 4HE1 ENG(RLY)	1-33269-037-1	03	1	9712-	●	●
123	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	1-33269-035-1	03	1	9712-	●	●
126	04.422 RING; SNAP,CLU HUB 4HE1 ENG(RLY) (A) OD=100 T=2	1-09587-032-0	01	1	9712-	●	●
126	04.422 RING; SNAP,CLU HUB 4HE1 ENG(RLY) 04.384 (B) ID=46.3 T=1.75	1-09588-121-1	01	1	9712-	●	●
127	04.431 COLLAR; THRUST,REV SHAFT 4HE1 ENG(RLY)	1-33363-029-0	01	1	9712-	●	●
128	04.437 WASHER; THRUST,REV SHAFT 4HE1 ENG(RLY) D=62 T=6.0	1-33363-028-0	01	1	9712-	●	●
129	04.431 BEARING; NEEDLE,IDLER 4HE1 ENG(RLY) NSK	1-09811-016-0	02	1	9712-	●	●
129	04.431 BEARING; NEEDLE,IDLER 4HE1 ENG(RLY) KOYO	1-09811-017-0	02	1	9712-	●	●
130	04.353 COLLAR; DIST,NEEDLE BRG 4HE1 ENG(RLY)	1-33363-031-0	01	1	9712-	●	●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	1-33351-023-1	01	1	9712-	●	●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=27	1-33361-073-0	01	1	9712-	●	●
138	04.435 PIECE; LK,REV SHAFT 4HE1 ENG(RLY)	9-33354-007-0	01	1	9712-	●	●
140	04.435 BOLT; LK PIECE 4HE1 ENG(RLY) M10X15 FLANGE	1-09049-019-0	01	1	9712-	●	●

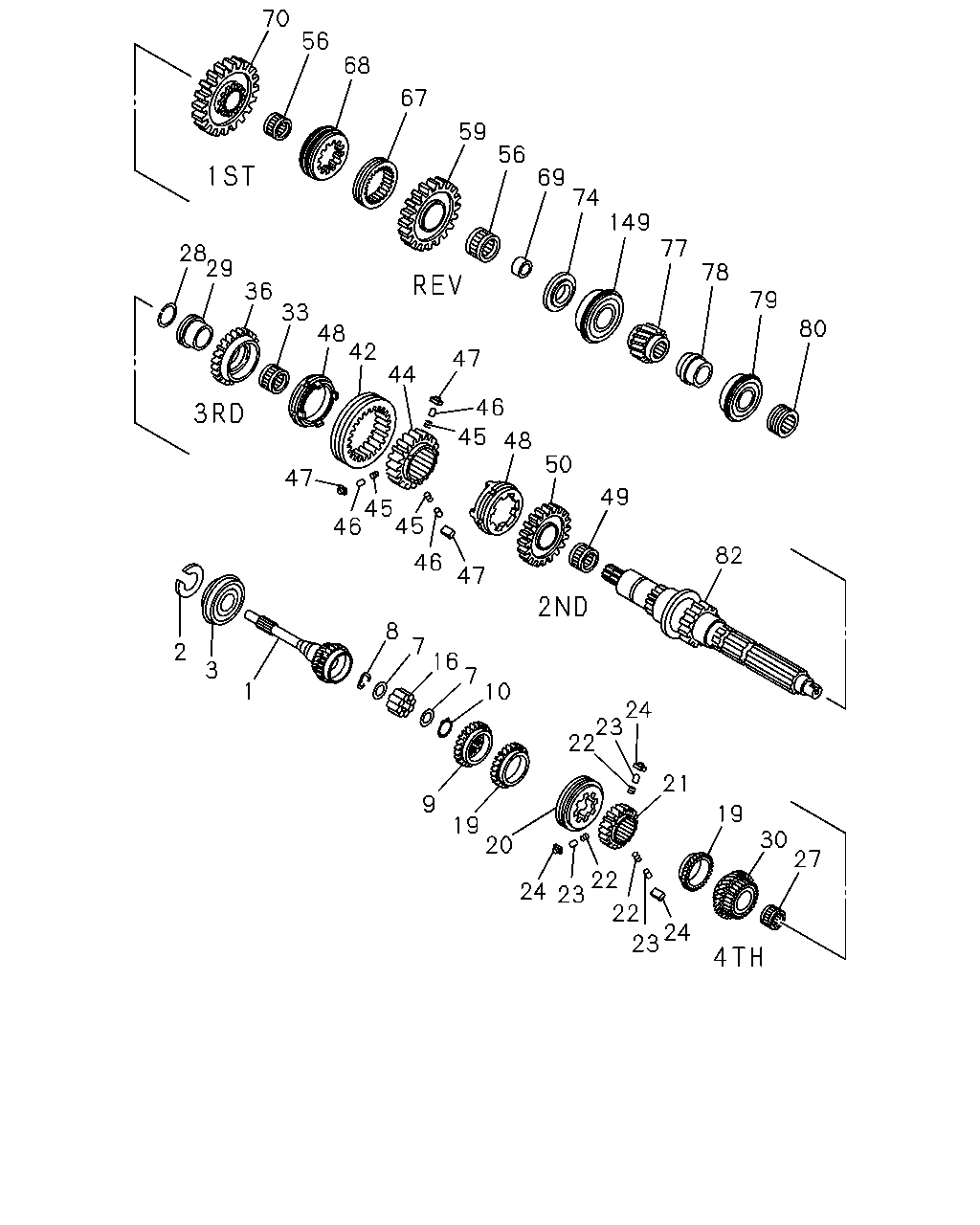

70 56 68 67 59 56 69 74 149 77 28 29 78 36 33 48 42 79 80 47 44 46 45 48 50 47 49 45 82 46 47 8 7 16 7 10 2 3 1 24 23 22 21 9 19 19 20 30 27 22 23 24 22 24 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=20	1-33211-916-0	01	1	9712-	●	●
2	04.353 RING; SNAP,TOP GEAR SHAFT 4HE1 ENG(RLY) ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9712-	●	●
2	04.353 RING; SNAP,TOP GEAR SHAFT 4HE1 ENG(RLY) ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9712-	●	●
2	04.353 RING; SNAP,TOP GEAR SHAFT 4HE1 ENG(RLY) ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9712-	●	●
2	04.353 RING; SNAP,TOP GEAR SHAFT 4HE1 ENG(RLY) ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9712-	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	1-09810-235-0	01	1	9712-	●	●
7	04.384 WASHER; THRUST,MAINSHAFT 4HE1 ENG(RLY)	1-33239-059-0	02	1	9712-	●	●
8	04.353 CLIP; DOG CLU 4HE1 ENG(RLY)	1-33219-020-0	01	1	9712-	●	●
9	04.351 CLUTCH; DOG,TOP GEAR 4HE1 ENG(RLY) Z=45	1-33265-413-1	01	1	9712-	●	●
10	04.412 RING; SNAP,PILOT BRG 4HE1 ENG(RLY) OD=50.5	9-09180-147-0	01	1	9712-	●	●
16	04.399 BEARING; PILOT,MAINSHAFT 4HE1 ENG(RLY) NSK	1-09844-006-1	14	1	9712-	●	●
16	04.399 BEARING; PILOT,MAINSHAFT 4HE1 ENG(RLY) NTN	1-09844-007-1	14	1	9712-	●	●
16	04.399 BEARING; PILOT,MAINSHAFT 4HE1 ENG(RLY) KOYO	1-09844-008-2	14	1	9712-	●	●
19	04.383 RING; BLOCK,4TH & 5TH 4HE1 ENG(RLY) Z=45	1-33265-414-0	02	1	9712-	●	●
20	04.383 SLEEVE 4HE1 ENG(RLY)	1-33262-167-0	01	1	9712-	●	●
21	04.384 HUB; CLU,4TH & 5TH 4HE1 ENG(RLY)	1-33261-210-0	01	1	9712-	●	●
22	04.384 SPRING; BLOCK,INSERT 4HE1 ENG(RLY) D=3.8	1-09580-395-0	03	1	9712-	●	●
23	04.384 PLUNGER; DETENT,SYN 4HE1 ENG(RLY)	1-33269-037-1	03	1	9712-	●	●
24	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	1-33269-035-1	03	1	9712-	●	●
27	04.408 BEARING; 4TH GEAR 4HE1 ENG(RLY) NSK	1-09811-372-0	01	1	9712-	●	●
27	04.408 BEARING; 4TH GEAR 4HE1 ENG(RLY) NTN	1-09811-386-0	01	1	9712-	●	●
28	04.416 RING; SNAP,3RD GEAR 4HE1 ENG(RLY)	1-09588-195-0	01	1	9712-	●	●
29	04.416 COLLAR; 3RD GEAR 4HE1 ENG(RLY)	1-33234-076-0	01	1	9712-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=26	1-33253-555-0	01	1	9712-	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=25	1-33253-557-0	01	1	9712-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 NSK	1-09811-370-0	01	1	9712-	●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 KOYO	1-09811-387-1	01	1	9712-	●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 NTN	1-09811-414-0	01	1	9712-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=33	1-33252-415-0	01	1	9712-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=31	1-33252-432-0	01	1	9712-		●
42	04.383 SLEEVE 4HE1 ENG(RLY) Z=45	1-33262-162-0	01	1	9712-	●	●
44	04.384 HUB; CLU,2ND & 3RD,MAIN 4HE1 ENG(RLY)	1-33261-193-0	01	1	9712-	●	●
45	04.384 SPRING; BLOCK INSERT 4HE1 ENG(RLY) D=3.8	1-09580-395-0	03	1	9712-	●	●
46	04.384 PLUNGER; DETENT,SYN 4HE1 ENG(RLY)	1-33269-037-1	03	1	9712-	●	●
47	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	1-33269-035-1	03	1	9712-	●	●
48	04.380 SYNCHRONIZER ASM; 2ND & 3RD 4HE1 ENG(RLY)	1-33265-409-0	02	1	9712-	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) NSK	1-09811-371-0	02	1	9712-	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) KOYO	1-09811-373-0	02	1	9712-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=42	1-33251-345-0	01	1	9712-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=42	1-33251-381-0	01	1	9712-		●
56	04.419 BEARING; NEEDLE,1ST,REV 4HE1 ENG(RLY) NSK	1-09811-370-0	02	1	9712-	●	●
56	04.419 BEARING; NEEDLE,1ST,REV 4HE1 ENG(RLY) KOYO	1-09811-387-1	02	1	9712-	●	●
56	04.419 BEARING; NEEDLE,1ST,REV 4HE1 ENG(RLY) NTN	1-09811-414-0	02	1	9712-	●	●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=45	1-33257-072-0	01	1	9712-	●	●
67	04.384 HUB; CLU,1ST TO REV 4HE1 ENG(RLY)	1-33261-192-0	01	1	9712-	●	●
68	04.419 SLEEVE; 1ST TO REV 4HE1 ENG(RLY)	1-33262-175-1	01	1	9712-	●	●
69	04.417 COLLAR; 1ST GEAR MAIN 4HE1 ENG(RLY)	1-33234-073-0	01	1	9712-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=47	1-33255-069-0	01	1	9712-	●	●
74	04.419 WASHER; THRUST,REV GEAR 4HE1 ENG(RLY)	1-33239-147-0	01	1	9712-	●	●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1 ENG(RLY) Z=17	1-33253-543-0	01	1	9712-	●	●
78	04.419 COLLAR; DIST,MAINSHAFT BRG 4HE1 ENG(RLY)	1-33235-099-0	01	1	9712-	●	●
79	04.408 BEARING; BALL,MAINSHAFT 4HE1 ENG(RLY) NSK	1-09800-019-0	01	1	9712-	●	●
79	04.408 BEARING; BALL,MAINSHAFT 4HE1 ENG(RLY) KOYO	1-09800-120-1	01	1	9712-	●	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) Z=4	1-33371-054-1	01	1	9712-9809	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK) Z=4	1-33371-054-1	01	1	9712-9809	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) Z=4	1-33371-054-1	01	1	9810-	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK) EXC. ENGINE POWER N-SPEC(7QV) Z=4	1-33371-054-1	01	1	9810-	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J) Z=6	1-33371-053-1	01	1	9712-9809	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) (9BP) Z=6	1-33371-053-1	01	1	9712-9809	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9712-9809	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=6	1-33371-053-1	01	1	9712-9809		●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	9810-	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) (BPT),(9BP) EXC. TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9810-	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) TIRE SIZE 8.25-16<7QP> Z=6	1-33371-053-1	01	1	9810-	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=6	1-33371-053-1	01	1	9810-		●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=25-24-24-16	1-33231-263-0	01	1	9712-	●	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4HE1 ENG(RLY) NSK	1-09810-215-0	01	1	9712-	●	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4HE1 ENG(RLY) KOYO	1-09810-216-0	01	1	9712-	●	●
