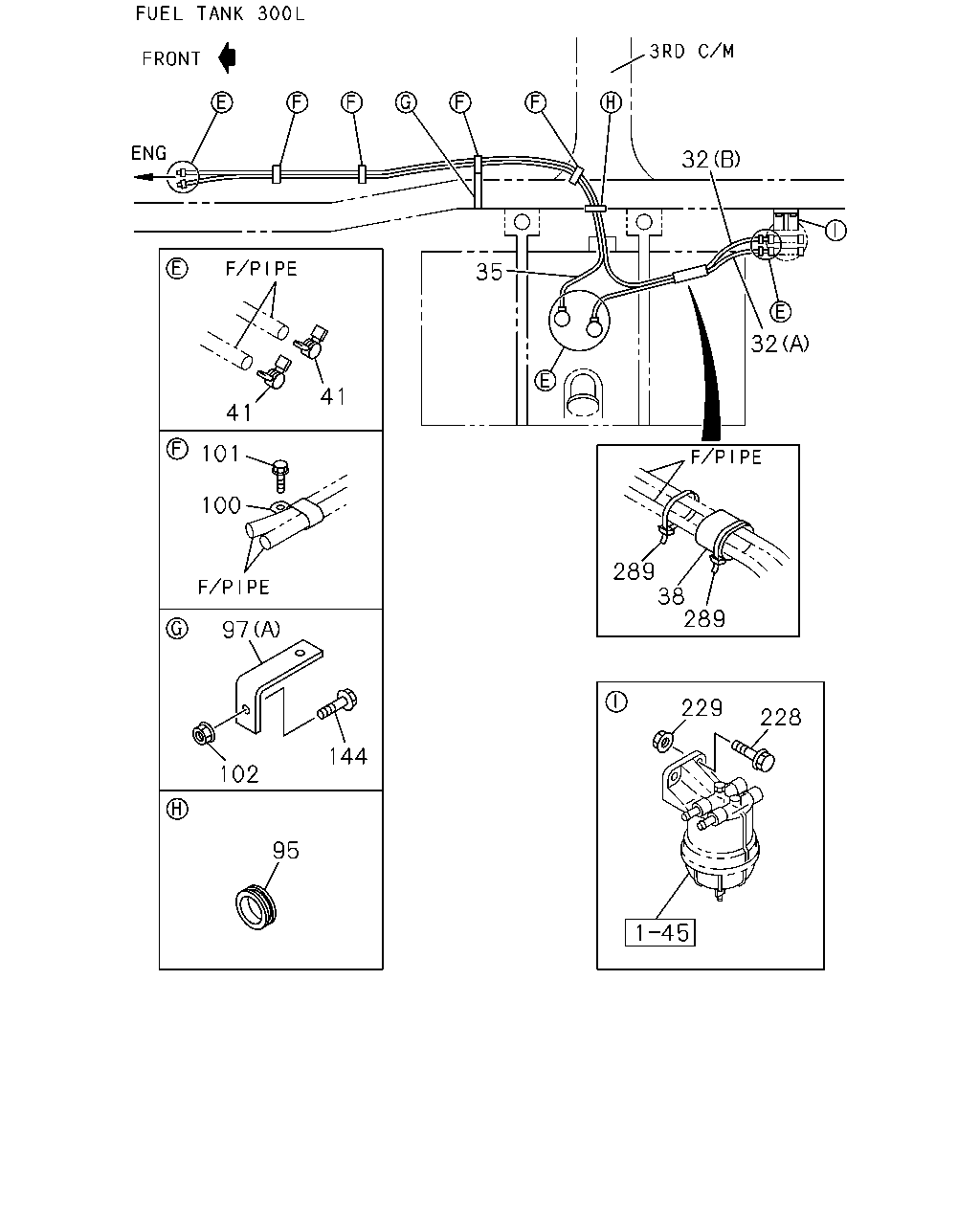

1-41B — FUEL PIPING; CHASSIS (#4740) — 140 parça

35 32 32 35 289 38 289 41 41 101 100 187 102 185 229 187 228 156 187 187 101 100 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9604	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9606	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9705	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2300 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2300 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9604	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9904	●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●	●	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 300L<RF5> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 300L<RF5> L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 300L<RF5> L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
35	PIPE; FUEL TANK,RETURN L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9604	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 300L<RF5> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9904	●
35	PIPE; FUEL TANK,RETURN L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9603-9705	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9905-	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9706-9804	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9805-9904	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9705	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9706-9804	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9805-9904	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9603-9604	●
100	CLIP; FUEL PIPE FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	03	1	9605-9904	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9905-	●	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9605-9608	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9609-9904	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	03	1	9609-9904	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	04	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	05	1	9609-9805	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9806-9904	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-9908	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	02	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	03	1	9609-9904	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9905-	●	●	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8	9-09110-508-0	01	1	9604-9604	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8	9-09110-508-0	01	1	9605-9606	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	01	1	9607-9803	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	01	1	9804-9904	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=80 H=20	1-82699-304-0	01	1	9603-9904	●
156	BRACKET; FUEL HOSE ZF M/T<X9E> (B)	1-47478-306-0	02	1	9905-	●	●	●
185	PIPE; FUEL TANK TO TANK L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9603-9604	●
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 300L<RF5> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9605-9904	●
185	PIPE; FUEL TANK TO TANK L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9905-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=17.1	8-94122-679-0	02	1	9603-9604	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 300L<RF5> (A) ID=17.1	8-94122-679-0	02	1	9605-9904	●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=17.1	8-94122-679-0	02	1	9905-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9603-9604	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 300L<RF5> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9605-9904	●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9905-	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X30 FLANGE	0-28081-030-0	02	1	9603-9604	●
228	BOLT; BRKT,SEDIMENTER EXC. THAILAND EQUIPMENT(PM9) M10X30 FLANGE	0-28081-030-0	02	1	9605-9606	●
228	BOLT; BRKT,SEDIMENTER EXC. THAILAND EQUIPMENT(PM9) M10X35 FLANGE	0-28681-035-0	02	1	9607-9904	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	9905-0012	●	●	●
228	BOLT; BRKT,SEDIMENTER EXC. AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	02	1	0101-	●	●	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 300L<RF5> M10X40 FLANGE	0-28081-040-0	02	1	9605-9904	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9603-9606	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9706	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9905-0012	●	●	●
229	NUT; BRKT,FUEL FILTER EXC. AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	02	1	0101-	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9707-9804	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9805-9904	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9603-9706	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9707-9804	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9805-9904	●

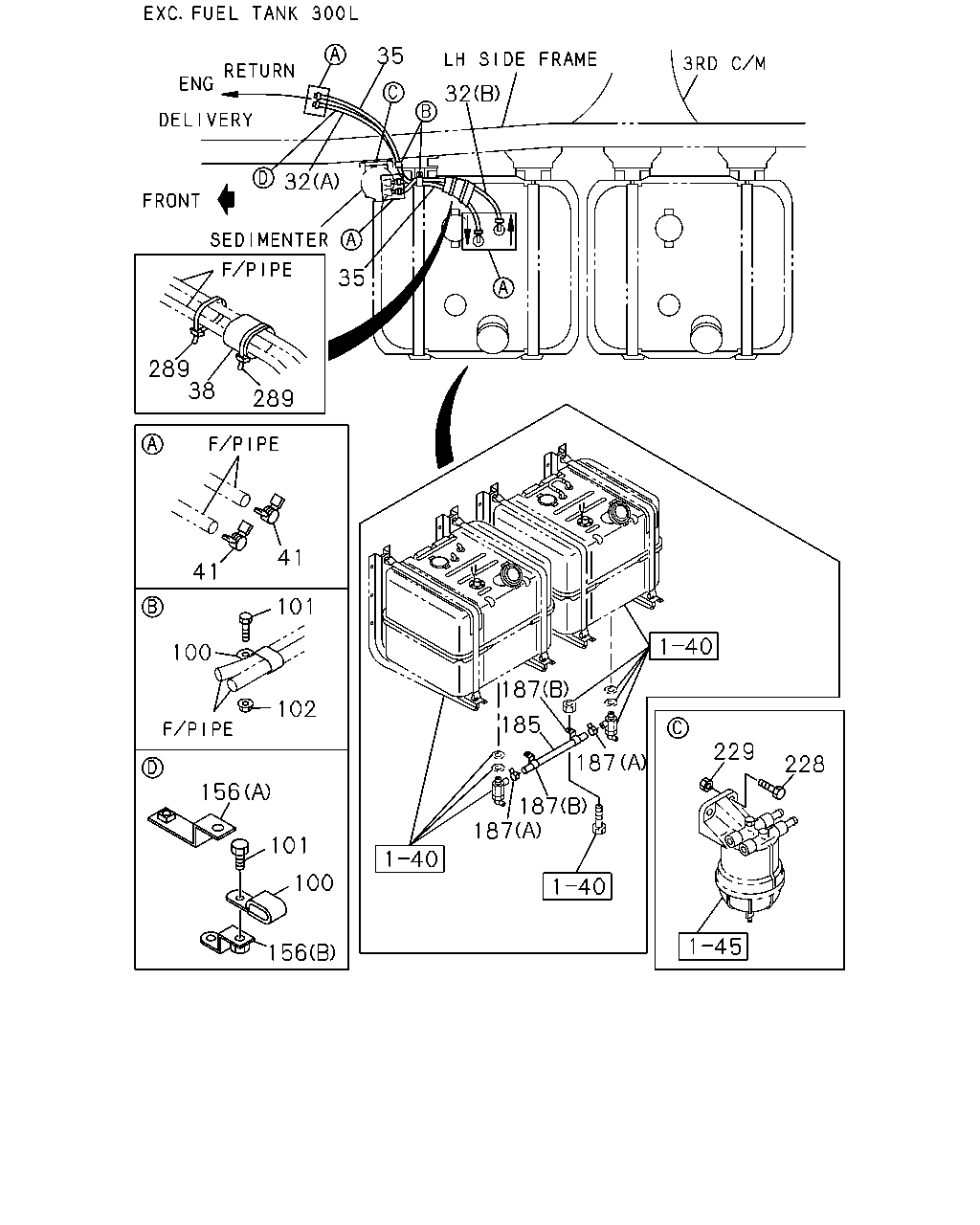

32 35 32 41 41 101 100 289 38 289 97 229 228 144 102 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9604	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9606	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9705	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●	●	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2300 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2300 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9604	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9904	●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●	●	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 300L<RF5> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 300L<RF5> L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 300L<RF5> L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
35	PIPE; FUEL TANK,RETURN L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9604	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 300L<RF5> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9904	●
35	PIPE; FUEL TANK,RETURN L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9603-9705	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9905-	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9706-9804	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9805-9904	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9705	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9706-9804	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9805-9904	●
95	BUSHING; PIPE,FUEL TANK FUEL TANK 300L<RF5> ID=28 OD=35 T=25	1-09332-011-1	01	1	9605-9904	●
97	BRACKET; CLIP FUEL TANK 300L<RF5> (A) L=115	1-47475-305-0	01	1	9604-9904	●
97	BRACKET; CLIP ZF M/T<X9E> (A)	1-47478-083-0	01	1	9905-9908	●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9603-9604	●
100	CLIP; FUEL PIPE FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	03	1	9605-9904	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9905-	●	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9605-9608	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9609-9904	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	03	1	9609-9904	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	04	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	05	1	9609-9805	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9806-9904	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-9908	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	02	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	03	1	9609-9904	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9905-	●	●	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8	9-09110-508-0	01	1	9604-9604	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8	9-09110-508-0	01	1	9605-9606	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	01	1	9607-9803	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	01	1	9804-9904	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 300L<RF5> M8X30 FLANGE	0-28080-830-0	01	1	9604-9606	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 300L<RF5> M8X35 FLANGE	0-28680-835-0	01	1	9607-9904	●
228	BOLT; BRKT,SEDIMENTER M10X30 FLANGE	0-28081-030-0	02	1	9603-9604	●
228	BOLT; BRKT,SEDIMENTER EXC. THAILAND EQUIPMENT(PM9) M10X30 FLANGE	0-28081-030-0	02	1	9605-9606	●
228	BOLT; BRKT,SEDIMENTER EXC. THAILAND EQUIPMENT(PM9) M10X35 FLANGE	0-28681-035-0	02	1	9607-9904	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	9905-0012	●	●	●
228	BOLT; BRKT,SEDIMENTER EXC. AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	02	1	0101-	●	●	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 300L<RF5> M10X40 FLANGE	0-28081-040-0	02	1	9605-9904	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9603-9606	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9706	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9905-0012	●	●	●
229	NUT; BRKT,FUEL FILTER EXC. AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	02	1	0101-	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9707-9804	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9805-9904	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9603-9706	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-	●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9707-9804	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9805-9904	●
