Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

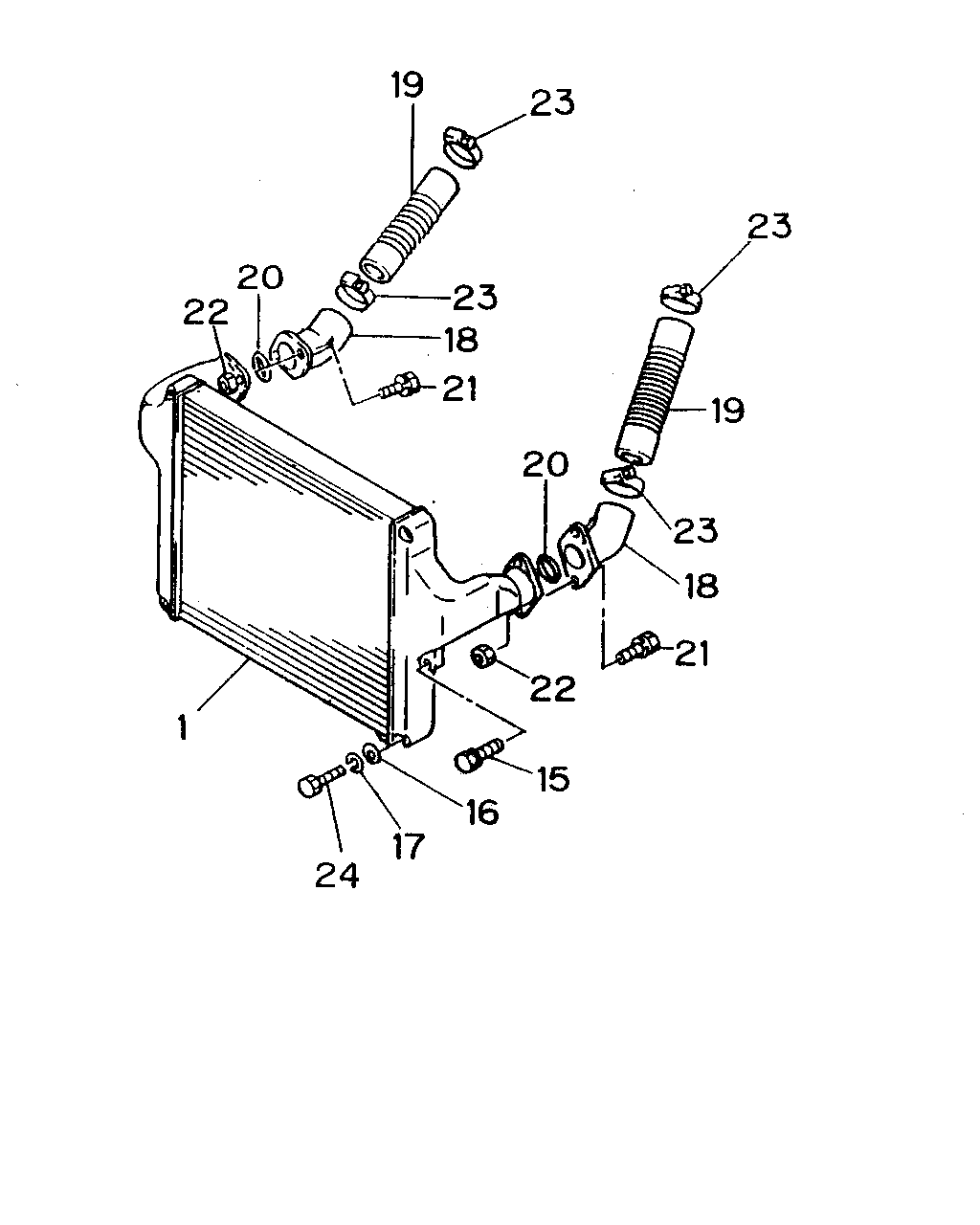

1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#474) — 29 parça
Tümü
A - 6RB1TC ENG
B - 6RA1TC ENG
19
23
23
19
23
18
21
22
15
16
17
24
1
20
21
18
23
20
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COOLER; CHARGE AIR
1-14431-023-1
01
1
8712-
●
1
COOLER; CHARGE AIR
1-14431-013-1
01
1
8712-9306
●
15
BOLT; CHARGE AIR COOLER
M8X50
9-01040-850-0
02
1
8712-
●
15
BOLT; CHARGE AIR COOLER
M10X80
9-01046-080-0
02
1
8712-
●
15
BOLT; CHARGE AIR COOLER
M10X80
9-01046-080-0
04
1
8712-9306
●
16
WASHER; PL,CHARGE AIR COOLER
ID=8.4 OD=18
9-09160-608-0
02
1
8712-
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22
9-09160-610-0
05
1
8712-
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22
9-09160-610-0
08
1
8712-9306
●
17
WASHER; LK,CHARGE AIR COOLER
ID=8.2
9-09150-508-0
02
1
8712-
●
17
WASHER; LK,CHARGE AIR COOLER
ID=10.2
9-09150-510-0
06
1
8712-
●
17
WASHER; LK,CHARGE AIR COOLER
ID=10.2
9-09150-510-0
08
1
8712-9306
●
18
ADAPTER
1-14112-175-1
01
1
8712-
●
●
18
ADAPTER
1-14112-177-1
01
1
8712-
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
MARUGO
1-09360-651-0
01
1
8712-8809
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
TOWA
1-09360-653-0
01
1
8712-9204
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
MARUGO
1-09360-652-0
01
1
8712-8809
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
TOWA
1-09360-654-0
01
1
8712-9204
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
MARUGO L=280
1-09360-757-2
01
1
8810-
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
MARUGO
1-09360-758-1
01
1
8810-
●
●
20
GASKET
1-09623-372-0
02
1
8712-9111
●
●
20
GASKET
ID=84.6
1-09623-431-0
02
1
9112-
●
●
21
BOLT
M10X45
9-01971-045-0
02
1
8712-9002
●
21
BOLT
M10X45 W/LK&PL WASHER
0-50141-045-0
02
1
9003-
●
21
BOLT
M10X45
9-01971-045-0
04
1
8712-9002
●
21
BOLT
M10X45 W/LK&PL WASHER
0-50141-045-0
04
1
9003-9306
●
22
NUT
M10 FLANGE
5-09440-006-0
04
1
8712-
●
●
23
CLIP; HOSE
ID=77-95
1-09707-114-0
08
1
8712-
●
●
24
BOLT; COOLER TO RAD
M10X50
9-01046-050-0
01
1
8712-
●
24
BOLT; COOLER TO RAD
M10X38
9-01046-038-0
02
1
8712-9306
●
