Sayfa 1-41A - Isuzu EPC

1-41A — FUEL PIPING; CHASSIS (#4739) — 165 parça

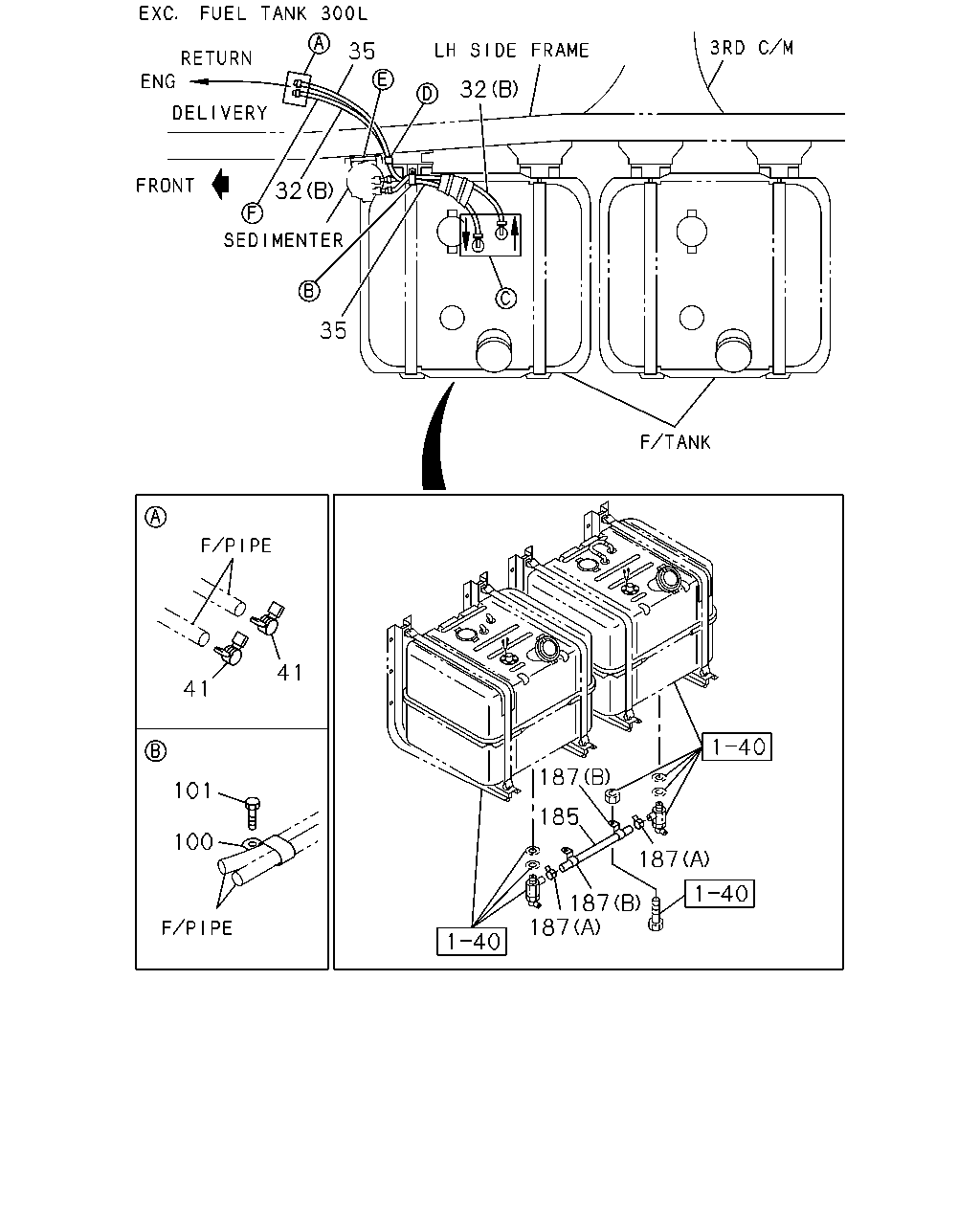

35 32 32 35 41 41 187 101 185 100 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
32	PIPE; DELIVERY,FUEL TANK (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9604	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9606	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9705	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9802	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9803-9904	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●		●	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2300 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9705	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 300L<RF5> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 300L<RF5> L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 300L<RF5> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●		●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9705	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●		●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9706-9804	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9805-9904	●	●		●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9603-9604	●
100	CLIP; FUEL PIPE FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	03	1	9605-9904	●
100	CLIP; FUEL PIPE FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	01	1	9706-9805	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9605-9608	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9609-9904	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9905-	●		●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	04	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	05	1	9609-9805	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9806-9904	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-9908	●		●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	02	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	01	1	9706-9805	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0009-	●		●	●	●
185	PIPE; FUEL TANK TO TANK L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9603-9604	●
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 300L<RF5> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9605-9904	●	●
185	PIPE; FUEL TANK TO TANK L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9905-	●		●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=17.1	8-94122-679-0	02	1	9603-9604	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 300L<RF5> (A) ID=17.1	8-94122-679-0	02	1	9605-9904	●	●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=17.1	8-94122-679-0	02	1	9905-	●		●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9603-9604	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 300L<RF5> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9605-9904	●	●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9905-	●		●	●	●

101 41 100 41 102 289 41 38 229 289 41 228 144 101 100 156 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9603-9705	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9905-	●		●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9706-9804	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9805-9904	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9705	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●		●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9706-9804	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9805-9904	●	●		●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9603-9604	●
100	CLIP; FUEL PIPE FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	03	1	9605-9904	●
100	CLIP; FUEL PIPE FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	01	1	9706-9805	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9605-9608	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9609-9904	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9905-	●		●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	04	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	05	1	9609-9805	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9806-9904	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-9908	●		●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	02	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	01	1	9706-9805	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0009-	●		●	●	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8	9-09110-508-0	01	1	9604-9604	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8	9-09110-508-0	01	1	9605-9606	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	01	1	9607-9803	●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	01	1	9804-9904	●	●
102	NUT; CLIP,FUEL PIPE TRANSMISSION-FULLER RTLO147 13 OD(Y2P) M8 FLANGE	0-91150-108-0	02	1	9804-9904	●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	9905-9908	●				●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9909-	●		●	●	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	02	1	9706-9708	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 300L<RF5> M8X30 FLANGE	0-28080-830-0	01	1	9604-9606	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 300L<RF5> M8X35 FLANGE	0-28680-835-0	01	1	9607-9904	●
144	BOLT; CLIP,FUEL PIPE,C/MBR TRANSMISSION-FULLER RTLO147 13 OD(Y2P) M8X35 FLANGE	0-28680-835-0	02	1	9804-9904	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	9905-9908	●				●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9909-	●		●	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=80 H=20	1-82699-304-0	01	1	9603-9904	●
156	BRACKET; FUEL HOSE ZF M/T<X9E> (B)	1-47478-306-0	02	1	9905-			●	●
228	BOLT; BRKT,SEDIMENTER M10X30 FLANGE	0-28081-030-0	02	1	9603-9604	●
228	BOLT; BRKT,SEDIMENTER EXC. THAILAND EQUIPMENT(PM9) M10X30 FLANGE	0-28081-030-0	02	1	9605-9606	●
228	BOLT; BRKT,SEDIMENTER EXC. THAILAND EQUIPMENT(PM9) M10X35 FLANGE	0-28681-035-0	02	1	9607-9904	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	9905-0012	●		●	●	●
228	BOLT; BRKT,SEDIMENTER EXC. AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	02	1	0101-	●		●	●	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 300L<RF5> M10X40 FLANGE	0-28081-040-0	02	1	9605-9904	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9603-9606	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9706	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9905-0012	●		●	●	●
229	NUT; BRKT,FUEL FILTER EXC. AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	02	1	0101-	●		●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9707-9804	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9805-9904	●	●		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9603-9706	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-	●		●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9707-9804	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9805-9904	●	●		●

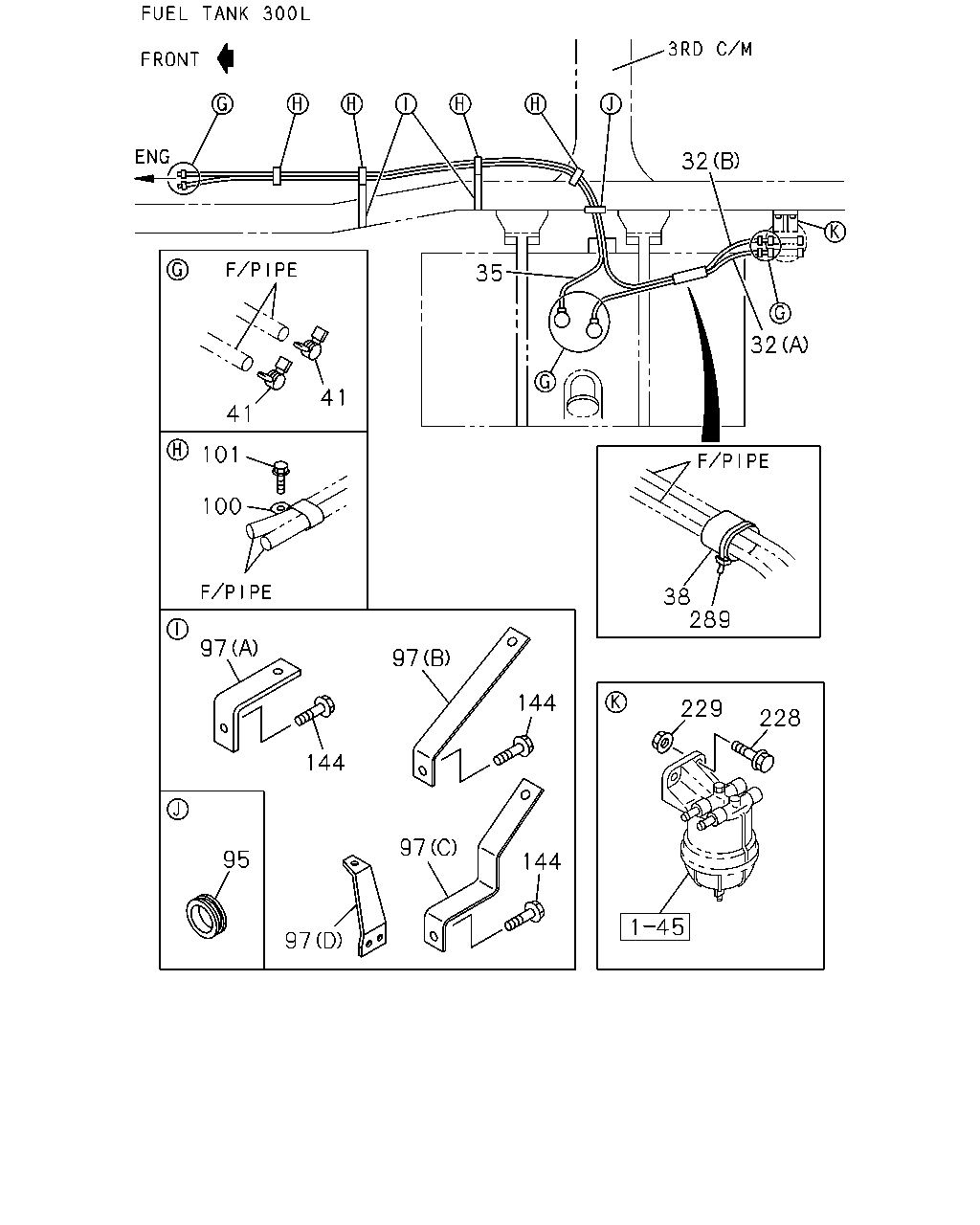

32 35 32 41 41 101 100 38 289 97 97 144 229 228 144 97 95 144 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
32	PIPE; DELIVERY,FUEL TANK (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9604	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9606	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9705	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9802	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9803-9904	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●		●	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2300 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9705	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 300L<RF5> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 300L<RF5> L=2250 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9705	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 300L<RF5> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9706-9904	●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●		●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9603-9705	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9905-	●		●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9706-9804	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	01	1	9805-9904	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9705	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-	●		●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9706-9804	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9805-9904	●	●		●
95	BUSHING; PIPE,FUEL TANK FUEL TANK 300L<RF5> ID=28 OD=35 T=25	1-09332-011-1	01	1	9605-9904	●
97	BRACKET; CLIP FUEL TANK 300L<RF5> (A) L=115	1-47475-305-0	01	1	9604-9904	●
97	BRACKET; CLIP FUEL TANK 300L<RF5> (B)	1-47478-083-0	01	1	9804-9904	●
97	BRACKET; CLIP FUEL TANK 300L<RF5> (C)	1-47477-677-0	01	1	9706-9708	●	●
97	BRACKET; CLIP ZF M/T<X9E> (D)	1-47478-442-0	01	1	9905-9908			●	●
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (D)	1-47478-442-0	01	1	9909-	●		●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9603-9604	●
100	CLIP; FUEL PIPE FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	03	1	9605-9904	●
100	CLIP; FUEL PIPE FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	01	1	9706-9805	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9605-9608	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=16X2 L=20	9-09535-536-0	02	1	9609-9904	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9905-	●		●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	04	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9607-9608	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	05	1	9609-9805	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9806-9904	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-9908	●		●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	02	1	9605-9606	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	01	1	9706-9805	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0009-	●		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 300L<RF5> M8X30 FLANGE	0-28080-830-0	01	1	9604-9606	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 300L<RF5> M8X35 FLANGE	0-28680-835-0	01	1	9607-9904	●
144	BOLT; CLIP,FUEL PIPE,C/MBR TRANSMISSION-FULLER RTLO147 13 OD(Y2P) M8X35 FLANGE	0-28680-835-0	02	1	9804-9904	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	02	1	9905-9908	●				●
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9909-	●		●	●	●
228	BOLT; BRKT,SEDIMENTER M10X30 FLANGE	0-28081-030-0	02	1	9603-9604	●
228	BOLT; BRKT,SEDIMENTER EXC. THAILAND EQUIPMENT(PM9) M10X30 FLANGE	0-28081-030-0	02	1	9605-9606	●
228	BOLT; BRKT,SEDIMENTER EXC. THAILAND EQUIPMENT(PM9) M10X35 FLANGE	0-28681-035-0	02	1	9607-9904	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	9905-0012	●		●	●	●
228	BOLT; BRKT,SEDIMENTER EXC. AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	02	1	0101-	●		●	●	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 300L<RF5> M10X40 FLANGE	0-28081-040-0	02	1	9605-9904	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9603-9606	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9706	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9905-0012	●		●	●	●
229	NUT; BRKT,FUEL FILTER EXC. AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	02	1	0101-	●		●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9707-9804	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9805-9904	●	●		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9603-9706	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-	●		●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9707-9804	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9805-9904	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
