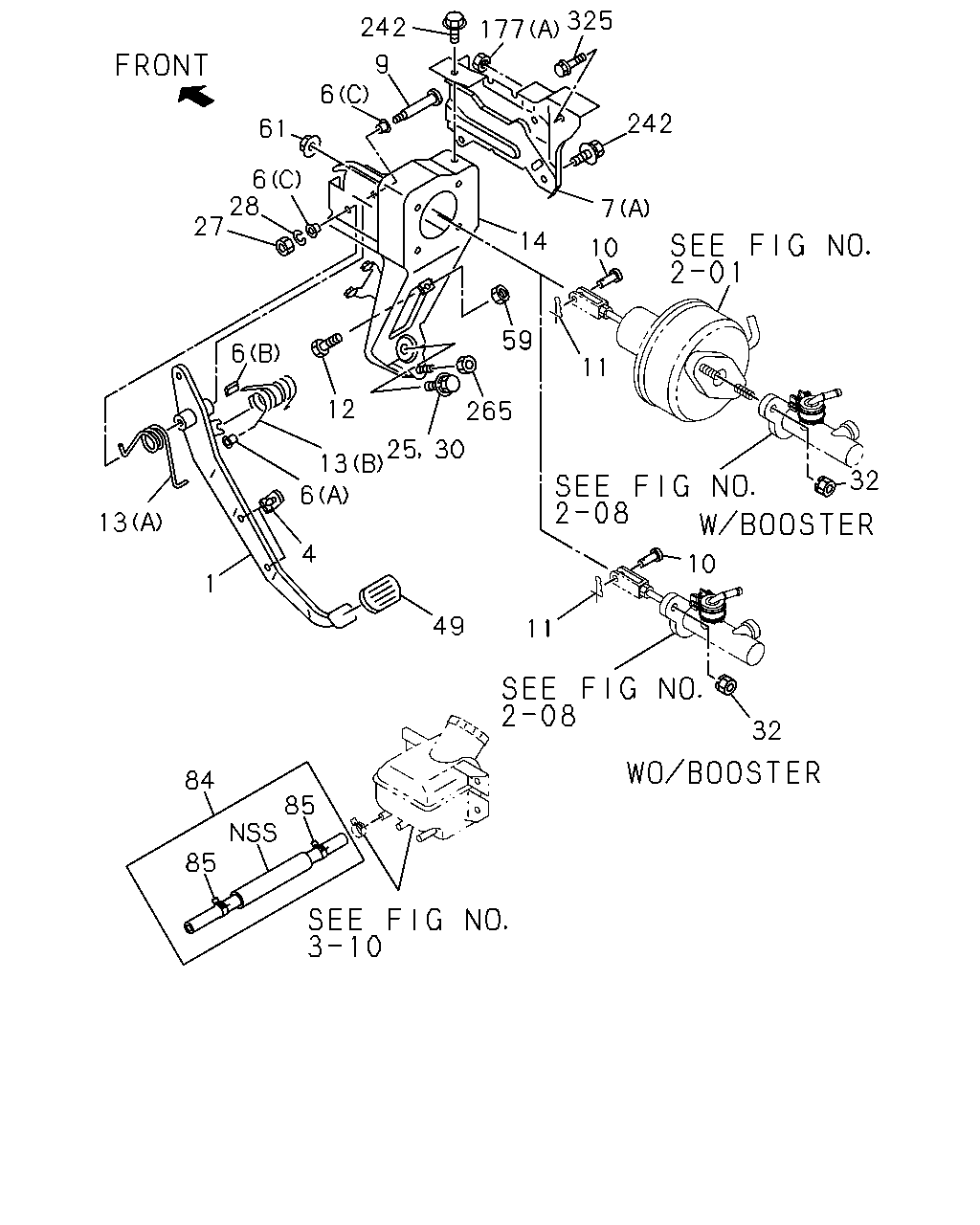

2-03 — CLUTCH PEDAL AND CONTROL (#47386) — 175 parça
çizim 66936
325 242 177 6 242 61 6 28 27 7 14 10 59 6 11 12 265 25 13 30 32 6 13 4 10 49 11 32 84 85 85 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.830 PEDAL; CLU
4JG2 ENG(RJC) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-219-1 01 1 9712- ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) VOLTAGE 24V<7AE> 		8-97853-220-0 01 1 9312-9404 ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-220-1 01 1 9405-9711 ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-220-1 01 1 9712- ● ● ● ● ●
1 00.830 PEDAL; CLU
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-219-0 01 1 9312-9404 ● ● ● ●
1 00.830 PEDAL; CLU
EXC. VOLTAGE 24V<7AE> 		8-97853-219-0 01 1 9312-9404 ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-219-1 01 1 9405-9611 ● ● ● ●
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-219-1 01 1 9612-9711 ● ● ● ● ●
1 00.830 PEDAL; CLU
4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-1 01 1 9712- ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-0 02 1 9312-9611 ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-534-0 02 1 9612-9711 ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-534-0 02 1 9712- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 9312-9611 ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.792 (C) 		8-94238-596-0 02 1 9612-9711 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.792 (C) 		8-94238-596-0 02 1 9712- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 9312-9404 ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. VOLTAGE 24V<7AE> (A) 		8-97853-619-0 02 1 9312-9404 ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 9405-9611 ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 9612-9711 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 9712- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 9312-9404 ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. VOLTAGE 24V<7AE> (B) 		8-97853-620-0 01 1 9312-9404 ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 9405-9611 ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 9612-9711 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 9712- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
(A) 		8-97856-307-2 01 1 9312-9611 ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
(A) 		8-97856-307-2 01 1 9612-9711 ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
(A) 		8-97856-307-2 01 1 9712-9712 ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
FLOOR REMOTE SHIFT<M11> (A) 		8-97856-307-2 01 1 9712- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL

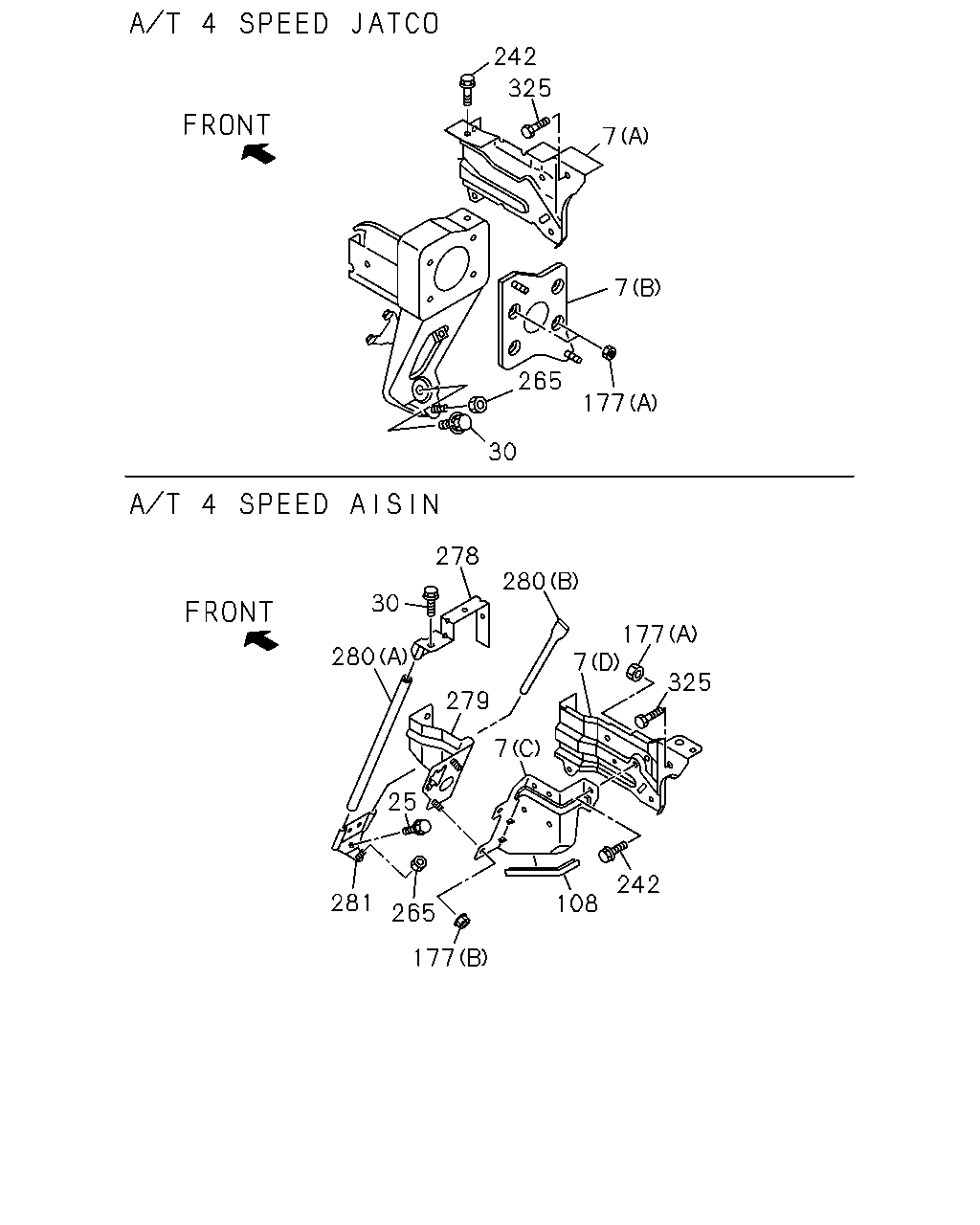

A/T 4 SPEED-JATCO(RMK) (A) 		8-97856-307-2 01 1 9712- ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-JATCO(RMK) (B) 		8-97859-522-1 01 1 9505- ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) (C) 		8-97868-169-1 01 1 9804- ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) (D) 		8-97868-177-0 01 1 9804- ●
9 00.833 PIN; CLU PEDAL 8-97853-213-0 01 1 9312-9511 ● ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 9512-9611 ● ● ● ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-97866-667-0 01 1 9612-9711 ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-97866-667-0 01 1 9712- ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 9312-9611 ● ● ● ●
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94410-276-0 01 1 9612-9711 ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94410-276-0 01 1 9712- ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 9312-9611 ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94279-912-0 01 1 9612-9711 ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94279-912-0 01 1 9712- ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> 00.805 M10X35 		0-20801-035-0 01 1 9312-9611 ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> 00.805 M10X35 		0-20801-035-0 01 1 9612-9711 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) VOLTAGE 24V<7AE> (A) 		8-97853-535-0 01 1 9312-9404 ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 9405-9711 ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 9712- ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-0 01 1 9312-9404 ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. VOLTAGE 24V<7AE> (B) 		8-97853-221-0 01 1 9312-9404 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 9405-9611 ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 9612-9711 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 9712- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) VOLTAGE 24V<7AE> 		8-97856-978-0 01 1 9312-9404 ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97856-978-2 01 1 9405-9609 ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97868-002-0 01 1 9610-9711 ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97868-002-0 01 1 9712- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH(S2T) 		8-97856-979-0 01 1 9312-9404 ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. VOLTAGE 24V<7AE> 		8-97856-979-0 01 1 9312-9404 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97856-979-2 01 1 9405-9609 ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97868-003-0 01 1 9610-9611 ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97868-003-0 01 1 9612-9711 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97868-003-0 01 1 9712- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-JATCO(RMK) 		8-97856-981-2 01 1 9505-9609 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
A/T 4 SPEED-JATCO(RMK) 		8-97868-004-0 01 1 9610- ● ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9512-9611 ● ● ● ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9612-9711 ● ● ● ● ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9712- ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
09.011 M10 		9-09110-410-0 01 1 9312-9406 ● ● ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 9407-9611 ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> M10 FLANGE 		1-09440-022-0 01 1 9612-9711 ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
FLOOR REMOTE SHIFT<M11> M10 FLANGE 		1-09440-022-0 01 1 9712- ● ● ● ● ● ●
28 00.833 WASHER; LK,FULCRUM PIN
00.002 ID=10.2 		9-09150-610-0 01 1 9312-9406 ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 		1-09980-494-0 01 1 9312-9511 ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
M10X25 		8-94279-212-0 01 1 9312-9604 ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 9604-9611 ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 9612-9711 ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 9712- ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9312-9611 ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
FLOOR REMOTE SHIFT<M11> M8 W/LK WASHER 		8-94279-050-0 02 1 9612-9711 ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
FLOOR REMOTE SHIFT<M11> M8 W/LK WASHER 		8-94279-050-0 02 1 9712- ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-1 01 1 9312-9611 ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-413-1 01 1 9612-9711 ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
FLOOR REMOTE SHIFT<M11> 		8-97853-413-1 01 1 9712- ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> 09.011 M10 		9-09110-410-0 01 1 9312-9611 ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> 09.011 M10 		9-09110-410-0 01 1 9612-9711 ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 9312-9711 ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 9712- ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-97076-988-1 01 1 9312-9507 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-97135-022-0 01 1 9508-9711 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-97135-022-0 01 1 9712- ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-97076-989-2 01 1 9312-9407 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T),PTO TRANSMISSION SIDE(V66) 		8-97076-989-2 01 1 9408-9507 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T),PTO TRANSMISSION SIDE(V66) 		8-97135-023-1 01 1 9508-9611 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T),PTO TRANSMISSION SIDE(V66) 		8-97135-023-1 01 1 9612-9707 ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),PTO TRANSMISSION SIDE(V66) 		8-97135-023-1 01 1 9708-9711 ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),PTO TRANSMISSION SIDE(V66) 		8-97135-023-1 01 1 9712- ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
PTO TRANSMISSION SIDE(V66) EXC. POWER ASSIST CLUTCH(S2T) 		8-97115-953-0 01 1 9408-9504 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. POWER ASSIST CLUTCH(S2T) 		8-97115-953-0 01 1 9505-9507 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. POWER ASSIST CLUTCH(S2T) 		8-97135-027-1 01 1 9508-9611 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. POWER ASSIST CLUTCH(S2T) 		8-97135-027-1 01 1 9612-9711 ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. POWER ASSIST CLUTCH(S2T) 		8-97135-027-1 01 1 9712- ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97094-435-0 02 1 9312-9507 ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 9508-9611 ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 9612-9707 ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
FLOOR REMOTE SHIFT<M11> 04.681 		8-97130-480-0 02 1 9708-9711 ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
FLOOR REMOTE SHIFT<M11> 04.681 		8-97130-480-0 02 1 9712- ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9402-9504 ● ● ● ●
177 00.785 NUT; BRKT
00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9505-9611 ● ● ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9505-9611 ● ●
177 00.785 NUT; BRKT
00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9612-9711 ● ● ● ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9612-9711 ● ●
177 00.785 NUT; BRKT
00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9712- ● ● ● ● ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9712- ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-AISIN(RNJ) 01.540 (B) M8 FLANGE 		0-91150-208-0 02 1 9804- ●
242 00.785 BOLT; BRKT,CLUTCH
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9511 ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9512-9611 ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9612-9711 ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9712-9712 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
FLOOR REMOTE SHIFT<M11> 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9712- ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
A/T 4 SPEED-JATCO(RMK) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9712- ● ●
242 00.785 BOLT; BRKT,CLUTCH
A/T 4 SPEED-AISIN(RNJ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804- ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
03.417 M8 FLANGE 		8-94279-517-0 01 1 9312-9609 ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9610-9611 ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9612-9711 ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9712- ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9312-9604 ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9604-9611 ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9612-9711 ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ● ● ● ● ● ●
çizim 69324
242 325 7 7 265 177 30 278 280 30 177 7 280 325 279 7 25 242 281 108 265 177
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 00.829 BRACKET; CLU PEDAL
(A) 		8-97856-307-2 01 1 9312-9611 ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
(A) 		8-97856-307-2 01 1 9612-9711 ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
(A) 		8-97856-307-2 01 1 9712-9712 ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
FLOOR REMOTE SHIFT<M11> (A) 		8-97856-307-2 01 1 9712- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-JATCO(RMK) (A) 		8-97856-307-2 01 1 9712- ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-JATCO(RMK) (B) 		8-97859-522-1 01 1 9505- ● ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) (C) 		8-97868-169-1 01 1 9804- ●
7 00.829 BRACKET; CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) (D) 		8-97868-177-0 01 1 9804- ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9512-9611 ● ● ● ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9612-9711 ● ● ● ● ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9712- ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 		1-09980-494-0 01 1 9312-9511 ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
M10X25 		8-94279-212-0 01 1 9312-9604 ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 9604-9611 ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 9612-9711 ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 9712- ● ● ● ● ● ●
108 00.829 PROTECTOR; EDGE,CLU PEDAL
A/T 4 SPEED-AISIN(RNJ) 		8-97868-559-0 01 1 9804- ●
177 00.785 NUT; BRKT
00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9402-9504 ● ● ● ●
177 00.785 NUT; BRKT
00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9505-9611 ● ● ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9505-9611 ● ●
177 00.785 NUT; BRKT
00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9612-9711 ● ● ● ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9612-9711 ● ●
177 00.785 NUT; BRKT
00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9712- ● ● ● ● ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-JATCO(RMK) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 9712- ● ●
177 00.785 NUT; BRKT
A/T 4 SPEED-AISIN(RNJ) 01.540 (B) M8 FLANGE 		0-91150-208-0 02 1 9804- ●
242 00.785 BOLT; BRKT,CLUTCH
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9511 ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9512-9611 ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9612-9711 ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9712-9712 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
FLOOR REMOTE SHIFT<M11> 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9712- ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
A/T 4 SPEED-JATCO(RMK) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9712- ● ●
242 00.785 BOLT; BRKT,CLUTCH
A/T 4 SPEED-AISIN(RNJ) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9804- ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
03.417 M8 FLANGE 		8-94279-517-0 01 1 9312-9609 ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9610-9611 ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9612-9711 ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9712- ● ● ● ● ● ●
278 00.833 REINFORCEMENT; VAC BRK
A/T 4 SPEED-AISIN(RNJ) 		8-97855-297-0 01 1 9804- ●
279 00.829 SUPPORT; VAC BRKT
A/T 4 SPEED-AISIN(RNJ) 		8-97855-299-1 01 1 9804- ●
280 00.829 ARM; VAC
A/T 4 SPEED-AISIN(RNJ) (A) 		8-97855-301-0 01 1 9804- ●
280 00.829 ARM; VAC
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97855-302-0 01 1 9804- ●
281 00.829 STAY; VAC
A/T 4 SPEED-AISIN(RNJ) 		8-97855-303-1 01 1 9804- ●
325 00.782 BOLT; BRKT,STRG SUPPORT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9312-9604 ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9604-9611 ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9612-9711 ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
