Sayfa 1-56 - Isuzu EPC

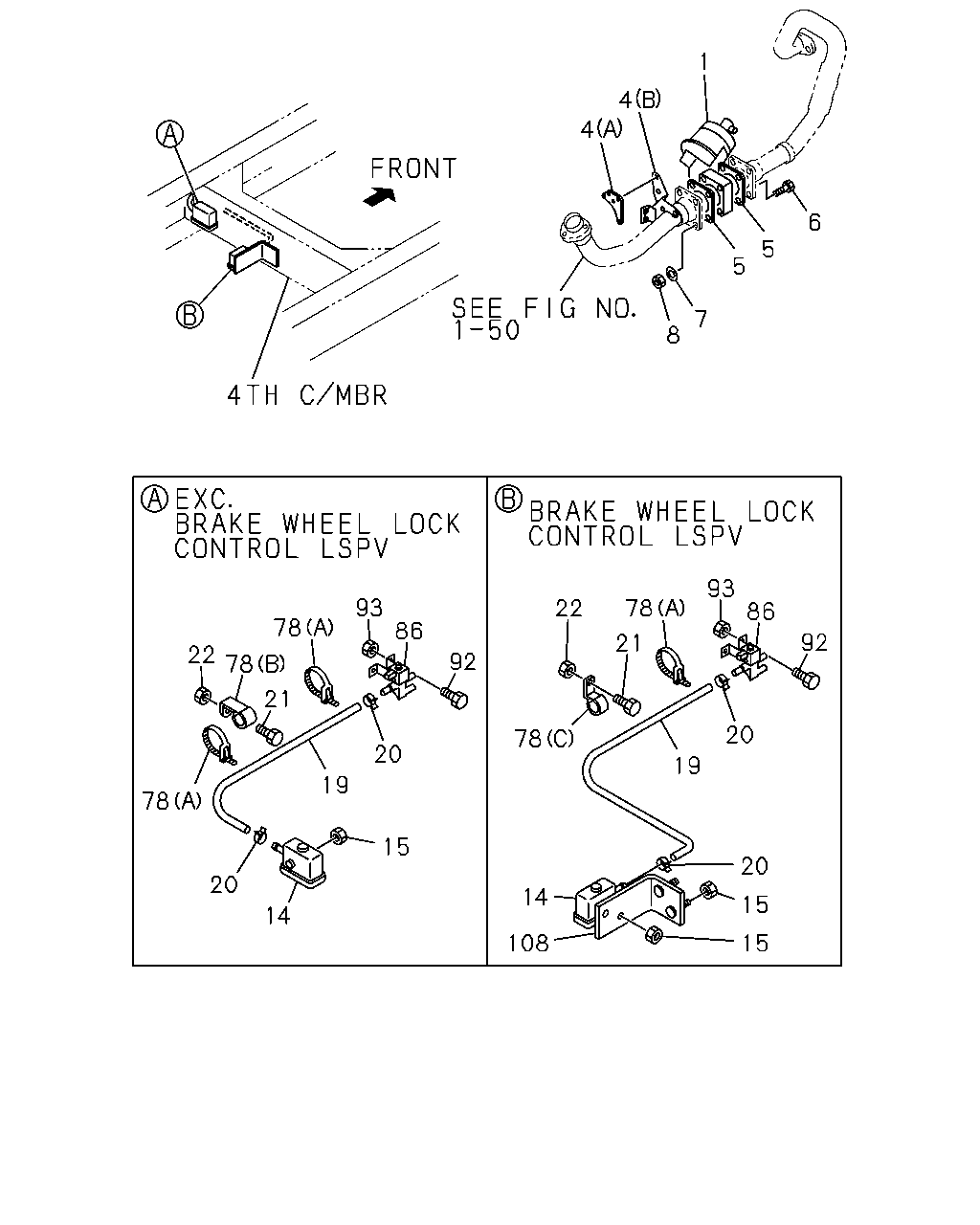

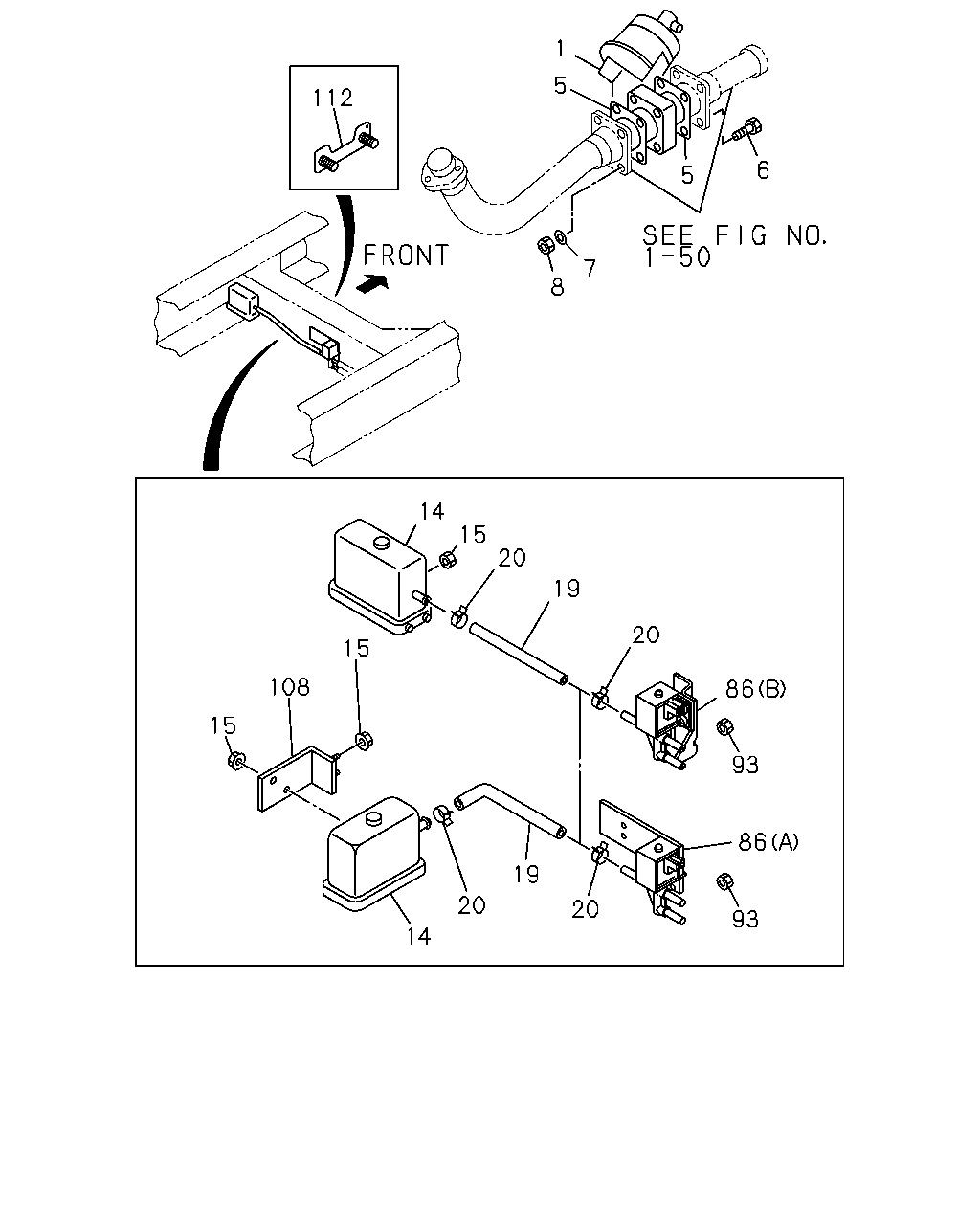

1-56 — EXHAUST BRAKE SYSTEM (#47384) — 460 parça

1 4 4 6 5 5 7 8 93 93 22 78 86 78 86 92 21 22 78 92 21 20 78 20 19 19 78 15 20 20 14 15 14 108 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.632 BRAKE UNIT; EXH 4BD1 ENG(LJ6) EXHAUST BRAKE<NF8>	8-97092-495-0	01	1	9312-9510	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97034-028-1	01	1	9312-9611	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97034-028-1	01	1	9612-9612	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97135-836-0	01	1	9701-9706	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97174-739-0	01	1	9707-9711	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97174-739-0	01	1	9712-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97106-362-1	01	1	9312-9711	●	●	●		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH)	8-97106-362-1	01	1	9712-	●	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97034-024-0	01	1	9312-9506		●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97034-024-1	01	1	9507-9711	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC)	8-97034-024-3	01	1	9712-	●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW)	8-97070-356-0	01	1	9312-9504		●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11>	8-97070-356-1	01	1	9505-9704		●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11>	8-97070-356-1	01	1	9705-9706		●	●		●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11>	8-97174-737-0	01	1	9707-		●	●		●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK)	8-97070-365-1	01	1	9505-9706		●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK)	8-97174-738-0	01	1	9707-		●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97174-740-0	01	1	9712-9801		●	●
1	03.632 BRAKE UNIT; EXH	8-97174-740-0	01	1	9712-9801						●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97174-740-0	01	1	9802-		●	●	●
1	03.632 BRAKE UNIT; EXH	8-97174-740-0	01	1	9802-						●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD1 ENG(LJ6) EXHAUST BRAKE<NF8> (B)	8-94143-683-1	01	1	9312-9510	●	●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	5-22186-011-0	01	1	9312-9506	●	●	●		●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD1 ENG(LJ6),4BE1 ENG(RLH) (A)	5-22186-011-0	01	1	9507-9510	●	●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> (A)	5-22186-011-0	01	1	9507-9510		●	●
4	03.634 BRACKET; EXH BRAKE UNIT (A)	5-22186-011-0	01	1	9507-9510					●
4	03.634 BRACKET; EXH BRAKE UNIT 4BE1 ENG(RLH) (A)	5-22186-011-0	01	1	9511-9704	●	●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> (A)	5-22186-011-0	01	1	9511-9704		●	●
4	03.634 BRACKET; EXH BRAKE UNIT (A)	5-22186-011-0	01	1	9511-9704					●
4	03.634 BRACKET; EXH BRAKE UNIT 4BE1 ENG(RLH) (A)	5-22186-011-0	01	1	9705-9711	●	●	●		●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> (A)	5-22186-011-0	01	1	9705-9711		●	●		●
4	03.634 BRACKET; EXH BRAKE UNIT 4BE1 ENG(RLH) (A)	5-22186-011-0	01	1	9712-	●	●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> (A)	5-22186-011-0	01	1	9712-		●	●
4	03.634 BRACKET; EXH BRAKE UNIT (A)	5-22186-011-0	01	1	9712-					●
4	03.634 BRACKET; EXH BRAKE UNIT 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> (B)	8-97094-814-1	01	1	9312-9711	●	●	●		●
4	03.634 BRACKET; EXH BRAKE UNIT 4BE1 ENG(RLH) (B)	8-97094-814-1	01	1	9712-	●	●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD2 ENG(RLW) (B)	8-97023-715-0	01	1	9312-9506		●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> (B)	8-97023-715-0	01	1	9507-9704		●	●
4	03.634 BRACKET; EXH BRAKE UNIT 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11> (B)	8-97023-715-0	01	1	9705-		●	●		●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9312-9711	●	●	●		●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH) ID=54	8-94328-354-0	02	1	9712-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> ID=64	8-97037-694-0	02	1	9312-9406	●	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> ID=64	8-97037-694-0	02	1	9407-9611	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> ID=64	8-97037-694-0	02	1	9612-9704	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> ID=64	8-97037-694-0	02	1	9705-9711	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) ID=64	8-97037-694-0	02	1	9712-	●	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BD1 ENG(LJ6) EXHAUST BRAKE<NF8> 07.506 M8X90	0-10805-890-0	04	1	9312-9510	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9312-9406	●	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9407-9611	●	●	●		●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9612-9711	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 03.708 M8X70	0-10805-870-0	04	1	9712-	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9312-9510	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9511-9603	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9604-9611	●	●	●		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9612-9711	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	9712-	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 ID=10.5	5-09500-013-0	04	1	9312-9506		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 ID=10.5	5-09500-013-0	04	1	9507-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9312-9510	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9511-9603	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9604-9611	●	●	●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9612-9711	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	9712-	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 M10 H=18	9-09640-014-0	04	1	9312-9506		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 M10 H=18	9-09640-014-0	04	1	9507-	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BD1 ENG(LJ6),4BE1 ENG(RLH)	8-94419-755-2	01	1	9312-9510	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH)	8-94419-755-2	01	1	9312-9510		●	●
14	03.634 FILTER; AIR,EXH BRAKE	8-94419-755-2	01	1	9312-9510					●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH)	8-94419-755-2	01	1	9511-9603	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE	8-94419-755-2	01	1	9511-9603					●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94419-755-2	01	1	9604-9704	●	●	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94419-755-2	01	1	9705-9711	●	●	●		●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH)	8-94419-755-2	01	1	9712-	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9312-9611	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9612-9711	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97033-888-0	01	1	9712-9801	●	●	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9802-	●	●	●	●		●
14	03.634 FILTER; AIR,EXH BRAKE 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-94417-220-2	01	1	9312-9510		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BD2 ENG(RLW)	8-94417-220-2	01	1	9511-9603		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-94417-220-2	01	1	9604-9704		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-94417-220-2	01	1	9705-9711		●	●		●
14	03.634 FILTER; AIR,EXH BRAKE 4BD2 ENG(RLW)	8-94417-220-2	01	1	9712-		●	●
14	03.634 FILTER; AIR,EXH BRAKE	8-94417-220-2	01	1	9712-					●
15	03.634 NUT; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9406	●	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9407-9506	●	●	●		●
15	03.634 NUT; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-9510	●	●	●		●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-9510	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603	●	●	●		●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9711	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9711	●
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●
19	03.630 HOSE; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH) L=560 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9506	●
19	03.630 HOSE; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH> L=560 SERVICED BY L=3000	0-08258-300-0	01	1	9507-9510	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH> L=560 SERVICED BY L=3000	0-08258-300-0	01	1	9511-	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> L=800 SERVICED BY L=3000	0-08258-300-0	01	1	9507-	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=260 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9403	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9404-9711	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9712-	●
19	03.630 HOSE; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510		●
19	03.630 HOSE; AIR FILTER L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510					●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9707		●			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9708-		●
19	03.630 HOSE; AIR FILTER 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> L=480 SERVICED BY L=3000	0-08258-300-0	01	1	9511-		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510		●	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9711		●	●
19	03.630 HOSE; AIR FILTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9712-9801		●	●			●
19	03.630 HOSE; AIR FILTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9802-		●	●	●		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9603		●	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	9604-9611		●	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	9612-9711		●	●	●
19	03.630 HOSE; AIR FILTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	9712-		●	●	●		●
19	03.630 HOSE; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) L=740 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> L=740 SERVICED BY L=3000	0-08258-300-0	01	1	9511-			●
19	03.630 HOSE; AIR FILTER 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> L=330 SERVICED BY L=3000	0-08258-300-0	01	1	9511-			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH),4BD2 ENG(RLW) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	9708-9711					●
19	03.630 HOSE; AIR FILTER L=240 SERVICED BY L=3000	0-08258-300-0	01	1	9712-					●
20	03.630 CLIP; HOSE,AIR FILTER EXHAUST BRAKE<NF8> 04.930 ID=16	8-94238-568-0	02	1	9312-9402	●	●	●		●
21	03.630 BOLT; HOSE TO FRAME 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9507-9702	●
21	03.630 BOLT; HOSE TO FRAME 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9703-	●
22	03.630 NUT; HOSE TO FRAME 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 04.594 M6 FLANGE	0-91150-106-0	01	1	9507-	●
78	03.636 CLIP; HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH) 03.162 (A) L=140	5-09707-031-0	01	1	9312-9510	●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) 03.162 (A) L=140	5-09707-031-1	01	1	9511-	●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 03.630 (C) ID=19 H=21 L=24	5-09700-360-0	01	1	9507-	●
78	03.636 CLIP; HOSE 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) ID=18 L=51	5-09700-320-0	01	1	9511-9801		●
78	03.636 CLIP; HOSE 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=20	5-09700-321-0	01	1	9802-		●
78	03.636 CLIP; HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 03.630 (B) ID=18 L=51	5-09700-320-0	02	1	9312-9510			●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) 03.630 (B) ID=18 L=51	5-09700-320-0	02	1	9511-9612			●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 03.630 (B) ID=18 L=51	5-09700-320-0	02	1	9701-9801			●
78	03.636 CLIP; HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=20	5-09700-321-0	02	1	9802-			●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97065-472-0	01	1	9312-9510	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97065-472-0	01	1	9511-9603	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9511-9603		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9604-9611	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9604-9611		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9612-9711	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9612-9711		●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> (A)	8-97065-472-0	01	1	9612-9711				●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9712-9801	●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9712-9801		●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9802-	●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9802-		●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (A)	8-97065-472-0	01	1	9802-			●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> (A)	8-97043-776-1	01	1	9604-9711	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (A)	8-97043-776-1	01	1	9712-	●
86	03.636 VALVE; MAG,EXH BRK 4BD1 ENG(LJ6),4BE1 ENG(RLH)	8-97066-720-1	01	1	9312-9510	●	●	●
86	03.636 VALVE; MAG,EXH BRK	8-97066-720-1	01	1	9312-9510					●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH)	8-97066-720-1	01	1	9511-9603	●	●	●
86	03.636 VALVE; MAG,EXH BRK	8-97066-720-1	01	1	9511-9603					●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9604-9704	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9705-9711	●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH)	8-97066-720-1	01	1	9712-	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC)	8-97069-300-2	01	1	9312-9506		●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC)	8-97069-300-2	01	1	9507-9603	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9604-9711	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC)	8-97069-300-2	01	1	9712-	●	●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW)	8-97071-555-1	01	1	9312-9603		●	●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-97071-555-1	01	1	9604-9704		●	●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-97071-555-1	01	1	9705-9711		●	●		●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW)	8-97071-555-1	01	1	9712-		●	●
86	03.636 VALVE; MAG,EXH BRK	8-97071-555-1	01	1	9712-					●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B)	8-97101-047-0	01	1	9312-9510		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9511-9711		●	●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9712-9801		●	●			●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9802-		●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A)	8-97170-945-0	01	1	9802-		●	●	●		●
92	08.900 BOLT; MAG VLV 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9312-9510	●	●	●		●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 03.613 M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9511-9603	●	●	●		●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9604-9704	●	●	●	●	●	●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9705-9711	●	●	●		●
92	08.900 BOLT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9712-	●	●	●		●
92	08.900 BOLT; MAG VLV 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-9603		●	●
92	08.900 BOLT; MAG VLV 4BD2 ENG(RLW) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9604-9711		●	●
92	08.900 BOLT; MAG VLV 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-		●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603	●	●	●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603		●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9611	●	●	●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9611		●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711	●	●	●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711		●	●
93	08.917 NUT; MAG VLV EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711				●
93	08.917 NUT; MAG VLV 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●		●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●
93	08.917 NUT; MAG VLV 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9510	●	●	●		●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9603	●	●	●		●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	02	1	9604-	●	●	●		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9506		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9507-9603	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9604-9711	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH>	8-97107-602-1	01	1	9507-9603	●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH>	8-97107-602-1	01	1	9604-9711	●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH>	8-97107-602-1	01	1	9712-	●
108	03.634 BRACKET; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH>	8-97106-474-1	01	1	9604-9711	●
108	03.634 BRACKET; AIR FILTER 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97106-474-2	01	1	9712-	●

1 5 112 6 5 7 8 14 15 20 19 20 15 108 86 15 93 86 19 20 20 93 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.632 BRAKE UNIT; EXH 4BD1 ENG(LJ6) EXHAUST BRAKE<NF8>	8-97092-495-0	01	1	9312-9510	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97034-028-1	01	1	9312-9611	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97034-028-1	01	1	9612-9612	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97135-836-0	01	1	9701-9706	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97174-739-0	01	1	9707-9711	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97174-739-0	01	1	9712-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97106-362-1	01	1	9312-9711	●	●	●		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH)	8-97106-362-1	01	1	9712-	●	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97034-024-0	01	1	9312-9506		●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97034-024-1	01	1	9507-9711	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC)	8-97034-024-3	01	1	9712-	●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW)	8-97070-356-0	01	1	9312-9504		●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11>	8-97070-356-1	01	1	9505-9704		●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11>	8-97070-356-1	01	1	9705-9706		●	●		●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11>	8-97174-737-0	01	1	9707-		●	●		●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK)	8-97070-365-1	01	1	9505-9706		●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK)	8-97174-738-0	01	1	9707-		●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97174-740-0	01	1	9712-9801		●	●
1	03.632 BRAKE UNIT; EXH	8-97174-740-0	01	1	9712-9801						●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97174-740-0	01	1	9802-		●	●	●
1	03.632 BRAKE UNIT; EXH	8-97174-740-0	01	1	9802-						●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	9312-9711	●	●	●		●
5	03.634 GASKET; EXH BRAKE UNIT 4BE1 ENG(RLH) ID=54	8-94328-354-0	02	1	9712-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> ID=64	8-97037-694-0	02	1	9312-9406	●	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> ID=64	8-97037-694-0	02	1	9407-9611	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> ID=64	8-97037-694-0	02	1	9612-9704	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> ID=64	8-97037-694-0	02	1	9705-9711	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) ID=64	8-97037-694-0	02	1	9712-	●	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BD1 ENG(LJ6) EXHAUST BRAKE<NF8> 07.506 M8X90	0-10805-890-0	04	1	9312-9510	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9312-9406	●	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9407-9611	●	●	●		●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	9612-9711	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 03.708 M8X70	0-10805-870-0	04	1	9712-	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9312-9510	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9511-9603	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9604-9611	●	●	●		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9612-9711	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	9712-	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 ID=10.5	5-09500-013-0	04	1	9312-9506		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 ID=10.5	5-09500-013-0	04	1	9507-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9312-9510	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9511-9603	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9604-9611	●	●	●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9612-9711	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	9712-	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 M10 H=18	9-09640-014-0	04	1	9312-9506		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 M10 H=18	9-09640-014-0	04	1	9507-	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BD1 ENG(LJ6),4BE1 ENG(RLH)	8-94419-755-2	01	1	9312-9510	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH)	8-94419-755-2	01	1	9312-9510		●	●
14	03.634 FILTER; AIR,EXH BRAKE	8-94419-755-2	01	1	9312-9510					●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH)	8-94419-755-2	01	1	9511-9603	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE	8-94419-755-2	01	1	9511-9603					●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94419-755-2	01	1	9604-9704	●	●	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-94419-755-2	01	1	9705-9711	●	●	●		●
14	03.634 FILTER; AIR,EXH BRAKE 4BE1 ENG(RLH)	8-94419-755-2	01	1	9712-	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9312-9611	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9612-9711	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97033-888-0	01	1	9712-9801	●	●	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	9802-	●	●	●	●		●
14	03.634 FILTER; AIR,EXH BRAKE 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-94417-220-2	01	1	9312-9510		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BD2 ENG(RLW)	8-94417-220-2	01	1	9511-9603		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-94417-220-2	01	1	9604-9704		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-94417-220-2	01	1	9705-9711		●	●		●
14	03.634 FILTER; AIR,EXH BRAKE 4BD2 ENG(RLW)	8-94417-220-2	01	1	9712-		●	●
14	03.634 FILTER; AIR,EXH BRAKE	8-94417-220-2	01	1	9712-					●
15	03.634 NUT; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9406	●	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9407-9506	●	●	●		●
15	03.634 NUT; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-9510	●	●	●		●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-9510	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603	●	●	●		●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9711	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9711	●
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4BE1 ENG(RLH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●
19	03.630 HOSE; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH) L=560 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9506	●
19	03.630 HOSE; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH> L=560 SERVICED BY L=3000	0-08258-300-0	01	1	9507-9510	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH> L=560 SERVICED BY L=3000	0-08258-300-0	01	1	9511-	●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH> L=800 SERVICED BY L=3000	0-08258-300-0	01	1	9507-	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=260 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9403	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9404-9711	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9712-	●
19	03.630 HOSE; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510		●
19	03.630 HOSE; AIR FILTER L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510					●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9707		●			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9708-		●
19	03.630 HOSE; AIR FILTER 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> L=480 SERVICED BY L=3000	0-08258-300-0	01	1	9511-		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510		●	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9711		●	●
19	03.630 HOSE; AIR FILTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9712-9801		●	●			●
19	03.630 HOSE; AIR FILTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9802-		●	●	●		●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	9511-9603		●	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	9604-9611		●	●
19	03.630 HOSE; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	9612-9711		●	●	●
19	03.630 HOSE; AIR FILTER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	9712-		●	●	●		●
19	03.630 HOSE; AIR FILTER 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) L=740 SERVICED BY L=3000	0-08258-300-0	01	1	9312-9510			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> L=740 SERVICED BY L=3000	0-08258-300-0	01	1	9511-			●
19	03.630 HOSE; AIR FILTER 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> L=330 SERVICED BY L=3000	0-08258-300-0	01	1	9511-			●
19	03.630 HOSE; AIR FILTER 4BE1 ENG(RLH),4BD2 ENG(RLW) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	9708-9711					●
19	03.630 HOSE; AIR FILTER L=240 SERVICED BY L=3000	0-08258-300-0	01	1	9712-					●
20	03.630 CLIP; HOSE,AIR FILTER EXHAUST BRAKE<NF8> 04.930 ID=16	8-94238-568-0	02	1	9312-9402	●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97065-472-0	01	1	9312-9510	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97065-472-0	01	1	9511-9603	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9511-9603		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9604-9611	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9604-9611		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9612-9711	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9612-9711		●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> (A)	8-97065-472-0	01	1	9612-9711				●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9712-9801	●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9712-9801		●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9802-	●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9802-		●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (A)	8-97065-472-0	01	1	9802-			●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> (A)	8-97043-776-1	01	1	9604-9711	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (A)	8-97043-776-1	01	1	9712-	●
86	03.636 VALVE; MAG,EXH BRK 4BD1 ENG(LJ6),4BE1 ENG(RLH)	8-97066-720-1	01	1	9312-9510	●	●	●
86	03.636 VALVE; MAG,EXH BRK	8-97066-720-1	01	1	9312-9510					●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH)	8-97066-720-1	01	1	9511-9603	●	●	●
86	03.636 VALVE; MAG,EXH BRK	8-97066-720-1	01	1	9511-9603					●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9604-9704	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9705-9711	●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH)	8-97066-720-1	01	1	9712-	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC)	8-97069-300-2	01	1	9312-9506		●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC)	8-97069-300-2	01	1	9507-9603	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9604-9711	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC)	8-97069-300-2	01	1	9712-	●	●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW)	8-97071-555-1	01	1	9312-9603		●	●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-97071-555-1	01	1	9604-9704		●	●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-97071-555-1	01	1	9705-9711		●	●		●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW)	8-97071-555-1	01	1	9712-		●	●
86	03.636 VALVE; MAG,EXH BRK	8-97071-555-1	01	1	9712-					●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B)	8-97101-047-0	01	1	9312-9510		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9511-9711		●	●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9712-9801		●	●			●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9802-		●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A)	8-97170-945-0	01	1	9802-		●	●	●		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603	●	●	●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603		●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9611	●	●	●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9611		●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711	●	●	●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711		●	●
93	08.917 NUT; MAG VLV EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711				●
93	08.917 NUT; MAG VLV 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●		●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●
93	08.917 NUT; MAG VLV 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9510	●	●	●		●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9603	●	●	●		●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	02	1	9604-	●	●	●		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9506		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9507-9603	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9604-9711	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH>	8-97107-602-1	01	1	9507-9603	●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH>	8-97107-602-1	01	1	9604-9711	●
108	03.634 BRACKET; AIR FILTER 4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH>	8-97107-602-1	01	1	9712-	●
108	03.634 BRACKET; AIR FILTER 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH>	8-97106-474-1	01	1	9604-9711	●
108	03.634 BRACKET; AIR FILTER 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97106-474-2	01	1	9712-	●
112	03.640 PLATE; BRKT 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH>	8-97091-766-0	01	1	9604-9711	●
112	03.640 PLATE; BRKT 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH>	8-97091-766-0	01	1	9712-	●

1 7 8 93 94 95 86 96 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.632 BRAKE UNIT; EXH 4BD1 ENG(LJ6) EXHAUST BRAKE<NF8>	8-97092-495-0	01	1	9312-9510	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97034-028-1	01	1	9312-9611	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97034-028-1	01	1	9612-9612	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97135-836-0	01	1	9701-9706	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97174-739-0	01	1	9707-9711	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97174-739-0	01	1	9712-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97106-362-1	01	1	9312-9711	●	●	●		●
1	03.632 BRAKE UNIT; EXH 4BE1 ENG(RLH)	8-97106-362-1	01	1	9712-	●	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97034-024-0	01	1	9312-9506		●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97034-024-1	01	1	9507-9711	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC)	8-97034-024-3	01	1	9712-	●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW)	8-97070-356-0	01	1	9312-9504		●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11>	8-97070-356-1	01	1	9505-9704		●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11>	8-97070-356-1	01	1	9705-9706		●	●		●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) FLOOR REMOTE SHIFT<M11>	8-97174-737-0	01	1	9707-		●	●		●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK)	8-97070-365-1	01	1	9505-9706		●	●
1	03.632 BRAKE UNIT; EXH 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK)	8-97174-738-0	01	1	9707-		●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97174-740-0	01	1	9712-9801		●	●
1	03.632 BRAKE UNIT; EXH	8-97174-740-0	01	1	9712-9801						●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97174-740-0	01	1	9802-		●	●	●
1	03.632 BRAKE UNIT; EXH	8-97174-740-0	01	1	9802-						●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9312-9510	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9511-9603	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9604-9611	●	●	●		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	9612-9711	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	9712-	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 ID=10.5	5-09500-013-0	04	1	9312-9506		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 ID=10.5	5-09500-013-0	04	1	9507-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9312-9510	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9511-9603	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9604-9611	●	●	●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	9612-9711	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	9712-	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 M10 H=18	9-09640-014-0	04	1	9312-9506		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 M10 H=18	9-09640-014-0	04	1	9507-	●	●
20	03.630 CLIP; HOSE,AIR FILTER EXHAUST BRAKE<NF8> 04.930 ID=16	8-94238-568-0	02	1	9312-9402	●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97065-472-0	01	1	9312-9510	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97065-472-0	01	1	9511-9603	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9511-9603		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9604-9611	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9604-9611		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9612-9711	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9612-9711		●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> (A)	8-97065-472-0	01	1	9612-9711				●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9712-9801	●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9712-9801		●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (A)	8-97065-472-0	01	1	9802-	●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9802-		●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> VOLTAGE 24V<7AE> (A)	8-97065-472-0	01	1	9802-			●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> BRK WHL LK CONT LSPV<6PH> (A)	8-97043-776-1	01	1	9604-9711	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (A)	8-97043-776-1	01	1	9712-	●
86	03.636 VALVE; MAG,EXH BRK 4BD1 ENG(LJ6),4BE1 ENG(RLH)	8-97066-720-1	01	1	9312-9510	●	●	●
86	03.636 VALVE; MAG,EXH BRK	8-97066-720-1	01	1	9312-9510					●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH)	8-97066-720-1	01	1	9511-9603	●	●	●
86	03.636 VALVE; MAG,EXH BRK	8-97066-720-1	01	1	9511-9603					●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9604-9704	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH) EXHAUST BRAKE<NF8>	8-97066-720-1	01	1	9705-9711	●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4BE1 ENG(RLH)	8-97066-720-1	01	1	9712-	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC)	8-97069-300-2	01	1	9312-9506		●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC)	8-97069-300-2	01	1	9507-9603	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97069-300-2	01	1	9604-9711	●	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC)	8-97069-300-2	01	1	9712-	●	●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW)	8-97071-555-1	01	1	9312-9603		●	●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-97071-555-1	01	1	9604-9704		●	●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW) EXHAUST BRAKE<NF8>	8-97071-555-1	01	1	9705-9711		●	●		●
86	03.636 VALVE; MAG,EXH BRK 4BD2 ENG(RLW)	8-97071-555-1	01	1	9712-		●	●
86	03.636 VALVE; MAG,EXH BRK	8-97071-555-1	01	1	9712-					●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B)	8-97101-047-0	01	1	9312-9510		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9511-9711		●	●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9712-9801		●	●			●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9802-		●	●	●		●
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A)	8-97170-945-0	01	1	9802-		●	●	●		●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603	●	●	●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-9603		●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9611	●	●	●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9611		●	●
93	08.917 NUT; MAG VLV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711	●	●	●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711		●	●
93	08.917 NUT; MAG VLV EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711				●
93	08.917 NUT; MAG VLV 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●	●		●
93	08.917 NUT; MAG VLV 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●
93	08.917 NUT; MAG VLV 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9510	●	●	●		●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-9603	●	●	●		●
93	08.917 NUT; MAG VLV 4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	02	1	9604-	●	●	●		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9506		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9507-9603	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	01	1	9604-9711	●	●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JG2 ENG(RJC)	8-97094-561-0	01	1	9312-9312		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JG2 ENG(RJC)	8-97108-996-0	01	1	9312-9506		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JG2 ENG(RJC)	8-97108-996-0	01	1	9507-9603	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JG2 ENG(RJC) EXHAUST BRAKE<NF8>	8-97108-996-0	01	1	9604-9711	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JG2 ENG(RJC)	8-97108-996-0	01	1	9712-	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9506		●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9507-9603	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9604-9711	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9712-	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9506		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	02	1	9507-9603	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9711	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
