Sayfa 1-40B - Isuzu EPC

1-40B — FUEL TANK (#4738) — 250 parça

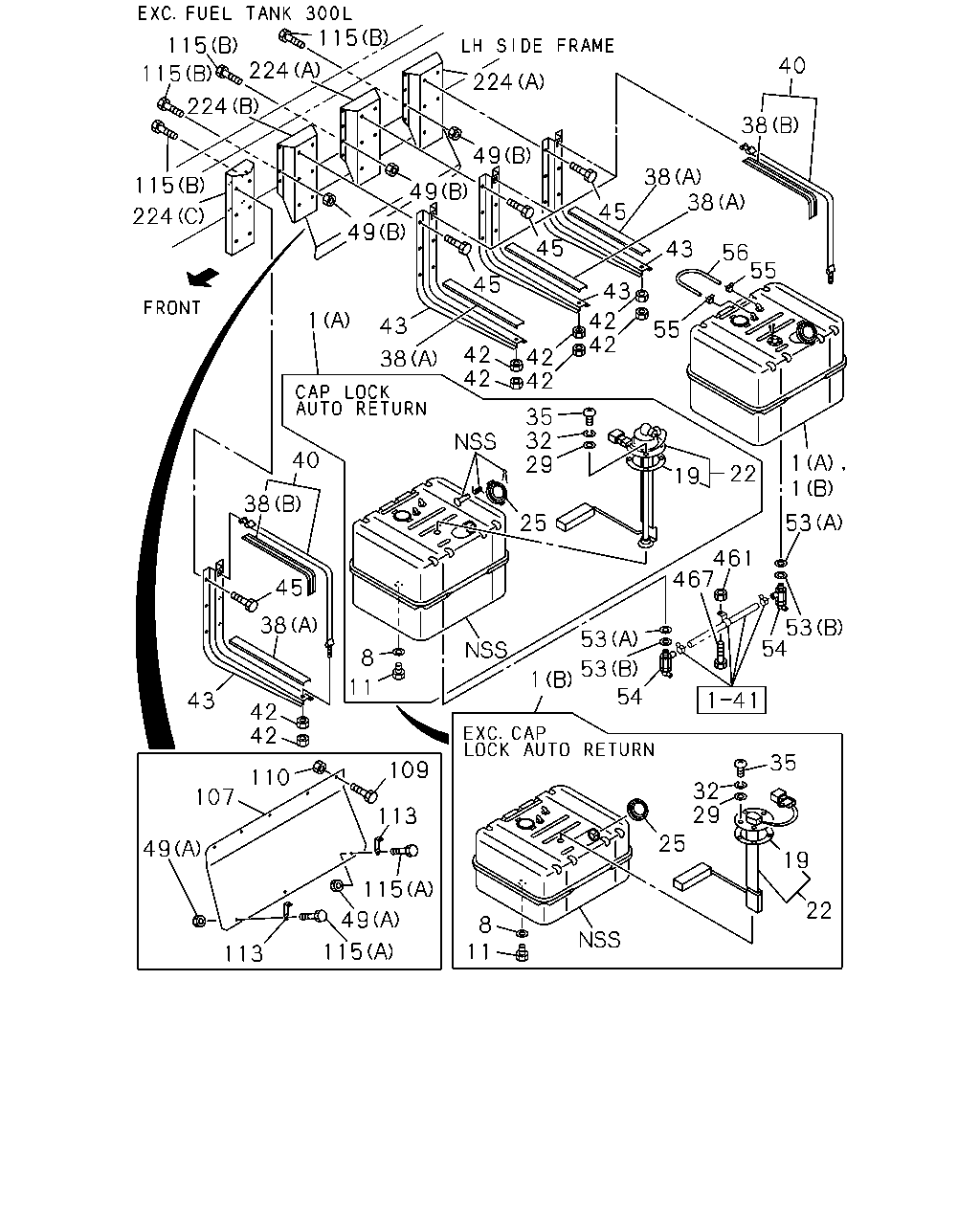

115 115 40 224 115 224 224 38 49 38 38 49 49 115 45 224 45 43 56 55 43 55 45 42 42 1 43 42 42 42 42 38 35 32 29 40 1 1 22 19 38 53 25 461 467 45 38 53 54 53 8 53 1 54 11 43 42 42 35 109 110 32 29 107 113 25 49 19 115 22 49 8 11 115 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9604	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	02	1	9605-9802	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	02	1	9803-9904	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9905-0003	●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9604	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9605-9904	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9905-0003	●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502 300L	1-22400-946-1	01	1	9605-9803	●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502 300L	1-22400-946-1	01	1	9708-9904	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	02	1	9603-9604	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L<RF5> T=2.0	9-09923-030-0	01	1	9605-9904	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	02	1	9905-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 300L<RF5> T=2.0	9-09923-030-0	02	1	9605-9802	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 300L<RF5> T=2.0	9-09923-030-0	02	1	9803-9904	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	9603-9604	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 300L<RF5> M36	1-09604-052-0	02	1	9605-9904	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	9605-9904	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	9905-0003	●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	0004-	●	●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	02	1	9905-	●	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	9603-9604	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5>	9-83135-003-0	02	1	9605-9904	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	02	1	9905-	●	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9604	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	02	1	9605-9904	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9905-	●	●	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9604	●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9605-9904	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9905-	●	●	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-111-0	01	1	9605-9904	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9603-9604	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-22440-034-1	02	1	9605-9904	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9905-	●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9603-9604	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9605-9904	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9905-0003	●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5>	1-22440-044-0	01	1	9605-9904	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	02	1	9603-9604	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	02	1	9605-9904	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	02	1	9905-	●	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	10	1	9603-9604	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	10	1	9605-9904	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	10	1	9905-	●	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	10	1	9603-9604	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	10	1	9605-9904	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	10	1	9905-	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-22419-012-0	05	1	9605-9904	●
38	INSULATION; SUPPORT BELT (A) L=580	1-22553-003-0	04	1	9603-9604	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=580	1-22553-003-0	04	1	9605-9904	●
38	INSULATION; SUPPORT BELT (A) L=580	1-22553-003-0	04	1	9905-	●	●	●
38	INSULATION; SUPPORT BELT (B) L=650	1-22553-022-1	04	1	9603-9604	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=650	1-22553-022-1	04	1	9605-9904	●
38	INSULATION; SUPPORT BELT (B) L=650	1-22553-022-1	04	1	9905-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	04	1	9603-9604	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-1	04	1	9605-9904	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	04	1	9905-	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1034	1-22550-192-1	02	1	9605-9904	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	08	1	9603-9604	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 300L<RF5> M10	9-09110-510-0	08	1	9605-9904	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	08	1	9905-	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L<RF5> M12	9-99110-512-0	04	1	9605-9904	●
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	9603-9604	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5>	1-53461-279-4	04	1	9605-9904	●
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	9905-	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	1-53461-407-2	02	1	9605-9701	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	1-53461-407-2	02	1	9702-9904	●
45	BOLT; BRKT,FUEL TANK M12X30 FLANGE	0-28081-230-0	24	1	9603-9604	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X30 FLANGE	0-28081-230-0	12	1	9605-9606	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 FLANGE	0-28681-235-0	12	1	9607-9904	●
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28681-235-0	24	1	9905-	●	●	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 300L<RF5> M12X30 FLANGE	0-28081-230-0	24	1	9605-9606	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 300L<RF5> M12X35 FLANGE	0-28681-235-0	24	1	9607-9904	●
49	NUT; BRKT (A) M8	9-09110-408-0	02	1	9603-9604	●
49	NUT; BRKT EXC. FUEL TANK 300L<RF5> (A) M8	9-09110-408-0	02	1	9605-9606	●
49	NUT; BRKT EXC. FUEL TANK 300L<RF5> (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
49	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
49	NUT; BRKT (B) M12	9-99110-512-0	12	1	9603-9604	●
49	NUT; BRKT EXC. FUEL TANK 300L<RF5> (B) M12	9-99110-512-0	12	1	9605-9904	●
49	NUT; BRKT (B) M12	9-99110-512-0	12	1	9905-	●	●	●
53	GASKET; COCK,FUEL TANK (B) T=1.60	1-22416-001-0	02	1	9603-9604	●
53	GASKET; COCK,FUEL TANK EXC. FUEL TANK 300L<RF5> (B) T=1.60	1-22416-001-0	02	1	9605-9904	●
53	GASKET; COCK,FUEL TANK (B) T=1.60	1-22416-001-0	02	1	9905-	●	●	●
53	GASKET; COCK,FUEL TANK (A) T=0.80	1-22416-004-0	02	1	9603-9604	●
53	GASKET; COCK,FUEL TANK EXC. FUEL TANK 300L<RF5> (A) T=0.80	1-22416-004-0	02	1	9605-9904	●
53	GASKET; COCK,FUEL TANK (A) T=0.80	1-22416-004-0	02	1	9905-	●	●	●
54	COCK ASM; FUEL TANK	9-09904-176-0	02	1	9603-9604	●
54	COCK ASM; FUEL TANK EXC. FUEL TANK 300L<RF5>	9-09904-176-0	02	1	9605-9904	●
54	COCK ASM; FUEL TANK	9-09904-176-0	02	1	9905-	●	●	●
55	CLIP; FUEL PIPE ID=14	1-09704-102-0	02	1	9603-9604	●
55	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> ID=14	1-09704-102-0	02	1	9605-9904	●
55	CLIP; FUEL PIPE ID=14	1-09704-102-0	02	1	9905-	●	●	●
56	PIPE; FUEL SHUTTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9604	●
56	PIPE; FUEL SHUTTER EXC. FUEL TANK 300L<RF5> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9605-9904	●
56	PIPE; FUEL SHUTTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9905-	●	●	●
107	PROTECTOR; HEAT,FUEL TANK	1-22159-276-0	01	1	9603-9604	●
107	PROTECTOR; HEAT,FUEL TANK EXC. FUEL TANK 300L<RF5>	1-22159-276-0	01	1	9605-9804	●
107	PROTECTOR; HEAT,FUEL TANK EXC. FUEL TANK 300L<RF5>	1-22159-276-0	01	1	9805-9904	●
107	PROTECTOR; HEAT,FUEL TANK	1-22159-276-0	01	1	9905-	●	●	●
107	PROTECTOR; HEAT,FUEL TANK FUEL TANK 300L<RF5>	1-22159-272-1	01	1	9605-9608	●
107	PROTECTOR; HEAT,FUEL TANK FUEL TANK 300L<RF5>	1-22159-305-0	01	1	9609-9701	●
107	PROTECTOR; HEAT,FUEL TANK FUEL TANK 300L<RF5>	1-22159-305-0	01	1	9702-9904	●
109	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28080-820-0	07	1	9603-9604	●
109	BOLT; HEAT PROTECTOR FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	04	1	9605-9606	●
109	BOLT; HEAT PROTECTOR FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9607-9904	●
109	BOLT; HEAT PROTECTOR EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	07	1	9605-9606	●
109	BOLT; HEAT PROTECTOR EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	07	1	9607-9904	●
109	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	07	1	9905-	●	●	●
110	NUT; PROTECTOR M8	9-09110-408-0	07	1	9603-9604	●
110	NUT; PROTECTOR FUEL TANK 300L<RF5> M8	9-09110-408-0	04	1	9605-9606	●
110	NUT; PROTECTOR FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	04	1	9607-9904	●
110	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	07	1	9905-	●	●	●
110	NUT; PROTECTOR EXC. FUEL TANK 300L<RF5> M8	9-09110-408-0	07	1	9605-9606	●
110	NUT; PROTECTOR EXC. FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	07	1	9607-9904	●
113	BRACKET; PROTECTOR,FUEL TANK	1-22119-362-0	02	1	9603-9604	●
113	BRACKET; PROTECTOR,FUEL TANK EXC. FUEL TANK 300L<RF5>	1-22119-362-0	02	1	9605-9904	●
113	BRACKET; PROTECTOR,FUEL TANK	1-22119-362-0	02	1	9905-	●	●	●
115	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●
115	BOLT; BRKT EXC. FUEL TANK 300L<RF5> (A) M8X20 FLANGE	0-28080-820-0	02	1	9605-9606	●
115	BOLT; BRKT EXC. FUEL TANK 300L<RF5> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●
115	BOLT; BRKT (B) M12X35 FLANGE	0-28081-235-0	24	1	9603-9604	●
115	BOLT; BRKT EXC. FUEL TANK 300L<RF5> (B) M12X35 FLANGE	0-28081-235-0	24	1	9605-9606	●
115	BOLT; BRKT EXC. FUEL TANK 300L<RF5> (B) M12X40 FLANGE	0-28681-240-0	24	1	9607-9904	●
115	BOLT; BRKT (B) M12X40 FLANGE	0-28681-240-0	24	1	9905-	●	●	●
115	BOLT; BRKT FUEL TANK 300L<RF5> (B) M12X35 FLANGE	0-28081-235-0	08	1	9605-9606	●
115	BOLT; BRKT FUEL TANK 300L<RF5> (B) M12X40 FLANGE	0-28681-240-0	08	1	9607-9701	●
115	BOLT; BRKT SHORT CHASSIS&RHD(EXZ5MC) FUEL TANK 300L<RF5> (B) M12X40 FLANGE	0-28681-240-0	08	1	9702-9904	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9603-9604	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 300L<RF5> (A)	1-53461-465-0	02	1	9605-9904	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9905-	●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9603-9604	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 300L<RF5> (B)	1-53461-466-0	01	1	9605-9904	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9905-	●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9603-9604	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 300L<RF5> (C)	1-53461-467-1	01	1	9605-9904	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9905-	●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 300L<RF5> (B)	1-53469-017-0	02	1	9605-9701	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 300L<RF5> (B)	1-53469-017-0	02	1	9702-9904	●
461	NUT; CLIP,FUEL PIPE M8	9-09110-508-0	02	1	9603-9604	●
461	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8	9-09110-508-0	02	1	9605-9606	●
461	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
461	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
467	BOLT M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●
467	BOLT EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	02	1	9605-9606	●
467	BOLT EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
467	BOLT M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●

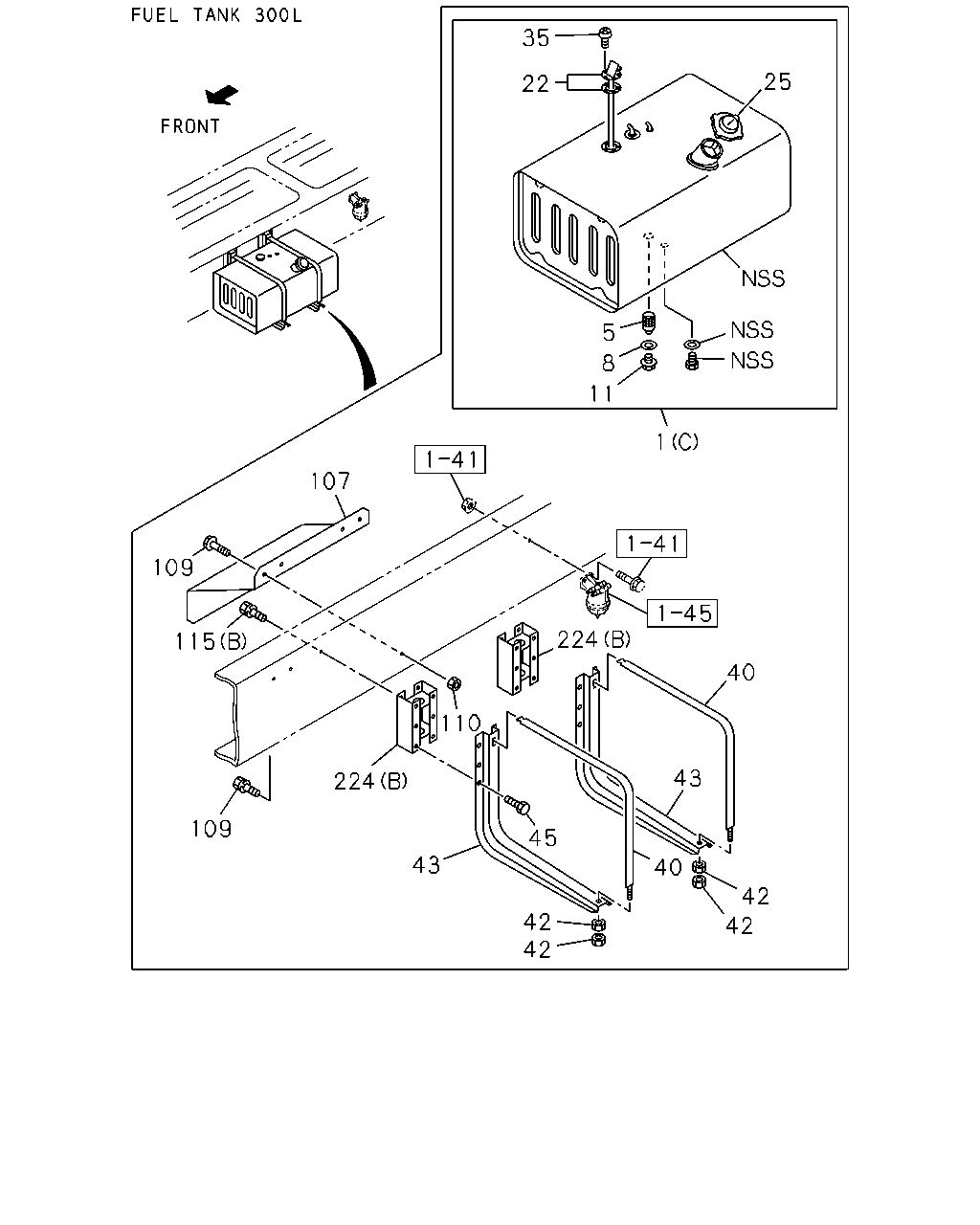

35 25 22 5 8 11 1 107 109 224 115 40 110 43 224 109 45 43 40 42 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9603-9604	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	02	1	9605-9802	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22400-855-0	02	1	9803-9904	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-855-0	02	1	9905-0003	●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9603-9604	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9605-9904	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-854-1	02	1	9905-0003	●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●	●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502 300L	1-22400-946-1	01	1	9605-9803	●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502 300L	1-22400-946-1	01	1	9708-9904	●
5	STRAINER; FUEL TANK FUEL TANK 300L<RF5>	1-22460-001-1	01	1	9605-9904	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	02	1	9603-9604	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L<RF5> T=2.0	9-09923-030-0	01	1	9605-9904	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	02	1	9905-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 300L<RF5> T=2.0	9-09923-030-0	02	1	9605-9802	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 300L<RF5> T=2.0	9-09923-030-0	02	1	9803-9904	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	9603-9604	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 300L<RF5> M36	1-09604-052-0	02	1	9605-9904	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	9605-9904	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	9905-0003	●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	02	1	0004-	●	●	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9603-9604	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	02	1	9605-9904	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9905-	●	●	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9603-9604	●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9605-9904	●
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9905-	●	●	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-111-0	01	1	9605-9904	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9603-9604	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-22440-034-1	02	1	9605-9904	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9905-	●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9603-9604	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9605-9904	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9905-0003	●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-	●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5>	1-22440-044-0	01	1	9605-9904	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	10	1	9603-9604	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	10	1	9605-9904	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	10	1	9905-	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-22419-012-0	05	1	9605-9904	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	04	1	9603-9604	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-1	04	1	9605-9904	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-2	04	1	9905-	●	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1034	1-22550-192-1	02	1	9605-9904	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	08	1	9603-9604	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 300L<RF5> M10	9-09110-510-0	08	1	9605-9904	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	08	1	9905-	●	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L<RF5> M12	9-99110-512-0	04	1	9605-9904	●
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	9603-9604	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5>	1-53461-279-4	04	1	9605-9904	●
43	BRACKET; FUEL TANK	1-53461-279-4	04	1	9905-	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	1-53461-407-2	02	1	9605-9701	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	1-53461-407-2	02	1	9702-9904	●
45	BOLT; BRKT,FUEL TANK M12X30 FLANGE	0-28081-230-0	24	1	9603-9604	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X30 FLANGE	0-28081-230-0	12	1	9605-9606	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 FLANGE	0-28681-235-0	12	1	9607-9904	●
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28681-235-0	24	1	9905-	●	●	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 300L<RF5> M12X30 FLANGE	0-28081-230-0	24	1	9605-9606	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 300L<RF5> M12X35 FLANGE	0-28681-235-0	24	1	9607-9904	●
107	PROTECTOR; HEAT,FUEL TANK	1-22159-276-0	01	1	9603-9604	●
107	PROTECTOR; HEAT,FUEL TANK EXC. FUEL TANK 300L<RF5>	1-22159-276-0	01	1	9605-9804	●
107	PROTECTOR; HEAT,FUEL TANK EXC. FUEL TANK 300L<RF5>	1-22159-276-0	01	1	9805-9904	●
107	PROTECTOR; HEAT,FUEL TANK	1-22159-276-0	01	1	9905-	●	●	●
107	PROTECTOR; HEAT,FUEL TANK FUEL TANK 300L<RF5>	1-22159-272-1	01	1	9605-9608	●
107	PROTECTOR; HEAT,FUEL TANK FUEL TANK 300L<RF5>	1-22159-305-0	01	1	9609-9701	●
107	PROTECTOR; HEAT,FUEL TANK FUEL TANK 300L<RF5>	1-22159-305-0	01	1	9702-9904	●
109	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28080-820-0	07	1	9603-9604	●
109	BOLT; HEAT PROTECTOR FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	04	1	9605-9606	●
109	BOLT; HEAT PROTECTOR FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	04	1	9607-9904	●
109	BOLT; HEAT PROTECTOR EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	07	1	9605-9606	●
109	BOLT; HEAT PROTECTOR EXC. FUEL TANK 300L<RF5> M8X25 FLANGE	0-28680-825-0	07	1	9607-9904	●
109	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	07	1	9905-	●	●	●
110	NUT; PROTECTOR M8	9-09110-408-0	07	1	9603-9604	●
110	NUT; PROTECTOR FUEL TANK 300L<RF5> M8	9-09110-408-0	04	1	9605-9606	●
110	NUT; PROTECTOR FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	04	1	9607-9904	●
110	NUT; PROTECTOR M8 FLANGE	0-91150-108-0	07	1	9905-	●	●	●
110	NUT; PROTECTOR EXC. FUEL TANK 300L<RF5> M8	9-09110-408-0	07	1	9605-9606	●
110	NUT; PROTECTOR EXC. FUEL TANK 300L<RF5> M8 FLANGE	0-91150-108-0	07	1	9607-9904	●
115	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9604	●
115	BOLT; BRKT EXC. FUEL TANK 300L<RF5> (A) M8X20 FLANGE	0-28080-820-0	02	1	9605-9606	●
115	BOLT; BRKT EXC. FUEL TANK 300L<RF5> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●
115	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●
115	BOLT; BRKT (B) M12X35 FLANGE	0-28081-235-0	24	1	9603-9604	●
115	BOLT; BRKT EXC. FUEL TANK 300L<RF5> (B) M12X35 FLANGE	0-28081-235-0	24	1	9605-9606	●
115	BOLT; BRKT EXC. FUEL TANK 300L<RF5> (B) M12X40 FLANGE	0-28681-240-0	24	1	9607-9904	●
115	BOLT; BRKT (B) M12X40 FLANGE	0-28681-240-0	24	1	9905-	●	●	●
115	BOLT; BRKT FUEL TANK 300L<RF5> (B) M12X35 FLANGE	0-28081-235-0	08	1	9605-9606	●
115	BOLT; BRKT FUEL TANK 300L<RF5> (B) M12X40 FLANGE	0-28681-240-0	08	1	9607-9701	●
115	BOLT; BRKT SHORT CHASSIS&RHD(EXZ5MC) FUEL TANK 300L<RF5> (B) M12X40 FLANGE	0-28681-240-0	08	1	9702-9904	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9603-9604	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 300L<RF5> (A)	1-53461-465-0	02	1	9605-9904	●
224	BRACKET; FUEL TANK BRKT TO FRAME (A)	1-53461-465-0	02	1	9905-	●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9603-9604	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 300L<RF5> (B)	1-53461-466-0	01	1	9605-9904	●
224	BRACKET; FUEL TANK BRKT TO FRAME (B)	1-53461-466-0	01	1	9905-	●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9603-9604	●
224	BRACKET; FUEL TANK BRKT TO FRAME EXC. FUEL TANK 300L<RF5> (C)	1-53461-467-1	01	1	9605-9904	●
224	BRACKET; FUEL TANK BRKT TO FRAME (C)	1-53461-467-1	01	1	9905-	●	●	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 300L<RF5> (B)	1-53469-017-0	02	1	9605-9701	●
224	BRACKET; FUEL TANK BRKT TO FRAME FUEL TANK 300L<RF5> (B)	1-53469-017-0	02	1	9702-9904	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
