Sayfa 1-40 - Isuzu EPC

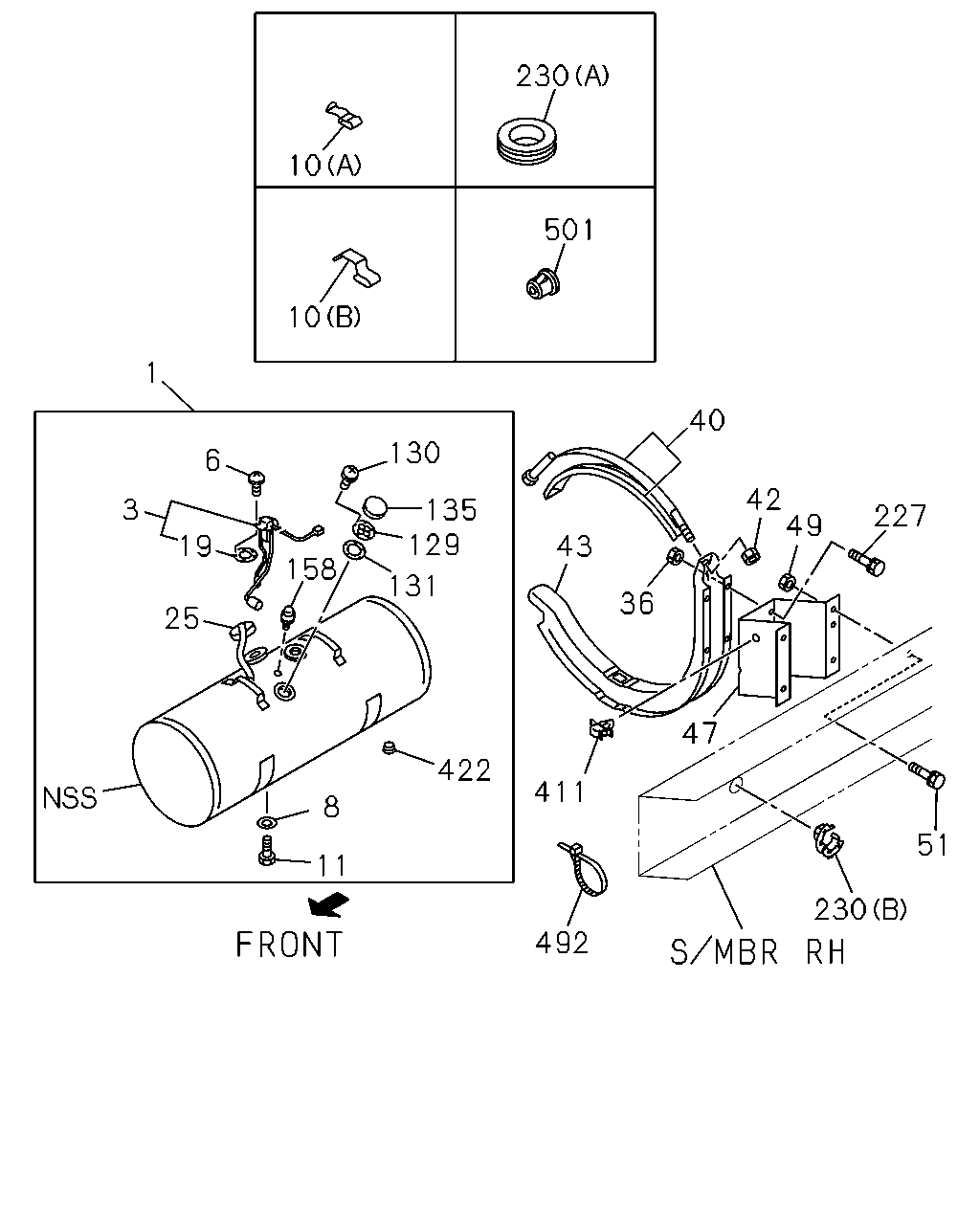

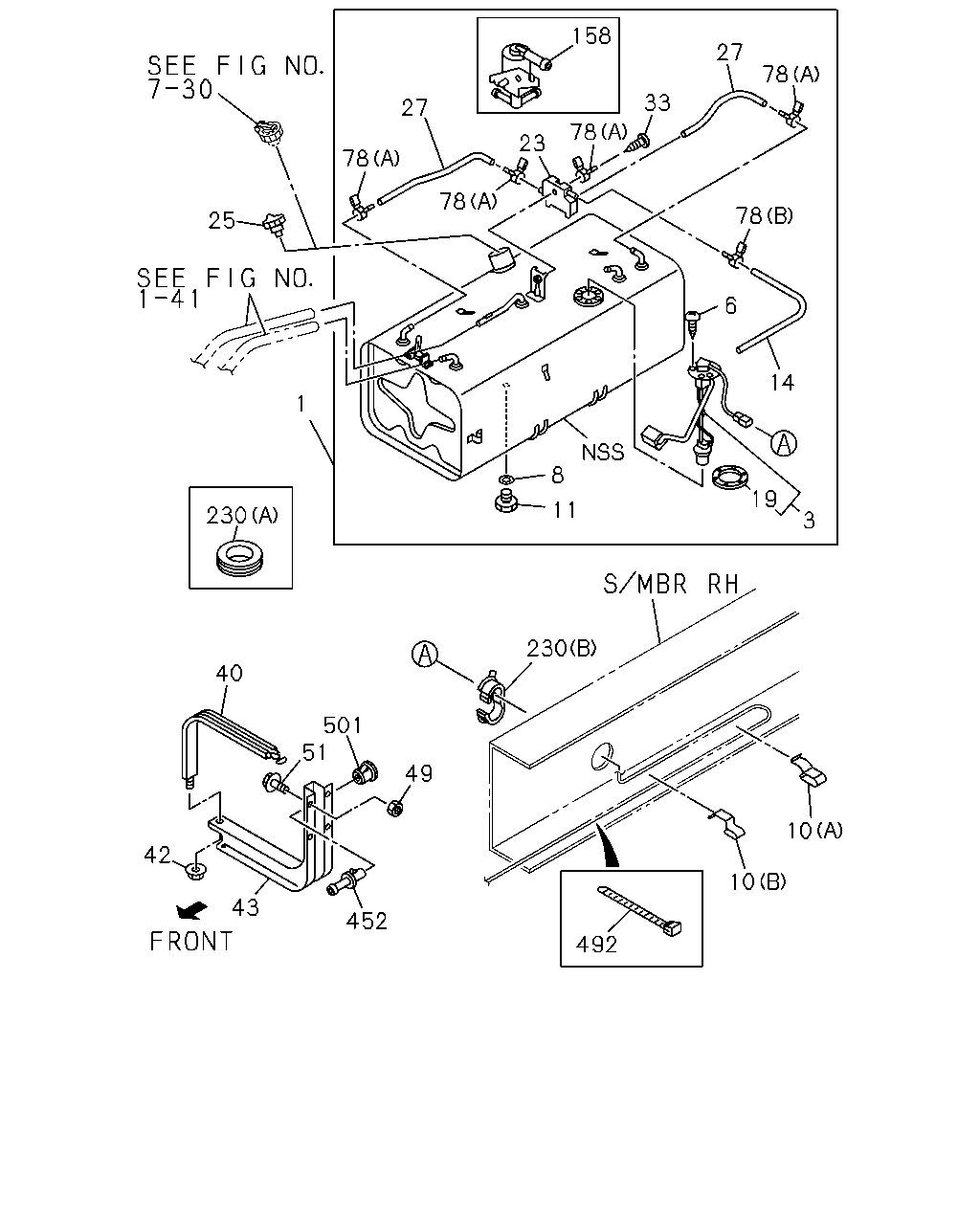

1-40 — FUEL TANK (#47379) — 349 parça

158 27 78 33 27 78 23 78 78 78 25 6 14 1 8 19 11 230 3 230 40 501 51 49 10 42 10 43 452 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 1000X340X327 100L	8-97033-954-3	01	1	9312-9504	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4) 1000X340X327 100L	8-97033-954-3	01	1	9312-9504			●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97033-954-3	01	1	9505-9510	●	●	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97131-123-0	01	1	9511-9611	●	●	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97131-123-0	01	1	9612-9711	●	●	●	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97131-123-0	01	1	9712-9801	●		●	●	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97188-865-0	01	1	9802-	●		●	●	●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4) 1000X340X327 100L	8-97033-955-2	01	1	9312-9504			●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97033-955-2	01	1	9505-9506			●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97033-955-2	01	1	9507-9704	●		●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97033-955-2	01	1	9705-9711	●	●	●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 1000X340X327 100L	8-97033-955-2	01	1	9712-	●	●	●	●		●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> OD=400 L=1130 124.5L	8-97047-401-1	01	1	9712-			●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9312-9611	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9612-9711	●	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9712-9801	●	●			●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	9712-9801			●	●
3	03.107 UNIT; FUEL TANK,SUB EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	9802-9802	●	●	●	●		●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9802-	●	●			●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	9802-			●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97103-484-0	01	1	9712-			●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9312-9611	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9612-9711	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9712-9801	●	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9802-	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9312-9502	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	9503-9510	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.550	1-21729-043-0	01	1	9511-9704	●		●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.550	1-21729-043-0	01	1	9705-9711	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	9712-9801	●	●	●	●		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	9802-	●	●			●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	9802-			●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9511-9611	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9612-9711	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX) 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9712-9801	●		●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 ID=20	9-09720-558-0	01	1	9712-			●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	9312-9610	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=9.2	5-09709-013-0	AR	1	9611-9611	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=9.2	5-09709-013-0	AR	1	9612-9711	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	9712-	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	9312-9610	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=4.5 & 9	5-09709-023-0	AR	1	9611-9611	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=4.5 & 9	5-09709-023-0	AR	1	9612-9711	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	9712-	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (A) T=8.7	5-09709-048-0	AR	1	9312-9610	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	9312-9610	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=9.2 & 9	5-09709-025-0	AR	1	9611-9611	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=9.2 & 9	5-09709-025-0	AR	1	9612-9711	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	9712-	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (A) T=8.7	5-09709-048-0	AR	1	9712-	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	9312-9502	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9503-9510	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9511-9704	●		●	●
11	03.890 PLUG; DRAIN,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9705-9711	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-9801	●	●	●	●		●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9802-	●	●			●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9802-			●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 01.453 M14X14	9-09862-156-0	01	1	9511-9611	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 01.453 M14X14	9-09862-156-0	01	1	9612-9711	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX) 01.453 M14X14	9-09862-156-0	01	1	9712-9801	●		●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 M20X1.5	9-09662-002-0	01	1	9712-			●	●
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9312-9510	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9511-9704	●		●	●
14	03.163 HOSE; BREATHER,OUTLET EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9705-9711	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9712-9801	●	●	●	●		●
14	03.163 HOSE; BREATHER,OUTLET 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9802-	●	●			●	●
14	03.163 HOSE; BREATHER,OUTLET EXC. FUEL TANK 125L,33GAL<NL7> 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	9802-			●	●
14	03.163 HOSE; BREATHER,OUTLET EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.034 L=450 SERVICED BY L=10000	9-09914-701-0	01	1	9511-9611	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 00.034 L=450 SERVICED BY L=10000	9-09914-701-0	01	1	9612-9711	●	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX) 00.034 L=450 SERVICED BY L=10000	9-09914-701-0	01	1	9712-9801	●		●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9604-9611	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9612-9711	●	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9712-	●	●	●	●	●	●
23	03.162 JOINT; BREATHER HOSE EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX)	8-97077-713-1	01	1	9804-	●		●	●	●	●
23	03.162 JOINT; BREATHER HOSE	8-97077-713-1	01	1	9312-9504	●	●
23	03.162 JOINT; BREATHER HOSE EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97077-713-1	01	1	9312-9504			●	●
23	03.162 JOINT; BREATHER HOSE EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-97077-713-1	01	1	9505-9510	●	●	●	●
23	03.162 JOINT; BREATHER HOSE EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-94418-058-0	01	1	9511-9611	●	●	●	●
23	03.162 JOINT; BREATHER HOSE EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-94418-058-0	01	1	9612-9711	●	●	●	●	●
23	03.162 JOINT; BREATHER HOSE EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX)	8-94418-058-0	01	1	9712-9801	●		●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9312-9611	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9612-9711	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9712-	●	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	1-22440-038-0	01	1	9712-			●	●
27	03.163 HOSE; BREATHER L=470 SERVICED BY L=3000	8-94128-826-0	01	1	9312-9502	●	●	●	●
27	03.163 HOSE; BREATHER L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9503-9611	●	●	●	●
27	03.163 HOSE; BREATHER L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9612-9711	●	●	●	●	●
27	03.163 HOSE; BREATHER L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9712-9801	●	●			●	●
27	03.163 HOSE; BREATHER EXC. FUEL TANK 125L,33GAL<NL7> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9712-9801			●	●
27	03.163 HOSE; BREATHER EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9802-9802	●	●	●	●		●
27	03.163 HOSE; BREATHER L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9802-	●	●			●	●
27	03.163 HOSE; BREATHER EXC. FUEL TANK 125L,33GAL<NL7> L=470 SERVICED BY L=3000	8-94128-826-0	02	1	9802-			●	●
27	03.163 HOSE; BREATHER L=540 SERVICED BY L=3000	8-94128-826-0	01	1	9312-9502	●	●	●	●
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9312-9611	●	●	●	●
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9612-9711	●	●	●	●	●
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9712-9801	●	●			●	●
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9712-9801			●	●
33	03.162 SCREW; JOINT TO FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9802-9802	●	●	●	●		●
33	03.162 SCREW; JOINT TO FUEL TANK 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9802-	●	●			●	●
33	03.162 SCREW; JOINT TO FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	9802-			●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9312-9611	●	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9612-9711	●	●	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9712-	●	●			●	●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94438-385-4	02	1	9712-			●	●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.023	8-94418-159-0	02	1	9712-			●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9312-9611	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9612-9711	●	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9712-	●	●			●	●
42	03.023 NUT; SUPPORT BELT EXC. FUEL TANK 125L,33GAL<NL7> M8 FLANGE	9-09130-408-0	02	1	9712-			●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 125L,33GAL<NL7> 09.011 M10	9-09110-410-0	04	1	9712-			●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9312-9611	●	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9612-9711	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9712-	●	●			●	●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97035-517-0	02	1	9712-			●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 125L,33GAL<NL7>	5-53461-044-2	02	1	9712-			●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9312-9611	●	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9612-9711	●	●	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9712-	●	●	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 00.002 M10X25	0-28091-025-0	08	1	9312-9603	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 00.002 M10X25	0-28091-025-0	08	1	9604-9609	●	●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> 00.002 M10X25	0-28091-025-0	08	1	9604-9609			●	●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> 00.002 M10X25	0-28091-025-0	08	1	9604-9609			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9610-9611	●	●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9610-9611			●	●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9610-9611			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9612-9705	●	●			●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9612-9705			●	●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9612-9705			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9706-9711	●				●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9706-9711		●	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9706-9711		●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9712-9712	●	●			●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9712-9712			●	●		●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9712-9712			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9801-9801	●	●			●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9801-9801			●	●		●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9801-9801			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9802-9805	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9802-9805			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9802-9805			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9806-9809	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9806-9809			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9806-9809			●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9806-9809					●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9810-	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9810-			●	●		●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9810-			●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9810-					●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9810-					●
51	03.023 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 00.002 M10X25	0-28091-025-0	06	1	9604-9609			●
51	03.023 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	06	1	9610-			●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	07	1	9801-9801			●	●		●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	07	1	9802-9805			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) M10X30 FLANGE	0-28691-030-0	07	1	9806-			●	●	●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4) 03.162 (A) ID=8.5	8-94166-071-0	04	1	9312-9504			●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 03.162 (A) ID=8.5	8-94166-071-0	04	1	9505-9506			●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 03.162 (A) ID=8.5	8-94166-071-0	04	1	9507-9704	●		●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 03.162 (A) ID=8.5	8-94166-071-0	04	1	9705-9711	●	●	●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 03.162 (A) ID=8.5	8-94166-071-0	04	1	9712-9801	●	●	●	●		●
78	03.003 CLIP; BREATHER HOSE 03.162 (A) ID=8.5	8-94166-071-0	04	1	9802-9803	●	●			●	●
78	03.003 CLIP; BREATHER HOSE EXC. FUEL TANK 125L,33GAL<NL7> 03.162 (A) ID=8.5	8-94166-071-0	04	1	9802-9803			●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 03.162 (A) ID=8.5	8-94166-071-0	04	1	9804-	●	●	●	●		●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4) 01.166 (B) ID=14	8-94238-572-0	01	1	9312-9504			●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.166 (B) ID=14	8-94238-572-0	01	1	9505-9506			●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.166 (B) ID=14	8-94238-572-0	01	1	9507-9704	●		●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.166 (B) ID=14	8-94238-572-0	01	1	9705-9711	●	●	●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 01.166 (B) ID=14	8-94238-572-0	01	1	9712-9801	●	●	●	●		●
78	03.003 CLIP; BREATHER HOSE 01.166 (B) ID=14	8-94238-572-0	01	1	9802-9803	●	●			●	●
78	03.003 CLIP; BREATHER HOSE EXC. FUEL TANK 125L,33GAL<NL7> 01.166 (B) ID=14	8-94238-572-0	01	1	9802-9803			●	●
78	03.003 CLIP; BREATHER HOSE EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 01.166 (B) ID=14	8-94238-572-0	01	1	9804-	●	●	●	●		●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4)	8-94437-368-0	01	1	9312-9504			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-94437-368-0	01	1	9505-9506			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-94437-368-0	01	1	9507-9704	●		●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-94437-368-0	01	1	9705-9711	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7>	8-94437-368-0	01	1	9712-9801	●	●	●	●		●
158	03.164 VALVE; ROLL OVER & FLOAT	8-94437-368-0	01	1	9802-9803	●	●			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EXC. FUEL TANK 125L,33GAL<NL7>	8-94437-368-0	01	1	9802-9803			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7>	8-94437-368-0	01	1	9804-	●	●	●	●		●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 125L,33GAL<NL7>	1-22453-003-0	01	1	9712-			●	●
230	03.115 GROMMET; HARNESS,FUEL TANK UNIT 02.343 (B) ID=17	8-94128-319-2	01	1	9312-9506	●		●	●
230	03.115 GROMMET; HARNESS,FUEL TANK UNIT 04.931 (A) ID=20 OD=25 T=12	9-09575-720-0	01	1	9312-9506		●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	9312-9510	●	●	●	●
452	03.028 BREATHER; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97062-954-1	01	1	9511-9704	●		●	●
452	03.028 BREATHER; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97062-954-1	01	1	9705-9711	●	●	●	●
452	03.028 BREATHER; FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97062-954-1	01	1	9712-9802	●	●	●	●		●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	9803-	●	●			●	●
452	03.028 BREATHER; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97062-954-1	01	1	9803-			●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) 02.559 L=250	5-09707-030-0	01	1	9312-9611	●		●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) 02.559 L=250	5-09707-030-0	01	1	9612-9711	●		●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-0	01	1	9612-9711					●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	9712-	●		●	●	●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	9312-9510	●	●	●	●
501	03.028 GROMMET; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97096-990-0	01	1	9511-9704	●		●	●
501	03.028 GROMMET; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97096-990-0	01	1	9705-9711	●	●	●	●
501	03.028 GROMMET; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97096-990-0	01	1	9712-9801	●	●	●	●		●
501	03.028 GROMMET; BRKT EXC. FUEL TANK 125L,33GAL<NL7>	8-97096-990-0	01	1	9802-	●	●	●	●	●	●
501	03.028 GROMMET; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97096-990-0	01	1	9802-	●	●	●	●		●

230 10 501 10 1 40 130 6 42 49 3 135 129 227 158 19 43 131 36 25 47 422 411 8 51 11 230 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL 1000X340X327 100L	8-97033-954-3	01	1	9312-9504	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4) 1000X340X327 100L	8-97033-954-3	01	1	9312-9504			●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97033-954-3	01	1	9505-9510	●	●	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97131-123-0	01	1	9511-9611	●	●	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97131-123-0	01	1	9612-9711	●	●	●	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97131-123-0	01	1	9712-9801	●		●	●	●	●
1	03.001 TANK; FUEL EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97188-865-0	01	1	9802-	●		●	●	●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4) 1000X340X327 100L	8-97033-955-2	01	1	9312-9504			●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97033-955-2	01	1	9505-9506			●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97033-955-2	01	1	9507-9704	●		●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 1000X340X327 100L	8-97033-955-2	01	1	9705-9711	●	●	●	●
1	03.001 TANK; FUEL EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 1000X340X327 100L	8-97033-955-2	01	1	9712-	●	●	●	●		●
1	03.001 TANK; FUEL FUEL TANK 125L,33GAL<NL7> OD=400 L=1130 124.5L	8-97047-401-1	01	1	9712-			●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9312-9611	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9612-9711	●	●	●	●	●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9712-9801	●	●			●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	9712-9801			●	●
3	03.107 UNIT; FUEL TANK,SUB EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	9802-9802	●	●	●	●		●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-94316-190-0	01	1	9802-	●	●			●	●
3	03.107 UNIT; FUEL TANK,SUB EXC. FUEL TANK 125L,33GAL<NL7> 03.001	8-94316-190-0	01	1	9802-			●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 125L,33GAL<NL7>	8-97103-484-0	01	1	9712-			●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9312-9611	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9612-9711	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9712-9801	●	●	●	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	9802-	●	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9312-9502	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	9503-9510	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.550	1-21729-043-0	01	1	9511-9704	●		●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.550	1-21729-043-0	01	1	9705-9711	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	9712-9801	●	●	●	●		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 01.550	1-21729-043-0	01	1	9802-	●	●			●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.550	1-21729-043-0	01	1	9802-			●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9511-9611	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9612-9711	●	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX) 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	9712-9801	●		●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 ID=20	9-09720-558-0	01	1	9712-			●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	9312-9610	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=9.2	5-09709-013-0	AR	1	9611-9611	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=9.2	5-09709-013-0	AR	1	9612-9711	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.483 (A) T=10.5	5-09709-014-0	AR	1	9712-	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	9312-9610	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=4.5 & 9	5-09709-023-0	AR	1	9611-9611	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=4.5 & 9	5-09709-023-0	AR	1	9612-9711	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (B) T=6.0	5-09709-024-0	AR	1	9712-	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (A) T=8.7	5-09709-048-0	AR	1	9312-9610	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	9312-9610	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=9.2 & 9	5-09709-025-0	AR	1	9611-9611	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=9.2 & 9	5-09709-025-0	AR	1	9612-9711	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL (B) T=9 & 10.5	8-97041-091-0	AR	1	9712-	●	●	●	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (A) T=8.7	5-09709-048-0	AR	1	9712-	●	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	9312-9502	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9503-9510	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9511-9704	●		●	●
11	03.890 PLUG; DRAIN,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9705-9711	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-9801	●	●	●	●		●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9802-	●	●			●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9802-			●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 01.453 M14X14	9-09862-156-0	01	1	9511-9611	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 01.453 M14X14	9-09862-156-0	01	1	9612-9711	●	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. EUROPEAN BASIC EQUIPMENT(EK4), FUEL TANK 125L,33GAL<NL7>,ISRAEL EQUIPMENT(7LX) 01.453 M14X14	9-09862-156-0	01	1	9712-9801	●		●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.001 M20X1.5	9-09662-002-0	01	1	9712-			●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9604-9611	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9612-9711	●	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9712-	●	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9312-9611	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9612-9711	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	9712-	●	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 125L,33GAL<NL7>	1-22440-038-0	01	1	9712-			●	●
36	03.015 NUT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> 04.785 M10 FLANGE	0-91150-110-0	08	1	9712-			●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9312-9611	●	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9612-9711	●	●	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	9712-	●	●			●	●
40	03.022 BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-94438-385-4	02	1	9712-			●	●
40	03.022 BELT; SUPPORT,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.023	8-94418-159-0	02	1	9712-			●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9312-9611	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9612-9711	●	●	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	9712-	●	●			●	●
42	03.023 NUT; SUPPORT BELT EXC. FUEL TANK 125L,33GAL<NL7> M8 FLANGE	9-09130-408-0	02	1	9712-			●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 125L,33GAL<NL7> 09.011 M10	9-09110-410-0	04	1	9712-			●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9312-9611	●	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9612-9711	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	9712-	●	●			●	●
43	03.015 BRACKET; FUEL TANK EXC. FUEL TANK 125L,33GAL<NL7>	8-97035-517-0	02	1	9712-			●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 125L,33GAL<NL7>	5-53461-044-2	02	1	9712-			●	●
47	03.023 SPACER; FUEL TANK FUEL TANK 125L,33GAL<NL7> FRAME STRAIGHT TYPE<7KJ>	8-97104-375-0	02	1	9712-			●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9312-9611	●	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9612-9711	●	●	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	9712-	●	●	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 00.002 M10X25	0-28091-025-0	08	1	9312-9603	●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 00.002 M10X25	0-28091-025-0	08	1	9604-9609	●	●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> 00.002 M10X25	0-28091-025-0	08	1	9604-9609			●	●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> 00.002 M10X25	0-28091-025-0	08	1	9604-9609			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9610-9611	●	●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9610-9611			●	●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9610-9611			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9612-9705	●	●			●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9612-9705			●	●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9612-9705			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9706-9711	●				●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9706-9711		●	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9706-9711		●	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9712-9712	●	●			●
51	03.023 BOLT; BRKT TO FRAME EXC. EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9712-9712			●	●		●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9712-9712			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9801-9801	●	●			●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9801-9801			●	●		●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9801-9801			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9802-9805	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9802-9805			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9802-9805			●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9806-9809	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9806-9809			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9806-9809			●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9806-9809					●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	9810-	●	●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL>,EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9810-			●	●		●
51	03.023 BOLT; BRKT TO FRAME 4BD2 ENG(RLW) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	08	1	9810-			●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9810-					●
51	03.023 BOLT; BRKT TO FRAME EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	08	1	9810-					●
51	03.023 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> 00.002 M10X25	0-28091-025-0	06	1	9604-9609			●
51	03.023 BOLT; BRKT TO FRAME 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> M10X30 FLANGE	0-28691-030-0	06	1	9610-			●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	07	1	9801-9801			●	●		●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28691-030-0	07	1	9802-9805			●	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) M10X30 FLANGE	0-28691-030-0	07	1	9806-			●	●	●	●
129	03.164 VENTILATOR; SAFETY,FUEL TANK FUEL TANK 125L,33GAL<NL7>	1-22451-012-0	01	1	9712-			●	●
130	03.164 SCREW; SAFETY VENT FUEL TANK 125L,33GAL<NL7> 06.512 M5X14 W/LK WASHER	9-03910-514-0	05	1	9712-			●	●
131	03.164 GASKET; SAFETY VENT FUEL TANK 125L,33GAL<NL7>	1-22459-001-1	01	1	9712-			●	●
135	03.163 COVER; SAFETY VENT FUEL TANK 125L,33GAL<NL7>	5-22458-005-0	01	1	9712-			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4)	8-94437-368-0	01	1	9312-9504			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-94437-368-0	01	1	9505-9506			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-94437-368-0	01	1	9507-9704	●		●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-94437-368-0	01	1	9705-9711	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7>	8-94437-368-0	01	1	9712-9801	●	●	●	●		●
158	03.164 VALVE; ROLL OVER & FLOAT	8-94437-368-0	01	1	9802-9803	●	●			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EXC. FUEL TANK 125L,33GAL<NL7>	8-94437-368-0	01	1	9802-9803			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. FUEL TANK 125L,33GAL<NL7>	8-94437-368-0	01	1	9804-	●	●	●	●		●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 125L,33GAL<NL7>	1-22453-003-0	01	1	9712-			●	●
227	03.015 BOLT; SPACER,FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.162 M10X35 FLANGE	0-28681-035-0	08	1	9712-			●	●
230	03.115 GROMMET; HARNESS,FUEL TANK UNIT 02.343 (B) ID=17	8-94128-319-2	01	1	9312-9506	●		●	●
230	03.115 GROMMET; HARNESS,FUEL TANK UNIT 04.931 (A) ID=20 OD=25 T=12	9-09575-720-0	01	1	9312-9506		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FUEL TANK 125L,33GAL<NL7> ID=6.5	8-94257-639-0	01	1	9712-			●	●
422	03.023 PLUG; FUEL TANK FUEL TANK 125L,33GAL<NL7> 03.162	8-94421-626-0	01	1	9712-			●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) 02.559 L=250	5-09707-030-0	01	1	9312-9611	●		●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HF1 ENG(RLS) 02.559 L=250	5-09707-030-0	01	1	9612-9711	●		●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 02.559 L=250	5-09707-030-0	01	1	9612-9711					●
492	03.028 CLIP; HARNESS TO VAC HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	01	1	9712-	●		●	●	●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	9312-9510	●	●	●	●
501	03.028 GROMMET; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97096-990-0	01	1	9511-9704	●		●	●
501	03.028 GROMMET; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97096-990-0	01	1	9705-9711	●	●	●	●
501	03.028 GROMMET; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97096-990-0	01	1	9712-9801	●	●	●	●		●
501	03.028 GROMMET; BRKT EXC. FUEL TANK 125L,33GAL<NL7>	8-97096-990-0	01	1	9802-	●	●	●	●	●	●
501	03.028 GROMMET; BRKT EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX)	8-97096-990-0	01	1	9802-	●	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
