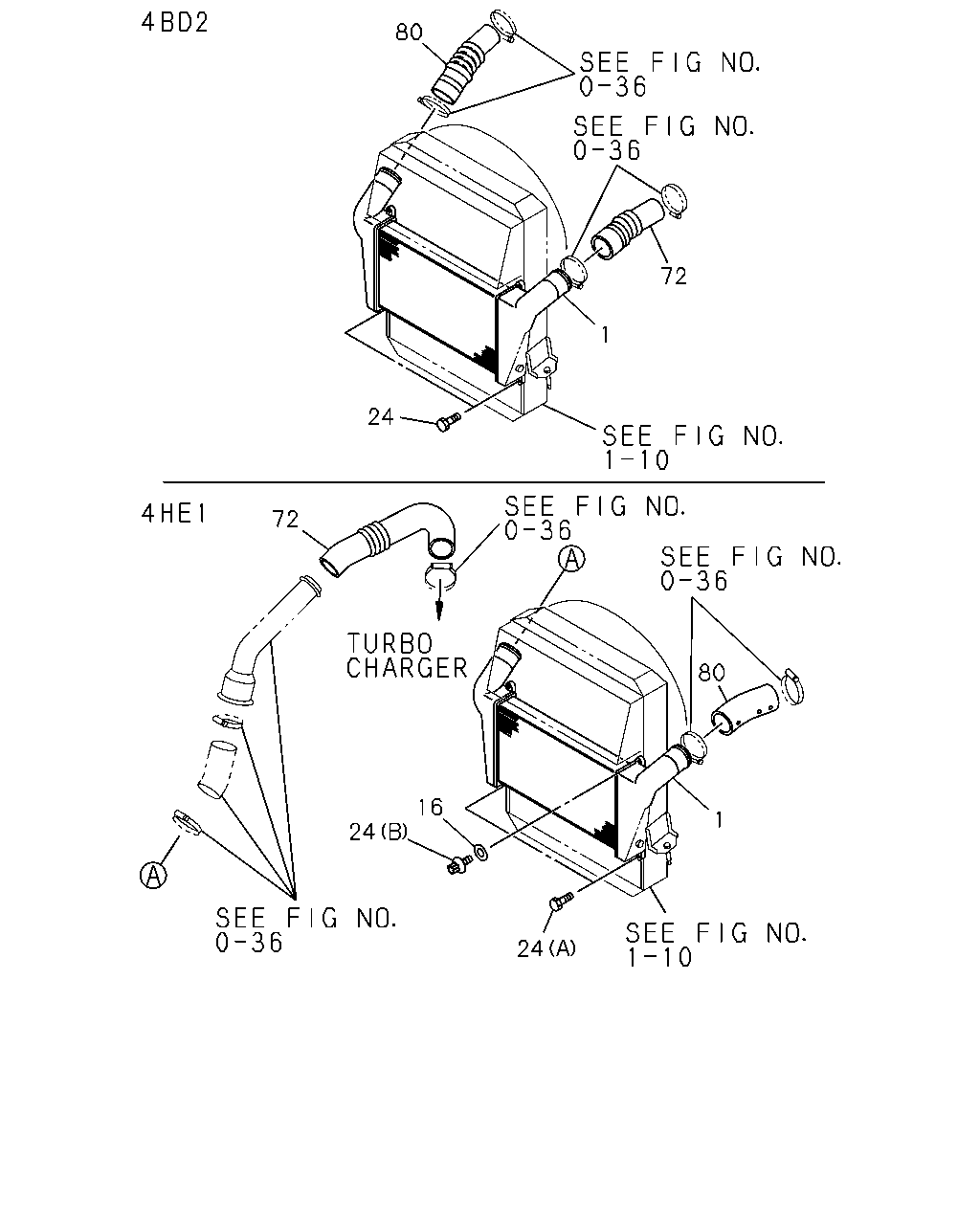

1-35 — CHARGE AIR COOLER (#47378) — 24 parça

80 72 24 72 80 16 1 24 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.374 COOLER; CHARGE AIR 4BD2 ENG(RLW) CORE H=370.5	8-97089-172-2	01	1	9312-9704	●	●
1	03.374 COOLER; CHARGE AIR 4BD2 ENG(RLW) CORE H=370.5	8-97089-172-2	01	1	9705-	●	●	●
1	03.374 COOLER; CHARGE AIR 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97169-096-0	01	1	9712-9801	●	●		●
1	03.374 COOLER; CHARGE AIR 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL>	8-97169-096-0	01	1	9802-9804	●	●		●	●
1	03.374 COOLER; CHARGE AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97169-096-0	01	1	9805-	●	●		●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11>	8-97192-254-0	02	1	9805-	●	●			●
24	03.374 BOLT; COOLER TO RAD 4BD2 ENG(RLW) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	04	1	9312-9502	●	●
24	03.374 BOLT; COOLER TO RAD 4BD2 ENG(RLW) 01.531 M8X25 FLANGE	0-28080-825-0	04	1	9503-9704	●	●
24	03.374 BOLT; COOLER TO RAD 4BD2 ENG(RLW) 01.531 M8X25 FLANGE	0-28080-825-0	04	1	9705-	●	●	●
24	03.374 BOLT; COOLER TO RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> (B)	8-97178-219-0	02	1	9805-	●	●			●
24	03.374 BOLT; COOLER TO RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97178-221-0	02	1	9712-9801	●	●		●
24	03.374 BOLT; COOLER TO RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (A)	8-97178-221-0	02	1	9802-9804	●	●		●	●
24	03.374 BOLT; COOLER TO RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97178-221-0	02	1	9805-	●	●		●	●
24	03.374 BOLT; COOLER TO RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97178-222-0	02	1	9712-9801	●	●		●
24	03.374 BOLT; COOLER TO RAD 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> (B)	8-97178-222-0	02	1	9802-	●	●		●	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4BD2 ENG(RLW) ID=71-63.5	8-97105-615-0	01	1	9312-9704	●	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4BD2 ENG(RLW) ID=71-63.5	8-97105-615-0	01	1	9705-	●	●	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97201-102-0	01	1	9712-9712	●	●		●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97203-993-0	01	1	9801-9801	●	●		●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97203-993-0	01	1	9802-	●	●		●	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4BD2 ENG(RLW) ID=71-63.5	8-97105-622-0	01	1	9312-9704	●	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4BD2 ENG(RLW) ID=71-63.5	8-97105-622-0	01	1	9705-	●	●	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-629-0	01	1	9712-9801	●	●		●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-629-0	01	1	9802-	●	●		●	●
