Sayfa 1-11 - Isuzu EPC

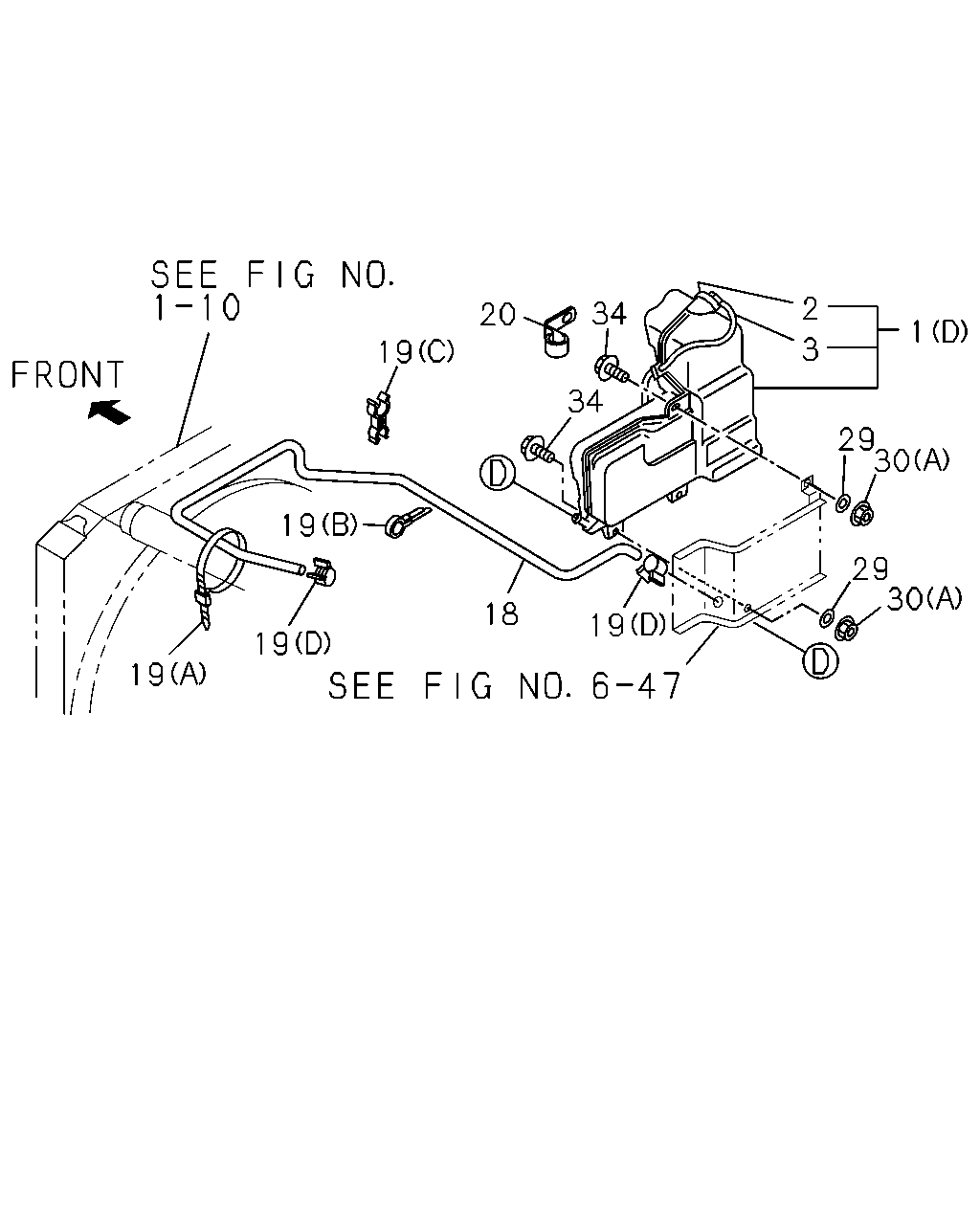

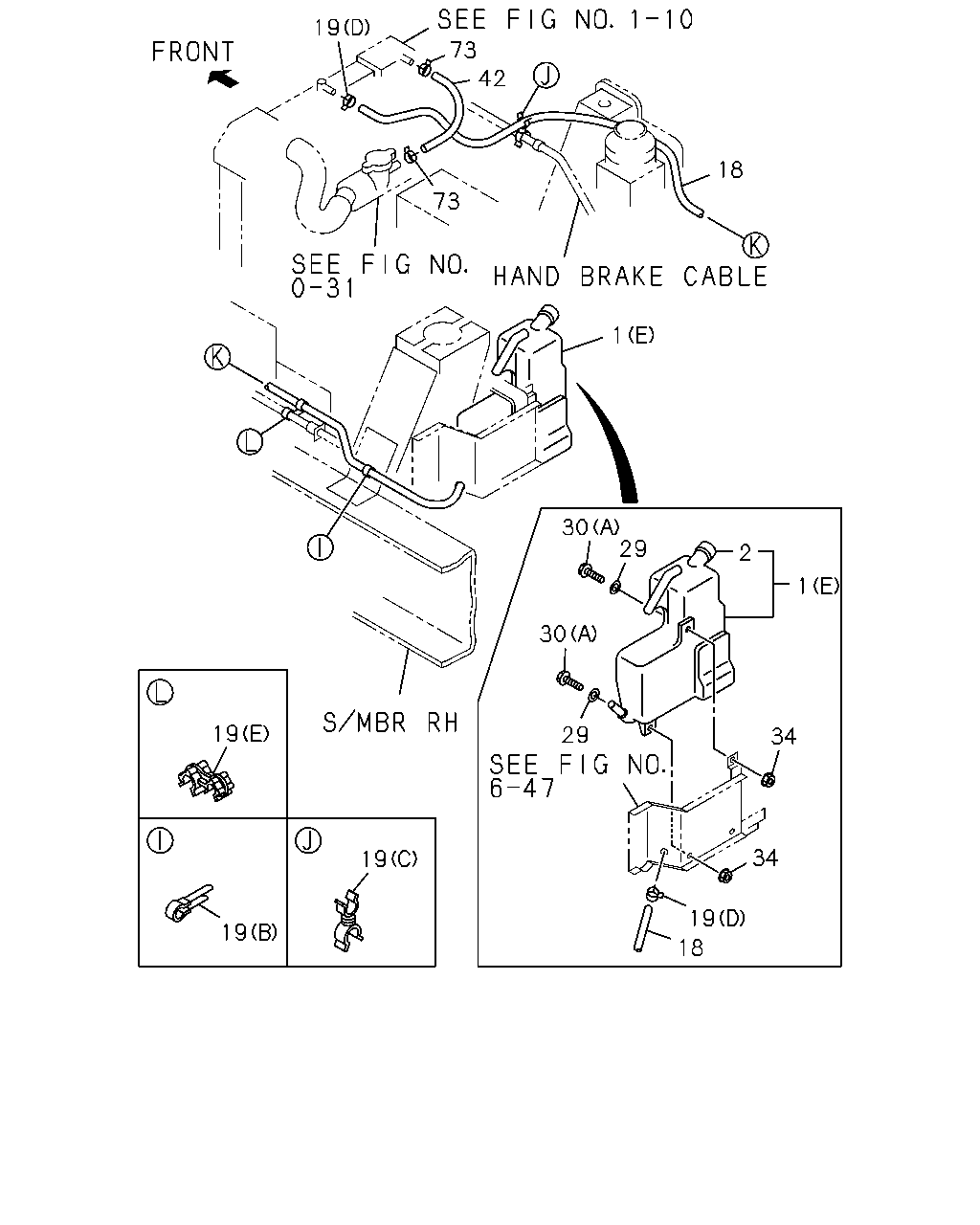

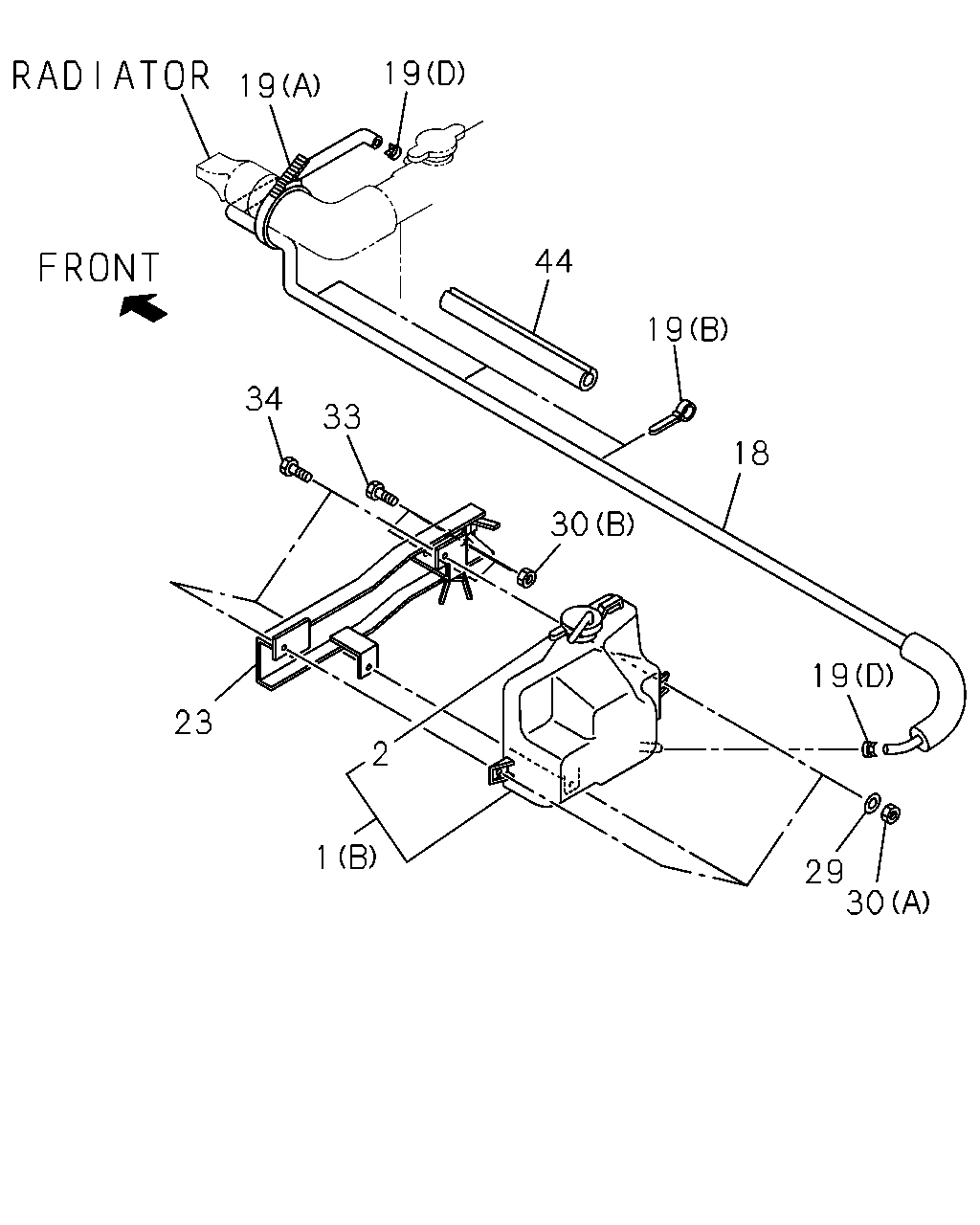

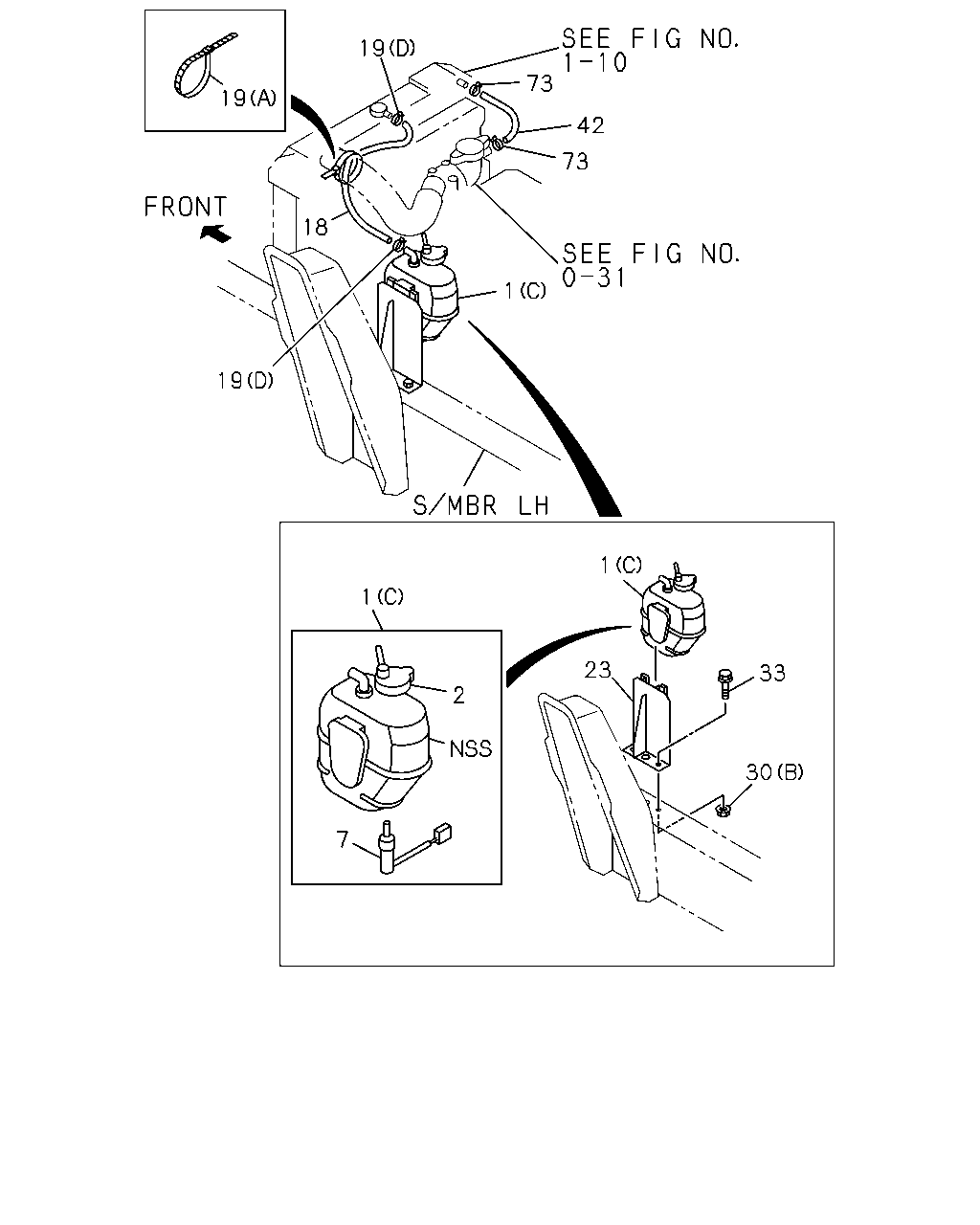

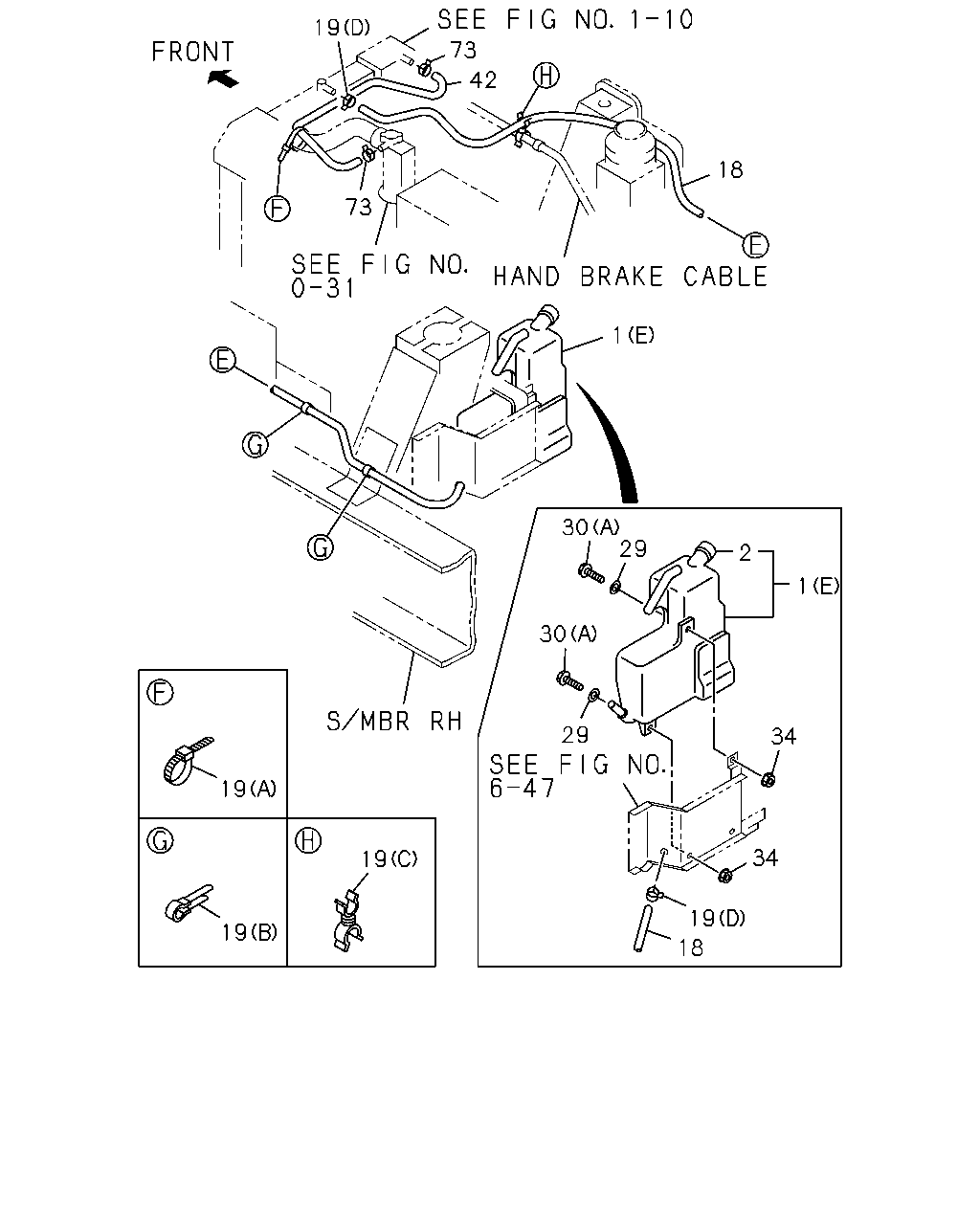

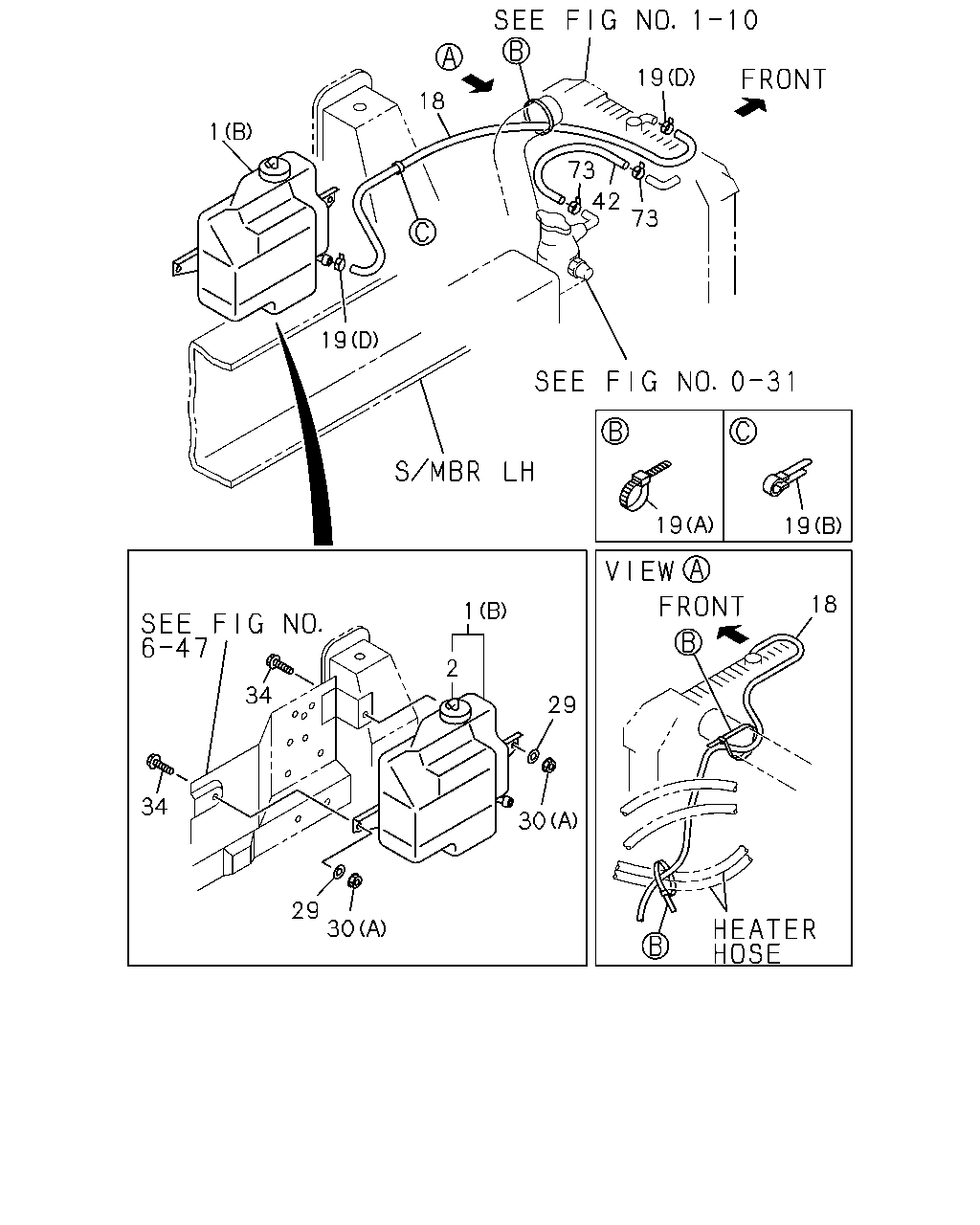

1-11 — RADIATOR HOSE AND SUB TANK (#47375) — 1334 parça

19 19 44 19 34 33 18 30 19 23 2 1 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (D)	8-97035-511-1	01	1	9312-9407	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97120-913-1	01	1	9408-9505	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9506-9506	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9506		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9507-9611	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9507-9611	●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9612-9711	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9612-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9612-9711				●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (E)	8-97131-202-0	01	1	9712-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9312-9506	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9506		●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9507-9510	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9507-9510	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-9511	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD 4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD 4BD2 ENG(RLW) (C)	8-94378-388-1	01	1	9705-9711						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9712-						●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9408-9506	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9507-9611	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9507-9611	●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9612-9711	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9612-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9612-9711				●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97126-876-0	01	1	9712-	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94449-363-0	01	1	9312-9407	●	●	●			●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9408-9506	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9507-9510	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9507-9510	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9511-9704	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9511-9704	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9705-	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9705-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-97106-365-0	01	1	9312-9510	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9511-9711		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9712-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97100-929-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97100-929-0	01	1	9312-9504						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97106-426-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97129-560-0	01	1	9505-9607	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9608-9611	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9612-9711	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1455	8-97148-535-0	01	1	9612-9711				●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9712-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97129-558-0	01	1	9505-9604	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97175-767-1	01	1	9604-9607	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9608-9711	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9712-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97148-537-0	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9712-9801		●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9712-9801					●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9802-		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9802-					●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97178-295-1	01	1	9705-9711						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97178-295-1	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9312-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9511-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9705-		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9312-9503	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9712-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9712-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607						●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9608-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801				●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9802-					●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9712-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9712-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.164 (A) L=217	8-94235-793-0	02	1	9312-9503	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.162 (A) L=140	5-09707-031-0	02	1	9505-9604	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9511-9611		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704				●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711		●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9712-		●	●	●	●
23	01.219 BRACKET; RESERVE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-97101-083-1	01	1	9312-9510	●	●	●
23	01.219 BRACKET; RESERVE TANK 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97101-083-1	01	1	9511-		●	●
23	01.219 BRACKET; RESERVE TANK 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ>	8-97045-488-1	01	1	9511-		●	●
23	01.219 BRACKET; RESERVE TANK 4BD2 ENG(RLW)	8-97178-212-1	01	1	9705-9711						●
23	01.219 BRACKET; RESERVE TANK	8-97178-212-1	01	1	9712-						●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-9611	●	●	●			●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9612-9704	●	●	●	●		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BE1 ENG(RLH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9712-	●	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BD2 ENG(RLW) 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9712-						●
30	01.203 NUT 4BD1 ENG(LJ6),4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9312-9510	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9511-9702		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9703-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9705-		●	●			●
30	01.203 NUT 16.176 (A) M6	9-09110-406-0	03	1	9312-9407	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9408-9611	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9612-9612	●	●	●	●		●
30	01.203 NUT 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711	●	●	●	●		●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711		●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801				●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-	●	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-					●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9701-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●
30	01.203 NUT 4BD2 ENG(RLW) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711						●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-						●
33	01.277 BOLT; BRKT 4BD1 ENG(LJ6),4BD2 ENG(RLW) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9312-9510	●	●	●
33	01.277 BOLT; BRKT 4BD2 ENG(RLW) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9511-9704		●	●
33	01.277 BOLT; BRKT 4BD2 ENG(RLW) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9705-9706		●	●			●
33	01.277 BOLT; BRKT 4BD2 ENG(RLW) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9707-		●	●
33	01.277 BOLT; BRKT 4BD2 ENG(RLW) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9707-9711						●
33	01.277 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9712-						●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703				●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●
34	01.203 BOLT; RESERVE TANK 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711				●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●
44	01.240 INSULATOR; HOSE 4BD2 ENG(RLW)	8-94133-603-1	01	1	9511-9711		●	●
44	01.240 INSULATOR; HOSE 4BD2 ENG(RLW)	8-94133-603-1	01	1	9712-		●	●

19 18 19 19 19 2 1 34 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (D)	8-97035-511-1	01	1	9312-9407	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97120-913-1	01	1	9408-9505	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9506-9506	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9506		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9507-9611	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9507-9611	●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9612-9711	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9612-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9612-9711				●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (E)	8-97131-202-0	01	1	9712-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9312-9506	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9506		●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9507-9510	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9507-9510	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-9511	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD 4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD 4BD2 ENG(RLW) (C)	8-94378-388-1	01	1	9705-9711						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9712-						●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9408-9506	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9507-9611	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9507-9611	●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9612-9711	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9612-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9612-9711				●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97126-876-0	01	1	9712-	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94449-363-0	01	1	9312-9407	●	●	●			●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9408-9506	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9507-9510	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9507-9510	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9511-9704	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9511-9704	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9705-	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9705-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-97106-365-0	01	1	9312-9510	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9511-9711		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9712-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97100-929-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97100-929-0	01	1	9312-9504						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97106-426-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97129-560-0	01	1	9505-9607	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9608-9611	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9612-9711	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1455	8-97148-535-0	01	1	9612-9711				●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9712-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97129-558-0	01	1	9505-9604	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97175-767-1	01	1	9604-9607	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9608-9711	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9712-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97148-537-0	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9712-9801		●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9712-9801					●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9802-		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9802-					●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97178-295-1	01	1	9705-9711						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97178-295-1	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9312-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9511-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9705-		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9312-9503	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9712-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9712-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607						●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9608-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801				●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9802-					●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9712-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9712-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.164 (A) L=217	8-94235-793-0	02	1	9312-9503	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.162 (A) L=140	5-09707-031-0	02	1	9505-9604	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9511-9611		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704				●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711		●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9712-		●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-9611	●	●	●			●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9612-9704	●	●	●	●		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BE1 ENG(RLH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9712-	●	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BD2 ENG(RLW) 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9712-						●
30	01.203 NUT 4BD1 ENG(LJ6),4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9312-9510	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9511-9702		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9703-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9705-		●	●			●
30	01.203 NUT 16.176 (A) M6	9-09110-406-0	03	1	9312-9407	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9408-9611	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9612-9612	●	●	●	●		●
30	01.203 NUT 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711	●	●	●	●		●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711		●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801				●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-	●	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-					●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9701-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●
30	01.203 NUT 4BD2 ENG(RLW) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711						●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-						●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703				●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●
34	01.203 BOLT; RESERVE TANK 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711				●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●

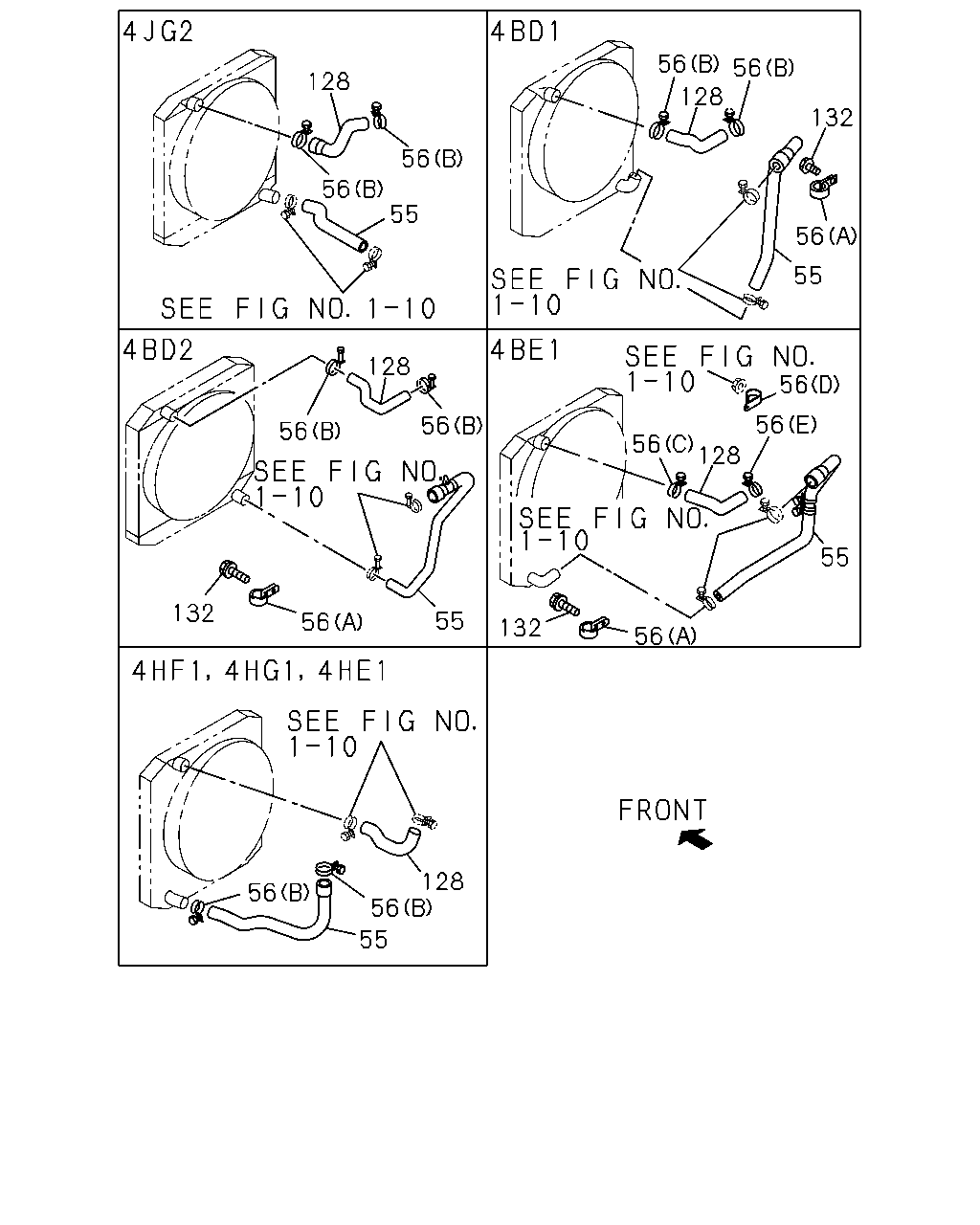

56 56 128 128 132 56 56 55 56 55 128 56 56 56 56 56 128 55 132 55 56 132 56 128 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
55	01.173 HOSE; WATER,RAD OUTLET 4BD1 ENG(LJ6)	8-97090-583-0	01	1	9312-9510	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HF1 ENG(RLS)	8-97090-584-0	01	1	9312-9412	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HF1 ENG(RLS)	8-97124-743-0	01	1	9501-9611	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HF1 ENG(RLS)	8-97124-743-0	01	1	9612-9711	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97124-743-0	01	1	9612-9711				●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97124-743-0	01	1	9712-9804	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HF1 ENG(RLS)	8-97124-743-0	01	1	9805-	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97124-743-0	01	1	9805-		●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4BE1 ENG(RLH)	8-97090-581-0	01	1	9312-9711	●	●	●			●
55	01.173 HOSE; WATER,RAD OUTLET 4BE1 ENG(RLH)	8-97090-581-0	01	1	9712-	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC)	8-97089-916-1	01	1	9312-9506		●
55	01.173 HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC)	8-97089-916-1	01	1	9507-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4BD2 ENG(RLW)	8-97073-423-0	01	1	9312-9704		●	●
55	01.173 HOSE; WATER,RAD OUTLET 4BD2 ENG(RLW)	8-97073-423-0	01	1	9705-		●	●			●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2)	8-97177-372-0	01	1	9805-9807		●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2)	8-97177-372-0	01	1	9808-		●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97160-258-1	01	1	9712-9801		●	●		●
55	01.173 HOSE; WATER,RAD OUTLET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97160-258-1	01	1	9802-		●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97133-143-0	01	1	9712-9801		●	●		●
55	01.173 HOSE; WATER,RAD OUTLET 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97133-143-0	01	1	9802-		●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4BD1 ENG(LJ6),4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=48	5-09704-049-0	02	1	9312-9510	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=48	5-09704-049-0	02	1	9511-9611	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=48	5-09704-049-0	02	1	9612-9704	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4HF1 ENG(RLS),4BD2 ENG(RLW) (B) ID=48	5-09704-049-0	02	1	9705-9711	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4BD2 ENG(RLW),4HE1 ENG(RLY) (B) ID=48	5-09704-049-0	02	1	9712-	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A) ID=46.5	8-94156-158-0	01	1	9312-9510	●	●	●			●
56	01.166 CLIP; WATER HOSE,RAD 4BE1 ENG(RLH),4BD2 ENG(RLW) (A) ID=46.5	8-94156-158-0	01	1	9511-	●	●	●			●
56	01.166 CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (C) ID=48	5-09704-049-0	01	1	9312-9711	●	●	●			●
56	01.166 CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (C) ID=48	5-09704-049-0	01	1	9712-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (D) ID=46	8-94362-266-0	01	1	9312-9711	●	●	●			●
56	01.166 CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (D) ID=46	8-94362-266-0	01	1	9712-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (E) ID=45	8-97031-339-0	01	1	9312-9711	●	●	●			●
56	01.166 CLIP; WATER HOSE,RAD 4BE1 ENG(RLH) (E) ID=45	8-97031-339-0	01	1	9712-	●	●	●
128	01.159 HOSE; WATER,RAD INL 4BD1 ENG(LJ6)	8-97090-578-0	01	1	9312-9510	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1 ENG(RLS)	8-97034-008-0	01	1	9312-9502	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1 ENG(RLS)	8-97128-675-0	01	1	9503-9603	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1 ENG(RLS)	8-97128-675-0	01	1	9604-9607	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1 ENG(RLS)	8-97147-472-0	01	1	9608-9611	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1 ENG(RLS)	8-97147-472-0	01	1	9612-9711	●	●	●
128	01.159 HOSE; WATER,RAD INL	8-97147-472-0	01	1	9612-9711				●
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97147-472-0	01	1	9712-9804	●	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1 ENG(RLS)	8-97147-472-0	01	1	9805-	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97147-472-0	01	1	9805-		●	●	●
128	01.159 HOSE; WATER,RAD INL 4BE1 ENG(RLH)	8-97034-004-0	01	1	9312-9607	●	●	●			●
128	01.159 HOSE; WATER,RAD INL 4BE1 ENG(RLH)	8-97147-471-0	01	1	9608-9711	●	●	●			●
128	01.159 HOSE; WATER,RAD INL 4BE1 ENG(RLH)	8-97147-471-0	01	1	9712-	●	●	●
128	01.159 HOSE; WATER,RAD INL 4JG2 ENG(RJC)	8-97034-003-0	01	1	9312-9506		●
128	01.159 HOSE; WATER,RAD INL 4JG2 ENG(RJC)	8-97034-003-0	01	1	9507-9607	●	●
128	01.159 HOSE; WATER,RAD INL 4JG2 ENG(RJC)	8-97147-473-0	01	1	9608-	●	●
128	01.159 HOSE; WATER,RAD INL 4BD2 ENG(RLW)	8-97090-577-0	01	1	9312-9510		●	●
128	01.159 HOSE; WATER,RAD INL 4BD2 ENG(RLW)	8-94455-065-1	01	1	9511-9704		●	●
128	01.159 HOSE; WATER,RAD INL 4BD2 ENG(RLW)	8-94455-065-1	01	1	9705-		●	●			●
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2)	8-97210-676-0	01	1	9805-9807		●	●
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2)	8-97210-676-0	01	1	9808-		●	●	●
128	01.159 HOSE; WATER,RAD INL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97160-257-1	01	1	9712-9801		●	●		●
128	01.159 HOSE; WATER,RAD INL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97160-257-1	01	1	9802-		●	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97133-142-0	01	1	9712-9801		●	●		●
128	01.159 HOSE; WATER,RAD INL 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97133-142-0	01	1	9802-		●	●	●	●
132	01.159 BOLT; CLIP,WATER HOSE,OUTLET 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9312-9510	●	●	●			●
132	01.159 BOLT; CLIP,WATER HOSE,OUTLET 4BE1 ENG(RLH),4BD2 ENG(RLW) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9511-9711	●	●	●			●
132	01.159 BOLT; CLIP,WATER HOSE,OUTLET 4BE1 ENG(RLH),4BD2 ENG(RLW) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-9801	●	●	●			●
132	01.159 BOLT; CLIP,WATER HOSE,OUTLET 4BE1 ENG(RLH),4BD2 ENG(RLW) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9802-	●	●	●			●

19 18 1 73 42 73 19 19 19 18 1 2 34 29 34 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (D)	8-97035-511-1	01	1	9312-9407	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97120-913-1	01	1	9408-9505	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9506-9506	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9506		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9507-9611	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9507-9611	●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9612-9711	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9612-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9612-9711				●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (E)	8-97131-202-0	01	1	9712-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9312-9506	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9506		●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9507-9510	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9507-9510	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-9511	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD 4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD 4BD2 ENG(RLW) (C)	8-94378-388-1	01	1	9705-9711						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9712-						●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9408-9506	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9507-9611	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9507-9611	●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9612-9711	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9612-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9612-9711				●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97126-876-0	01	1	9712-	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94449-363-0	01	1	9312-9407	●	●	●			●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9408-9506	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9507-9510	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9507-9510	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9511-9704	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9511-9704	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9705-	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9705-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-97106-365-0	01	1	9312-9510	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9511-9711		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9712-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97100-929-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97100-929-0	01	1	9312-9504						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97106-426-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97129-560-0	01	1	9505-9607	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9608-9611	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9612-9711	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1455	8-97148-535-0	01	1	9612-9711				●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9712-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97129-558-0	01	1	9505-9604	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97175-767-1	01	1	9604-9607	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9608-9711	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9712-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97148-537-0	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9712-9801		●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9712-9801					●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9802-		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9802-					●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97178-295-1	01	1	9705-9711						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97178-295-1	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9312-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9511-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9705-		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9312-9503	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9712-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9712-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607						●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9608-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801				●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9802-					●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9712-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9712-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.164 (A) L=217	8-94235-793-0	02	1	9312-9503	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.162 (A) L=140	5-09707-031-0	02	1	9505-9604	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9511-9611		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704				●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711		●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9712-		●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-9611	●	●	●			●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9612-9704	●	●	●	●		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BE1 ENG(RLH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9712-	●	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BD2 ENG(RLW) 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9712-						●
30	01.203 NUT 4BD1 ENG(LJ6),4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9312-9510	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9511-9702		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9703-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9705-		●	●			●
30	01.203 NUT 16.176 (A) M6	9-09110-406-0	03	1	9312-9407	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9408-9611	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9612-9612	●	●	●	●		●
30	01.203 NUT 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711	●	●	●	●		●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711		●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801				●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-	●	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-					●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9701-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●
30	01.203 NUT 4BD2 ENG(RLW) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711						●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-						●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703				●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●
34	01.203 BOLT; RESERVE TANK 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711				●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●
42	01.159 HOSE; RUBBER 4HF1 ENG(RLS)	8-97130-856-1	01	1	9505-9604	●	●	●
42	01.159 HOSE; RUBBER 4BE1 ENG(RLH)	8-97130-854-2	01	1	9505-9604	●	●	●			●
42	01.159 HOSE; RUBBER 4JG2 ENG(RJC)	8-97130-855-1	01	1	9505-9506		●
42	01.159 HOSE; RUBBER 4JG2 ENG(RJC)	8-97130-855-1	01	1	9507-9604	●	●
73	01.173 CLIP; RUBBER HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 01.219 ID=13	8-94238-571-0	02	1	9505-9604	●	●	●			●

2 34 20 1 3 34 29 29 18 30 30 19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (D)	8-97035-511-1	01	1	9312-9407	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97120-913-1	01	1	9408-9505	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9506-9506	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9506		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9507-9611	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9507-9611	●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9612-9711	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9612-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9612-9711				●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (E)	8-97131-202-0	01	1	9712-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9312-9506	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9506		●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9507-9510	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9507-9510	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-9511	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD 4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD 4BD2 ENG(RLW) (C)	8-94378-388-1	01	1	9705-9711						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9712-						●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9408-9506	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9507-9611	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9507-9611	●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9612-9711	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9612-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9612-9711				●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97126-876-0	01	1	9712-	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94449-363-0	01	1	9312-9407	●	●	●			●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9408-9506	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9507-9510	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9507-9510	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9511-9704	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9511-9704	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9705-	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9705-	●	●
3	01.159 HOSE; SURGE TANK 4HF1 ENG(RLS) 01.166 L=550	8-97096-394-0	01	1	9312-9407	●	●	●
3	01.159 HOSE; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.166 L=550	8-97096-394-0	01	1	9312-9407		●
3	01.159 HOSE; SURGE TANK 4HF1 ENG(RLS) 01.240 L=430 SERVICED BY L=3000	0-03157-300-0	01	1	9408-9410	●	●	●
3	01.159 HOSE; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.240 L=430 SERVICED BY L=3000	0-03157-300-0	01	1	9408-9410		●
3	01.159 HOSE; SURGE TANK 4HF1 ENG(RLS) 01.240 L=370 SERVICED BY L=3000	0-03157-300-0	01	1	9411-9505	●	●	●
3	01.159 HOSE; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.240 L=370 SERVICED BY L=3000	0-03157-300-0	01	1	9411-9505		●
18	01.240 HOSE; RAD TO SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-97106-365-0	01	1	9312-9510	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9511-9711		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9712-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97100-929-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97100-929-0	01	1	9312-9504						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97106-426-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97129-560-0	01	1	9505-9607	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9608-9611	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9612-9711	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1455	8-97148-535-0	01	1	9612-9711				●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9712-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97129-558-0	01	1	9505-9604	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97175-767-1	01	1	9604-9607	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9608-9711	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9712-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97148-537-0	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9712-9801		●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9712-9801					●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9802-		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9802-					●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97178-295-1	01	1	9705-9711						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97178-295-1	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9312-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9511-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9705-		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9312-9503	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9712-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9712-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607						●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9608-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801				●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9802-					●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9712-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9712-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.164 (A) L=217	8-94235-793-0	02	1	9312-9503	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.162 (A) L=140	5-09707-031-0	02	1	9505-9604	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9511-9611		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704				●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711		●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9712-		●	●	●	●
20	01.166 CLIP; HOSE,RAD 4HF1 ENG(RLS) 03.483 ID=13 H=18 L=20	1-09700-813-0	01	1	9408-9505	●	●	●
20	01.166 CLIP; HOSE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.483 ID=13 H=18 L=20	1-09700-813-0	01	1	9408-9505		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-9611	●	●	●			●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9612-9704	●	●	●	●		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BE1 ENG(RLH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9712-	●	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BD2 ENG(RLW) 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9712-						●
30	01.203 NUT 4BD1 ENG(LJ6),4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9312-9510	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9511-9702		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9703-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9705-		●	●			●
30	01.203 NUT 16.176 (A) M6	9-09110-406-0	03	1	9312-9407	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9408-9611	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9612-9612	●	●	●	●		●
30	01.203 NUT 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711	●	●	●	●		●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711		●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801				●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-	●	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-					●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9701-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●
30	01.203 NUT 4BD2 ENG(RLW) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711						●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-						●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703				●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●
34	01.203 BOLT; RESERVE TANK 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711				●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●

19 73 19 42 73 18 1 19 1 1 23 33 2 30 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (D)	8-97035-511-1	01	1	9312-9407	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97120-913-1	01	1	9408-9505	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9506-9506	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9506		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9507-9611	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9507-9611	●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9612-9711	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9612-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9612-9711				●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (E)	8-97131-202-0	01	1	9712-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9312-9506	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9506		●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9507-9510	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9507-9510	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-9511	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD 4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD 4BD2 ENG(RLW) (C)	8-94378-388-1	01	1	9705-9711						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9712-						●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9408-9506	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9507-9611	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9507-9611	●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9612-9711	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9612-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9612-9711				●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97126-876-0	01	1	9712-	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94449-363-0	01	1	9312-9407	●	●	●			●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9408-9506	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9507-9510	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9507-9510	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9511-9704	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9511-9704	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9705-	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9705-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-97106-365-0	01	1	9312-9510	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9511-9711		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9712-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97100-929-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97100-929-0	01	1	9312-9504						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97106-426-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97129-560-0	01	1	9505-9607	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9608-9611	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9612-9711	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1455	8-97148-535-0	01	1	9612-9711				●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9712-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97129-558-0	01	1	9505-9604	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97175-767-1	01	1	9604-9607	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9608-9711	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9712-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97148-537-0	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9712-9801		●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9712-9801					●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9802-		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9802-					●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97178-295-1	01	1	9705-9711						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97178-295-1	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9312-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9511-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9705-		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9312-9503	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9712-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9712-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607						●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9608-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801				●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9802-					●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9712-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9712-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.164 (A) L=217	8-94235-793-0	02	1	9312-9503	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.162 (A) L=140	5-09707-031-0	02	1	9505-9604	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9511-9611		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704				●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711		●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9712-		●	●	●	●
23	01.219 BRACKET; RESERVE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-97101-083-1	01	1	9312-9510	●	●	●
23	01.219 BRACKET; RESERVE TANK 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97101-083-1	01	1	9511-		●	●
23	01.219 BRACKET; RESERVE TANK 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ>	8-97045-488-1	01	1	9511-		●	●
23	01.219 BRACKET; RESERVE TANK 4BD2 ENG(RLW)	8-97178-212-1	01	1	9705-9711						●
23	01.219 BRACKET; RESERVE TANK	8-97178-212-1	01	1	9712-						●
30	01.203 NUT 4BD1 ENG(LJ6),4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9312-9510	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9511-9702		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9703-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9705-		●	●			●
30	01.203 NUT 16.176 (A) M6	9-09110-406-0	03	1	9312-9407	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9408-9611	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9612-9612	●	●	●	●		●
30	01.203 NUT 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711	●	●	●	●		●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711		●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801				●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-	●	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-					●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9701-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●
30	01.203 NUT 4BD2 ENG(RLW) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711						●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-						●
33	01.277 BOLT; BRKT 4BD1 ENG(LJ6),4BD2 ENG(RLW) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9312-9510	●	●	●
33	01.277 BOLT; BRKT 4BD2 ENG(RLW) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9511-9704		●	●
33	01.277 BOLT; BRKT 4BD2 ENG(RLW) 07.010 M8X20 FLANGE	0-28080-820-0	03	1	9705-9706		●	●			●
33	01.277 BOLT; BRKT 4BD2 ENG(RLW) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9707-		●	●
33	01.277 BOLT; BRKT 4BD2 ENG(RLW) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9707-9711						●
33	01.277 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9712-						●
42	01.159 HOSE; RUBBER 4HF1 ENG(RLS)	8-97130-856-1	01	1	9505-9604	●	●	●
42	01.159 HOSE; RUBBER 4BE1 ENG(RLH)	8-97130-854-2	01	1	9505-9604	●	●	●			●
42	01.159 HOSE; RUBBER 4JG2 ENG(RJC)	8-97130-855-1	01	1	9505-9506		●
42	01.159 HOSE; RUBBER 4JG2 ENG(RJC)	8-97130-855-1	01	1	9507-9604	●	●
73	01.173 CLIP; RUBBER HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 01.219 ID=13	8-94238-571-0	02	1	9505-9604	●	●	●			●

19 73 42 18 73 1 30 29 2 1 30 29 34 19 34 19 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (D)	8-97035-511-1	01	1	9312-9407	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97120-913-1	01	1	9408-9505	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9506-9506	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9506		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9507-9611	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9507-9611	●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9612-9711	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9612-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9612-9711				●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (E)	8-97131-202-0	01	1	9712-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9312-9506	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9506		●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9507-9510	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9507-9510	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-9511	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD 4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD 4BD2 ENG(RLW) (C)	8-94378-388-1	01	1	9705-9711						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9712-						●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9408-9506	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9507-9611	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9507-9611	●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9612-9711	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9612-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9612-9711				●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97126-876-0	01	1	9712-	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94449-363-0	01	1	9312-9407	●	●	●			●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9408-9506	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9507-9510	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9507-9510	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9511-9704	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9511-9704	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9705-	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9705-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-97106-365-0	01	1	9312-9510	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9511-9711		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9712-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97100-929-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97100-929-0	01	1	9312-9504						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97106-426-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97129-560-0	01	1	9505-9607	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9608-9611	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9612-9711	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1455	8-97148-535-0	01	1	9612-9711				●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9712-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97129-558-0	01	1	9505-9604	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97175-767-1	01	1	9604-9607	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9608-9711	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9712-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97148-537-0	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9712-9801		●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9712-9801					●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9802-		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9802-					●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97178-295-1	01	1	9705-9711						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97178-295-1	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9312-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9511-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9705-		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9312-9503	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9712-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9712-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607						●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9608-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801				●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9802-					●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9712-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9712-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.164 (A) L=217	8-94235-793-0	02	1	9312-9503	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.162 (A) L=140	5-09707-031-0	02	1	9505-9604	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9511-9611		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704				●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711		●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9712-		●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-9611	●	●	●			●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9612-9704	●	●	●	●		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BE1 ENG(RLH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9712-	●	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BD2 ENG(RLW) 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9712-						●
30	01.203 NUT 4BD1 ENG(LJ6),4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9312-9510	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9511-9702		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9703-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9705-		●	●			●
30	01.203 NUT 16.176 (A) M6	9-09110-406-0	03	1	9312-9407	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9408-9611	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9612-9612	●	●	●	●		●
30	01.203 NUT 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711	●	●	●	●		●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711		●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801				●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-	●	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-					●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9701-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●
30	01.203 NUT 4BD2 ENG(RLW) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711						●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-						●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703				●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●
34	01.203 BOLT; RESERVE TANK 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711				●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●
42	01.159 HOSE; RUBBER 4HF1 ENG(RLS)	8-97130-856-1	01	1	9505-9604	●	●	●
42	01.159 HOSE; RUBBER 4BE1 ENG(RLH)	8-97130-854-2	01	1	9505-9604	●	●	●			●
42	01.159 HOSE; RUBBER 4JG2 ENG(RJC)	8-97130-855-1	01	1	9505-9506		●
42	01.159 HOSE; RUBBER 4JG2 ENG(RJC)	8-97130-855-1	01	1	9507-9604	●	●
73	01.173 CLIP; RUBBER HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 01.219 ID=13	8-94238-571-0	02	1	9505-9604	●	●	●			●

19 73 42 18 73 1 30 29 2 1 30 19 29 34 34 19 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (D)	8-97035-511-1	01	1	9312-9407	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97120-913-1	01	1	9408-9505	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9506-9506	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9506		●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9507-9611	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9507-9611	●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (E)	8-97131-202-0	01	1	9612-9711	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9612-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9612-9711				●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) (E)	8-97131-202-0	01	1	9712-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9312-9506	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9506		●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (A)	8-94451-186-1	01	1	9507-9510	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9507-9510	●	●
1	01.219 TANK; SURGE,RAD 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-9511	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD 4BE1 ENG(RLH),4BD2 ENG(RLW) (B)	8-97138-509-0	01	1	9511-	●	●	●			●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD 4BD2 ENG(RLW) (C)	8-94378-388-1	01	1	9705-9711						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9712-						●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9408-9506	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9507-9611	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9507-9611	●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9612-9711	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9612-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9612-9711				●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97126-876-0	01	1	9712-	●	●	●	●	●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW)	8-94449-363-0	01	1	9312-9407	●	●	●			●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9408-9506	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-9506		●
2	01.203 CAP; SURGE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9507-9510	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9507-9510	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9511-9704	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9511-9704	●	●
2	01.203 CAP; SURGE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW)	8-94449-363-0	01	1	9705-	●	●	●			●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9705-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW)	8-97106-365-0	01	1	9312-9510	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9511-9711		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97046-334-1	01	1	9712-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97100-929-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97100-929-0	01	1	9312-9504						●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97106-426-0	01	1	9312-9504	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97129-560-0	01	1	9505-9607	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9608-9611	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9612-9711	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1455	8-97148-535-0	01	1	9612-9711				●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1455	8-97148-535-0	01	1	9712-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97129-558-0	01	1	9505-9604	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97175-767-1	01	1	9604-9607	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9608-9711	●	●	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4BE1 ENG(RLH)	8-97148-526-0	01	1	9712-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9506		●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97148-537-0	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC)	8-97148-537-0	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9712-9801		●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9712-9801					●
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) L=1550	8-97129-560-1	01	1	9802-		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1550	8-97129-560-1	01	1	9802-					●
18	01.240 HOSE; RAD TO SURGE TANK 4BD2 ENG(RLW)	8-97178-295-1	01	1	9705-9711						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97178-295-1	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9312-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9511-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) (B) ID=14 L=47	5-09700-319-0	03	1	9705-		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9312-9503	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9505-9510						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9511-9604						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9604-9704						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9705-9711		●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	01	1	9712-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BD2 ENG(RLW) 03.164 (A) L=217	8-94235-793-0	01	1	9712-		●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9712-						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-9410						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9411-9506						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9507-9607						●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9608-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9712-9801				●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	01	1	9802-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9802-					●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9312-9410		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9411-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> (B) ID=14 L=47	5-09700-319-0	02	1	9507-9607	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9312-9506		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.162 (C) ID=11.5 & 14.5	8-94314-293-0	01	1	9507-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9510-9611	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9612-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11	8-94438-996-0	01	1	9712-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-9611	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9612-9711	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9712-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.164 (A) L=217	8-94235-793-0	02	1	9312-9503	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK HEATER & DEFROSTER(C41) 03.164 (A) L=217	8-94235-793-0	02	1	9504-9504						●
19	01.240 CLIP; HOSE,SURGE TANK 4BE1 ENG(RLH) 03.162 (A) L=140	5-09707-031-0	02	1	9505-9604	●	●	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9511-9611		●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704		●	●
19	01.240 CLIP; HOSE,SURGE TANK (E) ID=10 & 12	8-94416-613-0	01	1	9612-9704				●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711		●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> (E) ID=10 & 12	8-94416-613-0	01	1	9705-9711				●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (E) ID=10 & 12	8-94416-613-0	01	1	9712-		●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-9611	●	●	●			●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9612-9704	●	●	●	●		●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BE1 ENG(RLH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW), 4HE1ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9712-	●	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4BD2 ENG(RLW) 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9705-9711						●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	02	1	9712-						●
30	01.203 NUT 4BD1 ENG(LJ6),4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9312-9510	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9511-9702		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9703-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	9705-		●	●			●
30	01.203 NUT 16.176 (A) M6	9-09110-406-0	03	1	9312-9407	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9408-9611	●	●	●			●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9612-9612	●	●	●	●		●
30	01.203 NUT 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711	●	●	●	●		●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9701-9711		●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9712-9801				●	●
30	01.203 NUT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-	●	●	●	●
30	01.203 NUT 4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9802-					●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9701-9704		●	●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711		●	●
30	01.203 NUT 4BD2 ENG(RLW) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9705-9711						●
30	01.203 NUT 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-		●	●
30	01.203 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-						●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9507-9611	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9612-9703				●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711	●	●
34	01.203 BOLT; RESERVE TANK 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9704-9711				●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9506		●
34	01.203 BOLT; RESERVE TANK 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9507-9510	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9511-9703	●	●
34	01.203 BOLT; RESERVE TANK 4BE1 ENG(RLH),4BD2 ENG(RLW) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●	●			●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-	●	●
42	01.159 HOSE; RUBBER 4HF1 ENG(RLS)	8-97130-856-1	01	1	9505-9604	●	●	●
42	01.159 HOSE; RUBBER 4BE1 ENG(RLH)	8-97130-854-2	01	1	9505-9604	●	●	●			●
42	01.159 HOSE; RUBBER 4JG2 ENG(RJC)	8-97130-855-1	01	1	9505-9506		●
42	01.159 HOSE; RUBBER 4JG2 ENG(RJC)	8-97130-855-1	01	1	9507-9604	●	●
73	01.173 CLIP; RUBBER HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) 01.219 ID=13	8-94238-571-0	02	1	9505-9604	●	●	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
