0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#47370) — 125 parça

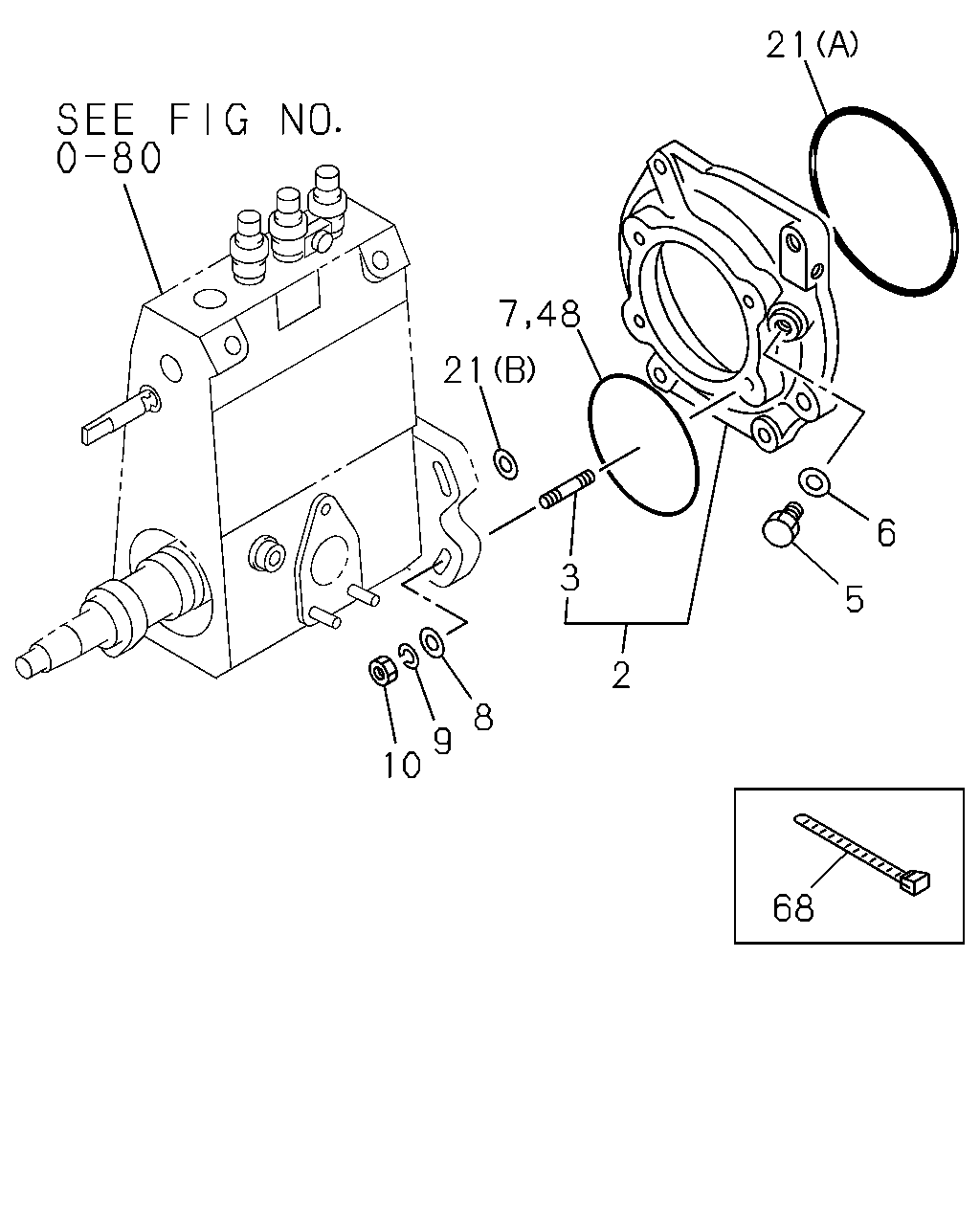

çizim 20479
21 7 48 21 6 3 5 2 8 9 10 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
COLOMBIA EQUIPMENT(X74) 		5-19751-050-0 01 1 9312-9312 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) 		5-19751-050-0 01 1 9312-9312 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
COLOMBIA EQUIPMENT(X74) 		5-19751-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 5-19751-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
COLOMBIA EQUIPMENT(X74) 		5-19751-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) 		5-19751-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) 		5-19751-050-0 01 1 9511-9511 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 5-19751-050-0 01 1 9512- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
TAIWAN EQUIPMENT(RWV) 		5-19750-050-0 01 1 9312-9312 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9312-9312 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
TAIWAN EQUIPMENT(RWV) 		5-19750-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
TAIWAN EQUIPMENT(RWV) 		5-19750-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9511-9511 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97037-516-0 01 1 9312- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97096-643-0 01 1 9312-9504 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
FLOOR REMOTE SHIFT<M11> 		8-97096-643-0 01 1 9505-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
A/T 4 SPEED-JATCO(RMK) 		8-97096-643-0 01 1 9505-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EURO1 SPECIFICATION<6YW> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97121-616-0 01 1 9505-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97121-616-0 01 1 9511- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
CHARGE AIR COOLER<6PL> 		8-97188-880-0 01 1 9712-9801 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-880-1 01 1 9802- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NQR EXTEND LONG(NP***N) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 		8-97188-880-1 01 1 9802- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9712- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97123-609-0 01 1 9712- ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9312-9502 ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9503-9510 ● ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9511-9711 ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9712- ● ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9312-9502 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 9312-9711 ●
5 03.306 PLUG; HSG BRKT,INJ PUMP 8-97026-919-0 01 1 9712- ● ● ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
03.308 		1-15729-787-0 01 1 9312-9711 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
03.308 		1-15729-787-0 01 1 9712- ● ● ●
7 03.306 GASKET; HSG BRKT,ENG SIDE
CHARGE AIR COOLER<6PL> 		8-97188-881-0 01 1 9712-9801 ●
7 03.306 GASKET; HSG BRKT,ENG SIDE
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-881-0 01 1 9802- ●
7 03.306 GASKET; HSG BRKT,ENG SIDE
NQR EXTEND LONG(NP***N) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 		8-97188-881-0 01 1 9802- ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9312-9502 ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9503-9510 ● ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9511-9711 ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9712- ● ● ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9312-9502 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9312-9410 ● ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9411-9504 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
FLOOR REMOTE SHIFT<M11> 00.002 ID=10.2 		9-09150-610-0 04 1 9505-9510 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
A/T 4 SPEED-JATCO(RMK) 00.002 ID=10.2 		9-09150-610-0 04 1 9505-9510 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9712- ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9312-9502 ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9503-9510 ● ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9511-9711 ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9712- ● ● ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9312-9502 ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94370-675-0 01 1 9312-9510 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94370-675-0 01 1 9511- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9411-9502 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9503-9510 ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9511-9711 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9712-9801 ● ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 02 1 9802- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09572-014-0 04 1 9802- ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9802- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 9312-9711 ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 9712- ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9312-9502 ●
48 03.306 GASKET; PIPE ADAPTER,INJ PUMP 8-97026-918-0 01 1 9604- ●
68 03.671 CLIP; RACK SENSOR
CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-0 01 1 9712-9712 ●

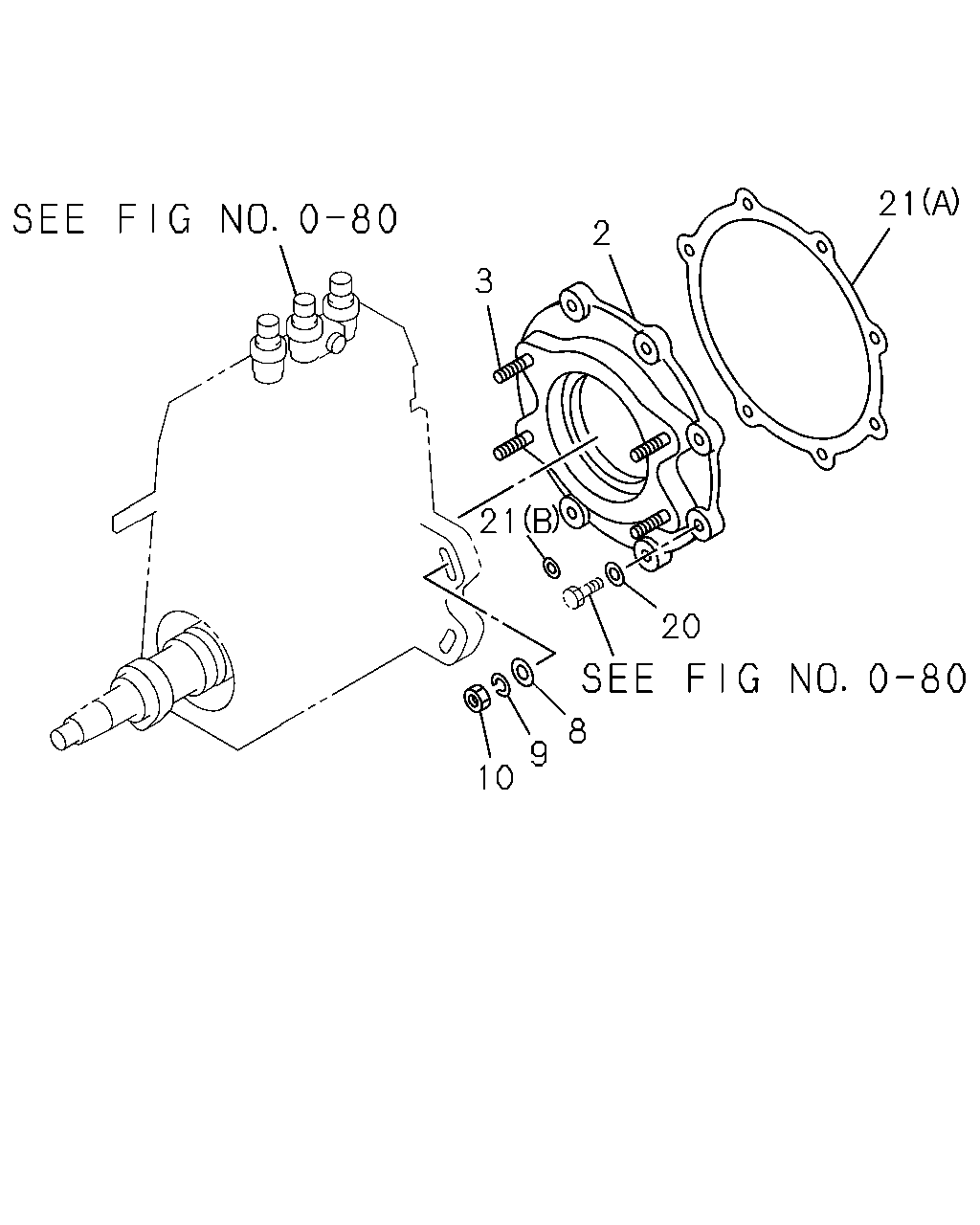

çizim 20522
21 2 3 21 20 8 9 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
COLOMBIA EQUIPMENT(X74) 		5-19751-050-0 01 1 9312-9312 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) 		5-19751-050-0 01 1 9312-9312 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
COLOMBIA EQUIPMENT(X74) 		5-19751-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 5-19751-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
COLOMBIA EQUIPMENT(X74) 		5-19751-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) 		5-19751-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
HIGH ALTITUDE COMPENSATOR(EE2) 		5-19751-050-0 01 1 9511-9511 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 5-19751-050-0 01 1 9512- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
TAIWAN EQUIPMENT(RWV) 		5-19750-050-0 01 1 9312-9312 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9312-9312 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
TAIWAN EQUIPMENT(RWV) 		5-19750-050-0 01 1 9312-9410 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
TAIWAN EQUIPMENT(RWV) 		5-19750-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9411-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		5-19750-050-0 01 1 9511-9511 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97037-516-0 01 1 9312- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97096-643-0 01 1 9312-9504 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
FLOOR REMOTE SHIFT<M11> 		8-97096-643-0 01 1 9505-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
A/T 4 SPEED-JATCO(RMK) 		8-97096-643-0 01 1 9505-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EURO1 SPECIFICATION<6YW> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97121-616-0 01 1 9505-9510 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97121-616-0 01 1 9511- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
CHARGE AIR COOLER<6PL> 		8-97188-880-0 01 1 9712-9801 ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97188-880-1 01 1 9802- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
NQR EXTEND LONG(NP***N) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 		8-97188-880-1 01 1 9802- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. CHARGE AIR COOLER<6PL> 		8-97125-957-0 01 1 9712- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97123-609-0 01 1 9712- ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9312-9502 ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9503-9510 ● ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9511-9711 ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9712- ● ● ● ●
3 03.330 STUD; HSG BRKT,INJ PUMP
08.981 M10X30 L=45 		9-04101-030-0 04 1 9312-9502 ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9312-9502 ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9503-9510 ● ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9511-9711 ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9712- ● ● ● ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5 		9-09164-510-0 04 1 9312-9502 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9312-9410 ● ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9411-9504 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
FLOOR REMOTE SHIFT<M11> 00.002 ID=10.2 		9-09150-610-0 04 1 9505-9510 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
A/T 4 SPEED-JATCO(RMK) 00.002 ID=10.2 		9-09150-610-0 04 1 9505-9510 ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 9712- ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9312-9502 ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9503-9510 ● ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9511-9711 ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9712- ● ● ● ● ●
10 03.306 NUT; HSG BRKT,INJ PUMP 5-15639-002-0 04 1 9312-9502 ●
20 03.330 GASKET; INJ PUMP
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 9312-9510 ● ● ●
20 03.330 GASKET; INJ PUMP
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 9511- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94370-675-0 01 1 9312-9510 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94370-675-0 01 1 9511- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9411-9502 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9503-9510 ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9511-9711 ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9712-9801 ● ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 02 1 9802- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09572-014-0 04 1 9802- ● ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9802- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 9312-9711 ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 9712- ● ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9312-9502 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
