Sayfa 0-85D - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-85D - AUTO TIMER; INJECTION PUMP ▶

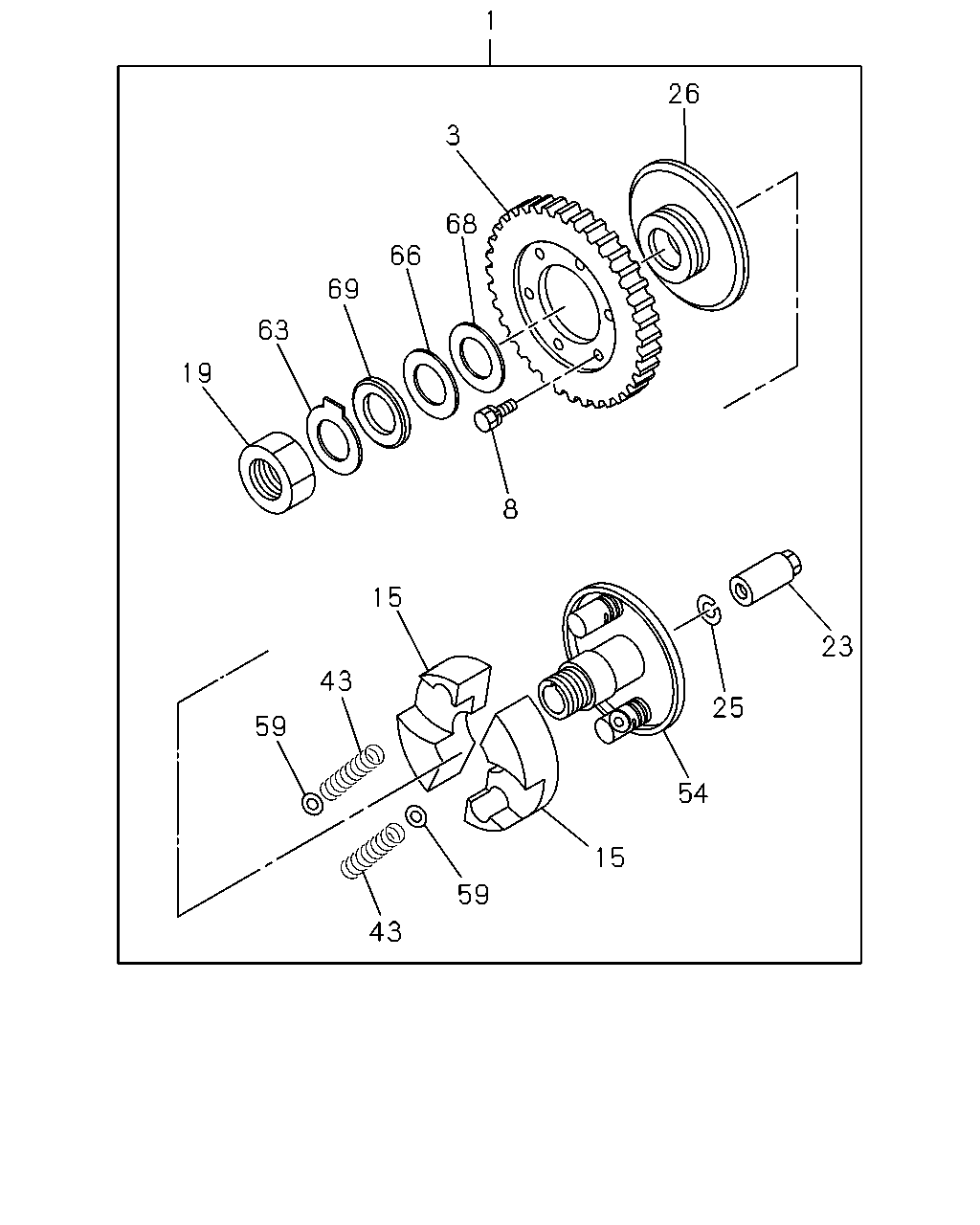

0-85D — AUTO TIMER; INJECTION PUMP (#47366) — 38 parça

1 26 3 68 66 69 63 19 8 15 23 43 25 59 54 15 59 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.340 TIMER ASM; INJ PUMP ASM PART: D = 8-97117-561-1, 97117561	8-94340-002-0	01	1	-9509
1	03.340 TIMER ASM; INJ PUMP ASM PART: B = 8-97093-064-1, 97093064	8-94340-002-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: A = 8-97085-067-2, 97085067, C = 8-97117-560-1, 97117560	8-94362-026-1	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: D = 8-97117-561-1, 97117561	8-94362-026-1	01	1	9510-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	1-12524-070-0	01	1	9510-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064	5-12524-065-0	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	5-12524-065-0	01	1	-9509
8	03.340 BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-94457-517-0	06	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	5-15743-012-0	02	1	-
19	03.340 NUT ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-94171-192-0	01	1	-
23	03.340 NUT; TIMER FLANGE,INJ PUMP 03.330 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-94171-193-0	01	1	-
25	03.340 WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 8-97093-064-1, 97093064, D = 8-97117-561-1, 97117561	5-15749-032-0	01	1	-
25	03.340 WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 8-97117-560-1, 97117560	5-15749-032-0	AR	1	-9509
25	03.340 WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-97085-067-2, 97085067	5-15749-032-0	AR	1	-
25	03.340 WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 8-97117-560-1, 97117560	5-15749-032-0	01	1	9510-
26	03.330 FLANGE; TIMER,INJ PUMP ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	5-15742-016-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=45.5 D=3.2 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-94344-429-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=45.5 D=3.3 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-97037-277-0	01	1	-
54	03.340 HOLDER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	5-15741-004-0	01	1	-
59	03.330 SHIM; SPR,TIMER T=0.30 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	5-15749-021-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.60 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	5-15749-022-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=1.00 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	5-15749-023-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.10 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81325-418-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.20 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81325-419-0	AR	1	-
59	03.330 SHIM; SPR,TIMER T=0.50 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81325-420-0	AR	1	-
63	03.340 PLATE; NUT LOCK,TIMER,INJ PUMP ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-94171-191-0	01	1	-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.25 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-94372-518-0	AR	1	-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.40 ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-97102-868-0	AR	1	9510-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.12 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81345-325-0	AR	1	-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.16 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81345-327-0	AR	1	-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.18 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81345-328-0	AR	1	-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.50 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81345-329-0	AR	1	-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.20 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81345-330-0	AR	1	-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.30 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81345-331-0	AR	1	-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.10 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81345-332-0	AR	1	-
66	03.340 SHIM; TIMER FLANGE,INJ PUMP T=0.14 ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	9-81345-340-0	AR	1	-
68	03.340 WASHER; FLANGE,TIMER,INJ PUMP ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-94171-189-0	01	1	-
69	03.340 WASHER; FLANGE FIX,TIMER,INJ PUM ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064, C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561	8-94171-190-0	01	1	-
