1-35A — CHARGE AIR COOLER (#4736) — 74 parça

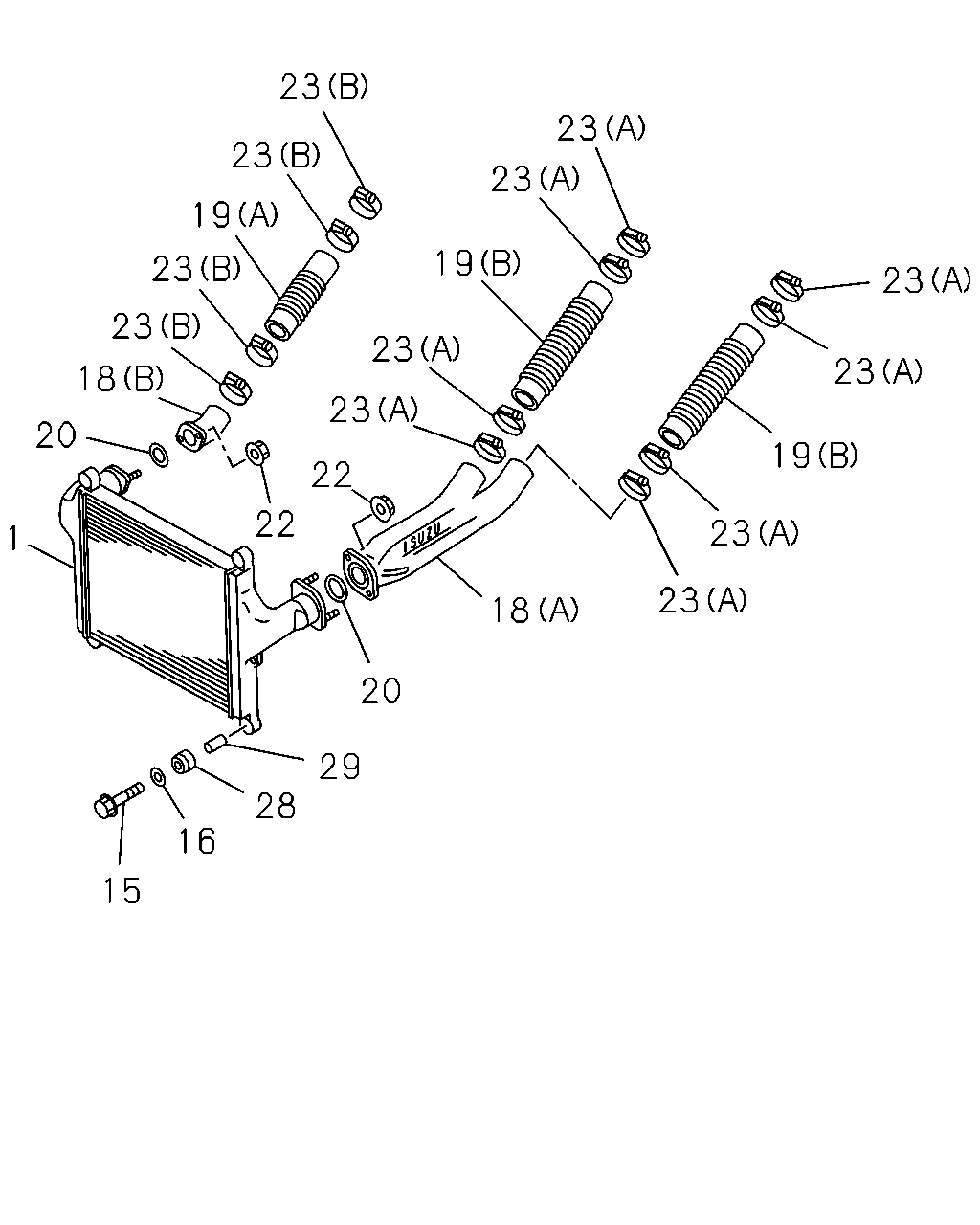

çizim 40836
23 23 23 23 19 19 23 23 23 23 23 18 23 20 19 22 22 23 1 23 18 20 29 28 16 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9603-9804 ●
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9805-9904 ● ●
1 COOLER; CHARGE AIR 1-14431-039-0 01 1 9905- ● ● ●
1 COOLER; CHARGE AIR
SHORT CHASSIS&RHD(EXZ5MC) 		1-14431-048-0 01 1 9707-9904 ●
1 COOLER; CHARGE AIR
SHORT CHASSIS&RHD(EXZ5MC) 		1-14431-047-0 01 1 9905- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9603-9706 ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9707-9804 ●
15 BOLT; CHARGE AIR COOLER
SHORT CHASSIS&RHD(EXZ5MC) M8X35 FLANGE 		0-28080-835-0 04 1 9707-9804 ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9805-9904 ● ●
15 BOLT; CHARGE AIR COOLER
SHORT CHASSIS&RHD(EXZ5MC) M8X35 FLANGE 		0-28080-835-0 04 1 9805-9904 ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		0-28080-835-0 04 1 9905- ● ● ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9603-9706 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9707-9804 ●
16 WASHER; PL,CHARGE AIR COOLER
SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=32 		9-09164-810-0 04 1 9707-9804 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9805-9904 ● ●
16 WASHER; PL,CHARGE AIR COOLER
SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=32 		9-09164-810-0 04 1 9805-9904 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 9905- ● ● ● ●
18 ADAPTER
(A) 		1-14112-491-1 01 1 9603-9706 ●
18 ADAPTER
(A) 		1-14112-491-1 01 1 9707-9804 ●
18 ADAPTER
SHORT CHASSIS&RHD(EXZ5MC) (A) 		1-14112-491-1 01 1 9707-9804 ●
18 ADAPTER
(A) 		1-14112-491-1 01 1 9805-9904 ● ●
18 ADAPTER
SHORT CHASSIS&RHD(EXZ5MC) (A) 		1-14112-491-1 01 1 9805-9904 ●
18 ADAPTER
(A) 		1-14112-491-1 01 1 9905- ● ● ● ●
18 ADAPTER
(B) 		1-14112-567-0 01 1 9603-9804 ●
18 ADAPTER
(B) 		1-14112-567-0 01 1 9805-9904 ● ●
18 ADAPTER
(B) 		1-14112-567-0 01 1 9905- ● ● ● ●
18 ADAPTER
SHORT CHASSIS&RHD(EXZ5MC) (B) 		1-14112-566-0 01 1 9707-9904 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-2 01 1 9603-9706 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-2 01 1 9707-9804 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
SHORT CHASSIS&RHD(EXZ5MC) (A) L=280 		1-09360-757-2 01 1 9707-9804 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-2 01 1 9805-9904 ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
SHORT CHASSIS&RHD(EXZ5MC) (A) L=280 		1-09360-757-2 01 1 9805-9904 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280 		1-09360-757-3 01 1 9905- ● ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9603-9804 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9805-9904 ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270 		1-09360-914-2 02 1 9905- ● ● ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
SHORT CHASSIS&RHD(EXZ5MC) (B) L=250 		1-09360-956-0 02 1 9707-9904 ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9603-9706 ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9707-9804 ●
20 GASKET
SHORT CHASSIS&RHD(EXZ5MC) ID=84.6 		1-09623-431-0 02 1 9707-9804 ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9805-9904 ● ●
20 GASKET
SHORT CHASSIS&RHD(EXZ5MC) ID=84.6 		1-09623-431-0 02 1 9805-9904 ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 9905- ● ● ● ●
22 NUT
M10 FLANGE 		0-91150-110-0 04 1 9603-9608 ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9609-9706 ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9707-9804 ●
22 NUT
SHORT CHASSIS&RHD(EXZ5MC) M10 FLANGE 		0-91150-210-0 04 1 9707-9804 ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9805-9904 ● ●
22 NUT
SHORT CHASSIS&RHD(EXZ5MC) M10 FLANGE 		0-91150-210-0 04 1 9805-9904 ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 9905- ● ● ● ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9603-9706 ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9707-9804 ●
23 CLIP; HOSE
SHORT CHASSIS&RHD(EXZ5MC) (B) ID=77-95 		1-09707-114-0 04 1 9707-9804 ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9805-9904 ● ●
23 CLIP; HOSE
SHORT CHASSIS&RHD(EXZ5MC) (B) ID=77-95 		1-09707-114-0 04 1 9805-9904 ●
23 CLIP; HOSE
(B) ID=77-95 		1-09707-114-0 04 1 9905- ● ● ● ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9603-9706 ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9707-9804 ●
23 CLIP; HOSE
SHORT CHASSIS&RHD(EXZ5MC) (A) ID=68-85 		8-94320-428-0 08 1 9707-9804 ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9805-9904 ● ●
23 CLIP; HOSE
SHORT CHASSIS&RHD(EXZ5MC) (A) ID=68-85 		8-94320-428-0 08 1 9805-9904 ●
23 CLIP; HOSE
(A) ID=68-85 		8-94320-428-0 08 1 9905- ● ● ● ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9603-9706 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9707-9804 ●
28 RUBBER; MTG,CHARGE AIR COOLER
SHORT CHASSIS&RHD(EXZ5MC) 		1-21467-015-1 04 1 9707-9804 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9805-9904 ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
SHORT CHASSIS&RHD(EXZ5MC) 		1-21467-015-1 04 1 9805-9904 ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-015-1 04 1 9905- ● ● ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9603-9706 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9707-9804 ●
29 COLLAR; MTG RUBBER,CAC BRKT
SHORT CHASSIS&RHD(EXZ5MC) 		1-21469-100-0 04 1 9707-9804 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9805-9904 ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
SHORT CHASSIS&RHD(EXZ5MC) 		1-21469-100-0 04 1 9805-9904 ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
