8-75 — CONDENSER (#47359) — 31 parça

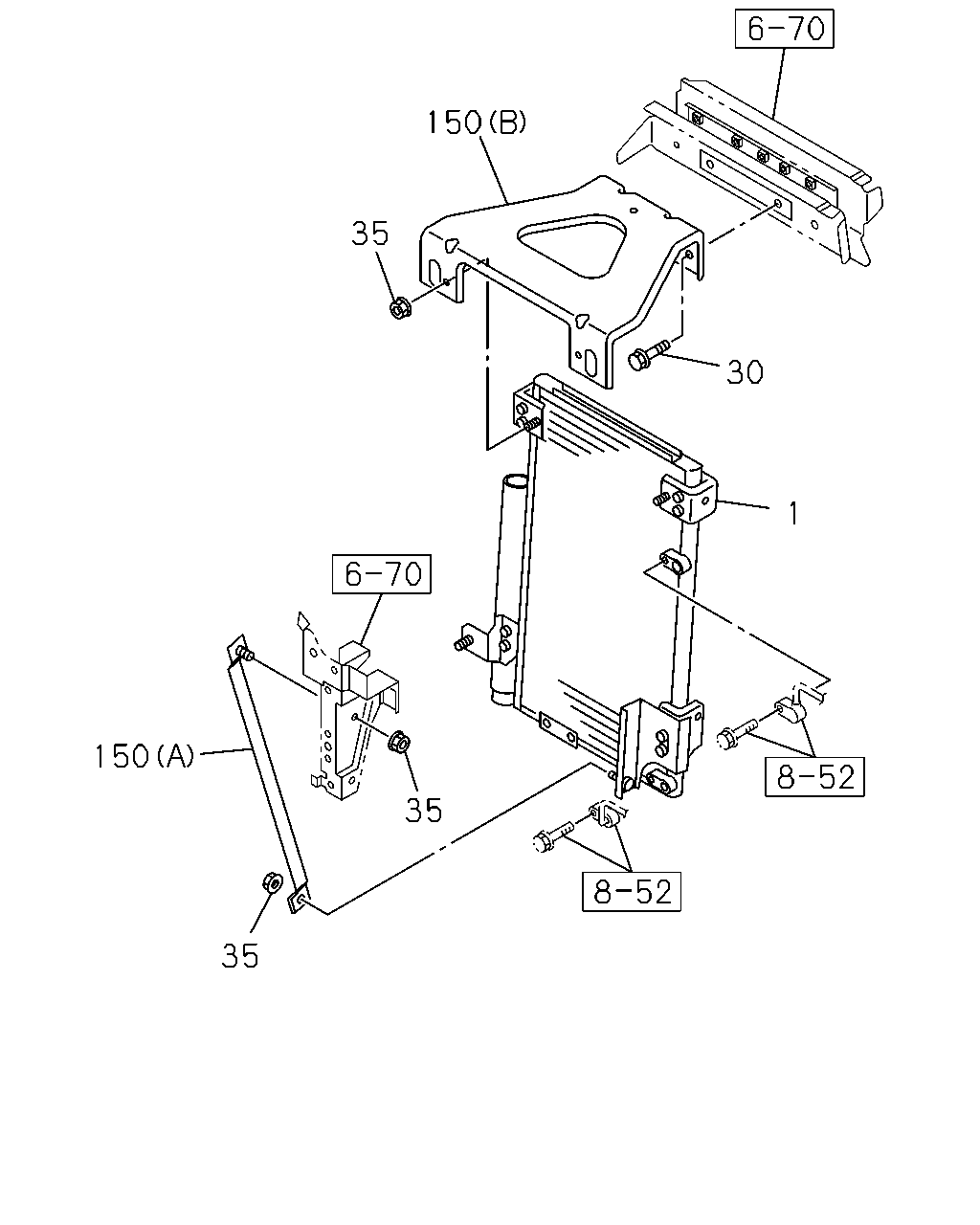

çizim 16243
150 35 30 1 150 35 35
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98062-748-1 01 1 1109-1301
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98235-912-2 01 1 1302-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 02 1 1109-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1109-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-321-0 01 1 1109-1405
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98270-947-0 01 1 1406-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-322-0 01 1 1109-1409
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98242-413-0 01 1 1410-

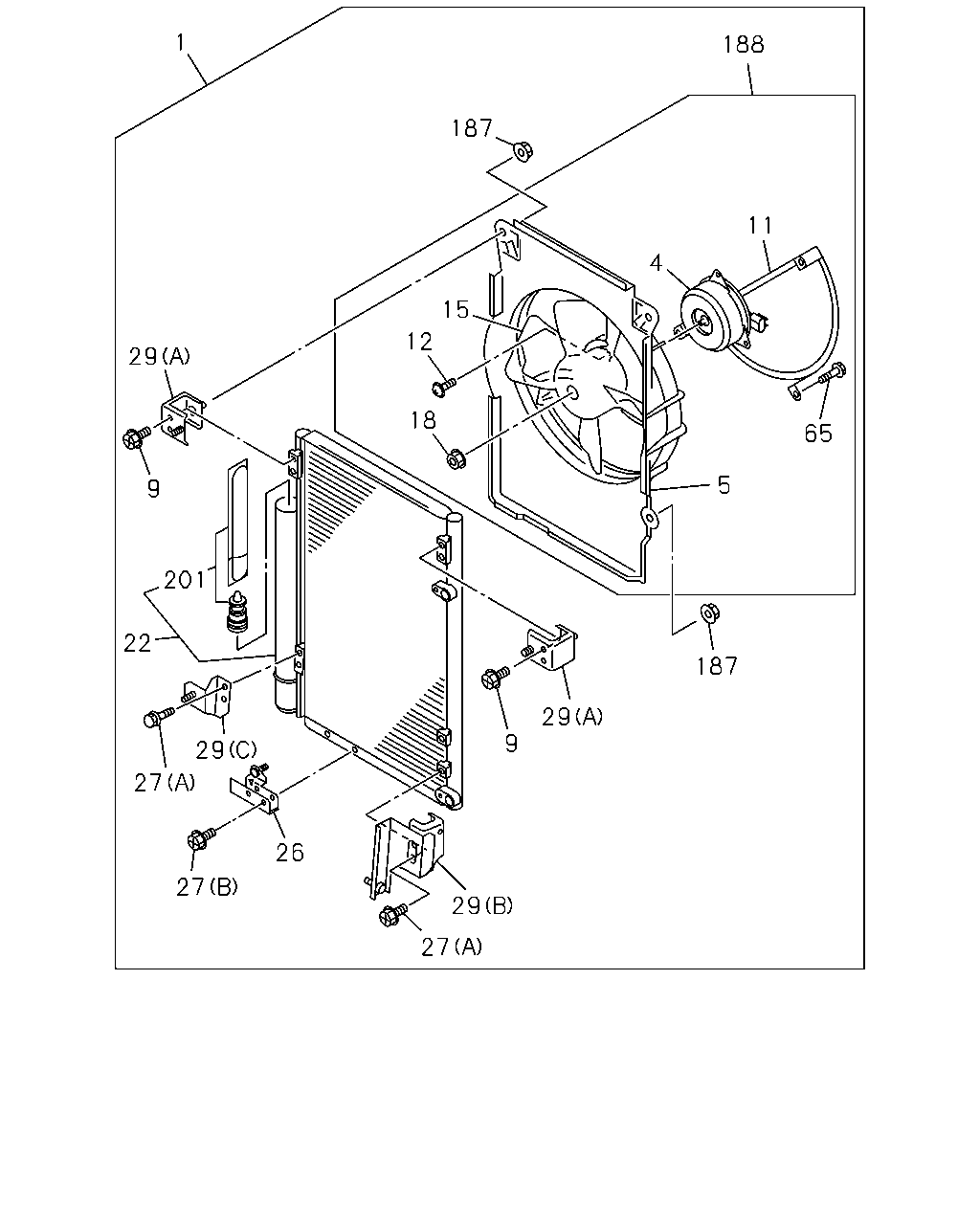

çizim 16458
1 188 187 11 4 15 12 29 18 65 5 9 201 22 187 29 9 29 27 26 27 29 27
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98062-748-1 01 1 1109-1301
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98235-912-2 01 1 1302-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98091-896-0 01 1 1109-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 1109-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14 		1-83539-382-0 04 1 1109-
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98068-234-0 01 1 1109-1308
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97180-269-0 03 1 1109-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 1109-1301
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98152-860-0 01 1 1302-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE 		8-94157-075-0 01 1 1109-
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98092-767-1 01 1 1109-
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98091-901-0 01 1 1109-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14 		1-83539-382-0 04 1 1109-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25 		8-97178-770-0 02 1 1109-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98065-914-0 02 1 1109-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98091-900-0 01 1 1109-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98092-769-0 01 1 1109-
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 03 1 1109-1308
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 1109-
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98091-894-0 01 1 1109-1301
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98235-917-1 01 1 1302-
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-097-0 01 1 1109-1409
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98282-482-0 01 1 1410-
