Isuzu WW
▶
TRUCKS
▶
FRR
▶
11440 - FRR-L SPACE EU4 DOC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#47350) — 34 parça
◀

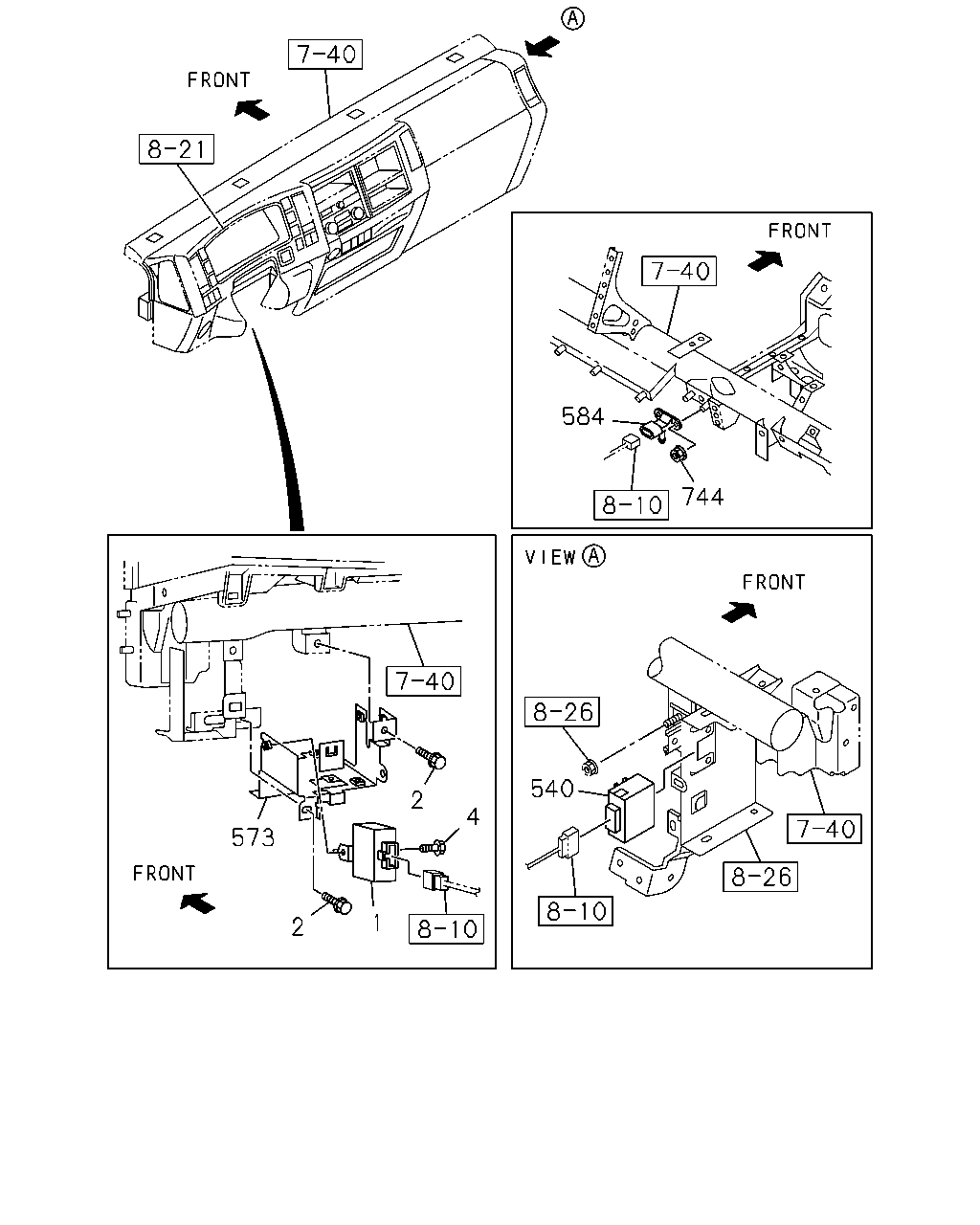

[828A] FRONT SIDE NO.1 (8 parça)

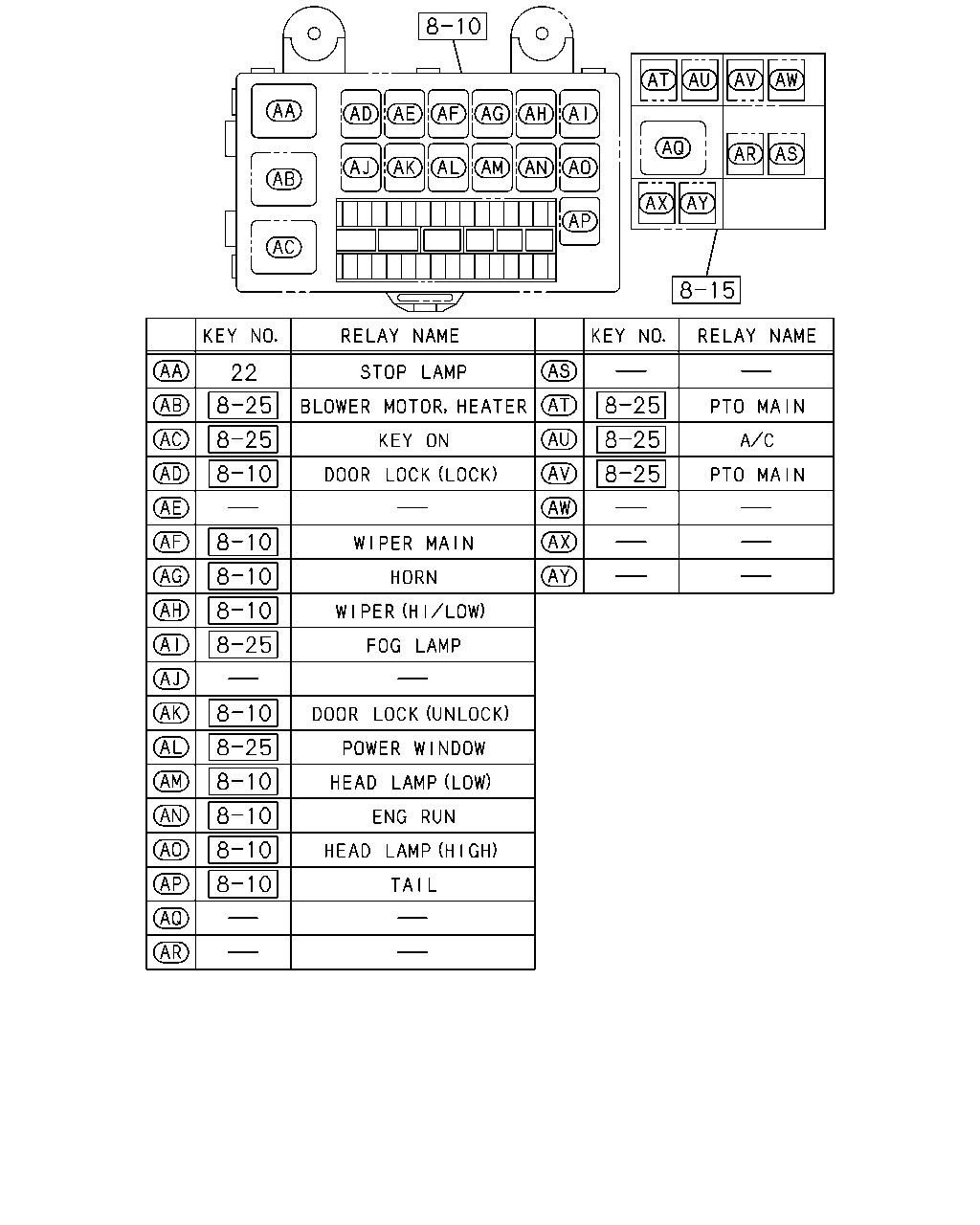

[828A] RELAY;CAB HARNESS (1 parça)
[828A] MAGNETIC VALVE;PTO,OIL PRESS CLU SWITC (8 parça)

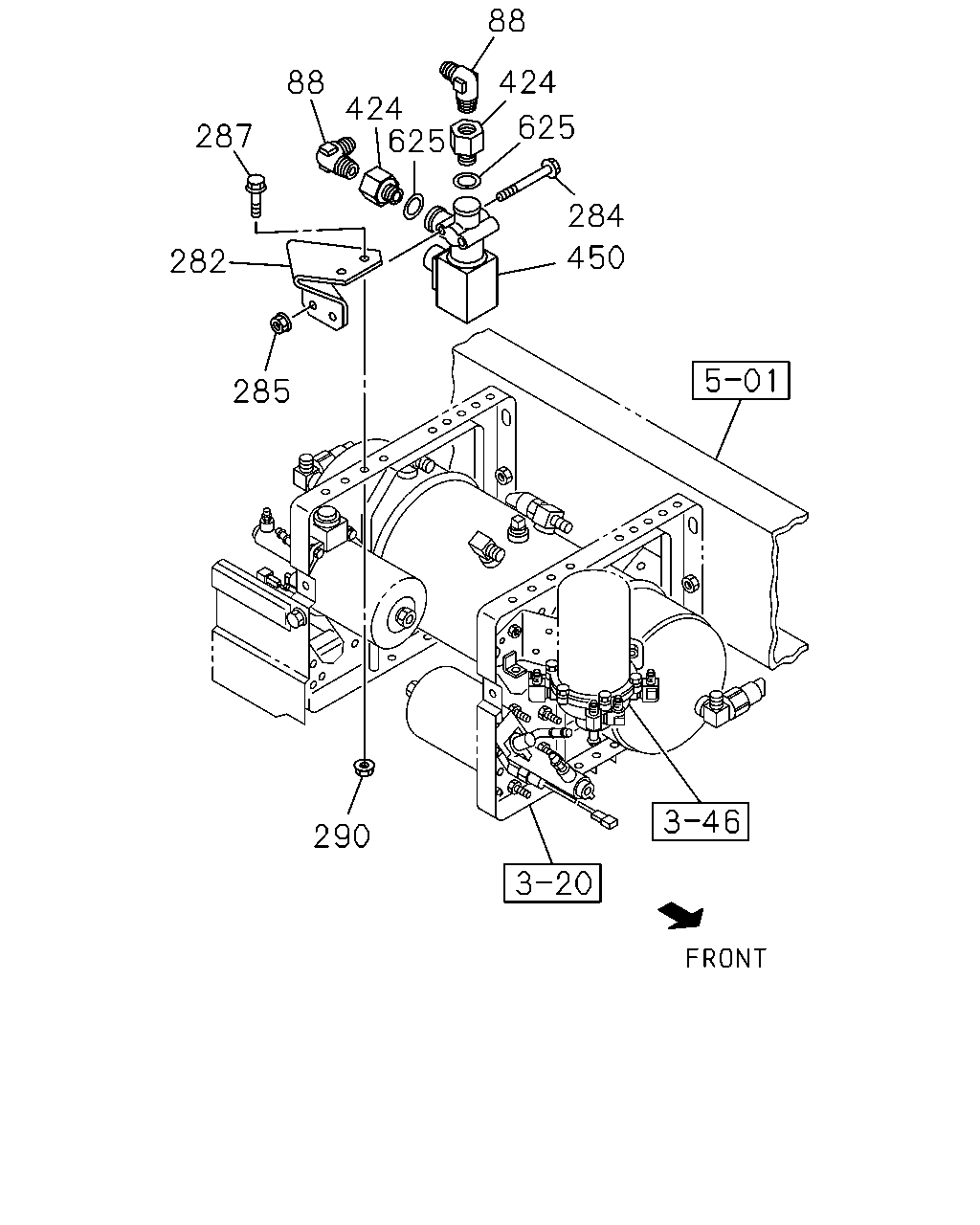

[828A] MAGNETIC VALVE;THROTTLE CONTROL SYSTEM (9 parça)

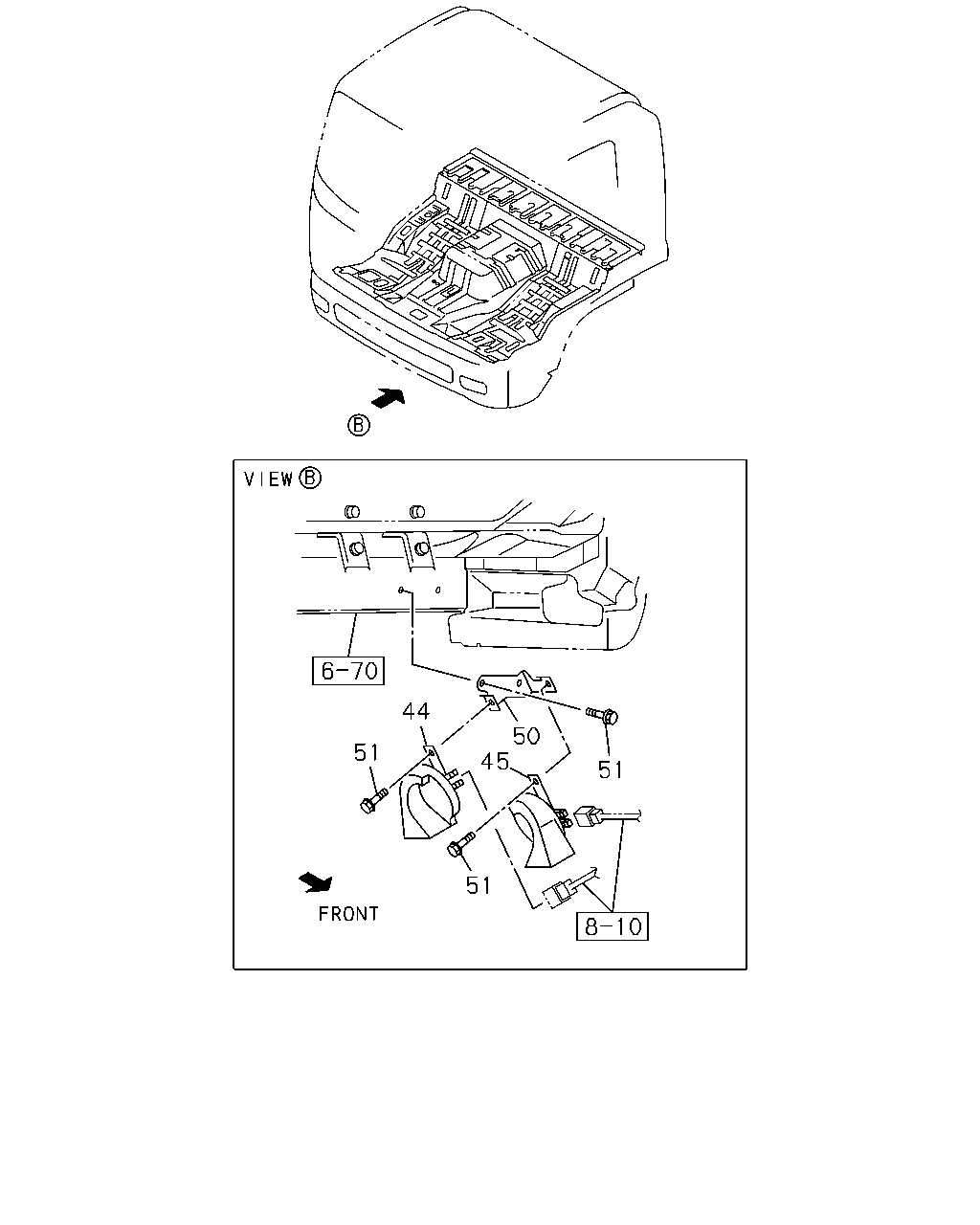

[828A] FRONT SIDE NO.2 (6 parça)
[828A] RELAY;FRAME HARNESS (2 parça)
▶
584
744
540
2
4
573
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98025-533-1
01
1
1109-
2
BOLT; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
02
1
1109-
4
SCREW; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
01
1
1109-
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98060-388-0
01
1
1109-1308
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98233-976-0
01
1
1309-
573
BRACKET; FLASHER UNIT
8-97616-351-3
01
1
1109-
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1109-
744
NUT; SENSOR
M6 FLANGE
0-91180-106-0
02
1
1109-
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1109-
39
36
33
34
35
34
34
261
449
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6>
1-82563-871-2
01
1
1109-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1109-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1109-
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6>
8-98034-702-0
01
1
1109-
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE
0-28650-820-0
02
1
1109-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X30 FLANGE
0-28651-030-0
02
1
1109-
261
PLUG; MAG VLV
PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4
9-99204-513-0
01
1
1109-
449
SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP>
1-82410-143-1
01
1
1109-
88
88
424
424
625
625
287
284
450
282
285
290
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
88
CONNECTOR; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1206-
282
BRACKET; MAG VLV
THROTTLE CONTROL SYSTEM(6XH)
8-98049-845-1
01
1
1206-
284
BOLT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M8X60 FLANGE
0-28050-860-0
02
1
1206-
285
NUT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE
0-91180-108-0
02
1
1206-
287
BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE
0-28650-825-0
02
1
1206-
290
NUT
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE
0-91180-108-0
02
1
1206-
424
ADAPTER
THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT
1-09661-044-0
02
1
1206-
450
VALVE; MAG
THROTTLE CONTROL SYSTEM(6XH)
1-82564-278-0
01
1
1206-
625
GASKET; CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24
9-09571-416-0
02
1
1206-
44
50
45
51
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK>
8-98022-022-0
01
1
1109-
45
HORN; LOW NOTE
8-98022-023-0
01
1
1109-
50
BRACKET; HORN
8-97616-529-2
01
1
1109-
51
BOLT; HORN TO BRKT
DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
1109-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
1109-
51
BOLT; HORN TO BRKT
EXC. DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
1109-
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
531
RELAY; MAIN
24V 30A MITSUBA
8-97238-540-0
01
1
1109-1402
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
