Isuzu WW
▶
TRUCKS
▶
FRR
▶
11440 - FRR-L SPACE EU4 DOC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#47349) — 37 parça
◀

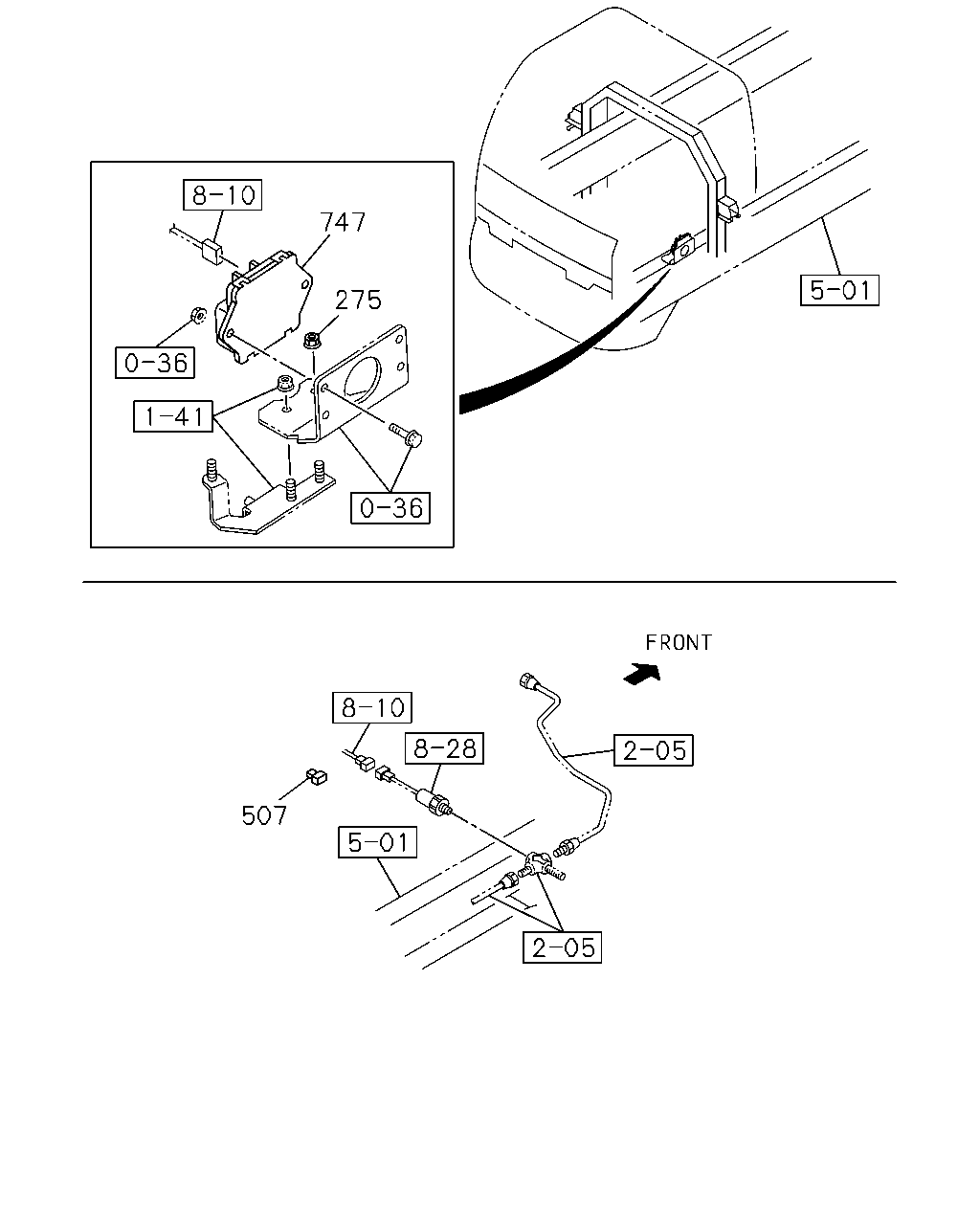

[826A] UNIT;TURBOCHARGER AND CONNECTOR (3 parça)
[826A] SENSOR;VEHICLE SPEED,CRANK ANGLE (5 parça)
[826A] FRONT SIDE NO.1 (12 parça)
[826A] AIR TANK SIDE (7 parça)
[826A] FRONT SIDE NO.2 (6 parça)
[826A] FRONT SIDE NO.3 (4 parça)
▶
747
275
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
275
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1109-
507
CONNECTOR
EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1109-
747
CONTROL UNIT; TURBOCHARGER
8-98162-807-0
01
1
1109-

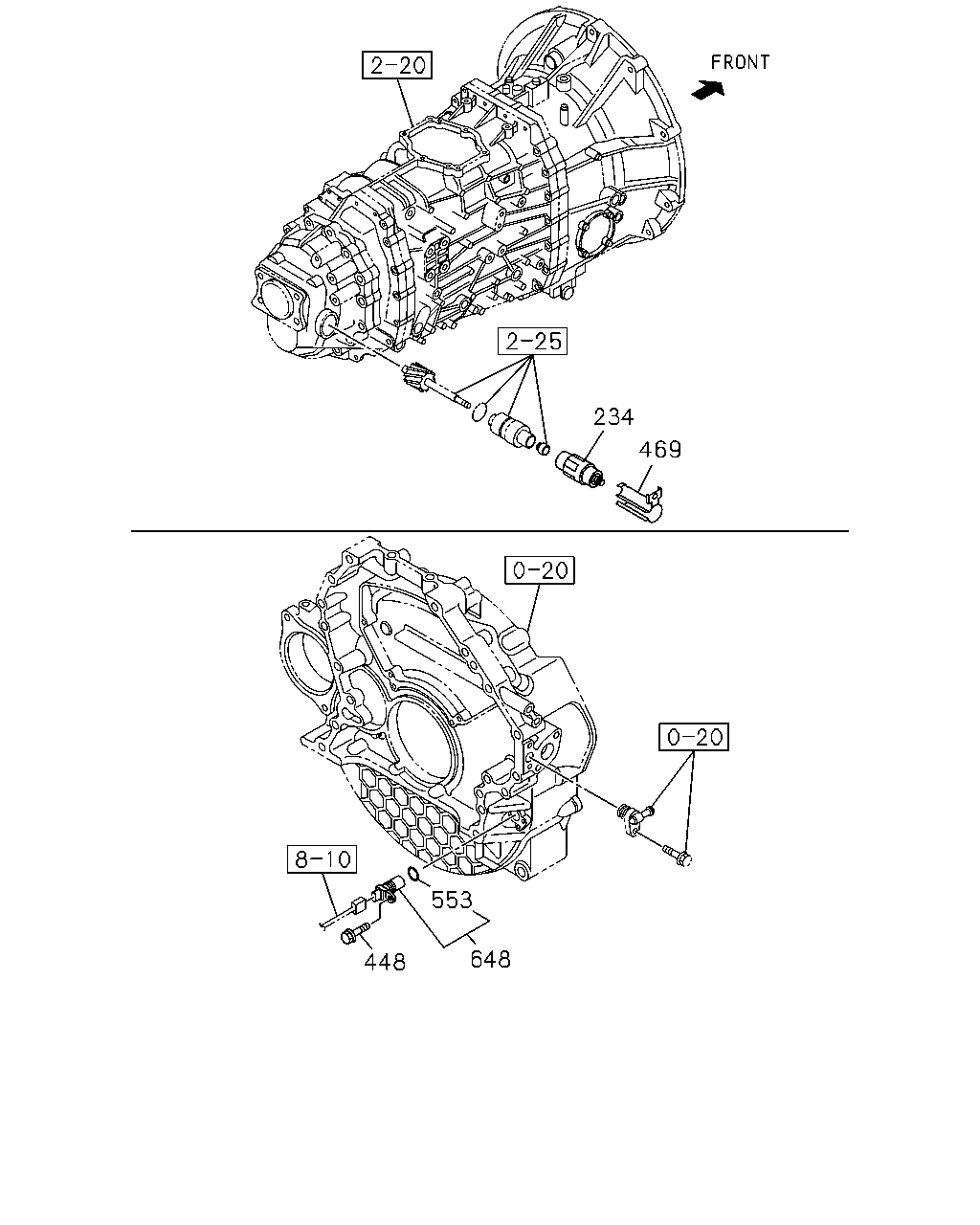

234
469
553
648
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1109-
448
BOLT; SENSOR
M6X16 FLANGE
0-28050-616-0
01
1
1109-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1109-
553
GASKET
ID=14.2 OD=18.8
8-97369-404-0
01
1
1109-
648
SENSOR; CRANK ANGLE
8-97606-943-0
01
1
1109-

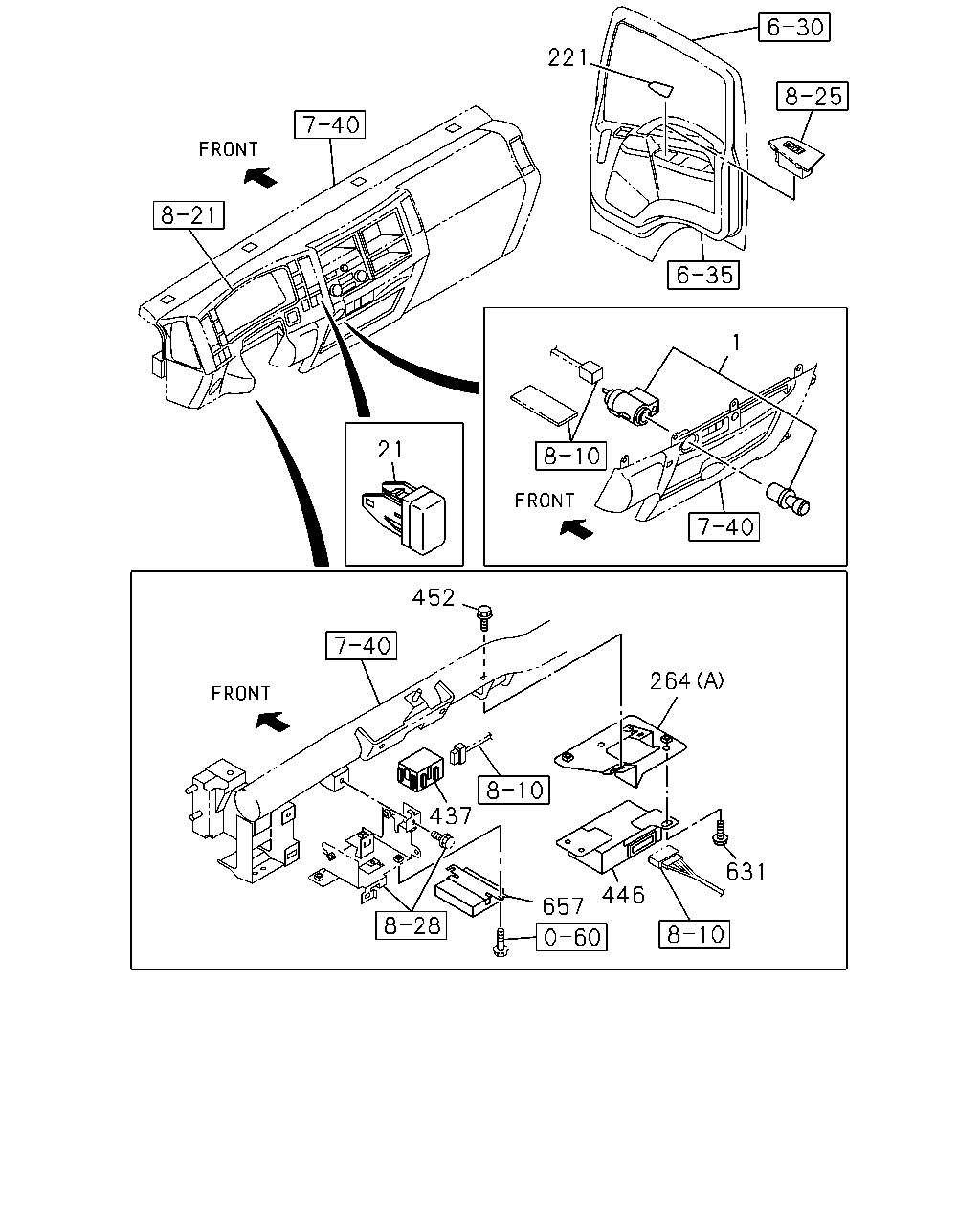

221
21
1
452
437
657
446
264
631
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1109-
21
COVER; HOLE
8-98025-954-1
01
1
1109-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
1109-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
1109-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
1109-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
1109-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1109-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP>
1-80111-116-2
01
1
1109-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1109-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1109-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1109-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-

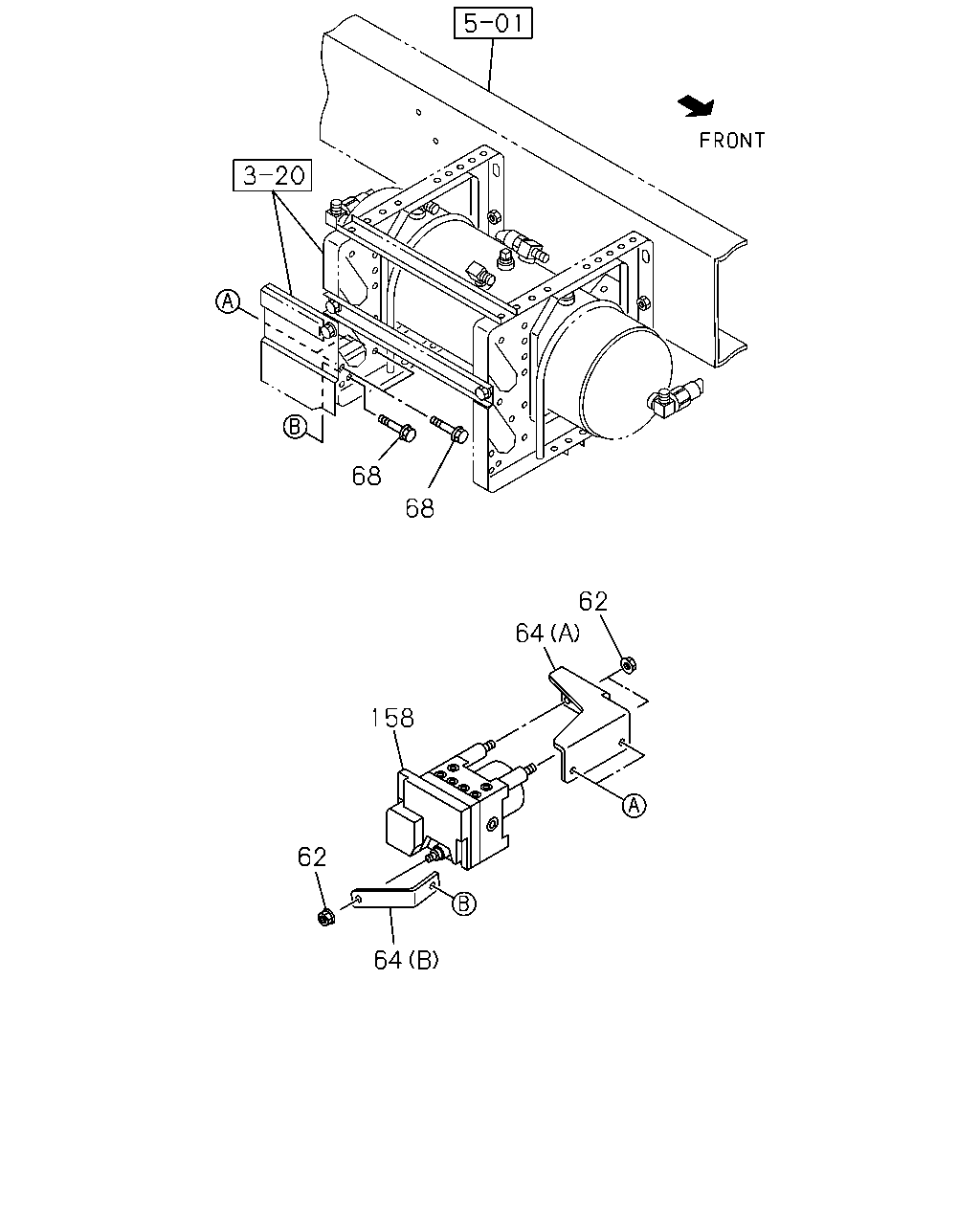

68
68
62
64
158
62
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
NUT; BRKT
ANTI LOCK BRAKE(JE5) M8 FLANGE
0-91180-108-0
03
1
1206-
64
BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) (A)
8-98044-238-2
01
1
1206-
64
BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) (B)
8-98044-239-1
01
1
1206-
68
BOLT; BRKT
ANTI LOCK BRAKE(JE5) M8X25 FLANGE
0-28650-825-0
03
1
1206-
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1109-
158
CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) THROTTLE CONTROL SYSTEM(6XH)
8-98157-998-1
01
1
1206-
158
CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH)
8-98157-992-1
01
1
1206-

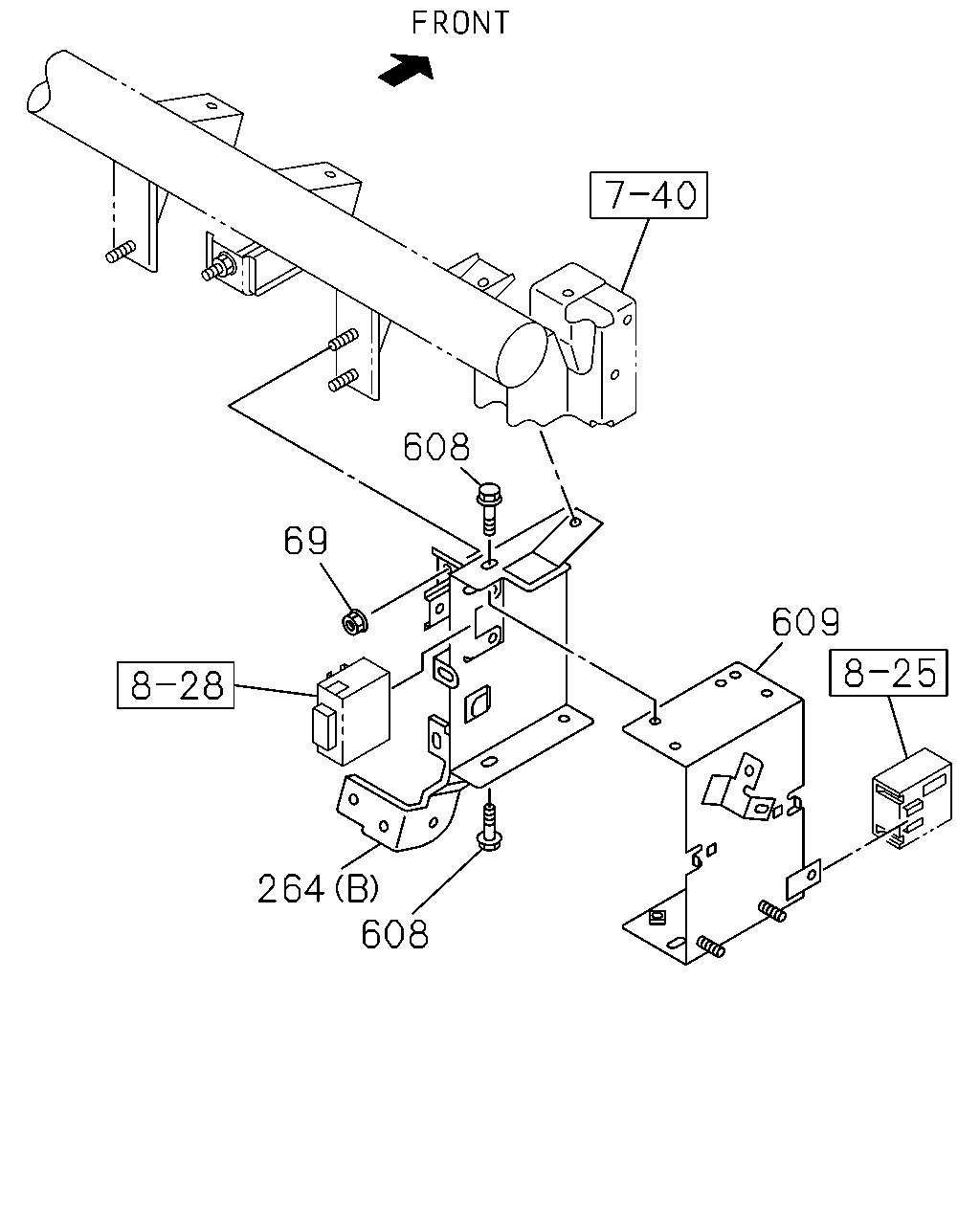

608
69
609
264
608
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1109-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
1109-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
1109-
608
BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE
0-28650-616-0
05
1
1109-
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98095-336-0
01
1
1109-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98226-231-1
01
1
1309-

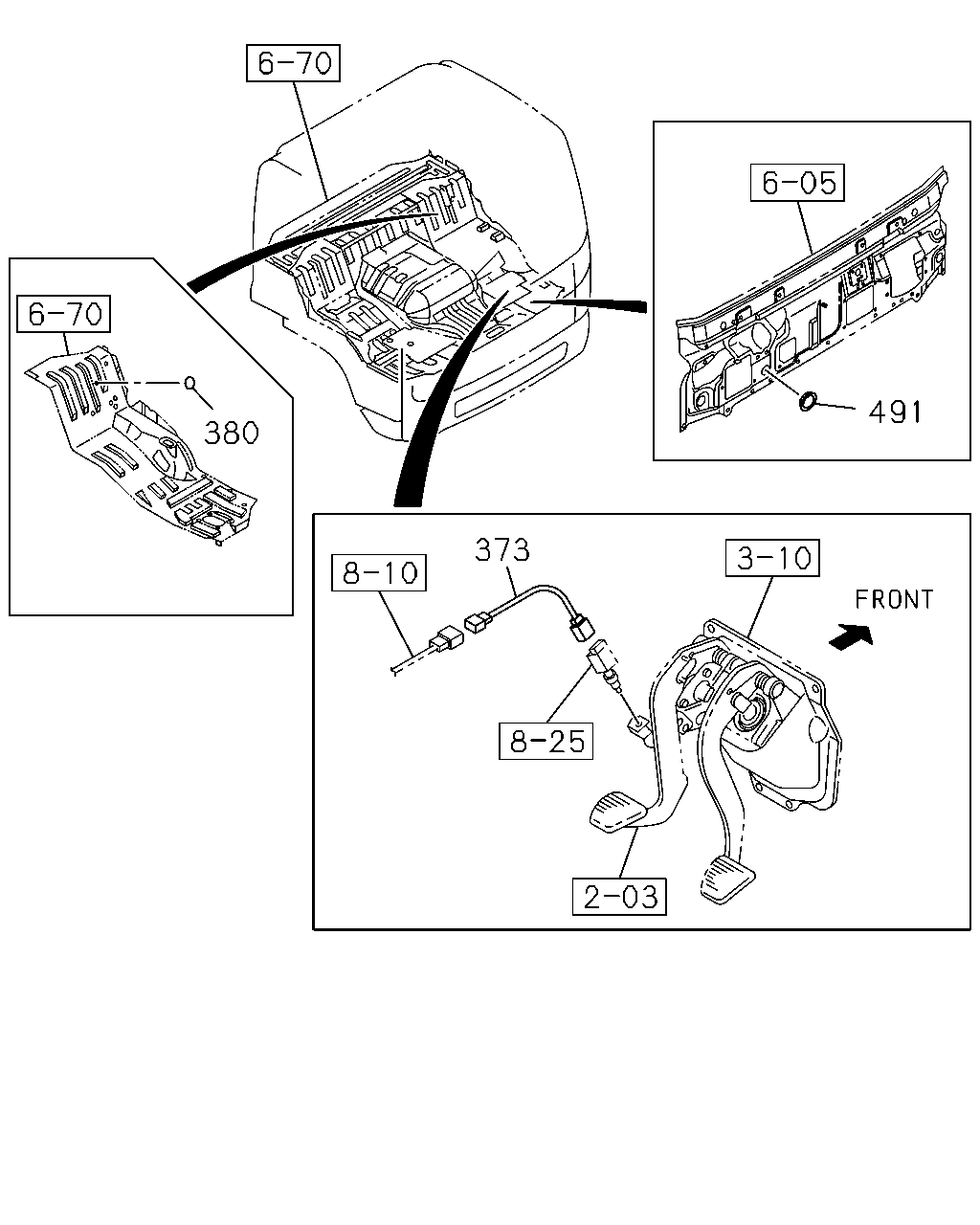

491
380
373
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP>
8-98110-719-0
01
1
1109-
373
HARNESS; CLU SWITCH
EXC. H.S.A SYSTEM<6EP>
8-98110-720-0
01
1
1109-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1109-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1109-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
