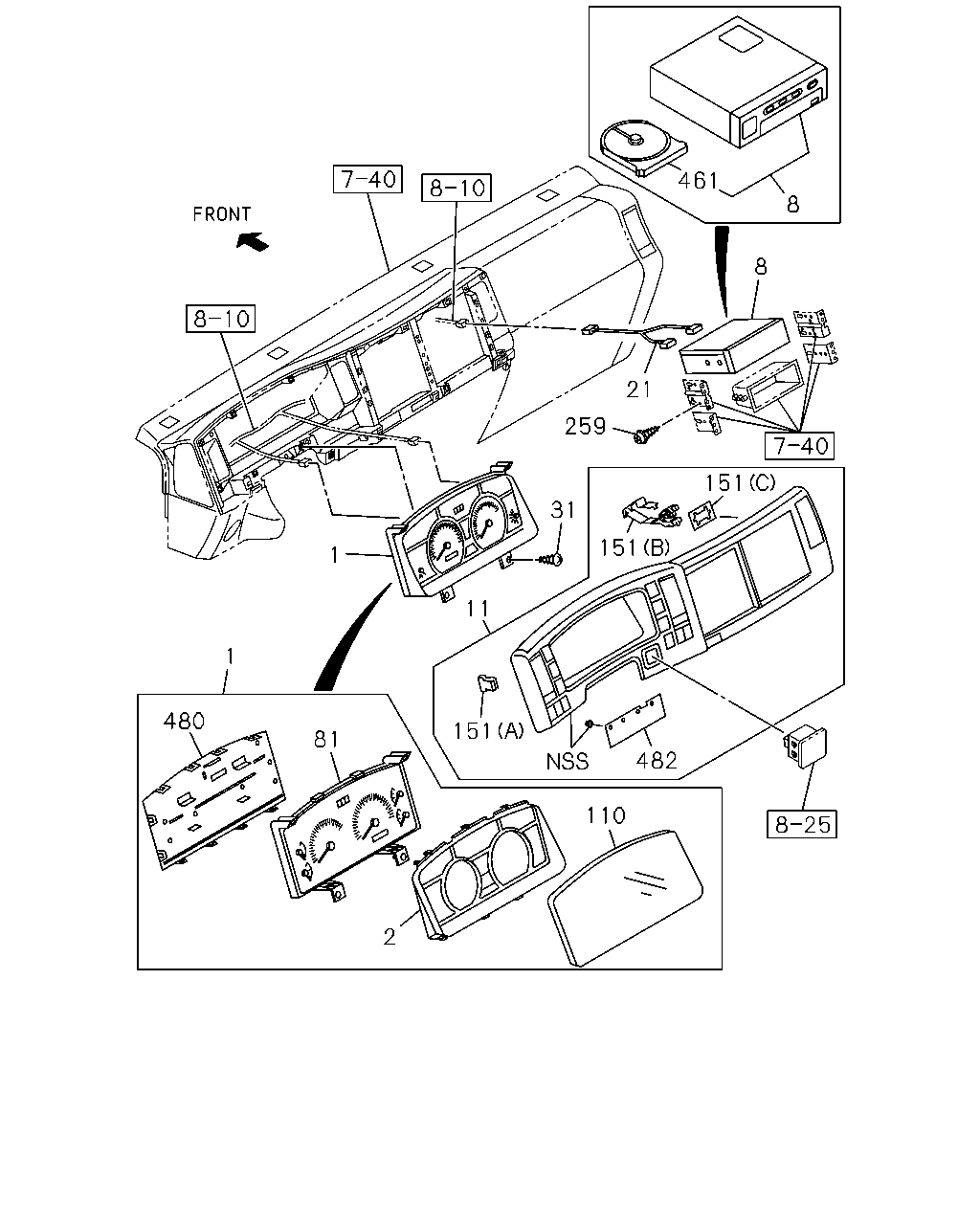

8-21 — METER ASM (#47347) — 23 parça

461 8 8 21 259 151 151 31 11 1 1 480 81 151 110 482 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER COLOMBIA EQUIPMENT(CB7)	8-98064-926-6	01	1	1206-
1	METER COMPL; CLUSTER	8-98064-903-6	01	1	1109-1205
1	METER COMPL; CLUSTER EXC. COLOMBIA EQUIPMENT(CB7)	8-98064-903-6	01	1	1206-
2	PANEL; CLUSTER	8-98054-432-0	01	1	1109-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	1109-
11	CLUSTER ASM; METER ECE R29<EFE> DARK GRAY	8-97418-534-1	01	1	1505-
11	CLUSTER ASM; METER DARK GRAY	8-97406-005-6	01	1	1109-1504
11	CLUSTER ASM; METER EXC. ECE R29<EFE> DARK GRAY	8-97406-005-6	01	1	1505-
21	HARNESS; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	8-98074-077-0	01	1	1109-
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1109-
81	METER SUB ASM COLOMBIA EQUIPMENT(CB7)	8-98079-674-0	01	1	1206-
81	METER SUB ASM	8-98079-673-0	01	1	1109-1205
81	METER SUB ASM EXC. COLOMBIA EQUIPMENT(CB7)	8-98079-673-0	01	1	1206-
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	1109-
151	CLIP; METER CLUSTER ECE R29<EFE> (A)	8-98021-271-0	12	1	1505-
151	CLIP; METER CLUSTER ECE R29<EFE> (C)	8-98152-030-0	01	1	1505-
151	CLIP; METER CLUSTER ECE R29<EFE> (B)	8-98152-031-0	01	1	1505-
151	CLIP; METER CLUSTER (A)	8-98021-271-0	13	1	1109-1504
151	CLIP; METER CLUSTER EXC. ECE R29<EFE> (A)	8-98021-271-0	13	1	1505-
259	SCREW; TACHOGRAPH TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1109-
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	1109-
480	COVER; METER BLACK	8-98054-433-0	01	1	1109-
482	SEAL; CLUSTER METER	8-98116-843-0	01	1	1109-
