Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#47346) — 247 parça

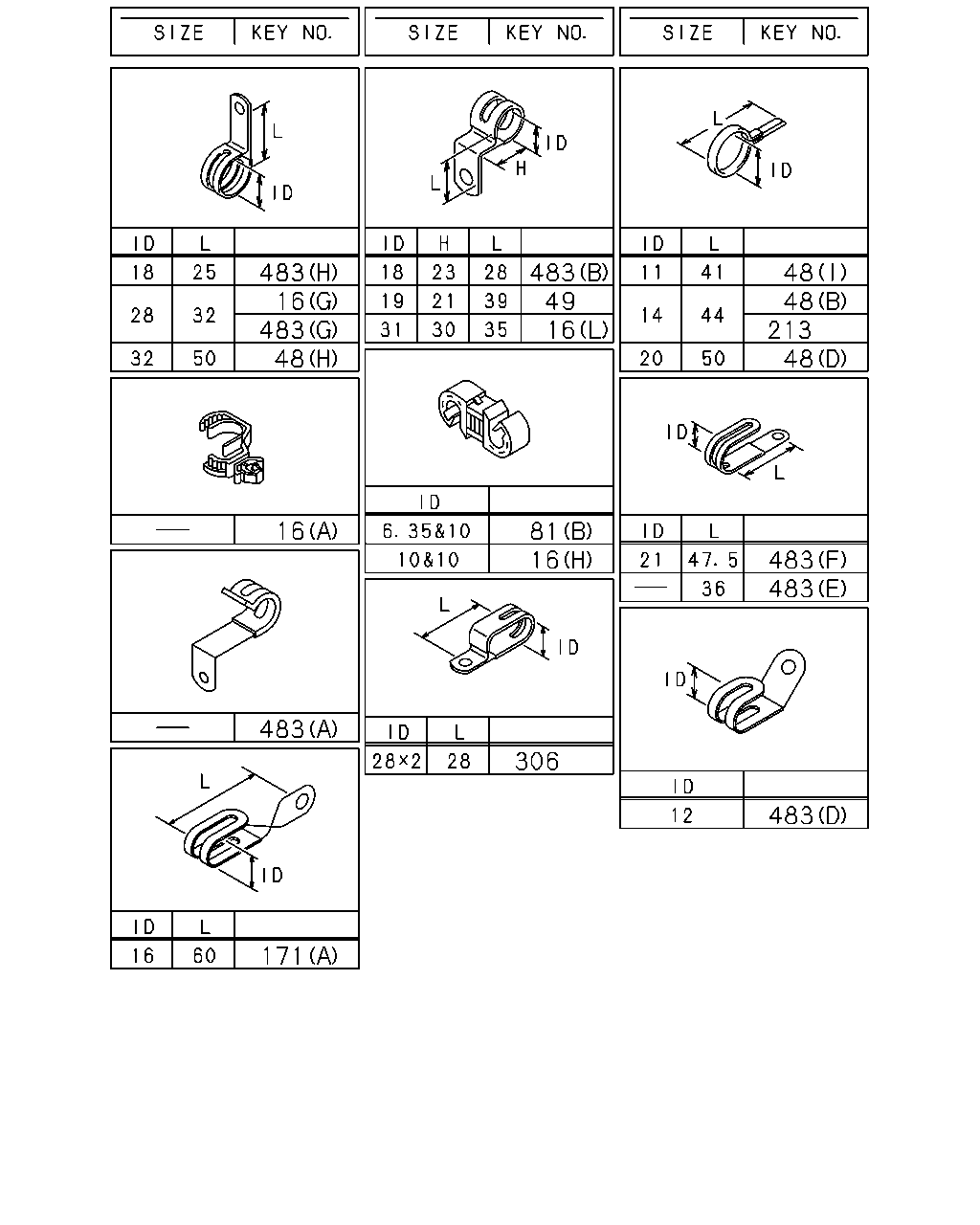

483 16 483 48 483 49 16 48 48 213 48 16 81 16 483 483 483 306 483 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (M) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (N) ID=11X2 L=16	1-09700-734-0	01	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (O) ID=5-12 L=14.5	1-09987-221-0	03	1	1206-
16	CLIP; HARNESS (L) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-
16	CLIP; HARNESS (G) ID=28 L=32	1-09701-107-1	02	1	1109-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1109-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	1109-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1109-
16	CLIP; HARNESS (E) ID=5-12 L=18	1-09709-287-0	01	1	1109-
16	CLIP; HARNESS (F) ID=19 H=21 L=24	5-09700-360-0	01	1	1109-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1109-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1109-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1109-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11 L=41	1-09700-403-0	01	1	1206-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (J) ID=17.5X2 L=25	5-09700-358-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=13-18 L=22	1-09709-292-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (B) ID=14 L=44	9-09917-427-0	12	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) ID=14 L=44	9-09917-427-0	02	1	1206-
48	CLIP; FRAME HARNESS (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1109-1205
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1206-
48	CLIP; FRAME HARNESS (H) ID=32 L=50	1-09701-055-1	01	1	1109-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1109-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1109-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1109-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1109-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	1109-1201
48	CLIP; FRAME HARNESS (B) ID=14 L=44	9-09917-427-0	01	1	1202-1205
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (B) ID=14 L=44	9-09917-427-0	10	1	1206-
48	CLIP; FRAME HARNESS (B) ID=14 L=44	9-09917-427-0	04	1	1109-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (B) ID=14 L=44	9-09917-427-0	10	1	1109-1205
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) ID=14 L=44	9-09917-427-0	01	1	1206-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1109-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1109-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1109-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1109-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1109-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1109-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1109-
306	CLIP; HARNESS,ELEC GOV ID=28X2 L=28	1-09701-302-0	01	1	1109-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1109-
483	CLIP; ENG HARNESS (G) ID=28 L=32	1-09701-107-1	01	1	1109-
483	CLIP; ENG HARNESS (C) ID=21 L=24	1-09701-201-0	01	1	1109-
483	CLIP; ENG HARNESS (A)	1-09987-281-0	01	1	1109-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1109-
483	CLIP; ENG HARNESS (H) ID=18 L=25	8-94121-004-1	01	1	1109-
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1109-
483	CLIP; ENG HARNESS (E) L=36	8-94224-891-1	01	1	1109-

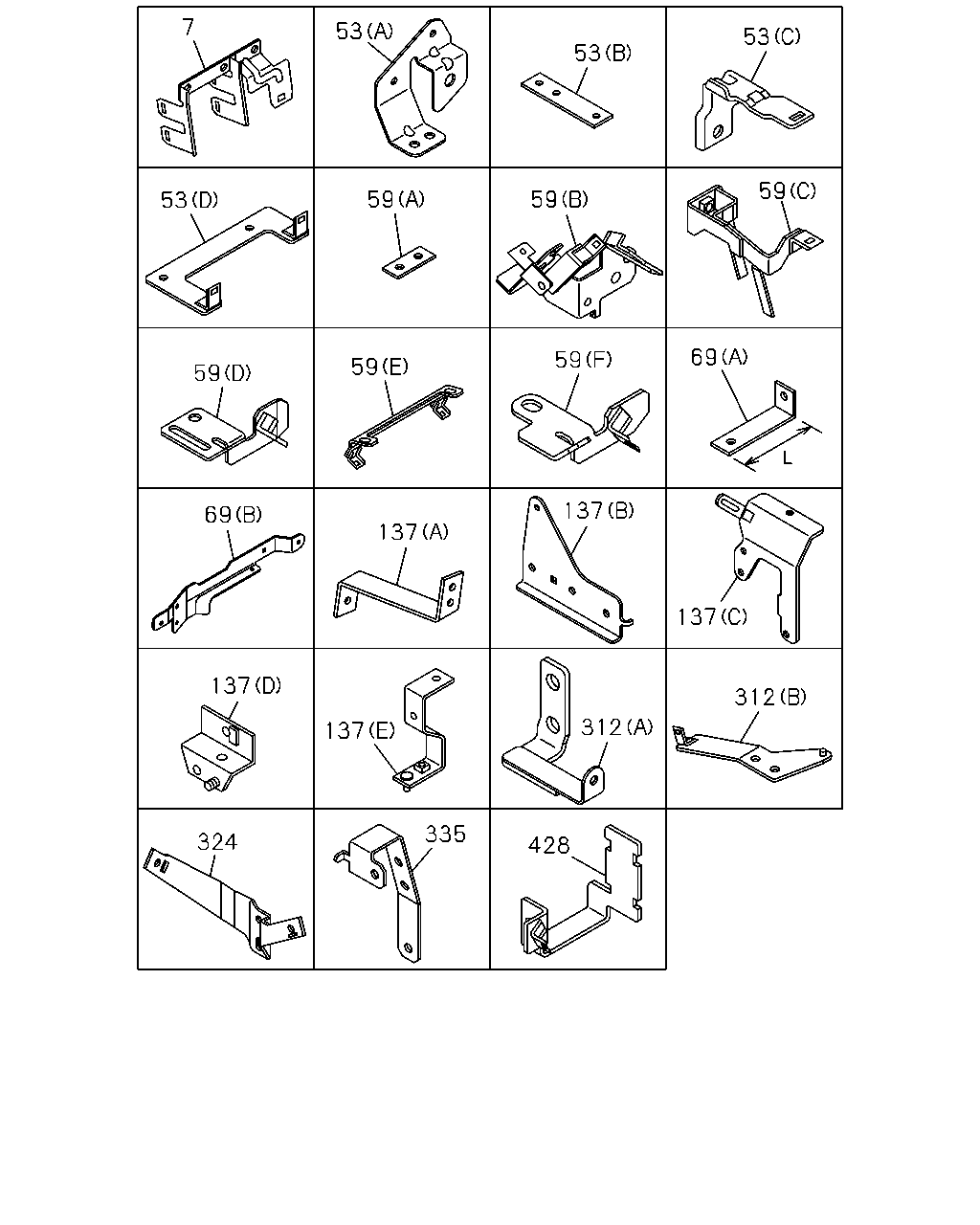

7 53 53 53 59 59 59 53 59 59 59 69 137 137 137 69 137 137 324 335 428 312 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1109-
53	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1109-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	1109-
53	BRACKET; HARNESS (D)	8-98125-300-1	01	1	1109-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1109-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1109-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	1109-
59	BRACKET; FRAME HARNESS (B)	8-97619-535-0	01	1	1109-1401
59	BRACKET; FRAME HARNESS (B)	8-97622-828-0	01	1	1402-
59	BRACKET; FRAME HARNESS (C)	8-98099-963-0	01	1	1109-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	1109-
69	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	1109-
69	BRACKET; CLIP (B)	8-97614-738-0	01	1	1109-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (C)	8-97618-098-2	01	1	1206-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (D)	8-98058-354-1	01	1	1206-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (E)	8-98065-904-0	01	1	1206-
137	BRACKET; HARNESS CLAMP (B)	8-97624-016-0	01	1	1109-
137	BRACKET; HARNESS CLAMP (A)	8-98170-409-0	01	1	1109-
312	BRACKET; CLIP HARNESS (A)	8-98094-804-0	01	1	1109-
312	BRACKET; CLIP HARNESS (B)	8-98143-865-0	01	1	1109-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98061-653-2	01	1	1206-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98061-654-2	01	1	1206-
335	BRACKET; CONNECTOR WHEEL BASE 4600MM(46W)	8-97619-097-1	01	1	1109-1205
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1206-
428	BRACKET	8-98116-461-0	01	1	1109-

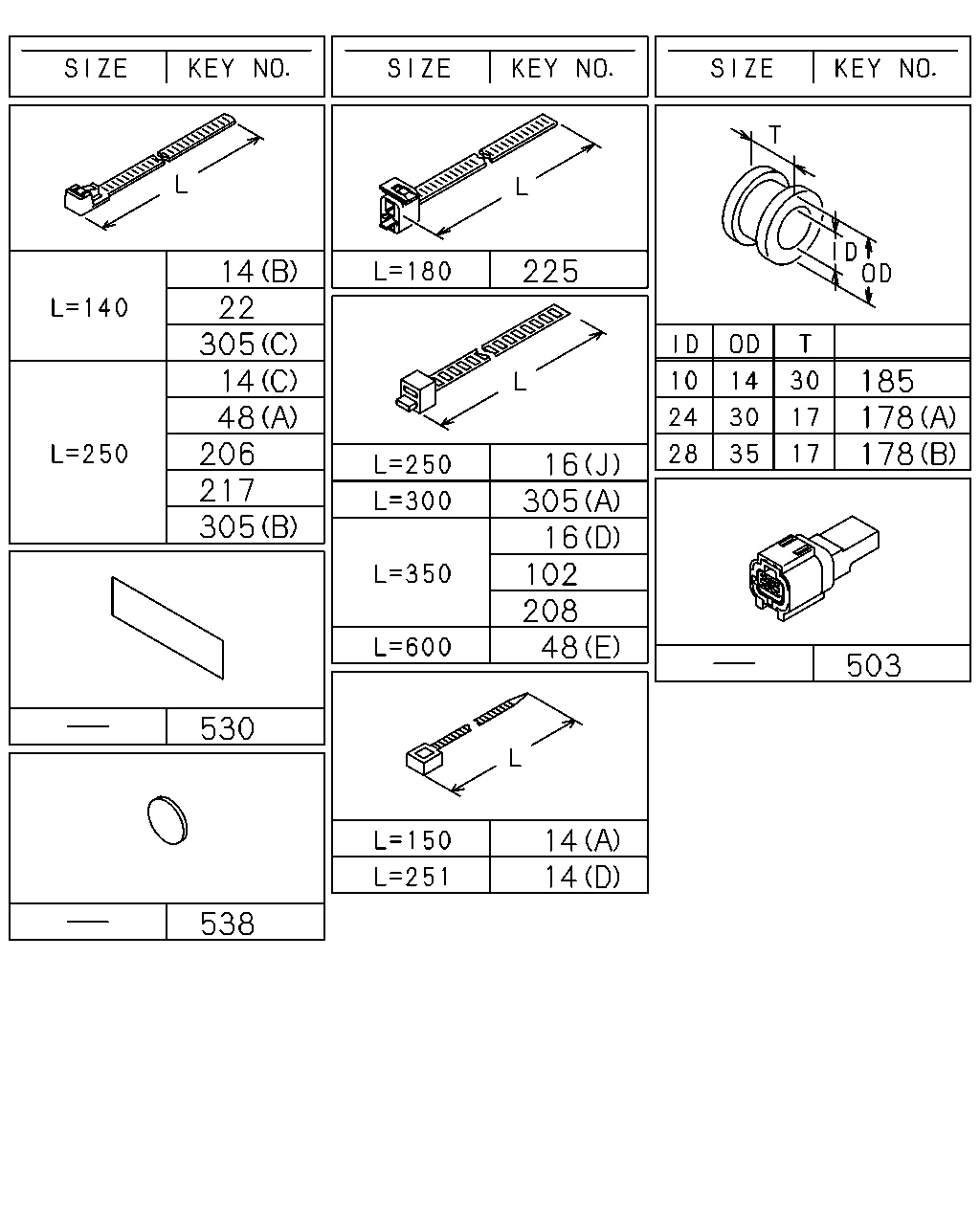

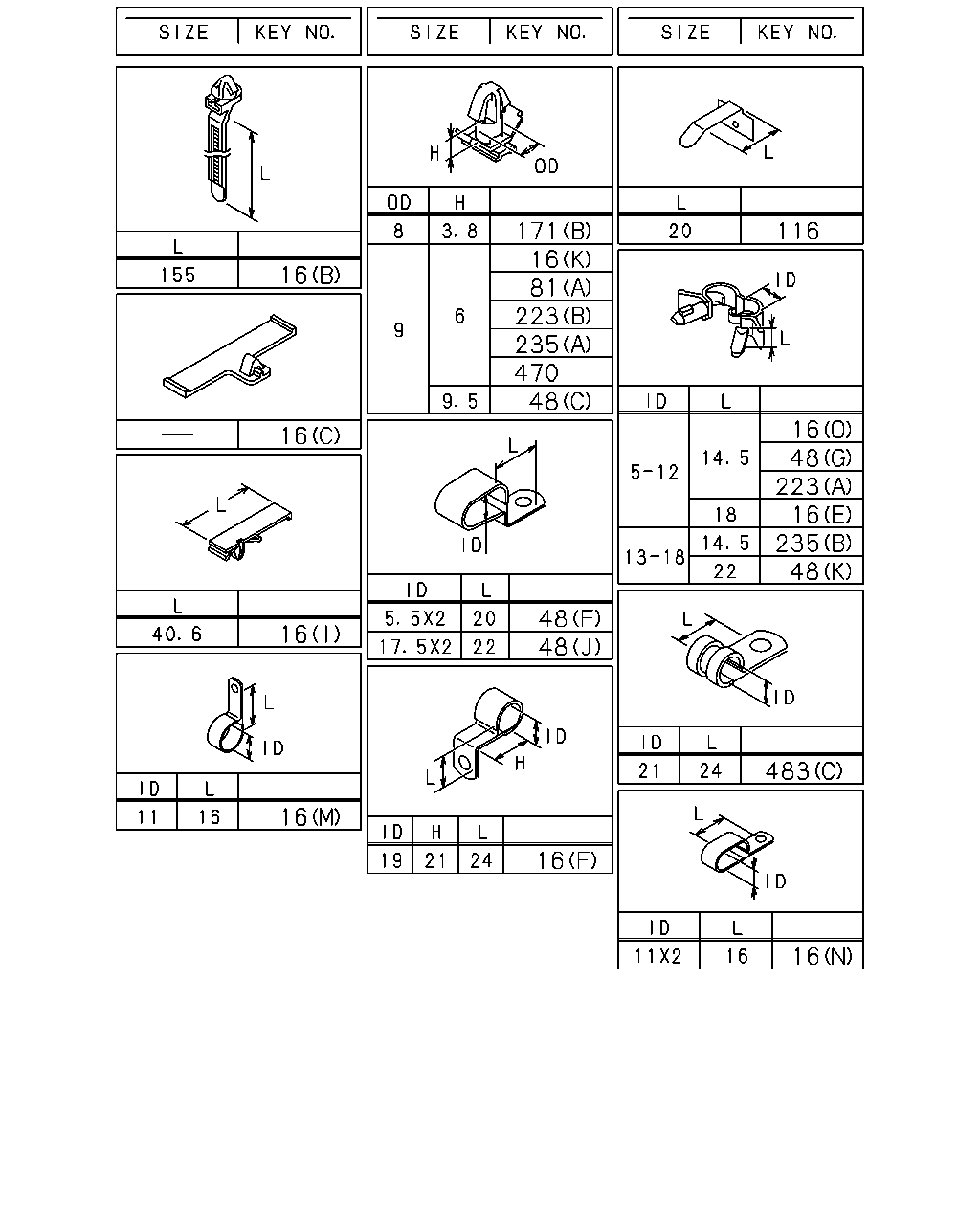

171 16 81 223 235 470 48 116 16 16 48 223 16 235 48 16 48 48 16 483 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (M) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (N) ID=11X2 L=16	1-09700-734-0	01	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (O) ID=5-12 L=14.5	1-09987-221-0	03	1	1206-
16	CLIP; HARNESS (L) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-
16	CLIP; HARNESS (G) ID=28 L=32	1-09701-107-1	02	1	1109-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1109-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	1109-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1109-
16	CLIP; HARNESS (E) ID=5-12 L=18	1-09709-287-0	01	1	1109-
16	CLIP; HARNESS (F) ID=19 H=21 L=24	5-09700-360-0	01	1	1109-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1109-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1109-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1109-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11 L=41	1-09700-403-0	01	1	1206-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (J) ID=17.5X2 L=25	5-09700-358-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=13-18 L=22	1-09709-292-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (B) ID=14 L=44	9-09917-427-0	12	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) ID=14 L=44	9-09917-427-0	02	1	1206-
48	CLIP; FRAME HARNESS (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1109-1205
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1206-
48	CLIP; FRAME HARNESS (H) ID=32 L=50	1-09701-055-1	01	1	1109-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1109-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1109-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1109-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1109-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	1109-1201
48	CLIP; FRAME HARNESS (B) ID=14 L=44	9-09917-427-0	01	1	1202-1205
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (B) ID=14 L=44	9-09917-427-0	10	1	1206-
48	CLIP; FRAME HARNESS (B) ID=14 L=44	9-09917-427-0	04	1	1109-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (B) ID=14 L=44	9-09917-427-0	10	1	1109-1205
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) ID=14 L=44	9-09917-427-0	01	1	1206-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1109-
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1109-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1109-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1109-
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1109-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1109-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1109-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1109-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (A) OD=9 H=6	1-09709-178-0	02	1	1206-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1206-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1109-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1109-
483	CLIP; ENG HARNESS (G) ID=28 L=32	1-09701-107-1	01	1	1109-
483	CLIP; ENG HARNESS (C) ID=21 L=24	1-09701-201-0	01	1	1109-
483	CLIP; ENG HARNESS (A)	1-09987-281-0	01	1	1109-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1109-
483	CLIP; ENG HARNESS (H) ID=18 L=25	8-94121-004-1	01	1	1109-
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1109-
483	CLIP; ENG HARNESS (E) L=36	8-94224-891-1	01	1	1109-

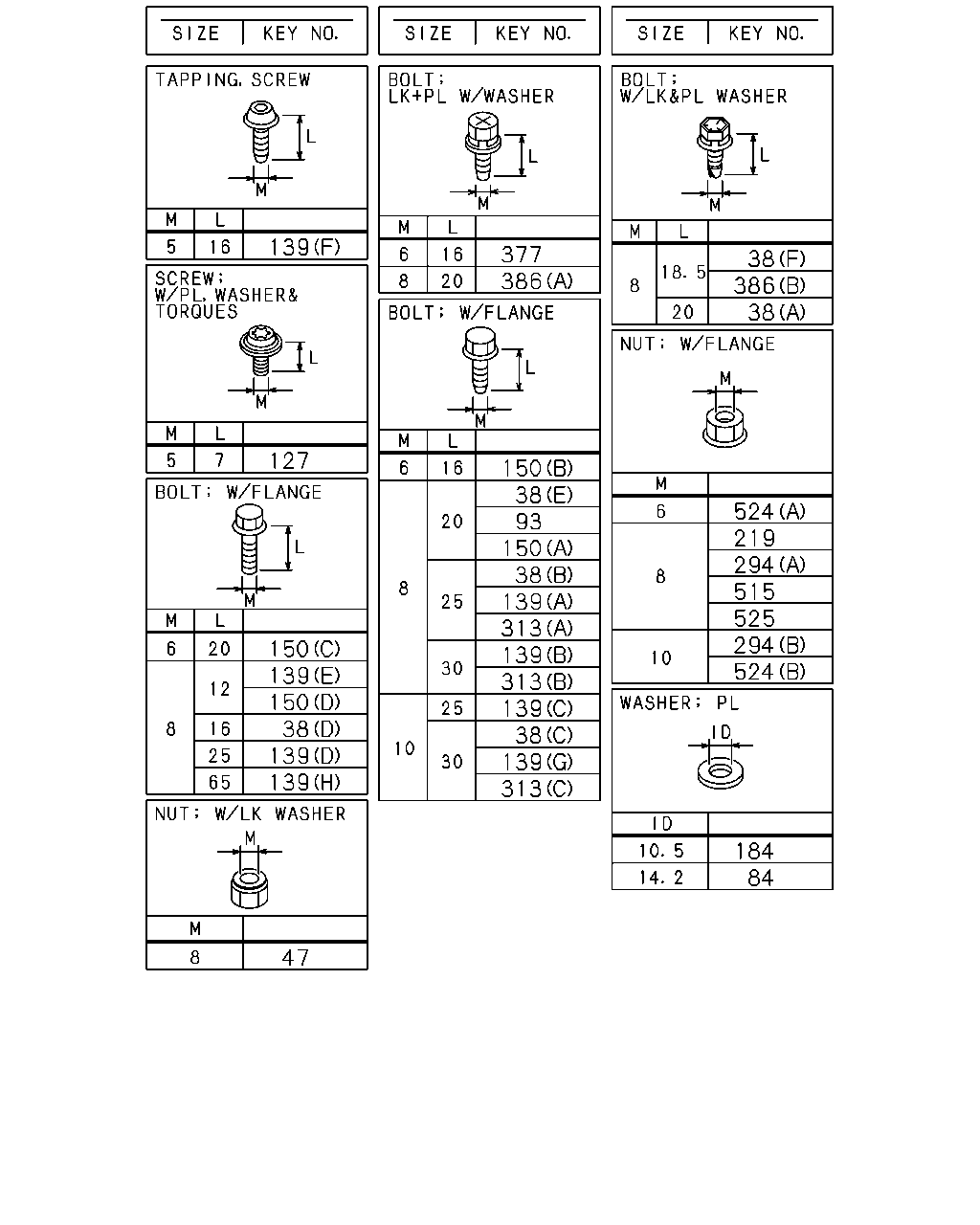

47 84 184 524 294 525 515 294 219 524 38 386 38 313 150 38 139 38 139 313 139 313 139 38 150 93 386 377 139 150 139 139 38 150 127 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (D) M8X16 FLANGE	0-28050-816-0	03	1	1206-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (E) M8X20 FLANGE	0-28650-820-0	01	1	1206-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1109-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1109-
38	BOLT; CLIP,HARNESS (C) M10X30 FLANGE	0-28651-030-0	01	1	1109-
38	BOLT; CLIP,HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1109-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-814-0	02	1	1206-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	1109-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1109-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (D) M8X25 FLANGE	0-28050-825-0	02	1	1206-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	1206-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1109-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	01	1	1109-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1109-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1109-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1109-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1109-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	1109-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1109-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1109-
150	BOLT; CLIP (C) M6X20 FLANGE	0-28050-620-0	02	1	1109-
150	BOLT; CLIP (D) M8X12 FLANGE	0-28050-812-0	01	1	1109-
150	BOLT; CLIP (B) M6X16 FLANGE	0-28650-616-0	01	1	1109-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1109-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1109-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1109-1205
219	NUT M8 FLANGE	0-91180-108-0	01	1	1206-
219	NUT ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	01	1	1206-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1109-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1206-
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	1206-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1206-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1109-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1109-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1109-1205
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1109-1205
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	04	1	1206-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1109-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1109-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1109-
313	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1109-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1109-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1109-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1109-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1109-
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1109-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1109-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1109-

14 22 305 14 48 206 217 305 225 185 178 178 16 305 16 102 208 48 503 530 14 14 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	1109-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1109-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1109-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	1109-1109
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	02	1	1109-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1109-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (M) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (N) ID=11X2 L=16	1-09700-734-0	01	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (O) ID=5-12 L=14.5	1-09987-221-0	03	1	1206-
16	CLIP; HARNESS (L) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-
16	CLIP; HARNESS (G) ID=28 L=32	1-09701-107-1	02	1	1109-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	1109-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	1109-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	1109-
16	CLIP; HARNESS (E) ID=5-12 L=18	1-09709-287-0	01	1	1109-
16	CLIP; HARNESS (F) ID=19 H=21 L=24	5-09700-360-0	01	1	1109-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1109-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	1109-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1109-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1109-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11 L=41	1-09700-403-0	01	1	1206-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (J) ID=17.5X2 L=25	5-09700-358-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=13-18 L=22	1-09709-292-0	01	1	1206-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (B) ID=14 L=44	9-09917-427-0	12	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) ID=14 L=44	9-09917-427-0	02	1	1206-
48	CLIP; FRAME HARNESS (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1109-1205
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1206-
48	CLIP; FRAME HARNESS (H) ID=32 L=50	1-09701-055-1	01	1	1109-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	1109-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	1109-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1109-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1109-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	1109-1201
48	CLIP; FRAME HARNESS (B) ID=14 L=44	9-09917-427-0	01	1	1202-1205
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (B) ID=14 L=44	9-09917-427-0	10	1	1206-
48	CLIP; FRAME HARNESS (B) ID=14 L=44	9-09917-427-0	04	1	1109-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (B) ID=14 L=44	9-09917-427-0	10	1	1109-1205
48	CLIP; FRAME HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B) ID=14 L=44	9-09917-427-0	01	1	1206-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1109-
102	CLIP; BAND L=350	1-09707-183-0	02	1	1109-
178	GROMMET; HARNESS ANTI LOCK BRAKE(JE5) (A) ID=24 OD=30 T=17	9-09956-092-1	02	1	1206-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=17	9-09956-092-1	01	1	1109-1205
178	GROMMET; HARNESS EXC. ANTI LOCK BRAKE(JE5) (A) ID=24 OD=30 T=17	9-09956-092-1	01	1	1206-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1109-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	04	1	1109-
185	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	1109-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	1109-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1109-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1109-
225	CLIP; AIR TANK HARNESS L=180	1-09707-162-1	01	1	1109-
305	CLIP; ENG HARNESS (A) L=300	1-09707-001-1	01	1	1109-
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	01	1	1109-
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	01	1	1109-
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	02	1	1109-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1109-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1109-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1109-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
