Sayfa 4-10 - Isuzu EPC

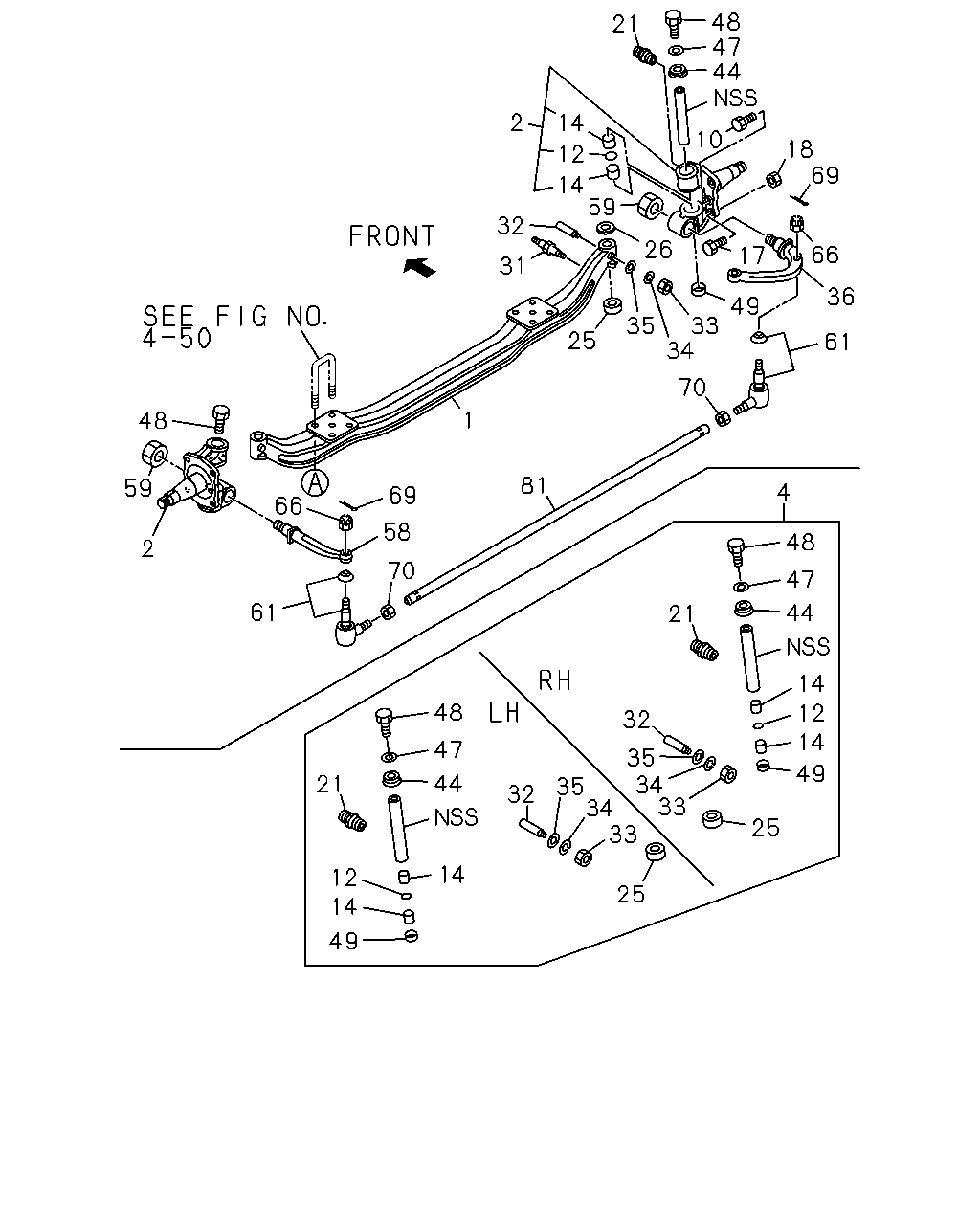

4-10 — FRONT AXLE (#47338) — 162 parça

48 47 44 21 2 14 10 18 69 12 14 59 26 32 66 17 31 36 49 35 33 34 25 61 70 48 1 59 81 4 69 66 58 48 2 70 47 61 44 21 14 12 14 48 32 47 35 34 33 49 44 21 35 34 33 32 25 14 12 14 25 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94246-310-4	01	1	9402-9711	●	●	●	●	●	●
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97137-585-0	01	1	9712-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94169-412-0	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94169-411-0	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-781-0	01	1	9712-9804	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-783-0	01	1	9712-9804	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-781-0	01	1	9805-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-783-0	01	1	9805-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9312-9510	●					●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9511-	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9312-9510	●					●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9511-	●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(6PP)	5-87830-978-1	01	1	9312-9711	●	●	●	●	●	●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(6PP)	5-87831-608-0	01	1	9712-	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	9312-9409	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	9410-9510	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S)	8-94107-661-0	01	1	9410-9510				●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	9511-9711	●	●	●		●	●
10	06.009 PLUG; PLATE,KNUCKLE 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	9511-9711				●
10	06.009 PLUG; PLATE,KNUCKLE 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	9511-9711				●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	9712-	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-94107-661-0	02	1	9410-9711				●
12	06.021 GASKET; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225	9-09561-230-0	02	1	9312-	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) DAIDO	8-94107-672-2	04	1	9312-9711	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94127-925-2	04	1	9312-9711	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) DAIDO	8-94107-672-2	04	1	9712-9804	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94127-925-2	04	1	9712-9804	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) DAIDO	8-94107-672-2	04	1	9805-	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94127-925-2	04	1	9805-	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE (ASD) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X27.5	8-94433-409-1	03	1	9712-9804	●
17	06.009 BOLT; STOPPER KNUCKLE (ASD) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X27.5	8-94433-409-1	03	1	9805-	●
17	06.009 BOLT; STOPPER KNUCKLE (09V),(10V),(22H),(23H),(25H),(26H), (29H),(45C) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X24 EYE-BOLT	5-09000-208-1	03	1	9312-	●
17	06.009 BOLT; STOPPER KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X24 EYE-BOLT	5-09000-208-1	03	1	9312-		●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE (90C) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X27.5	8-94433-409-1	03	1	9312-9603	●
17	06.009 BOLT; STOPPER KNUCKLE (ASD),(90C) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X27.5	8-94433-409-1	03	1	9604-9711	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (ASD) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94433-410-1	03	1	9712-9804	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (ASD) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94433-410-1	03	1	9805-	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (09V),(10V),(22H),(23H),(25H),(26H), (29H),(45C) EXC. FRT INDEPENDENT SUSPENSION(6PP)	9-09840-025-0	03	1	9312-9407	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	9-09840-025-0	03	1	9312-9407		●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (09V),(10V),(22H),(23H),(25H),(26H), (29H),(45C) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347 M12	9-99111-512-0	03	1	9408-	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347 M12	9-99111-512-0	03	1	9408-		●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (90C) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94433-410-1	03	1	9312-9603	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (ASD),(90C) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94433-410-1	03	1	9604-9711	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9312-	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.021	8-94248-883-1	02	1	9312-9711	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-943-0	01	1	9712-9804	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.021	8-94248-883-1	01	1	9712-9804	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-943-0	01	1	9805-	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.021	8-94248-883-1	01	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.50	8-94162-574-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.55	8-94162-575-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.60	8-94162-576-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.65	8-94162-577-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.70	8-94174-352-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.80	8-94174-354-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.90	8-94174-356-0	AR	1	9312-9711	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.50	8-94162-574-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.55	8-94162-575-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.60	8-94162-576-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.65	8-94162-577-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.460 T=1.95	8-94168-490-0	01	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.70	8-94174-352-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.80	8-94174-354-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.90	8-94174-356-0	AR	1	9712-9804	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.50	8-94162-574-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.55	8-94162-575-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.60	8-94162-576-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.65	8-94162-577-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.460 T=1.95	8-94168-490-0	01	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.70	8-94174-352-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.80	8-94174-354-0	AR	1	9805-	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.90	8-94174-356-0	AR	1	9805-	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94249-010-1	02	1	9312-9409	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94249-010-1	02	1	9410-9412	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S)	8-94249-010-1	02	1	9410-9412				●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94249-010-1	02	1	9501-9711	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-944-0	02	1	9712-	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-94101-463-0	02	1	9410-9412				●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-726-0	02	1	9312-9706	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-945-1	02	1	9707-	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	9312-	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.002 ID=10.2	9-09150-510-0	02	1	9312-	●	●	●	●	●	●
35	06.216 WASHER; PL,KEY BOLT TO KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.792 ID=10.5 OD=26	9-09160-710-0	02	1	9312-9706	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.525	8-97070-138-0	01	1	9312-9711	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97137-454-0	01	1	9712-	●	●	●	●	●	●
44	06.225 COVER; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=36	8-94248-675-0	02	1	9312-	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.896 ID=10.5	9-09164-510-0	02	1	9312-	●	●	●	●	●	●
48	06.225 BOLT; COVER EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.642 M10X16	0-20801-016-0	02	1	9312-	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-566-0	02	1	9312-	●	●	●	●	●	●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-912-0	01	1	9312-9711	●	●	●	●	●	●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97138-303-0	01	1	9712-	●	●	●	●	●	●
59	06.104 NUT; TIE ROD ARM EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-724-0	02	1	9312-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-349-1	01	1	9312-9711	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-348-1	01	1	9312-9711	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-101-0	01	1	9712-9804	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-100-0	01	1	9712-9804	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-101-1	01	1	9805-	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-100-1	01	1	9805-	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M16 SLOTTED	9-99116-516-0	02	1	9312-	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9312-9703	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9704-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20 LH THREAD	8-94254-726-0	01	1	9312-9711	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20	9-99111-420-0	01	1	9312-9711	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20 LH THREAD	8-94254-726-0	01	1	9712-9804	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20	9-99111-420-0	01	1	9712-9804	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20 LH THREAD	8-94254-726-0	01	1	9805-	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20	9-99111-420-0	01	1	9805-	●	●	●	●	●	●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97061-866-0	01	1	9312-9711	●	●	●	●	●	●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-023-0	01	1	9712-	●	●	●	●	●	●

132 129 131 86 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94169-412-0	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94169-411-0	01	1	9312-9711	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-781-0	01	1	9712-9804	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-783-0	01	1	9712-9804	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-781-0	01	1	9805-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-783-0	01	1	9805-	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9312-9510	●					●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9511-	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9312-9510	●					●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9511-	●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97081-578-1	02	1	9312-9510	●					●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97081-578-1	02	1	9511-	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-598-1	01	1	9312-9410	●					●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-592-0	01	1	9411-9510	●					●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-592-0	01	1	9511-	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-597-1	01	1	9312-9410	●					●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-591-0	01	1	9411-9510	●					●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-591-0	01	1	9511-	●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-208-2	01	1	9312-9510	●					●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-208-3	01	1	9511-	●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-207-2	01	1	9312-9510	●					●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-207-3	01	1	9511-	●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-145-0	02	1	9312-9510	●					●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-145-0	02	1	9511-	●

116 85 126 116 115 134 135 82 87 126 109 108 85 113 109 108 91 96 124 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	F
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-94146-299-0	01	1	9312-9611	●	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-97170-624-1	01	1	9612-	●	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245	9-51779-027-0	04	1	9312-	●	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-94146-147-0	01	1	9312-9611	●	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97170-634-0	01	1	9612-9711	●	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-94146-146-0	01	1	9312-9611	●	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97170-633-0	01	1	9612-9711	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94252-359-0	02	1	9312-9611	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-752-0	02	1	9612-	●	●	●
96	07.242 NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	9312-	●	●	●
108	07.242 CAP FRONT STABILIZER SHAFT<F59> 07.245	9-51779-027-0	04	1	9312-9611	●	●	●
108	07.242 CAP FRONT STABILIZER SHAFT<F59>	8-97170-631-0	04	1	9612-	●	●	●
109	07.244 BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59>	5-51631-017-0	04	1	9312-9611	●	●	●
109	07.244 BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-622-0	04	1	9612-	●	●	●
113	07.242 BRACKET; STAB TO BODY,LWR FRONT STABILIZER SHAFT<F59>	8-94452-452-2	02	1	9312-9611	●	●	●
113	07.242 BRACKET; STAB TO BODY,LWR FRONT STABILIZER SHAFT<F59>	8-97170-746-0	02	1	9612-	●	●	●
115	07.242 WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245 ID=15.0 OD=32	9-51631-049-0	02	1	9312-	●	●	●
116	07.242 NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 09.011 M10	9-09110-410-0	04	1	9312-9412	●	●	●
116	07.242 NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	9501-	●	●	●
124	07.242 BRACKET; STAB TO BODY,UPR FRONT STABILIZER SHAFT<F59>	8-94252-361-0	02	1	9312-9611	●	●	●
124	07.242 BRACKET; STAB TO BODY,UPR FRONT STABILIZER SHAFT<F59>	8-97170-751-0	02	1	9612-	●	●	●
125	07.242 BOLT; STAB TO BODY FRONT STABILIZER SHAFT<F59> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9312-	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> 07.244	5-51631-017-0	04	1	9312-	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-94146-145-0	01	1	9312-9611	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97170-630-0	01	1	9612-	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-94146-144-0	01	1	9312-9611	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97170-629-0	01	1	9612-	●	●	●
135	07.240 BOLT; BRKT TO STAB FRONT STABILIZER SHAFT<F59>	8-94252-447-1	02	1	9312-9611	●	●	●
135	07.240 BOLT; BRKT TO STAB FRONT STABILIZER SHAFT<F59>	8-97170-627-0	02	1	9612-9711	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
