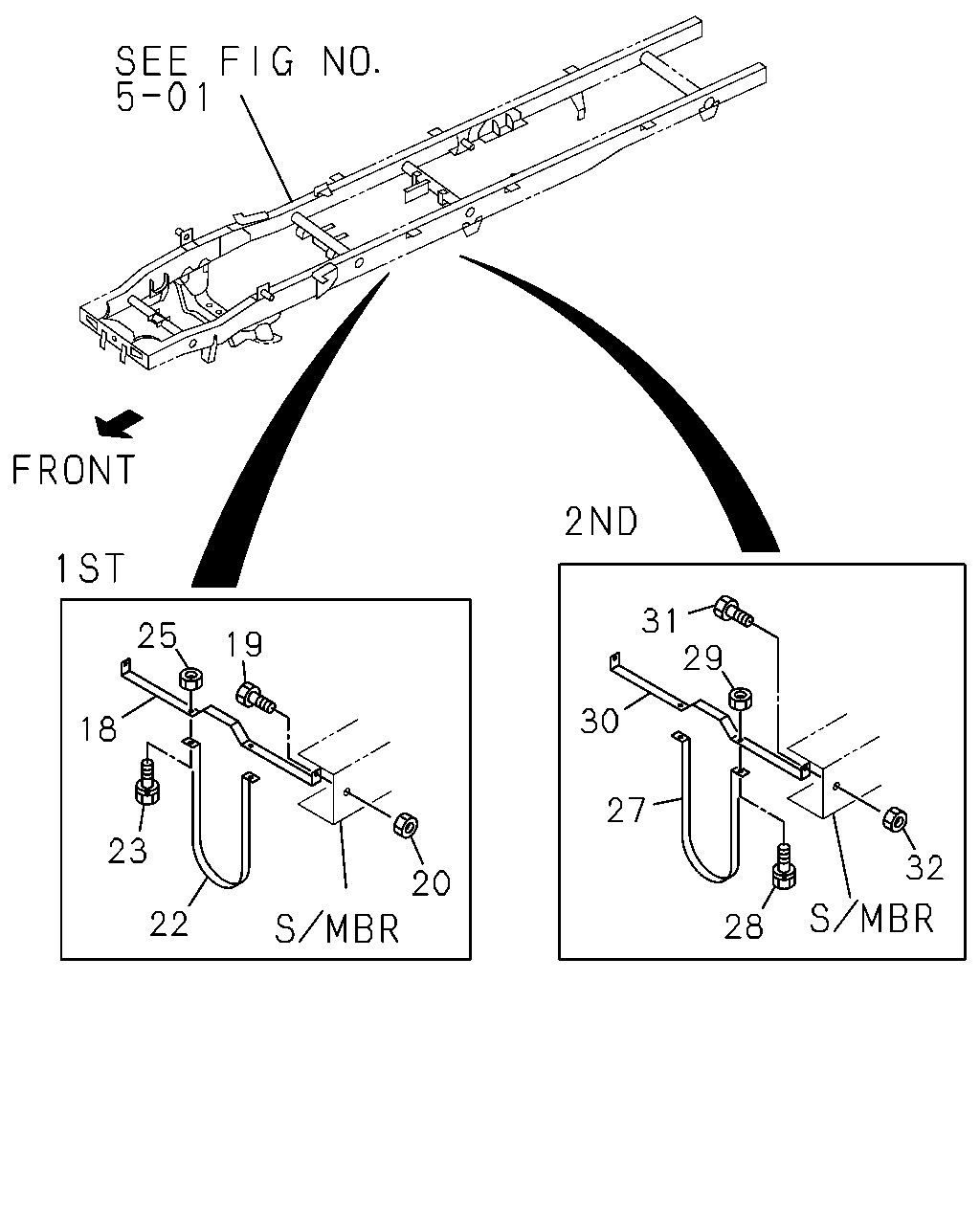

4-02 — PROPELLER SHAFT GUARD (#47337) — 32 parça

31 29 25 19 30 18 27 23 32 20 22 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	05.546 BRACKET; PROP SHAFT GUARD NEW ZEALAND EQUIPMENT(PK5)	8-97035-289-1	01	1	9312-9510	●
18	05.546 BRACKET; PROP SHAFT GUARD GUARD PROP SHAFT<7NK>	8-97035-289-1	01	1	9511-	●
18	05.546 BRACKET; PROP SHAFT GUARD NEW ZEALAND EQUIPMENT(PK5)	8-97035-290-0	01	1	9312-9510		●
18	05.546 BRACKET; PROP SHAFT GUARD GUARD PROP SHAFT<7NK>	8-97035-290-0	01	1	9511-		●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD NEW ZEALAND EQUIPMENT(PK5) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9312-9510	●	●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9511-9702	●	●
19	05.546 BOLT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9703-	●	●
20	05.546 NUT; BRKT,PROP SHAFT GUARD NEW ZEALAND EQUIPMENT(PK5) 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9510	●	●
20	05.546 NUT; BRKT,PROP SHAFT GUARD GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-	●	●
22	05.546 GUARD; PROP SHAFT NEW ZEALAND EQUIPMENT(PK5) L=220	8-94115-619-0	01	1	9312-9510	●
22	05.546 GUARD; PROP SHAFT GUARD PROP SHAFT<7NK> L=220	8-94115-619-0	01	1	9511-	●
22	05.546 GUARD; PROP SHAFT NEW ZEALAND EQUIPMENT(PK5) L=227	8-94116-995-1	01	1	9312-9510		●
22	05.546 GUARD; PROP SHAFT GUARD PROP SHAFT<7NK> L=227	8-94116-995-1	01	1	9511-		●
23	05.546 BOLT; GUARD NEW ZEALAND EQUIPMENT(PK5) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9411	●	●
23	05.546 BOLT; GUARD NEW ZEALAND EQUIPMENT(PK5) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-9510	●	●
23	05.546 BOLT; GUARD GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-	●	●
25	05.546 NUT; GUARD NEW ZEALAND EQUIPMENT(PK5) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510	●	●
25	05.546 NUT; GUARD GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-	●	●
27	05.546 GUARD; PROP SHAFT,2ND NEW ZEALAND EQUIPMENT(PK5) L=227	8-94116-995-1	01	1	9312-9510		●
27	05.546 GUARD; PROP SHAFT,2ND GUARD PROP SHAFT<7NK> L=227	8-94116-995-1	01	1	9511-		●
28	05.546 BOLT; GUARD,PROP SHAFT,2ND NEW ZEALAND EQUIPMENT(PK5) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9312-9411		●
28	05.546 BOLT; GUARD,PROP SHAFT,2ND NEW ZEALAND EQUIPMENT(PK5) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-9510		●
28	05.546 BOLT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9511-		●
29	05.546 NUT; GUARD,PROP SHAFT,2ND NEW ZEALAND EQUIPMENT(PK5) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9510		●
29	05.546 NUT; GUARD,PROP SHAFT,2ND GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE	0-91150-108-0	02	1	9511-		●
30	05.546 BRACKET; PROP SHAFT,2ND NEW ZEALAND EQUIPMENT(PK5)	8-97035-290-0	01	1	9312-9510		●
30	05.546 BRACKET; PROP SHAFT,2ND GUARD PROP SHAFT<7NK>	8-97035-290-0	01	1	9511-		●
31	05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD NEW ZEALAND EQUIPMENT(PK5) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9312-9510		●
31	05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD GUARD PROP SHAFT<7NK> 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9511-9702		●
31	05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9703-		●
32	05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD NEW ZEALAND EQUIPMENT(PK5) 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9510		●
32	05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE	0-91150-110-0	02	1	9511-		●
