◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#47334) — 142 parça

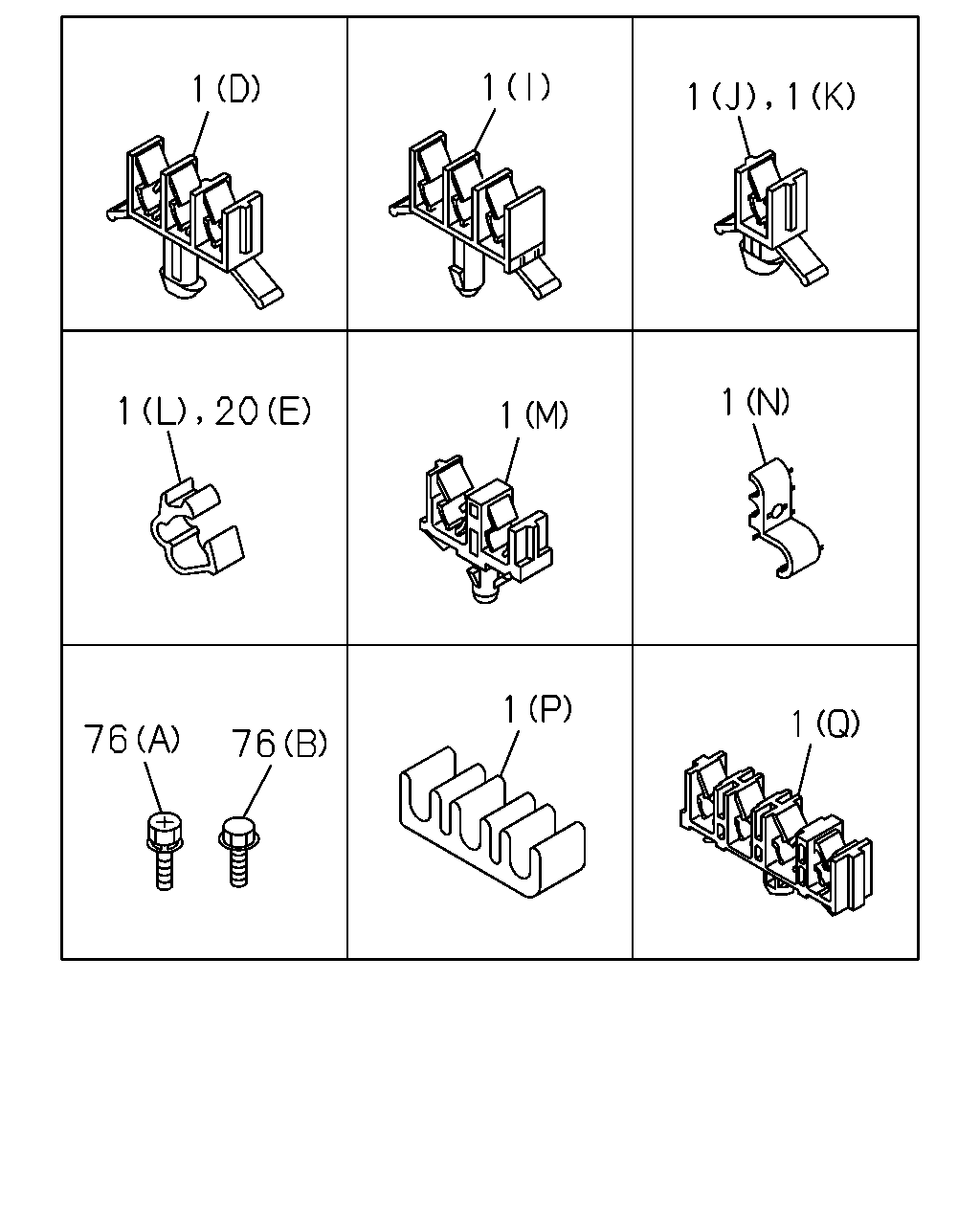

çizim 69211
1 1 1 1 1 20 1 1 1 1 76 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) ID=9 & 7 L=15 & 15 		8-97031-813-0 01 1 9507- ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (N) 		8-97074-319-1 01 1 9507- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (N) 		8-97074-319-1 01 1 9507- ●
1 04.686 CLIP; OIL PIPE TO BODY
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9312-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9511-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9607- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9607- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9312-9503 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH> (J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9504-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9511-9605 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9606- ●
1 04.686 CLIP; OIL PIPE TO BODY
(J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9606- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 01 1 9507- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 06.672 (C) ID=10 & 4.8X3 		8-97038-938-0 01 1 9507-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 06.672 (C) ID=10 & 4.8X3 		8-97038-938-0 02 1 9607- ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=4.8 H=26 		8-94249-685-0 AR 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 AR 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
1G) ID=4.8X2 		8-94316-410-0 AR 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 AR 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9408 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9408 ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9408 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9409-9506 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9409-9506 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9409-9506 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9507-9510 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9507-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9507-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9607-9711 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9607-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9607-9711 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9712- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT LSPV<6PH> (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 9312- ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT LSPV<6PH> 04.685 (P) ID=4.76X3 		8-94122-333-0 01 1 9512-9704 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
04.685 (P) ID=4.76X3 		8-94122-333-0 01 1 9705- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
DUMP CHASSIS(V4D) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9312-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9511- ●
1 04.686 CLIP; OIL PIPE TO BODY
DUMP CHASSIS(V4D) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9511- ●
1 04.686 CLIP; OIL PIPE TO BODY
REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (Q) ID=8 & 6.5X2 &4.8 		8-94492-600-1 01 1 9608- ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. REAR WIDE TREAD(V4T) 03.483 (O) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 9312- ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. REAR WIDE TREAD(V4T) 03.483 (O) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 9312- ●
1 04.686 CLIP; OIL PIPE TO BODY
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 03.162 (K) H=28.5 		8-94486-808-0 01 1 9312- ●
1 04.686 CLIP; OIL PIPE TO BODY
4HF1 ENG(RLS) (L) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9312- ●
1 04.686 CLIP; OIL PIPE TO BODY
4HF1 ENG(RLS) (M) ID=4.8X2 		8-94455-816-0 01 1 9312- ●
20 04.686 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9312- ● ● ● ● ● ●
76 04.686 BOLT; BRKT,OIL PIPE
16.714 (A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9401-9605 ● ● ● ● ● ●
76 04.686 BOLT; BRKT,OIL PIPE
02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9606- ● ● ● ● ● ●

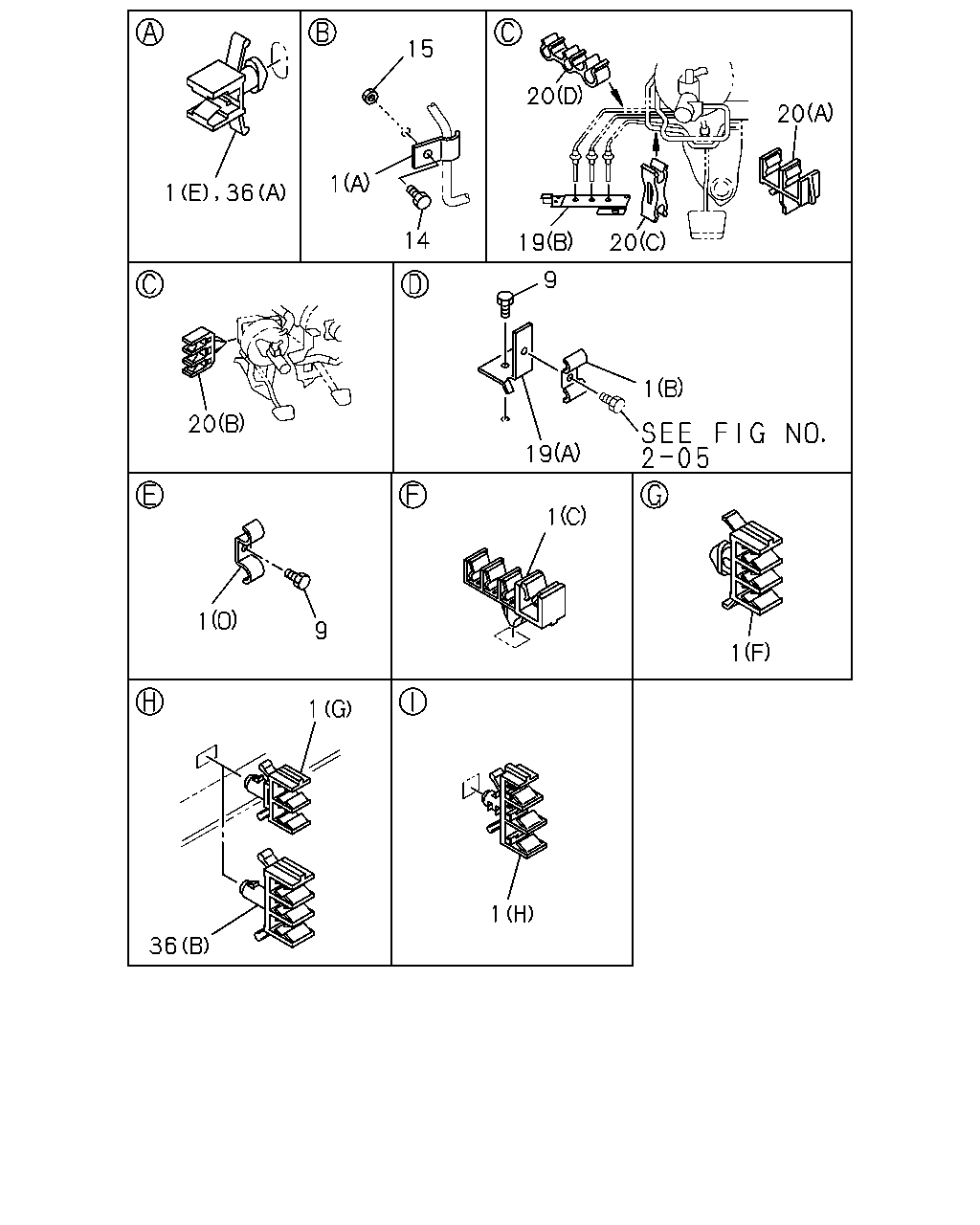

çizim 70972
15 20 20 1 1 36 14 19 20 9 1 20 19 1 1 9 1 1 1 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) ID=9 & 7 L=15 & 15 		8-97031-813-0 01 1 9507- ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) (N) 		8-97074-319-1 01 1 9507- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (N) 		8-97074-319-1 01 1 9507- ●
1 04.686 CLIP; OIL PIPE TO BODY
4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9312-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9511-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4BE1 ENG(RLH) AUSTRALIA EQUIPMENT(RR3) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9607- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 9607- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) (J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9312-9503 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH> (J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9504-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9511-9605 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9606- ●
1 04.686 CLIP; OIL PIPE TO BODY
(J) ID=4.8 H=32.5 		8-94405-141-0 01 1 9606- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 01 1 9507- ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 06.672 (C) ID=10 & 4.8X3 		8-97038-938-0 01 1 9507-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 06.672 (C) ID=10 & 4.8X3 		8-97038-938-0 02 1 9607- ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=4.8 H=26 		8-94249-685-0 AR 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 AR 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
1G) ID=4.8X2 		8-94316-410-0 AR 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 AR 1 9312- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9408 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9408 ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9312-9408 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9409-9506 ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9409-9506 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9409-9506 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9507-9510 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9507-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9507-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JB1 ENG(RLF),4BE1 ENG(RLH) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9511-9606 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9607-9711 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9607-9711 ●
1 04.686 CLIP; OIL PIPE TO BODY
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9607-9711 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9712- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT LSPV<6PH> (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 9312- ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
BRK WHL LK CONT LSPV<6PH> 04.685 (P) ID=4.76X3 		8-94122-333-0 01 1 9512-9704 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
04.685 (P) ID=4.76X3 		8-94122-333-0 01 1 9705- ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9312-9510 ● ●
1 04.686 CLIP; OIL PIPE TO BODY
DUMP CHASSIS(V4D) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9312-9510 ●
1 04.686 CLIP; OIL PIPE TO BODY
FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9511- ●
1 04.686 CLIP; OIL PIPE TO BODY
DUMP CHASSIS(V4D) 00.785 (A) B=14 L=16 		9-09916-996-0 02 1 9511- ●
1 04.686 CLIP; OIL PIPE TO BODY
REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (Q) ID=8 & 6.5X2 &4.8 		8-94492-600-1 01 1 9608- ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. REAR WIDE TREAD(V4T) 03.483 (O) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 9312- ●
1 04.686 CLIP; OIL PIPE TO BODY
EXC. REAR WIDE TREAD(V4T) 03.483 (O) ID=9 & 7 L=15 & 15 		1-09700-060-0 01 1 9312- ●
1 04.686 CLIP; OIL PIPE TO BODY
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 03.162 (K) H=28.5 		8-94486-808-0 01 1 9312- ●
1 04.686 CLIP; OIL PIPE TO BODY
4HF1 ENG(RLS) (L) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9312- ●
1 04.686 CLIP; OIL PIPE TO BODY
4HF1 ENG(RLS) (M) ID=4.8X2 		8-94455-816-0 01 1 9312- ●
9 04.686 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9510 ● ●
9 04.686 BOLT; BRKT
EXC. REAR WIDE TREAD(V4T) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9510 ●
9 04.686 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9511-9711 ●
9 04.686 BOLT; BRKT
EXC. REAR WIDE TREAD(V4T) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9511-9711 ●
9 04.686 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
9 04.686 BOLT; BRKT
EXC. REAR WIDE TREAD(V4T) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
14 04.686 BOLT; CLIP,OIL PIPE
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9507-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9712- ●
14 04.686 BOLT; CLIP,OIL PIPE
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9712- ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. REAR WIDE TREAD(V4T) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9712- ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. REAR WIDE TREAD(V4T) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9712- ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 02 1 9312-9510 ● ●
14 04.686 BOLT; CLIP,OIL PIPE
DUMP CHASSIS(V4D) 03.670 M6X20 FLANGE 		0-28080-620-0 02 1 9312-9510 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 02 1 9511-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
DUMP CHASSIS(V4D) 03.670 M6X20 FLANGE 		0-28080-620-0 02 1 9511-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9712- ●
14 04.686 BOLT; CLIP,OIL PIPE
DUMP CHASSIS(V4D) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9712- ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. REAR WIDE TREAD(V4T) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9312-9506 ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. REAR WIDE TREAD(V4T) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9312-9506 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9507-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. REAR WIDE TREAD(V4T) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9507-9711 ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. REAR WIDE TREAD(V4T) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9507-9711 ●
15 04.686 NUT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9507- ●
19 04.686 BRACKET; OIL PIPE
(B) 		8-97042-258-4 01 1 9312- ● ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97068-790-0 01 1 9312-9510 ● ●
19 04.686 BRACKET; OIL PIPE
EXC. REAR WIDE TREAD(V4T) (A) 		8-97068-790-0 01 1 9312-9510 ●
19 04.686 BRACKET; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97068-790-0 01 1 9511- ●
19 04.686 BRACKET; OIL PIPE
EXC. REAR WIDE TREAD(V4T) (A) 		8-97068-790-0 01 1 9511- ●
20 04.686 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9312- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9312- ● ● ● ● ● ●
36 04.686 CLIP; BRK PIPE
EXC. REAR WIDE TREAD(V4T) (A) ID=4.8 H=26 		8-94249-685-0 02 1 9312- ●
36 04.686 CLIP; BRK PIPE
EXC. REAR WIDE TREAD(V4T) 03.162 (B) H=28.5 		8-94486-808-0 01 1 9312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
