◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50694 - NKR-RHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#47333) — 39 parça

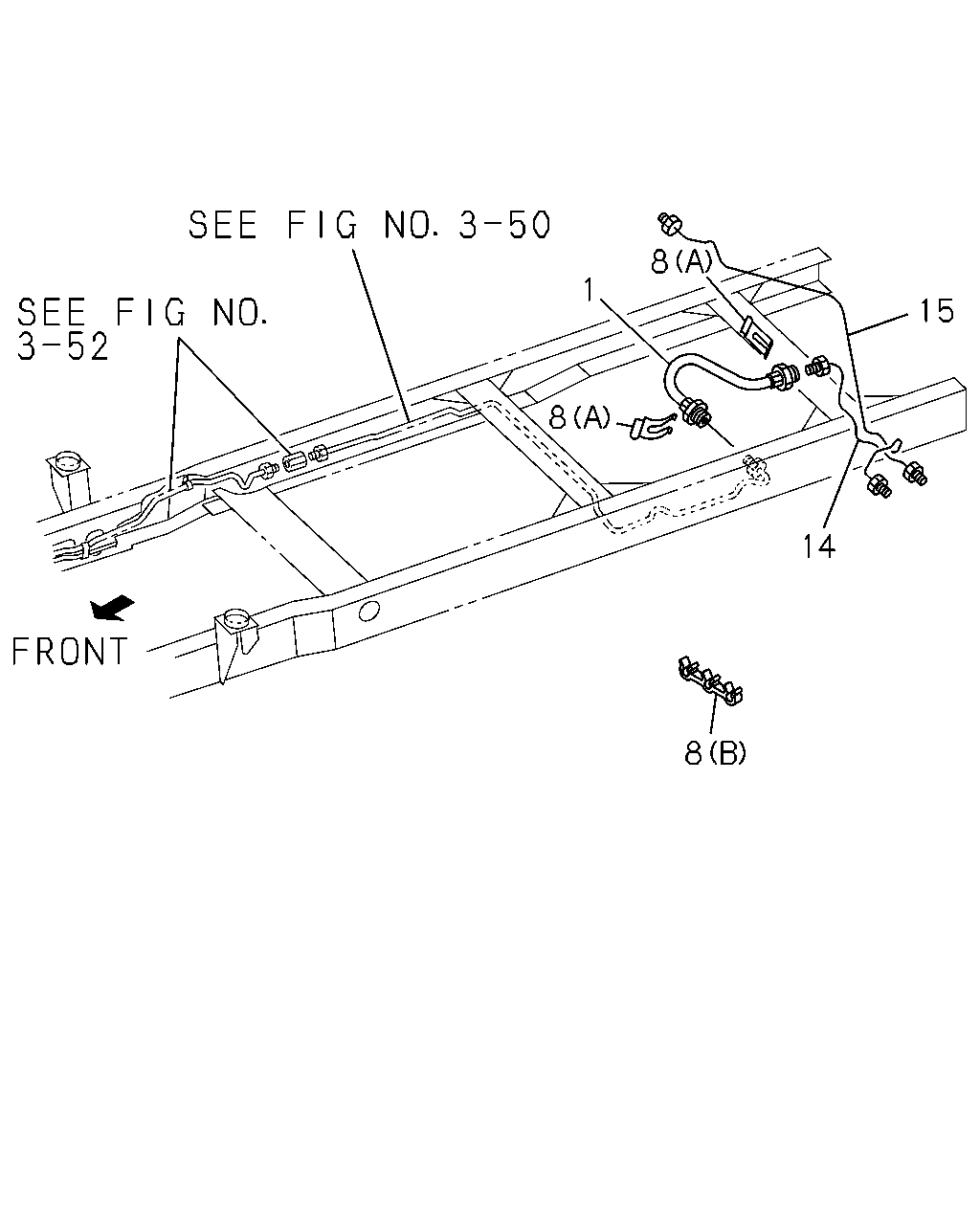

çizim 16275
8 1 15 8 14 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 9312- ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
04.681 (A) 		8-94137-662-0 02 1 9312- ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
(B) 		8-97076-471-0 01 1 9312- ● ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97047-812-0 01 1 9312- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) 		8-97076-838-2 01 1 9312- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-97070-590-0 01 1 9312-9409 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 9312-9409 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) 		8-97070-590-0 01 1 9410- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97070-590-0 01 1 9410- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 9410- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		8-97034-528-1 01 1 9312- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97122-716-0 01 1 9410- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97035-848-0 01 1 9312- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) 		8-97034-532-1 01 1 9312- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97047-813-2 01 1 9312- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) 		8-97089-922-0 01 1 9312- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		8-97034-531-0 01 1 9312- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97034-530-0 01 1 9312-9401 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97034-530-0 01 1 9312-9401 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97034-530-0 01 1 9402-9510 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. INDONESIA EQUIPMENT(S4S) 		8-97034-530-0 01 1 9402-9510 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97034-530-0 01 1 9511-9606 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. INDONESIA EQUIPMENT(S4S) 		8-97034-530-0 01 1 9511-9606 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97034-530-0 01 1 9607- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. INDONESIA EQUIPMENT(S4S) 		8-97034-530-0 01 1 9607- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97122-717-0 01 1 9410- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) 		8-97070-591-0 01 1 9312-9401 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97070-591-0 01 1 9402-9409 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) 		8-97070-591-0 01 1 9402-9409 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97070-591-0 01 1 9410-9510 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97070-591-0 01 1 9410-9510 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-97070-591-0 01 1 9511-9711 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97070-591-0 01 1 9511-9711 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97070-591-0 01 1 9511-9711 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 		8-97070-591-0 01 1 9712- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4BE1 ENG(RLH) INDONESIA EQUIPMENT(S4S) 		8-97070-591-0 01 1 9712- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97070-591-0 01 1 9712- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) L=1429 		8-94128-140-3 01 1 9312- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) 		8-97089-923-0 01 1 9312- ●
